02-18

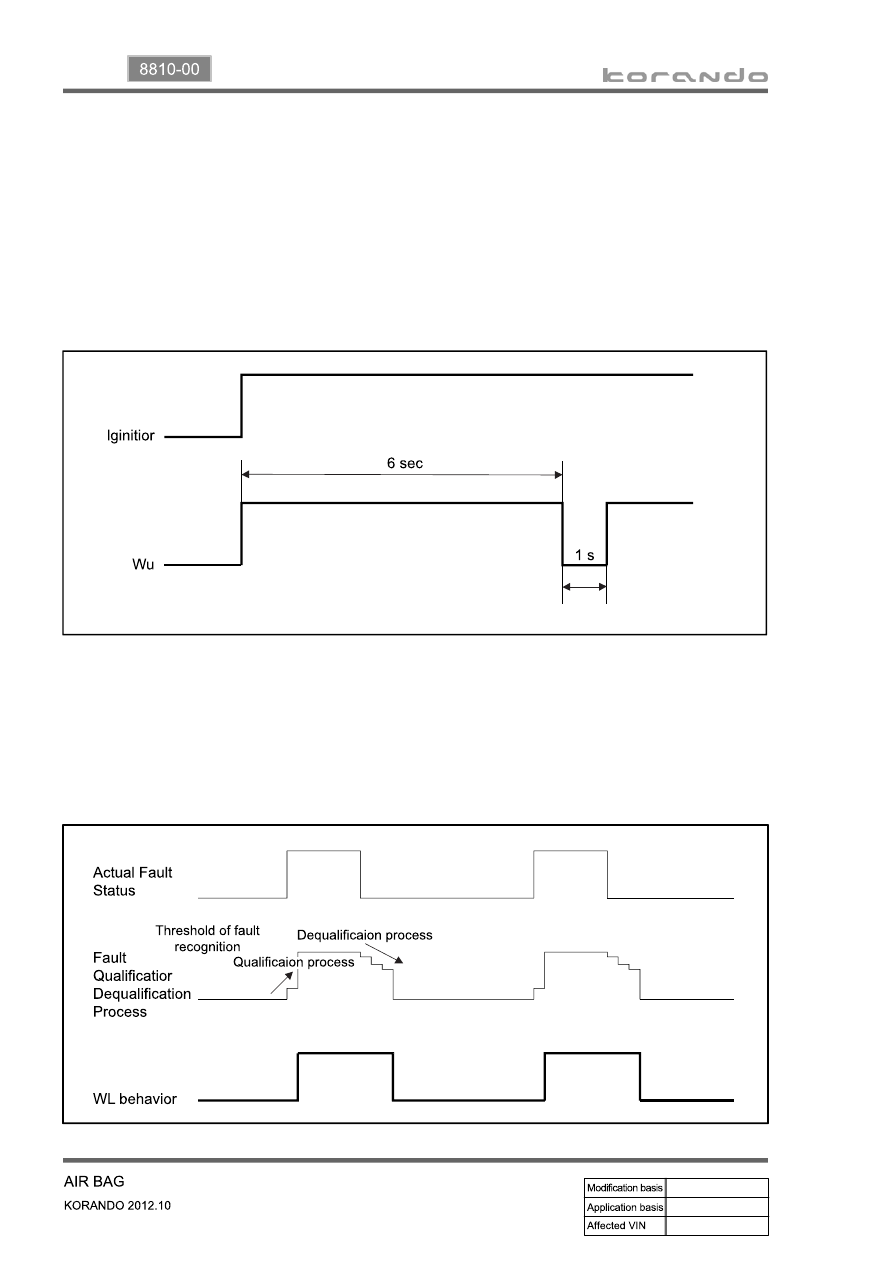

When there is any active fault or past faults occurred 10 times or more

▶

If there is any active fault or past faults occurred 10 times or more in the last ignition cycle, the SDM

operates the warning lamp as shown below. If below conditions are met, the SDM is operated in the

same way.

Active fault

When the past faults occurred 10 times or more (except 'battery voltage too low')

Internal fault

Impact record

Pretensioner deployed only

-

-

-

-

-

If the connector is not connected properly or SDM battery voltage is out of the specified range internally

(battery voltage for warning lamp), the warning lamp is kept ON.

Warning lamp condition change during operation

▶

The warning lamp comes on or off according to the actual fault condition during SDM operation. If there is

any active fault or active fault becomes past fault, the warning lamp is illuminated and if the fault is

deactivated, the warning lamp goes off.

02-19

8810-00

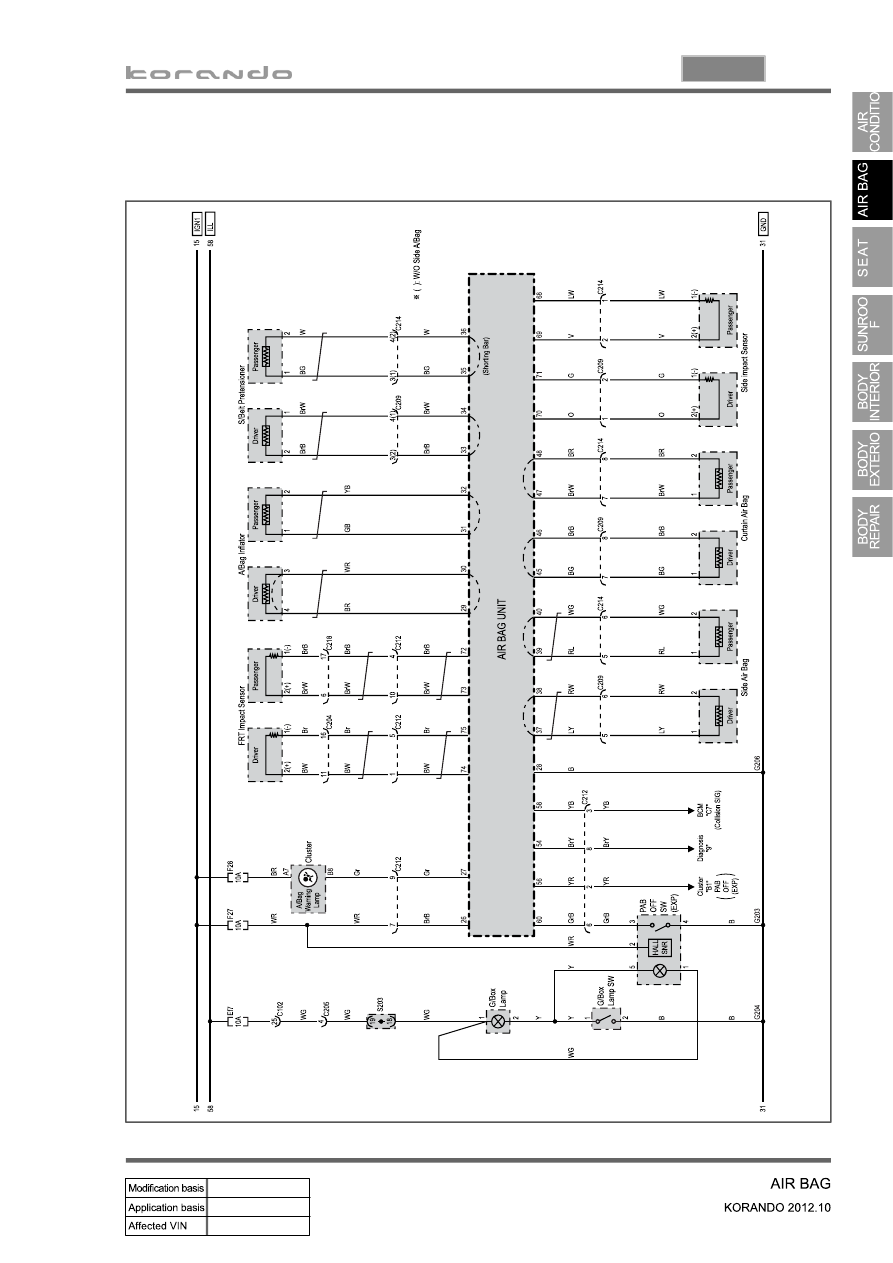

5. CIRCUIT DIAGRAM

8810-01 Air bag (Curtain air bag/Side air bag)

▶

03-3

7410-00

Pin No.

Front heated

(driver seat)

Front heated

(passenger seat)

Rear seats

Type

Manual

Manual 6 steps

Manual 4 steps

4:6 split

Automatic

Power (Electric)

6 steps

-

-

Height adjuster

Manual

±25 mm

(pumping type)

-

-

Automatic

± 25 mm

-

-

Sliding

240 mm

(190+50 mm)

240 mm

(190+50 mm)

-

Reclining

66˚ (20+46˚)

66˚ (20+46˚)

17.5˚ (7+10.5˚)

Lumbar support

2 steps (standard)

-

-

Seat warmer
(cushion & seatback)

ON (high, low)

OFF

ON (high, low)

OFF

ON/OFF

Head
restraint

Convent
ional

Up/Down

90 mm

(15 mm x 6)

90 mm

(15 mm x 6)

45 mm

(15 mm x 3)

Sliding

24 mm

(8 mm x 3)

24 mm

(8 mm x 3)

-

Electronic active type

Optional

(tilting, 15˚)

Optional

(tilting, 15˚)

-

Seat belt

3-point type, ELR, PT,

L/L

3-point type, ELR,

PT, L/L

LH/RH & Center:

3-point type, ELR

Seatback pocket

Net type/Leather

Net type/Leather

-

1. SPECIFICATIONS

Fabric seat: Net type seatback pocket

Leather seat: Leather band type seatback pocket

-

-

03-4

2. WARNINGS FOR POWER SEAT

Adjust the driver's seat before driving.

Make sure that the seat is firmly secured after adjusting.

Never drive the vehicle with the head restraint removed or lowered excessively. Otherwise, your

neck, spine or other parts of the body can be severely injured in the event of an accident.

If you recline the seatback excessively, you could slide under the seat belt and be injured severely

in a collision.

Do not put any object that could damage the seat on the seat.

The front and rear seats are equipped with the heated wire (seat warmer) system. Using the seat

warmer system excessively may cause minor burns. The following occupants should exercise

special care when using the heated wire seat.

▷
▷
▷

▷

▷
▷

Infant, child, old or handicapped person

Person with sensitive skin

Exhausted person

Persons who is drunk or took medicine which causes drowsiness such as sleeping pills, cold

tablets, etc.

-

-

-

-

Do not place anything on the seat that insulates against the heat, such as a blanket or cushion.

Make sure that the head restraints are in place and secured properly. Never drive the vehicle with

the head restraint removed.

To minimize the injuries in a collision or an abrupt stop, make sure the seatback is in the upright

position before driving. If the seatback is reclined too much, the occupant could slide under the seat

belt in a collision or an abrupt stop and cannot be protected properly by the airbag system.

▷

▷

▷

3. CAUTIONS FOR POWER SEAT

You can operate the power seat with the ignition switch OFF. However, frequent operation of the

seat switch with the engine stopped can result in battery becoming discharged.

Operating more than one seat adjustment switch at the same time can cause damage to the seat

motor. Therefore, operate the seat switch only one at a time.

Do not use organic solvents such as benzene, thinner, alcohol or gasoline to prevent the seat cover

from being damaged while cleaning.

Do not operate the seat position adjustment switch forcefully when the seat does not move or it

contacts an object.

If the power seat is not operated, check and correct the problem before driving off.

▷

▷

▷

▷

▷
