14-20

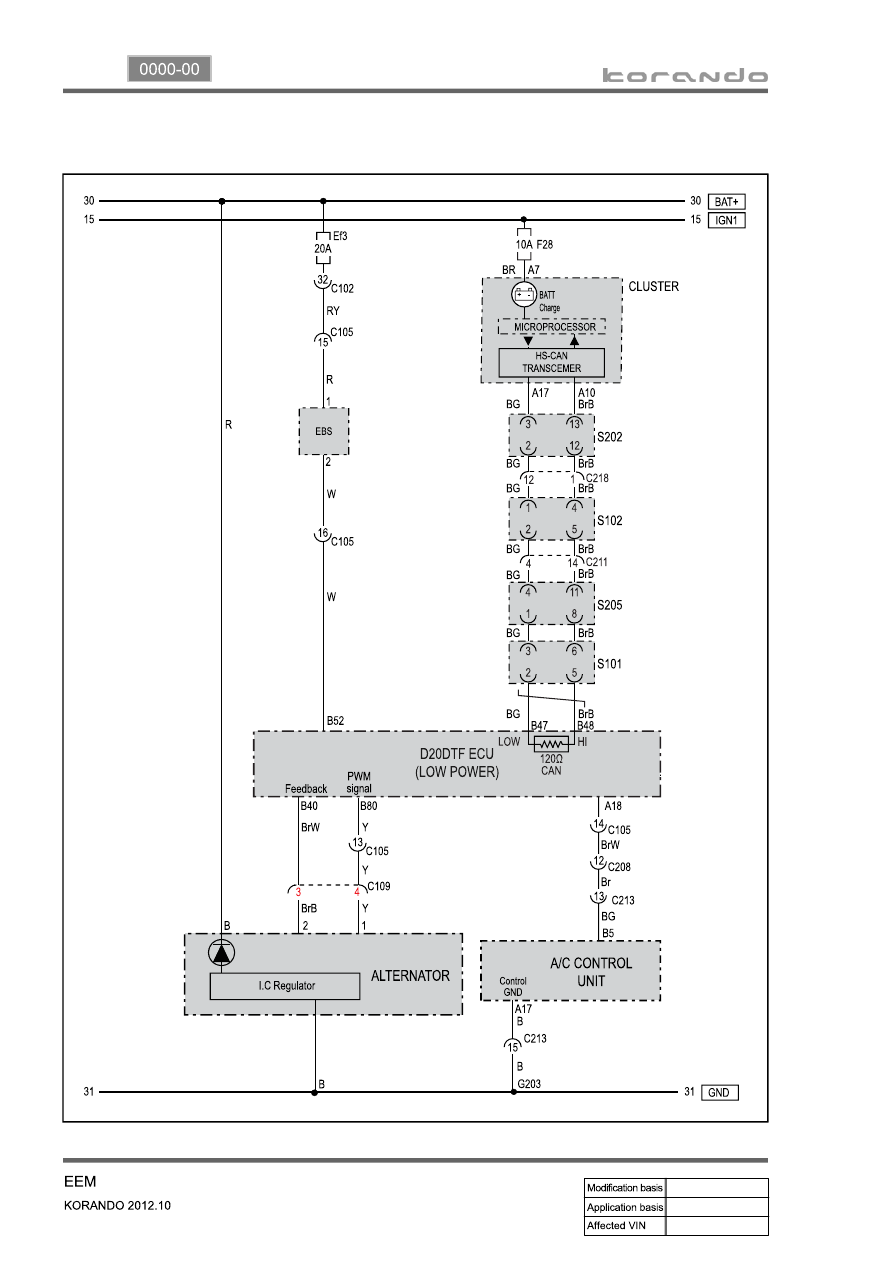

4. CIRCUIT DIAGRAM

01-3

0000-00

Front turn signal lamp

Side repeater lamp

Puddle lamp

1. EXTERIOR LAMP SYSTEM LAYOUT

Front fog lamp

Position lamp

Headlamp assembly

Rear turn signal lamp

High-mounted

stop lamp

Tail/stop lamp

Reflector

Backup lamp

Rear fog light

License plate lamp

Front view

Rear view

01-4

Puddle (approach) lamp

Front fog lamp

Headlamp

Side repeater lamp

High-beam/

low-beam

Turn signal

lamp

Position

lamp

01-5

0000-00

High mounted stop lamp

Rear combination lamp

Vehicle without

spoiler

Vehicle with spoiler

License plate lamp

Stop lamp and tail lamp

Rear fog lamp

Turn signal lamp

Backup lamp
