14-12

Specified value

below 0.05A

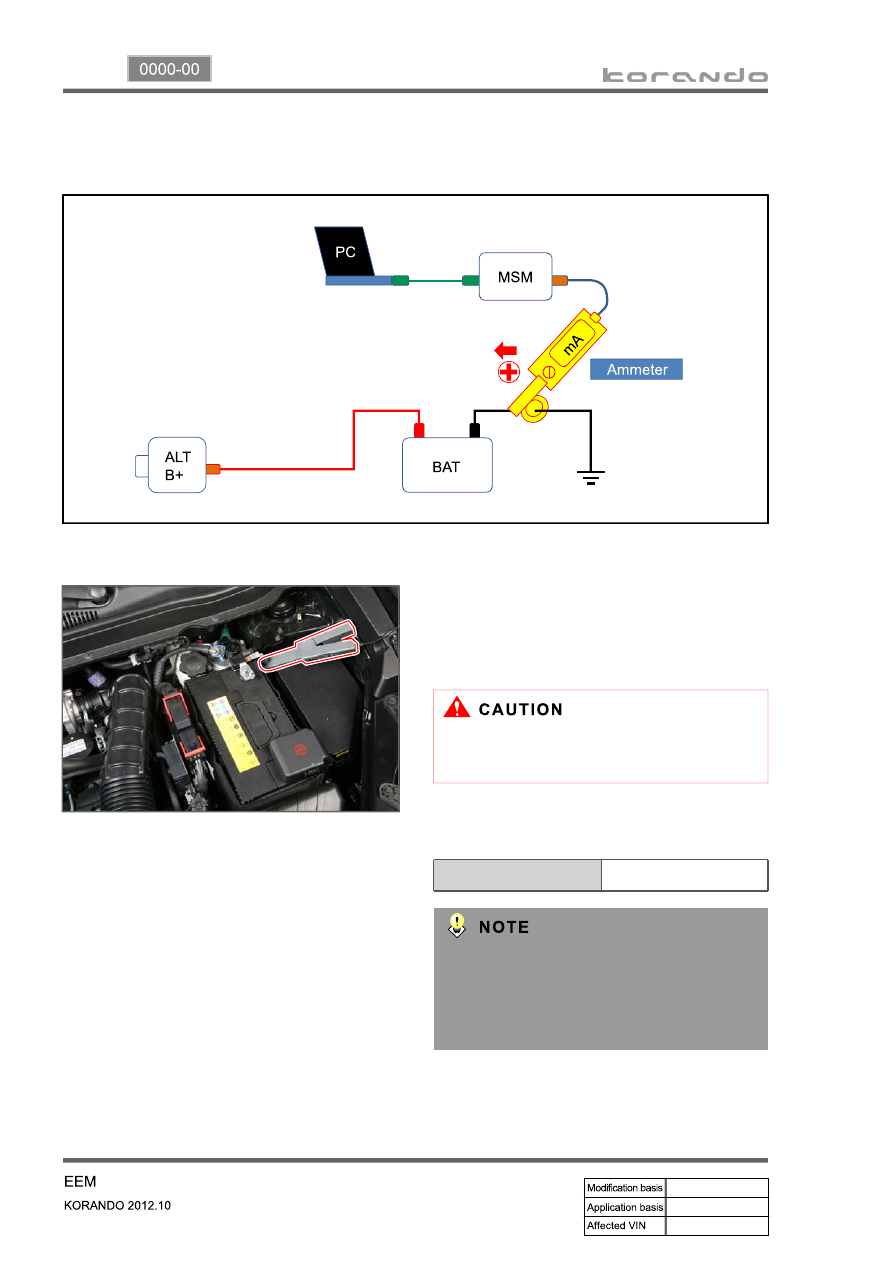

Setting up the tester

▶

Preparation

▶

Disconnect the negative cable from the

battery.

Set up the ammeter and MSM as shown in

the figure above.

1.

2.

2) When Using MSM

Connect the negative cable to the

battery.

3.

Make sure to set up the tester while keeping

its polarity.

Measure the current while removing the fuses

one by one. If the current drops sharply when

a certain fuse is removed, inspect the affected

circuit.

14-13

0000-00

Specified

value

over 11V: Normal

9 ~ 11V: Charging required

below: 9V: Over discharged,

battery replacement required

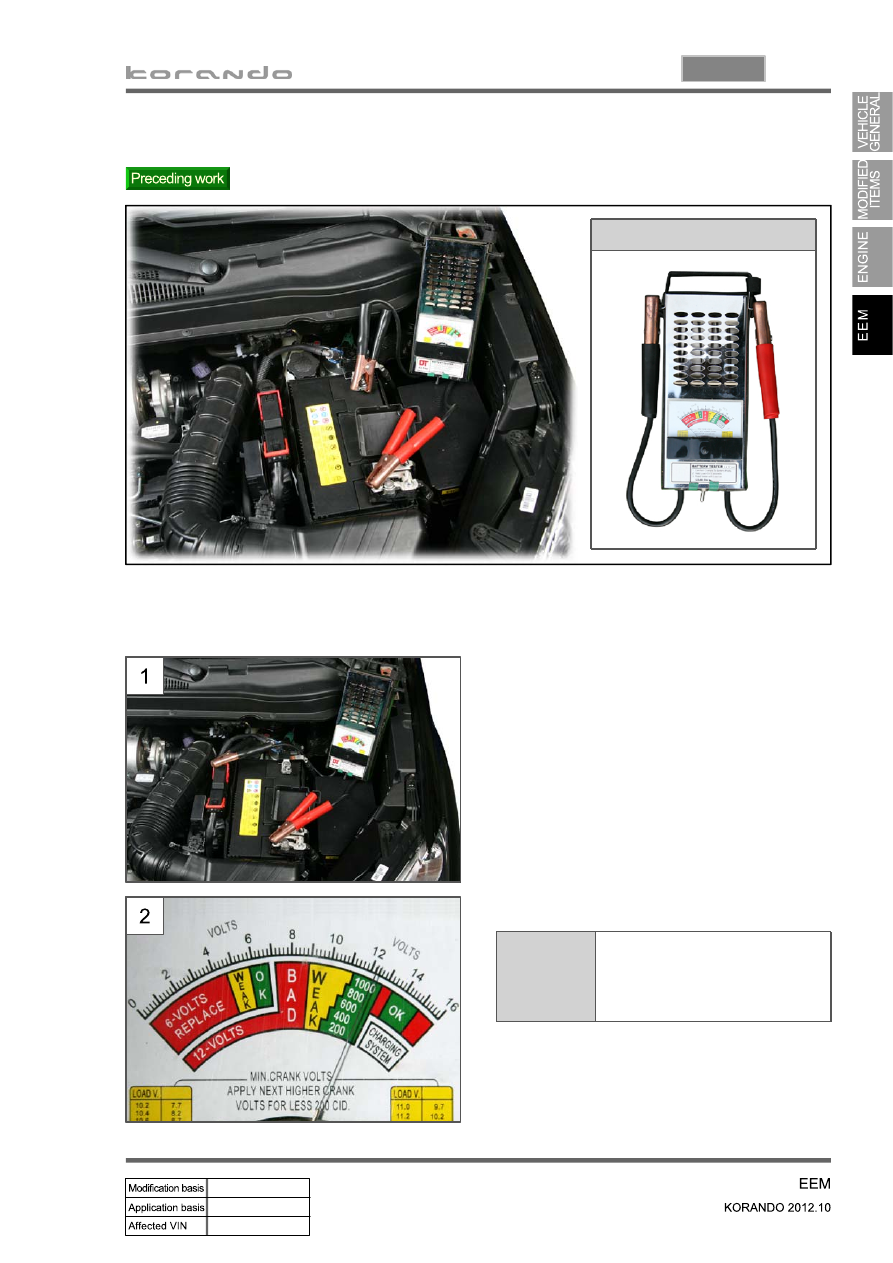

7. INSPECTION - BATTERY

Perform the basic inspection (all electric devices OFF).

-

Battery tester

1) Voltage Check (without load)

Connect one measuring clamp to “+”

terminal of battery first, then connect the
other one to “-“terminal. (Disconnect the

clamps in the reverse order).

1.

Read the measurement.

2.

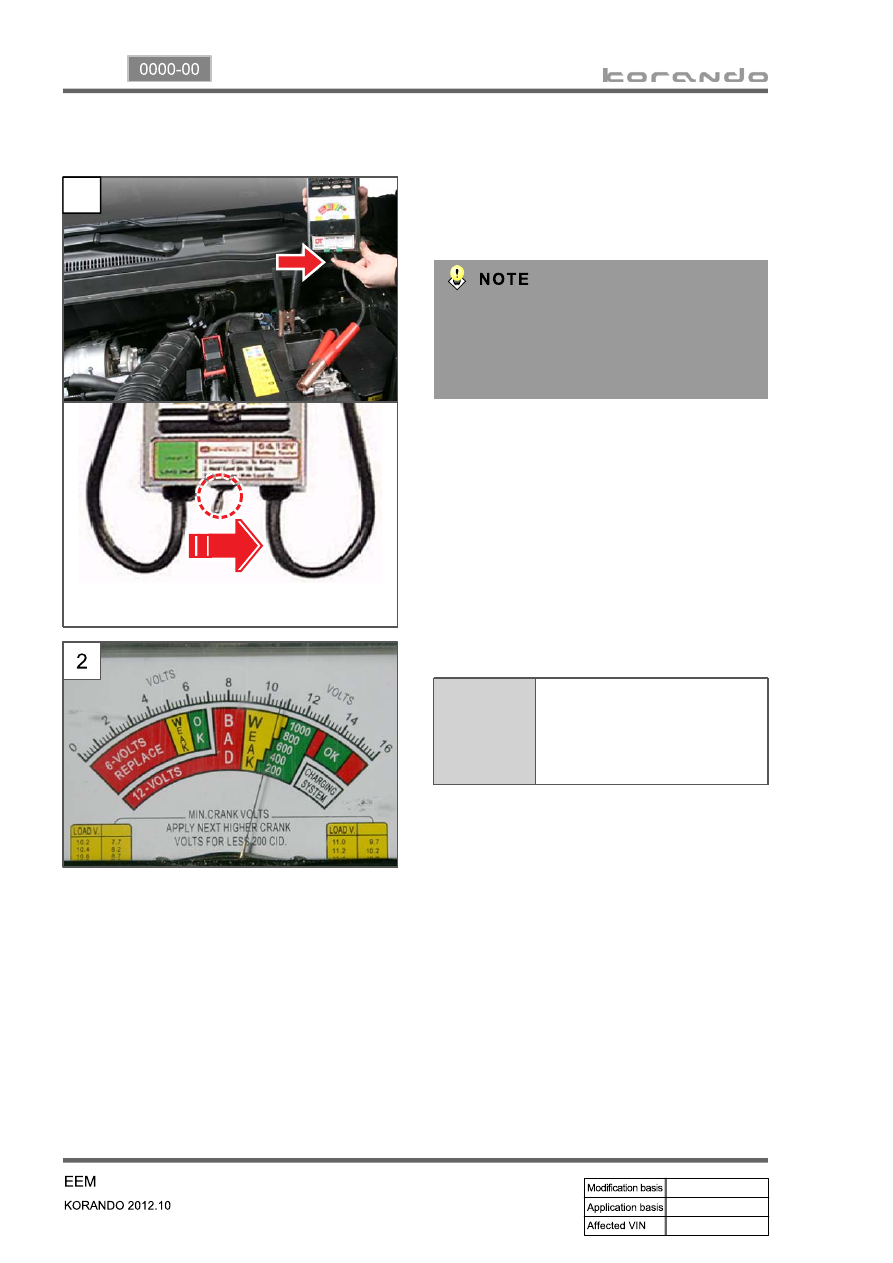

14-14

2) Voltage Check (with load)

1

Push the load switch to ON (to arrow

direction) direction for less than 5 seconds.

1.

Read the measurement.

2.

Specified

value

7 ~ 9V (Red): Over discharged

or faulty

9 ~ 11V (Yellow): Charging

required

11 ~ 13V: Normal

To identify the battery capacity with the

voltage drop (V) value, discharge the fixed

load capacity (120A) for a certain period (5

seconds).

14-15

0000-00

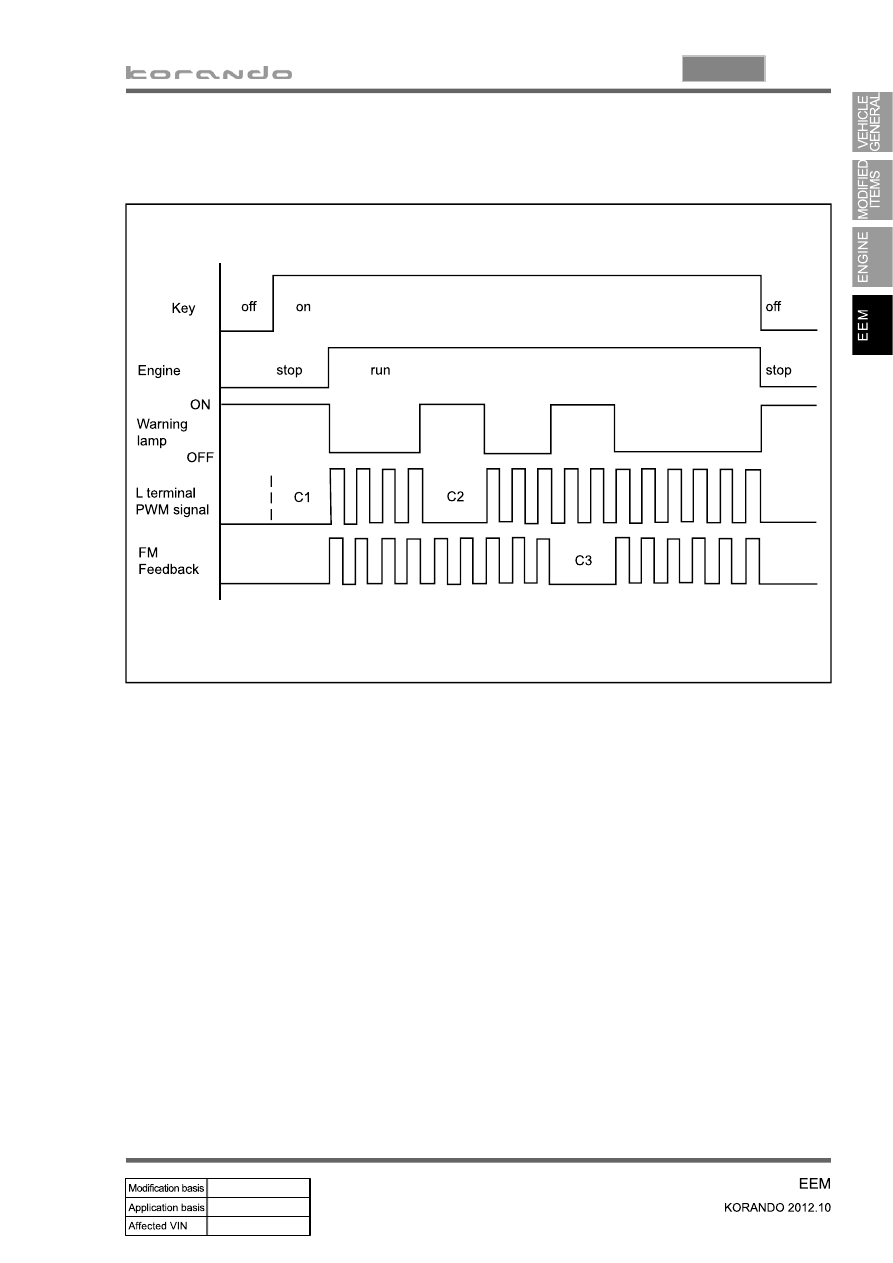

8. DTC SETTING CONDITIONS

Charge warning lamp ON condition

▶

Turn the ignition ON (Engine stopped)

Open or short circuit of L terminal wiring, open or short internal circuit of alternator (fixed control of

13.8V)

Open or short circuit of F terminal wiring, no feedback output signal

1.

2.

3.
