12-4

2) Traffic Conditions for Using Cruise Control

Use the cruise control system only when the traffic is not jammed, driving on motorways or highways

where there is no sudden change in the driving condition due to traffic lights, pedestrian, etc.

Improper use of the cruise control could be dangerous.

Do not use on winding roadsyy .

Do not use in heavy traffic.

Do not use on slippery, wet roads.

This could result in a loss of control, collision, and/or personal injuries.

-

-

-

12-5

8530-00

2. CONFIGURATION

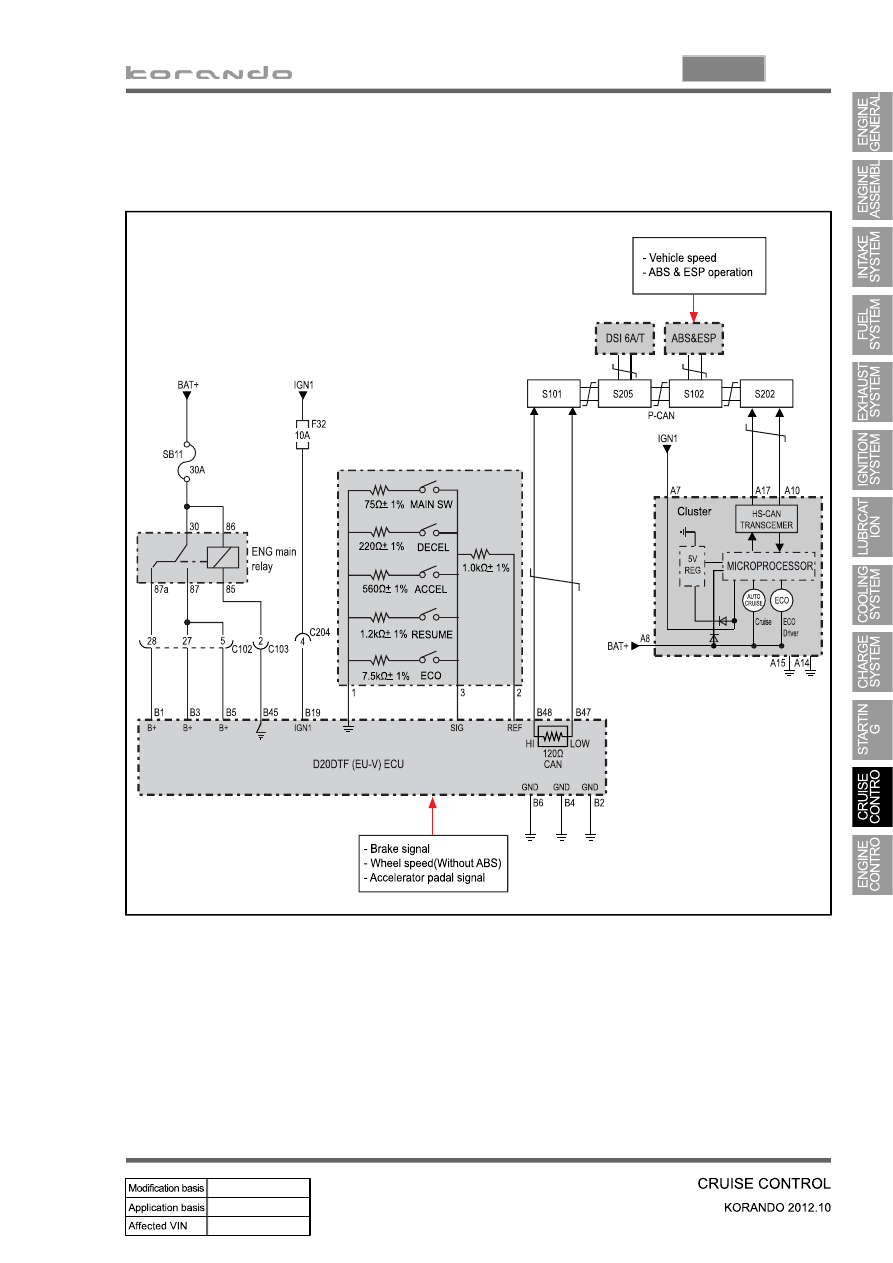

1) Circuit Diagram

The engine ECU detects the operating conditions of cruise control system, and monitors the braking

performance, vehicle speed, road conditions and ESP system operation. If the engine ECU determines

that there are not any problem to drive in cruise control mode, the vehicle can be operated by cruise

switch signals (decelerating, accelerating, cruising).

12-6

2) Components

Test voltage(VCC 5V)

FUNCTION

KEY VOLUE

REMARK

MAIN

0.15 ~ 0.55V

-

DECEL

0.7 ~ 1.1V

-

ACCEL

1.6 ~ 2.0V

-

RESUME

2.52 ~ 2.92V

-

ECO

4.22 ~ 4.82V

-

12-7

8530-00

3. OPERATION

1) Setting a Desired Speed

To operate the cruise control, accelerate to the desired speed, which must be more than 38 km/h (24

MPH) and less than 150 km/h (90 MPH). In the vehicle equipped with manual transaxle, the gear shift

lever should be in 3rd or higher gear position.

Diesel engine equipped vehicle: When the desired speed is reached, press CRUISE ON (3) switch of

cruise control lever.

Gasoline engine equipped vehicle: When the desired speed is reached, press CRUISE ON (3) switch

of cruise control lever. The system is ready to activate the cruise control function. To activate the cruise

control function, push up (1) the ACCEL switch of the cruise control lever or push down (2) the DECEL

switch.

Now, the vehicle is cruised by this system with the set speed.

And you can set to other vehicle speeds again with above steps after an accelerator pedal intervention

during the cruise control running.

1.

2.

3.

4.

Never use the cruise control system until you get used to it.

Improper use or not fully aware of this function could result in collision and/or personal injuries.
