09-14

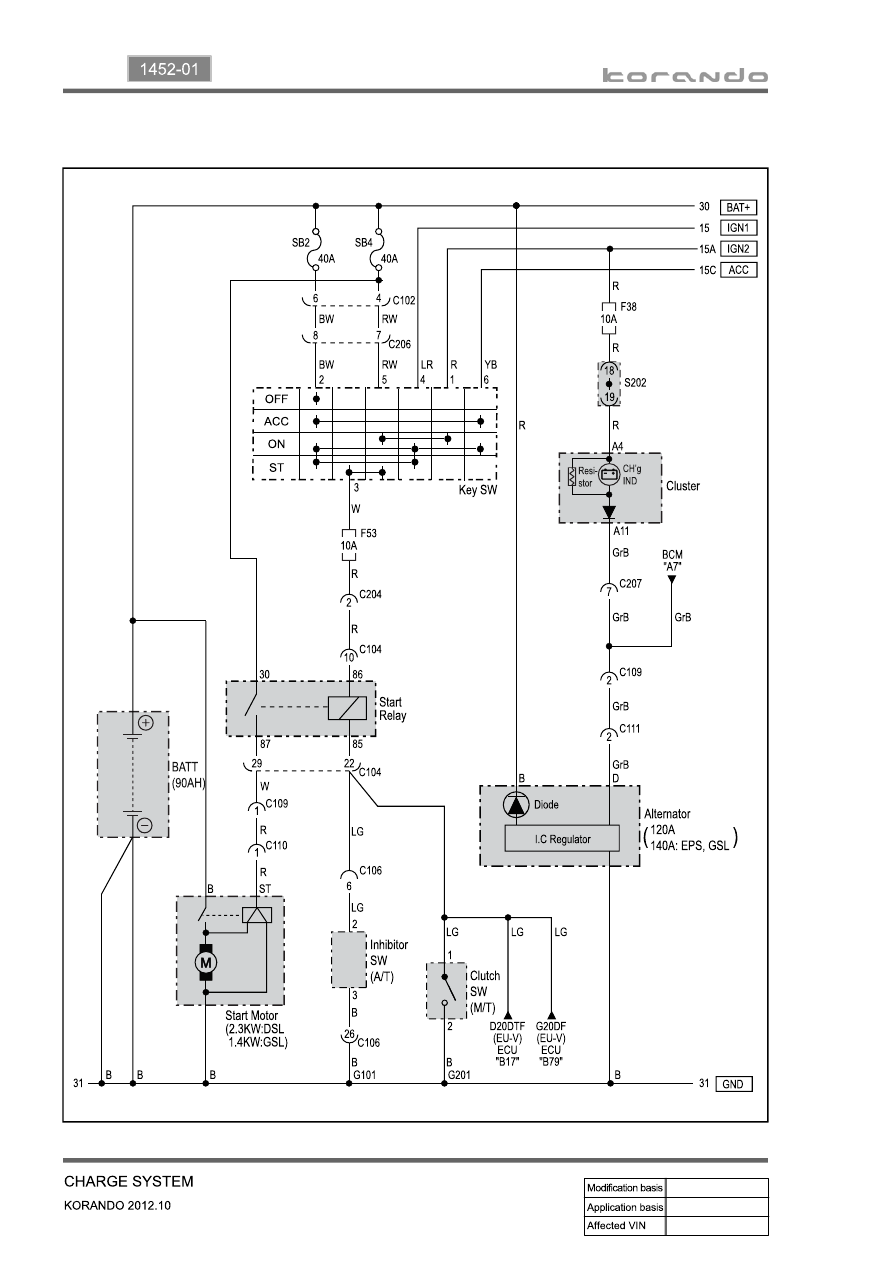

2) Circuit Diagram

11-3

1462-01

1. SPECIFICATION

Unit

Description

Specification

Start motor

Capacity

12V 1.4kw

Engagement

Meshed type

Rotating direction

Clockwise

Solenoid operating voltage

Max. 8V

Weight

2.5kg

11-4

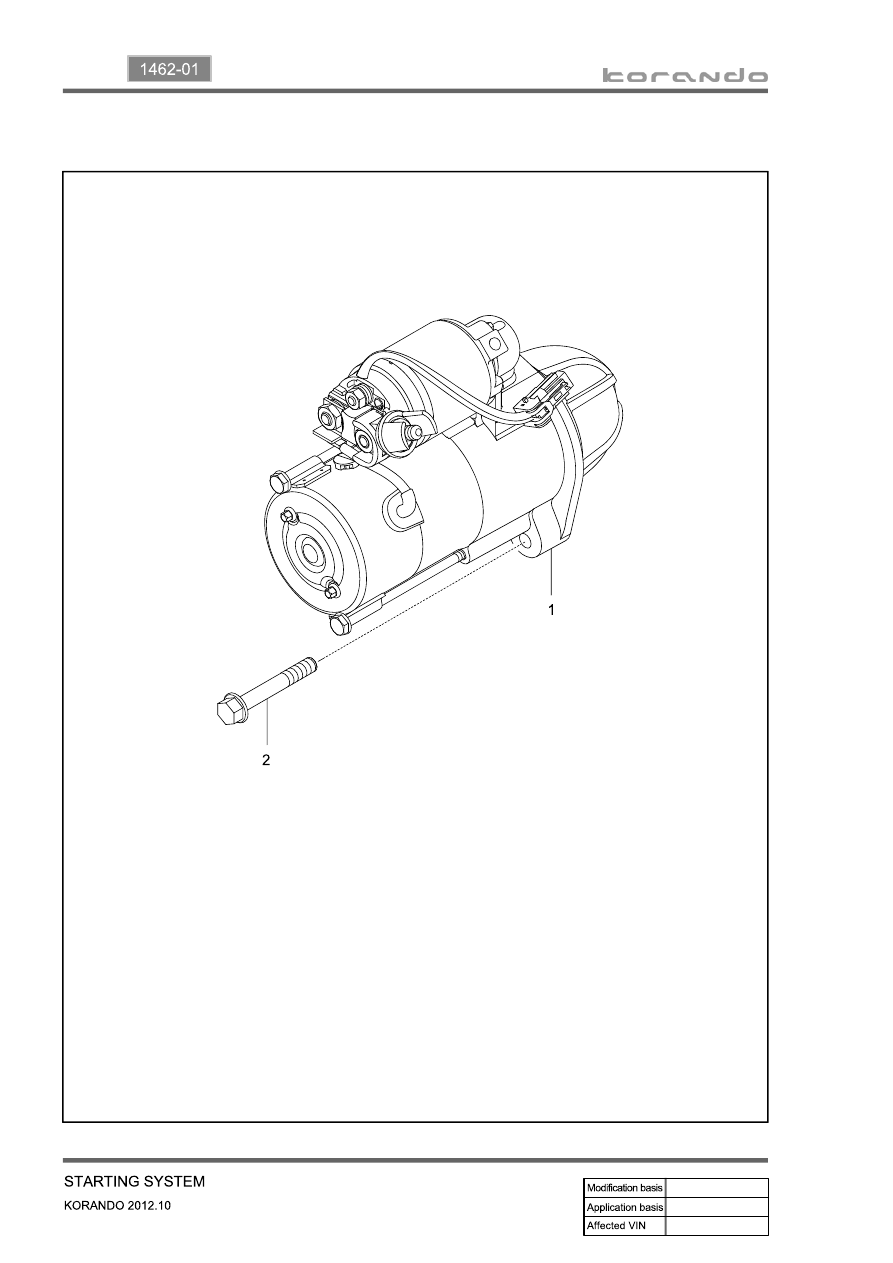

2. LAYOUT

Starter

Bolt

1.

2.

11-5

1462-01

3. TROUBLESHOOTING

Problem

Possible Cause

Action

Engine will not

crank

Low battery voltage

Charge or replace

Loose, corroded or damaged battery cable

Repair or replace

Faulty starter or open circuit

Faulty ignition switch or blown fuse

Repair or replace

Poor engine ground

Repair

Engine cranks

too slow

Low battery voltage

Charge or replace

Loose, corroded or damaged battery cable

Repair or replace

Faulty starter

Starter does not

stop

Faulty starter

Repair or replace

Faulty ignition switch

Replace

Engine cranks

normally, but

does not start

Broken pinion gear or faulty starter

Replace the starter

Broken flywheel ring gear

Replace

Open circuit

Repair
