11-6

Start motor assembly

1. OVERVIEW

The starter (start motor) starts the engine with rotational power by converting the electric energy to the

mechanical energy.

When the engine is cranking, the pinion gear meshes with the ring gear. If the ring gear overruns, the

pinion gear clutch overruns to protect the pinion gear.

11-7

1462-01

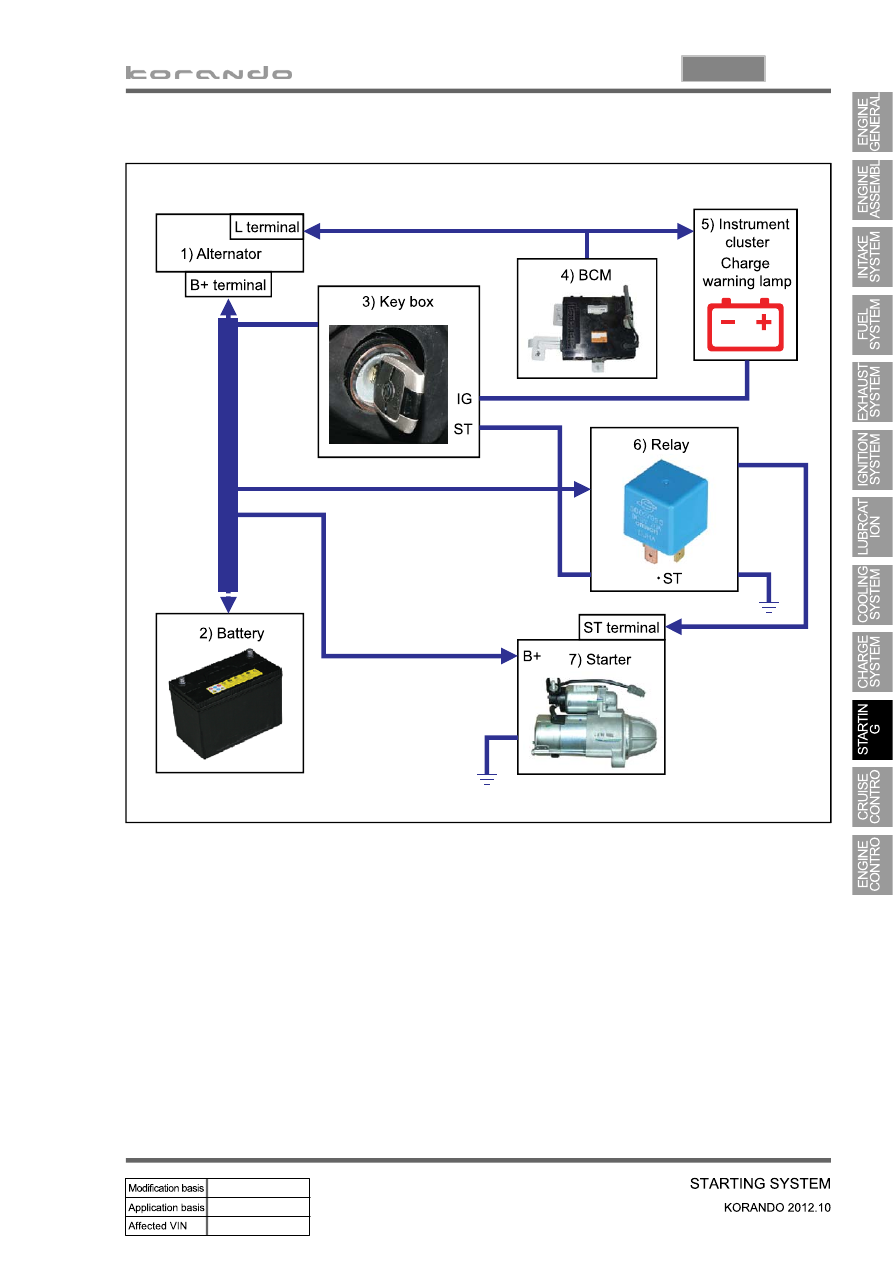

2. OPERATING PROCESS

11-8

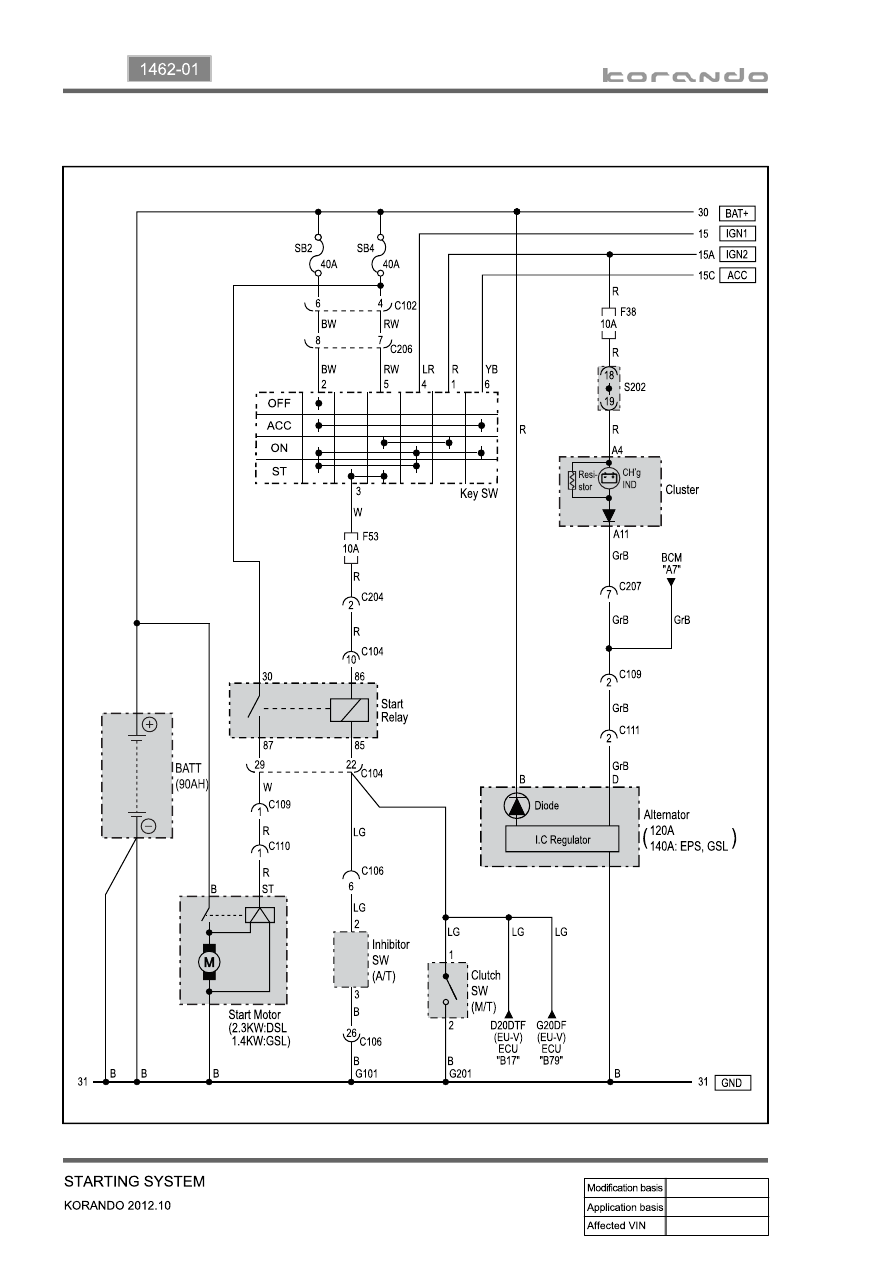

3. CIRCUIT DIAGRAM

12-3

8530-00

1. OVERVIEW

1) System Description

The cruise control is an automatic speed control system that maintains a desired driving speed without

using the accelerator pedal.

The vehicle speed must be greater than 38 km/h to engage the cruise control. This feature is especially

useful for motorway driving.

The cruise control system is a supplementary system, which helps the driver to drive the vehicle at a

desired speed without using the accelerator pedal under the traffic condition where the vehicle-to-

vehicle distance meets the legal requirement.

Auto cruise operated

ECO cruise operated
