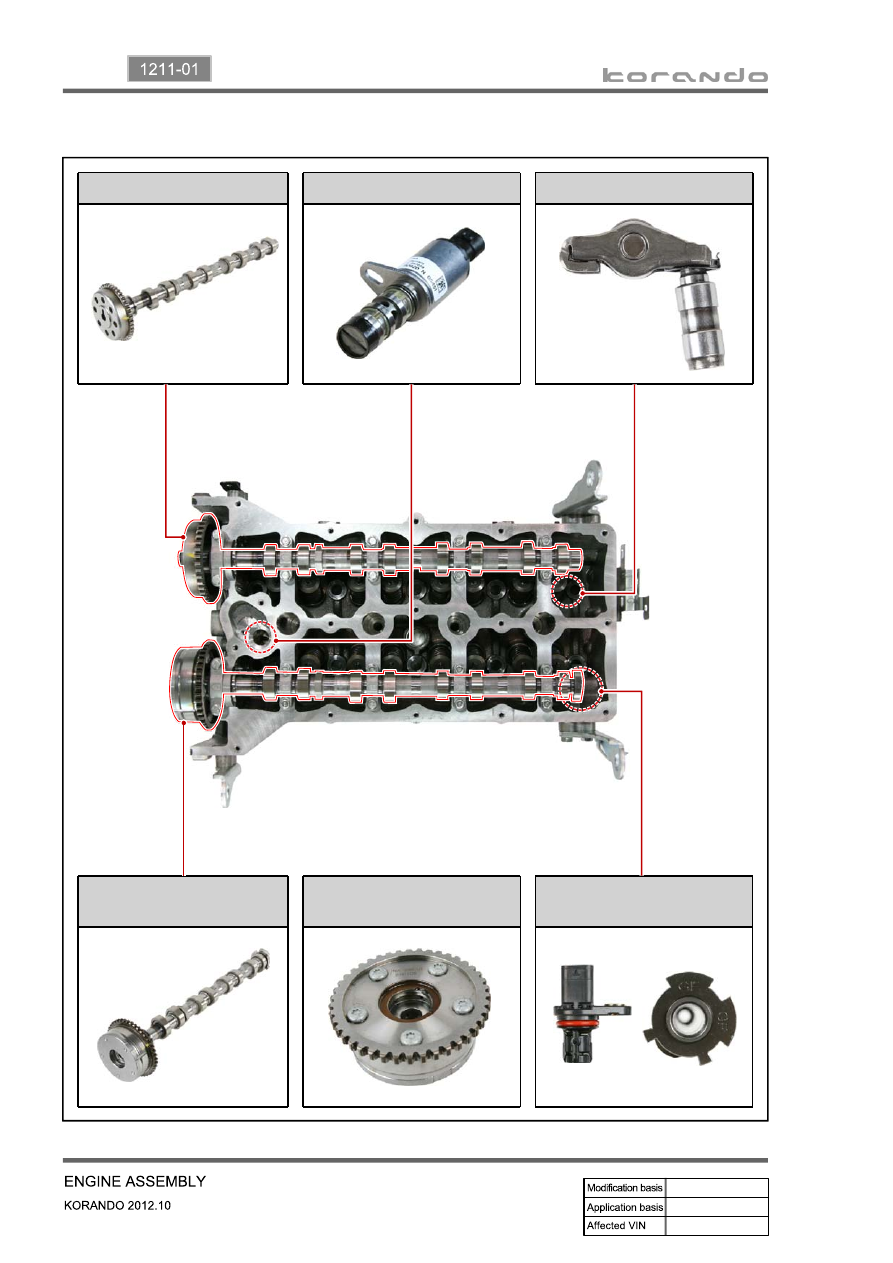

Components

▶

Exhaust camshaft

OCV

Finger follower & HLA

Intake camshaft

Intake camshaft CVVT

gear

Camshaft position

sensor

02-17

1211-01

Cylinder head cover

Overview

▶

2) Cylinder Head Cover

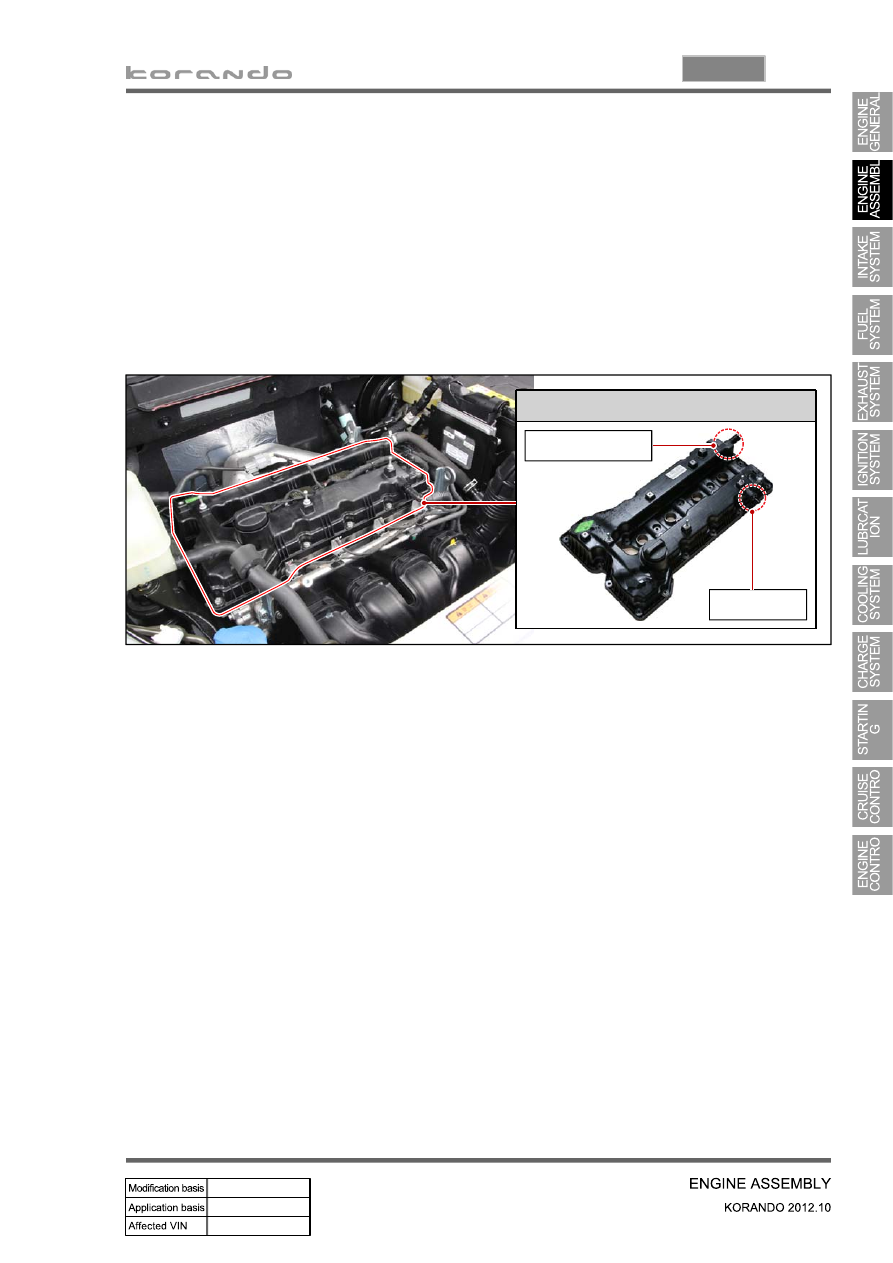

The cylinder head cover protects the valve system. It contains the breathing system with PCV valve for

recirculation of blow-by gas. The blow-by gas is induced into the intake manifold through the breather

nipple and PCV Valve. To improve the sealing performance, new bolt pattern is introduced. And, to
prevent the freezing, the PCV valve is tilted with 9° to the below direction.

Location

▶

Breather nipple

PCV valve

02-18

3)  Camshaft Assembly

Overview

▶

The camshaft is hollow type, and contains the cam, octagon cam, OCV gallery, cam position rotor. The

camshaft operates the intake and exhaust valves.

Location

▶

Exhaust camshaft

Intake camshaft

Timing marks

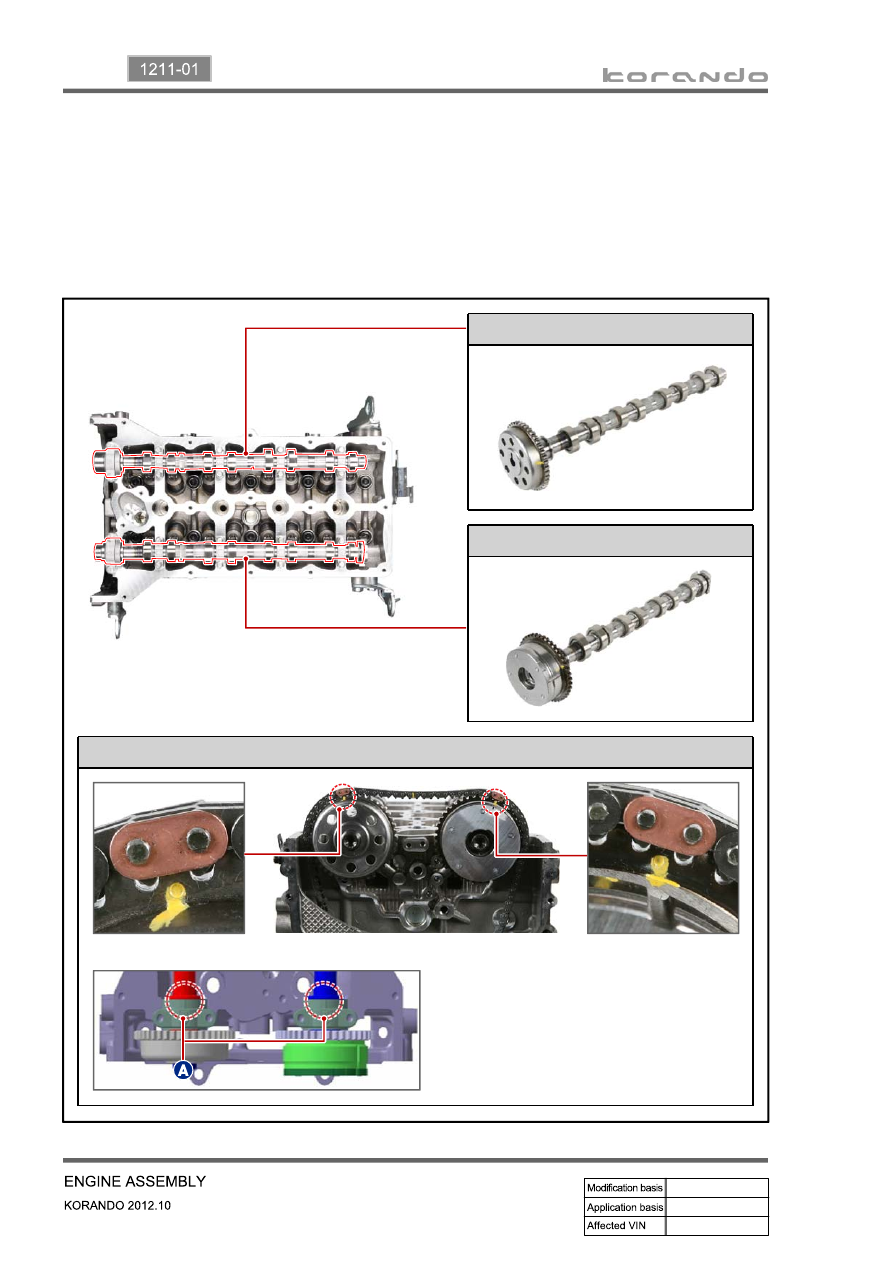

Align the timing marks (A) on the camshaft

flange and camshaft cap when installing the

intake/exhaust camshaft.

02-19

1211-01

4) Intake/Exhaust Valve Assembly (Installed on Cylinder Head)

(1) Features

Automatic adustment of valve clearance by hydraulic pressure system (Maintenance Free)_Hydraulic

lash

Decreased valve operating noise

Decreased friction loss by introducing the roller type finger follower
Valave installation angle: 17°

Decreased running amount by compact design (increased valve following movement in high speed

and improved fuel economy by decreased friction loss)

-

-

-

-

-

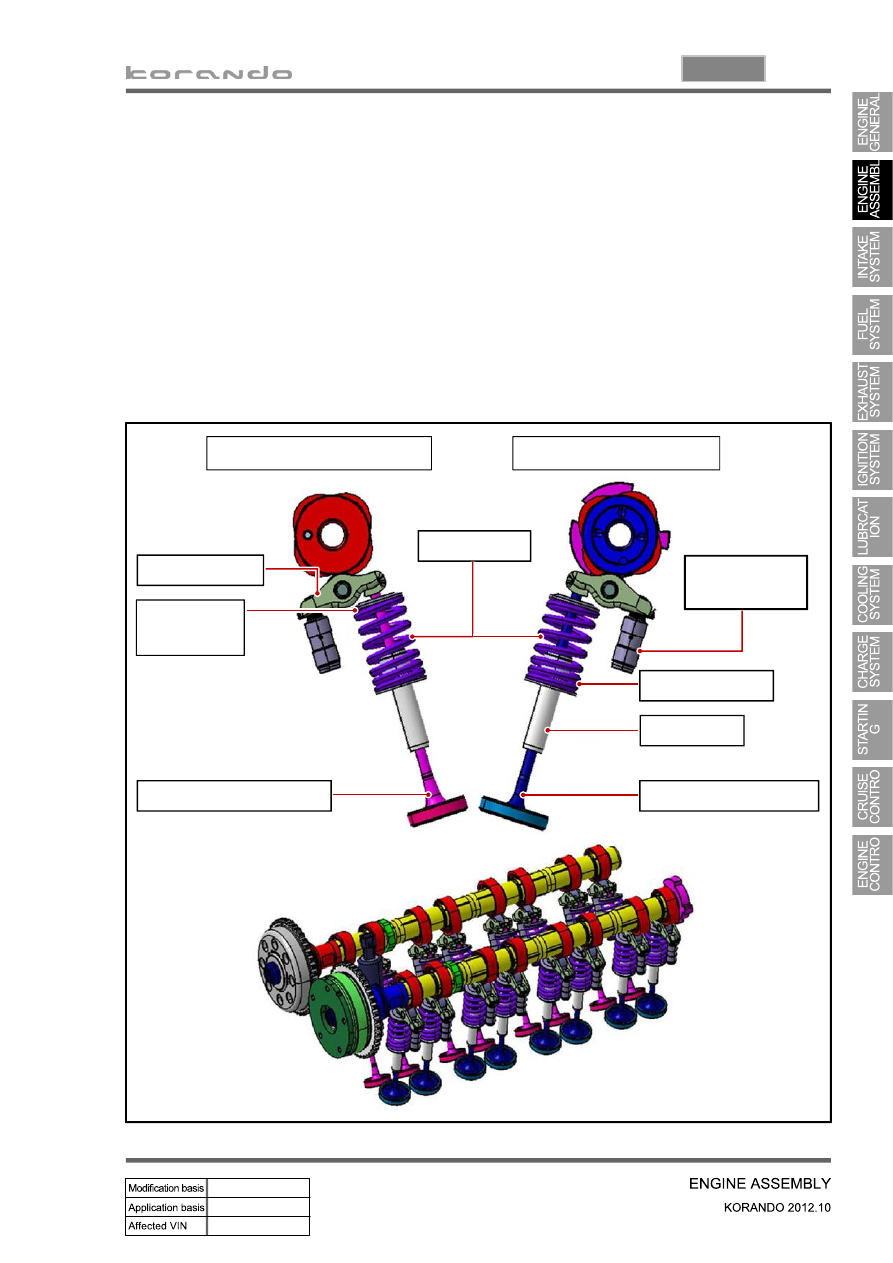

(2) Layout and components

Intake camshaft assembly

Exhaust camshaft assembly

Valve stem seal

Valve upper

spring seat

Valve guide

Hydraulic lash

adjuster

Exhaust valve assembly

Valve spring

Finger follower

Intake valve assembly
