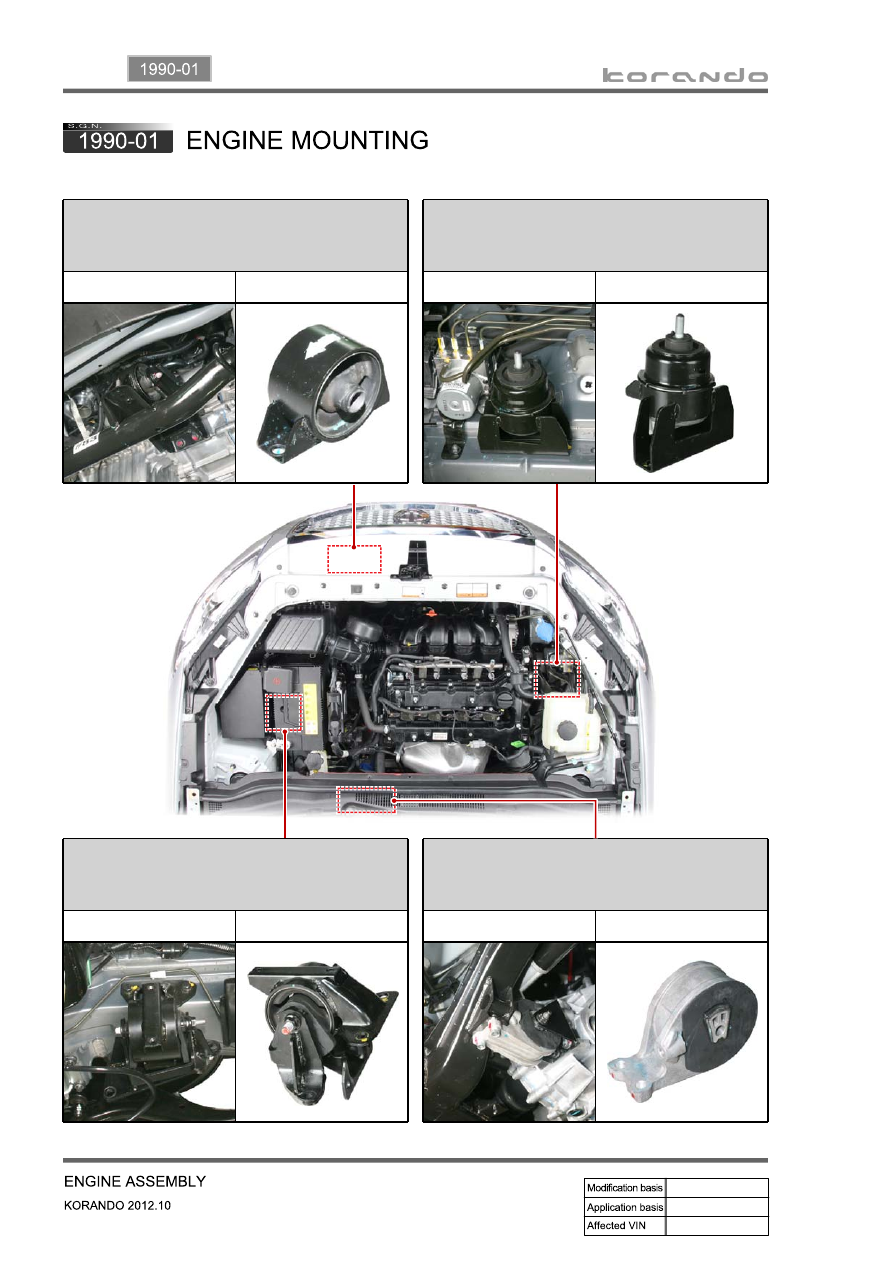

02-12

Location

▶

Front mounting assembly

Location: Front side of transaxle housing and

front side of sub frame

Location

Front mounting

Right mounting assembly

Location: Engine block side and body side

member

Location

Right mounting

Left mounting assembly

Location: Upper side of transaxle housing and

body side member

Location

Left mounting

Rear mounting assembly

Location: Rear side of transaxle housing and front

side of sub frame

Location

Rear mounting

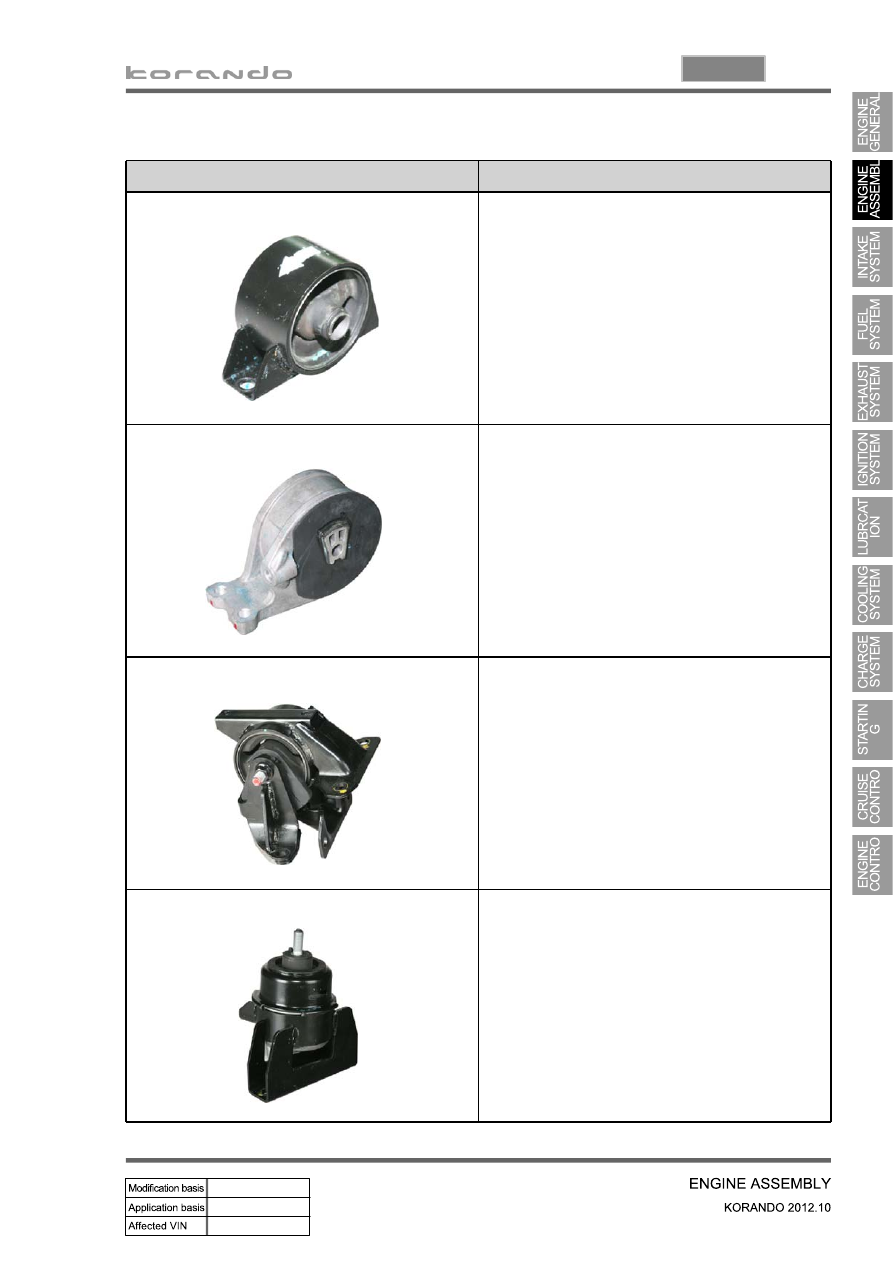

02-13

1990-01

Function

▶

Appearance

Type and function

Front mounting: Bracket + Insulator

Type: Rubber type mounting
Function: support torque reaction

Rear mounting: Bracket + Insulator

Type: Rubber type mounting
Function: support torque reaction

Left mounting: Bracket + Insulator

Type: Rubber type mounting Function:
- support power train rod
- support torque reaction

Rear mounting: Bracket + Insulator and D-damper

Type: Hydraulic type mounting Function:
- support power train rod
- power train bounce vibration absorber
- support torque reaction

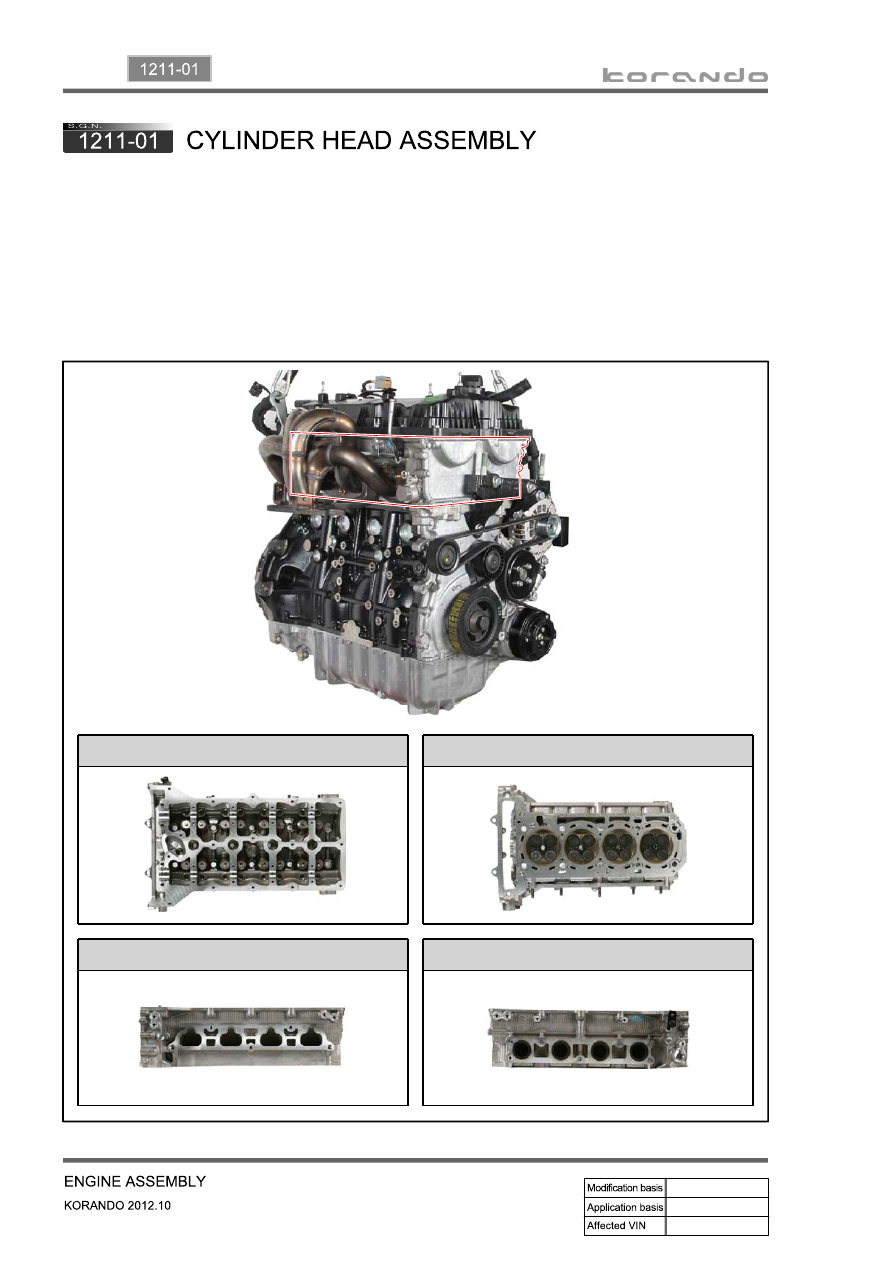

02-14

1) Cylinder Head

Overview

▶

The cylinder head assembly is located on the cylinder block.

This contains the combustion chamber, intake and exhaust ports, valve running housing, and oil gallery.

And, this also contains the water jacket to dissipate the heat from the combustion chamber

Location

▶

Top of cylinder head

Bottom of cylinder head

Intake side

Exhaust side

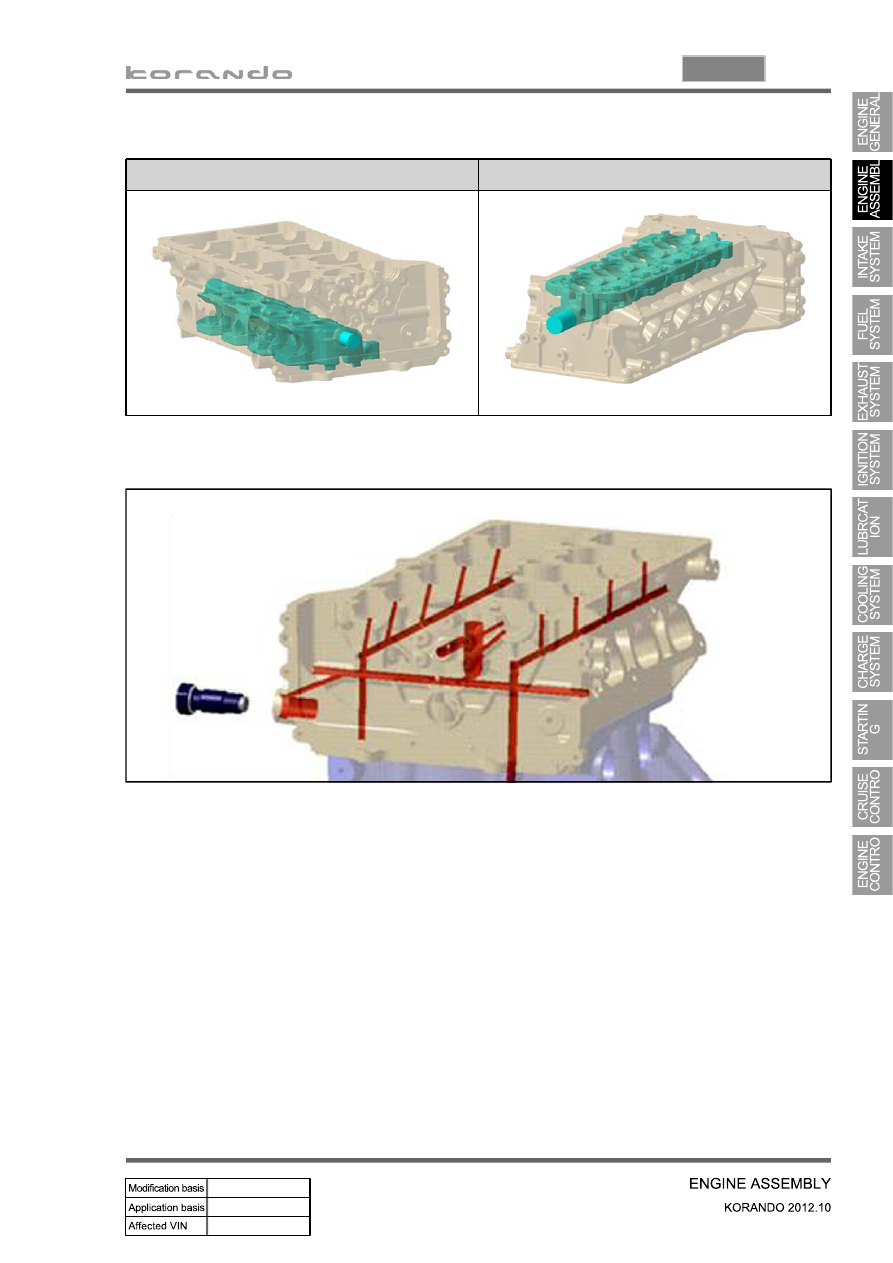

02-15

1211-01

Closed-roof water jacket (improving coolimg efficiency)

▶

Intake side

Exhaust side

Cylinder head oil gallery

▶
