SsangYong Korando III (2010 year). Manual - part 64

12-7

8530-00

3. OPERATION

1) Setting a Desired Speed

To operate the cruise control, accelerate the vehicle speed to the operating range.

* Operating range: - 38 km/h ~150 km/h

  - higher than 3rd gear (M/T)

To set the desired speed, push up ACCEL switch or push down DECEL switch of the cruise control

lever when the vehicle speed is in the operating range,.

Now, the vehicle is cruised by this system with the set speed. You don't need to use the accelerator

pedal.

Refer to the following pages for details of operation.

1.

2.

3.

4.

12-8

2) Accelerating with the Cruise Control System

(1) While the cruise control system is running

Push up the ACCEL switch of the cruise control lever and hold it until the desired speed is reached

without an accelerator pedal intervention.

When the desired speed is reached, release the lever.

1.

2.

(2) When the cruise control system is not running

To increase the speed with the cruise control system while the system is not running, follow the

procedures below.

Accelerate using the accelerator pedal over 38 km/h.

Push up the ACCEL switch of the cruise control lever and hold it. And then release the accelerator

pedal slowly.

When the desired speed is reached, release the lever.

1.

2.

3.

(3) Tap-up while the cruise control system is running

To increase the vehicle speed in stages while the cruise control system is running, follow the procedures

below.

Push up the ACCEL switch of the cruise control lever less than 0.5 second per one switching while the

cruise control system is running. This is a tap-up switching. When you operate a tap-up switching, the

vehicle is accelerated for 1 km/h over the previous set speed.

If you want to accelerate for 10 km/h, operate the tap-up switching ten times without accelerating with

the cruise control system.

1.

2.

12-9

8530-00

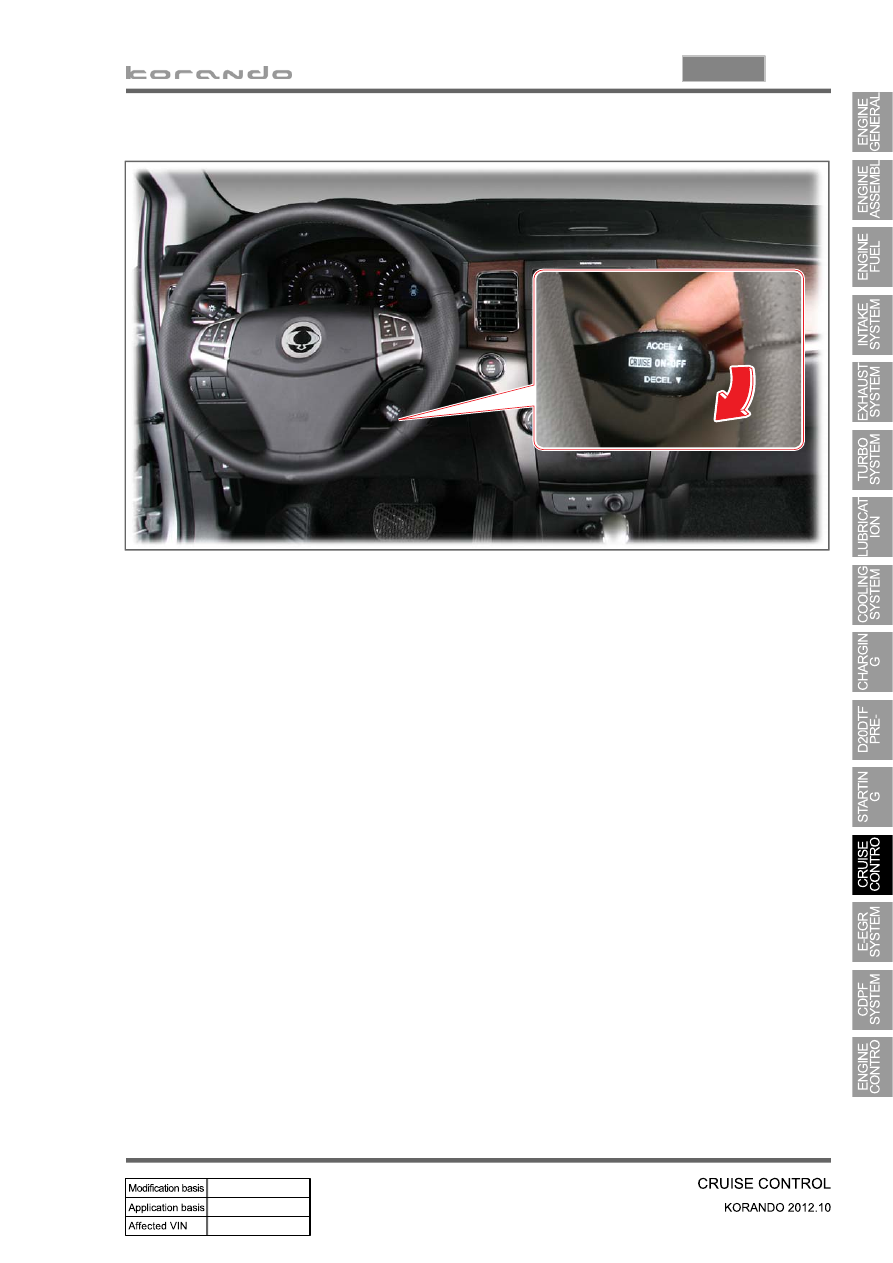

3) Decelerating with the Cruise Control System

(1) While the cruise control system is running

Push down the DECEL switch of the cruise control lever and hold it until the desired speed is reached

without a brake pedal intervention. But the cruise control system cannot maintain the cruise function at

less than 38 km/h.

When the desired speed is reached, release the lever.

1.

2.

(2) When the cruise control system is not running

To decrease the vehicle speed with the cruise control system when the system is not running, follow the

procedures below.

Push down the cruise control switch lever to DECEL side and hold it until the desired speed is

reached while the vehicle speed is over 40 km/h.

And then release the accelerator pedal slowly.

When the desired speed is reached, release the lever. But the cruise control system cannot maintain

the cruise function at less than 38 km/h.

1.

2.

3.

(3) Tap-down while the cruise control system is running

To decrease the vehicle speed in stages while the cruise control system is running, follow the

procedures below.

Push down the DECEL switch of the cruise control lever less than 0.5 second per one switching while

the cruise control system is running. This is a tap-down switching. When you operate a tap-down

switching, the vehicle is decelerated for 1 km/h below the previous set speed.

If you want to decelerate for 10 km/h, operate the tap-down switching ten times without the brake

pedal intervention.

1.

2.

12-10

4) Recovery of Set Speed (RESUME)

Even if the cruise control is cancelled, the previous set cruise speed can be recovered by pulling up the

cruise control lever when the current vehicle speed is over 38 km/h without an acceleration intervention.

But if you turn off the ignition switch, the memorized set speed is cleared and you cannot recover the

previous set speed.

But the driver should know the previous set speed to react to the changed vehicle speed properly. If

the vehicle speed increases abruptly, depress the brake pedal to adjust the vehicle speed properly.
