12-3

8530-00

1. OVERVIEW

1) System Description

The cruise control is an automatic speed control system that maintains a desired driving speed without

using the accelerator pedal.

The vehicle speed must be greater than 38 km/h to engage the cruise control. This feature is especially

useful for motorway driving.

The cruise control system is a supplementary system, which helps the driver to drive the vehicle at a

desired speed without using the accelerator pedal under the traffic condition where the vehicle-to-

vehicle distance meets the legal requirement.

Auto cruise operated

ECO cruise operated

12-4

2) Traffic Conditions for Using Cruise Control

Use the cruise control system only when the traffic is not jammed, driving on motorways or highways

where there is no sudden change in the driving condition due to traffic lights, pedestrian, etc.

Improper use of the cruise control could be dangerous.

Do not use on winding roadsyy .

Do not use in heavy traffic.

Do not use on slippery, wet roads.

This could result in a loss of control, collision, and/or personal injuries.

-

-

-

12-5

8530-00

2. CONFIGURATION

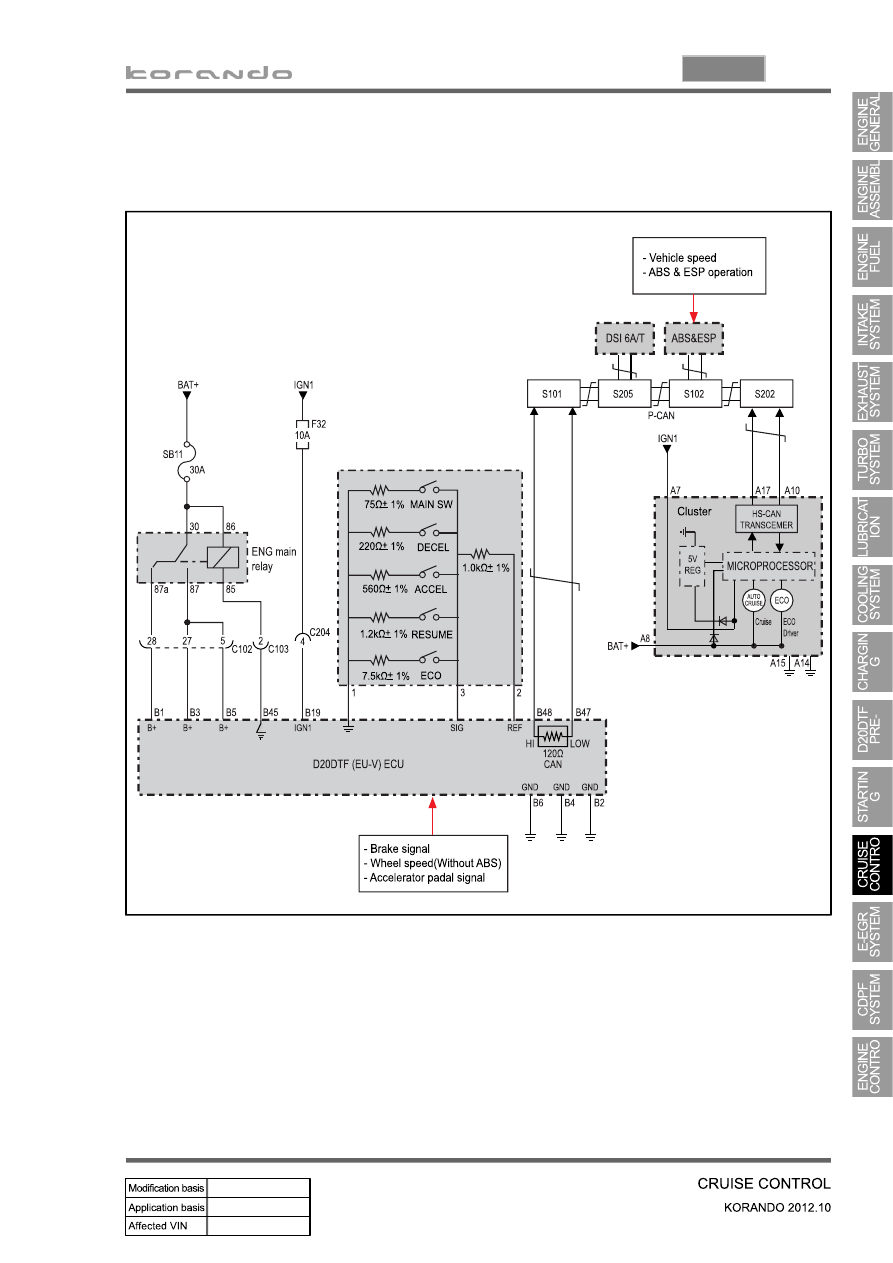

1) Circuit Diagram

The engine ECU detects the operating conditions of cruise control system, and monitors the braking

performance, vehicle speed, road conditions and ESP system operation. If the engine ECU determines

that there are not any problem to drive in cruise control mode, the vehicle can be operated by cruise

switch signals (decelerating, accelerating, cruising).

12-6

2) Components

Test voltage(VCC 5V)

FUNCTION

KEY VOLUE

REMARK

MAIN

0.15 ~ 0.55V

-

DECEL

0.7 ~ 1.1V

-

ACCEL

1.6 ~ 2.0V

-

RESUME

2.52 ~ 2.92V

-

ECO

4.22 ~ 4.82V

-
