2. OPERATING PROCESS

1) System Layout

(1) Engine start

SKM performs the authentication process for the SMART key and sends the engine start request to

EMS if there is a normally coded SMART key when pressing the Engine Start/Stop button with the
brake pedal depressed and gear shift lever in “P” or “N” position.

SKM sends the start request signal to PCAN network and the cranking request to BCAN network by
“SMART key location” signal when receiving the engine start signal by Engine Start/Stop

button.

SKM turns off the IGN2/ACC relay during cranking to shut down the electric loads.

SKM receives the starting status signal from EMS throug PCAN.
After cranking, SKM turns on the ACC/IGN2 relay and sends the power status signal of “IGN
after started” through BCAN.

EMS starts to crank the engine after checking the pre-heating condition if it receives the engine

cranking request 1 when pressing the Engine Start/Stop button. EMS starts to crank the engine

immediately if it receives the engine cranking request 2 when pressing the Engine Start/Stop button.

1.

2.

3.

4.

5.

6.

Engine cranking request 1: when pressing the Engine Start/Stop button shortly in normal

conditions

Engine cranking request 2: when pressing the Engine Start/Stop button again after first press or

when pressing the Engine Start/Stp button for more than 3 seconds

-

-

Engine start during driving

7.

When pressing the Engine Start/Stop button with IGN ON, the engine start is requested if the
vehicle speed is less than 10 km/h or no signal, the gear shift lever is in ‘N” position and

the brake switch is ON (no need authentication for 30 seconds).

When pressing the Engine Start/Stop button with IGN ON, the engine start is requested
regardless of brake signal if the vehicle speed is over 10 km/h and the gear shift lever is in ‘

position (no need authentication for 30 seconds).

Except input of brake switch signal

In vehicle equipped with A/T, when pressing the Engine Start/Stop button for more than 10

seconds with ACC ON, the engine start is requested regardless of brake signal if the gear shift
lever is in “P” or ‘N” position in IGN ON.

-

-

*

-

11-7

1461-00

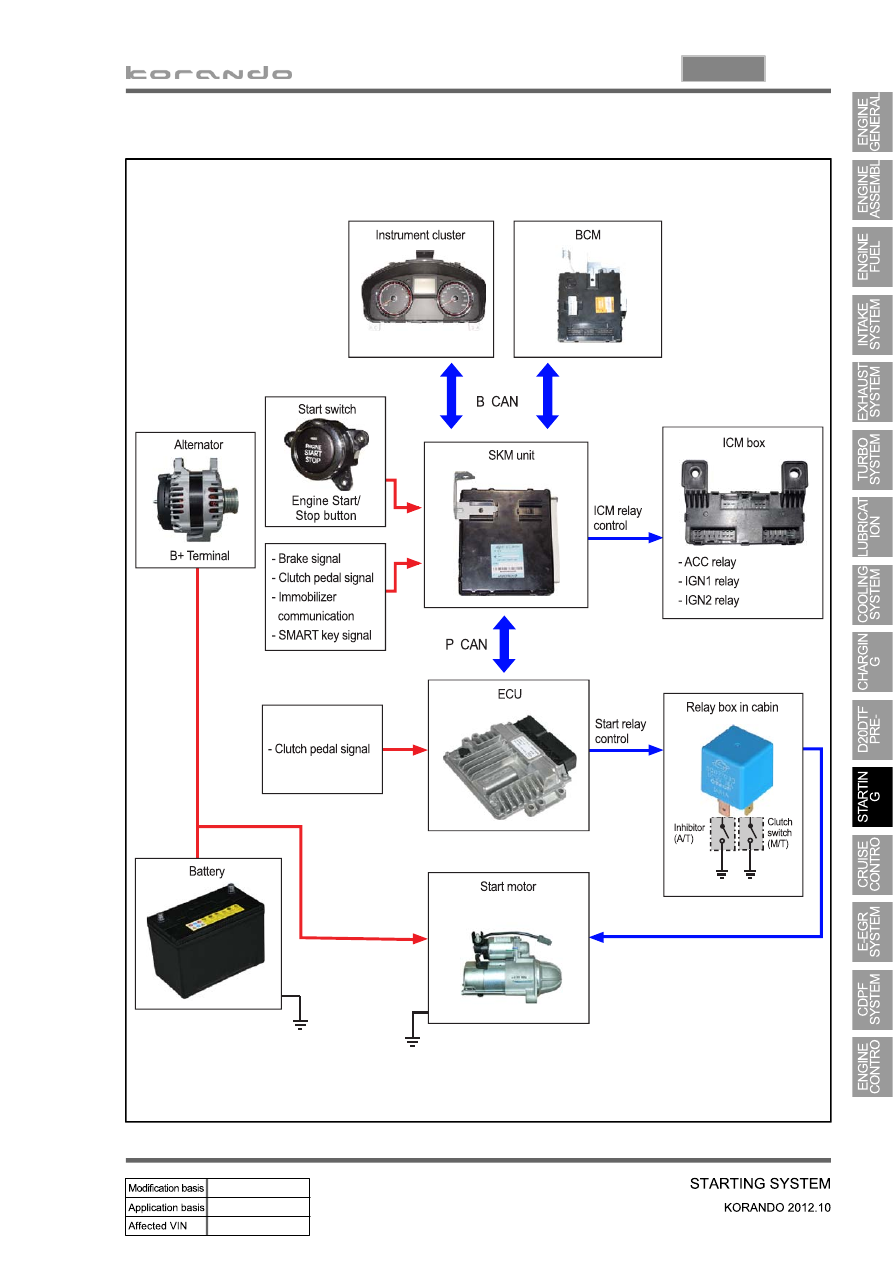

(2) With SMART key system

11-8

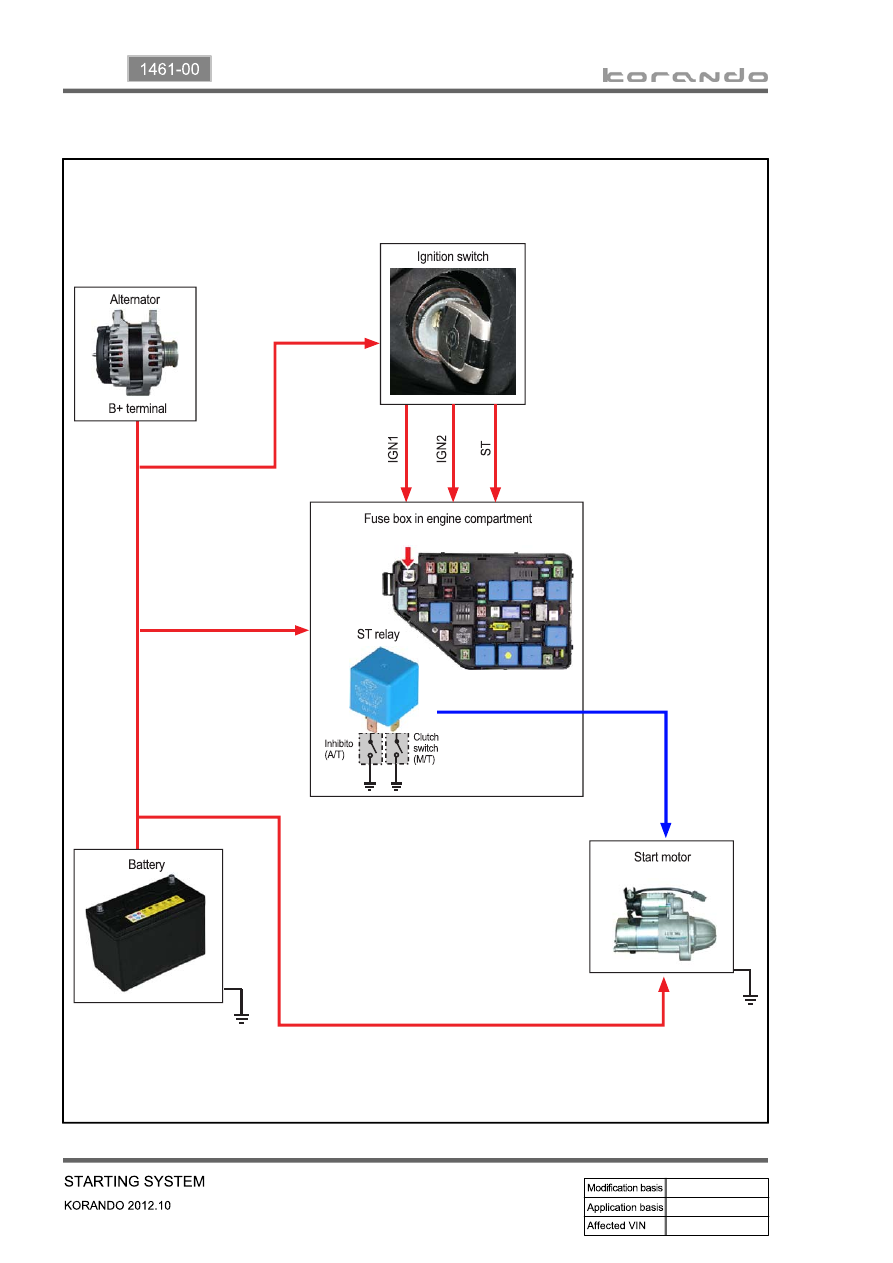

(3) Without SMART key system
