SsangYong Korando III (2010 year). Manual - part 60

10-14

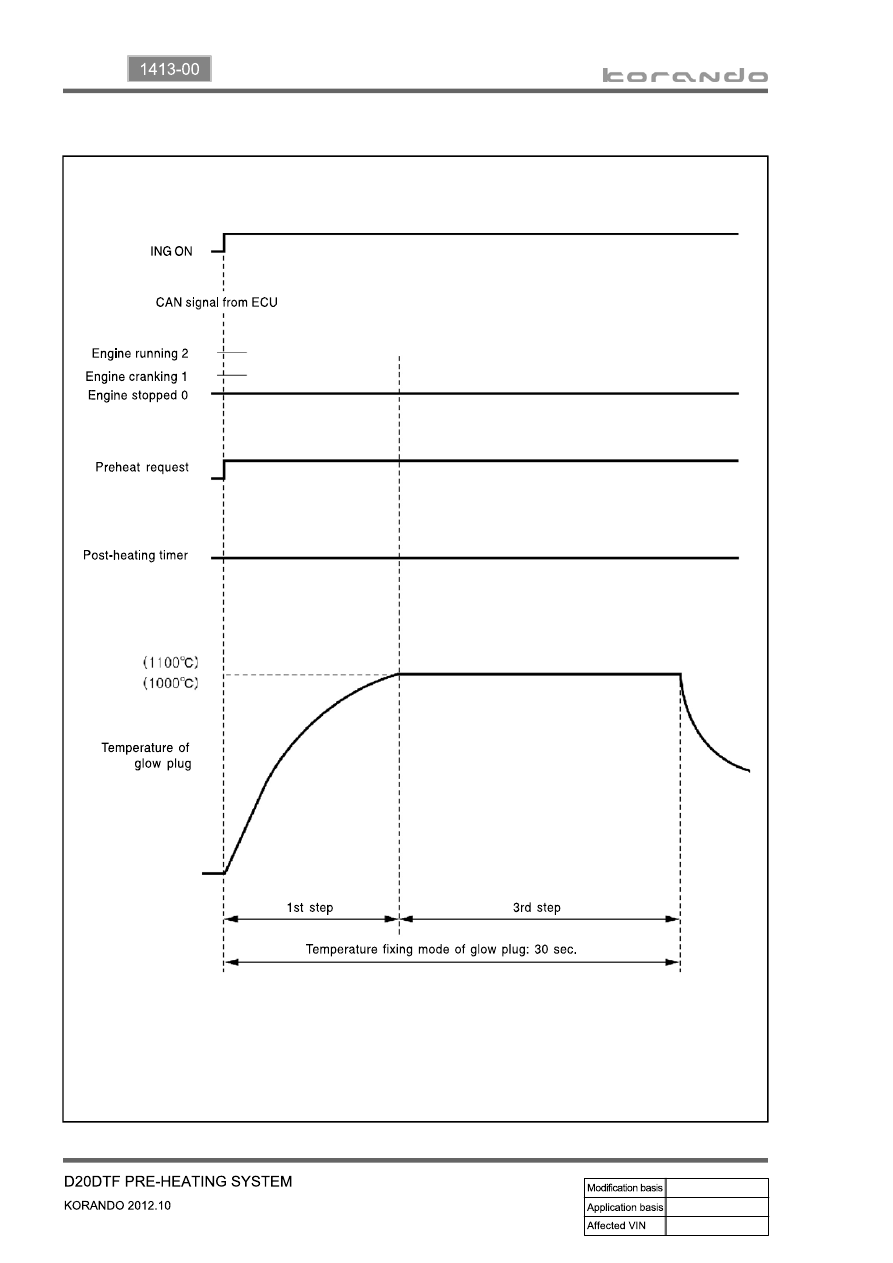

When there is no engine cranking signal after turning the ignition key ON

▶

11-3

1461-00

1. SPECIFICATION

Capacity

12V 2.3kW

Engagement

Meshed type

Rotating direction

Clockwise

Pinion gear manufacturing

Cooled forging

Solenoid operating voltage

Max. 8 V

Weight

2.5 kg

Bracket manufacturing

Aluminum die casting

11-4

2. TROUBLESHOOTING

Problem

Possible Cause　　

Action

Engine will not crank

Low battery voltage

Charge or replace

Loose, corroded or damaged battery cable

Repair or replace

Faulty starter or open circuit

Faulty ignition switch or blown fuse

Repair or replace

Poor engine ground

Repair

Engine cranks too

slow

Low battery voltage

Charge or replace

Loose, corroded or damaged battery cable

Repair or replace

Faulty starter

Starter does not

stop

Faulty starter

Faulty ignition switch

Replace

Engine cranks

normally, but does

not start

Broken pinion gear or faulty starter

Replace the starter

Broken flywheel ring gear

Replace

Open circuit

Repair

11-5

1461-00

Start motor assembly

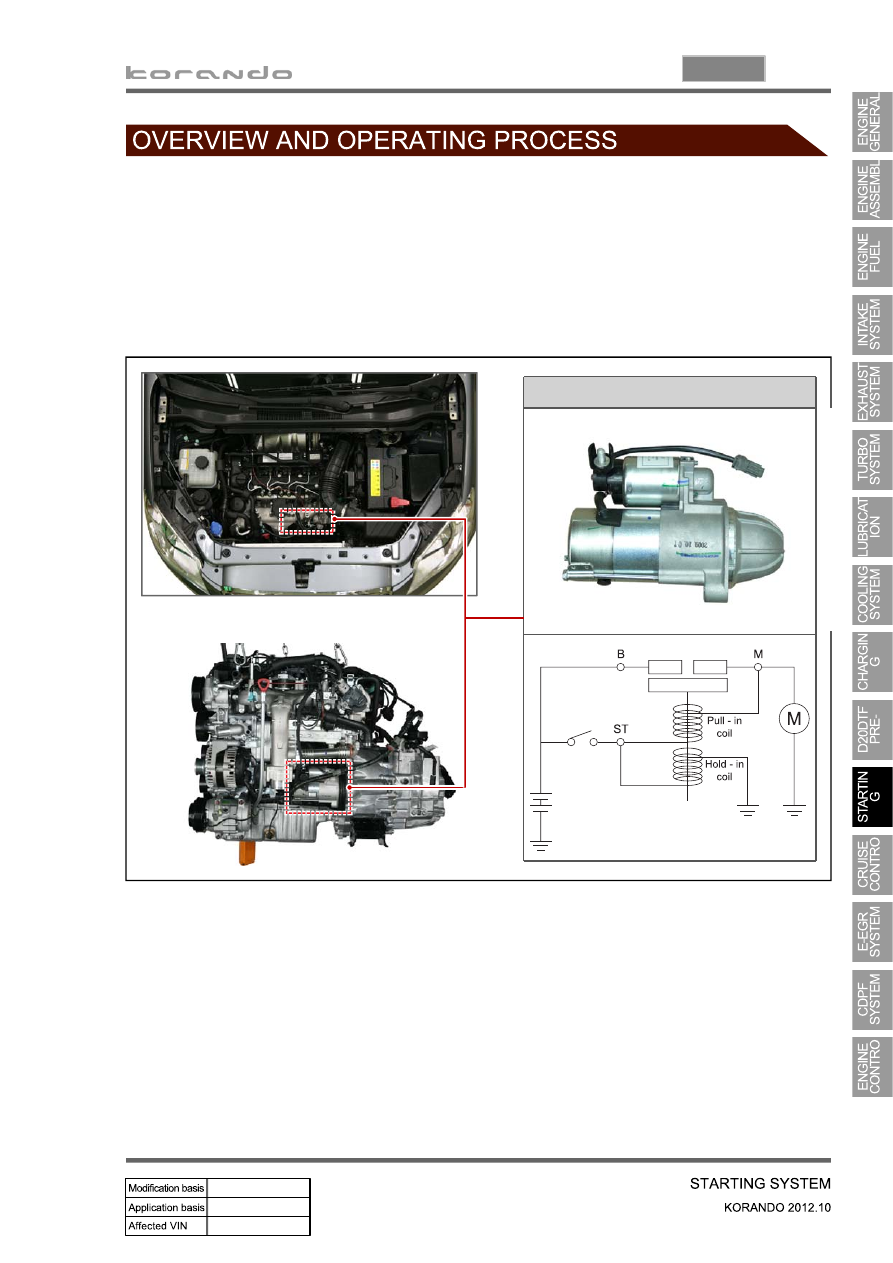

1. SYSTEM DESCRIPTION

The starter (start motor) starts the engine with rotational power by converting the electric energy to the

mechanical energy.

When the engine is cranking, the pinion gear meshes with the ring gear. If the ring gear overruns, the

pinion gear clutch overruns to protect the pinion gear.

System Configuration

▶
