SsangYong Korando III (2010 year). Manual - part 41

03-27

0000-00

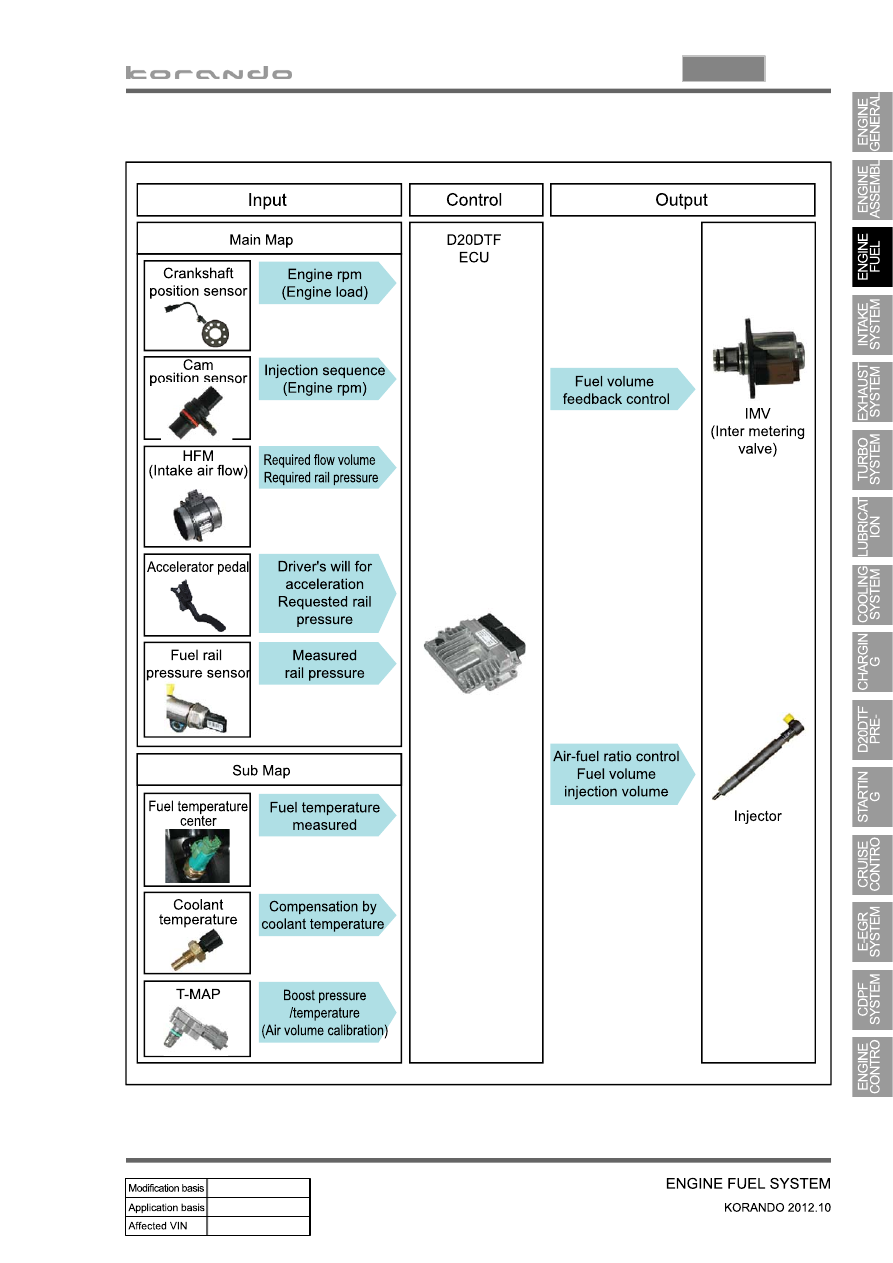

3) Input/Output devices

03-28

The engine ECU calculates the accelerator pedal based on the input signals from various sensors, and

controls the overall operation of the vehicle.

The ECU receives the signals from various sensor through data line, and performs effective air-fuel ratio

control based on these signals.

The crankshaft speed (position) sensor measures the engine speed, and the camshaft speed (position)

sensor determines the order of injections, and the ECU detects the amount of the accelerator pedal

depressed (driver's will) by receiving the electrical signals from the accelerator pedal sensor.

The mass air flow sensor detects the volume of intake air and sends the value to the ECU.

The major function of the ECU is controlling air-fuel ratio to reduce the emission level (EGR valve control)

by detecting instantaneous air flow change with the signals from the mass air flow sensor.

Also, the ECU uses the signals from the coolant temperature & air temperature sensors, booster pressure

sensor, atmospheric pressure sensor to: a) determine injection starting point and set value for pilot

injection, and b) deal with various operations and variable conditions.

03-29

0000-00

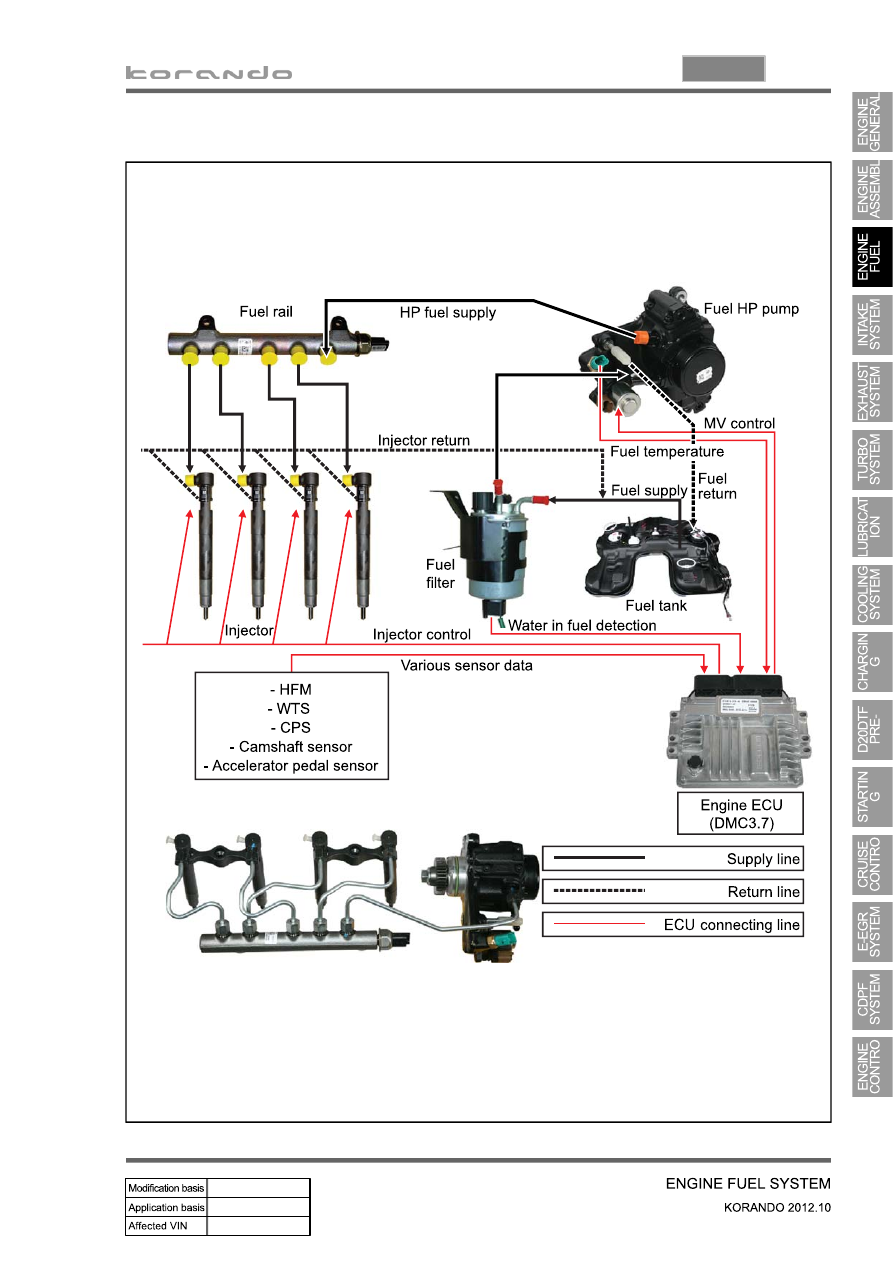

4) Flow Diagram of Fuel Supply System

03-30

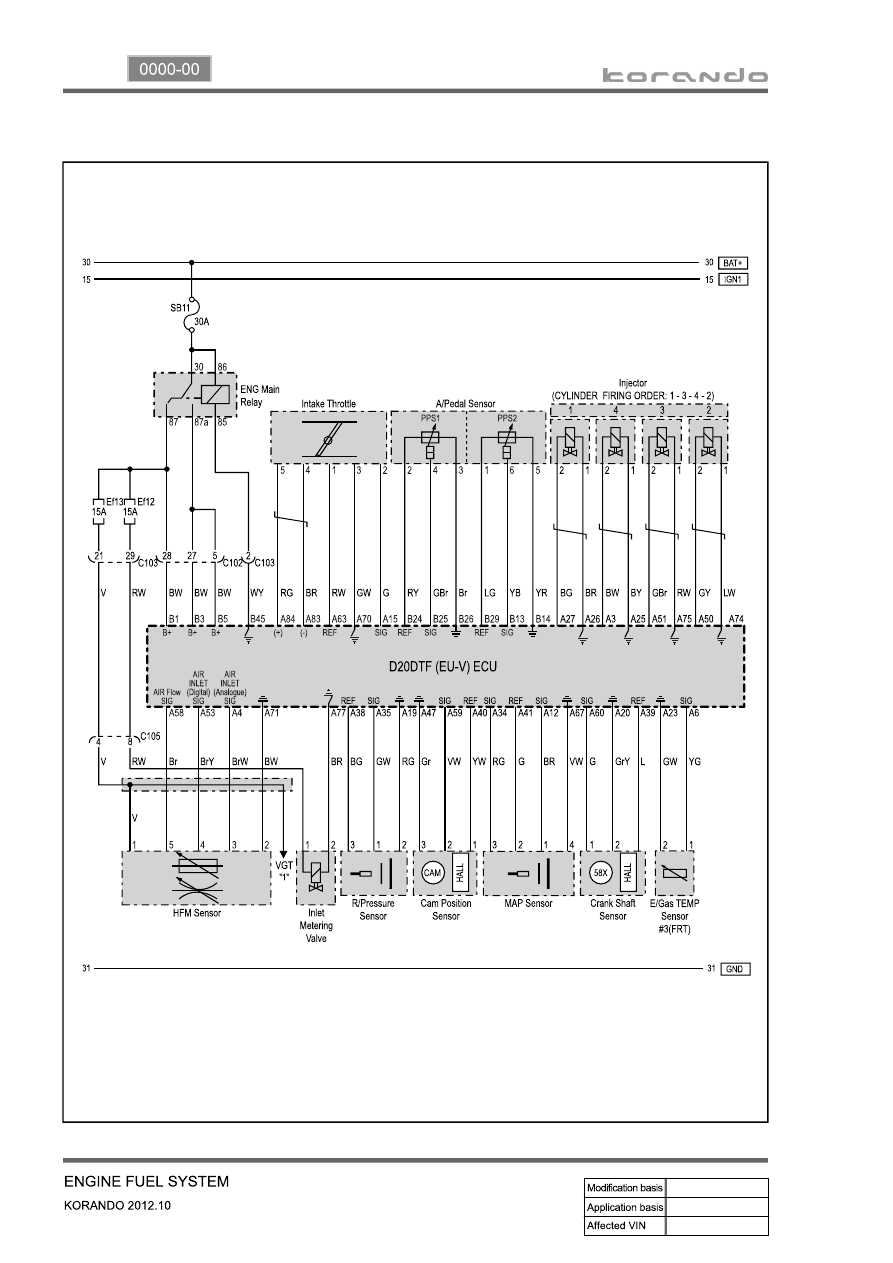

5) Circuit Diagram
