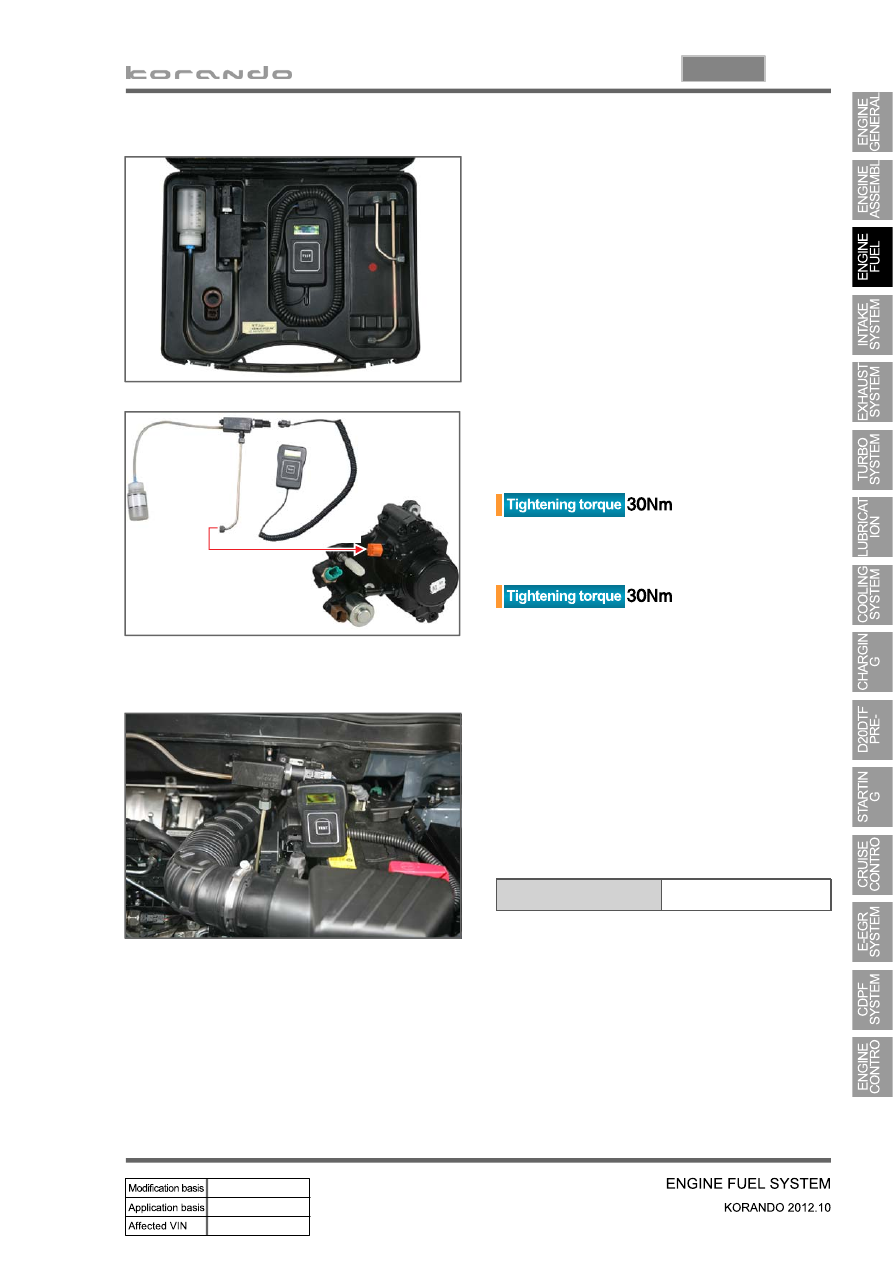

HP pump pressure test

▶

Prepare a special tool for high pressure test

and clean it thoroughly to prevent foreign

materials from entering.

1.

Disconnect the high pressure fuel supply pipe

on the HP pump and install the close rail in the

tool kit.

2.

Connect the other end of the close rail to the

fuel rail for test

3.

Disconnect the return hose for HP pump and

connect the clear hose and connect its the

other end to the return port of the fuel rail for

test.

4.

Connect the digital tester connector to the

sensor connector of the fuel rail for test.

Crank the engine 2 times for 5 seconds after

removing the IMV connector and fuel rail

pressure sensor connector.

Read the pressure value displayed on the

tester display is within the specified range.

5.

6.

7.

Specification

1,050 bar or more

03-20

3. CAUTIONS FOR DI ENGINE

1) Cautions for DI Engine

This chapter describes the cautions for DI engine equipped vehicle. This includes the water separation

from engine, warning lights, symptoms when engine malfunctioning, causes and actions.

DI Engine

1.

Comparatively conventional diesel engines, DI engine controls the fuel injection and timing electrically,

delivers high power and reduces less emission.

System Safety Mode

2.

When a severe failure has been occurred in a vehicle, the system safety mode is activated to protect the

system. It reduces the driving force, restricts the engine speed (rpm) and stops engine operation. Refer

to "Diagnosis" section in this manual.

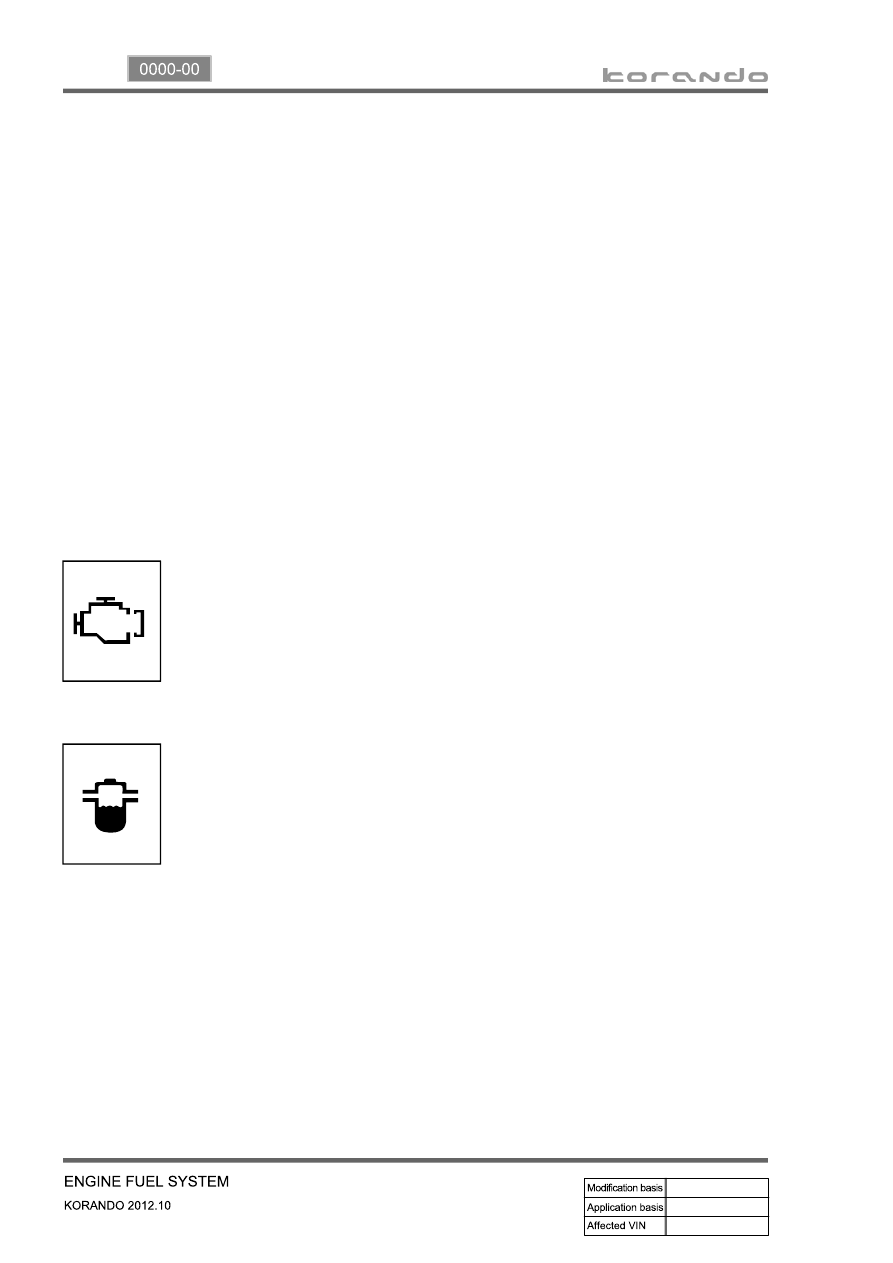

Engine CHECK Warning Lamp

3.

The Engine CHECK warning lamp on the instrument cluster comes on when the fuel or

major electronic systems of the engine are not working properly. As a result, the
engine’s power output may decrease or the engine may stall.

Water Separator Warning Lamp

4.

When the water level inside water separator in fuel filter exceeds a certain level (approx.

45 cc), this warning light comes on and buzzer sounds.

Also, the driving force of the vehicle decreases (torque reduction). If these conditions

occur, immediately drain the water from fuel filter.

03-21

0000-00

2) Cleanness

(1) Cleanness of DI engine fuel system

Cleanness of DI engine fuel system and service procedures

▶

The fuel system for DI engine consists of transfer (low pressure) line and high pressure line.

Its highest pressure reaches over 1,600 bar.
Some components in injector and HP pump are machined at the micrometer 100 μm of

preciseness.

The pressure regulation and injector operation are done by electric source from engine ECU.

Accordingly, if the internal valve is stuck due to foreign materials, injector remains open.

Even in this case, the HP pump still operates to supply high pressurized fuel. This increases the

pressure to combustion chamber (over 250 bar) and may cause fatal damage to engine.

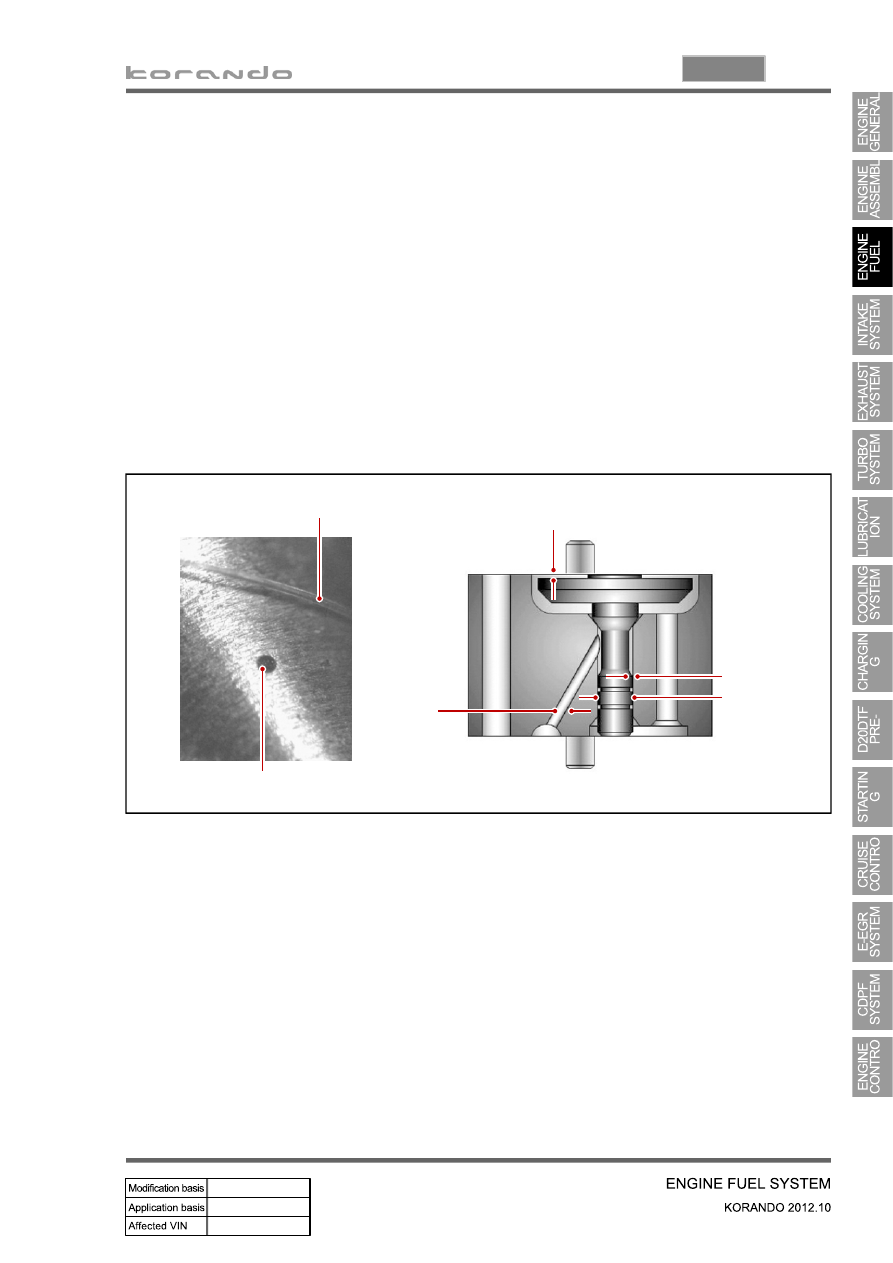

You can compare the thickness of injector nozzle hole and hair as shown in below figure (left side). The

below figure shows the clearance between internal operating elements.

The core elements of fuel system has very high preciseness that is easily affected by dust or very small

foreign material. Therefore, make sure to keep the preliminary works and job procedures in next pages.

If not, lots of system problems and claims may arise.

Hair

Nozzle hole

Valve actuator lift - 0.028 mm

Diameter

0.04 mm

Operating

clearance

0.002 mm

Diameter

2.0 mm

03-22

(2) Di engine and its expected problems and remedies can be caused by
     water in fuel

System supplement against paraffin separation

▶

In case of Diesel fuel, paraffin, one of the elements, can be separated from fuel during winter and then

can stick on the fuel filter blocking fuel flow and causing difficult starting finally. Oil companies supply

summer fuel and winter fuel by differentiating mixing ratio of kerosene and other elements by region and

season. However, above phenomenon can be happened if stations have poor facilities or sell improper

fuel for the season. In case of DI engine, purity of fuel is very important factor to keep internal

preciseness of HP pump and injector.

Accordingly, more dense mesh than conventional fuel filter is used. To prevent fuel filter internal clogging

due to paraffin separation, SYMC is using fuel line that high pressure and temperature fuel injected by

injector returns through fuel filter to have an effect of built-in heater (see fuel system).

System supplement and remedy against water in fuel

▶

As mentioned above, some gas stations supply fuel with excessive than specified water. In the

conventional IDI engine, excessive water in the fuel only causes dropping engine power or engine

hunting. However, fuel system in the DI engine consists of precise components so water in the fuel can

cause malfunctions of HP pump due to poor lubrication of pump caused by poor coating film during high

speed pumping and bacterization (under long period parking). To prevent problems can be caused by

excessive water in fuel, water separator is installed inside of fuel filter. When fuel is passing filter, water

that has relatively bigger specific gravity is accumulated on the bottom of the filter.

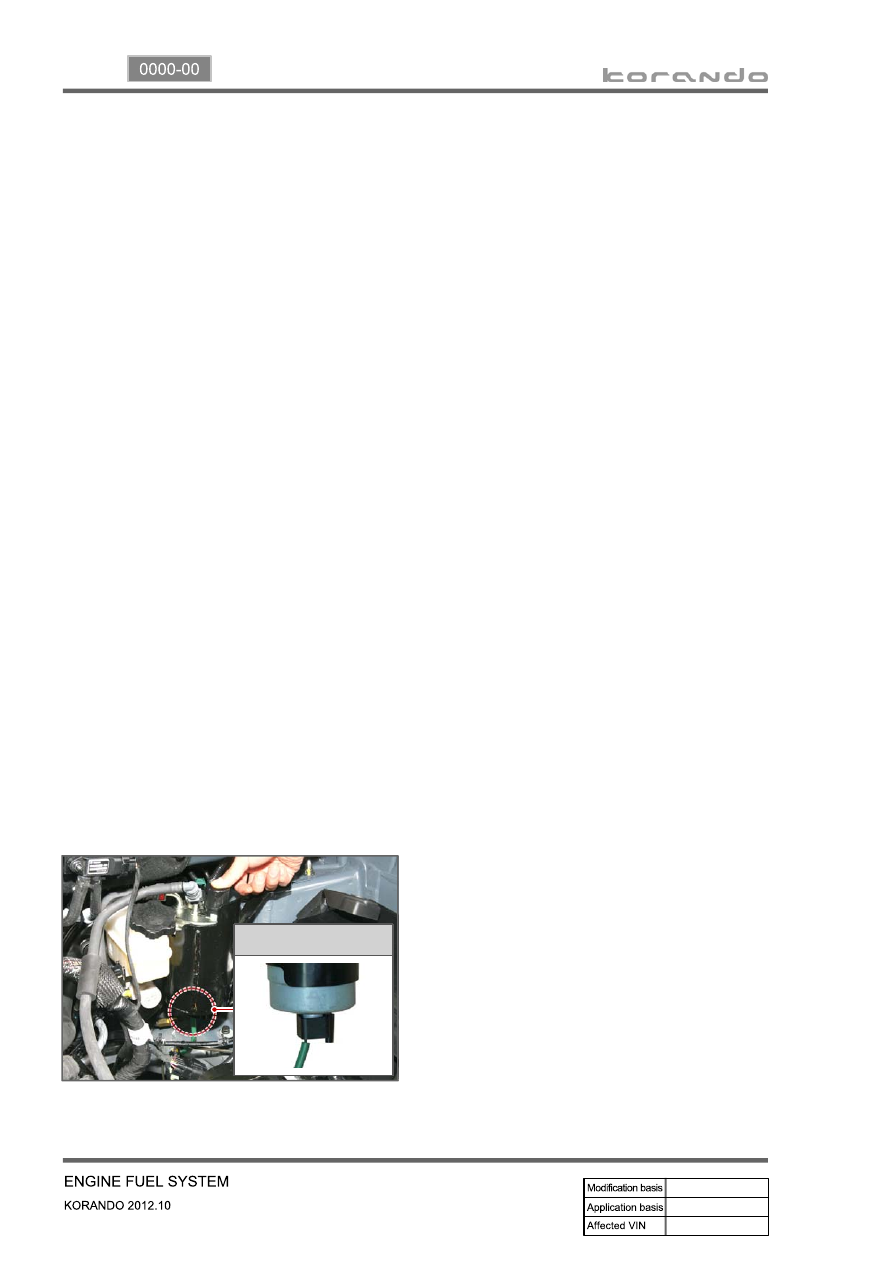

Water drain from water separator

▶

If water in the separator on the fuel filter exceeds a certain level, it will be supplied to HP pump with fuel,

so the engine ECU turns on warning lamp on the meter cluster and buzzer if water level is higher than a

certain level.

Due to engine layout, a customer cannot easily drain water from fuel filter directly, so if a customer

checks in to change engine oil, be sure to perform water drain from fuel filter.

Water separator
