1. SPECIFICATION

Component

Item

Specification

Air cleaner element

Filter type

Dry, filter element

Filter area

0.208 m²

Service interval

EU: Change every 20,000 km (But, shorten the

service interval under severe conditions)

GEN: Change every 15,000 km (But, shorten the

service interval under severe conditions)

Air cleaner assembly

Weight

1.13 kg

Operating temperature

-30 ~ 100℃

Capacity

6.5 L

Intercooler

Core material

Aluminum

Size

510 x 110 x 70 (W x H x T)

Core size

510 x 110 x 63 (W x H x T)

Tank material

Plastic (Molding)

Efficiency

80%

Shorten the service interval under severe conditions such as driving on a dusty road or off-road.

*

04-4

2. INSPECTION

1) Troubleshooting

When Abnormal Noises are Heard from the Engine Room

▶

For the vehicle equipped with DI engine, if a learning noise occurs in each range or other noises occur,

the major cause of it is a faulty turbocharger assembly. But an interference issue, poor tightness or

loose in the intake and exhaust system also can cause those noises. This is mainly because the

operator didn't follow the instruction exactly when reconnecting the intake hoses and pipes which were

disconnected to check the system or replace the air cleaner. If the intake system is free of any faults,

check the EGR and PCV oil separator connected to the intake system.

The figure may be different from the actual engine. Therefore, read thoroughly below before replacing

the parts.

2) Abnormal Noise Caused by Poor Tightness of Intake System

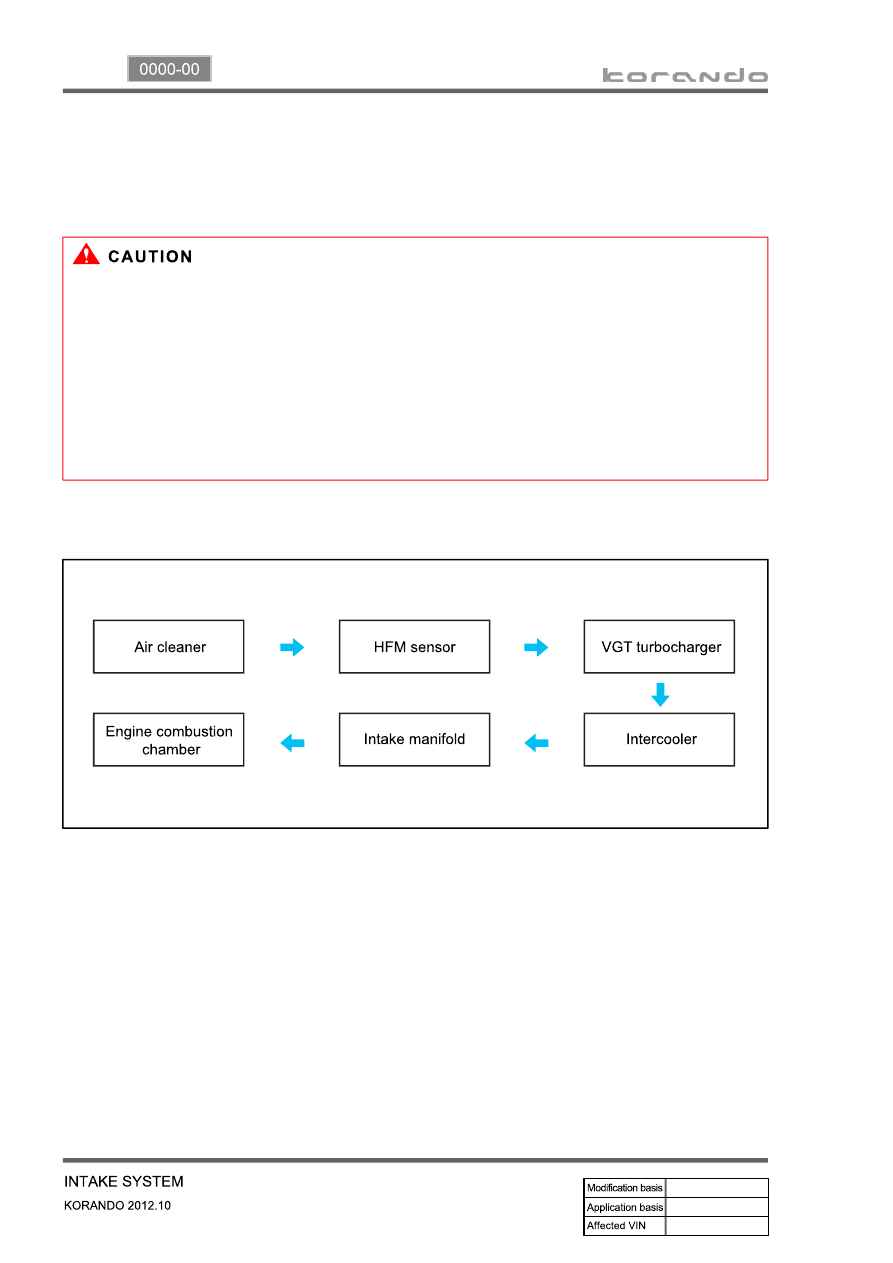

When the DI engine is running, the air entered into the engine flows in the sequence as shown above. If

high intake pressure is applied to the loose or damaged part, a whistling noise may occur, the intake air

volume is measured incorrectly or the engine power is derated.

04-5

0000-00

3) Troubleshooting Sequence

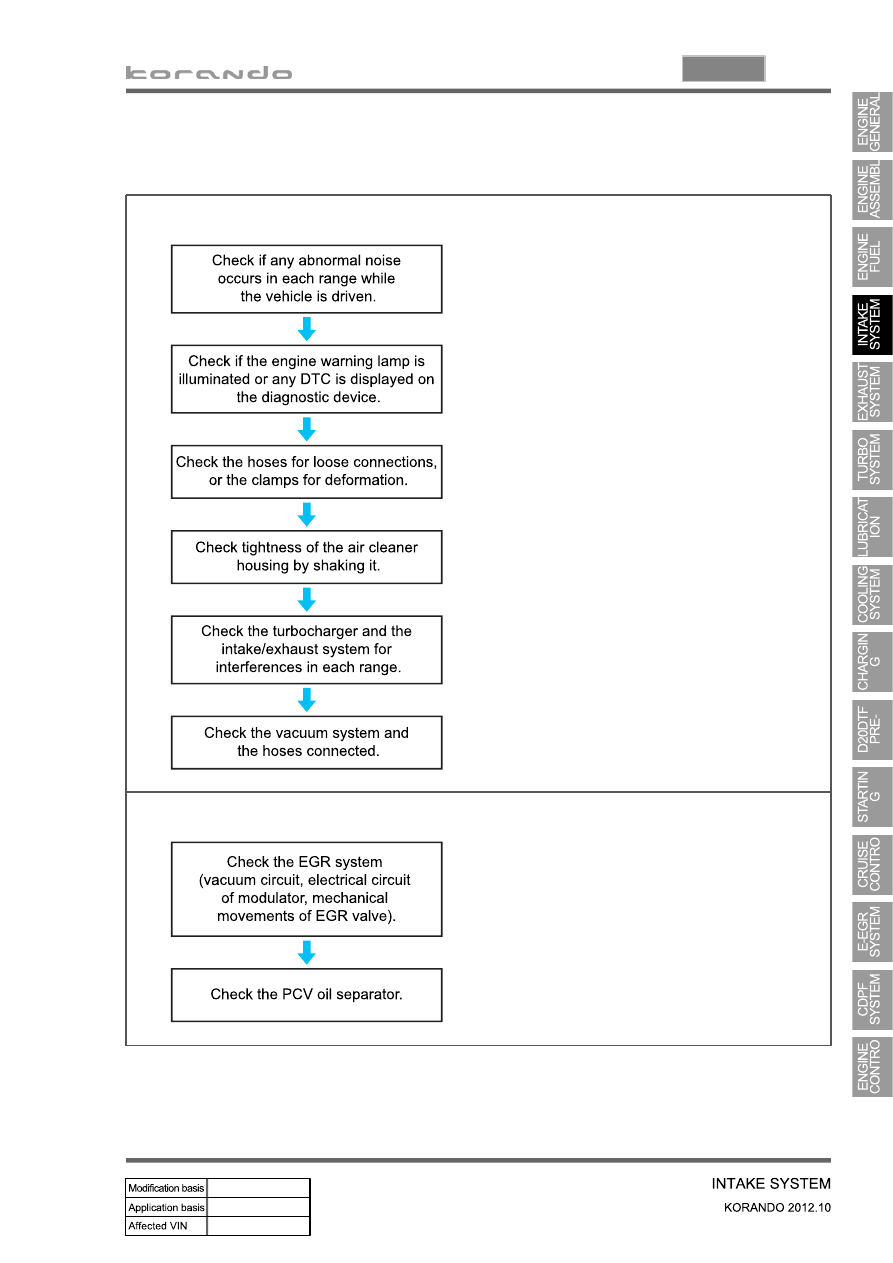

The basic checks for intake system are as follows:

Basic Checks for Intake System

▶

Make sure to replace or clean the air cleaner

element periodically. Otherwise, engine will be

derated or work abnormally because of low

intake air volume.

Unlike the fuel system, which is a closed

circuit, the intake system is an open circuit

system. Therefore any malfunction may occur

due to dust and dirt.

Most of the connections consist of hoses so

the system cannot withstand high temperature

and pressure. Also it can be deformed or

loosened easily because it is a clamp

mounting system. Thus, when checking the

engine, basic inspections, such as tightened

status check and visual inspection for hose,

etc., should be carried out in advance.

Other Checks for Intake System

▶

If the intake system is free of any faults, check

for EGR and PCV oil separator.

04-6

1. OVERVIEW

The intake system for D20DTF engine is equipped with an electric throttle body which includes a flap.

This flap is controlled by an electrical signal to cut off the intake air entering to the engine when the

ignition switch is turned off. To be sure to get the optimized swirl in intake manifold, the swirl valve and

dual type port have been adopted. And, the improved HFM sensor has been adopted to control the

intake air volume more precisely.

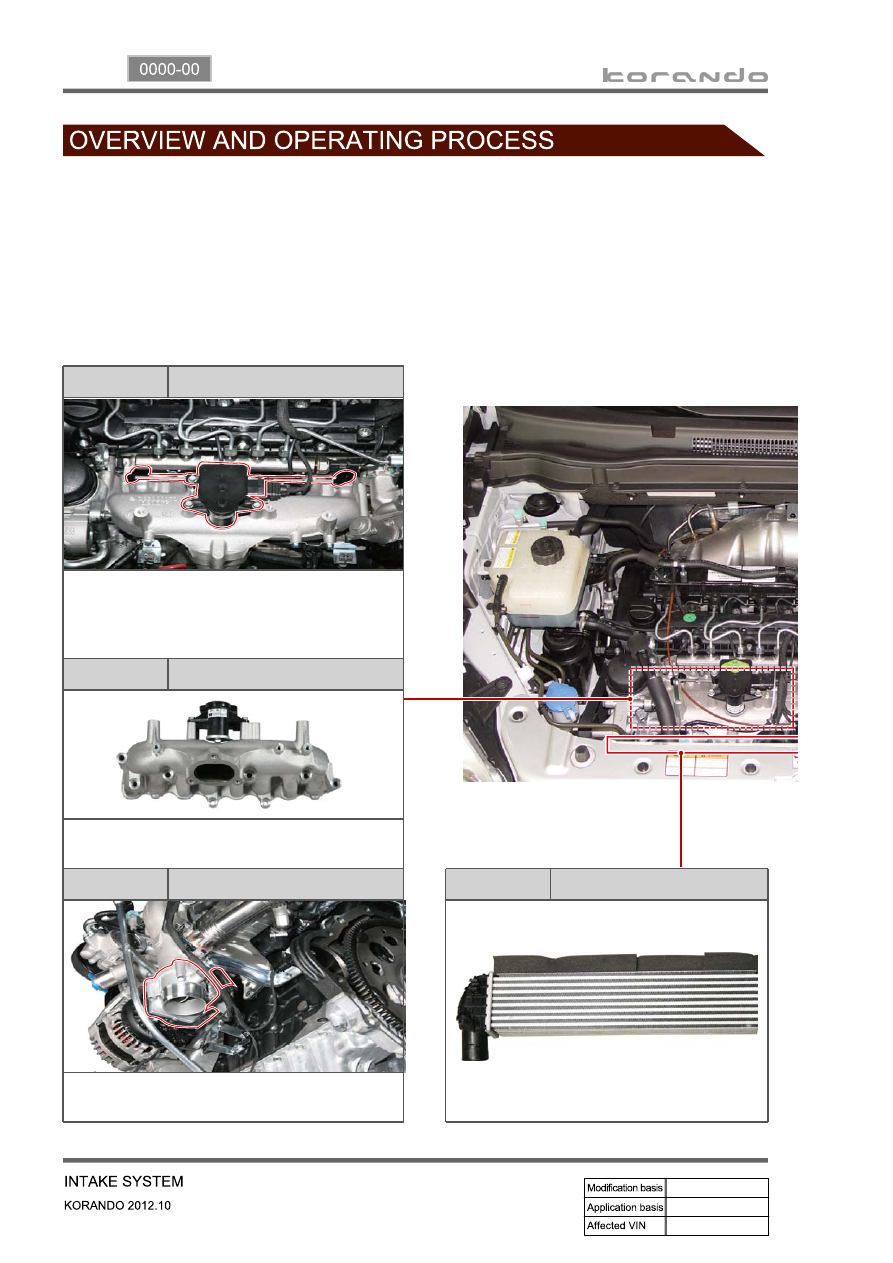

2. COMPONENTS

1719-02

Swirl control valve

Operates variably in accordance with the engine

load and rpm.

* For more information, refer to Chapter "Engine

Control".

1719-01

Intake manifold

Passage for intake air during the operation of

variable swirl valve

1719-16

Electric throttle body

* For more information, refer to Chapter "Engine

Control".

2330-01

Intercooler assembly
