SsangYong Korando II (1996-2006 year). Manual - part 394

SSANGYONG  MY2002

7D-20  FATC-HAVC

KAA7D270

KAA7D280

KAA7D290

KAA7D300

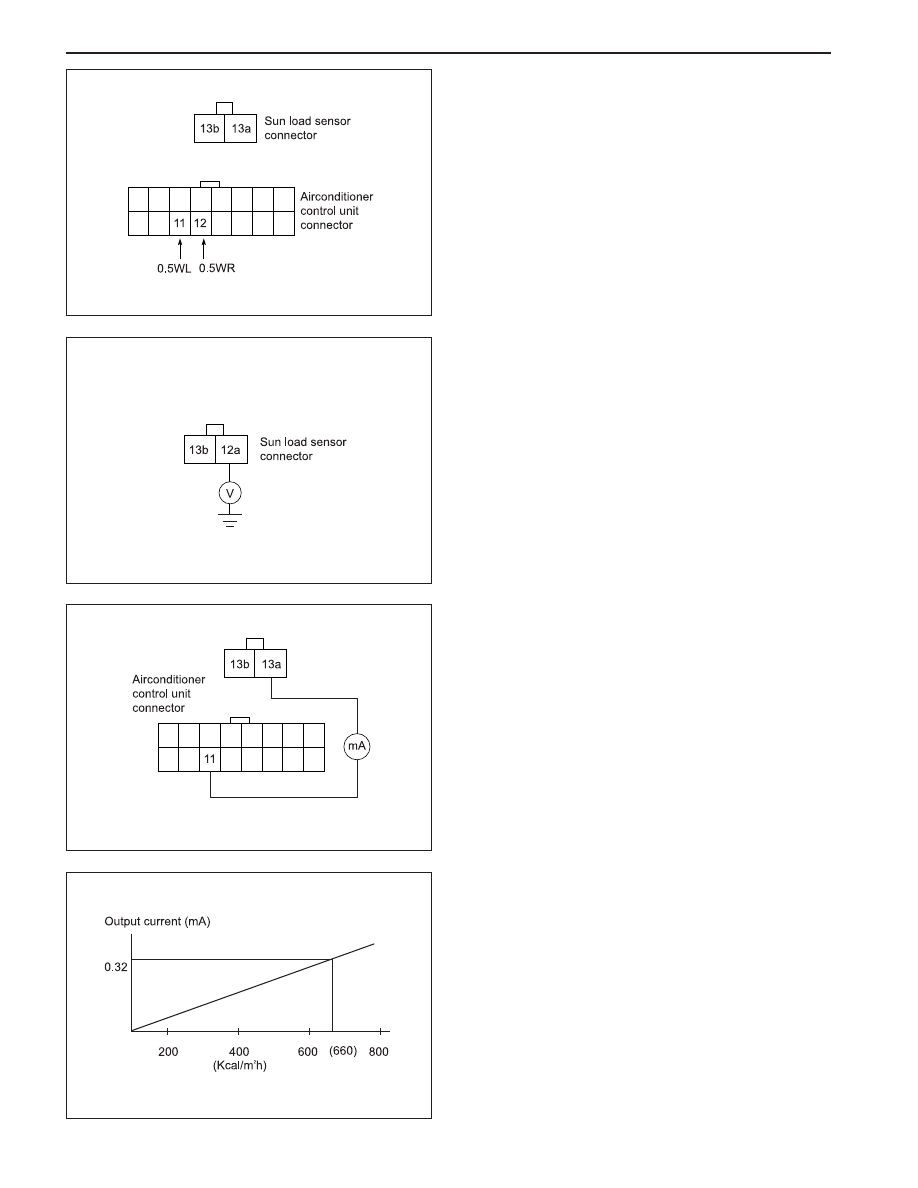

Sun load Sensor

Sun load sensor is a photo diode that detects lights.
Resistance of diode can be measured as current by
using multimeter according to increasing sun loads.

1. Check current on the circuits between the sun load

sensor and the airconditioner control unit.

2. Turn the ignition switch to ON position and check

that voltage between No. 13a terminal of the sun
load sensor and vehicle ground is 5V.

3. Measure current between No. 13a terminal of the

sun load sensor and No. 11 terminal of the control
unit and check it is as shown in the below graph.

4. If current value is out of specification, replace the

sun load sensor.

FATC-HAVC  7D-21

SSANGYONG  MY2002

KAA7D310

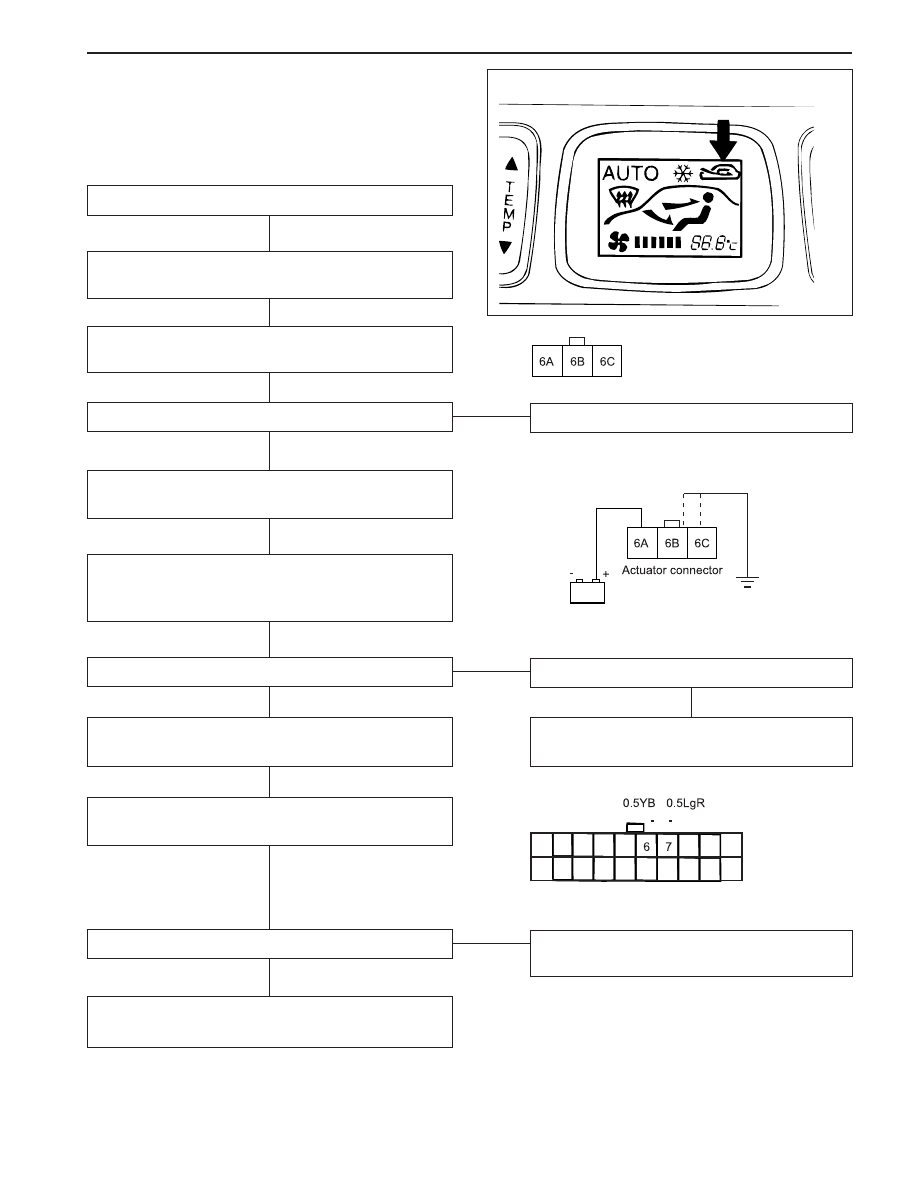

Fault : intake (recirculation/fresh air) door inoperative

Remove the glove box.

Check No. 24 fuse (15A) in the box.

Yes

No

Check that it operates toward each direction after
connecting the battery to the 6C terminal of intake
actuator and ground 6A & 6B to the body.

Wiring side connector

Intake actuator is normal.

Yes

Repair and replace the intake actuator.

No

Check intake actuator linkage and door for
proper operation and repair if necessary.

Disconnect 20-pin connector from the airconditioner
control unit.

Check current between the intake actuator (6A, 6B)
and the airconditioner control unit (6,7).

Is there current?

Yes

Repair open wire between the intake actuator
and the control unit.

No

Replace the good control unit and re-check. If no
fault, replace the control panel.

Measure voltage between 6c terminal positive pole
(+) and body (-).

Measured voltage is 12V.

Turn the ignitin switch OFF and disconnect harness
of the intake actuator.

Disconnect 3-pin connector of the intake mode
actuator and turn the ignition switch to ON position.

SSANGYONG  MY2002

7D-22  FATC-HAVC

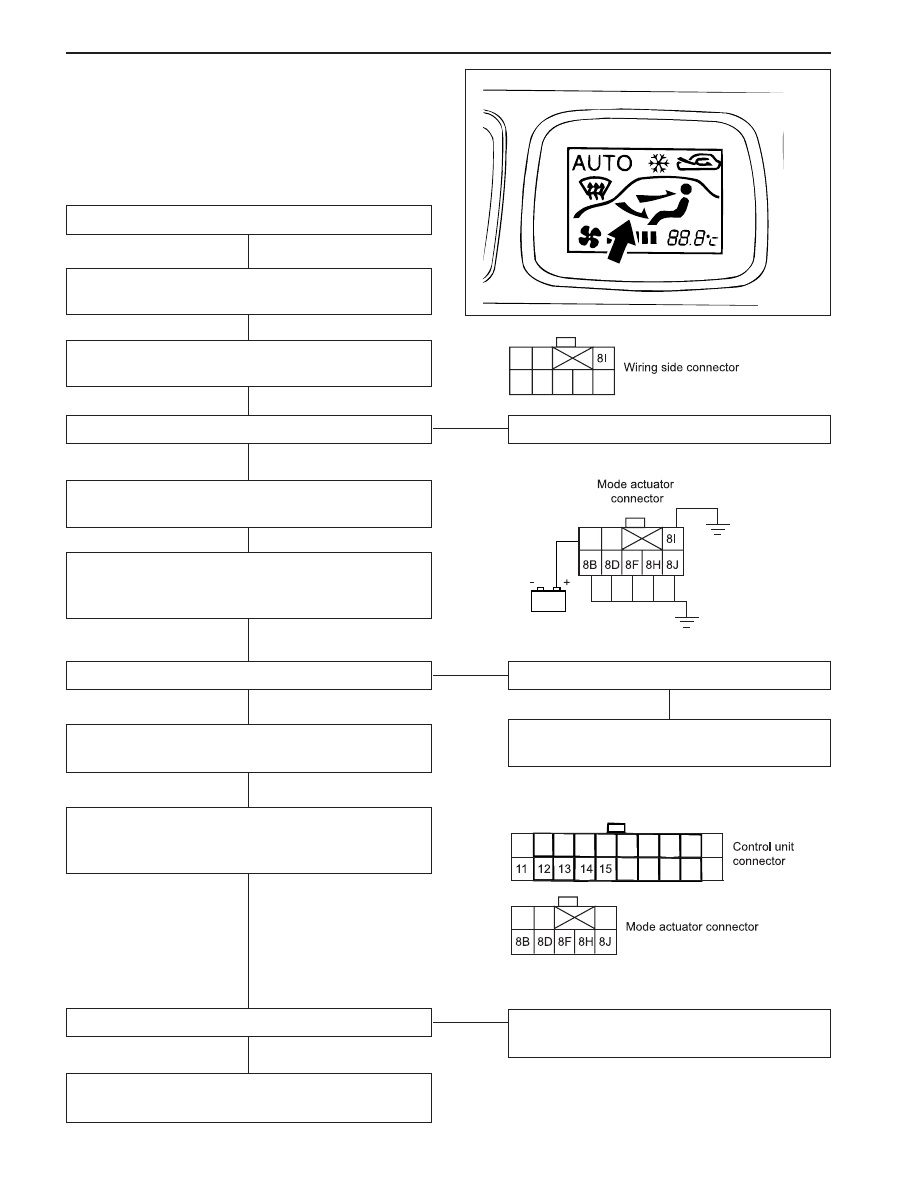

Fault : air flow does not change toward panel side.

Remove the center panel of the instrument panel.

Measure voltage between 8I terminal positive pole
(+) and body (-).

Measured voltage is 12V.

Check No. 24 fuse (15A) in the fuse box.

Turn the ignition switch OFF and disconnect harness
of the mode actuator.

Yes

No

Disconnect 8-pin connector of the mode actuator and
turn the ignition switch to ON position.

Check that it operates toward each directions when
ground is connected to terminal (8J, 8H, 8F, 8D, 8B)
of the mode actuator alternatively.

Mode actuator is normal.

Yes

Repair and replace the mode actuator.

No

Check the intake actuator linkage and door
for proper operation and repair if necessary.

Disconnect 20-pin connector from the airconditioner
control unit.

Check current between the mode actuator (8J, 8H,
8F, 8D, 8B) and the airconditioner control unit (11,
12, 13, 14, 15).

Is there current?

Yes

Repair open wire between the mode actuator
and the control unit.

No

Replace the good control unit and re-check. If no
fault, replace the control panel.

KAA7D350

SECTION 8A

SEAT BELTS

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must be in B unless otherwise
noted.

TABLE OF CONTENTS

Description and Operation ................................... 8A-2

Driver Seat Belt Warning ...................................... 8A-2

Three-Point Front Seat Belt With Pretensioner ....... 8A-2

Three-Point Rear Outboard Seat Belt .................... 8A-2

Two-Point Lap Rear Center Seat Belt .................... 8A-2

Operational and Functional Checks ...................... 8A-2

Child Seat Tether Anchor ..................................... 8A-2

Component Locator ............................................. 8A-3

Front Seat Belt ..................................................... 8A-3

Rear Seat Belt ..................................................... 8A-4

Repair Procedures ............................................... 8A-5

On-Vehicle Service ................................................. 8A-5

Three-Point Front Seat Belt With Pretensioner ....... 8A-5

Front Seat Belt Height Adjuster ............................ 8A-6

Three-Point Rear Outboard Seat Belt .................... 8A-6

Two-Point Lap Rear Center Seat Belt .................... 8A-7

Child Seat Tether Anchor ..................................... 8A-7

Specifications ....................................................... 8A-8

Fastener Tightening Specifications ....................... 8A-8

Schematic and Routing Diagrams ....................... 8A-9

Seat Belt & Tension Reducer ............................... 8A-9
