SSANGYONG  MY2002

8A-2  SEAT BELTS

DESCRIPTION AND OPERATION

DRIVER SEAT BELT WARNING

The driver’s seat belt incorporates a seat belt warning
lamp in the instrument cluster to remind the driver if
the seat belt is not fastened when the ignition is turned
ON. The warning lamp blinks for eight seconds with
chime and goes out.

THREE-POINT FRONT SEAT BELT
WITH PRETENSIONER

The front seat belt contains an electronically controlled
pyrotechnic retractor, pretensioner, which reduces seat
belt slack when it activated in a head-on or angled
front collision. The front seat belt must be replaced
after an accident that causes its activation. At normal
condition the driver’s seat belt operates as emergency
locking retractor (ELR).

Emergency Locking Retractor (ELR)

The ELR seat belt is always unlocked, allowing the
p a s s e n g e r  f r e e d o m   o f   m o v e m e n t ,   e x c e p t   i n
emergencies such as rapid deceleration, rapid
acceleration, or hard cornering maneuvers.

THREE-POINT REAR OUTBOARD
SEAT BELT

The rear outboard seating position uses the emergency
locking retractor (ELR). Refer to Three-point front seat
belt with pretensioner in this section for details.

TWO-POINT LAP REAR CENTER
SEAT BELT

The two-point lap rear center seat belt is a single contin-
uous length of webbing. The webbing is routed from
the anchor through plate and into a single retractor.

OPERATIONAL AND FUNCTIONAL
CHECKS

Caution:

•

Keep sharp objects and potentially damaged ob
jects away from seat belts.

•

Avoid bending or damaging any portion of
buckle or the latch plate

•

Do not breach or dye the belt webbing. Use only
mild soap and water in order to clean the belts.

•

When installing the seat belt anchor bolts and
screws, start the bolts and screws by hand in or-
der to prevent cross-threading.

•

Do not attempt any repairs on the retractor mech-
anisms or covers. Replace any defective assem-
blies with new assemblies.

•

Replace any belts that are cut or damaged in any
way.

1. Inspect all seat anchor bolts and screws in order to

verify that they are secure.

2. Inspect the seat belt buckle. The buckle must lock

and unlock easily.

3. After inserting the latch into the buckle, tug sharply

on the belt. The buckle must remain locked.

4. Fully extend the shoulder belt portion to make sure

that there is no twisting or tears in the belt.

5. Let the shoulder belt retract fully. The belt should

retract easily.

CHILD SEAT TETHER ANCHOR

There are three child seat tether anchors to hold the
child seat firmly. One is located rear center of ceiling
and two are located on the rear corner of floor.

SEAT BELTS  8A-3

SSANGYONG  MY2002

COMPONENTS LOCATOR

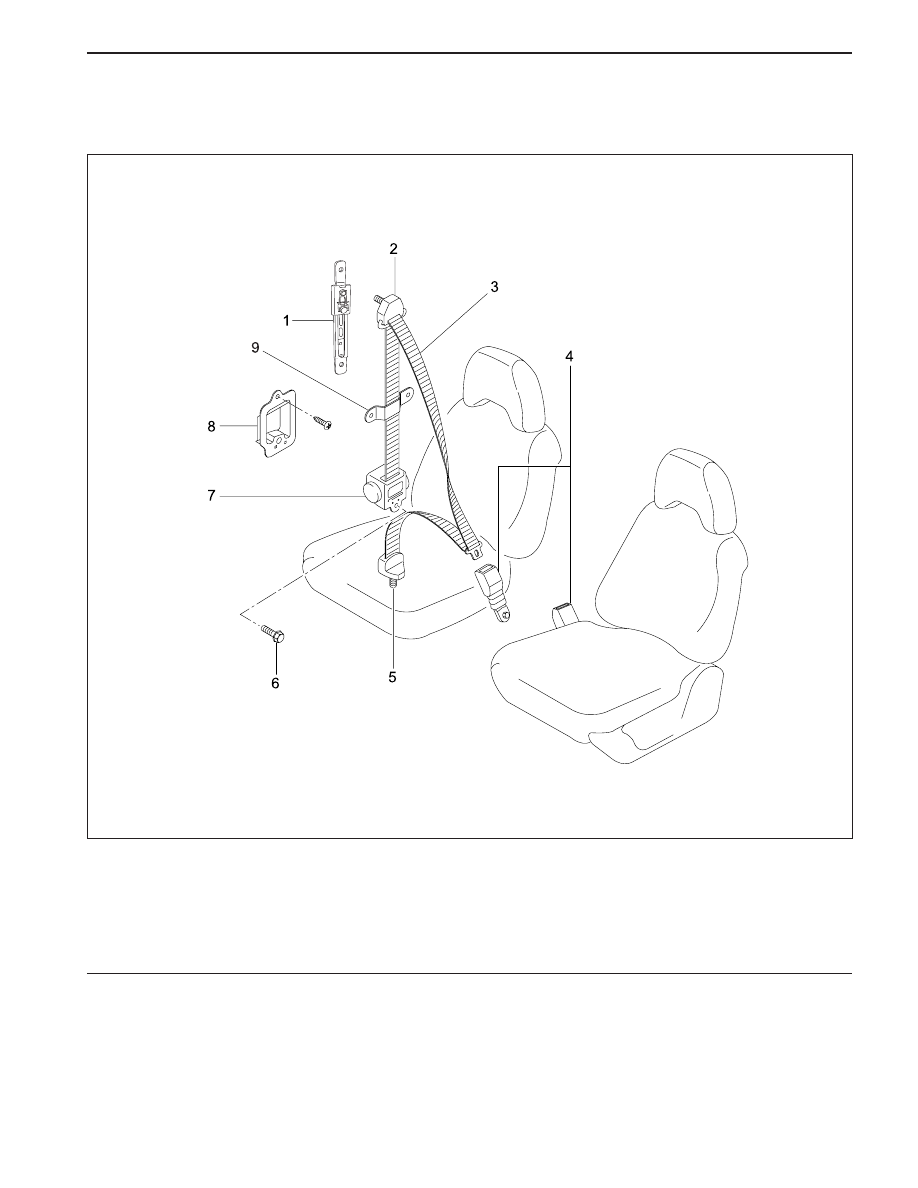

FRONT SEAT BELT

1 Front Seat Belt Height Adjuster
2 Front Seat Belt Upper Anchor
3 Front Seat Belt With Pretensioner
4 Buckle Assembly
5 Front Seat Belt Lower Anchor

6 Seat Belt Retractor Bolt
7 Seat Belt Retractor With Pretensioner
8 Seat Belt Dust Cover and Screw
9 Seat Belt Webbing Guide

KAA8A010

SSANGYONG  MY2002

8A-4  SEAT BELTS

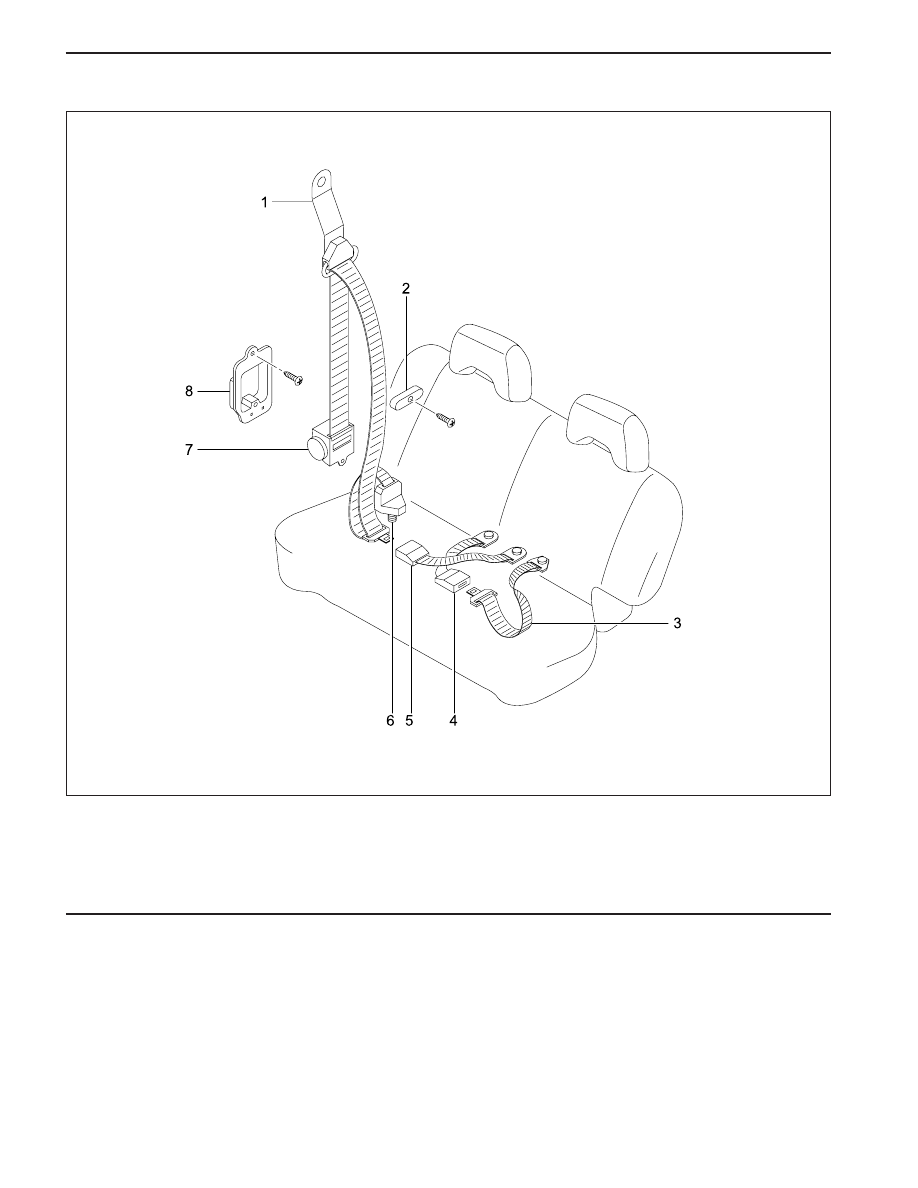

REAR SEAT BELT

1 Rear Seat Belt Upper Anchor
2 Rear Seat Belt Webbing Hanger
3 Rear Center Seat Belt
4 Rear Center Seat Belt Buckle

5 Rear Seat Belt Buckle
6 Rear Seat Belt Lower Anchor
7 Rear Seat Belt Retractor
8 Rear Seat Belt Dust Cover

KAA8A020

SEAT BELTS  8A-5

SSANGYONG  MY2002

;;

;;

;;

yy

yy

yy

ON-VEHICLE SERVICE

THREE-POINT FRONT SEAT BELT
WITH PRETENSIONER

Caution: the sensing and diagnosis module (SDM)
can maintain sufficient voltage to deploy the air-
bags and pretensioner for 0.15 minutes after the
ignition is OFF and the fuse has been removed. If
the airbags or pretensioners are not disconnected,
do not begin service until one minute has passed
after disconnecting power to the SDM. Otherwise,
injury could result.

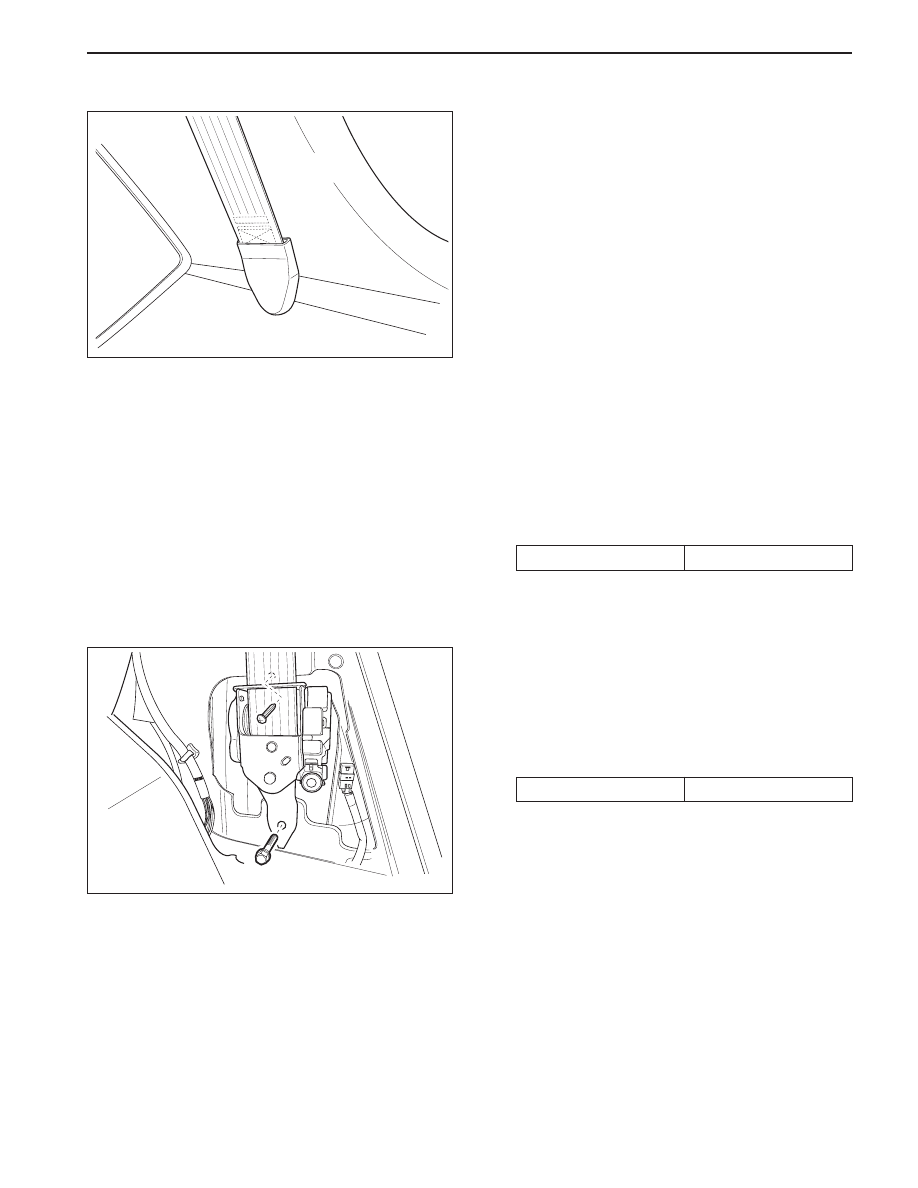

Removal and installation Procedure

1. Turn the ignition switch to LOCK and remove the

key.

2. Remove the plastic cap to reveal the lower B-pillar

seat belt anchor.

3. Remove the bolt and the lower B-pillar seat belt

anchor.

Installation Notice

KAA8A030

KAA8A040

4. Remove the lower quarter trim panel. Refer to Sec-

tion 9G, Interior Trim.

5. Disconnect the pretensioner connector.

6. Remove the bolt, screw and the seat belt retractor

(pretensioner).

Installation Notice

REPAIR PROCEDURES

Tightening Torque

45 N•m (33 lb-ft)

Tightening Torque

Bolt 45 N•m (33 lb-ft)
