Fault Safety Function

FATC airconditioner system not only performs self-
diagnosis but also has safety function against faults if
there is open or short in the incar sensor, ambient
sensor, water temperature sensor and temperature door
potentiometer.

NO.

Item

Defects

Fault safety function

Incar sensor

Ambient sensor

Water temperature sensor

Temperature door potentiometer

Open or short

Open or short

Open or short

Open or short

Control When substituted 25°C

Control When substituted 20°C

Perform heating maneuver control function under

refrigeration maneuver control entering conditions

and release after 10 minutes.

Set temperature 17 - 24.5°C : max. COLD position

Set temperature 25 - 32°C : max. HOT position

FATC-HAVC  7D-13

SSANGYONG  MY2002

MAINTENANCE AND REPAIR

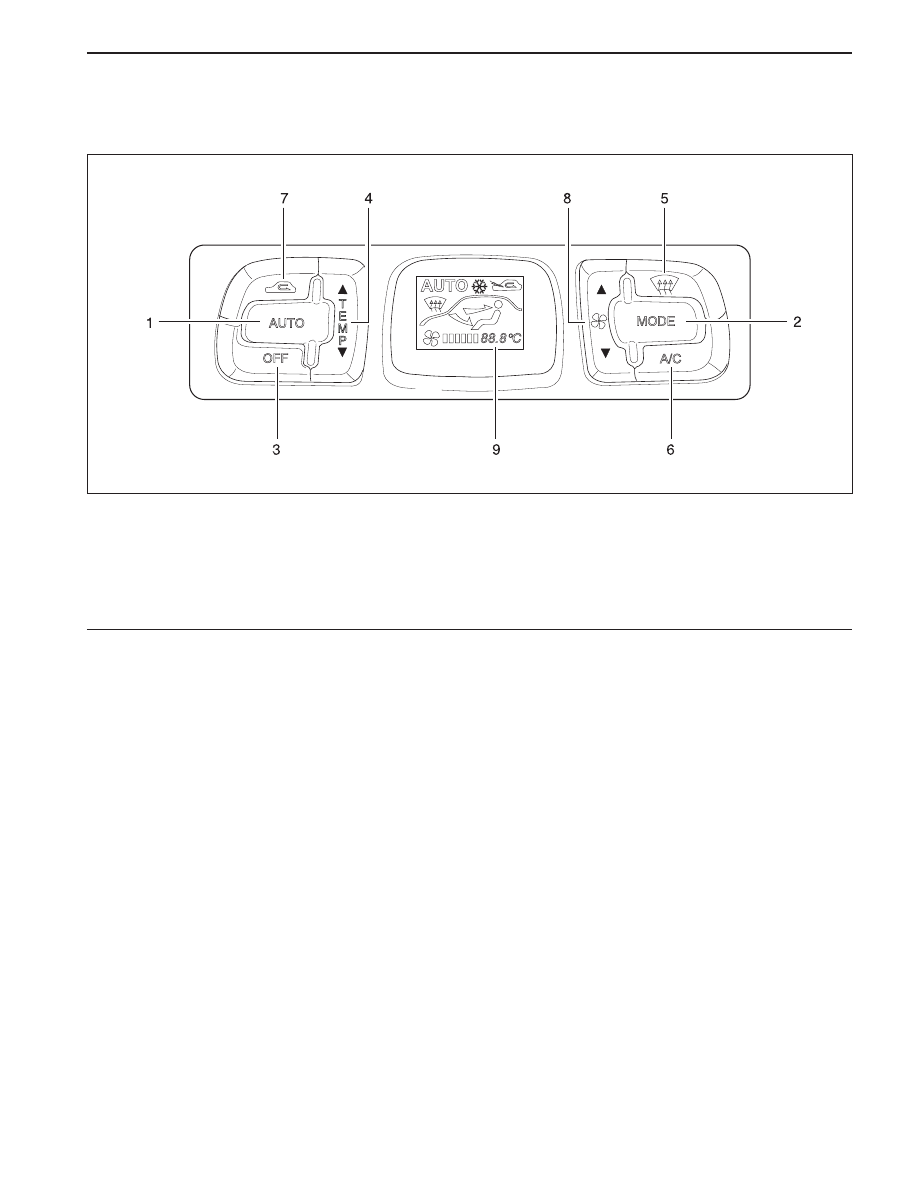

FATC CONTROL PANEL

KAA7D070

1 AUTO Switch
2 MODE Switch
3 OFF Switch
4 Temperature UP/DOWN Switch
5 Defrost Switch

6 Airconditioner Switch
7 Fresh/Recirculation Switch
8 Blower Switch (UP/DOWN)
9 VFD (Vacuum Fluorescent Display)

SSANGYONG  MY2002

7D-14  FATC-HAVC

Rheostat

Tail lamp

Battery (+)

Power TR (B)

Power TR (C)

Temperature actuator (CCW)

IG2

Ground

Airconditioner switch ground

HI speed relay

Photo sensor (+)

Photo sensor (-)

Temperature actuator F/B

Temperature actuator (CW)

IG2

Ground

Connection circuit

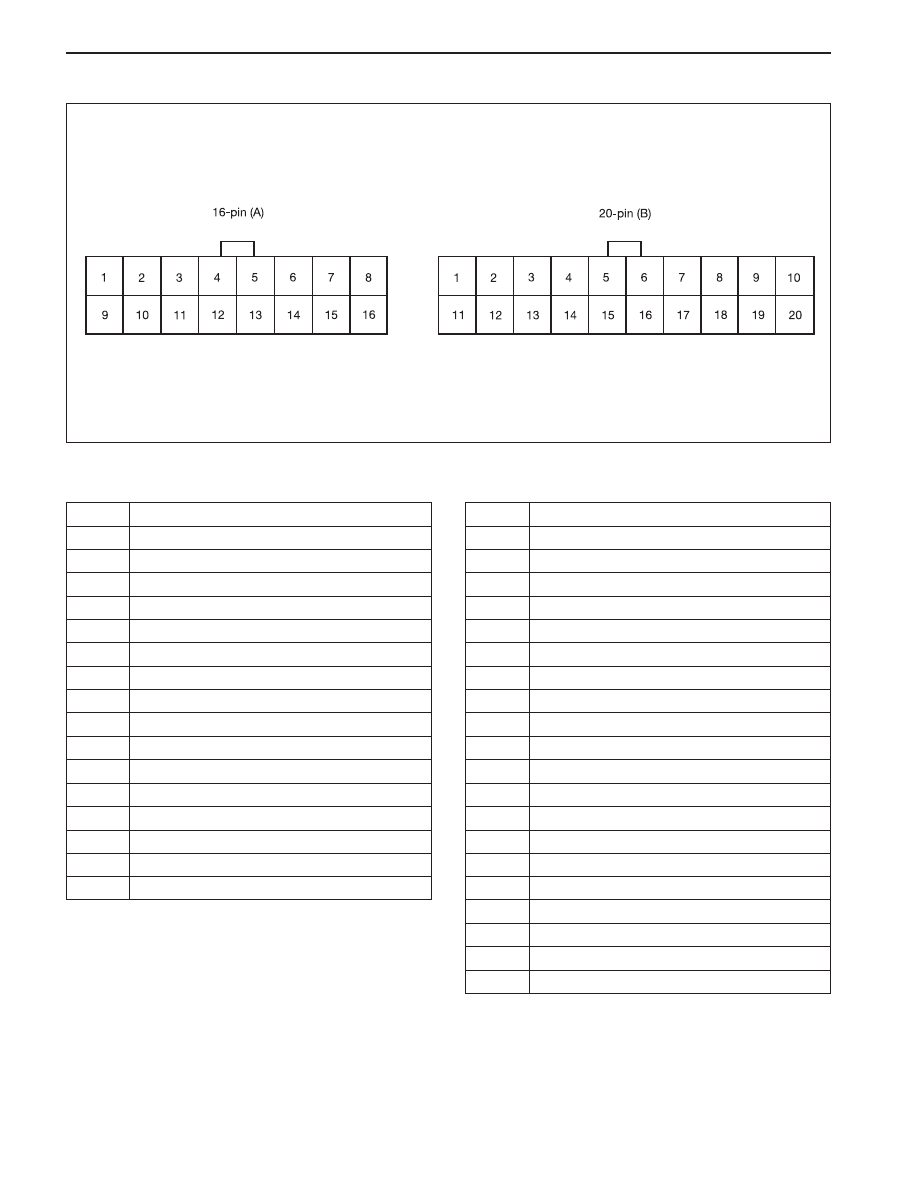

Pin Number and Connection Circuit

KAA7D080

Pin No.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

Connector A

Connector B

Incar sensor (+)

Ambient sensor (+)

Coolant sensor (+)

Sensor voltage 5V

Sensor ground

Intake (ambient)

Intake (incar)

-

-

-

VENT

B/L

FLR

MIX

DEF

-

-

-

-

-

Connection circuit

Pin No.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

FATC-HAVC  7D-15

SSANGYONG  MY2002

E

F

80

100

4

60 8

10

KAA7D090

KAA7D100

KAA7D110

KAA7D120

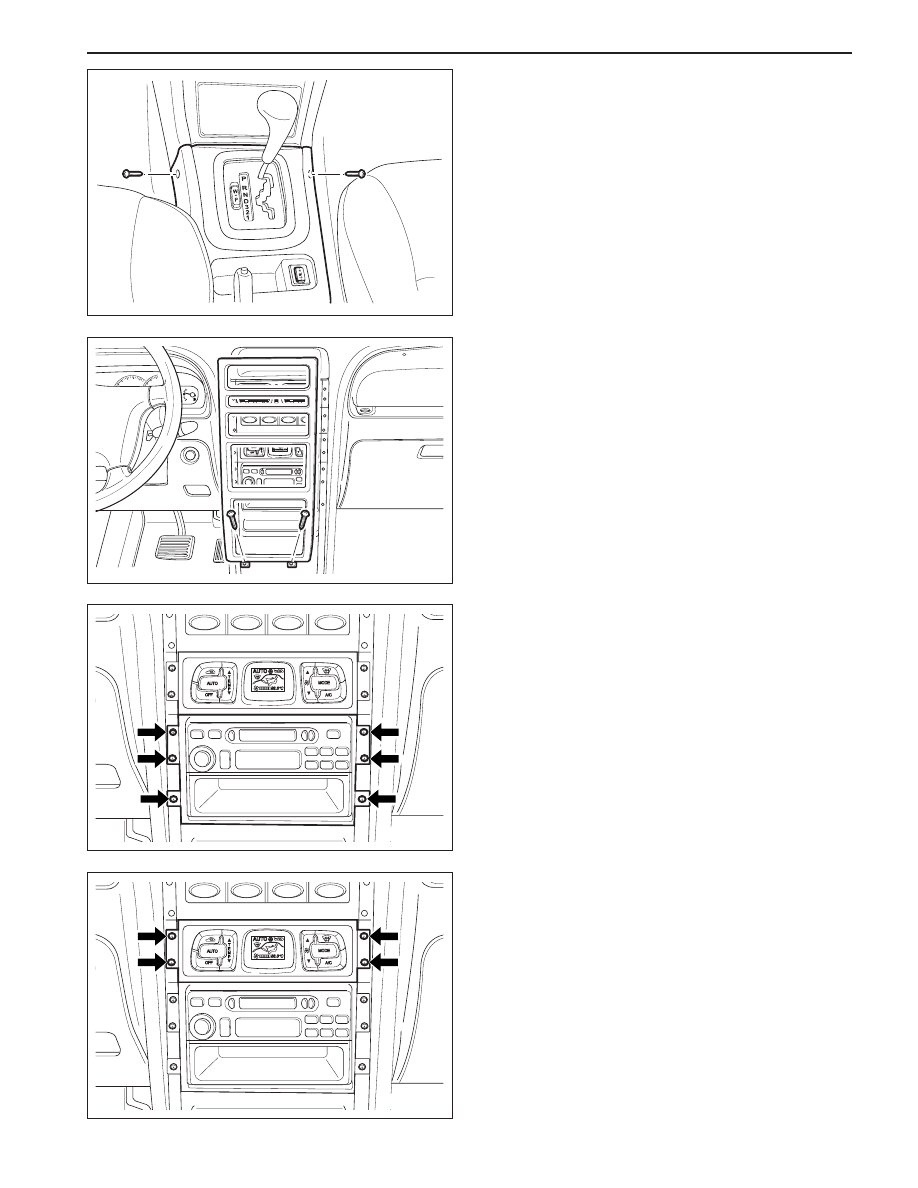

Removal & Installation Procedure

1. Turn the ignition switch to OFF position.

2. Remove two screws on the cover of shift lever box.

3. Unscrew the screw from the center panel, pull out

each switches and remove the center panel.

4. Unscrew the 6 screws and remove the audio control

panel assembly.

5. U n s c r e w   t h e   4   s c r e w s   a n d   r e m o v e   t h e

airconditioner control panel assembly.

6. Installation should follow the removal procedure

in the reverse order.
