SSANGYONG  MY2002

7D-8  FATC-HAVC

FUNCTION DESCRIPTION

1. AUTO switch

•

By pressing the AUTO switch, set temperature,
AUTO, fan speed, air source, air flow mode will
be appeared on the VFD display.

•

Following items will be controlled automatically
according to set temperature.

- Mode and intake door

- Temperature door

- Blower fan speed

- Compressor ON/OFF control

•

When AUTO switch is released, other functions
will be controlled automatically except for manually
selected switches.

2. MODE switch

•

By pressing the MODE switch while the AUTO
switch is turned ON, AUTO indicator light will go
off and air flow mode will be controlled manually
in the order of VENT

→

 B/L

→

 FLR

→

 MIX

→

 VENT.

3. OFF switch

•

Press this switch and the airconditioner system
will be turned OFF.

4. Temperature UP/DOWN switch

•

This switch is a switch increasing or decreasing
set temperature and position of the temperature
door will be automatically controlled according to
set temperature and outlet temperature will be
controlled by adjusting blending ratio of cold and
hot air.

•

By operating the switch, set temperature will be
increased/decreased by 0.5°C.

•

Set temperature range is 17 - 32°C.

•

Max. cold function will be performed at set
temperature of 17°C and max. hot function will be
performed at set temperature of 32°C.

•

When pressed more than 1 second, it will be
automatically UP/DOWN by interval of 0.28 sec.
after 1 second.

•

When it changed 17.5°C

→

 17°C, 31.5°C

→

 32°C

and DOWN switch is pressed after 17°C or UP
switch is pressed after 32°C, there will be
operating sounds 3 times during 0.1 sec.

5. DEFROST switch

•

By pressing this switch, DEF will turn on and mode
door will be fixed at DEF.

•

Recirculation/fresh air switch will be fixed as
FRESH.

•

When airconditioner is turned ON and ambient
temperature is less than 1.5°C, the airconditioner
will be turned off.

•

Selection of airconditioner OFF is possible by
manual.

6. A/C switch

•

The airconditioner system will be turned ON or OFF
by pressing this switch.

7. Recirculation•fresh air switch

•

Air intake will be automatically switched to
recirculation or fresh air (REC

→

 FRE) by pressing

this switch.

8. Blower switch (UP/DOWN)

•

Blower speed can be controlled by manual and if
fan UP/DOWN switch is pressed when AUTO mode
is selected, fan speed will UP/DOWN based on
current fan level.

•

When 6 segments are turned on, it is max. HI
operation.

•

When pressed more than 1 second, it will be
automatically UP/DOWN by interval of 0.28 sec.
after 1 second.

•

When segment is changed stage 2

→

 stage 1

(LO), stage 5

→

 stage 6 (HI) and HI switch is

pressed in HI status or DOWN switch is pressed
in LO status, there will be operating sounds 3
times during 0.1 sec.

•

When switch is operated in OFF status, it will be
operated as stage 1 (1 segment display).

FATC-HAVC  7D-9

SSANGYONG  MY2002

KAA7D030

DIAGNOSIS

DIAGNOSIS TEST

FATC airconditioner system has self-diagnosis
function. Turn the ignition switch ON and press intake
switch more than 4 times within 2 seconds while the
AUTO switch is pressed, then it will diagnose incar

sensor, ambient sensor, water temperature sensor and
temperature actuator for open/short and will display
numerical fault code on the set temperature display of
VFD.

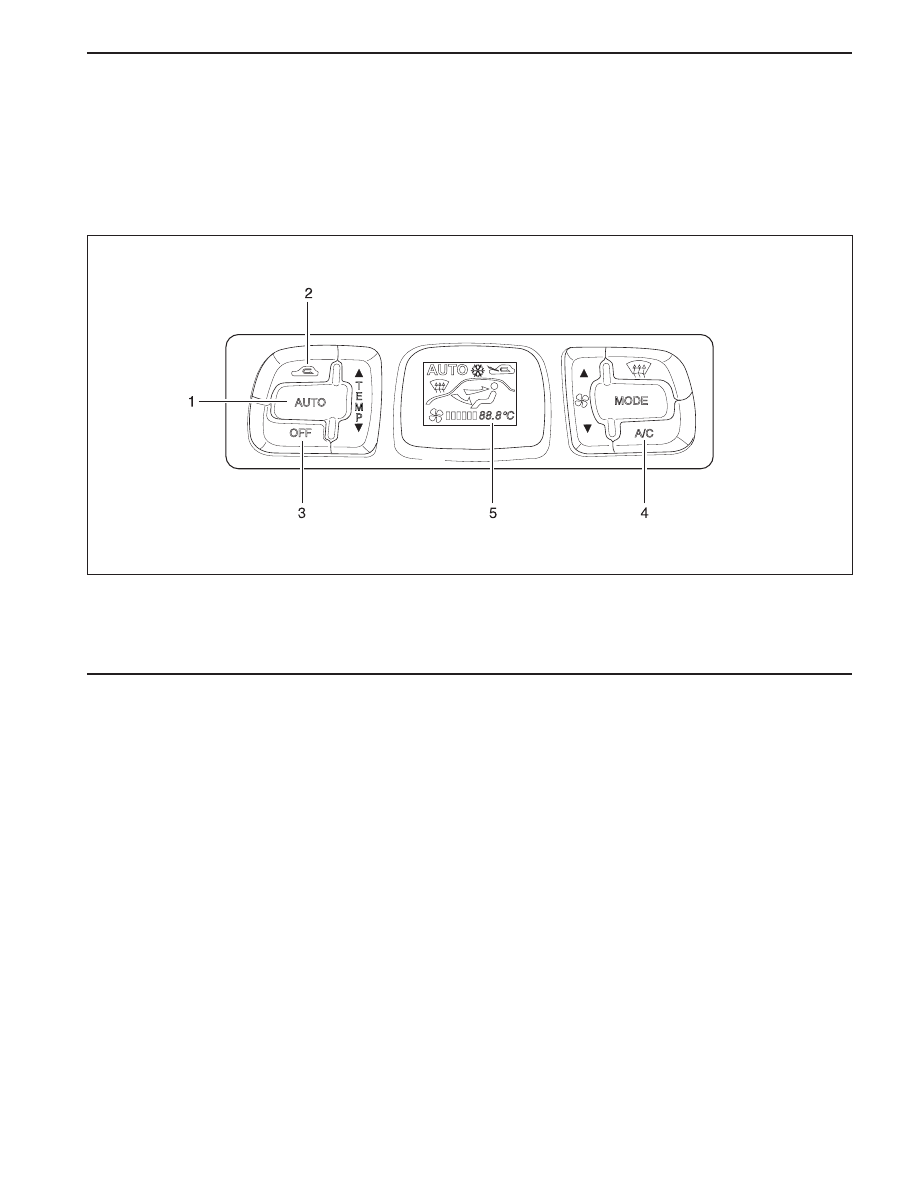

1 AUTO Switch
2 Fresh/Recirculation Switch
3 OFF Switch

4 Airconditioner Switch
5 VFD (Vaccum Fluorescent Display)

SSANGYONG  MY2002

7D-10  FATC-HAVC

Self-diagnosis Method

Ignition switch “ON”

Press the intake switch more than 4 times within
2 seconds while pressing the AUTO switch

Self-diagnosis will start after turning off all displays

on VFD for 2.5 seconds

Self-diagnosis items check

 (continuous action)

Airconditioner control

Self-diagnosis items check

 (step action)

Press AUTO

Press AUTO

Press OFF

Press OFF

Diagnosis Item and Fault Code

15 : coolant Sensor Open
16 : coolant Sensor Short
17 : temperature Actuator Open/Short
18 : temperature Actuator Drive Fault

00 : normal
11 : incar Sensor Open
12 : incar Sensor Short
13 : ambient Sensor Open
14 : ambient Sensor Short

FATC-HAVC  7D-11

SSANGYONG  MY2002

Self-diagnosis Display

1. Data will be displayed at the set temperature

display as 2-digit number during self-diagnosis
function and other set temperature displays will
be OFF.

2. Display of self-diagnosis fault code will be blinking

fault code number in the intervals of 0.5 sec.

3. Following fault code number will be displayed at

the set temperature display during self-diagnosis
function.

4. If no defective, normal display number (00) will

blink.

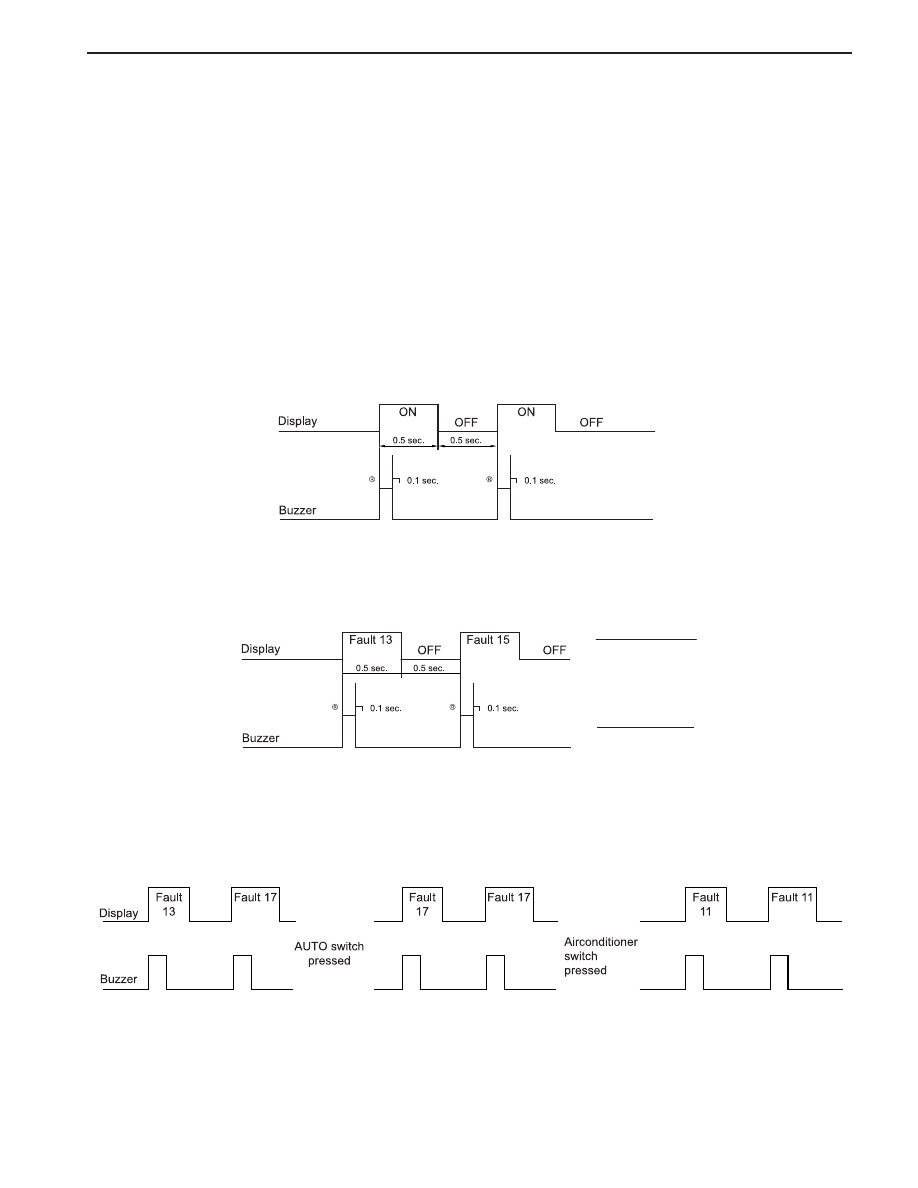

Display during continuous action

A. Normal or 1 fault (00 or 11)

B. Multiple faults (11, 13, 15.........)

Display during step action

A. Normal or 1 fault : the same as continuous action

B. Multiple faults
