PARKING BRAKE  4G-3

SSANGYONG MY2002

KAA4G010

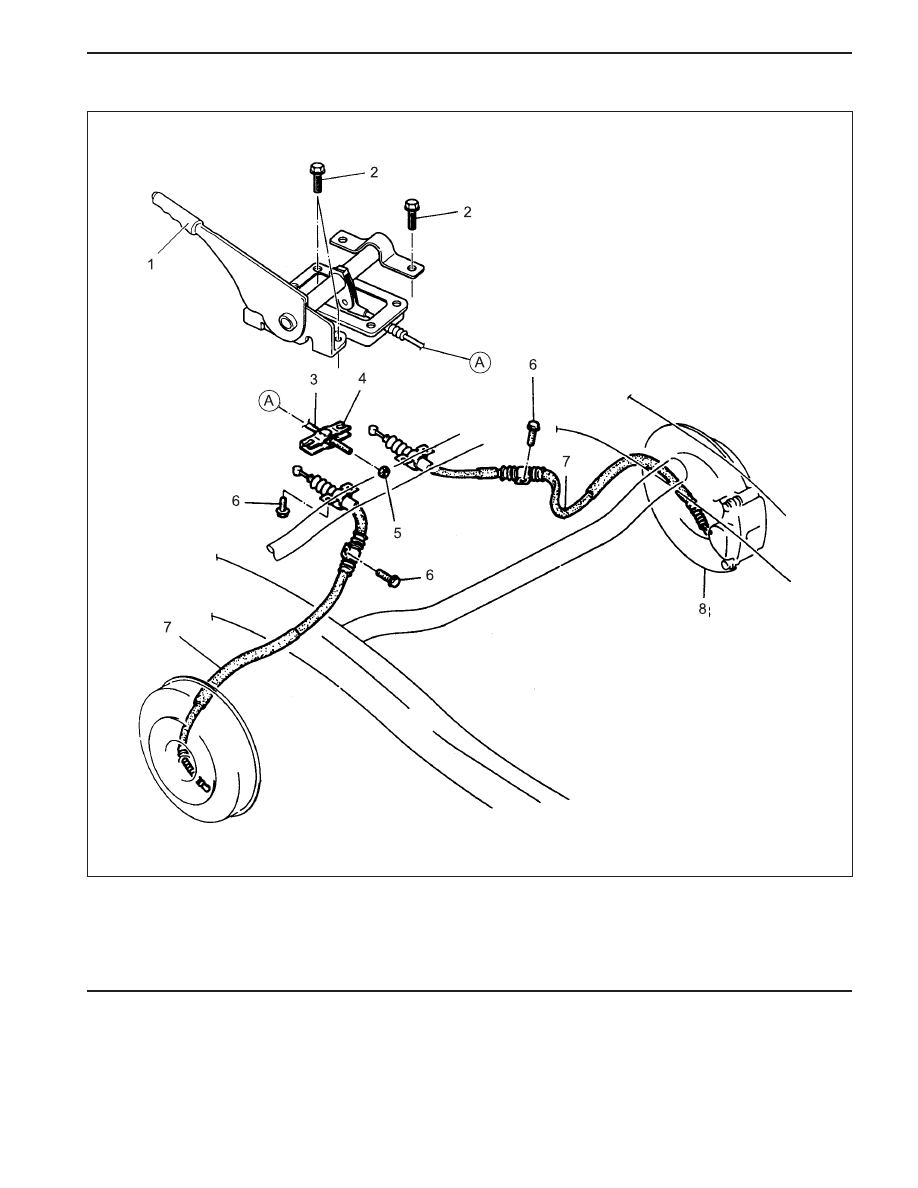

COMPONENT LOCATOR

1 Parking Brake Lever
2 Parking Brake Lever Mounting Bolt
3 Front Parking Brake Cable
4 Equalizer

5 Adjuster Nut
6 Rear Parking Brake Cable Securing Bolt
7 Rear Parking Brake Cable
8 Rear Disc Brake Rotor

SSANGYONG MY2002

4G-4  PARKING BRAKE

KAA4G020

KAA4G030

6. Inspect and replace any parts of doubtful strength

or quality because of discoloration from heat or
stress.

Notice:

•

In the vehicle cabin, pull on the parking brake
handle and stop after hearing two clicks.

•

Turn the rear wheel by hand until the wheel
begins to drag.

•

Release the parking brake.

•

Turn the rear wheel by hand to check drag and
readjust the cable, if necessary.

•

Repeat the process for the other rear wheel and
lower vehicle.

ON-VEHICLE SERVICE

PARKING BRAKE ADJUSTMENT -
REAR DISC BRAKES

Adjustment Procedure

1. Release the parking brake.

2. Raise and suitably support the vehicle.

3. Remove the rear wheels. Refer to Section 2E, Tires

and Wheels.

4. Remove the rear caliper and rotor assemblies. Refer

to Section 4E, Rear Disc Brakes.

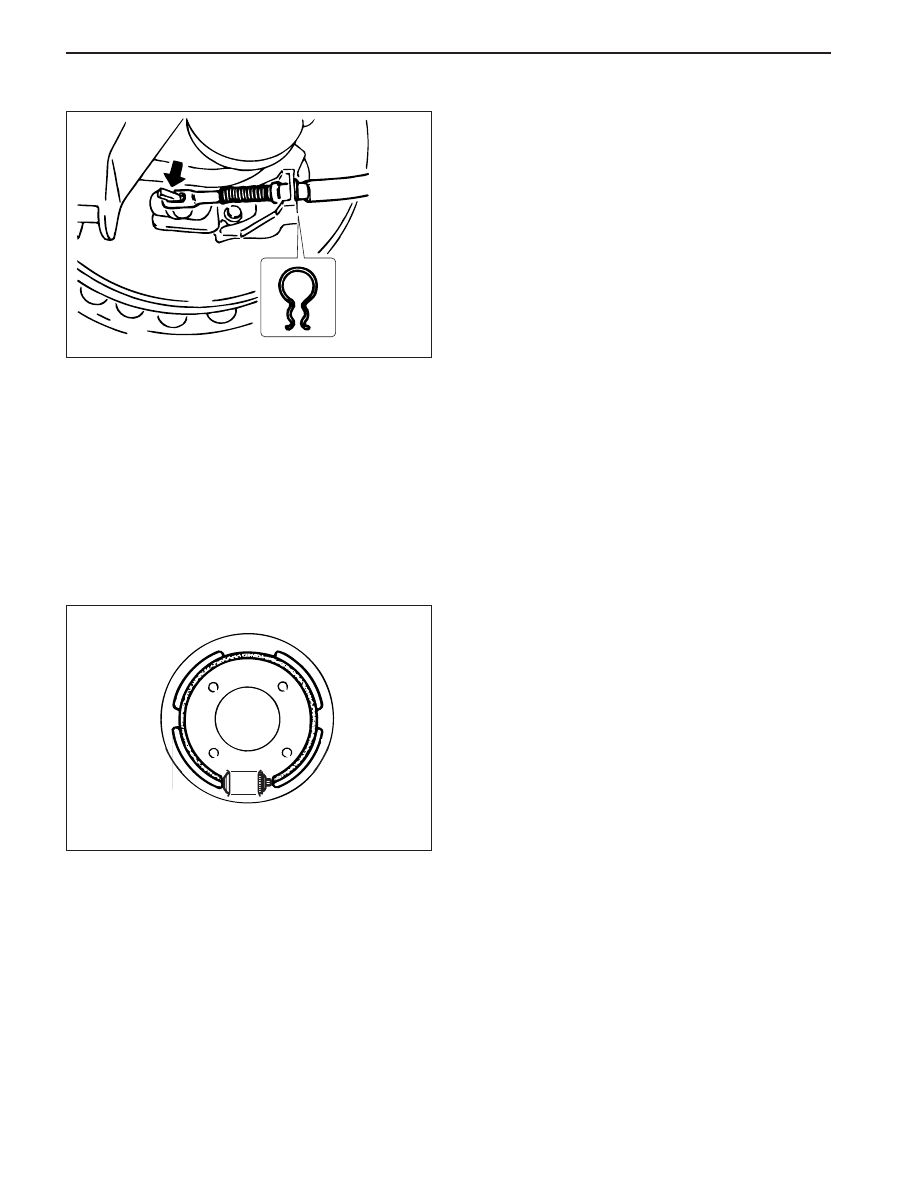

5. Disconnect the rear parking brake cable from the

backplate operating lever on each side of the
vehicle.

REPAIR INSTRUCTIONS

PARKING BRAKE  4G-5

SSANGYONG MY2002

KAA4G040

KAA4G050

KAA4G060

KAA4G070

PARKING BRAKE LEVER

Removal and Installation Procedure

1. Release the parking brake.

2. Raise and suitably support the vehicle.

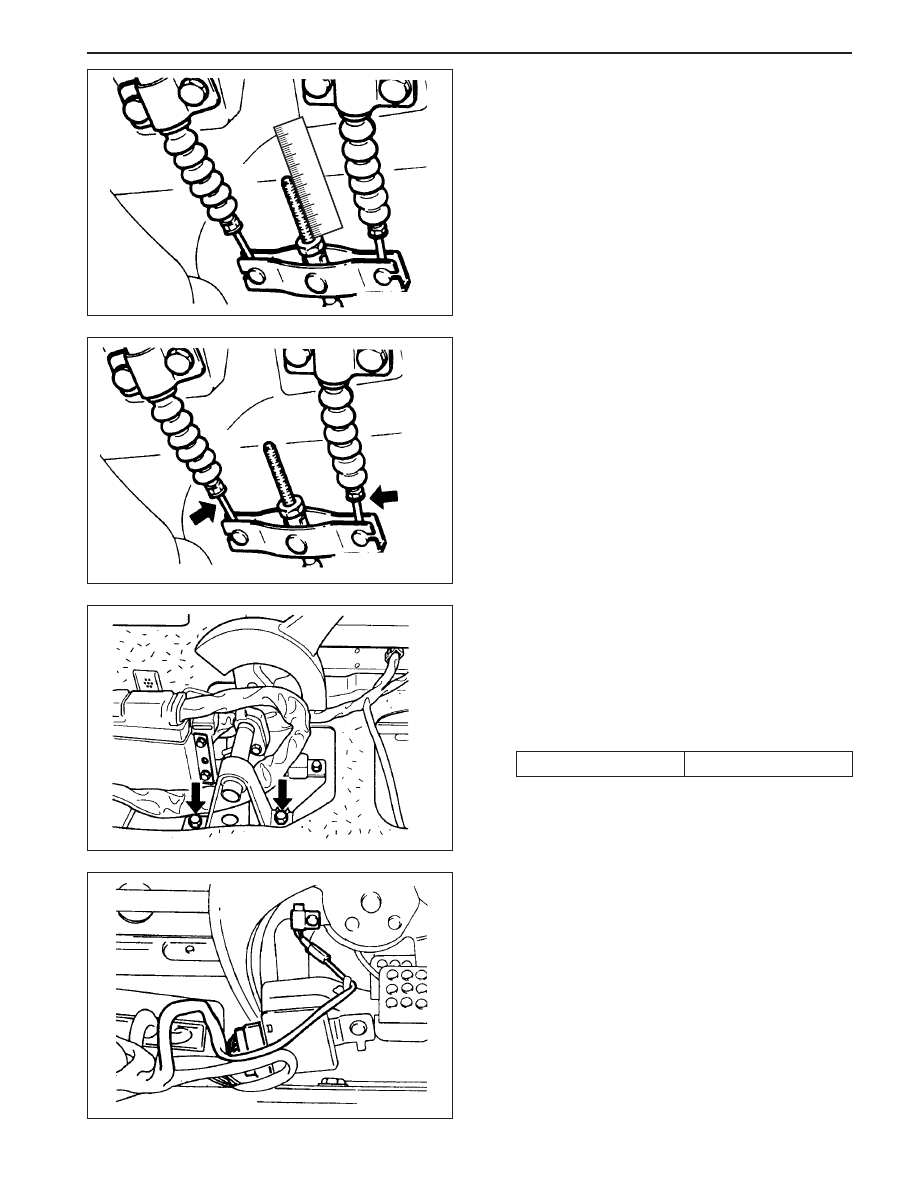

3. Measure the thread length from the end of the pull

rod to the hex nut.

5. Lower the vehicle.

6. Remove the parking brake/gearshift console hood.

Refer to Section 9G, Interior Trim.

7. Remove the parking brake lever mounting bolts and

washers which secure the complete parking brake
lever assembly to the underbody.

Installation Notice

8. Disconnect the parking brake switch and remove

the clip. If necessary, remove the parking brake
switch attached to the parking brake lever
assembly by a small screw, and remove the switch.

9. Remove the parking brake lever assembly.

Notice:

•

The parking brake switch should be replaced if
the BRAKE warning light in the instrument panel
cluster did not glow when the parking brake was
applied with the ignition switch ON.

Tightening Torque

18  N•m (13 lb-ft)

4. Remove the parking brake cable ends from the

equalizer and remove the boot.

SSANGYONG MY2002

4G-6  PARKING BRAKE

KAA4G020

KAA4G080

KAA4G050

PARKING BRAKE CABLE

Removal and Installation Procedure

1. Release the parking brake.

2. Raise and suitably support the vehicle.

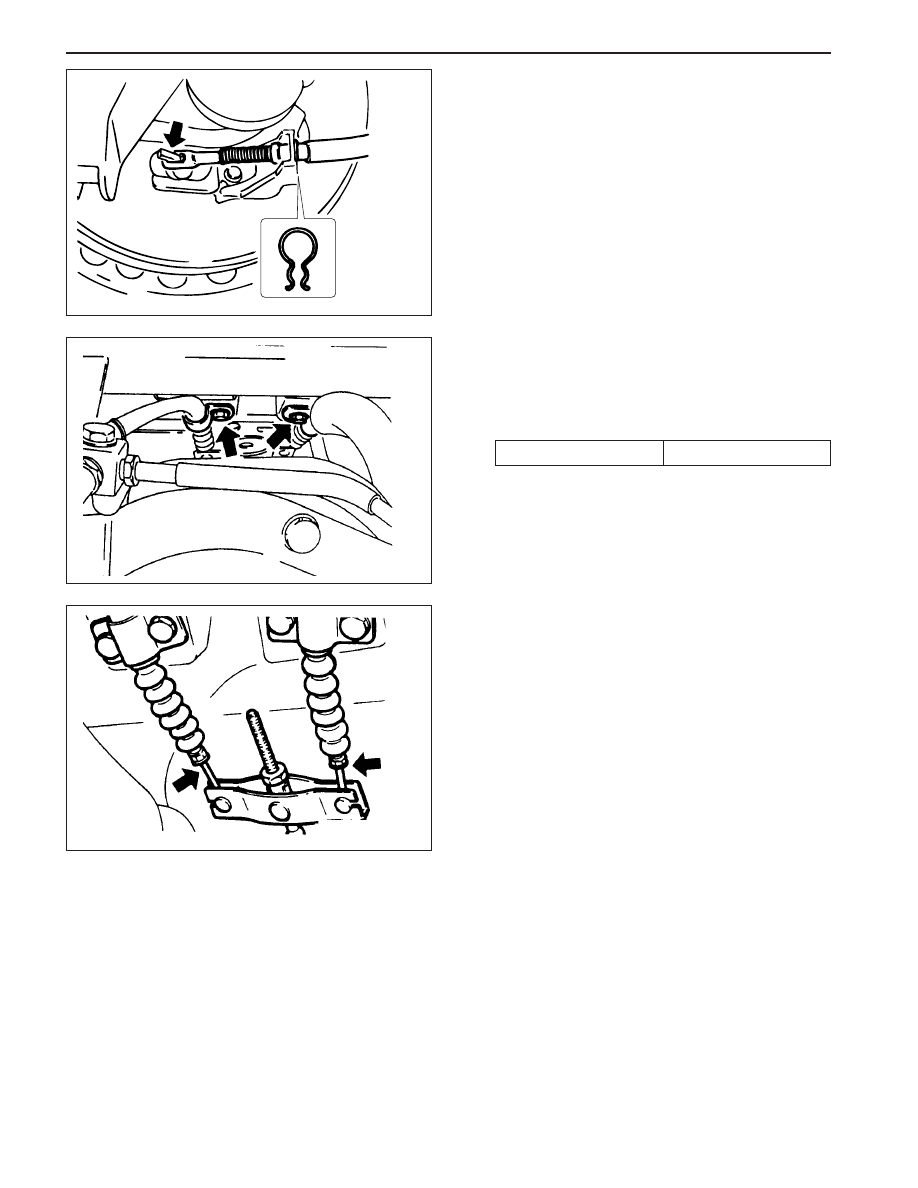

3. Remove the clip that holds the cable into the rear

knuckle assembly.

6. Remove the parking brake cable ends from the

equalizer.

Tightening Torque

9 N•m (80 lb-in)

5. Remove the bolts securing the parking brake cable

to a holding bracket attached to the trailing link
brackets on both the driver and passenger sides
of the vehicle.

Installation Notice
