ABS AND TCS 4F-103

SSANGYONG MY2002

UNIT REPAIR

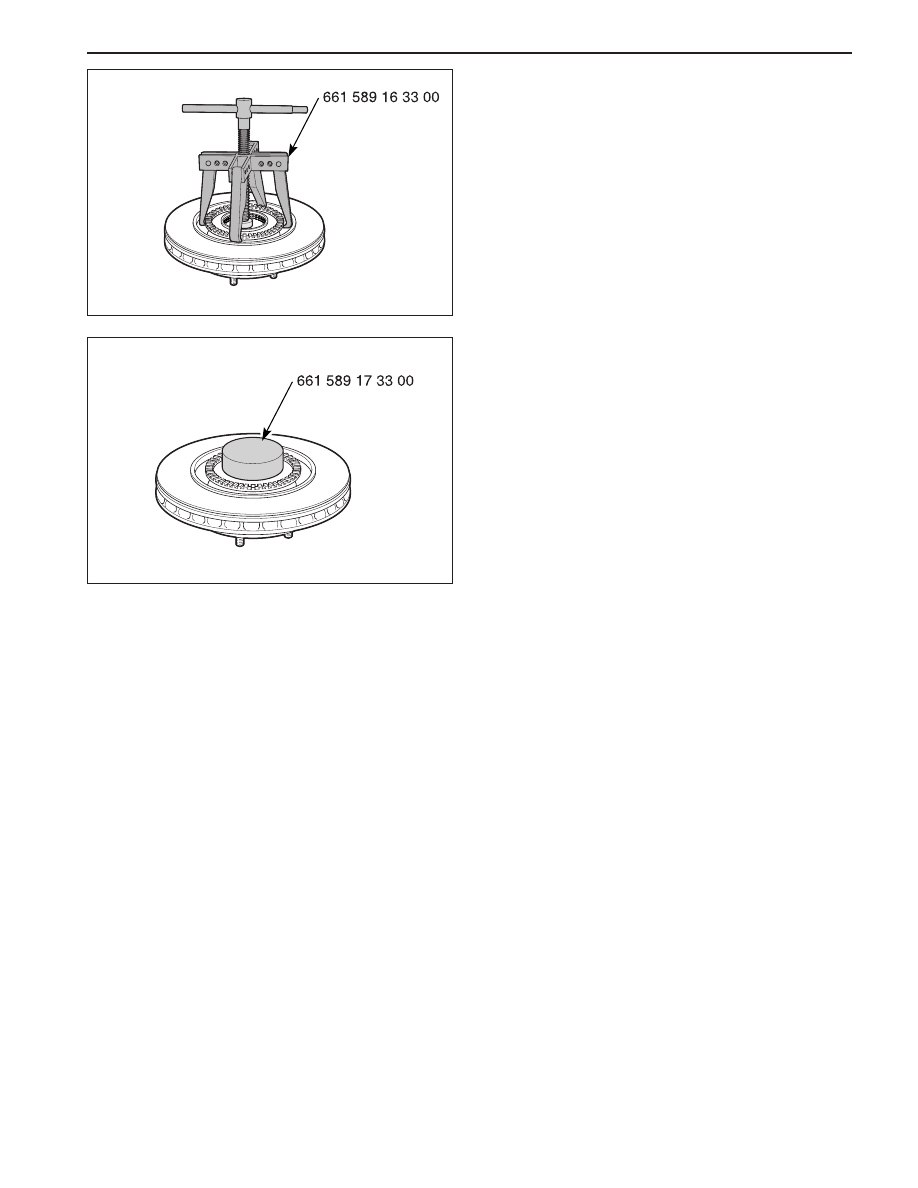

ABS FRONT TOOTH WHEEL

Tools Required

661 589 16 33 00

ABS Tooth Wheel Puller

Removal Procedure

1. Remove the disc brake rotor. Refer to Section 4D,

Front Disc Brakes.

2. Remove the ABS front toothed wheel using the

ABS tooth wheel puller 661 589 16 33 00.

Tools Required

661 589 17 33 00

ABS Tooth Wheel Installer

Installation Procedure

1. Install the ABS front toothed wheel using the ABS

tooth wheel installer 661 589 17 33 00.

KAA4F430

KAA4F440

SSANGYONG MY2002

4F-104  ABS AND TCS

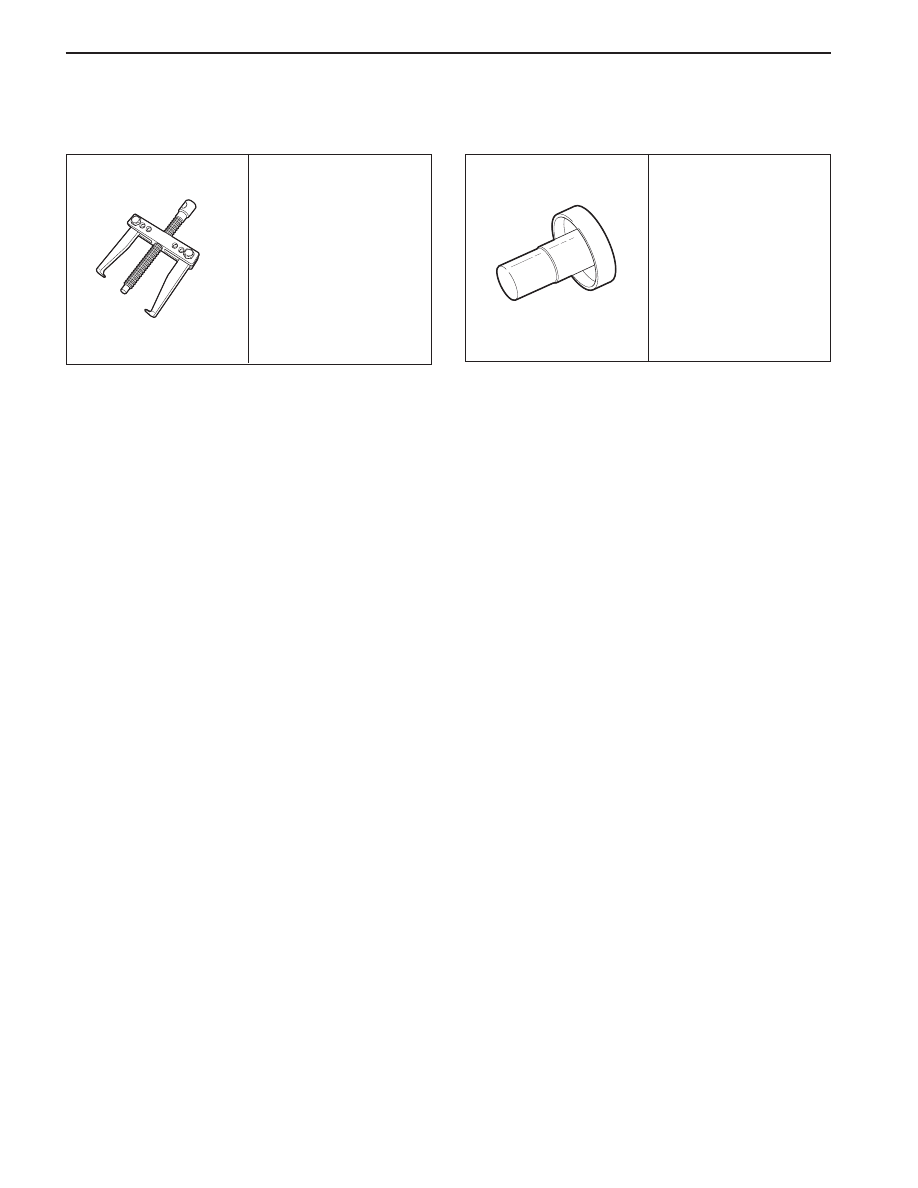

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS TABLE

661 589 16 33 00

ABS Tooth Wheel

Puller

661 589 17 33 00

ABS Tooth Wheel

Installer

KAA4F450

KAA4F460

SECTION 4G

PARKING BRAKE

TABLE OF CONTENTS

 Description and Operation .................................. 4G-2

Brake Caliper ...................................................... 4G-2

Component Locator ............................................. 4G-3

Repair Instructions ............................................... 4G-4

On-Vehicle Service ................................................ 4G-4

Parking Brake Adjustment - Rear Disc Brakes ..... 4G-4

Parking Brake Lever ............................................ 4G-5

Parking Brake Cable ........................................... 4G-6

Specifications ...................................................... 4G-7

Fastener Tightening Specifications ...................... 4G-7

SSANGYONG MY2002

4G-2  PARKING BRAKE

DESCRIPTION AND OPERATION

BRAKE CALIPER

This braking system uses a BRAKE warning light lo-
cated in the instrument panel cluster.

The following conditions will activate the BRAKE lamp:

•

The parking brake is applied when the ignition is
ON. The lamp will turn off when the parking brake
is released.

•

The fluid level is below the minimum mark in the
master cylinder reservoir. The lamp will turn off when
the fluid level is above the minimum.

•

As a test of the lamp circuit, the BRAKE lamp will
glow dimly when the ignition is ON, even if the
parking brake is off and fluid level is above the
minimum. The lamp will turn off when the engine is
started. When the brake is firmly applied, the parking
brake should hold the vehicle with ample pedal
travel remaining.

Check for frayed cables, rust, etc. or any condition
that may inhibit present (or future) free movement of
the parking brake lever assembly.
