SSANGYONG MY2002

4E-18  REAR BRAKES

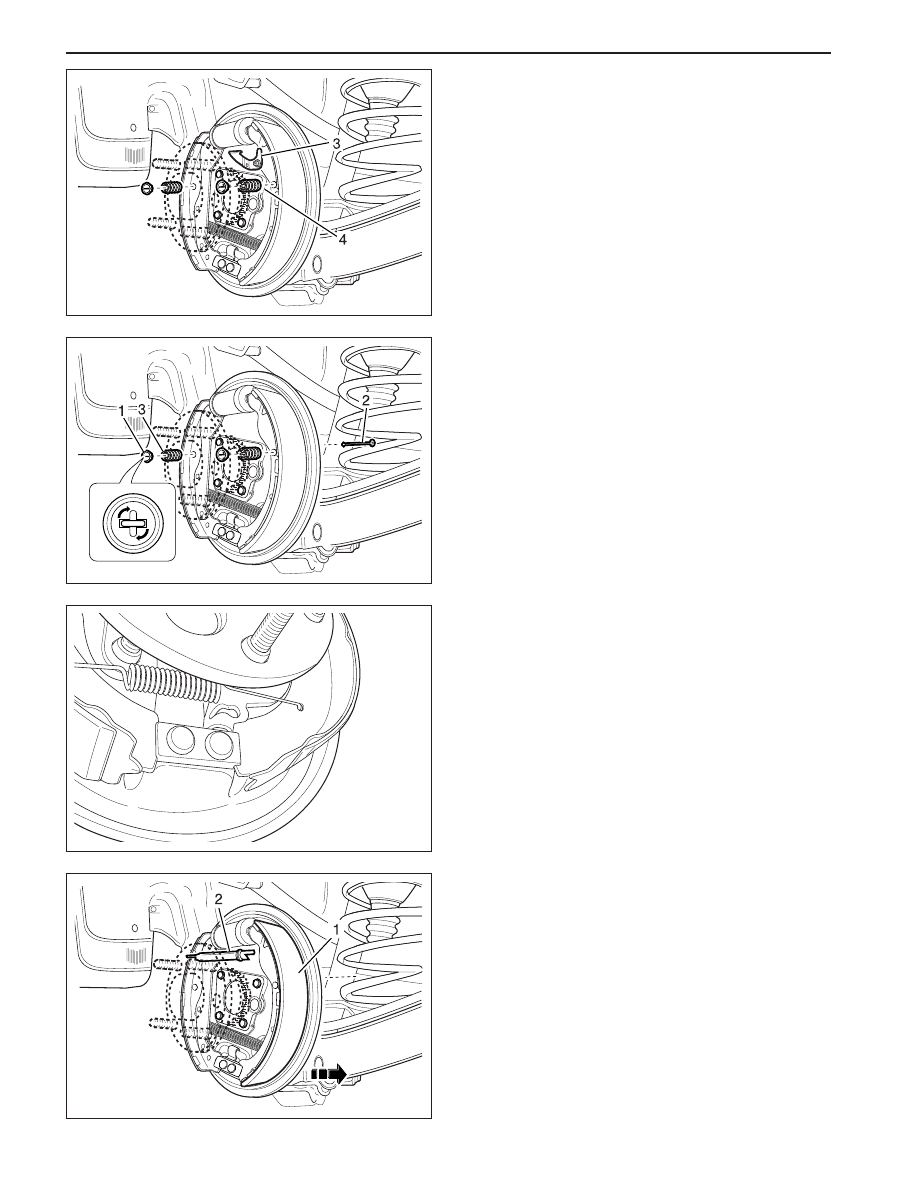

6. Rotate the lining shoe hold down-washer in the

plug hole of the axle shaft flange and disconnect
the pin and the spring.

7. Disconnect the parking cable from the parking

lever.

YAD4C330

YAD4C340

YAD4C350

8. Disconnect the brake lining and adjuster lever.

YAD4C360

REAR BRAKES  4E-19

SSANGYONG MY2002

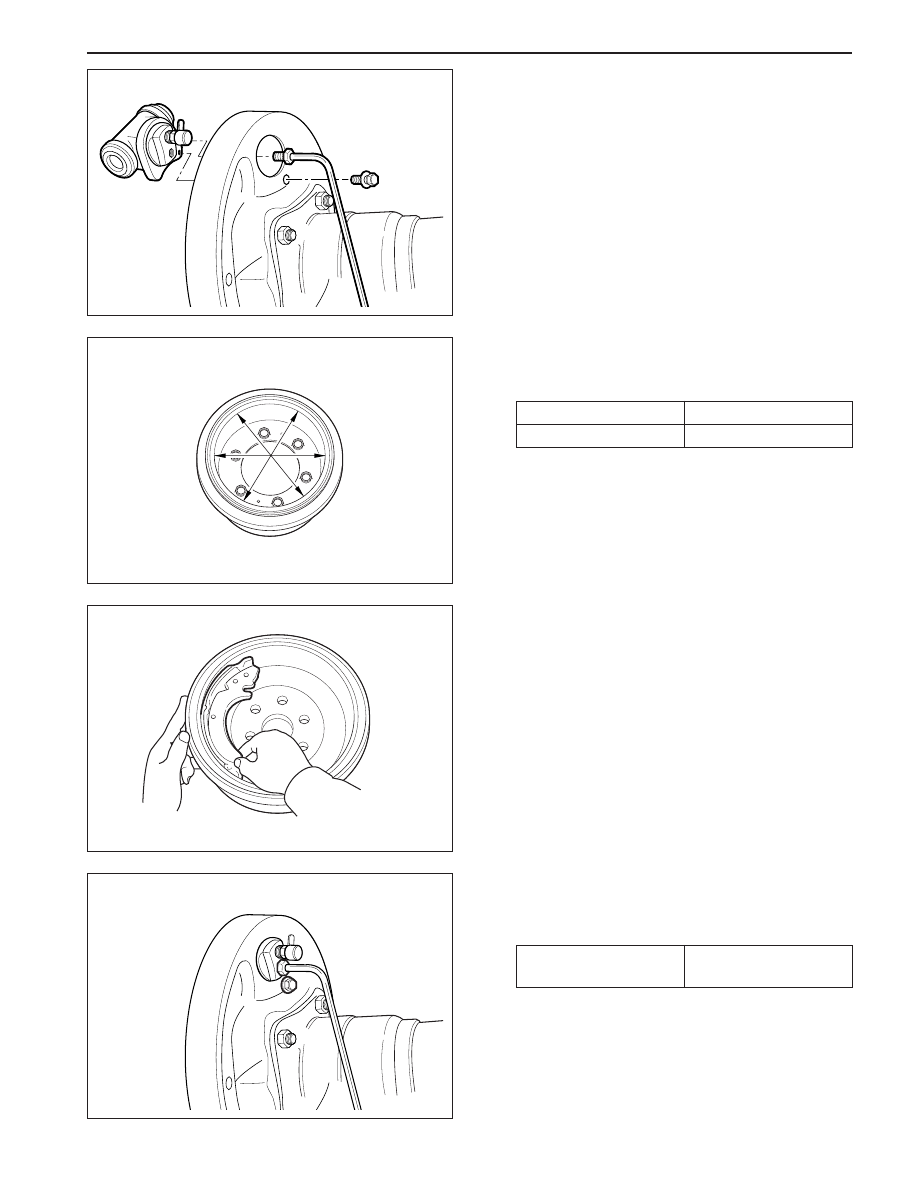

9. Remove the wheel cylinder mounting bolt and

remove the wheel cylinder.

Inspection

1. Measure the inside diameter of the brake drum

and replace as needed.

I.D.

φ

254 mm

Wear Limit

φ

255.5 mm

Notice: Measure two more position.

2. Inspect the surface between the lining and brake.

Mark the brake drum inside using chalk and scrub
the shoe & lining assembly. If there is excessive
contact problem, replace the shoe & lining
assembly or the brake drum.

Notice: Clean any chalk mark after inspection
complete.

YAD4C370

YAD4C380

YAD4C390

Installation Procedure

1. Install the wheel cylinder to the backing plate.

Installation Notice

Tightening Torque

8 - 12 N•m

(71 - 106 lb-in)

YAD4C400

SSANGYONG MY2002

4E-20  REAR BRAKES

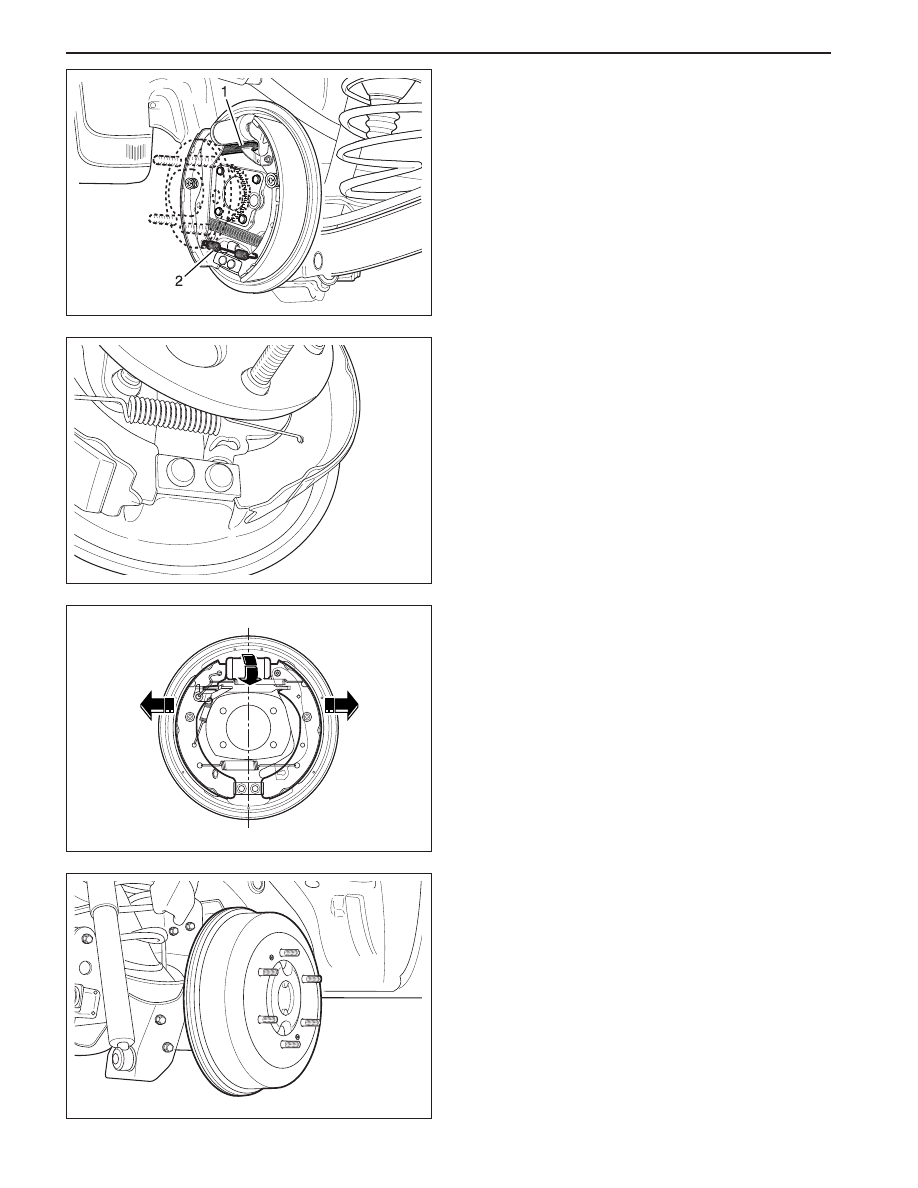

2. Install both brake linings between the wheel

cylinder and the bottom anchor plate. And then
install adjuster and each return spring.

3. Connect the parking cable.

4. The outside diameter of the lining set to

φ

253.08

-

φ

253.50 mm by rotating the adjuster screw.

YAD4C410

YAD4C420

YAD4C430

5. Install the plate and drum to the axle shaft

sequently.

6. Check that the brake drum is rotated properly by

hand.

Notice: Adjust the adjuster screw as needed.

YAD4C440

REAR BRAKES  4E-21

SSANGYONG MY2002

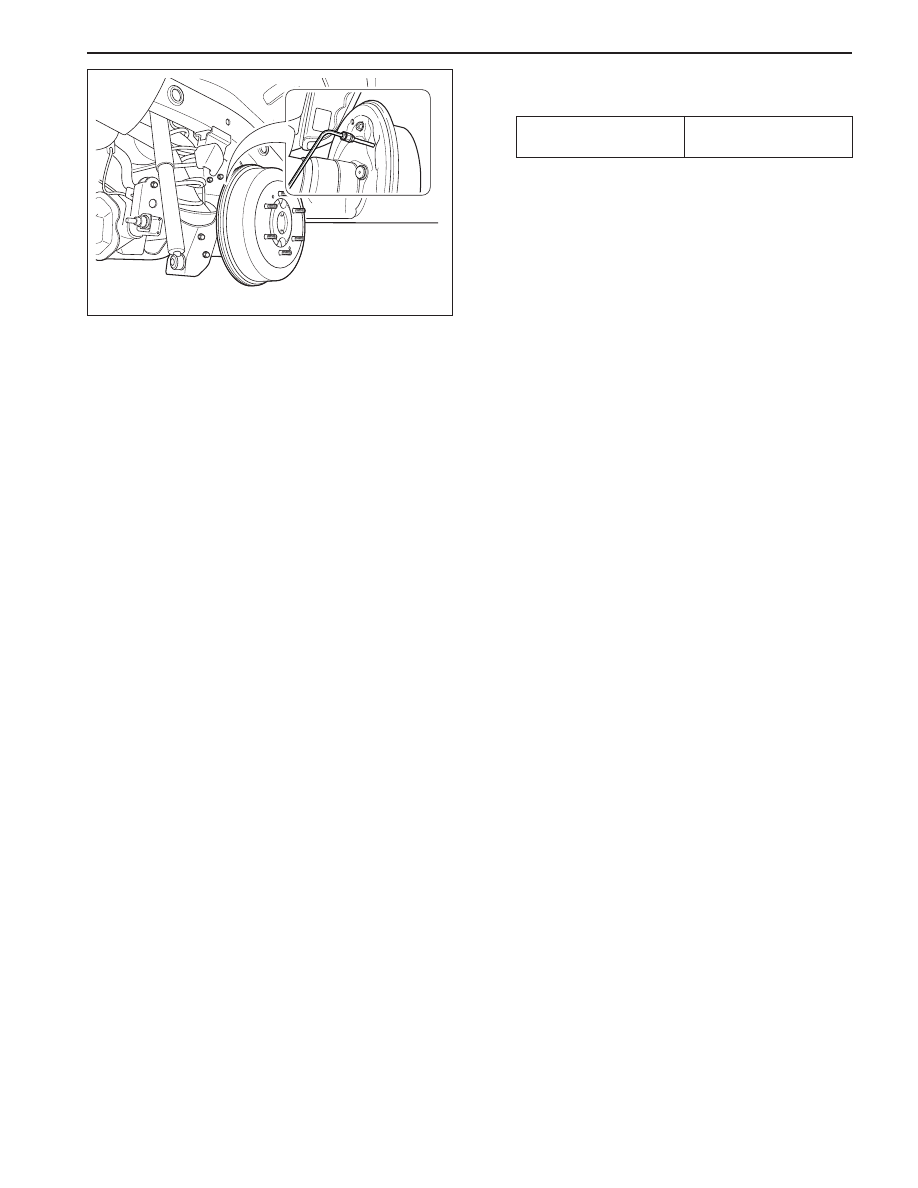

7. Connect the brake pipe to the wheel cylinder.

Installation Notice

Tightening Torque

15 - 19 N•m

(11 - 14 lb-ft)

8. Bleed the brake system and verify the parking

brake operation.

Install the tire.

YAD4C450
