4E-10  REAR BRAKES

YAD4C280

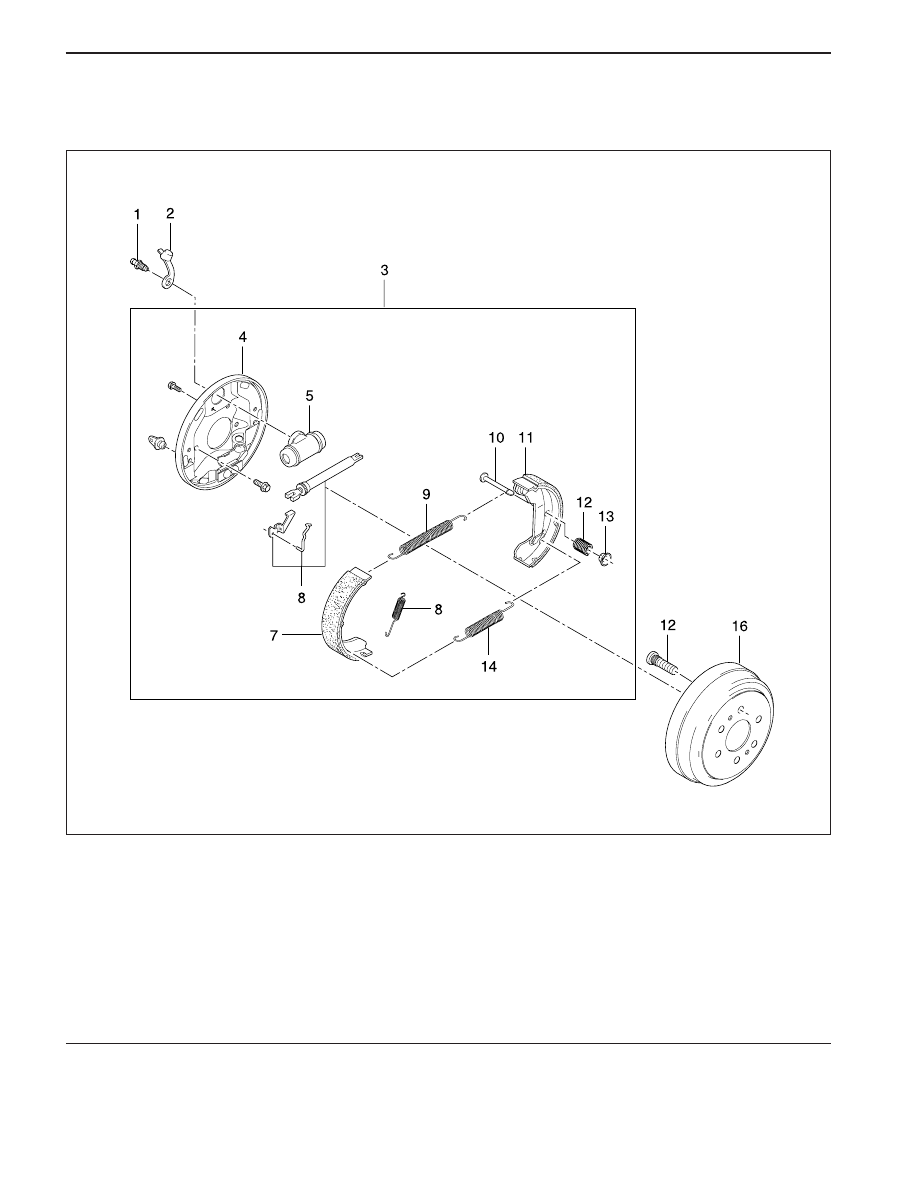

COMPONENT LOCATOR

DRUM BRAKE

1 Bleeder Screw
2 Bleeder Screw Cap
3 Rear Brake Assembly
4 Rear Brake Plate
5 Wheel Cylinder
6 Strut Assembly (Clearance Automatic Control

System)

7 Brake Leading Shoe
8 Middle Return Spring

9 Upper Return Spring

10 Brake Shoe Retaining Spring Pin
11 Trailing Shoe
12 Brake Shoe Retaining Spring
13 Brake Shoe Retaining Spring Cap
14 Lower Return Spring
15 Hub Bolt
16 Rear Brake Drum

REAR BRAKES  4E-11

SSANGYONG MY2002

YAD4C110

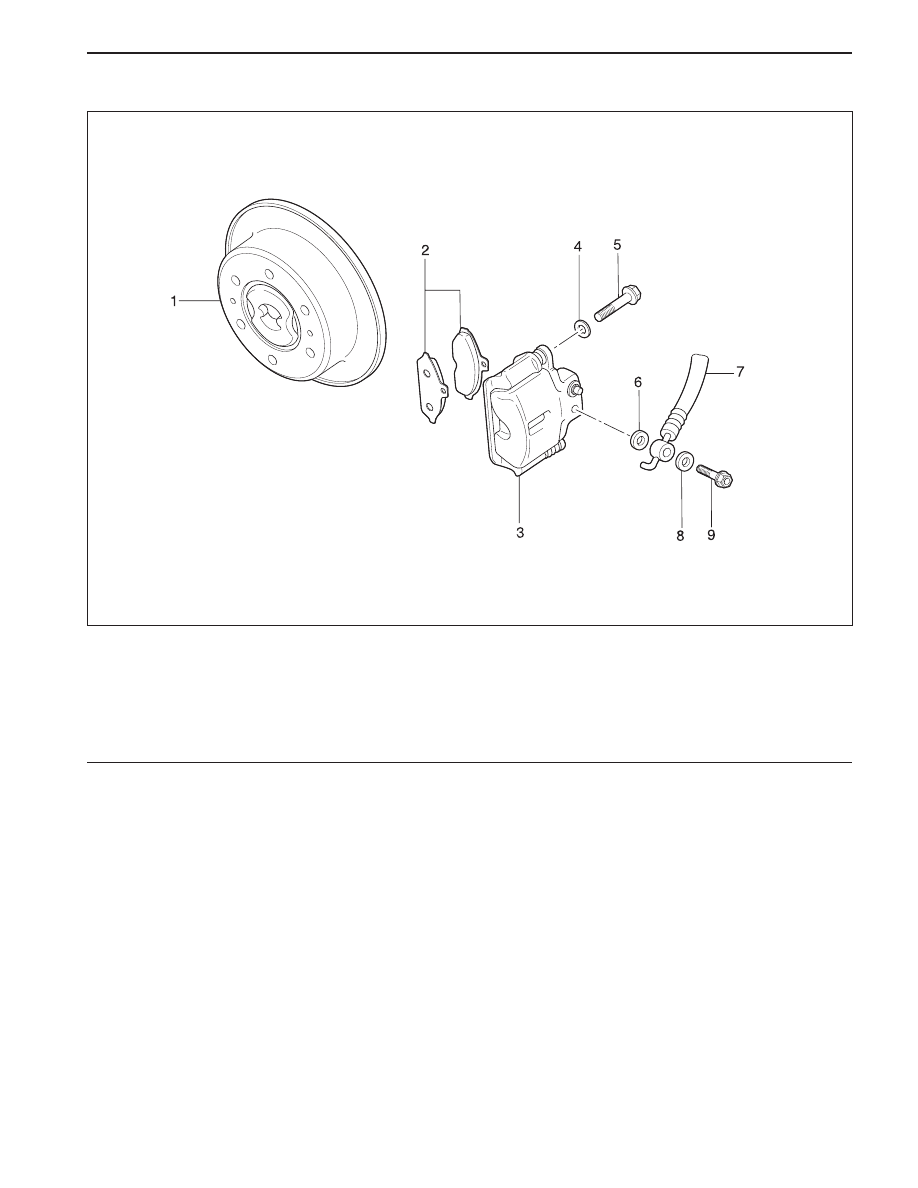

DISC BRAKE

1 Rear brake disc assembly
2 Brake pad
3 Brake caliper
4 Gasket ................................................... Replace
5 Bolt ........................................... 20 N•m (15 lb-ft)

6 Gasket ................................................... Replace
7 Brake hose
8 Gasket ................................................... Replace
9 Hose bolt ........................................... 8 - 18 N•m

SSANGYONG MY2002

4E-12  REAR BRAKES

ON-VEHICLE SERVICE

DISC BRAKE ASSEMBLY

Removal Procedure

1. Remove the rear wheel.

Notice:

•

Park the vehicle on the flat ground and fix the
vehicle not to move it.

•

Release the parking brake.

•

Position the transmission in NEUTRAL.

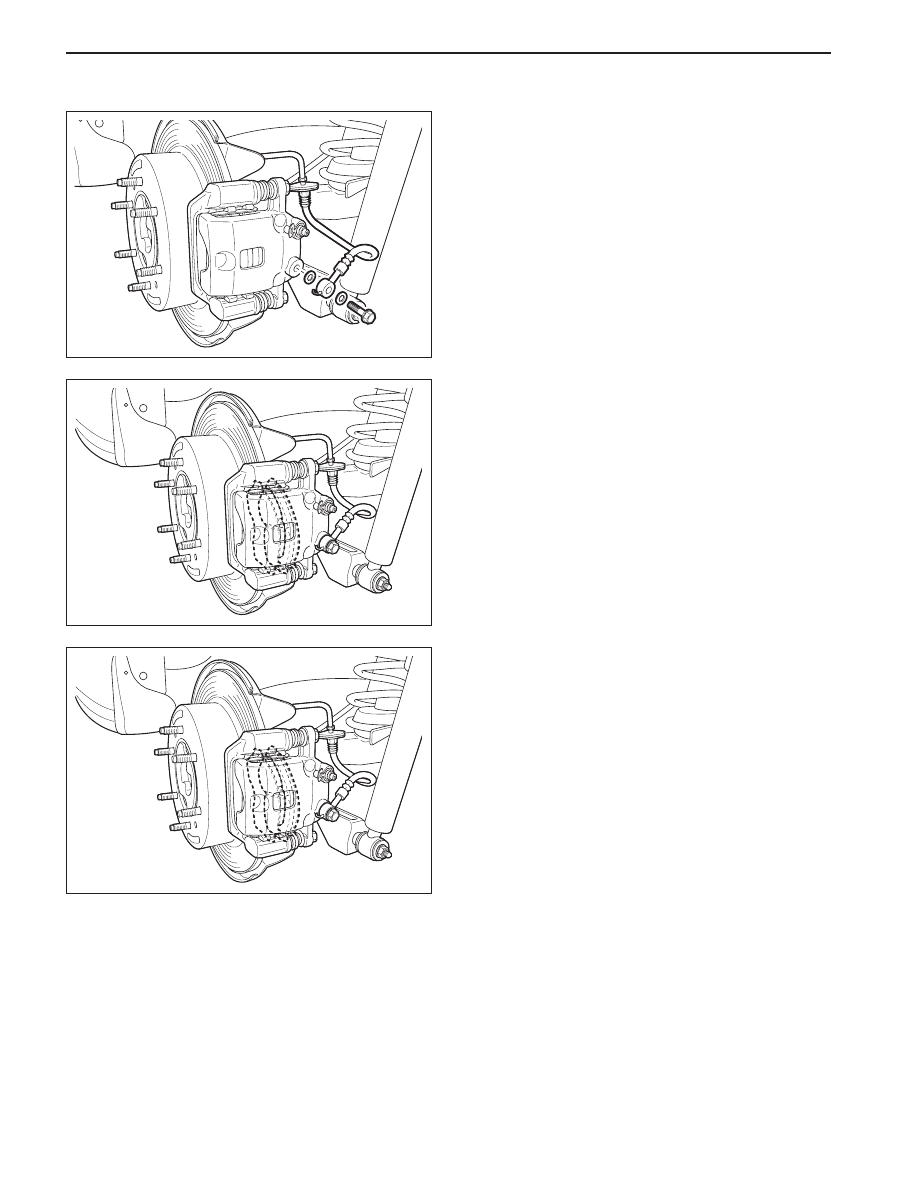

2. Remove the brake hose from the rear brake

caliper.

Notice: Be carefully to prevent the brake fluid loss
and contamination.

3. Remove the caliper cylinder mounting bolt and

remove the disc pad and the cylinder.

YAD4C130

YAD4C140

RERAIR INSTRUCTIONS

4. Remove the caliper mounting bolt and remove the

caliper assembly.

YAD4C150

REAR BRAKES  4E-13

SSANGYONG MY2002

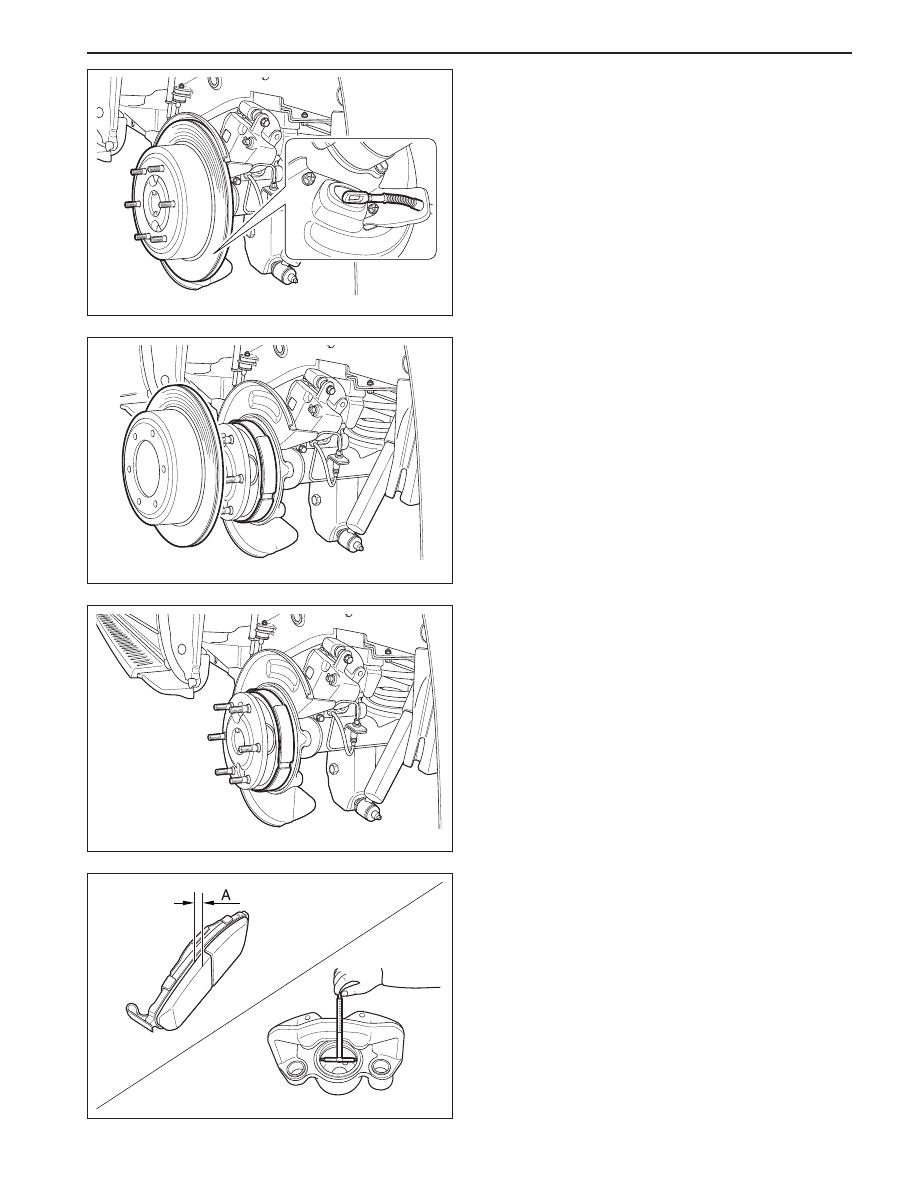

5. Disconnect the parking brake cable from the

parking brake lever.

6. Remove the brake disc.

7. Using the rubber hammer, hit to separate the

parking brake lining lightly and move the lining
upward.

Inspection

1. Clean the dissembled parts and visually check

the followings;

•

Wear, rust and damage on the cylinder and
piston

•

Damage, crack on the caliper body and
damage, wear on the guide pin

•

Pad uneven wear and oil contamination

•

Boot’s damage and tear

YAD4C160

YAD4C170

YAD4C180

YAD4C190
