SsangYong Korando II (1996-2006 year). Manual - part 242

SSANGYONG MY2002

4E-6 REAR BRAKES

;;;;

yyyy

;;;;;

yyyyy

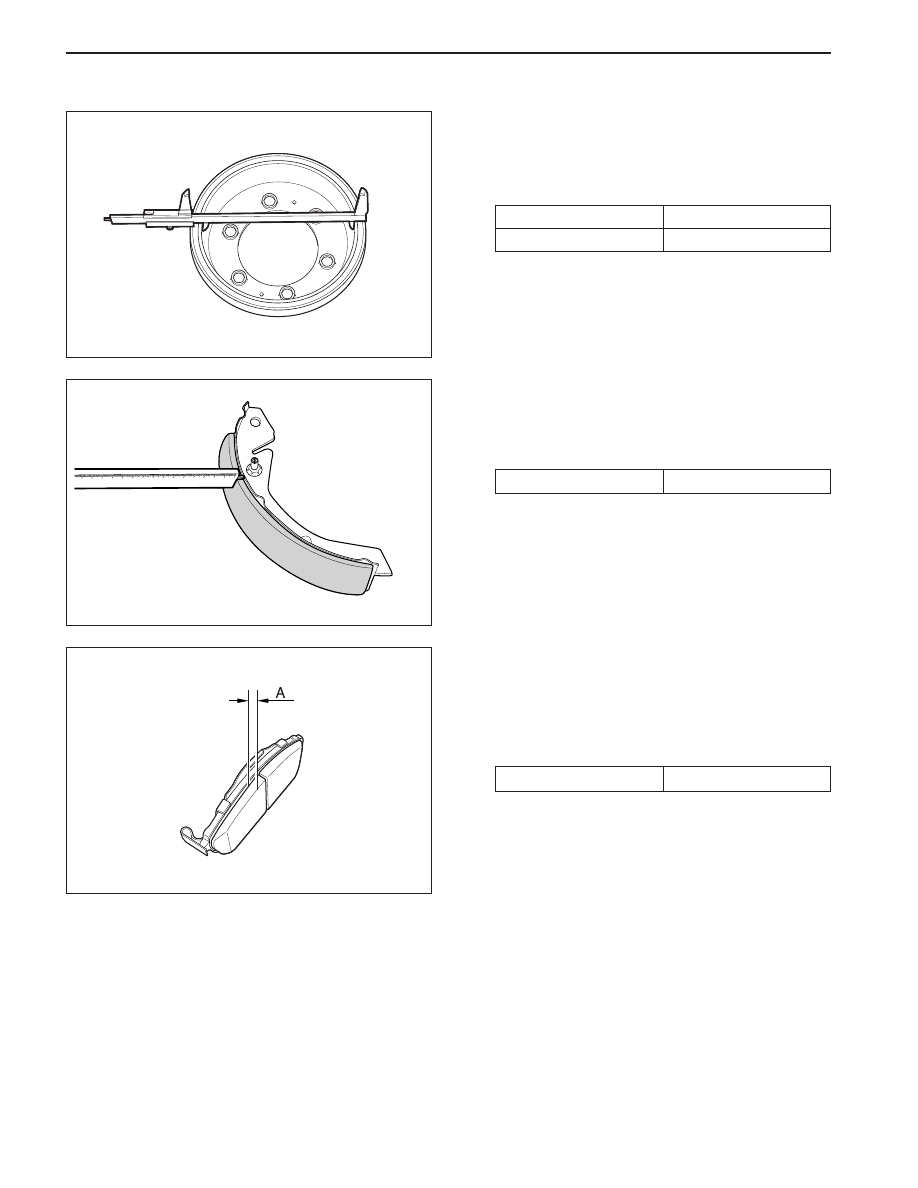

INSPECTION

YAD4C060

YAD4C070

YAD4C080

Inside Diameter

254 mm

Wear Limit

255.5 mm

DRUM BRAKE TYPE

1. Inspect the drum for crack or damage or defor-

mation.

2. Measure the inside diameter.

•

Measure two more position.

Brake Lining

1. Inspect the surface hardening or excessive wear

of the lining. Inspect the lining for stain with oil.

2. Measure the lining thickness.

Wear Limit

1 mm

•

If the measured value is below the limit value,
replace the brake lining.

DISC BRAKE TYPE

Pad Thickness

1. Remove the front wheel.

2. If the measured value is below the limit value,

replace the pad.

Wear Limit

2 mm

REAR BRAKES 4E-7

SSANGYONG MY2002

Max. 0.07 mm

Max. 0.03 mm

2. If lateral run out exceeds the specification, replace

the brake disc to prevent the pedal’s vibration at
braking.

YAD4C090

YAD4C100

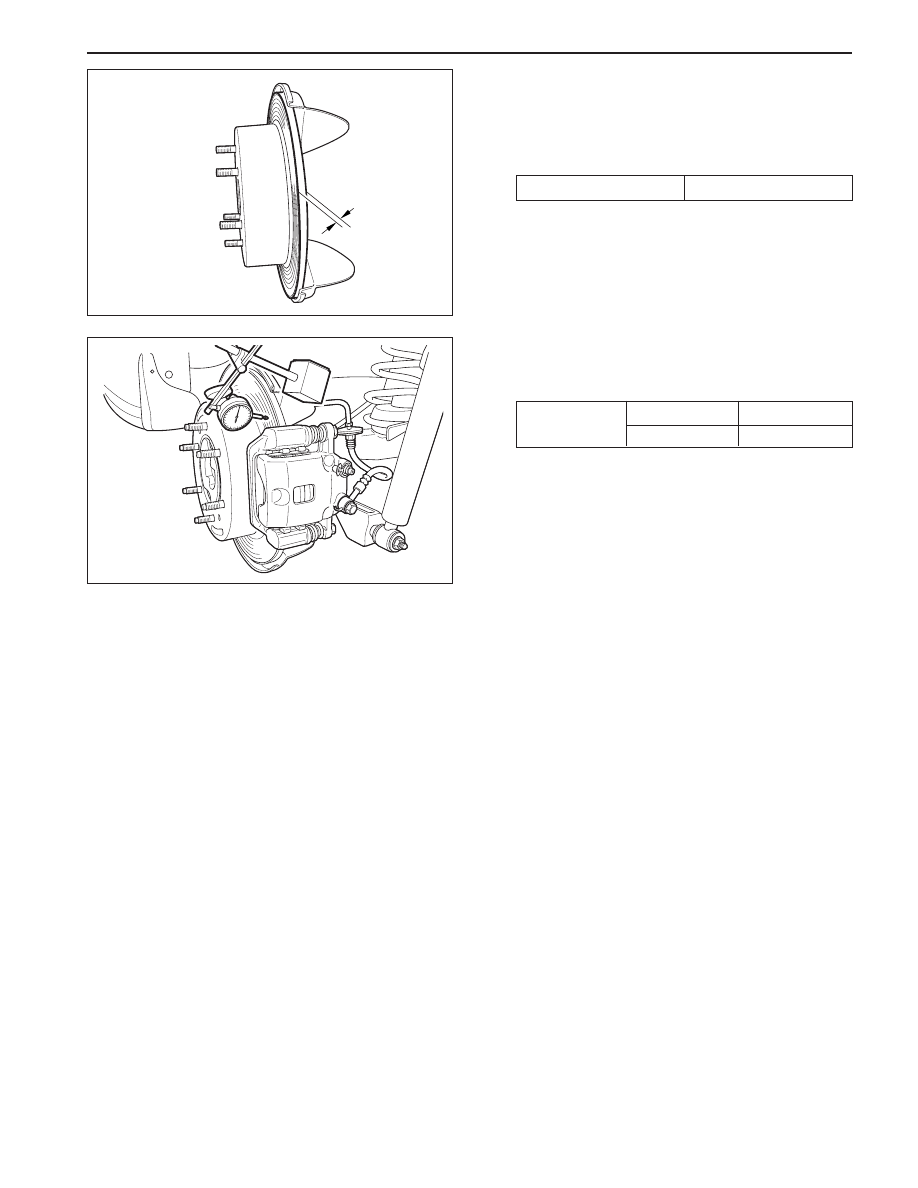

Brake Disc Thickness

1. Measure the thickness of the rotor at four or more

points around the circumference of the disc.

2. If the thickness of the brake disc is below the

specified value, replace the brake disc.

Disc Thickness Limit

8.5 mm

Brake Disc Run Out

1. Set a dial indicator to the brake disc side and

measure the run out by rotating the disc.

On-Vehicle

Disc only

Run Out Limit

SSANGYONG MY2002

4E-8 REAR BRAKES

YAD4C040

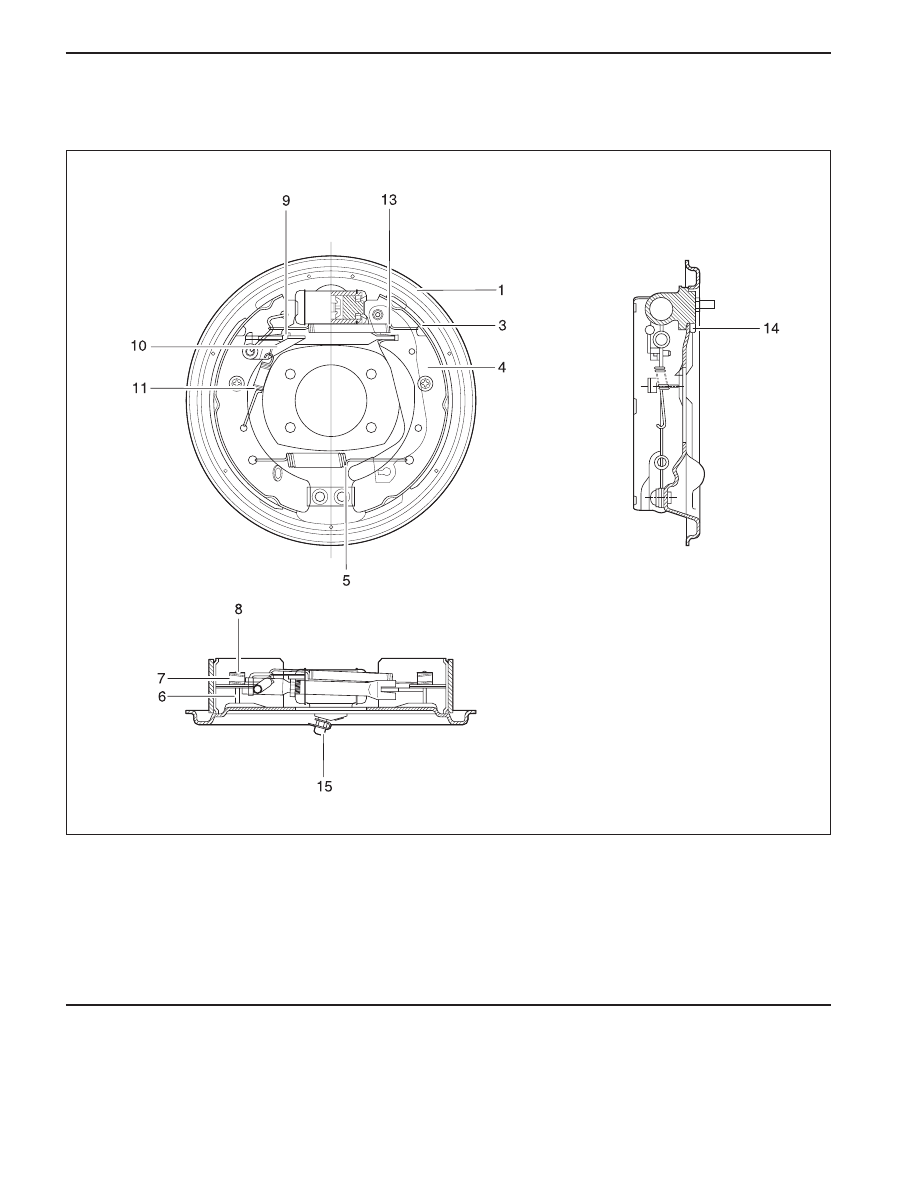

CROSS SECTIONAL VIEW

DRUM BRAKE (KDAC)

1 Backing Plate
2 Wheel Cylinder
3 Brake Shoe Lining
4 Brake Shoe
5 Lower Return Spring (Lower Shoe Spring)
6 Retainer Spring Pin
7 Compression Spring

8 Retainer Spring Plate
9 Adjuster Assembly

10 Adjuster Lever
11 Return Spring (Adjuster)
13 Upper Return Spring (Upper Shoe Spring)
14 Bolt
15 Air Bleeder Nipple

REAR BRAKES 4E-9

SSANGYONG MY2002

YAD4C050

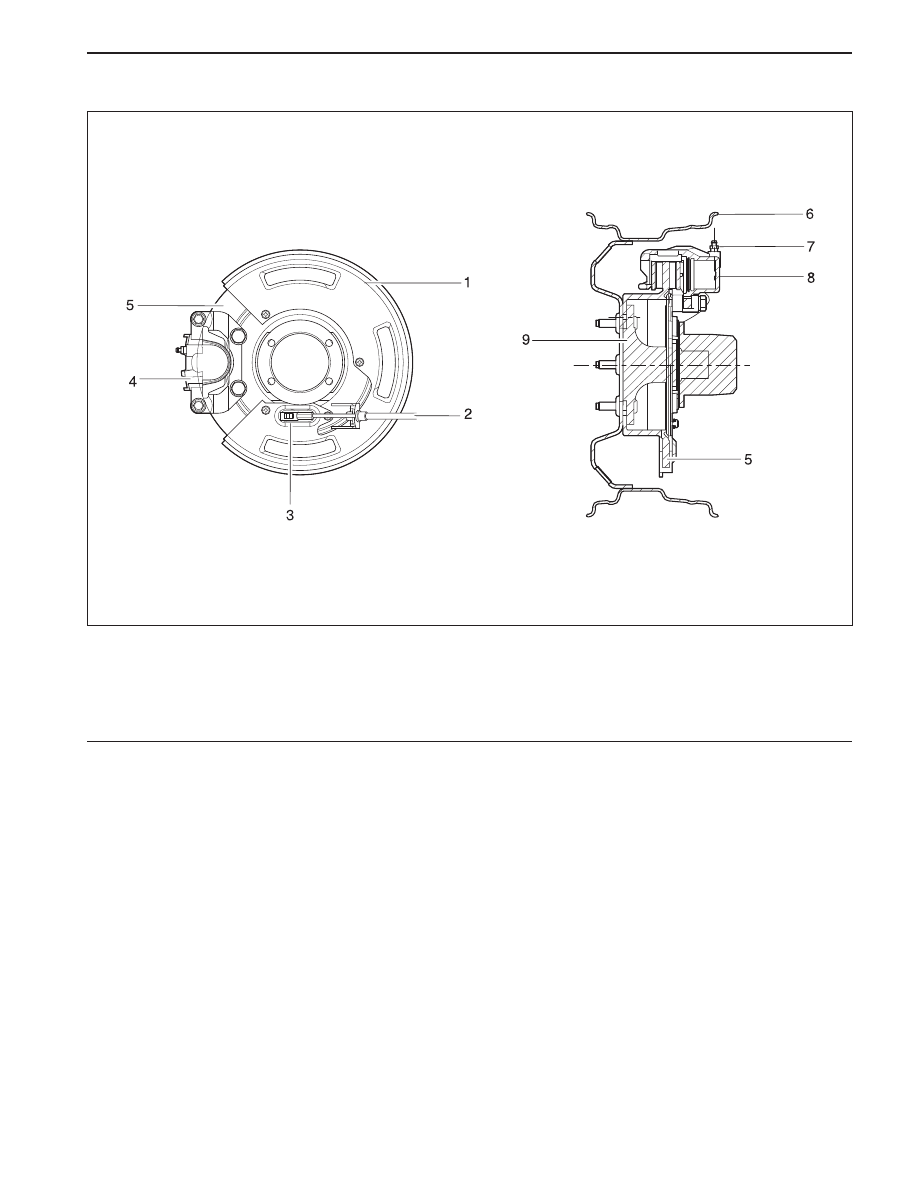

DISC BRAKE

1 Backing Plate
2 Parking Cable
3 Parking Cable Lever
4 Caliper Assembly

5 Disc
6 Wheel
7 Air Bleeder Nipple
9 Shaft Assembly
