SsangYong Korando II (1996-2006 year). Manual - part 227

SSANGYONG MY2002

3D-12 REAR AXLE

;;;;;;;

yyyyyyy

;;;;;;;

yyyyyyy

;;;;;;;

yyyyyyy

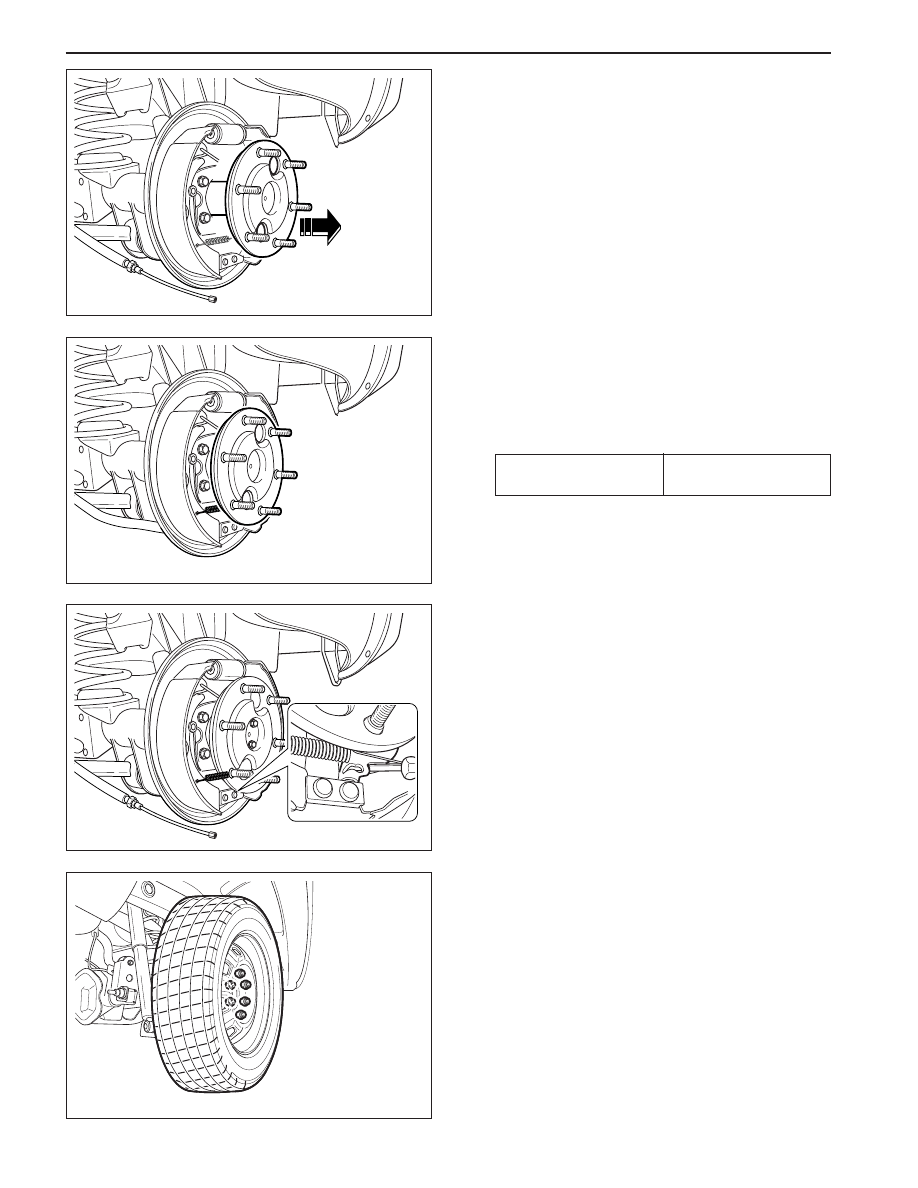

7. Remove the axle shaft.

KAA3D200

KAA3D210

KAA3D230

KAA3D220

Tightening Torque

50 - 65 N•m

(37 - 48 lb-ft)

Installation

1. Check the rear axle shaft.

2. Insert the rear axle shaft into the axle housing and

tighten the fixing nuts of axle shaft flange.

Installation Notice

3. Connect the brake cable and install the brake

drum.

4. Install the tire and test the braking force.

REAR AXLE 3D-13

SSANGYONG MY2002

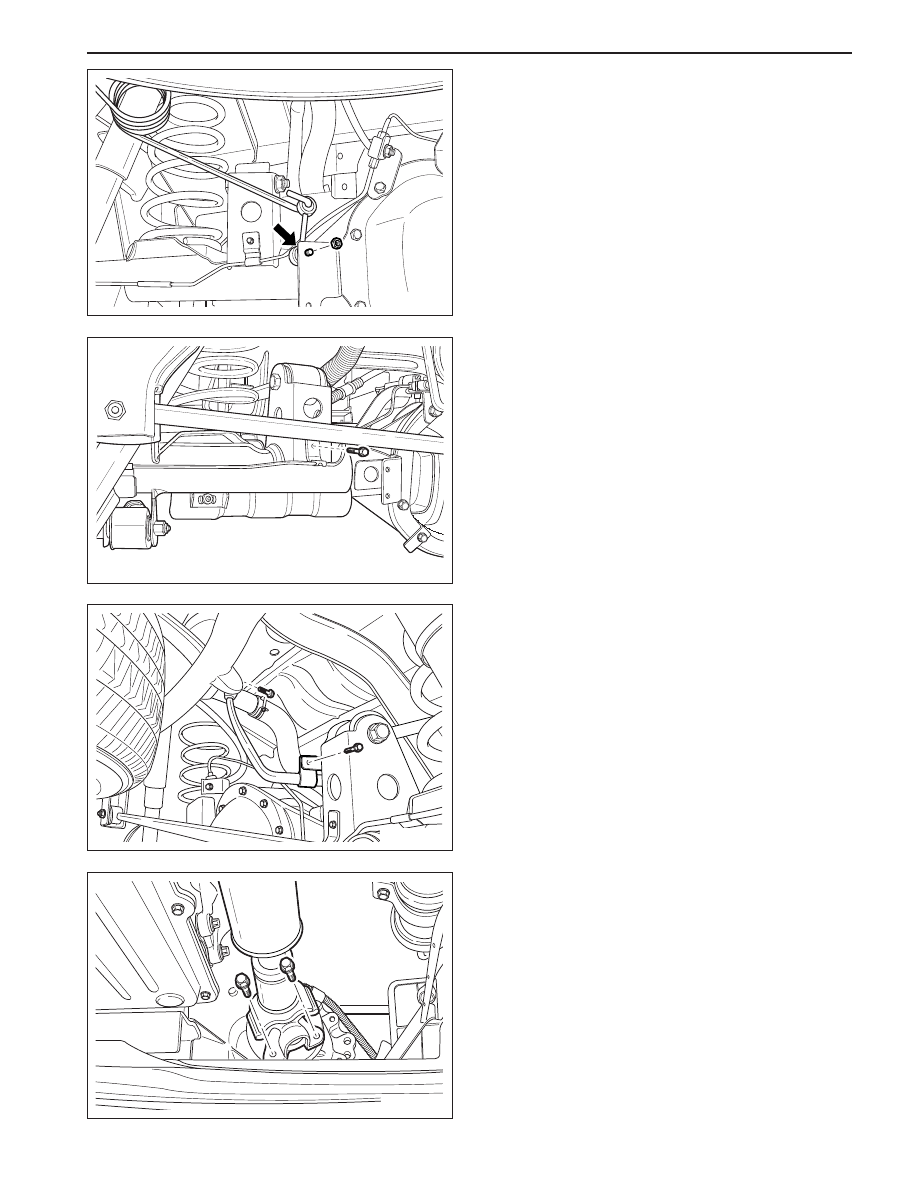

REAR AXLE HOUSING

Removal

1. Remove the tire.

2. Remove the connecting rod of LCRV assembly &

fixing nut of axle housing bracket.

KAA3D240

KAA3A250

KAA3D260

KAA3D270

3. Disconnect the brake oil hose & oil line (pipe)

•

Brake pipe nut.

•

Brake pipe mounting clip

•

3-way connector

•

Brake pipe assembly

4. Detach the air breather.

5. Remove the propeller shaft from rear axle input

shaft.

Notice: Do alignment marks before removing.

SSANGYONG MY2002

3D-14 REAR AXLE

KAA3D280

KAA3D300

KAA3D290

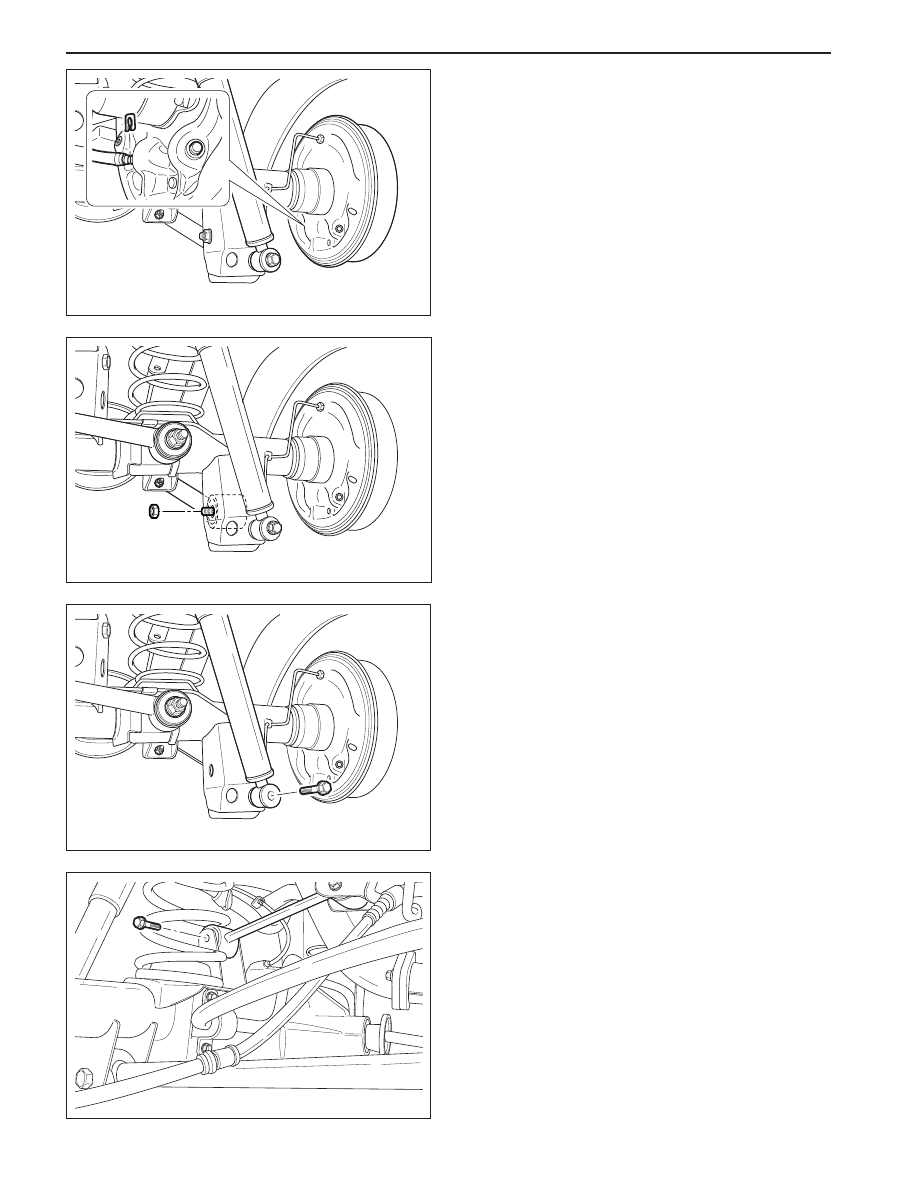

6. Pull out the fixing pin of parking brake.

7. After removing the parking brake lever, pull out

the cable.

KAA3D310

8. Remove the lower arm mounting nuts and remove

the lower arm from the axle housing.

9. Detach the lower mounting of shock absorber from

the axle housing.

10. Remove the upper arm mounting nuts and remove

the upper arm from the axle housing.

REAR AXLE 3D-15

SSANGYONG MY2002

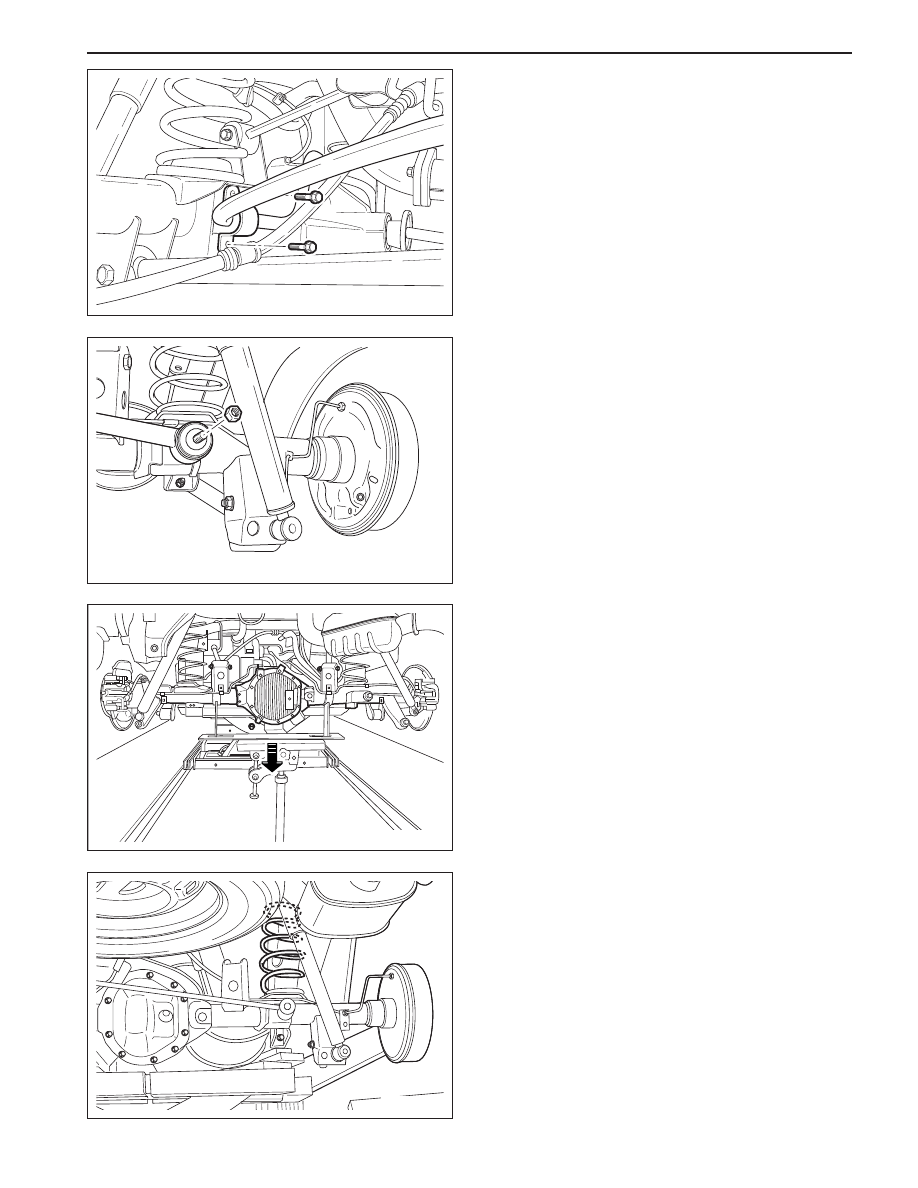

11. Remove the stabilizer bar.

KAA3D320

KAA3D330

KAA3A350

KAA3A340

12. Remove the lateral rod mounting nut and detach

the lateral rod from the axle housing.

13. Lowering the axle slowly, remove the coil spring

& spring seat.

14. Lower the axle housing by using the safety jack.

Installation

1. Placing the rear axle housing on the assembly

position, install both coil springs.
