SSANGYONG  MY2002

3D-4  REAR AXLE

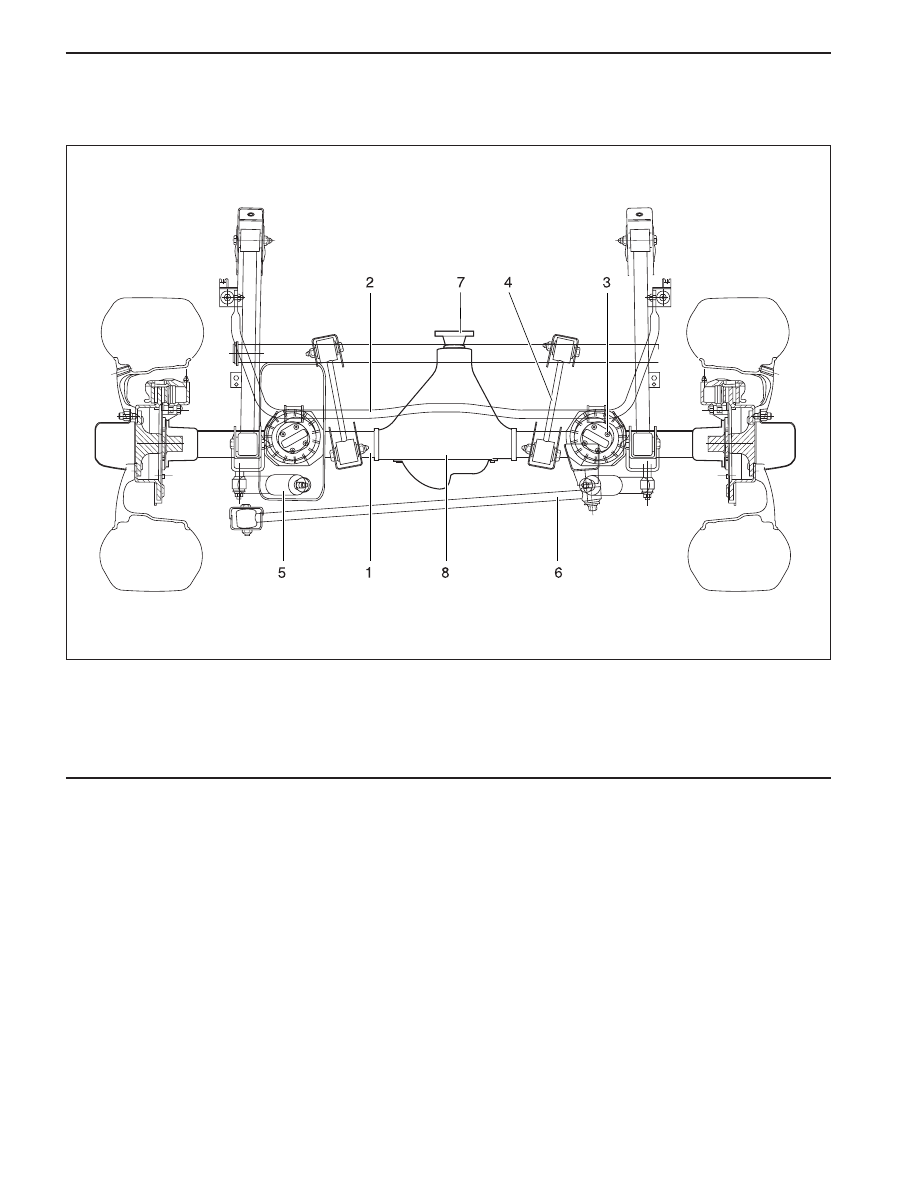

COMPONENT LOCATOR

REAR AXLE ASSEMBLY

KAA3D010

1 Axle Shaft/Tube
2 Stabilizer Bar
3 Spring Seat & Spring
4 Upper Arm

5 Shock Absorber
6 Lateral Rod
7 Input Shaft
8 Axle Housing

REAR AXLE  3D-5

SSANGYONG  MY2002

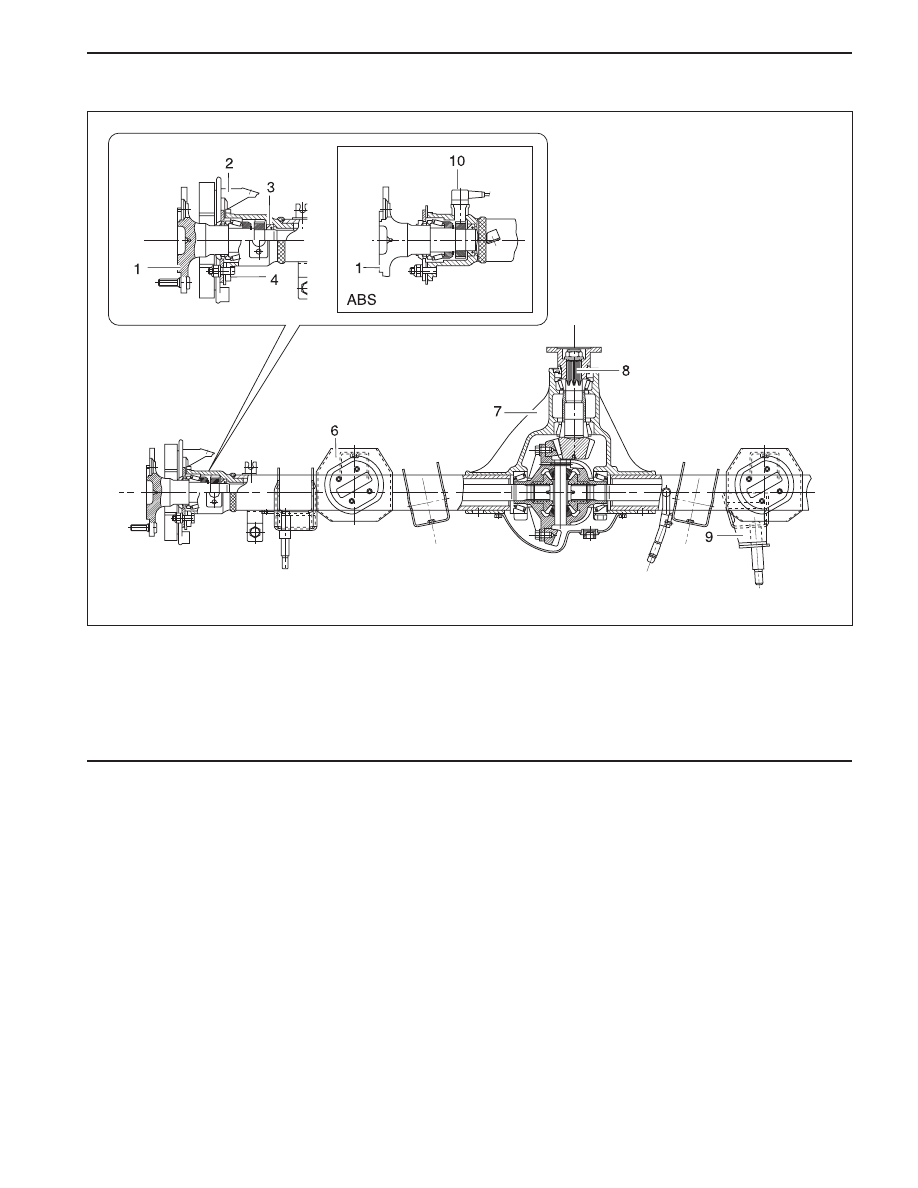

CROSS SECTIONAL VIEW

KAA3D020

1 Rear Axle Shaft Assembly
2 Bracket Assembly
3 Hub Oil Seal
4 Bolt
5 Axle Shaft Tube

6 Coil Spring Seat (Lower)
7 Caliper Assembly
8 Input Shaft/Flange
9 Rod Mounting Bracket

10 Wheel Speed Sensor

SSANGYONG  MY2002

3D-6  REAR AXLE

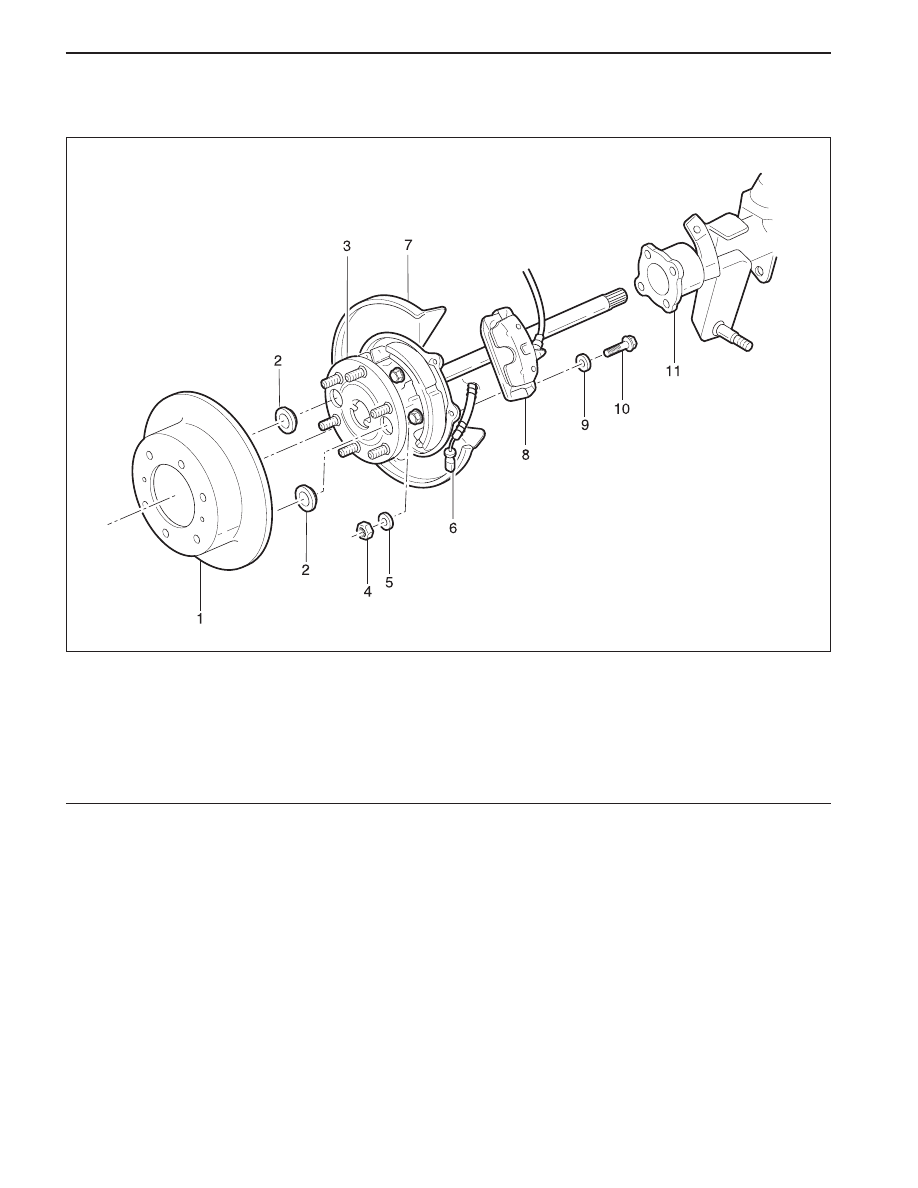

REAR AXLE SHAFT ASSEMBLY

With disc brake

KAA3D030

1 Brake Disc
2 Plug
3 Rear Axle Shaft
4 Nut
5 Washer
6 Parking Brake Cable

7 Parking Brake Lining & Back Plate Assembly
8 Brake Caliper Assembly
9 Spring Washer

10 Bolt
11 Rear Axle Housing

REAR AXLE  3D-7

SSANGYONG  MY2002

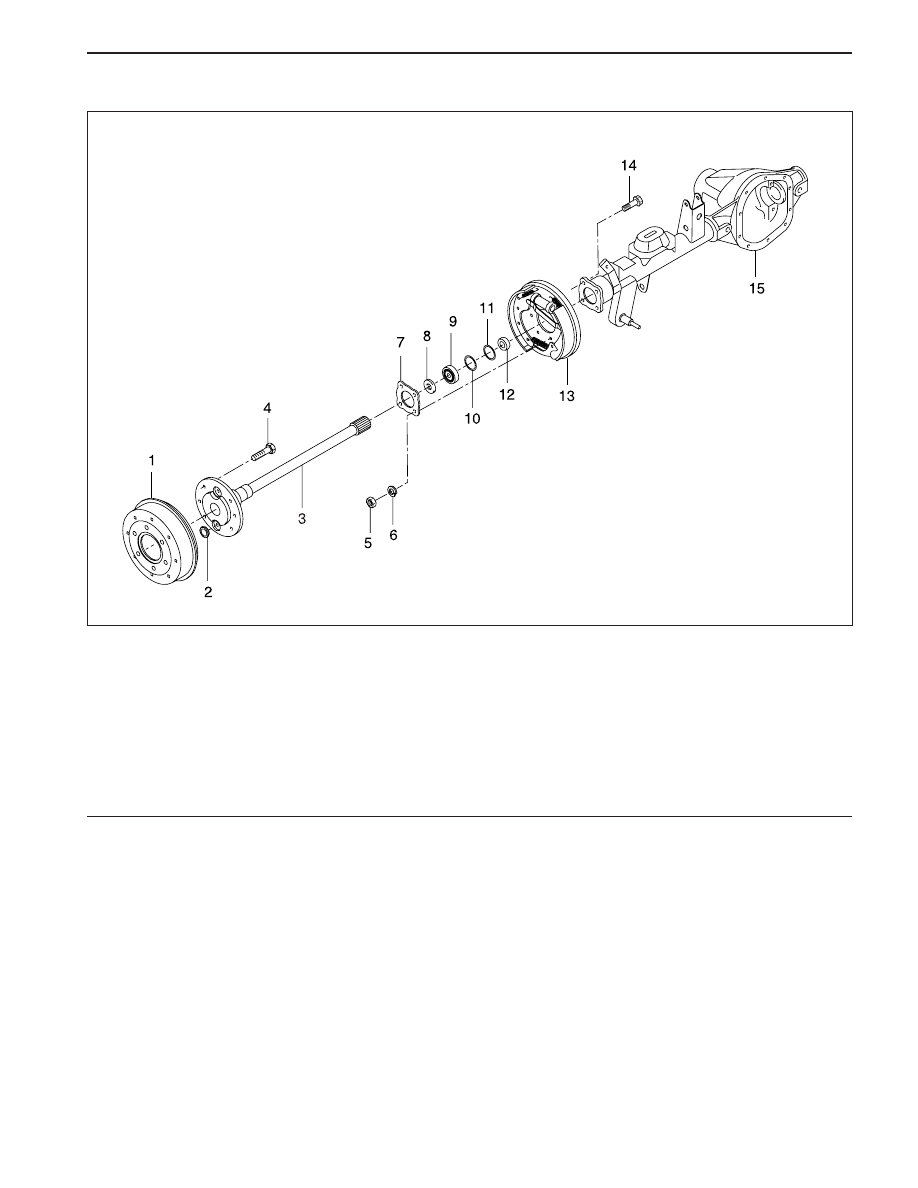

With drum brake

KAA3D040

1 Brake Drum
2 Plug
3 Rear Axle Shaft
4 Wheel Bolt
5 Nut
6 Washer
7 Retainer Plate
8 Oil Seal

9 Bearing

10 Snap Ring
11 Snap Ring
12 Oil Seal
13 Brake Shoe & Back Plate Assembly
14 Bolt
15 Rear Axle Housing
