SSANGYONG  MY2002

2C-2  FRONT SUSPENSION

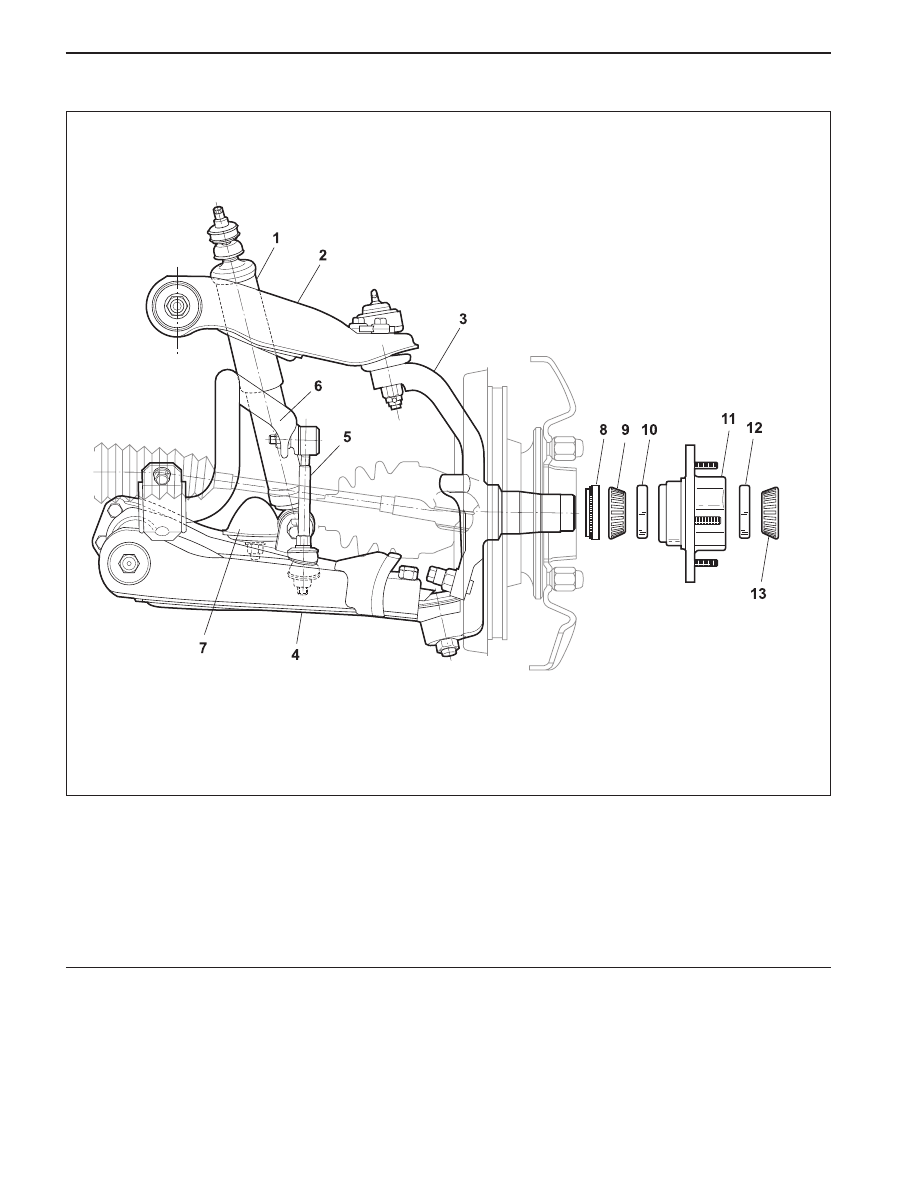

COMPONENTS LOCATOR

1 Front Shock Absorber
2 Upper Control Arm
3 Knuckle
4 Low Control Arm
5 Stabilizer Link
6 Stabilizer
7 Suspension Bumper

8 Hub Inner Seal
9 Hub Inner Bearing

10 Hub Inner Bearing Race
11 Hub
12 Hub Outer Bearing Race
13 Hub Outer Bearing

KAA2C010

FRONT SUSPENSION  2C-3

SSANGYONG  MY2002

DIAGNOSTIC INFORMATION AND PROCEDURES

BALL JOINT INSPECTION

Ball Joint Inspection

1. Raise the front of the vehicle to allow the front

suspension to hang free.

2. Grasp the tire at the top and the bottom.

3. Move the top of the tire in an in-and-out motion.

4. Look for any horizontal movement of the knuckle

relative to the control arm.

5. Ball joints must be replaced under the following

conditions:

•

The joint is loose.

•

The ball seal is cut.

•

The ball stud is disconnected from the knuckle.

•

The ball stud is loose at the knuckle.

•

The ball stud can be twisted in its socket with
finger pressure.

Ball Stud Inspection

Make sure to check the tightness of the ball stud in the
knuckle boss during each inspection of the ball joint.
One way to inspect the ball stud for wear is to shake
the wheel and feel for movement of the stud end at the
knuckle boss.

Another way to inspect the ball stud for wear is to check
the fastener torque at the pinch nut. A loose nut can
indicate a stressed stud orahole in theknuckle boss.

Worn of damaged ball joints and knuckles must be re-
placed.

SSANGYONG  MY2002

2C-4  FRONT SUSPENSION

REPAIR INSTRUCTIONS

KAA2C020

ON-VEHICE SERVICE

FRONT HUB BEARING ASSEMBLY

Tools Required

DW340-050

Sliding Hammer

DW340-060

Front Hub Cap Remover/Installer

DW340-070

Front Hub Flange Remover

661 589 01 07 00

Front Hub Adjusting Nut Remover/
nstaller

Removal and Installation Procedure

1. Raise and suitably support the vehicle.

2. Remove the front wheels. Refer to  Section 2E,

Tires and Wheels.

3. Remove the caliper assembly. Refer to  Section

4D, Front Disc Brakes.

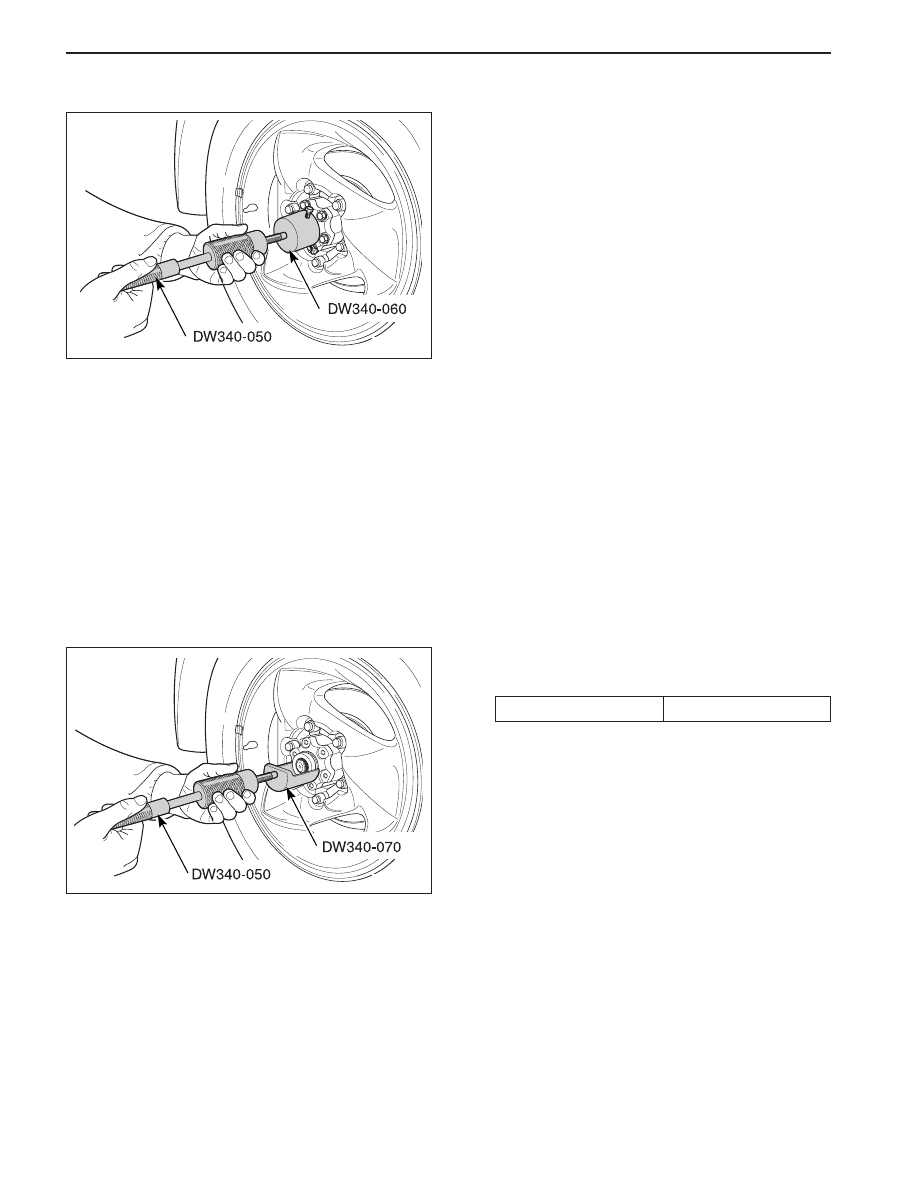

4. Remove the hub cap with front hub cap remover/

Installer DW340-060 and sliding hammer DW340-
050.

KAA2C030

5. Remove the hub flange bolts.

Installation Notice

Tightening Torque

55  N•m (41 lb-ft)

6. Remove the snap ring and hub flange with front

hub  flange remover DW340-070 and sliding
hammer DW340-050.

Notice:

•

When installing, coat the hub flange surface with
Loctitte.

FRONT SUSPENSION  2C-5

SSANGYONG  MY2002

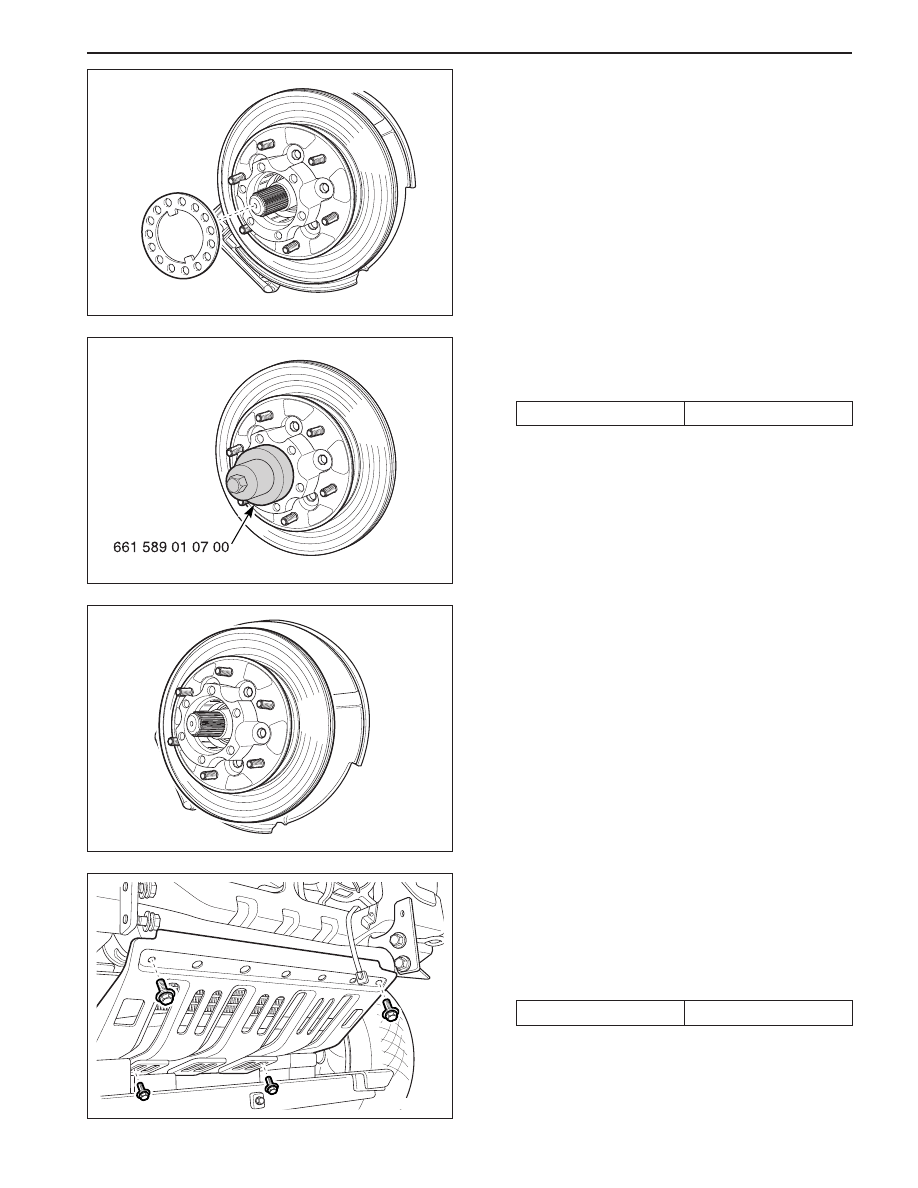

7. Remove the hub adjust locking washer.

KAA2C040

KAA2C050

KAA2C060

KAA2C070

8. Remove the hub adjusting nut with front hub adjust-

ing nutremover/installer 661589 01 07 00.

Installation Notice

Tightening Torque

15  N•m (11 lb-ft)

•

When installing, adjust the clearance between
the  hub adjusting nut and hub not to exceed
0.2 mm (0.008 inch) using the shim.

9. Remove the hub bearing assembly.

10. Installation should follow the removal procedure

in the reverse order.

FRONT STABILIZER

Removal and Installation Procedure

1. Raise and suitably support the vehicle.

2. Remove the lower cover.

Installation Notice

Tightening Torque

35  N•m (26 lb-ft)
