SsangYong Korando II (1996-2006 year). Manual - part 39

1E1 -- 2 M162 ENGINE ELECTRICAL

DAEWOO MY_2000

SPECIFICATIONS

GENERATOR SPECIFICATIONS

Application

Description

Current

115 A

Output Voltage

12 -- 14 v

Resistance Between Rotor Core and Slip Ring

∞ Ω

STARTER SPECIFICATIONS

Application

Description

Output Power

1.8 kw

Voltage

12 v

BATTERY SPECIFICATIONS

Application

Description

Capacity

90 AH

Max. Tolerance Between Cells

≥ 0.04

Specific Gravity

≥ 1.24

FASTER TIGHTENING SPECIFICATIONS

Application

NSm

Lb-Ft

Lb-In

Generator Terminal B+Nut

14 -- 18

10 -- 13

Generator Terminal D+Nut

4 -- 5

35 -- 44

Generator Mounting Bolt

Battery Cable Nut on Starting Motor

12 -- 15

9 -- 11

Electric Wire Nut on Starting Motor

6 -- 7

53 -- 62

Starting Motor Mounting Bolt

35 -- 48

26 -- 35

Battery Mounting Bracket Nut

12 -- 18

9 -- 13

Battery Negative Cable

12 -- 18

9 -- 13

Battery Positive Cable

12 -- 18

9 -- 13

Spark Plug Cover Bolt

9 -- 11

80 -- 97

Ignition Cable Bolt

9 -- 11

80 -- 97

Spark plug

20 -- 30

15 -- 22

M162 ENGINE ELECTRICAL 1E1 -- 3

DAEWOO MY_2000

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

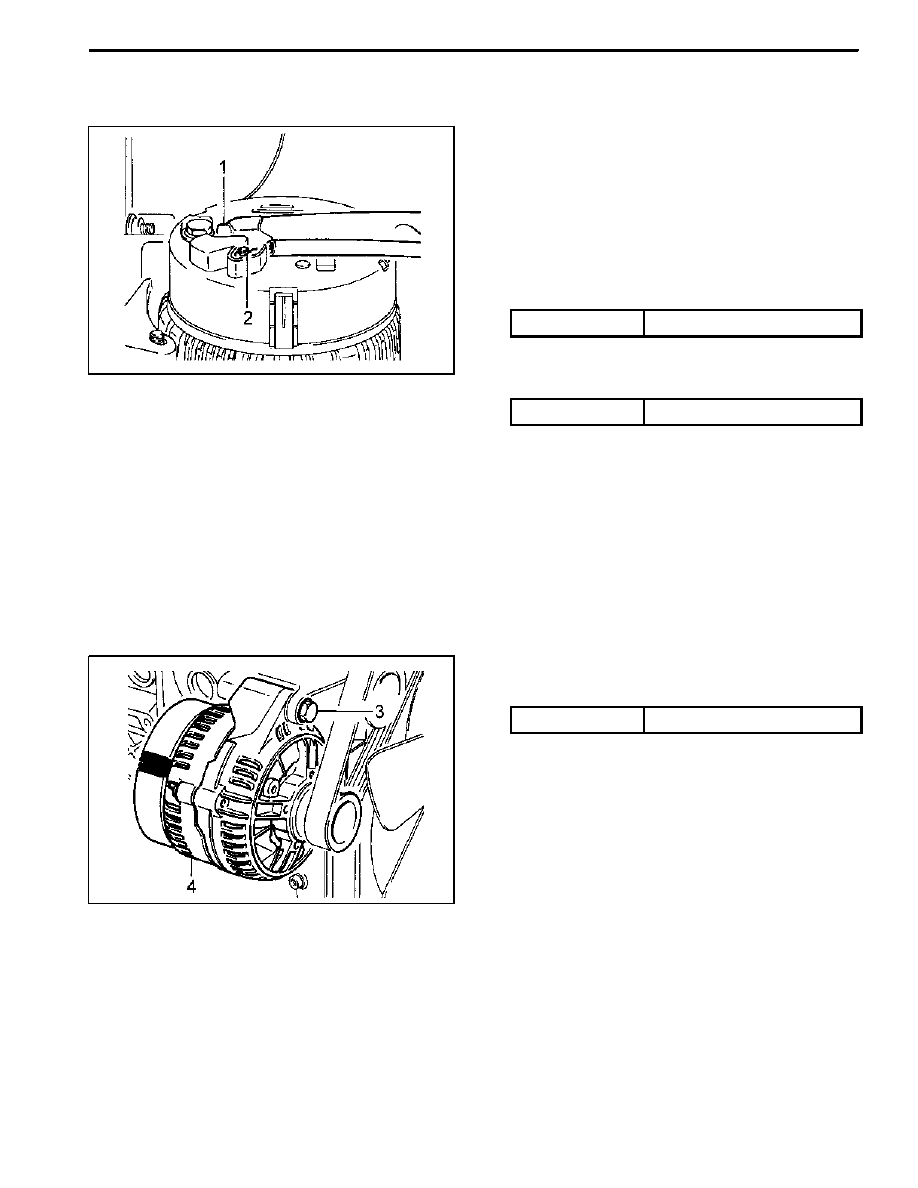

GENERATOR

Preceding Work : Removal of the drivebelt

Removal & Installation Procedure

1. Disconnect the negative battery terminal.
2. Unscrew the nut and disconnect the terminal (1).

Installation Notice

Tightening Torque

14 -- 18 NSm (10 -- 13 lb-ft)

3. Unscrew the nut and disconnect the terminal (2).

Installation Notice

Tightening Torque

4 -- 5 NSm (35 -- 44 lb-in)

1 Terminal (B+)

2 Terminal (D+)

4. Unscrew the generator mounting bolt (3).

Installation Notice

Tightening Torque

25 NSm (18 lb-ft)

5. Remove the generator.
6. Installation should follow the removal procedure in

the reverse order.

3 Generator Mounting Bolt

4 Generator

1E1 -- 4 M162 ENGINE ELECTRICAL

DAEWOO MY_2000

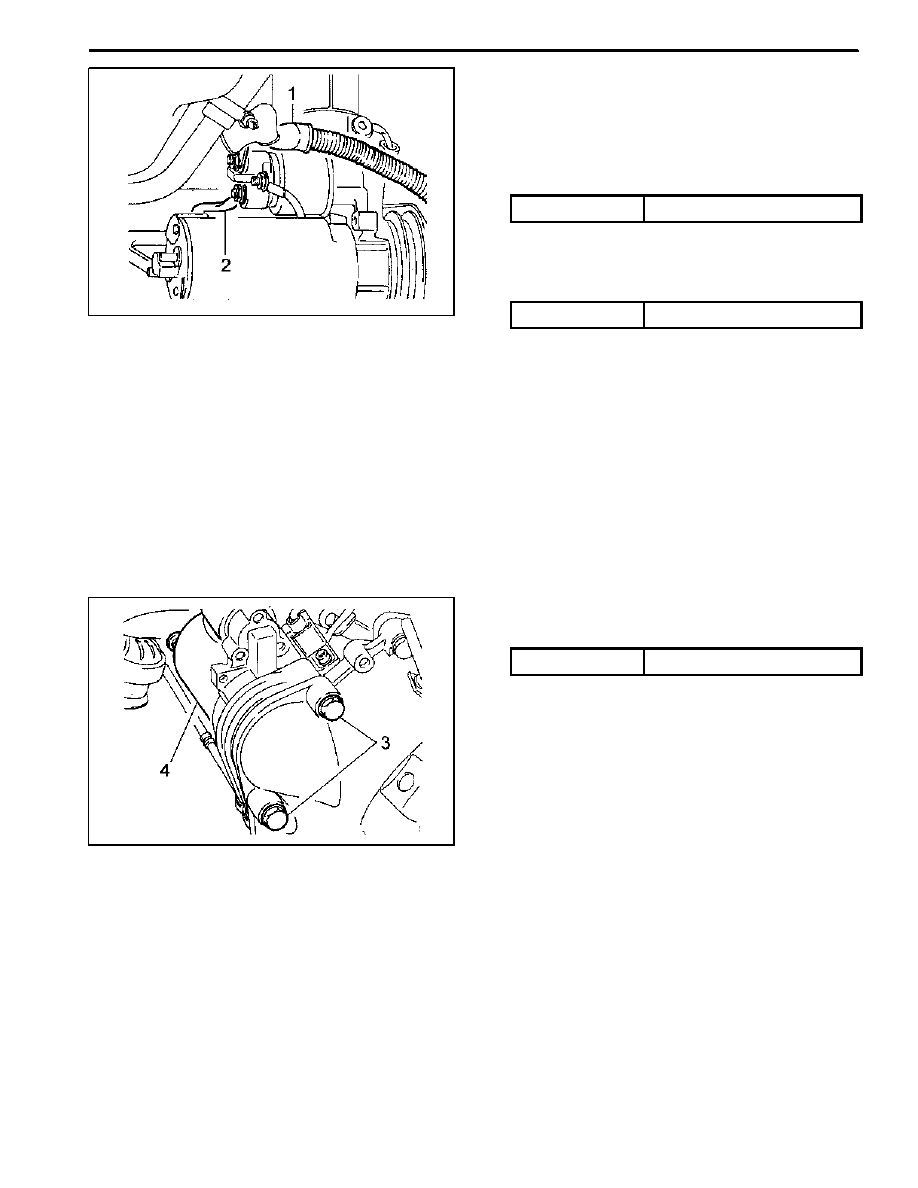

STARTING MOTOR

Removal & Installation Procedure

1. Disconnect the ground cable.
2. Unscrew the nut and disconnect the battery cable(1).

Installation Notice

Tightening Torque

12 -- 15 NSm (9 -- 11 lb-ft)

3. Unscrew the nut and disconnect the engine electric

wire (2).
Installation Notice

Tightening Torque

6 -- 7 NSm (53 -- 62 lb-in)

1 Battery Cable

2 Engine Electric Wire

4. Unscrew the mounting bolts (3) of starting motor.

Installation Notice

Tightening Torque

35 -- 48 NSm (26 -- 35 lb-ft)

5. Remove the starting motor.
6. Installation should follow the removal procedure in

the reverse order.

3 Fixing Bolt

4 Starting Motor

M162 ENGINE ELECTRICAL 1E1 -- 5

DAEWOO MY_2000

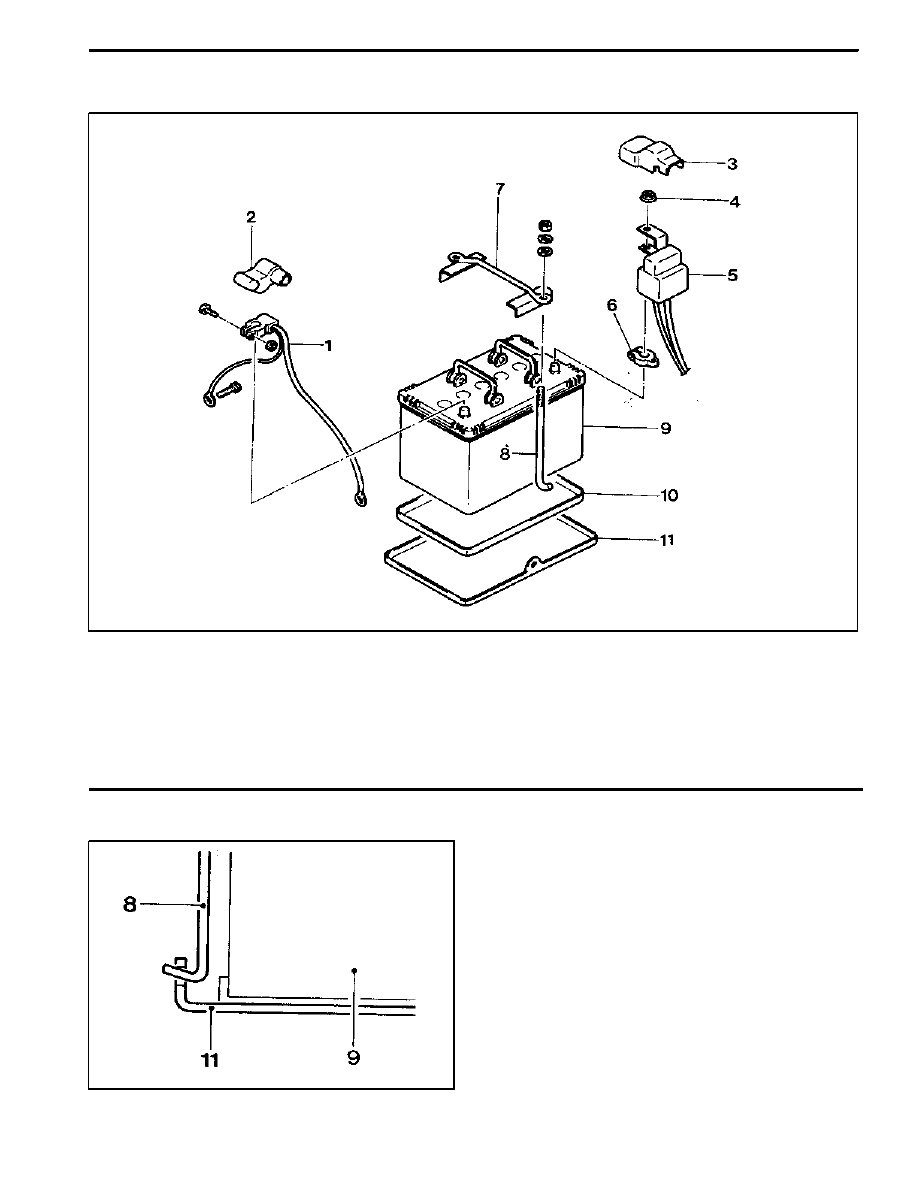

BATTERY

1 Cable Terminal (--)

2 Cable Terminal Cap (--)

3 Cable Terminal Cap (+)

4 Nut

5 Fuseblink Box

6 Terminal (+)

7 Battery holddown Bracket

8 Battery Clamp Bolt

9 Battery

10 Sub Tray

11 Battery Tray

Removal & Installation Procedure

Notice

Disconnect the battery negative cable first.

Insert the clamp bolt (8) into the battery tray hole (11)

from inside when installing.
