07-12

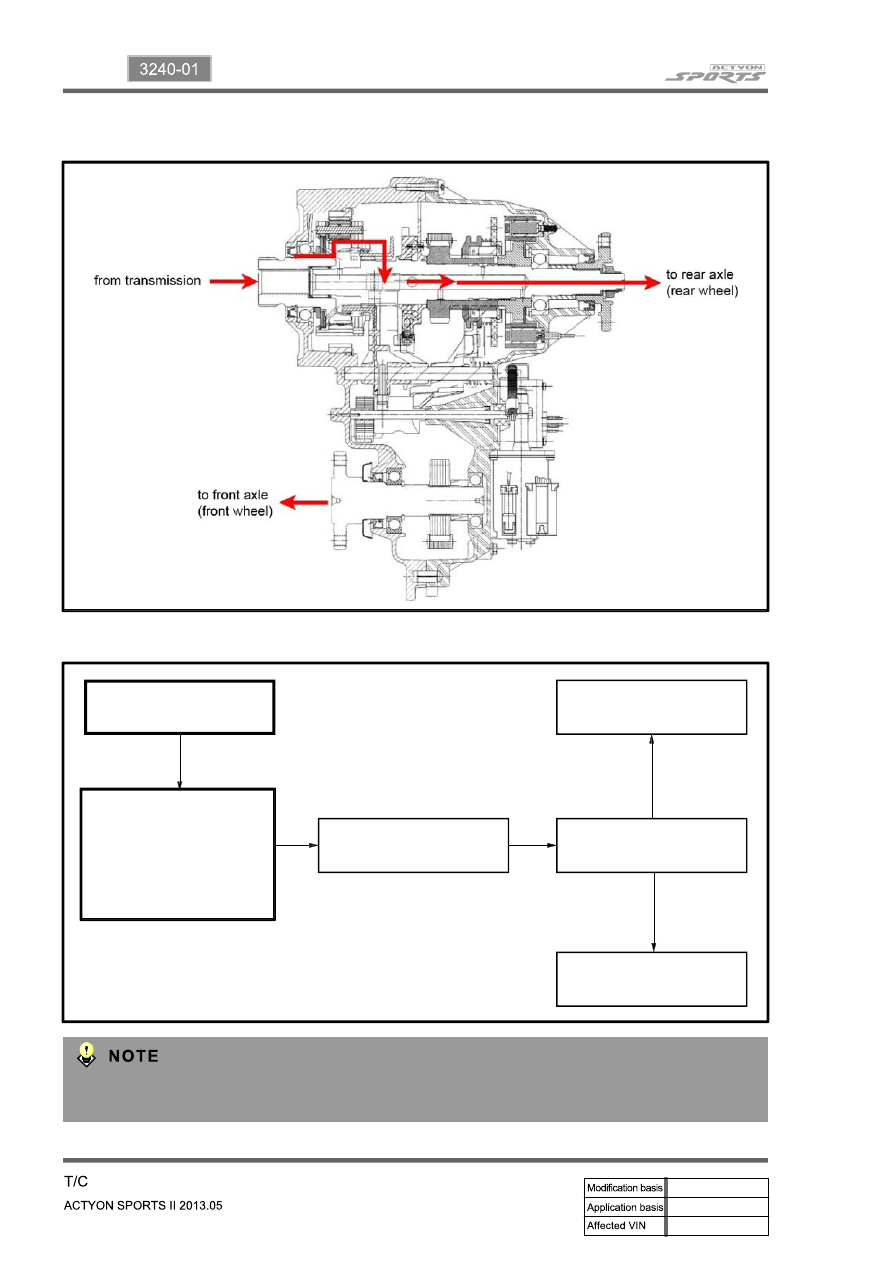

1) 2H Mode (2 Wheel Drive)

Power Flow

▶

Output shaft of

transmission

Rear propeller shaft

Rear wheel

Rear axle

Rear wheel

Input shaft of transfer case

↓

Output shaft of transfer

case

The driving force is directly engaged(1:1) to rear axle and is transferred only to the rear wheels.

07-13

3240-01

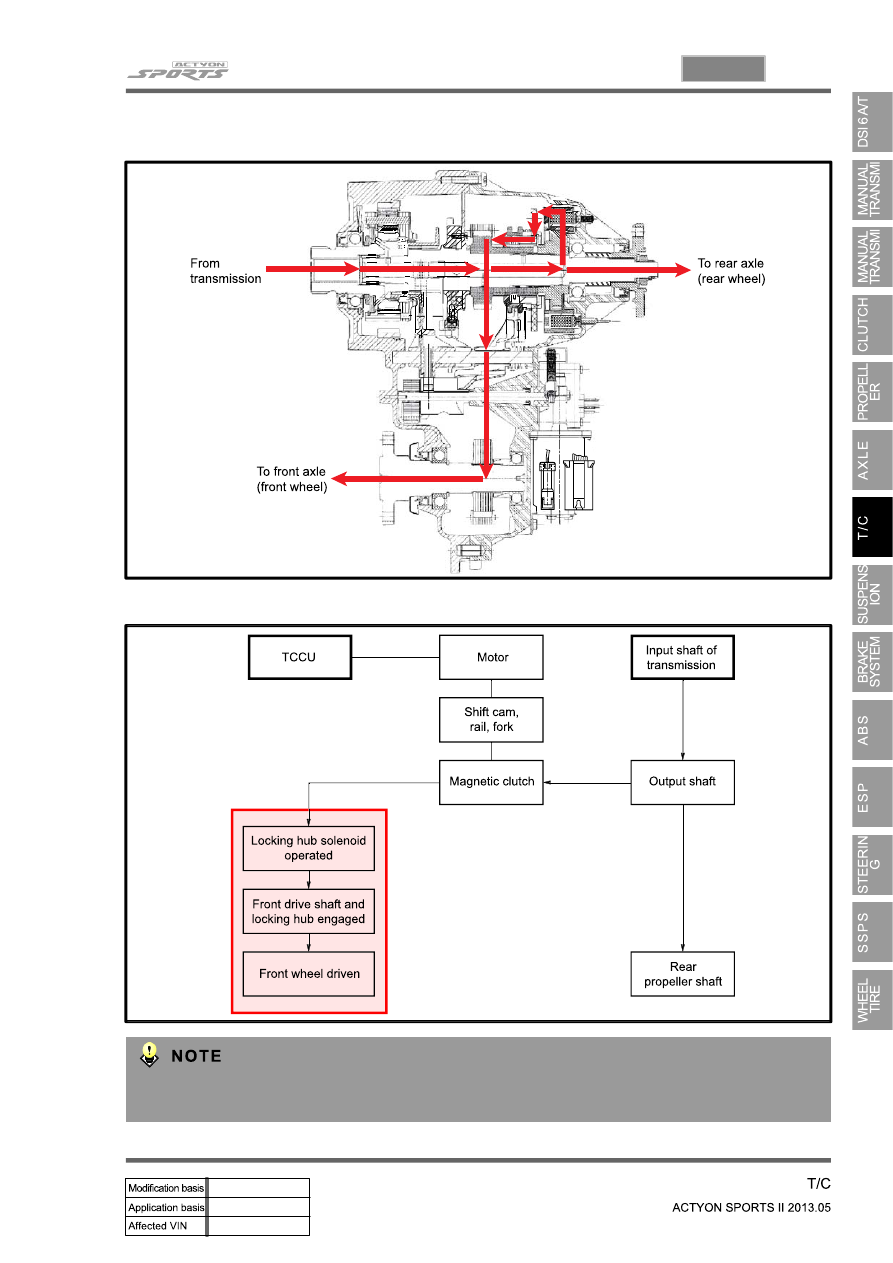

2) 4H Mode (4 Wheel Drive - High Speed)

Power Flow

▶

The driving force is pass through 4WD High magnetic clutch in transfer case and is distributed on

front wheels and rear wheels (50;50).

07-14

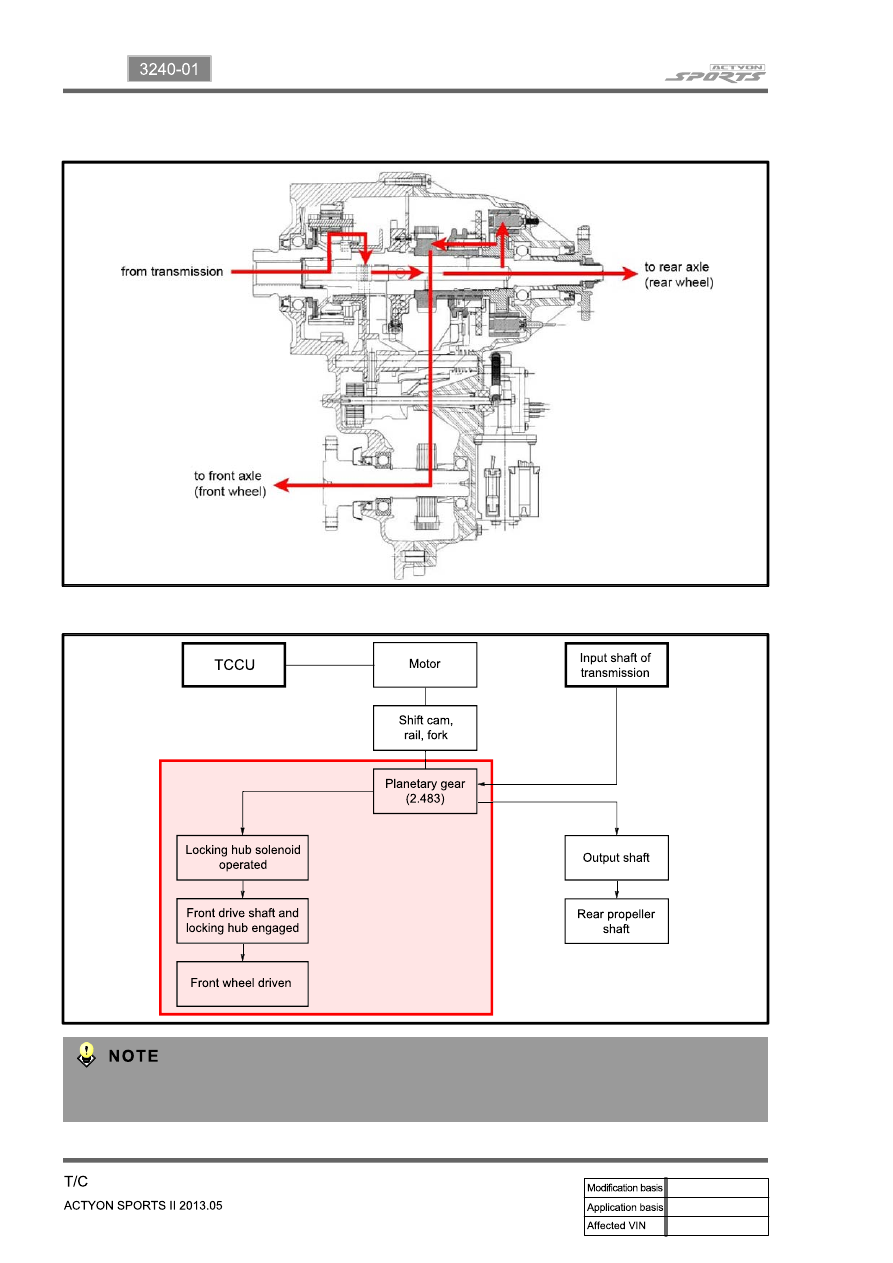

3) 4L Mode (4 Wheel Drive - Low Speed)

Power Flow

▶

The gear ratio is reduced to 2.48;1 while passing through 4WD Low range and planetary gear set in

transfer case and the driving force is distributed on front wheels and rear wheels(50;50).

08-3

4411-01

1. SPECIFICATIONS

2. WHEEL ALIGNMENT

Description

Specification

Front Suspension

Suspension type

Double wishbone

Spring type

Coil spring

Shock absorber type

Reciprocating cylindrical type (gas type)

Stabilizer bar type

Torsion bar type

Rear Suspension

Suspension type

5-link type

Spring type

Coil spring

Shock absorber type

Reciprocating cylindrical type (gas type)

Stabilizer bar type

Torsion bar type

Front

Wheel

Alignment

TOE

Unilateral : 0.10 ± 0.16°

Total : 0.20 ± 0.13°

Camber

-0.5 ± 0.25°

Caster

4.6 ± 0.4°
