08-4

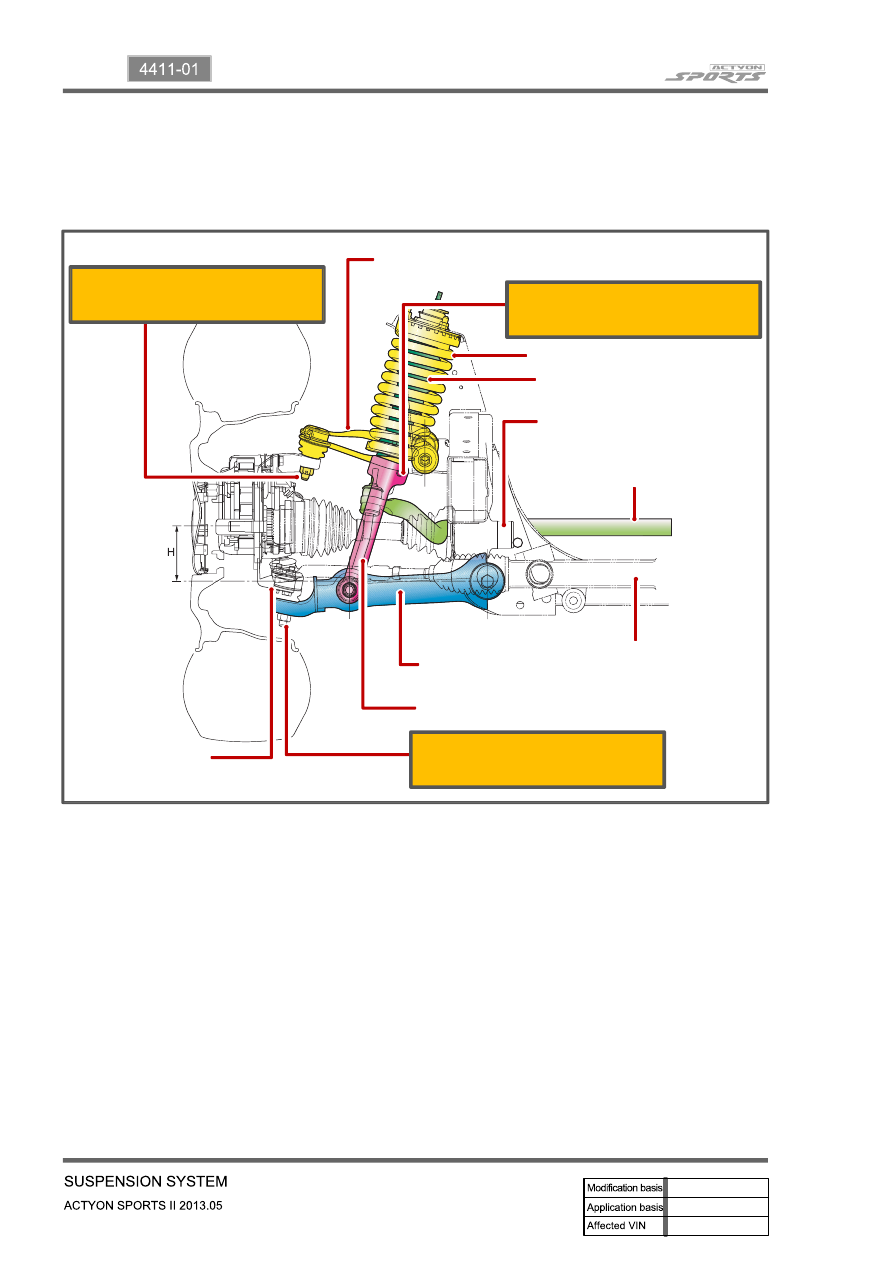

3. SYSTEM LAYOUT AND TIGHTENING TORQUE OF
    FRONT SUSPENSION

Upper arm assembly

Coil spring

Shock absorber

Front axle shaft assembly

Steering gear

box assembly

Lower arm assembly

Shock absorber yoke

Knuckle assembly

Stabilizer bar assembly

Front View

▶

Upper arm (on knuckle) nut

Tightening torque: 140 ~ 160 Nm

Lower arm (on knuckle) nut

Tightening torque: 140 ~ 160 Nm

Shock absorber (to yoke) bolt

Tightening torque: 125 ~ 145 Nm

08-5

4411-01

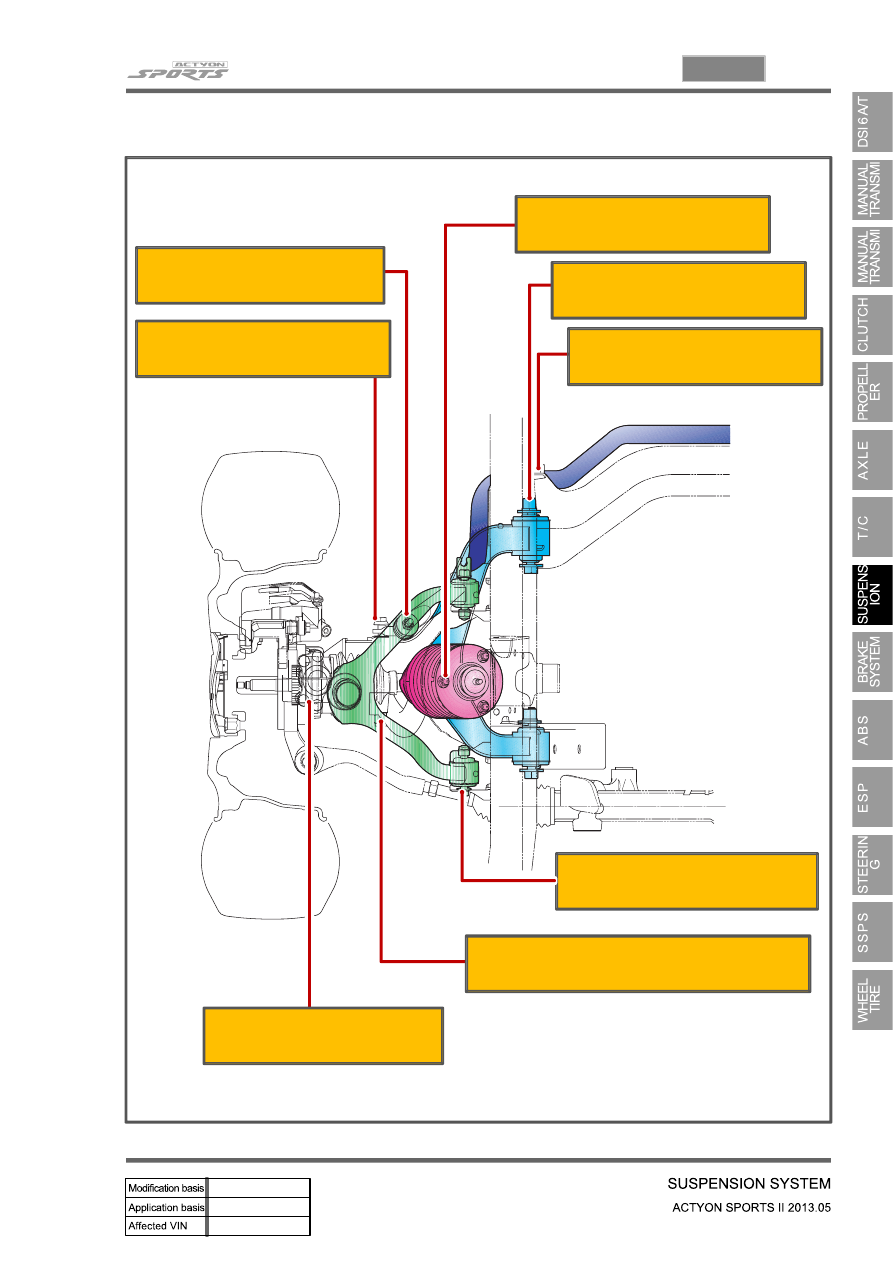

Stabilizer bar link lower nut

Tightening torque: 110 ~ 130 Nm

Coil spring mounting nut

Tightening torque: 60 ~ 80 Nm

Stabilizer bar link upper nut

Tightening torque: 30 ~ 50 Nm

Upper arm (frame side) bolt/nut

Tightening torque: 110 ~ 130 Nm

Stabilizer bar clamp bolt

Tightening torque: 40 ~ 60 Nm

Lower arm (end yoke) bolt

Tightening torque: 70 ~ 80 Nm

Lower arm (shock absorber yoke side) nut

Tightening torque: 150 ~ 170 Nm

Lower arm (frame side) bolt/nut

Tightening torque: 210 ~ 230 Nm

Top View

▶

08-6

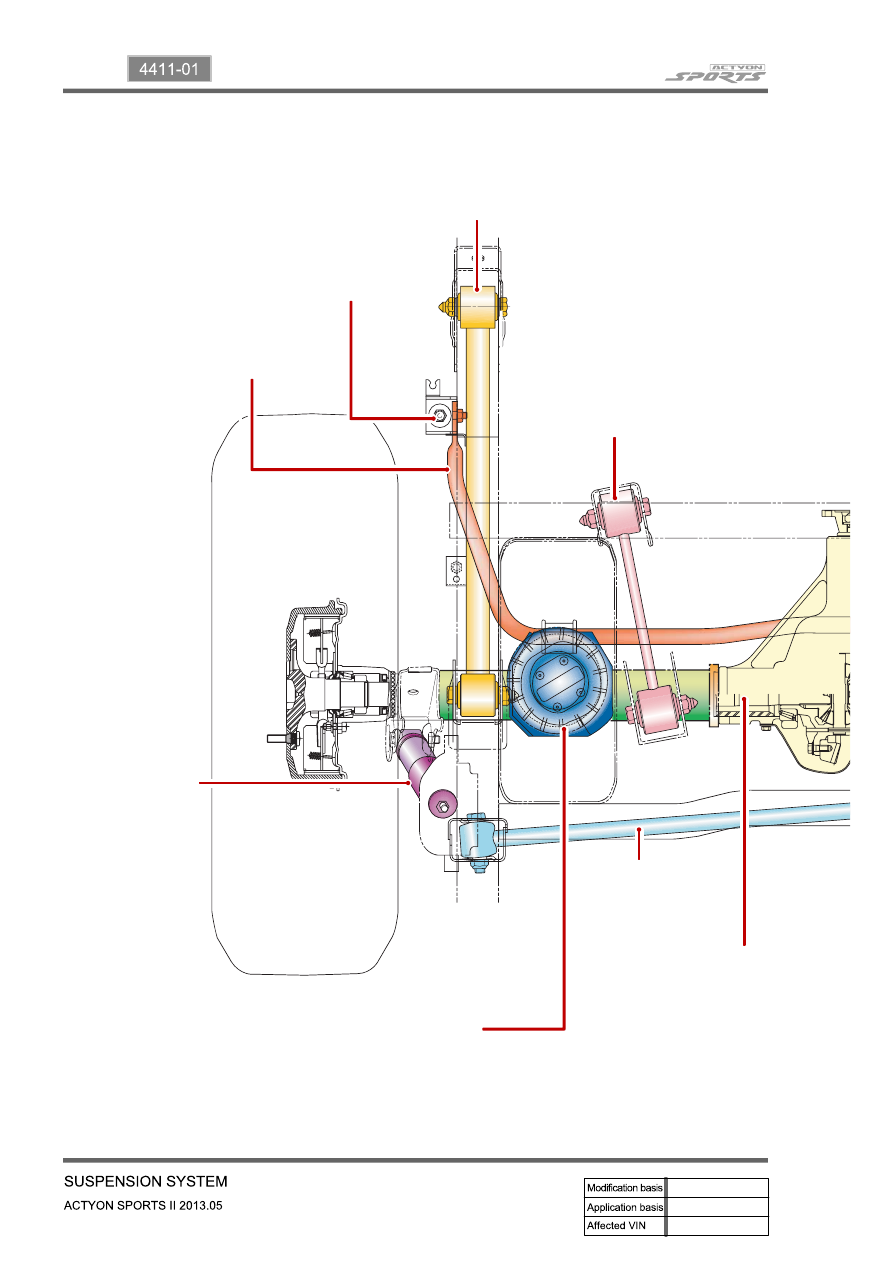

4. SYSTEM LAYOUT AND TIGHTENING TORQUE OF REAR
    SUSPENSION

Lower arm (link)

Stabilizer bar link

Stabilizer bar

Shock absorber

Coil spring seat (upper side)

Lateral rod

Axle housing

Upper arm (link)

Top View

▶

08-7

4411-01

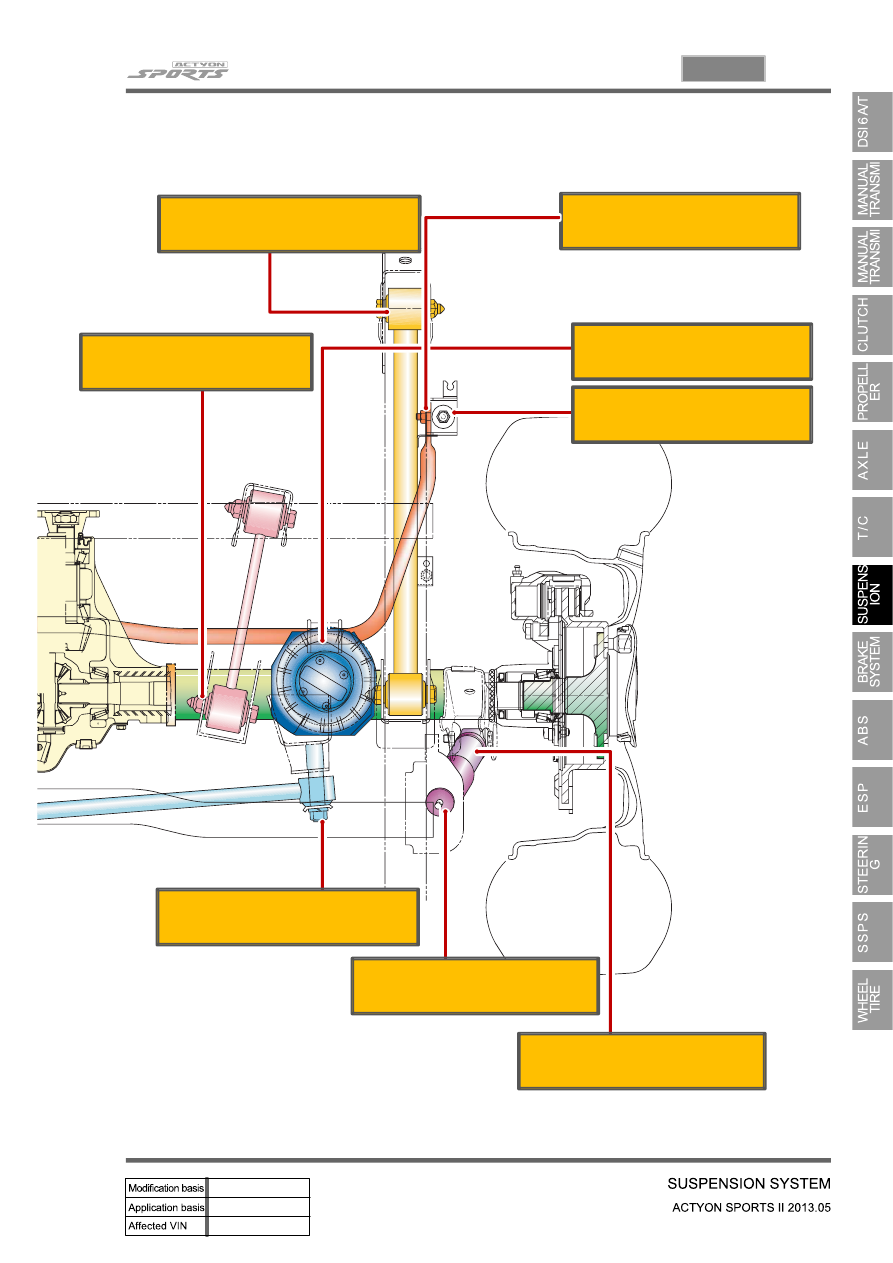

Lateral rod

Tightening torque: 150 ~ 180 Nm

Shock absorber upper bolt/nut

Tightening torque: 30 ~ 45 Nm

Shock absorber lower bolt/nut

Tightening torque: 80 ~ 100 Nm

Upper arm bolt/nut

Tightening torque:150~180 Nm

Lower arm bolt/nut

Tightening torque: 150 ~ 180 Nm

Stabilizer bar link lower

Tightening torque: 60 ~ 80 Nm

Stabilizer bar mounting bracket

Tightening torque: 40 ~ 60 Nm

Stabilizer bar link upper

Tightening torque: 30 ~ 45 Nm
