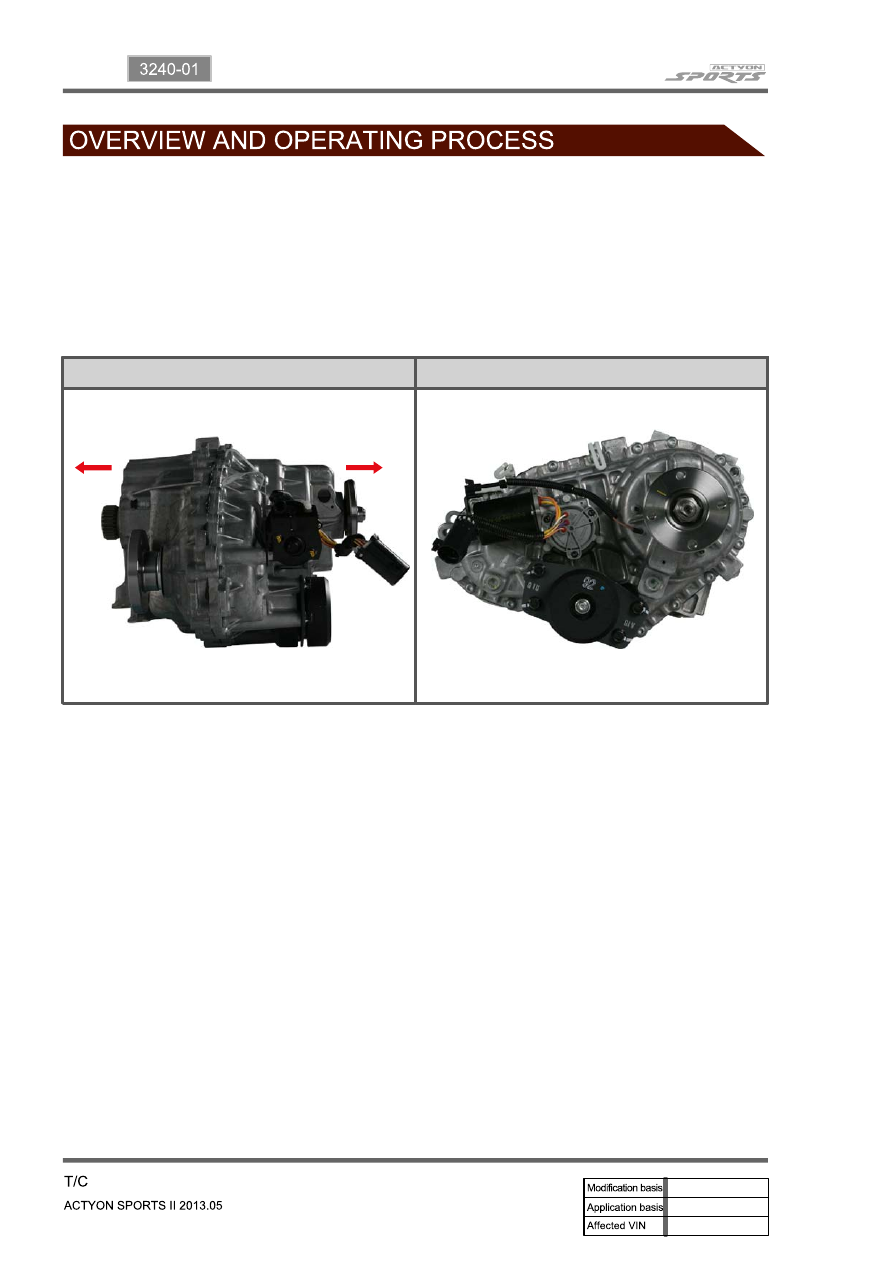

1. OVERVIEW

By using the planetary gear sets, two-gears shift type part time transfer case achieves direct connection

when selecting 4WD "HIGH" and 2.48 of reduction gear ratio when selecting 4WD "LOW". The silent

chain in transfer case transfers the output power to front wheels.

The simple operation of switches on instrument panel allows to shift between "2H" and "4H" easily while

driving (for 4L: stop vehicle first). The warning lamp warns the driver when the system is defective.

Front

Rear

07-5

3240-01

Operation

▶

Description

Mode

Conditions

Driving

mode

2H

2 Wheel drive
(rear wheel)

Rear-wheel drive mode. This is used under
normal or high-speed driving conditions on
public roads or highways.

4H

4 Wheel drive
(high speed)

This is used under sandy, muddy or snow-
covered road conditions

4L

4 Wheel drive
(low speed)

This is used for maximum traction.
When cornering with low speed in 4WD
condition, there could be tire dragging, some
mechanical shocks and resistances in
vehicle’s drive train. These are normal
conditions due to internal resistance in the drive
train when the 4WD system is properly working

Mode change

2H←4H

2 Wheel drive
↔4 Wheel drive

Shifting is possible while driving at the speed of
70 km/h or less

2H,
4H↔4L

2 Wheel drive,
4 Wheel drive  (high
speed)
↔4 Wheel drive
(low speed)

For Automatic Transmission:

For Manual Transmission:

Stop the vehicle on level ground and

move the gear selector lever into the
“N” position. Turn the switch to the

desired position.

·

Stop the vehicle on level ground and

move the gear selector lever into the
“N” position. Then turn the switch to

the desired position while depressing the

clutch pedal.

·

To make the mode change easily, stop the

vehicle on level ground and turn the mode

switch to the desired position and move the

shift lever to "N"-"R"-"N" while depressing

the brake pedal.

07-6

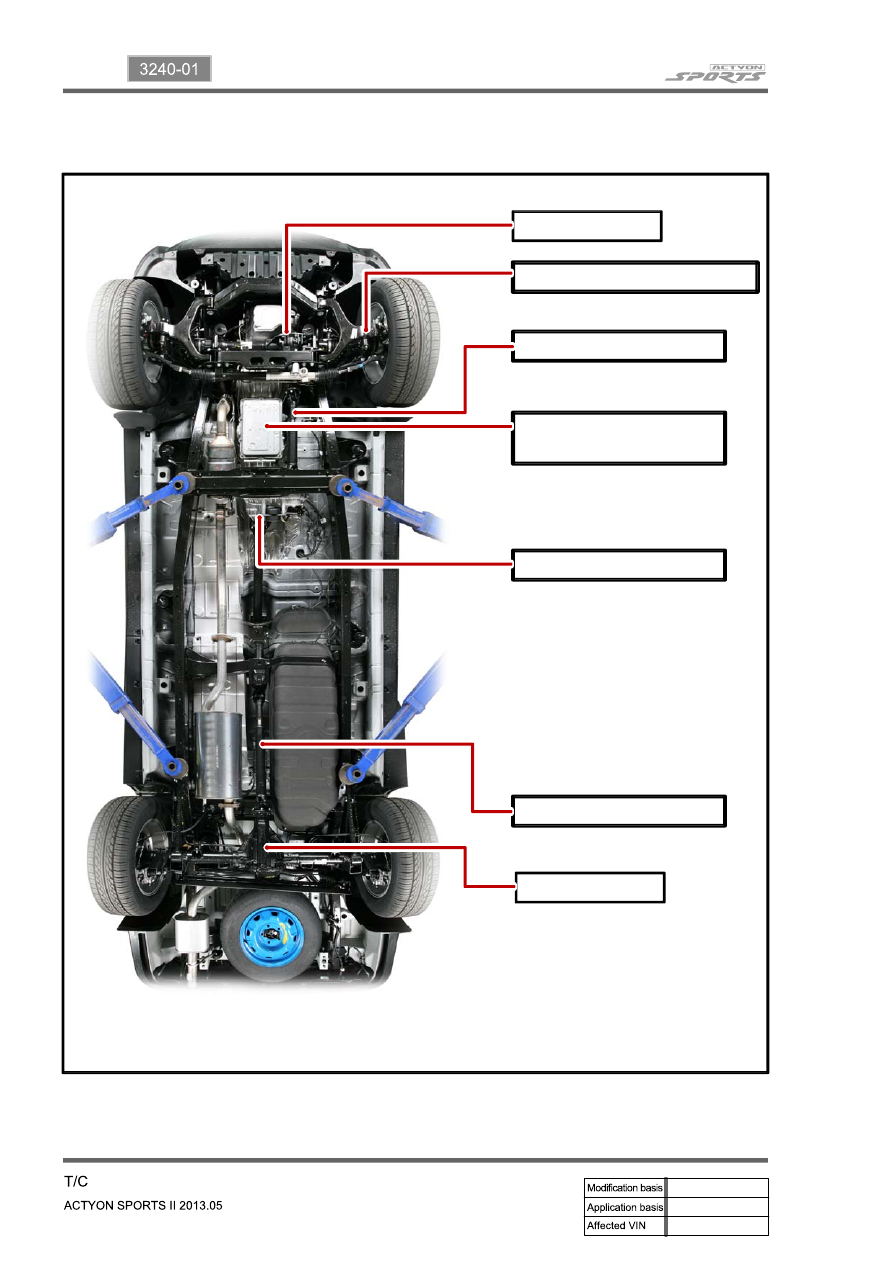

2. LAYOUT

Front axle

Front locking hub system (IWE)

Front propeller shaft

DSI 6-speed automatic

transmission

Part-time transfer case

Rear propeller shaft

Rear axle

07-7

3240-01

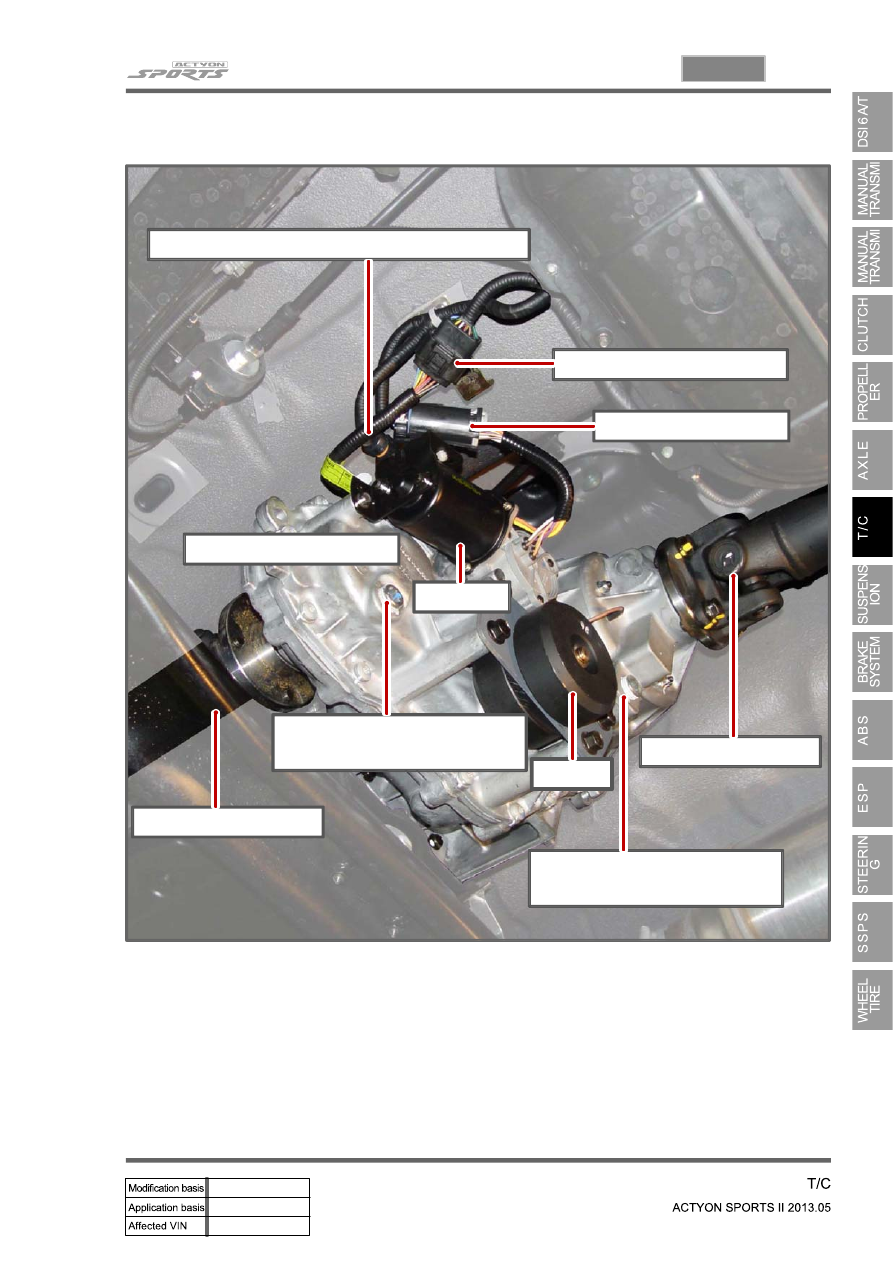

1) Components Location

Magnet clutch power supply connector (for 1 pin)

Transfer case main connector

Shift motor connector

Rear propeller shaft

Oil filler plug

(Tightening torque: 19 ~ 30 Nm)

Transfer case assembly

Front propeller shaft

T/C motor

Oil drain plug

(Tightening torque: 19 ~ 30 Nm)

Damper
