on page 239 or by a steering intervention.

■

The system is not oriented to the area around the vehicle, there is no ob-

stacle detection.

■

During manoeuvring, always observe the movement of the trailer and if

necessary cancel the manoeuvring autonomously to prevent accidents or

damage to the vehicle and the trailer.

■

During the parking process, the system automatically performs rapid

steering movements. While it is doing so, do not place your hands between

the steering wheel – risk of injury!

■

During a parking manoeuvre on loose or slippery surfaces (gravel, snow,

ice, etc.) you may stray from the calculated road. Therefore, use the system

with extreme caution in such situations.

CAUTION

■

The trailer position is evaluated by the rear camera based on the bending an-

gle of the drawbar and the steering movement carried out by the system. For

this reason, the drawbar must not be obstructed by external influences.

■

The rear camera lens must not be contaminated, otherwise the system may

be unavailable or the system function my be significantly impaired.

Note

■

We recommend performing the parking at a safe speed to about 5 km/h.

■

The parking process can be terminated at any time by pressing the button 

» Fig. 293

■

The correct system function can only be ensured if a one- or two-axle trailer

is hitched without steered axle.

Operating principle

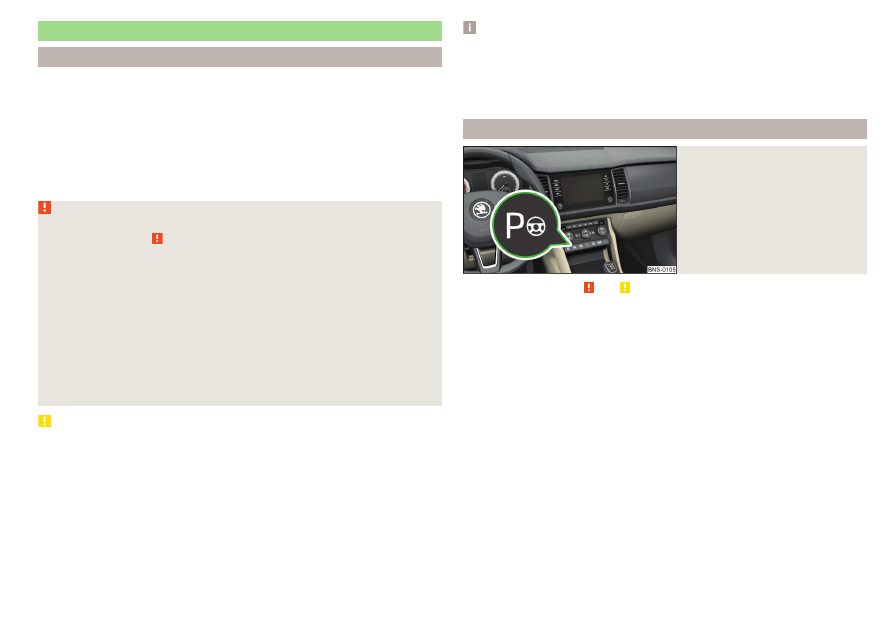

Fig. 293

System button



Read and observe and on page 239 first.

The trailer position is detected by the system based on the information of the

rear camera. Trailer is steered in the direction set by the driver using steering

wheel movements.

Conditions for the system function

The engine is running.
The system is activated.
The parking aid is activated.
The driver's door and the boot lid are fully closed.
The trailer is plugged into the trailer socket.
The trailer is not veering too much.

Determining the drawbar length

The system must know the drawbar length in order that the driver is offered

the maximum possible setting angle with respect to the target position of the

trailer.
The system needs some turning manoeuvres or cornering with a hitched trailer

in order to determine the drawbar length.





239

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The manoeuvring dimensions are shown in the display

page 240.

Activation / deactivation



Read and observe and on page 239 first.

The system is activated by engaging reverse gear and pressing 

» Fig. 293

page 239.
When the system is activated, the



symbol lights up in the button.

The system is deactivated by pressing the button  (the



symbol in the but-

ton is no longer illuminated).

Manoeuvring trailer

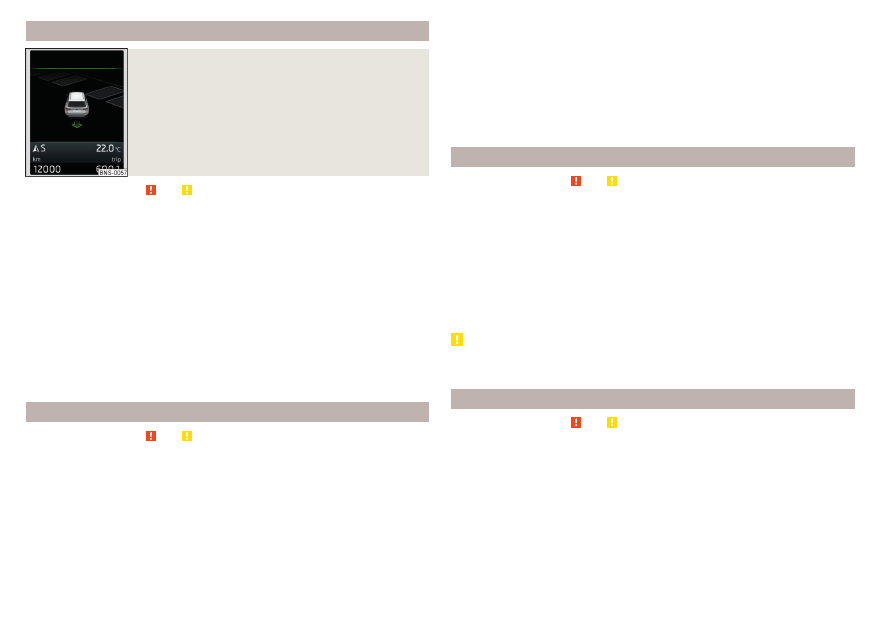

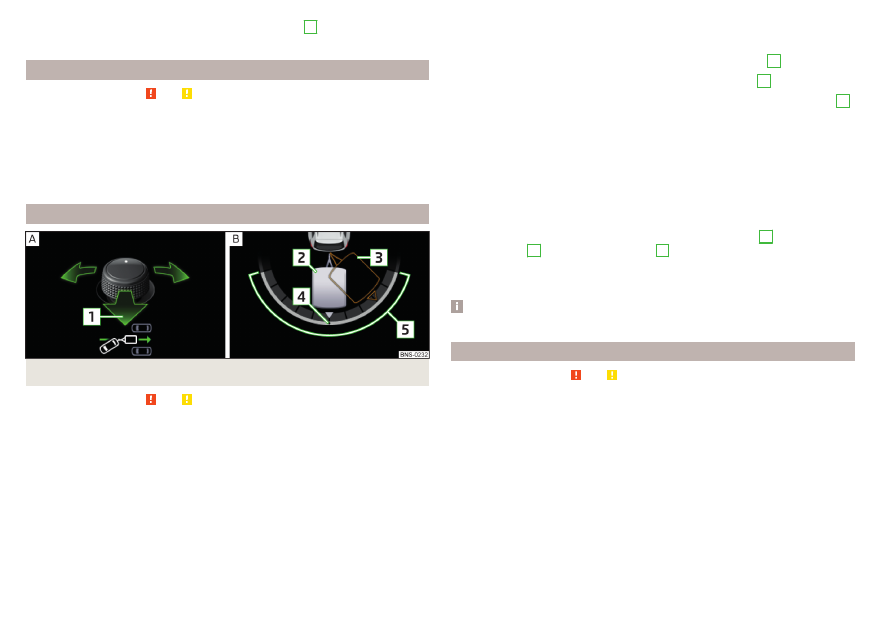

Fig. 294 Instrument cluster display: Trailer manoeuvring



Read and observe and on page 239 first.

Trailer manoeuvring

›

Select reverse gear or move the selector lever into position R.

›

Ensure that the vehicle/trailer combination is at a standstill.

›

Release the steering wheel and press the button  .

The steering is taken over by the system.
The symbol of the control button for the exterior mirror is shown in the display

- .

›

Tilt the adjusting knob for the exterior mirror

» page 84

, Exterior mirrors to

left or right according to the required direction of travel of trailer.

The display shows the silhouette of the vehicle rear with trailer in top view

- .

The actual position of the trailer is indicated by the silhouette

The target position of the trailer is indicated by the contour

›

Tilt the knob for the adjusting exterior mirror to adjust the trailer contour

to the target position.

›

Observe the direct vicinity of the vehicle and reverse carefully.

The set angle of articulation can be further corrected while reversing by tilting

the adjusting knob for the side mirrors.

›

Stop the vehicle/trailer combination in the required position.

If a forward gear is engaged or the D / S mode set, the system is deactivated.
To align the vehicle/trailer combination (trailer and vehicle in a line), tilt the ad-

justing knob for the exterior mirror in the direction of arrow

. The

trailer contour

pivots to the position

›

Carefully reverse and drive forwards until the desired position of the vehicle

combination is achieved.

Note

The outer mirror surfaces cannot be adjusted while the system is active.

Automatic brake intervention



Read and observe and on page 239 first.

The systems is deactivated and an automatic braking intervention takes place

in the following situations.

▶

If, during the manoeuvring,  the button is pressed, the driver's door is

opened or the steering wheel is gripped.

▶

If the angle between the vehicle and trailer is assessed by the system as too

large during the manoeuvring procedure.

▶

If a specific speed is assessed by the system as too high during the manoeu-

vring procedure due to the current angle between the vehicle and trailer and

the driver does not react to the warning braking intervention.

240

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cruise Control System



Introduction

The Cruise Control System (CCS) maintains a set speed without you having to

actuate the accelerator pedal. The state where the CCS maintains the speed is

referred to hereinafter as the control.

WARNING

■

Please take note of the general points relating to the use of assistance

systems

■

After pressing the clutch pedal, no interrupted control occurs! For exam-

ple, if a different gear is engaged and the clutch pedal is released, control is

continued.

Function

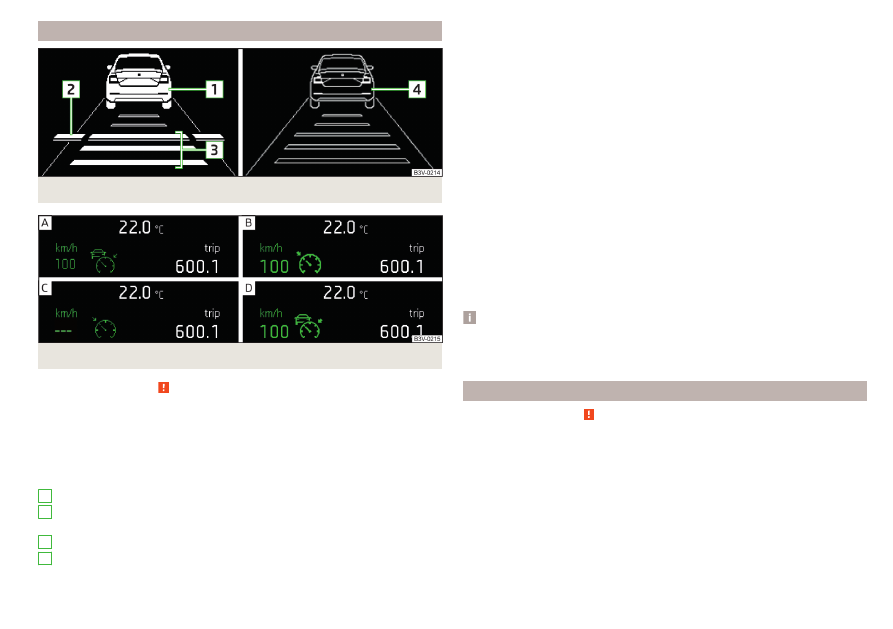

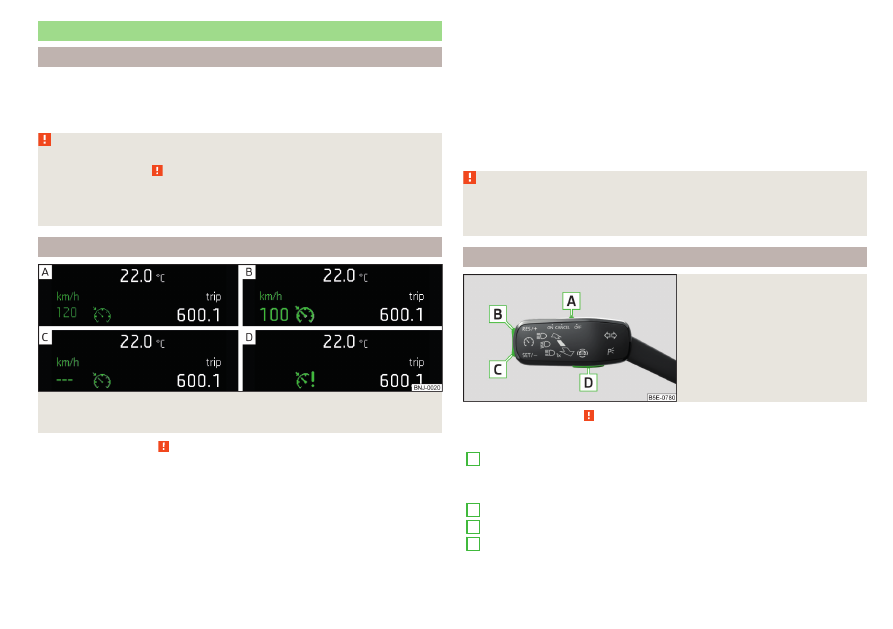

Fig. 295 Instrument cluster display: Examples of status displays the

CCS



Read and observe on page 241 first.

CCS status displays

» Fig. 295

Speed is set, control is inactive (in the colour display the digits of speed

limits is shown in grey).
Control active (in the colour display the digits of the speed limits are high-

lighted).
No speed set.
System fault - seek assistance from a specialist garage immediately.









Basic requirements for start of control

The CCS is activated.
On vehicles with a manual transmission, the second gear or higher is en-

gaged.
On vehicles with automatic transmission, the selector lever is in the D/S

position or in the Tiptronic position.
The current speed is greater than approx. 20 km/h.

This is only possible within the range which is permitted by the power output

and braking power of the engine.

WARNING

If the engine power and engine braking effect is insufficient in order to

maintain the set speed, the acceleration and brake pedals must be taken

over!

operation description

Fig. 296

Cruise control system controls



Read and observe on page 241 first.

Overview of the control elements of the CCS

» Fig. 296



Activate CCS (regulation deactivated)



Interrupt control (spring-tensioned position)



Deactivate CCS (delete set speed)



Take control again

/ Increase speed



Launch control / reduce speed

Display assistance systems menu - possibility to switch between

GRA and speed limiter

If no speed is set the current speed is adopted.





241

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

After the start of the regulation, the CCS regulates the vehicle to the current

speed and the warning light



illuminates in the instrument cluster.

The automatic control interruption occurs if any of the following conditions

are met.

▶

The brake pedal is operated.

▶

When one of the brake assist systems (e.g. ESC) intervenes.

▶

Through an airbag deployment.

WARNING

■

Always deactivate the cruise control system after use to prevent the sys-

tem being switched on unintentionally.

■

The control does not resume if the set speed for the existing traffic con-

ditions is too high.

Note

During control, speed can be increased by pressing the accelerator pedal. Re-

leasing the accelerator pedal will cause the speed to drop again to the set

speed.

Speed limiter



Introduction

The Speed Limiter limits the maximum driving speed to the set speed limit.
The speed limit can only be exceeded by depressing the accelerator pedal fully.
The condition in which the Speed Limiter prevents a potential set speed limit

excess is referred to as Regulation.

WARNING

Please take note of the general points relating to the use of assistance sys-

tems

/ increase speed limit - press (in increments

Function

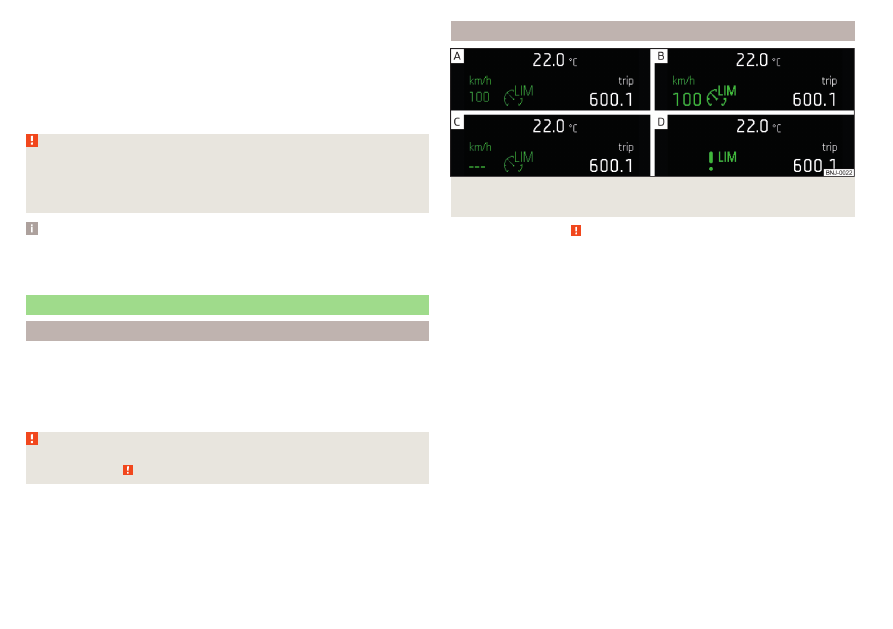

Fig. 297 Instrument cluster display: Examples of Speed Limiter status

displays



Read and observe on page 242 first.

Speed limiter status displays

» Fig. 297

Speed limit is set, control is inactive (in the colour display the digits of

speed limits is shown in grey).
Control active (in the colour display the digits of the speed limits are high-

lighted).
No speed limit set.
System fault - seek assistance from a specialist garage immediately.

Basic requirements for start of control

The Speed Limiter is activated.
The current speed is greater than approx. 30 km/h.

After starting the system, the current speed is set as the speed limit, the warn-

ing light



lights up in the instrument cluster.

Exceeding the speed limit during the regulation

If, during the control, it is necessary to exceed the speed limit (e.g. to over-

take), the accelerator pedal must be pressed fully.
When exceeding the speed limit (e.g. driving down a hill), an acoustic signal

sounds and the warning light



flashes in the instrument cluster.

The regulation is resumed once the speed has fallen below the set limit.











242

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Operation description - variant without GRA

Fig. 298

Operating elements of the

speed limiter



Read and observe on page 242 first.

Overview of the control elements of the speed limiter

» Fig. 298



Activate speed limiters



Interrupt control (spring-tensioned position)



Disable speed Limiter (delete set limit )



Take control again

of 1 km/h), hold (in increments of 10 km/h)



Start control/ reduce speed limit - press (in increments of 1 km/h),

hold (in increments of 10 km/h)

If no speed limit is set, the current speed is set as the speed limit.

Operation description - variant with GRA

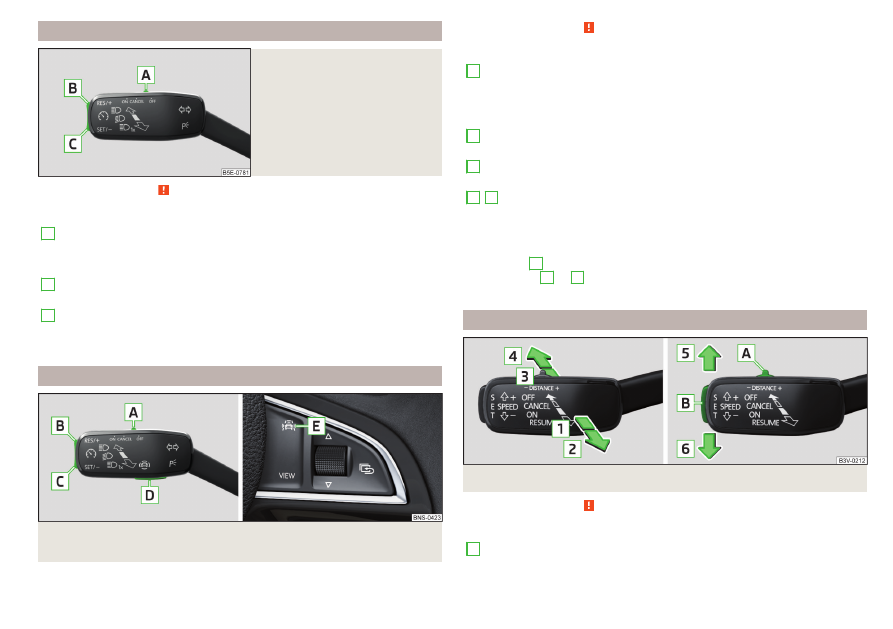

Fig. 299 Operating elements of the speed limiter: Lever / multifunction

steering wheel



Read and observe on page 242 first.

Overview of the control elements of the speed limiter

» Fig. 299



Activate CCS (required condition for the subsequent activation of

the speed limiter)



Interrupt control (spring-tensioned position)



Disable speed Limiter (delete set limit )



Take control again

/ increase speed limit - press (in increments of

1 km/h), hold (in increments of 10 km/h)



Start control/ reduce speed limit - press (in increments of 1 km/h),

hold (in increments of 10 km/h)

Display assistance systems menu - possibility to switch between

GRA and speed limiter

If no speed limit is set, the current speed is set as the speed limit.

Activate speed limiters

▶

Put switch

in position 

» Fig. 299

▶

Press button

▶

In the instrument cluster select the menu item Speed limited.

Operating Instructions - Variant with ACC

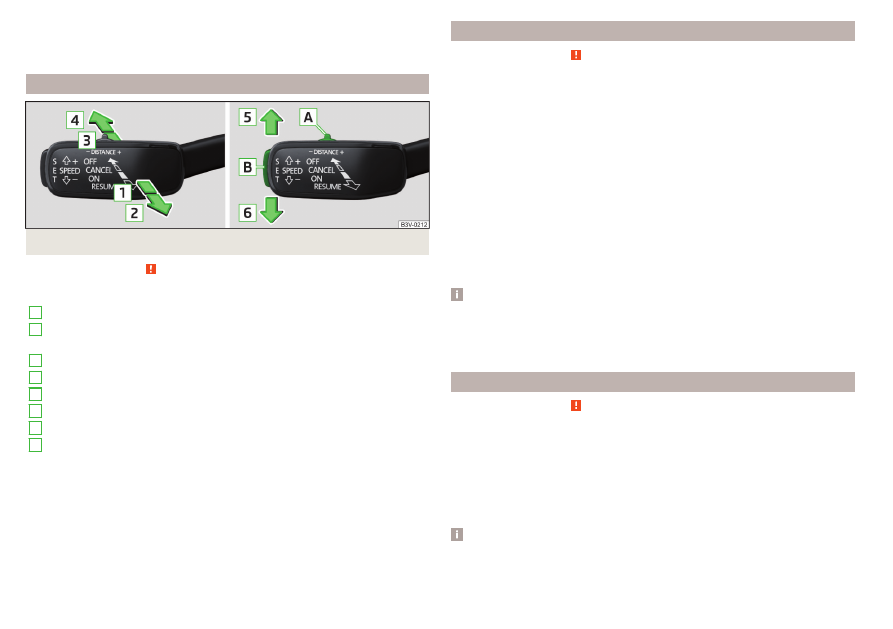

Fig. 300 Operating elements of the speed limiter



Read and observe on page 242 first.

Overview of the control elements of the speed limiter

» Fig. 300



Activate ACC (required condition for the subsequent activation

of the speed limiter)



243

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Resume control

/ increase speed limit by 1 km/h at a time

(sprung position)



Interrupt control (sprung position)



Disable speed Limiter (delete set limit )





Increase speed limit by 10 km/h at a time





Decrease speed limit by 10 km/h at a time



Start control / reduce speed limit in increments of 1 km/h

If no speed limit is set, the current speed is set as the speed limit.

Activate speed limiters

▶

Put the ACC operating lever in position 

» Fig. 300

▶

Press the button

» Fig. 299

on page 243.

▶

In the instrument cluster select the menu item Speed limited.

Adaptive Cruise Control (ACC)



Introduction

The Adaptive Cruise Control (hereinafter referred to as ACC) maintains the set

speed and at the same time the distance to the vehicle ahead without the ac-

celerator or brake pedal being pressed.
The front of the vehicle and the distance to the vehicle ahead is monitored by

a radar sensor

» page 216

The state in which the ACC maintains the speed or the proximity is described

as control from here on.

WARNING

■

Please take note of the general points relating to the use of assistance

systems

■

The driver must always be ready to take over the operation of the accel-

erator and brake pedal.

■

The ACC does not react when approaching a stationary obstacle, such as

traffic jams, vehicle breakdowns or vehicles waiting at a traffic light.

■

The ACC does not respond to crossing or oncoming objects.

■

If the ACC does not decelerate fast enough, immediately apply the vehi-

cle's foot brake.

WARNING

For safety reasons, do not use the ACC under the following conditions.

■

When driving in turning lanes, motorway exits or construction sites, to

avoid an unwanted acceleration to the stored speed.

■

When visibility is poor, (e.g. fog, heavy rain, thick snowfall).

■

When road conditions are poor (e.g. ice, slippery road, gravel, dirt road).

■

Driving in “sharp” corners or in steep gradients / on steep inclines.

■

When driving through places where metal objects (such as metal build-

ings, railway tracks, etc.) can be found.

■

When driving through very divided and enclosed spaces (such as large-

capacity garages, car ferries, tunnels and the like.).

Note

■

The ACC is designed primarily for use on motorways.

■

The ACC reduces the speed by automatically releasing the accelerator or by

means of a braking procedure as appropriate. If the brakes are used for an au-

tomatic speed reduction at any moments, then the brake light illuminates.

■

In case of failure of more than one brake light on the vehicle or on the con-

nected trailer, the ACC becomes unavailable.

■

The control automatically cancels the engagement of the brake supportive

assistance systems (e.g. ESC) or when the maximum permitted engine speed is

exceeded.

Settings in Infotainment



Read and observe on page 244 first.

›

In the infotainment system, in menu



/  tap on function surface  → Driv-

er assistance.

■

ACC (adaptive cruise control) - Setting for the ACC

■

Driving progr.: - Adjustment of vehicle acceleration when ACC is activated

(this setting is made for vehicles with driving mode selection

» page 251

)

■

Last distance selected - Last selected distance level on/off

■

Distance: - Set the distance to the vehicles ahead

244

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Operation

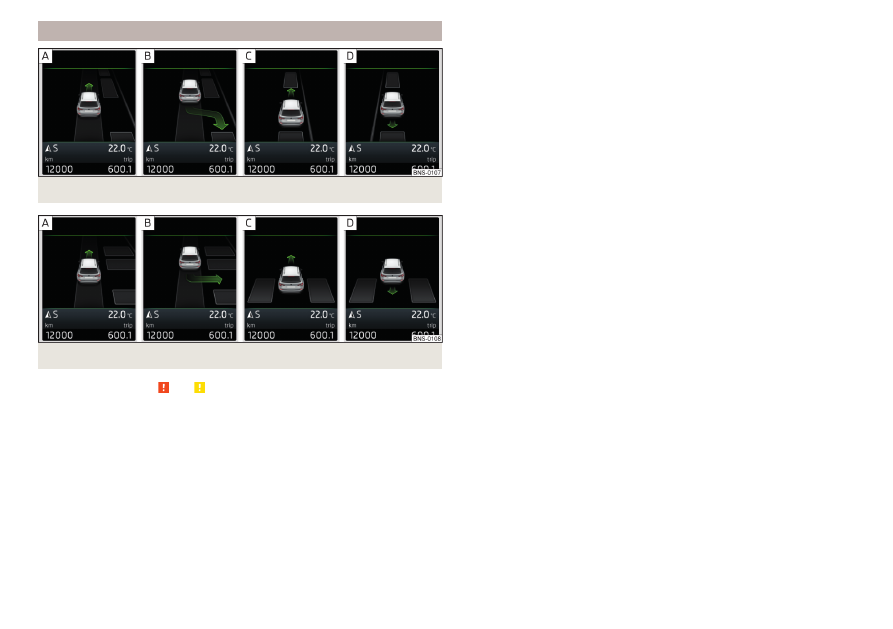

Fig. 301 Instrument cluster display: Examples of ACC displays

Fig. 302 Instrument cluster display: Examples of ACC status displays



Read and observe on page 244 first.

The ACC makes it possible to set a speed of 30-160 or 30-210 km/h (depend-

ing on equipment fitted) as well as the distance to preceding vehicles.
The ACC can detect a vehicle that is up to approx. 150 m ahead using the radar

sensor.
ACC displays

» Fig. 301

Vehicle detected (control active)
Line showing the displacement of the distance when setting

» page 247

Setting the distance
Set distance to the vehicle ahead
Vehicle detected (control deactivated)

3
4

Status conditions of the ACC

» Fig. 302

Regulation is inactive (in the colour display the digits of speed limits is

shown in grey).
Regulation active - no vehicle detected (in the colour display the digits of

the speed limits are highlighted).
Regulation deactivated - no speed stored.
Regulation active - vehicle detected (in the colour display the digits of the

speed limits are highlighted).

Note to reduce speed

If the delay of the ACC is insufficient in relation to the vehicle in front, the

warning light



lights up in the instrument cluster and the display shows a

message to engage the brake pedal.

Regulation according to the vehicle in the adjacent lane

During regulation your vehicle may be regulated according to the vehicle in the

adjacent lane.
This could occur at speeds above about 80 km/h when your vehicle is moving

faster than the vehicle in the adjacent lane on the driver's side. The display

shows the detected vehicle is in the adjacent lane.

Note

Some ACC notifications in the display of the instrument cluster may be hidden

by notifications for other functions. An ACC notification automatically appears

for a brief moment when there is a change in status of the ACC.

Automatic stopping and starting



Read and observe on page 244 first.

Vehicles with an automatic transmission can decelerate to a standstill and

start moving again using the ACC.

Decelerate to a standstill

If a vehicle ahead decelerates to a standstill, the ACC will also decelerate your

vehicle to a standstill.

Starting to drive again after a holding period

As soon as the vehicle ahead starts moving again after a holding period, your

vehicle will also move and the speed will continue to be regulated.











245

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the preceding vehicle starts moving again after a long break, then to contin-

ue the regulation press the accelerator pedal or lever to set the lever in 

position

» page 246

summary of operations

Fig. 303 Operating lever



Read and observe on page 244 first.

Overview of ACC functions operated with the lever



Activate ACC (regulation deactivated)



Start control (resume) / increase speed by 1 km/h at a time

(sprung position)



Interrupt control (sprung position)



Deactivate ACC





Increase speed by 10 km/h at a time





Decrease speed by 10 km/h at a time



 Set proximity level



Start control / reduce speed in increments of 1 km/h

If the lever is set from the position  directly into the sprung position 

the current speed is stored and the control process is started.

Start control



Read and observe on page 244 first.

Basic requirements for start of control

The ACC is activated.
On vehicles with manual transmission, the second gear or a higher gear is

selected and the current speed is greater than 30 km/h.
On vehicles with automatic transmission, the selector lever is in the D/S

position or in the Tiptronic position.

Start control

›

Press the button 

on page 246 .

›

or: Set the lever into the sprung position 

on page 246 .

The ACC takes the current driving speed and performs the control, the warn-

ing light



illuminates in the instrument cluster.

If the control is started by moving the lever to the position  and should

the speed be stored already, the ACC adopts this speed and executes control.

Note

If control is started at a speed of less than 30 km/h on vehicles with an auto-

matic transmission, the speed of 30 km/h is stored. The speed increases auto-

matically to 30 km/h or is regulated with respect to the speed of the vehicle

ahead.

Stop/resume control



Read and observe on page 244 first.

Stop control

›

Set the lever into the sprung position 

on page 246 .

›

or: Apply the brake.

Control stops, the speed remains stored.

Resume control

›

Start control

» page 246

, Start control.

Note

Control is also stopped when the clutch pedal is held down for longer than 30

s or the TCS is deactivated.



246

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Set/change the desired speed



Read and observe on page 244 first.

The desired speed can be set or changed using the control lever

, Settings in Infotainment.

page 246.
Setting/changing the speed by increments of 10 km/h at a time () - re-

quirements

The ACC is activated.

Increasing/reducing the speed by increments of 1 km/h at a time (/

- requirements

The ACC is activated.
Vehicle control takes place.

Changing the speed by adopting the current speed () - requirements

The ACC is activated.
The vehicle is moving at a speed other than that which is stored.

Note

■

If during control the speed is increased by pressing the accelerator, control is

temporarily stopped. Upon releasing the accelerator, control is automatically

resumed.

■

If during control the speed is reduced by applying the brake, control is stop-

ped. Control needs to be restarted in order to resume

» page 246

■

If the vehicle is controlled by a lower speed than the stored speed, then 

the current speed is stored by pressing the button again  and the speed is

reduced in increments of 1 km/h.

Setting the distance



Read and observe on page 244 first.

The ACC allows you to set five distance steps to the preceding vehicle.
The distance is adjustable in a range of 1 to 3.6 s.

Adjusting the distance in the Infotainment system

›

In Infotainment in the ACC the Distance: menu item and set the distance

» page 244



Adjust the distance with the lever

›

Set the switch  Adjust in the spring-tensioned position  or 

on page 246.

The display of the instrument cluster shows line

» Fig. 301

on page 245,

which indicates the proximity.

›

Using the switch  on the lever, adjust the line

to the desired dis-

tance.

Note

■

If the distance is changed in the Infotainment, the change will only come into

effect after a subsequent activation of the ACC.

■

The distance setting is stored (depending on Infotainment model) in active

user account personalisation

» page 59

Special driving situations

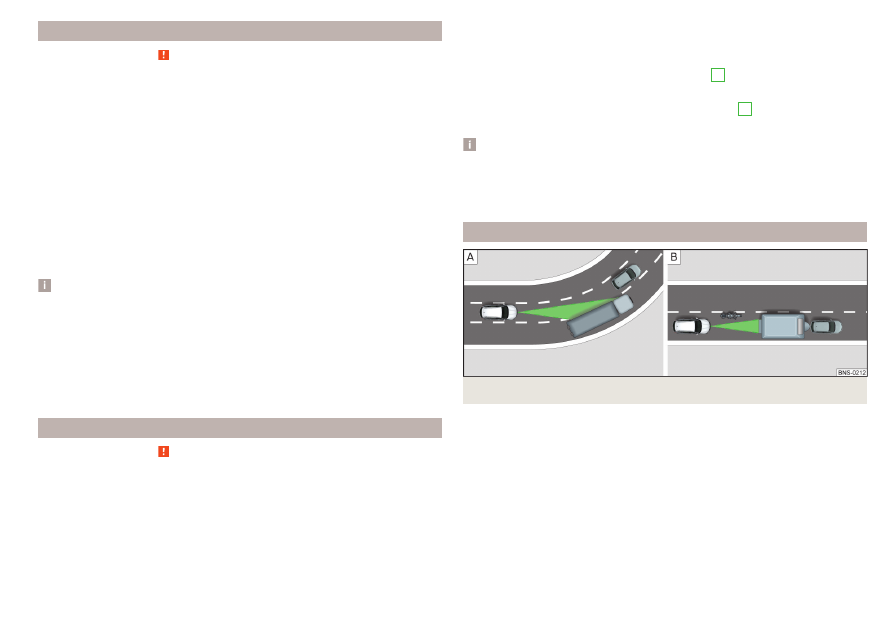

Fig. 304 Cornering / narrow vehicles or vehicles travelling side by side



247

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

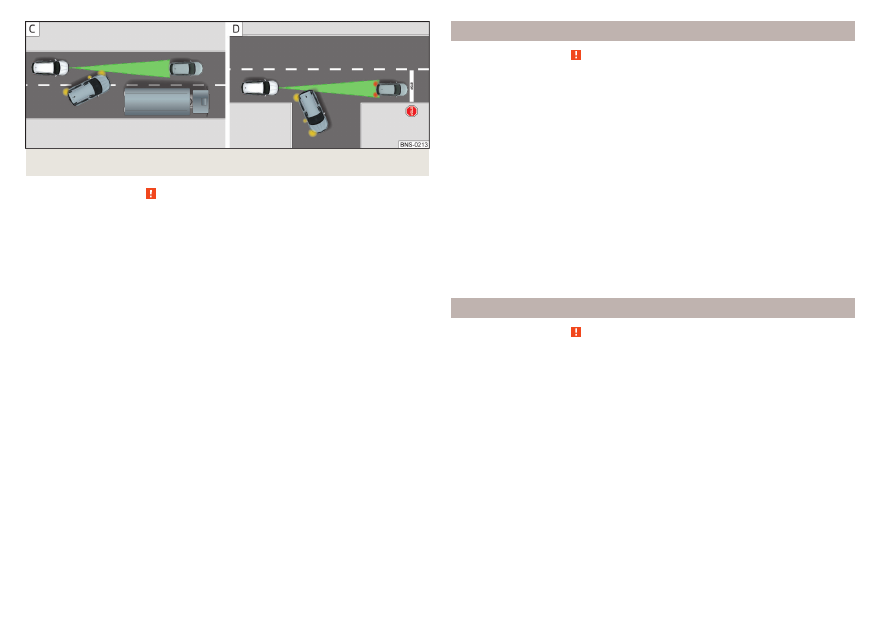

Fig. 305 Lane changes of other vehicles / stationary vehicles



Read and observe on page 244 first.

The following (and similar) situations require special attention and possibly the

intervention of the driver (braking, accelerating etc.).

When cornering

When driving into or driving out of long corners, it could be that a vehicle is

travelling in the adjacent lane and is scanned by the radar

» Fig. 304

- . The

host vehicle is then controlled according to this vehicle.

Narrow vehicles or vehicles travelling side by side

A narrow or offset vehicle driving can only be recognized by the ACC if this is

located in the scanning range of the radar

» Fig. 304

- .

Other vehicles changing lanes

Vehicles that change onto the lane with a small distance

» Fig. 305

-  may not

be detected by ACC in good time.

Stationary vehicles

The ACC does not detect stationary objects! When a vehicle detected by the

ACC turns or sheers off and there is a stationary vehicle in front of this vehicle,

» Fig. 305

- the ACC does not respond to the stationary vehicle.

Vehicles with special load or special body parts

Other vehicles with a load or with body parts protruding from the sides, back

or top of the vehicle contour may not be detected by the ACC.

Overtaking and towing



Read and observe on page 244 first.

When overtaking

When your vehicle is being controlled at a speed that is lower than the set

speed and the turn signal is operated, ACC assesses this situation as meaning

that the driver wishes to overtake. The ACC automatically accelerates the ve-

hicle, thereby reducing the proximity to a vehicle ahead.
If your vehicle changes to the overtaking lane and no vehicle is detected

ahead, ACC accelerates until the set speed is reached and then keeps it con-

stant.
Acceleration can be cancelled at any time by touch on the brake pedal or

pressing the button  on the lever

on page 246.

Towing a trailer

When towing, or if another accessory is connected to the trailer socket, ACC

control is set with a lower rate. The manner of driving should therefore be

adapted to this limitation.

Malfunctions



Read and observe on page 244 first.

If ACC is not available, the warning light  appears in the display of the instru-

ment cluster and an appropriate message is shown.

Sensor covered / dirty

If the sensor cover or the sensor is dirty or covered, a message appears on the

instrument cluster display stating there is no sensor view. Clean the sensor

cover or remove the obstacles

» Fig. 263

on page 216.

If there is no sensor view in the winter, the snow on the sensor under the cov-

er could be the reason. The ACC is functional again after the snow melts away

from the sensor.

ACC not available

If the ACC is unavailable, a message concerning the unavailability appears.

Stop the vehicle, switch off the engine and then start it again. If ACC continues

to be unavailable, seek the assistance of a specialist garage.



248

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ACC fault

With an ACC fault, an error message appears. Seek help from a specialist ga-

rage.

Front Assist



Introduction

The Front Assist (hereinafter referred to as the system) warns you of the dan-

ger of a collision with a vehicle or another obstacle in front of the vehicle, and

tries to avoid a collision or mitigate its consequences by automatically applying

the brakes where necessary.
The area in front of the vehicle is monitored by a radar sensor

» page 216

WARNING

■

Please take note of the general points relating to the use of assistance

systems

■

The system function is restricted for about 30 s after starting.

■

The system does not respond vehicles that are crossing or oncoming.

CAUTION

In case of failure of more than one brake light on the vehicle or on the electri-

cally connected trailer, the system becomes unavailable.

Settings in Infotainment



Read and observe and on page 249 first.

›

In the infotainment system, in menu



/  tap on function surface  → Driv-

er assistance.

■

Front Assist (ambient traffic monitor. sys.) - Set the assistant for distance

monitoring to the vehicles ahead

■

Active - Activate/deactivate the assistant

■

Advance warning - Activate/deactivate and set the distance level at which a

warning occurs

■

Display distance warning - Activate/deactivate distance warnings

Operation



Read and observe and on page 249 first.

The system support is provided in the following manner.

▶

Alerts you about a dangerous proximity to the vehicle ahead.

▶

Warns you of an impending collision.

▶

Assists with a brake action triggered by the driver.

▶

If the driver fails to respond to a detected danger, an automatic braking ac-

tion is performed.

The system can work only if the following basic conditions are met.

The system is activated.
TCS is activated

» page 218

The vehicle is travelling forwards at a speed of more than approx. 5 km/h.

Note

The system can be impaired or may not be available, for example when driving

in “sharp ”curves or with an ESC engagement

» page 217

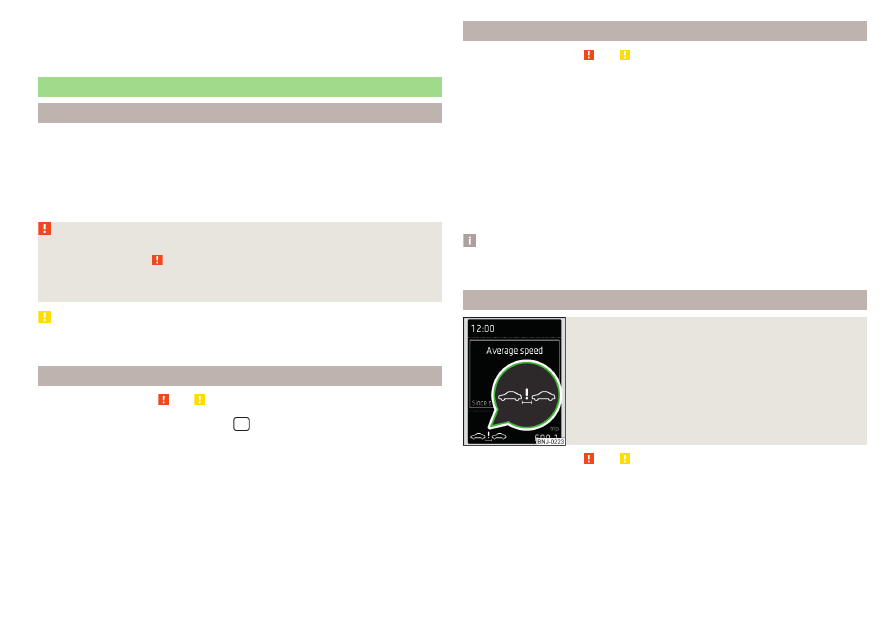

Distance warning

Fig. 306

Instrument cluster display: Distance warning



Read and observe and on page 249 first.

If a safe distance from the vehicle ahead is fallen short of, the warning light ap-

pears in the display 

» Fig. 306

Immediately increase the proximity if the current traffic situation allows

you to do so!
The proximity at which the warning is displayed depends on the current speed.
The warning may occur when driving between about 60 km/h and 210 km/h.



249

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning and automatic braking

Fig. 307

Instrument cluster display: Advance warning or

emergency braking at low speed



Read and observe and on page 249 first.

Emergency braking at low speed

If there is a risk of collision in a vehicle speed range of about 5 km/h to 50

km/h, the system triggers an automatic braking.
With automatic braking, the warning light appears in the display 

Advance warning

If the system detects a risk of collision, the warning light appears on the dis-

play 

and an audible signal is emitted.

The pre-warning display can occur in the following situations.

▶

If there is a risk of collision with a moving obstacle in a speed range of ap-

proximately 30 km/h to 210 km/h.

▶

If there is a risk of collision with a stationary obstacle in a speed range of ap-

proximately 30 km/h to 80 km/h.

With a warning the brake pedal must be pressed or the moving obstacle is

to be avoided!

Immediate warning and automatic braking - a moving obstacle

If the driver does not react to the advance warning when in danger of a colli-

sion with a moving obstacle, the system briefly applies the brake automatically

via an active brake intervention to draw attention to the potential danger of a

collision again.
If the driver does not respond to acute warning, the system begins to auto-

matically brake the vehicle.

Automatic braking - a stationary obstacle

If the driver does not respond to the advance warning of the risk of a collision

with a stationary obstacle in a speed range of approximately 30 km/h to 60

km/h, the system initiates automatic braking.

Information on automatic braking

If an automatic brake intervention is triggered by the system, the pressure in

the brake system increases and the brake pedal cannot be operated with the

normal pedal stroke.
The automatic braking interventions can be cancelled by pressing the acceler-

ator pedal or by means of a steering intervention.

Brake assist

If the driver brakes inadequate with an impending collision, the system auto-

matically increases braking force.
The braking assistance only occurs as long as the brake pedal is being firmly

pressed down.

Pedestrian recognition



Read and observe and on page 249 first.

The pedestrian recognition can help to prevent accidents with crossing pedes-

trians or to mitigate the consequences of an accident.
The system warns of an imminent collision, prepares the vehicle for an emer-

gency braking, supports during braking or performs an automatic braking.

Emergency braking at low speed

If there is a risk of collision in a vehicle speed range of about 5 km/h to

30 km/h, the system triggers an automatic braking.
With automatic braking, the warning light appears in the display 

on page 250.

Advance warning and automatic braking

If the system detects a risk of collision in a vehicle speed range of 30 km / h to

65 km / h, the warning light appears on the display 

on page 250

and an audible signal is emitted.
With a warning the brake pedal must be pressed or the moving obstacle is

to be avoided!



250

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the driver does not respond to the advance warning, the system begins to

automatically brake the vehicle.

Disable/enable



Read and observe and on page 249 first.

▶

In the instrument cluster display, in the Assist systems menu item.

▶

In Infotainment, in the Front Assist (ambient traffic monitor. sys.) menu, in

the Active

» page 249

, Settings in Infotainment menu item.

The system is automatically activated each time the ignition is switched on.
The system should only be disabled in exceptional cases

WARNING

In the following situations, Front Assist should be switched off for safety

reasons.

■

When the vehicle is being towed away.

■

When the vehicle is on a rolling test bench.

■

If an unfounded warning or a system action was taken.

■

When on a truck, or a car ferry service or similar.

Malfunctions



Read and observe and on page 249 first.

If the system is not available, an appropriate message appears in the display of

the instrument cluster.

Sensor covered / dirty

If the sensor cover or the sensor is dirty or covered, a message appears on the

instrument cluster display stating there is no sensor view. Clean the sensor

cover or remove the obstacles

» Fig. 263

on page 216.

If there is no sensor view in the winter, the snow on the sensor under the cov-

er could be the reason. The system is functional again after the snow melts

away from the sensor.

System unavailable

If the system is unavailable, a message concerning the unavailability appears.

Stop the vehicle, switch off the engine and then start it again. If the system

still is not available, seek the assistance of a specialist garage.

Select the driving mode (Driving Mode Selection)



Introduction

By selecting the driving mode, the driving behaviour can be adapted to the de-

sired mode of operation.
The following modes Eco, Comfort, Normal, Sport, Individual and Snow are available.
TheComfort is only on vehicles with the adaptive chassis (DCC) and the Snow

mode available only on vehicles with four-wheel drive.

WARNING

Please take note of the general points relating to the use of assistance sys-

tems
