1.65

ENG_UD80763_3

Sièges enfant : fixation par ceinture de sécurité (X10 - Renault)



CHILD SEATS: attachment by seat belt

(2/3)

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

Five-seater version

Type of child seat

Weight of the child

Front passenger seat

Rear side

seats

Rear centre

seat

Without



airbag



or with



airbag



deactivated

With



airbag



activated

Carrycot fitted

across the vehicle

Group 0

< 10 kg

X

X

U (2)

U (2)

Rear-facing shell



seat

Groups 0 or 0 +

< 10 kg and < 13 kg

U (1) (5)

X

U (3)

U (3) (6)

Shell seat/rear-facing

seat

Groups 0+ and 1

< 13 kg and 9 to 18 kg

U (1) (5)

X

U (3)

U (3) (6)

Forward-facing seat

Group 1

9 to 18 kg

X

U (5)

U (4)

U (4) (6)

Booster seat

Groups 2 and 3

15 to 25 kg and 22 to

36 kg

X

U (5)

U (4)

U (4)

(1) RISK OF DEATH OR SERIOUS INJURY:

 before fitting a rear-facing child seat in this seat, make sure that the front

passenger airbag has been deactivated.

 1.71.

1.66

ENG_UD80763_3

Sièges enfant : fixation par ceinture de sécurité (X10 - Renault)



CHILD SEATS: attachment by seat belt

(3/3)

X

  =  Seat not suitable for fitting child seats of this type.

=  Seat allowing a child seat with “Universal” approval to be attached by the seat belt; check that it can be fitted.

(2)

  A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest

the door.

(3)

  If necessary, position the vehicle seat as far back as possible. In order to install a rear-facing child seat, move the front seat

as far forward as possible, then move the front seat back as far as it will go, without allowing it to come into contact with the

child seat.

(4)

  In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the

child seat

 3.23. Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat

and the child’s legs.

(5)

  Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).

(6)  RISK OF DEATH OR SERIOUS INJURY

: a child seat with a floor support must never be fitted.

towing rings ...............................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

child safety.................................................

(up to the end of the DU)

child seats..................................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

transporting children ..................................

(up to the end of the DU)

1.67

ENG_UD80618_5

sieges enfant : fixation par système isofix (X10 - Renault)



CHILD SEATS: attachment using the ISOFIX system

(1/4)

The table below summarises the information already shown on the diagram on the next page, to ensure the regulations

in force are respected.

Type of child seat

Weight of

the child

Seat size



ISOFIX

Front passenger seat

Rear side

seats

(depending on

the vehicle)

Rear centre

seat

(depending

on the

vehicle)

Without



airbag



or with



airbag



deactivated

With



airbag



activated

Carrycot fitted

across the vehicle

Group 0

< 10 kg

L1, L2

[F, G]

X

X

IL (2)

X

Rear-facing shell



seat

Groups 0 or 0 +

< 10 kg and

< 13 kg

R1
[E]

IL

(1) (3)

X

IL (4)

X

Shell seat/rear-facing

seat

Groups 0+ and 1

< 13 kg and 9 to

18 kg

R3 [C]

IL

(1) (3)

X

X

X

R2 [D]

IL (4)

Forward-facing seat

Group 1

9 to 18 kg

F3, F2, F2X

[A, B, B1],

X

IUF - IL

(3)

IUF - IL

(4) (5)

X

Booster seat

Groups 2 and 3

15 to 25 kg and

22 to 36 kg

B2

X

IUF - IL

(3)

IUF - IL

(4) (5)

X

i-Size seat

X

X

X

X

1.68

ENG_UD80618_5

sieges enfant : fixation par système isofix (X10 - Renault)



X

 =  Seat not suitable for fitting child seats.

IUF/IL

 =   On equipped vehicles, seat which allows a child seat with “Universal/Semi-universal or vehicle-specific” approval to be

fitted using the ISOFIX system; check that it can be fitted.

(2)  A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest

the door.

(3)  Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).
(4)  If necessary, position the vehicle seat as far back as possible. In order to install a rear-facing child seat, move the front seat

as far forward as possible, then move the front seat back as far as it will go, without allowing it to come into contact with the

child seat.

(5)  In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the

child seat

 3.23. Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat

and the child’s legs.

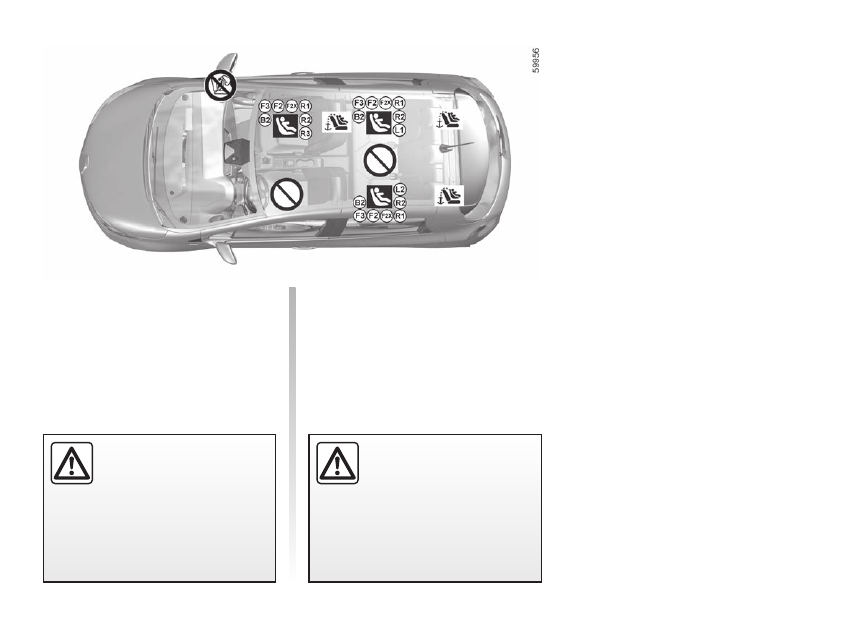

The size of the ISOFIX child seat is indicated by a letter:
–  F3, F2, F2X [A, B, B1]: for forward-facing seats in Group 1 (9 to 18 kg);
–  B2: boosters in groups 2 and 3 (15 to 25 kg and 22 to 36 kg);
–  R3, R2 [C, D]: rear-facing seats or shell seats in group 0+ (less than 13 kg) or group 1 (9 to 18 kg);
–  R1 [E]: rear-facing shell seats in group 0 (less than 10 kg) or 0+ (less than 13 kg);
–  L1, L2 [F, G]: carrycots in group 0 (less than 10 kg).

CHILD SEATS: attachment using the ISOFIX system

(2/4)

1.69

ENG_UD80618_5

sieges enfant : fixation par système isofix (X10 - Renault)



CHILD SEATS: attachment using the ISOFIX system

(3/4)

³

  Check the status of the airbag

before fitting a child seat or allowing a

passenger to use the seat.

²

Seat which does not allow a

child seat to be fitted.

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

RISK OF DEATH OR

SERIOUS INJURY:

before fitting a rear facing

child seat on the front pas-

senger seat, check that the airbag

has been deactivated

 1.71.

1.70

ENG_UD80618_5

sieges enfant : fixation par système isofix (X10 - Renault)



CHILD SEATS: fitted using the ISOFIX

system (4/4)

Fit the child seat in a rear

seat wherever possible.
To install an ISOFIX seat in

this seat, unbuckle the seat

belt by hand before engaging the

bolts.

Fitting a seat ISOFIX in

the rear-left seat means

the middle seat cannot be

used. The central seat belt

will no longer be either accessible or

useable.

Child seat fitted using the



ISOFIX



mounting

ü

 Seat which allows an ISOFIX

child seat to be fitted.

±

 The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be attached. The

anchoring points are located on the

passenger seatback for the front seat

and on the bench seatback for the rear

seats.

Check that your child is

always strapped in and that

the belt or safety harness

used is correctly set and ad-

justed

 1.41.

If necessary, adjust the seat position

accordingly.

airbag

front passenger airbag deactivation .....

(current page)

front passenger air bag deactivation .........

(current page)

child restraint/seat .....................................

(up to the end of the DU)

child safety.................................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

transporting children ..................................

(up to the end of the DU)

1.71

ENG_UD75263_2

Sécurité enfants : désactivation/activation airbag passager avant (X10 - Renault)



deactivating, activating the front passenger airbag

CHILD SAFETY: deactivating, activating the front passenger airbag

(1/3)

Deactivating the front

passenger airbag

Before installing a child seat on the

front passenger seat:
–  check that the child seat can be in-

stalled on this seat;

– it is essential

to deactivate

 the

airbagfor a rear-facing child seat.

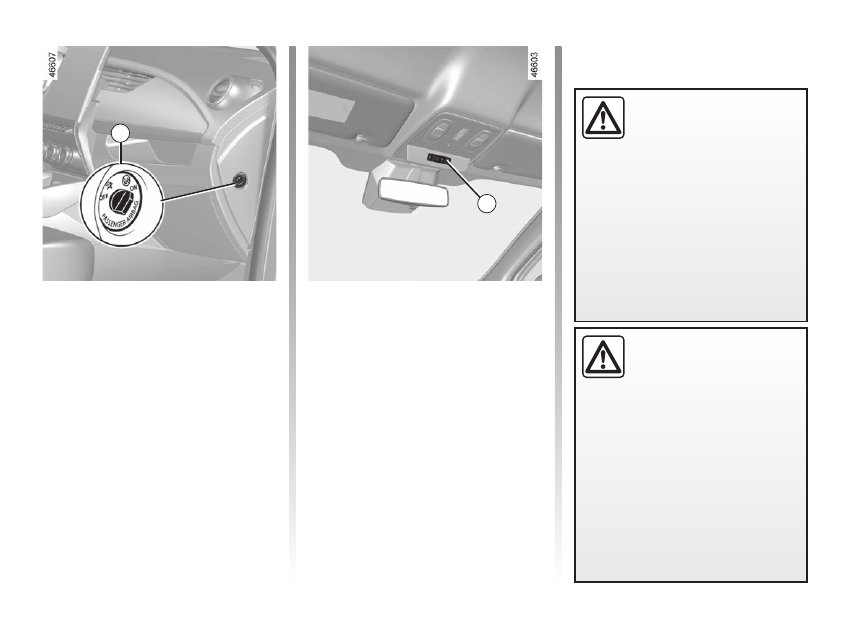

To deactivate the airbag

:

 with the

vehicle stationary and the ignition

switched off,

push and turn lock

1

 to

the

OFF

 position.

With the ignition on, you

must

 check

that the

 warning light on the

central display

2

 is correctly lit and, (de-

pending on the vehicle), that the mes-

sage “passenger airbag deactivated" is

displayed.

This light remains permanently lit to

let you know that you can fit a child

seat.

1

2

The passenger airbag must

only be activated or deacti-

vated when the

vehicle is

stationary with the igni-

tion off

.

If it is interfered with when the ve-

hicle is being driven, indicator lights

å

 and

©

 will come on.

Switch the ignition off then on again

to reset the airbag in accordance

with the lock position.

1.72

ENG_UD75263_2

Sécurité enfants : désactivation/activation airbag passager avant (X10 - Renault)



3

CHILD SAFETY: deactivating, activating the front passenger airbag

(2/3)

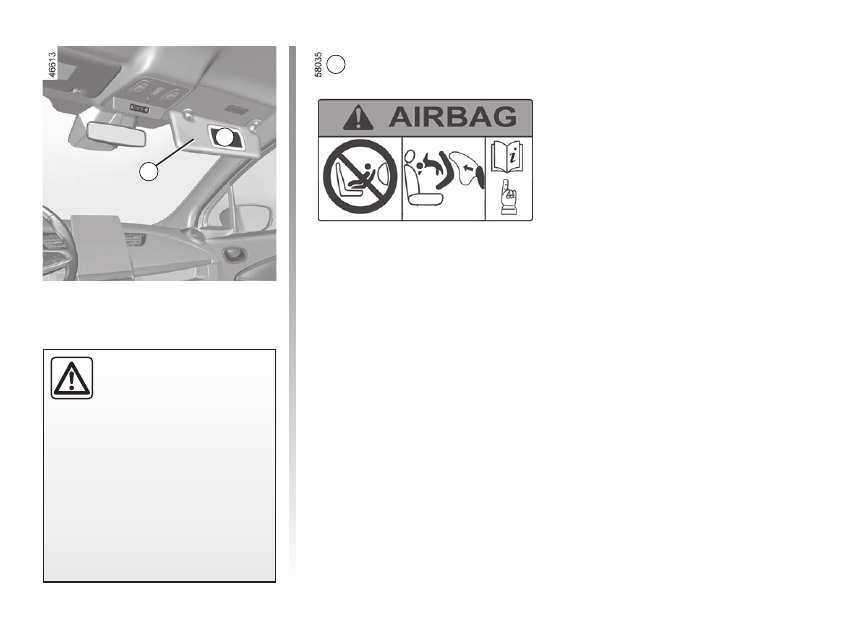

The markings on the dashboard and

labels

A

 on each side of the passen-

ger sun visor

3

 (example: label shown

above) remind you of these instruc-

tions.

A

A

DANGER

Since operation of the front

passenger airbag is not

compatible with the po-

sition of a rear-facing child seat,

NEVER

 fit a rear-facing child re-

straint system in a seat protected

by an ACTIVATED front

AIRBAG

.

This can lead to the

DEATH

 of the

CHILD

 or

SERIOUS INJURY

.

air bag

activating the front passenger air bags

(current page)

1.73

ENG_UD75263_2

Sécurité enfants : désactivation/activation airbag passager avant (X10 - Renault)



CHILD SAFETY: deactivating, activating the front passenger airbag

(3/3)

Activating the front

passenger airbag

You should reactivate the airbag as

soon as you remove the child seat from

the front passenger seat to ensure the

protection of the front passenger in the

event of an impact.

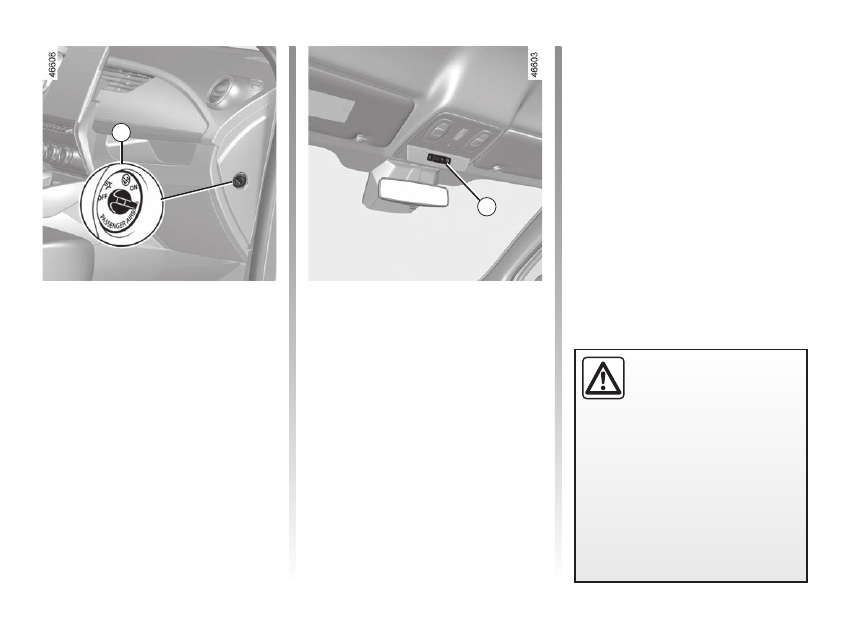

To reactivate the airbag: with the

vehicle stationary, ignition off

, push

and turn the lock

1

 to the

ON

 position.

With the ignition switched on, you

must



check that warning light

2

 on the dis-

play

 is switched off and that the

indicator light

 appears on the

display after each start-up for approxi-

mately one minute. The front passen-

ger airbag is activated.

Operating faults

It is forbidden to fit a rear-facing child

seat to the front passenger seat if the

airbag activation/deactivation system is

faulty.
Allowing any other passenger to sit in

that seat is not recommended.
Contact your approved dealer as soon

as possible.

The passenger airbag must

only be activated or deacti-

vated when the

vehicle is

stationary with the igni-

tion off

.

If it is interfered with when the ve-

hicle is being driven, indicator lights

å

 and

©

 will come on.

Switch the ignition off then on again

to reset the airbag in accordance

with the lock position.

1

2

DANGER

Since operation of the front

passenger airbag is not

compatible with the po-

sition of a rear-facing child seat,

NEVER

 fit a rear-facing child re-

straint system in a seat protected

by an ACTIVATED front

AIRBAG

.

This can lead to the

DEATH

 of the

CHILD

 or

SERIOUS INJURY

.

display .......................................................

(up to the end of the DU)

controls ......................................................

(up to the end of the DU)

dashboard..................................................

(up to the end of the DU)

driver’s position .........................................

(up to the end of the DU)

1.74

ENG_UD71207_4

Poste de conduite à gauche (X10 - Renault)



Driving position

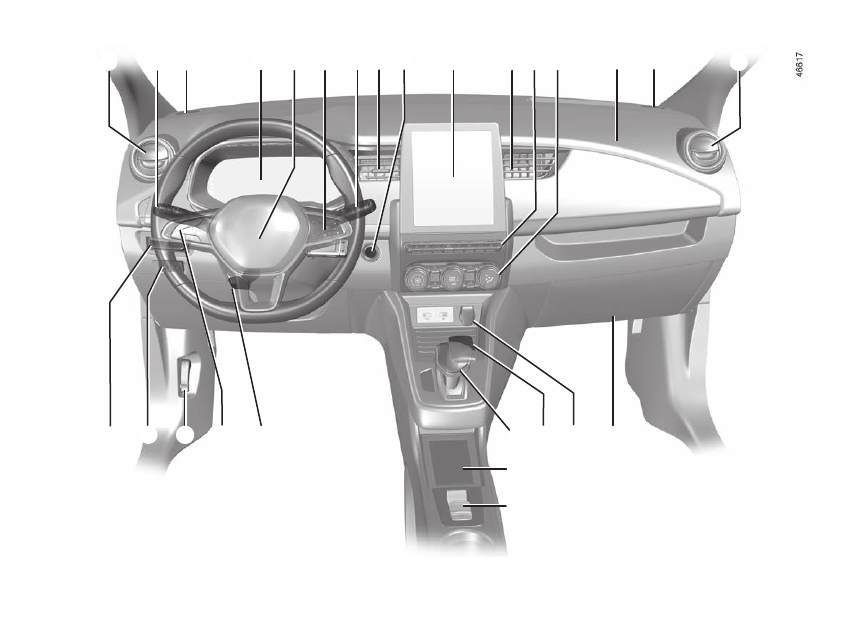

DRIVING POSITION: LEFT-HAND DRIVE

(1/2)

1

2

4

5

8

13

1

15

16

22 21

7

10

12

11

8

14

20

24 23

9

3

3

17

18

19

6

1.75

ENG_UD71207_4

Poste de conduite à gauche (X10 - Renault)



DRIVING POSITION: LEFT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

Side air vent.

2

 Stalk:

–  direction indicator lights;

–  exterior lights;

–  front fog lights;

–  rear fog lights.

3

 Speakers.

4

  Instrument panel.

5

  Steering wheel, driver’s airbag loca-

tion, horn.

6

  Controls for:

–   on-board computer information

read-out and vehicle settings

customisation menu,

–   telephone remote control;

–   voice recognition remote con-

trol.

7

  Windscreen wiper/washer stalk.

8

  Centre air vents.

9

  Engine start/stop button.

10

Radio or multimedia screen.

11

  Controls for:

–   front seat heating;

–   activation/deactivation,  depend-

ing on the vehicle, of the ECO

mode;

–  hazard warning lights;

–   electric door locking;

–   activation/deactivation of Park

Assist or parking distance con-

trol, depending on the vehicle.

12

   Air-conditioning  control.

13

  Passenger airbag location.

14

  Glove compartment

15

  Accessories and multimedia sock-

ets.

16

  Hands-free card holder

17

  Selector lever.

18

  Charging zone/telephone storage

19

  Controls for:

–   activating/deactivating the elec-

tronic parking brake;

–  activation/deactivation of the

function autohold.

20

  Control for adjusting steering wheel

height and reach.

21

  Cruise control/speed limiter controls

and main switch.

22

   Bonnet release control.

23

  Controls for:

–   heated steering wheel;

–   selecting the pedestrian horn

sound.

24

  Controls for:

–   activation/deactivation of Lane

Keeping Assist/Lane Departure

Warning;

–   headlight beam height remote

adjustment;

–   lighting dimmer for control in-

struments;

–   unlock the charging flap and the

charging socket.

controls ......................................................

(up to the end of the DU)

dashboard..................................................

(up to the end of the DU)

driver’s position .........................................

(up to the end of the DU)

1.76

ENG_UD71209_4

Poste de conduite direction à droite (X10 - Renault)



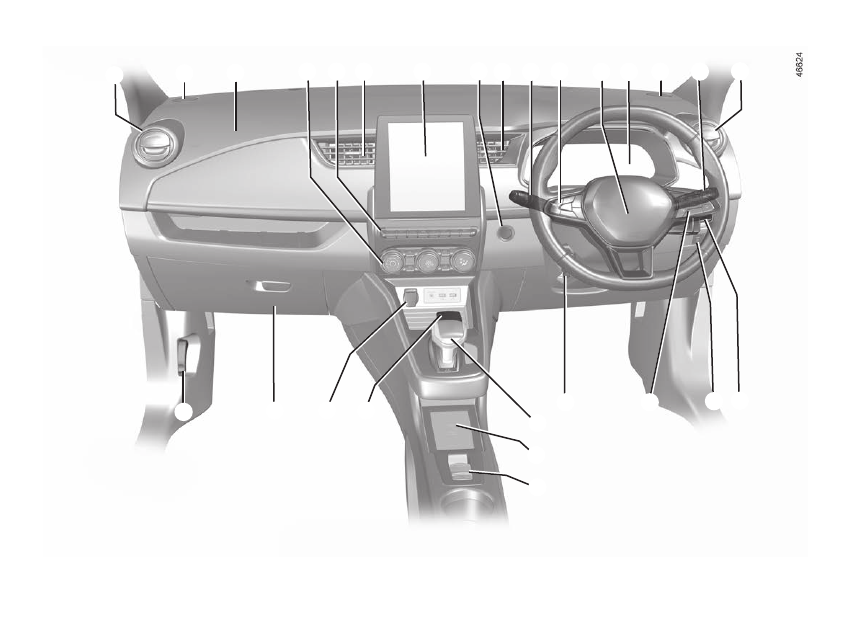

DRIVING POSITION: RIGHT-HAND DRIVE

(1/2)

4

12

13

3

22

20

19

23

10

11

6

9

24

21

1

1

5

7

6

8

14

15

16

17

18

2

2

1.77

ENG_UD71209_4

Poste de conduite direction à droite (X10 - Renault)



DRIVING POSITION: RIGHT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

Side air vent.

2

 Speakers.

3

  Passenger airbag location.

4

  Air-conditioning control.

5

  Controls for:

–   front seat heating;

–   activation/deactivation,  depend-

ing on the vehicle, of the ECO

mode;

–  hazard warning lights;

–   electric door locking;

–   activation/deactivation of Park

Assist or parking distance con-

trol, depending on the vehicle.

6

  Centre air vents.

7

  Radio or multimedia screen.

8

  Engine start/stop button.

9

 Stalk:

–  direction indicator lights;

–  exterior lights;

–  front fog lights;

–  rear fog lights.

10

  Cruise control/speed limiter controls

and main switch.

11

  Steering wheel, driver’s airbag loca-

tion, horn.

12

  Instrument panel.

13

  Windscreen wiper/washer stalk.

14

  Controls for:

–   activation/deactivation of Lane

Keeping Assist/Lane Departure

Warning;

–   headlight beam height remote

adjustment;

–   lighting dimmer for control in-

struments;

–   unlock the charging flap and the

charging socket.

15

  Controls for:

–   heated steering wheel;

–   selecting the pedestrian horn

sound.

16

  Controls for:

–   on-board computer information

read-out and vehicle settings

customisation menu,

–   telephone remote control;

–   voice recognition remote con-

trol.

17

  Control for adjusting steering wheel

height and reach.

18

  Selector lever.

19

  Charging zone/telephone storage

20

  Controls for:

–   activating/deactivating the elec-

tronic parking brake;

–  activation/deactivation of the

function autohold.

21

  Hands-free card holder

22

  Accessories and multimedia sock-

ets.

23

  Glove compartment

24

   Bonnet release control.

display .......................................................

(up to the end of the DU)

control instruments ....................................

(up to the end of the DU)

lights:

fog lights ..............................................

(current page)

lights:

dipped beam headlights .......................

(current page)

lights:

direction indicators ...............................

(current page)

lights:

main beam headlights ..........................

(current page)

indicators:

instrument panel ..................................

(up to the end of the DU)

driver’s position .........................................

(up to the end of the DU)

instrument panel ........................................

(up to the end of the DU)

warning lights.............................................

(up to the end of the DU)

1.78

ENG_UD80800_6

Témoins lumineux (X10 - Renault)



Warning lights

WARNING LIGHTS

(1/4)

Warning light

©

 means you

should drive

very carefully to an

authorised dealer as soon as

possible

. If you fail to follow this

recommendation, you risk damag-

ing your vehicle.

A

å

Indicator lightAirbag

This comes on when the igni-

tion is switched on and goes out after a

few seconds.
If it does not light up when the ignition

is switched on, or if it lights up when the

engine is running, it indicates a fault in

the system.
Contact your approved Dealer as soon

as possible.

Handbrake or assisted park-

ing brake warning light



 2.8

“AUTOHOLD” system warn-

ing light



 2.62

In some cases, the appearance of a

warning light is accompanied by a mes-

sage.

Side light tell-tale light

k

Dipped beam headlight tell-

tale light

á

Main beam headlight tell-tale

light

Automatic main beam head-

light indicator light



 1.101

Rear fog light tell-tale light

c

Left-hand direction indicator

tell-tale light

b

Right-hand direction indica-

tor tell-tale light

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

The

®

 warning light

requires you to stop imme-

diately, for your own safety,

as soon as traffic conditions

allow. Switch off the engine and

do not restart it. Call an approved

Dealer.

1

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

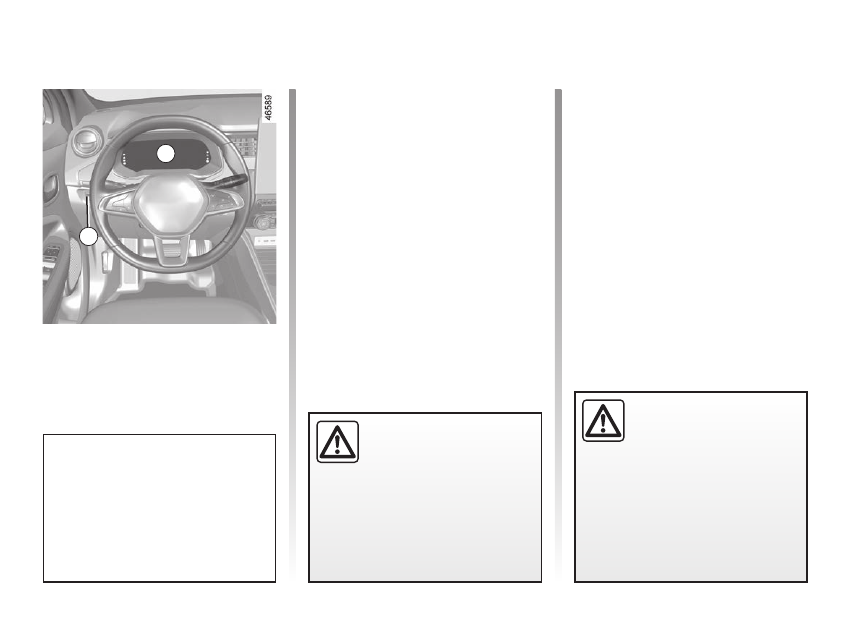

Instrument panel



A

: this comes on

when the driver's door is opened. Press

or lift the

1

 switch as many times as re-

quired to adjust the intensity.

battery........................................................

(current page)

seat belts ...................................................

(current page)

speed limiter ..............................................

(current page)

cruise control .............................................

(current page)

1.79

ENG_UD80800_6

Témoins lumineux (X10 - Renault)



WARNING LIGHTS

(2/4)

®

Urgent stop warning light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It comes on with

other warning lights and/or messages,

and is accompanied by a beep.
It requires you to stop immediately, for

your own safety, as soon as traffic con-

ditions allow. Switch off the engine and

do not restart it.
Contact an approved Dealer.

©

Warning light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It can light up in

conjunction with other warning lights

and/or messages on the instrument

panel.
It means you should

drive very care-

fully

 to an approved dealer as soon as

possible. If you fail to follow this recom-

mendation, you risk damaging your ve-

hicle.

Warning light

If it appears in red during driv-

ing and is accompanied by the

®



indicator light, you must, for your safety,

stop as soon as traffic conditions allow.

Switch off the engine and do not restart

it.
Call an approved Dealer.
If it appears in yellow during driving and

is accompanied by the

©

 warn-

ing light, visit an approved dealer as

soon as possible.

Meanwhile, drive

with care

. If you fail to follow this rec-

ommendation, you risk damaging your

vehicle.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

ß

Front seat belt reminder

warning light

It lights up on the central display when

the engine is started then, if the driver's

seat belt is not fastened when the vehi-

cle reaches a speed of approximately

12 mph (20 km/h), the light flashes and

a beep sounds for about 120 seconds

 1.41.

Door status warning light



 1.31.

1.80

ENG_UD80800_6

Témoins lumineux (X10 - Renault)



Electric motor fault warning

light

When it comes on, this indicates a fault

with the electrotechnical system linked

to the electric motor. Contact your ap-

proved Dealer straight away.

Traction battery gauge indi-

cator light

This lights up in yellow when the trac-

tion battery charge level has reached

the reserve threshold

 1.82.

Traction battery fault warn-

ing light

If it appears, accompanied by the

©

 warning light, this indicates a

fault related to the operation of the trac-

tion battery. Contact your approved

Dealer straight away.

WARNING LIGHTS

(3/4)

Electrotechnical system



warning light

It appears when the temperature of the

electrical assembly is too high. Stop the

vehicle without switching off the igni-

tion. The temperature should lower and

the warning light should disappear. If

this is not the case, please consult an

Authorised Dealer.

The warning light may be accompa-

nied by a reduction in vehicle perfor-

mance.

Electrotechnical system



fault warning light

If it comes on, this indicates an electro-

technical fault related to the electrical

assembly (traction battery and electric

motor). Contact your approved Dealer

straight away.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Ú

Secondary 12 V battery

charge warning light

If it comes on, accompanied by the

®

 warning light and a beep,

this means that the electrical cir-

cuit is overcharged or discharged

 1.8.

Limited performance warn-

ing light

This appears when the traction battery

temporarily does not deliver its nominal

power. During this period, vehicle per-

formance is reduced.
Opt for a smoother driving style until the

warning light disappears.

ECO



function indicator light

This lights up when ECO



mode

is activated

 2.13

 2.16.

Charging cord plugged in

warning light

This comes on when the charging lead

is plugged into the vehicle

 1.8.















Content      ..     3      4      5      6     ..
