equipment

fitting ....................................................

(up to the end of the DU)

towing a caravan .......................................

(up to the end of the DU)

towing

towing equipment .................................

(up to the end of the DU)

3.41

ENG_UD77262_4

Transport d’objets : attelage (HJB - Renault)



Transporting objects: towbar

Permissible nose weight, maxi- -

mum permissible towing weight

braked and unbraked:



 6.9.

Choice and fitting of towing

equipment

Maximum weight of towing equip-

ment:
–  10 kg on a vehicle with towing

pre-equipment;

–  28 kg on a vehicle without towing

pre-equipment.

It is not permitted to fit a mechanical

towing device (ball, hook, etc.) that

is removable without tools or retract-

able if it cannot be easily removed

or repositioned when not in use.
For fitting and conditions of use,

refer to the equipment’s fitting in-

structions.
Please keep these instructions with

the rest of the vehicle documenta-

tion.

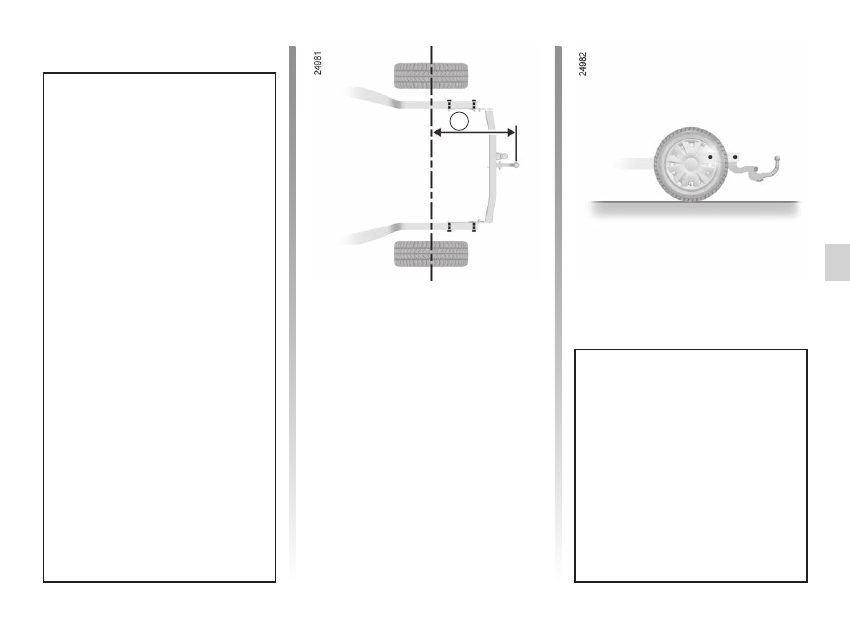

TRANSPORTING OBJECTS towbar

A

Maximum dimension

A

: 837 mm.

Any towing device must not ob-

struct any lighting component or

the number plate when not in use.

Mechanical towing devices (ball,

hook, etc.) which can be removed

without tools or which are retract-

able must be removed or reposi-

tioned when they are not in use.
In all cases, you must comply with

the regulations of the particular

country you are in.

roof bars ....................................................

(up to the end of the DU)

roof rack

roof bars ...............................................

(up to the end of the DU)

3.42

ENG_UD56653_1

Barres de toit / Becquet (HJB - Renault)



Roof bars, spoiler

ROOF BARS, SPOILER (1/2)

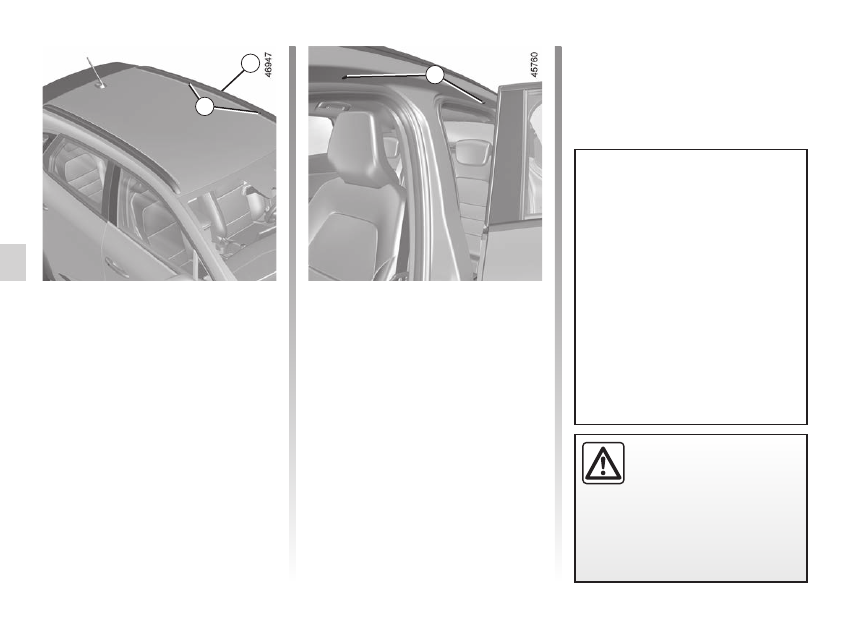

Accessing the mounting

points

Vehicles fitted with longitudinal roof

bars

The attachment inserts

2

 are located on

the longitudinal roof bars

1

.

Vehicles not fitted with longitudinal

roof bars

Open the doors to access the fixing

points

3

.

1

If original roof bars, ap-

proved by our Technical

Department, are supplied

with screws, only use these

screws for attaching the roof bars to

the vehicle.

3

2

For information on the range of

equipment adapted to your vehi-

cle, we advise you to consult an ap-

proved Dealer.
Refer to the fitting instructions for in-

formation on how to fit roof bars and

conditions of use.
Please keep these instructions with

the rest of the vehicle documenta-

tion.

Maximum permissible load on

roof rack



 6.9.

spoiler ........................................................

(current page)

3.43

ENG_UD56653_1

Barres de toit / Becquet (HJB - Renault)



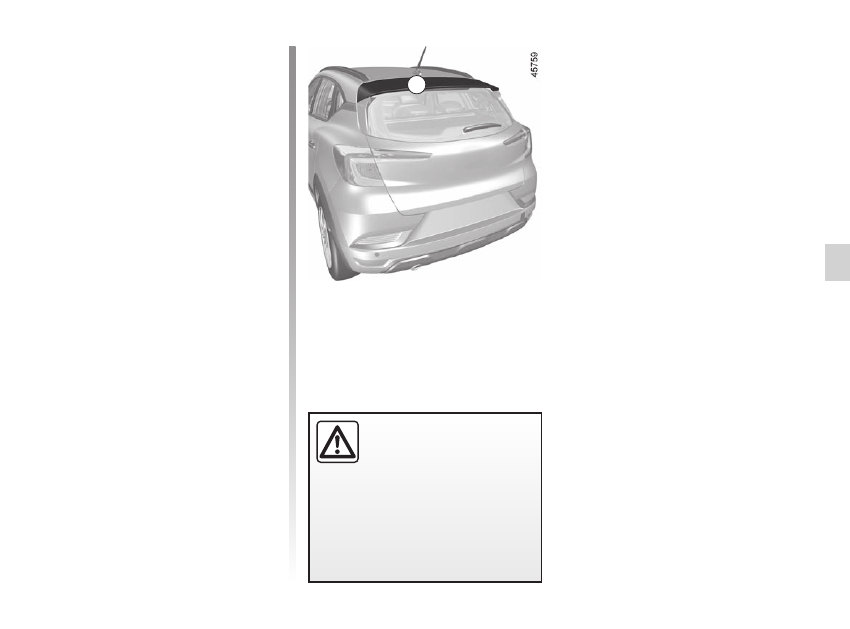

Spoiler A

It is prohibited to attach any

carrying equipment (bike

rack, luggage box etc.)



resting against the spoiler

or tailgate. To install a carrying

device on your vehicle, contact an

Approved Dealer.

A

Precautions during use

Handling the tailgate

Before handling the tailgate, check the

objects and/or accessories (bike rack,

roof box, etc.) fitted to the roof bars:

these must be correctly positioned and

secured, so as not to hinder the opera-

tion of the tailgate.

ROOF BARS, SPOILER (2/2)

3.44

ENG_UD56693_1

Filler NU (HJB - Renault)



4.1

ENG_UD82512_11

Sommaire 4 (HJB - Renault)



Section 4: Maintenance

Bonnet  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.2

Engine oil level: general information  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.4

Engine oil level: topping up, filling  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.5

Oil change  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.6

Levels   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.8

engine coolant  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8

brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9

windscreen washer reservoir  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10

Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.10

Tyre pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.11

Battery  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.13

Bodywork maintenance  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.16

Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.19

bonnet........................................................

(up to the end of the DU)

4.2

ENG_UD64499_2

Capot moteur (HJB - Renault)



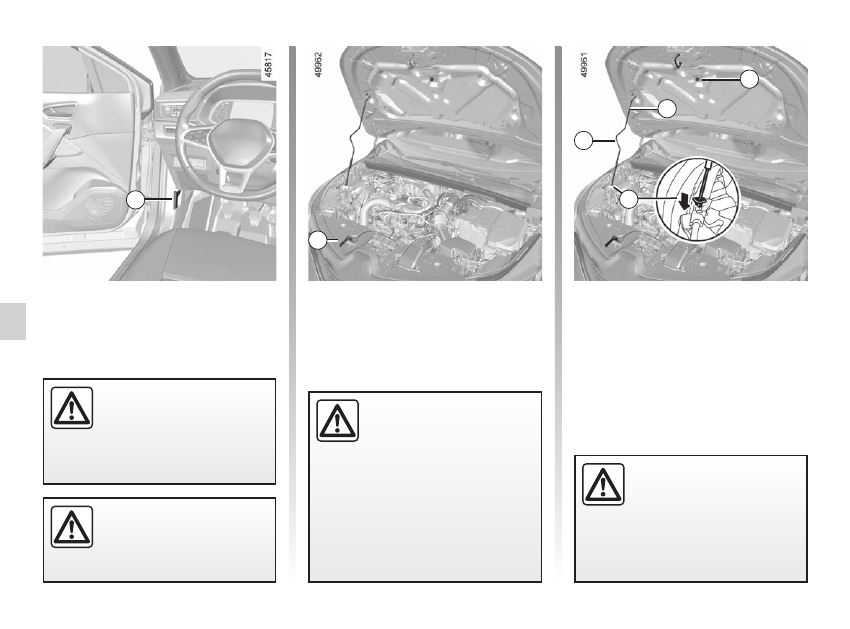

Unlocking the bonnet catch

To unlock, push tab

2

 at the same time

as opening the bonnet.

Bonnet

To open the bonnet, open a door and

pull the

1

 handle, located on the left-

hand side of the dashboard.

BONNET

(1/2)

1

Please note when work-

ing close to the engine that

it may be hot. The engine

cooling fan may also start

at any moment. The

 label

in the engine compartment reminds

you of this.

Risk of injury.

2

Do not press down on the

bonnet: there is a risk that

the bonnet may accidentally

close.

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in the park position.

Risk of injury.

Before carrying out any

action in the engine com-

partment, you must switch

off the ignition.

 2.4.

5

6

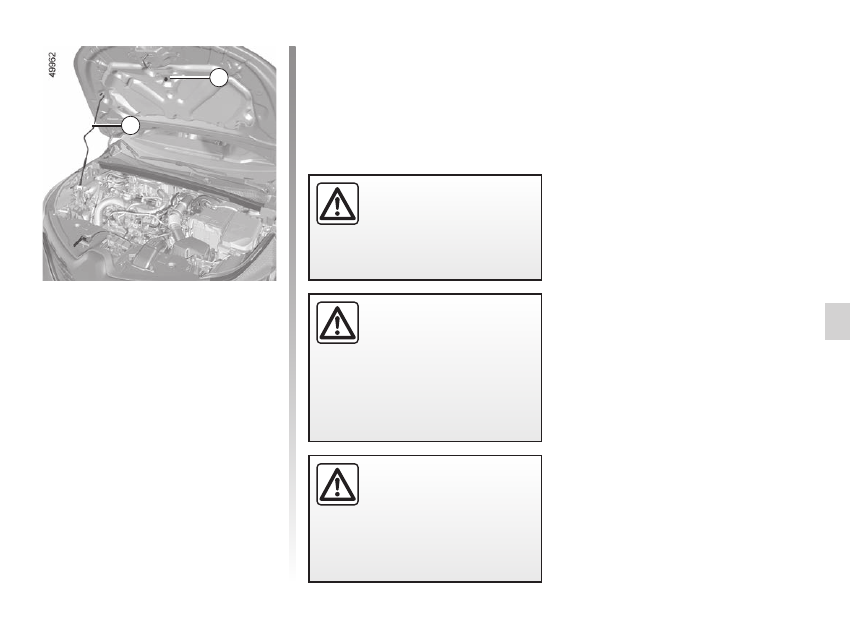

Opening the bonnet

Lift the bonnet and release stay

5

 from

its holder

6

 using the handle

4

. For

your own safety, it is

very important



to fix the stay into the retainer

3

 in the

bonnet.

3

4

4.3

ENG_UD64499_2

Capot moteur (HJB - Renault)



Closing the bonnet

Before closing the bonnet, make sure

that nothing has been left in the engine

compartment.
To close the bonnet, replace the stay

5



in its holder

6

. Hold the middle of the

bonnet and guide it down to one foot

(30 cm) above the closed position, then

release. It will latch automatically under

its own weight.

After any procedure in the

engine compartment, make

sure that you do not forget

anything (cloth, tools, etc.).

These may damage the engine or

cause a fire.

Ensure that the bonnet is

properly locked.

Check that nothing is pre-

venting the catch from lock-

ing (gravel, cloth, etc.).

In the event of even a slight

impact involving the radi-

ator grille or bonnet, have

the bonnet lock checked by

an approved dealer as soon as pos-

sible.

BONNET

(2/2)

5

6

maintenance:

mechanical ...........................................

(up to the end of the DU)

engine oil ...................................................

(up to the end of the DU)

dipstick.......................................................

(up to the end of the DU)

engine oil level ...........................................

(up to the end of the DU)

4.4

ENG_UD78064_4

Niveau huile moteur : généralités (HJB - Renault)



Engine oil level: general information

ENGINE OIL LEVEL: general information

A

B

A

B

C

Before carrying out any

action in the engine com-

partment, you must switch

off the ignition

 2.4 or

 2.6.

A

B

It is normal for an engine to use oil for

lubrication and cooling of moving parts

and it is normal to top up the level be-

tween oil changes.
However, contact your approved



Dealer if more than 0.5 litres is being

consumed every 600 miles (1 000 km)

after the running in period.

Oil change frequency: check the oil

level from time to time and certainly

before any long journey to avoid the

risk of damaging your engine.

Reading the oil level

The oil level should be read with the ve-

hicle on level ground, after the engine

has been switched off for some time.

The dipstick must be used to read

the exact oil level and make sure that

the maximum level has not been ex-

ceeded (risk of engine damage).

Depending on the vehicle, the instru-

ment panel display only alerts the driver

when the oil level is at its minimum.

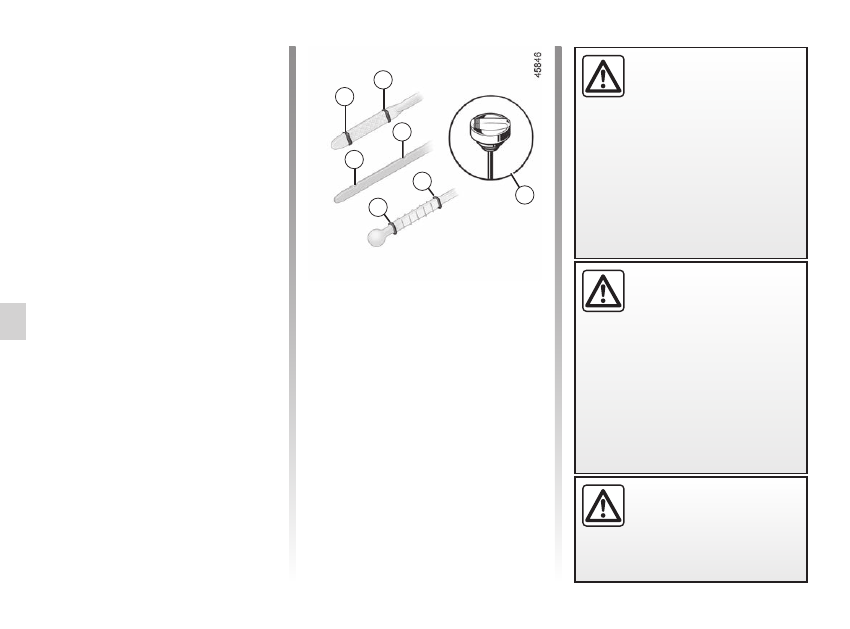

–  Remove the dipstick and wipe with a

clean, lint-free cloth;

–  push the dipstick in as far as it will go

(for vehicles equipped with a captype

dipstick

C

, screw the cap in as far as

it will go);

–  take out the dipstick again;
– read the level: it should never fall

below the “mini” mark

A

 and never

exceed the “maxi”

B

 mark.

Once the operation has been com-

pleted, ensure that the dipstick is

pushed in as far as it will go or that

the “cap-type dipstick” is completely

screwed in.

Exceeding the maximum

engine oil level

Under no circumstances

should the maximum fill-

ing level

B

 be exceeded: this could

damage the engine and anti-pollu-

tion system. If the level exceeds the

maximum level,

do not start your

vehicle

 and contact an authorised

dealer.

Adding engine oil

Use a funnel or protect the

filling neck area to avoid

engine oil escaping onto a

hot part of the engine compartment

or a sensitive part (e.g. electrical

components).

Fire hazard.

engine oil capacity .....................................

(up to the end of the DU)

filter

oil filter ..................................................

(up to the end of the DU)

engine oil ...................................................

(up to the end of the DU)

engine oil level ...........................................

(up to the end of the DU)

oil change ..................................................

(up to the end of the DU)

4.5

ENG_UD70264_3

Niveau huile moteur : appoint, remplissage (HJB - Renault)



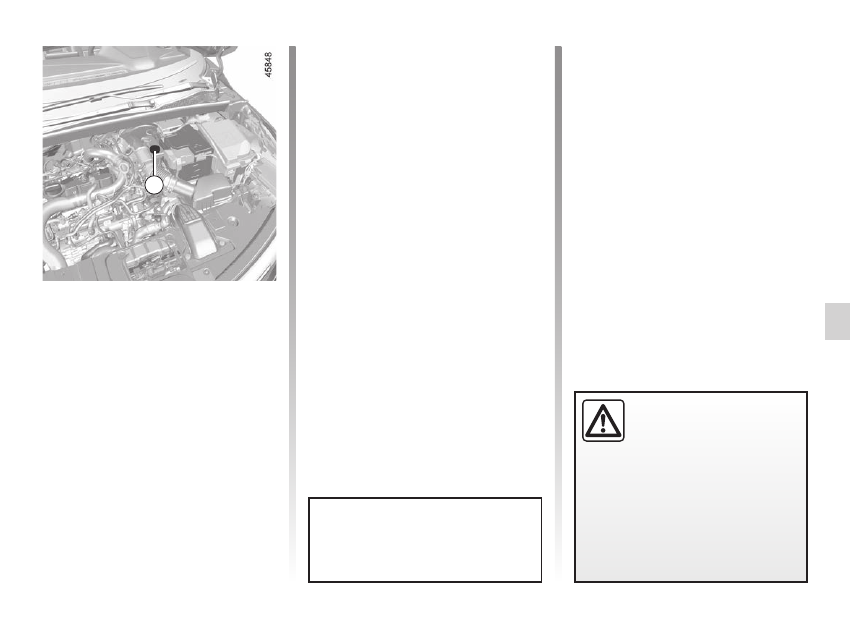

Engine oil level: topping up, filling

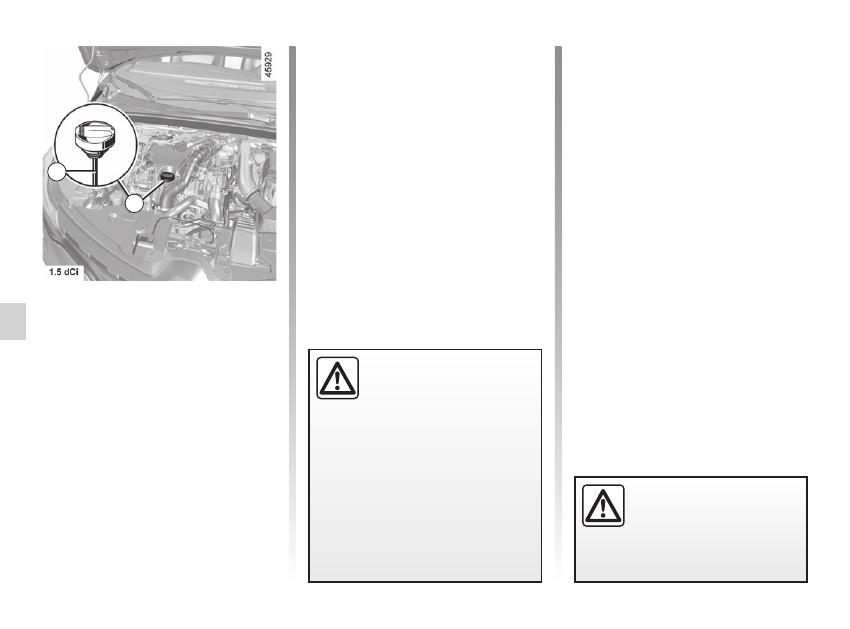

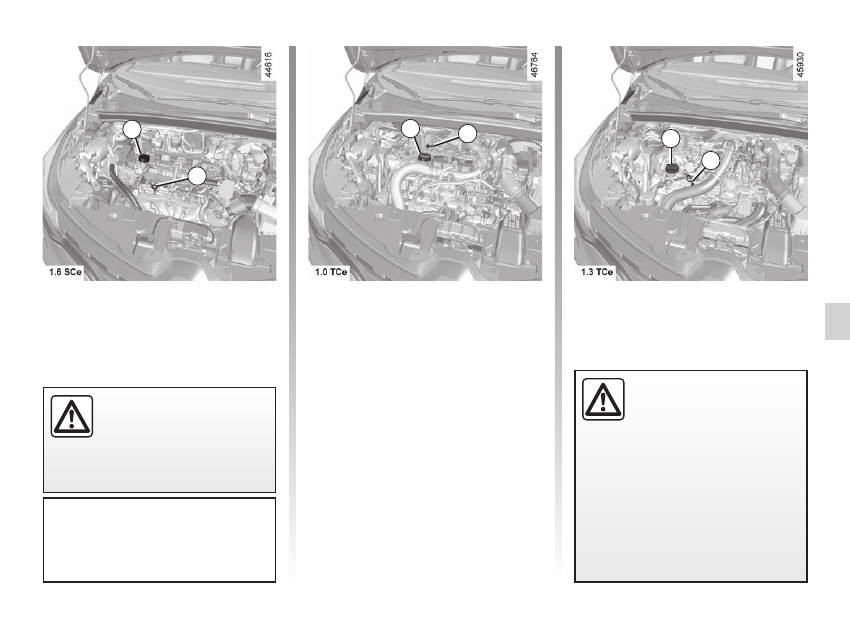

Topping up/filling

The vehicle must be parked on level

ground and the engine should be cold

(for instance, before the engine is

started up for the first time in the day).

–  Unscrew cap

1

;

–  top up the level (capacity between

“mini” and “maxi” of the gauge

2

 and

between 0.9 to 2 litres according to

the engine);

–  wait for approximately 20 minutes to

allow the oil to flow into the engine;

–  check the level using the dipstick

2



(as described above).

Once the operation has been com-

pleted, ensure that the dipstick is

pushed in as far as it will go or that the

cap-type dipstick is completely screwed

in.

ENGINE OIL LEVEL: topping up, filling, oil change

(1/3)

2

Do not exceed the

“maxi”

 level and

do not forget to refit the cap

1

 and

the dipstick

2

.

1

2

1

2

Before carrying out any

action in the engine com-

partment, you must switch

off the ignition.

 2.4 or

 2.6.

1

Adding engine oil

Use a funnel or protect the

filling neck area to avoid

engine oil escaping on to a

hot part of the engine compartment

or a sensitive part (e.g. electrical

components).

Fire hazard.

4.6

ENG_UD70264_3

Niveau huile moteur : appoint, remplissage (HJB - Renault)



Oil change

ENGINE OIL LEVEL: topping up, filling, oil change

(2/3)

Engine oil change

: if you

are changing the oil when

the engine is hot, be careful

not to scald yourself if the

oil overflows.

Oil change

Service interval:

refer to the mainte-

nance document for your vehicle.

Oil change capacity

Please refer to the maintenance doc-

ument for your vehicle, or contact an

authorised dealer. Always check the

engine oil level using the dipstick, as

explained previously (it should never

fall below the minimum level, or be over

the maximum level on the dipstick).

Engine oil grade

Refer to the maintenance document for

your vehicle.

1

Exceeding the maximum

engine oil level
Under no circumstances

should the maximum fill-

ing level be exceeded: this could

damage the engine and the emis-

sion control system.
If the oil level exceeds the maximum

level,

do not start your vehicle

 and

contact an approved Dealer.

2

4.7

ENG_UD70264_3

Niveau huile moteur : appoint, remplissage (HJB - Renault)



ENGINE OIL LEVEL: topping up, filling, oil change

(3/3)

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in the park position.

Risk of injury.

Filling and/or checking

the oil level:

 when topping

up or checking the oil level,

ensure that no oil leaks onto

the engine components.
Do not forget to properly close the

cap and refit the dipstick to prevent

any oil spatter on hot engine com-

ponents.

Fire hazard.

Consult your approved dealer at

once if you notice an abnormal or

repeated drop in any of the fluid

levels.

Never run the engine in an

enclosed space as exhaust

gases are poisonous.

Please note when work-

ing close to the engine that

it may be hot. The engine

cooling fan may also start

at any moment. The

 label

in the engine compartment reminds

you of this.

Risk of injury.

engine coolant ...........................................

(current page)

levels .........................................................

(up to the end of the DU)

levels:

coolant .................................................

(current page)

tank

Coolant ................................................

(current page)

4.8

ENG_UD65108_2

Niveau / Filtres (HJB - Renault)



Frequency of checking coolant level
Check the coolant level regularly



(very severe damage is likely to be

caused to the engine if it runs out of

coolant).
If the level needs to be topped up, only

use products approved by our Technical

Department which ensure:
–  protection against freezing;
–  an anti-corrosion protection for the

cooling system.

Levels

engine coolant

Consult your approved dealer at

once if you notice an abnormal or

repeated drop in any of the fluid

levels.

No operations should be

carried out on the cooling

circuit when the engine is

hot.

Risk of burns.

Replacement interval

Refer to the Maintenance Document for

your vehicle.

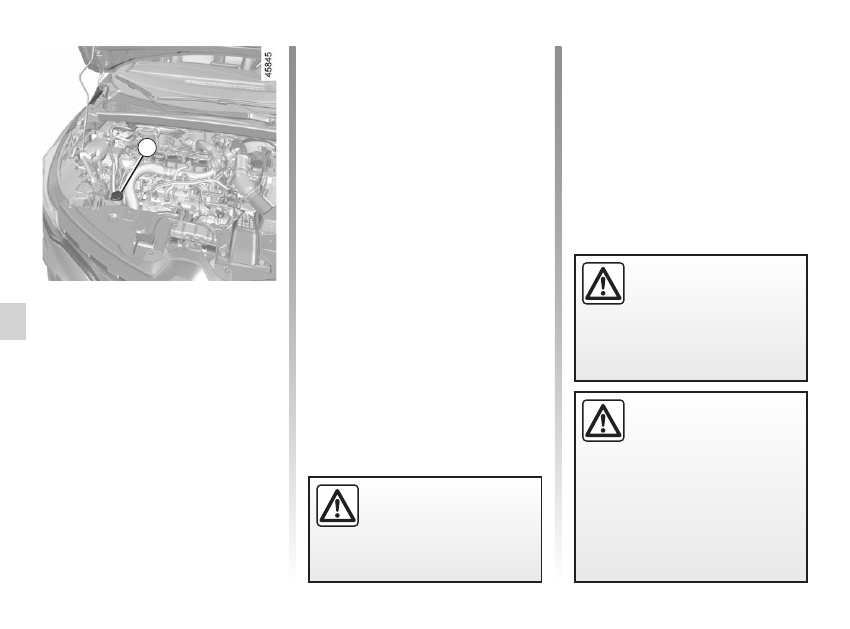

 Coolant

With the engine switched off and on

level ground, the level

when cold

 must

be between the “MINI” and “MAXI”

marks on coolant reservoir

1

.

Top this level up

when cold

 before it

reaches the MINI mark.

LEVELS, FILTERS

(1/3)

1

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in the park position.

Risk of injury.

Before carrying out any

action in the engine com-

partment, you must switch

off the ignition.

 2.4 or

 2.6.

brake fluid ..................................................

(current page)

levels:

brake fluid ............................................

(current page)

tank

Brake fluid ............................................

(current page)

4.9

ENG_UD65108_2

Niveau / Filtres (HJB - Renault)



brake fluid

Level 2

It is normal for the level to drop as the

brake shoes become worn, but it must

never drop lower than the “

MINI

" warn-

ing line.
If you wish to check the disc and drum

wear yourself, you should obtain the

document explaining the checking pro-

cedure from the manufacturer’s net-

work or website.

Topping up

After any operation on the hydraulic cir-

cuit, a specialist must replace the brake

fluid.
Only use fluids approved by our



Technical Department (and taken from

a sealed container).

Replacement interval

Refer to the Maintenance Document for

your vehicle.

 Brake fluid

This should be checked frequently,

and immediately if you notice even the

slightest loss in braking efficiency.
The level should be read with the engine

switched off and on level ground.

LEVELS, FILTERS

(2/3)

2

Please note when work-

ing close to the engine that

it may be hot. The engine

cooling fan may also start

at any moment. The

 label

in the engine compartment reminds

you of this.

Risk of injury.



Consult your approved dealer at

once if you notice an abnormal or

repeated drop in any of the fluid

levels.

filter

air filter .................................................

(current page)

filter

passenger compartment filter ..............

(current page)

levels:

windscreen washer reservoir ...............

(current page)

tanks and reservoirs:

windscreen washer ..............................

(current page)

4.10

ENG_UD65108_2

Niveau / Filtres (HJB - Renault)



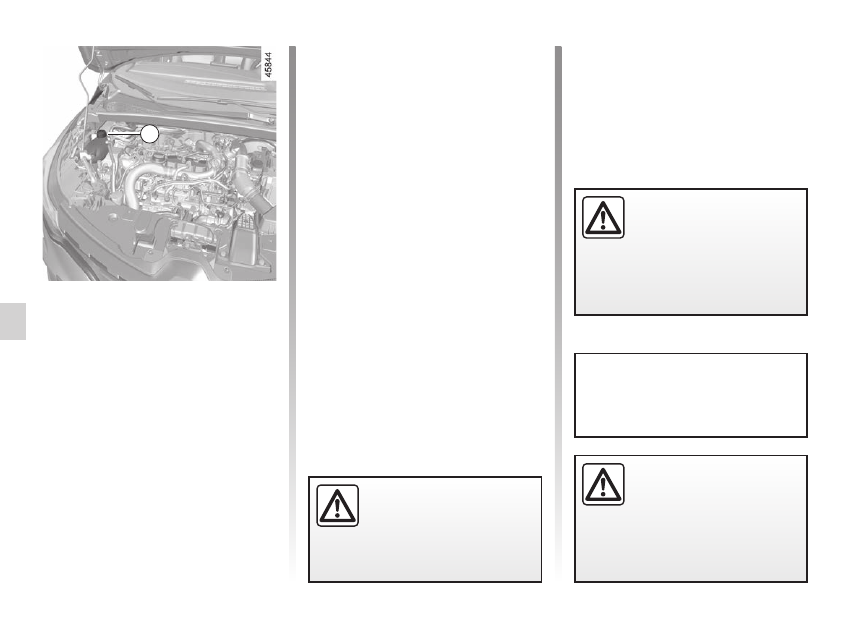

windscreen washer reservoir

Filters

Filters

The replacement of filter components

(air filter, cabin filter, diesel filter, etc.)

is scheduled in the maintenance opera-

tions for your vehicle.

Replacement intervals for filter el-

ements:

refer to the Maintenance

Document for your vehicle.

 Windscreen washer

reservoir

Topping up

With the engine switched off, open the

cap

3

. Fill until you can see the fluid,

then replace the cap.

Note:

 check the reservoir level regu-

larly and top up the liquid before taking

a trip.

LEVELS, FILTERS

(3/3)

3

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in the park position.

Risk of injury.

Please note when work-

ing close to the engine that

it may be hot. The engine

cooling fan may also start

at any moment. The

 label

in the engine compartment reminds

you of this.

Risk of injury.

Before carrying out any

action in the engine com-

partment, you must switch

off the ignition.

 2.4 or

 2.6.

Liquid

Only use windscreen washer fluid con-

taining antifreeze.
We advise you to consult an approved

dealer or a qualified professional.

Note:

 do not use hard water (risk of

damage to the priming pump, limescale

building up on the pump and the jets).

Jets

To adjust the height of the windscreen

washer jets, please consult an author-

ised dealer.

tyre pressure..............................................

(up to the end of the DU)

tyre pressures ............................................

(up to the end of the DU)

tyres ...........................................................

(up to the end of the DU)

4.11

ENG_UD56659_1

Pressions de gonflage des pneumatiques (HJB - Renault)



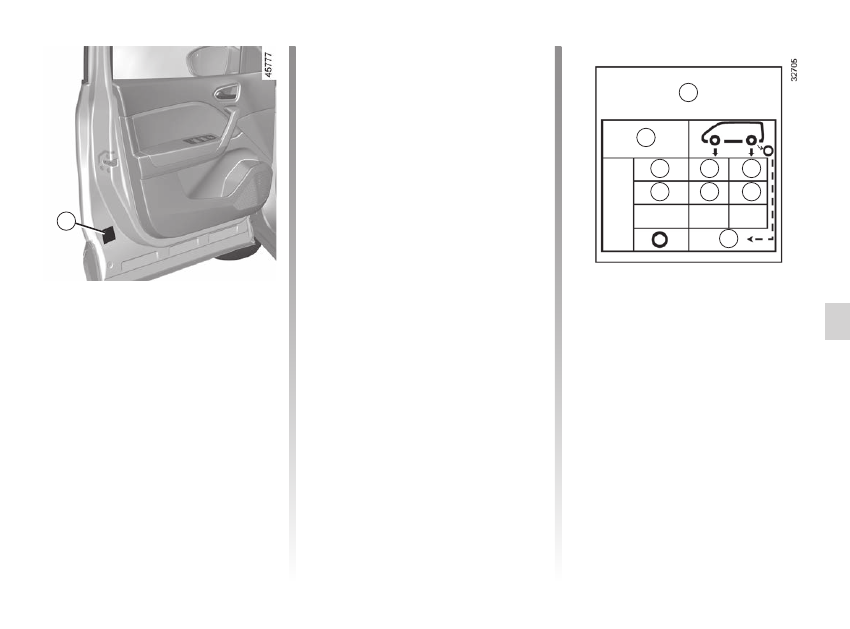

Tyre pressure

TYRE PRESSURE

(1/2)

A

C

E

D

F

B

C

D

E

B

: dimension of the tyres fitted to the

vehicle.

C

: intended driving speed.

D

: front tyre pressure.

E

: rear tyre pressure.

F

: tyre pressure for the emergency

spare wheel.

Label A

Open the driver’s door to read it.
Tyre pressures should be checked

when the tyres are cold.
If the tyre pressures cannot be checked

when the tyres are

cold

, increase the

pressures from

0.2

 to

0.3

 bar (or

3 PSI

).

Never deflate a hot tyre.

Vehicle fitted with a tyre pressure

loss warning system

In the event of under-inflation (punc-
tures, under-inflation etc.), the



warning light appears on the instrument

panel.

 2.40.

A

4.12

ENG_UD56659_1

Pressions de gonflage des pneumatiques (HJB - Renault)



TYRE PRESSURE

(2/2)

Tyre safety and chain fitting:

 for infor-

mation on servicing conditions and, de-

pending on the vehicle version, the use

of chains.

 5.12.

For your safety, please re-

spect the speed limit.
When they need to be re-

placed, only tyres of the

same make, size, type and profile

should be used on a single axle.

They must: either have a load ca-

pacity and speed rating at least

equal to those of the original

tyres, or conform to those recom-

mended by an authorised dealer.

Failure to heed these instructions

could endanger your safety and

affect your vehicle’s roadworthi-

ness.

Risk of loss of control of the ve-

hicle.

Vehicles used fully laden

(Maximum Permissible



All-up Weight) and towing

a trailer

The maximum speed must be lim-

ited to

62 mph (100 km/h)

 and the

tyre pressure increased by

0.2 bar

(3 psi)



 6.9.

Risk of tyre blowouts.

battery........................................................

(up to the end of the DU)

maintenance:

mechanical ...........................................

(up to the end of the DU)

4.13

ENG_UD68945_3

Batterie (HJB - Renault)



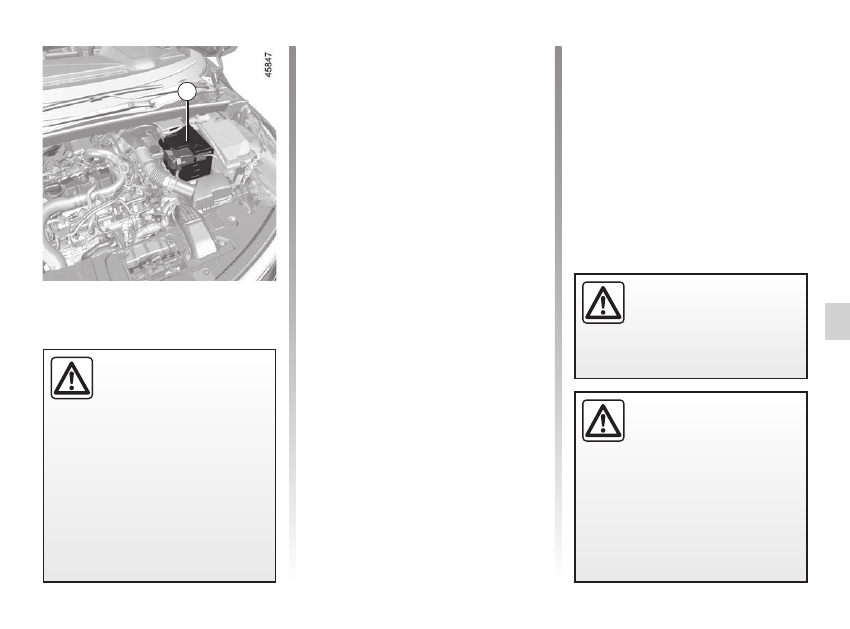

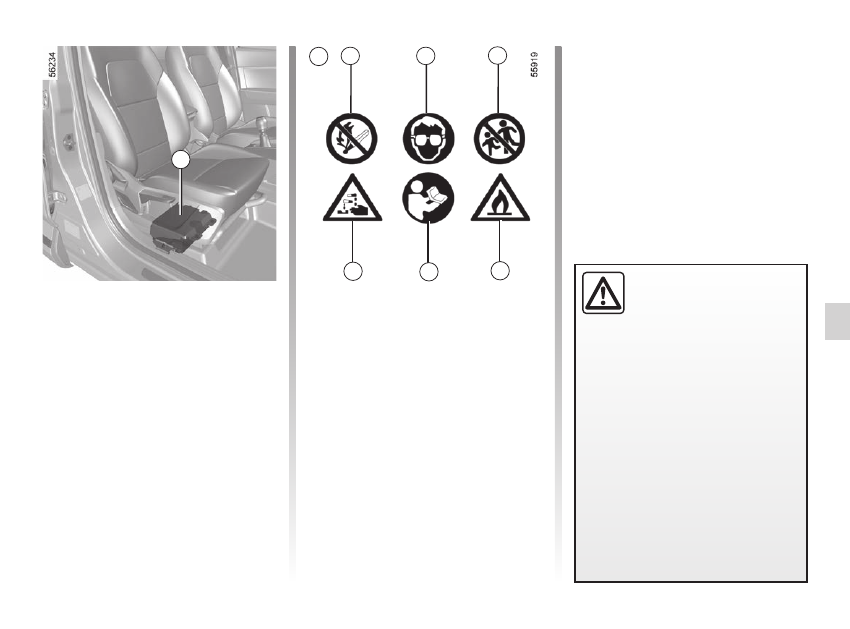

Battery

BATTERY

(1/2)

1

Battery

1

 does not require any mainte-

nance.

You should not open it or add

any fluid.

Handle the battery with care

as it contains sulphuric acid

which must not come into

contact with the eyes or

skin. If it does, wash the affected

area with plenty of cold water. If

necessary, consult a doctor.
Ensure that naked flames, red hot

objects and sparks do not come into

contact with the battery as there is a

risk of explosion.

Please note when work-

ing close to the engine that

it may be hot. In addition,

the engine cooling fan may

start at any moment. The



warning light in the engine compart-

ment reminds you of this.

Risk of injury.

Before carrying out any

action in the engine com-

partment, you must switch

off the ignition.

 2.4



 2.6.

Depending on the vehicle, a system

continuously checks the battery charge

status. If this decreases, the “Battery

Now In Standby Mode” message ap-

pears on the instrument panel followed

by “Battery Low Start Engine”. In this

case, start the engine and the message

on the instrument panel will disappear.

Note:

 the message “Battery Now In

Standby Mode” may be displayed after

5 to 30 minutes of vehicle use with the

engine stopped to warn the user that

power consuming functions (interior

lighting, radio, navigation, ventilation,

accessories power supply, etc.) may be

automatically cut off.
The charge status of your battery can

decrease especially if you use your ve-

hicle:

–  for short journeys;

–  for driving in town;

–  when the temperature drops;

–  after extended use of energy-con-

suming devices (radio, etc.) with the

engine switched off.

4.14

ENG_UD68945_3

Batterie (HJB - Renault)



BATTERY

(2/2)

For your own safety and for

the proper operation of the

vehicle's electrical equip-

ment (lights, windscreen

wipers, ABS, etc.), any intervention

on the battery (removal, disconnec-

tion, etc.) must categorically be per-

formed by a specialist professional.

Risk of serious burns or electric

shocks.

You must respect the replacement

intervals (without exceeding them)

as stated in the maintenance doc-

ument.
The battery is a specific type.

Please ensure it is replaced with the

same type.
Call an approved Dealer.

2

5

6

7

A 2

3

4

Label A

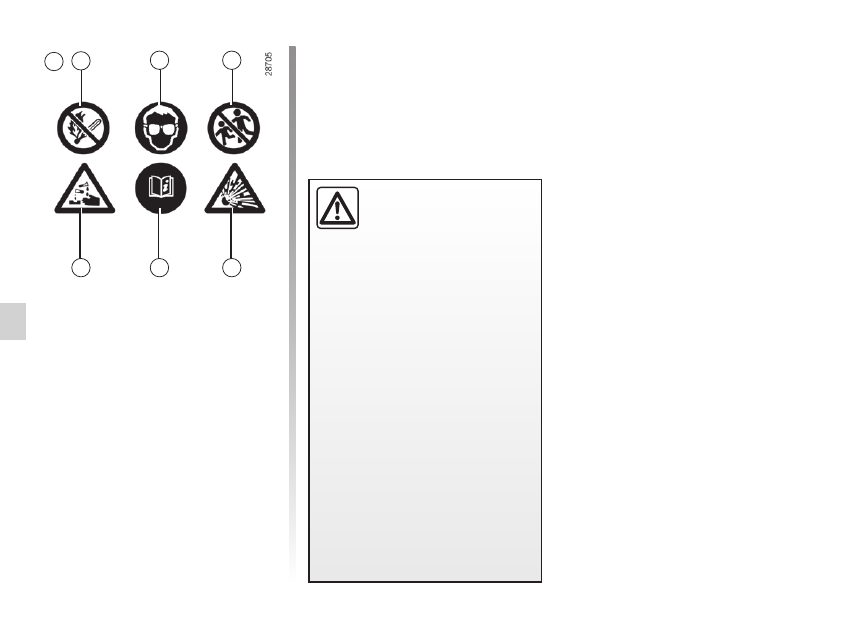

Observe the indications on the battery:
–

2

  naked flames and smoking are for-

bidden;

–

3

 eye protection required;

–

4

 keep away from children;

–

5

 explosive materials;

–

6

 refer to the handbook;

–

7

 corrosive materials.

4.15

ENG_UD69957_1

Batterie secondaire (HJB - Renault)



SECONDARY BATTERY

1

Depending on the vehicle, a secondary

battery

1

 is located under the front pas-

senger seat in a specific compartment:

it supplies the energy required to oper-

ate some equipment.
The secondary battery

1

 does not re-

quire any maintenance.

You should

not open it or add any fluid.

3

4

5

6

2

A

Label A

Label A is located on the battery

1

:

–

2

  naked flames and smoking are for-

bidden;

–

3

 eye protection required;

–

4

 keep away from children;

–

5

 flammable materials;

–

6

 please consult the vehicle user

manual;

–

7

 corrosive substances.

For your own safety and for

the proper operation of the

vehicle's electrical equip-

ment (lights, windscreen

wipers, ABS, etc.), any intervention

on the battery (removal, disconnec-

tion, etc.) must categorically be per-

formed by a specialist professional.

Risk of serious burns or electric

shocks.

The battery is a specific type.

Please ensure it is replaced with the

same type.
Call an approved Dealer.

1

4

2

3

7

5

6

A

maintenance:

bodywork .............................................

(up to the end of the DU)

washing .....................................................

(up to the end of the DU)

paint

maintenance ........................................

(up to the end of the DU)

anti-corrosion protection ............................

(current page)

4.16

ENG_UD79892_4

Entretien de la carrosserie (peinture mate) (HJB - Renault)



Bodywork maintenance

BODYWORK MAINTENANCE

(1/3)

You should

Wash your car frequently,

with the

engine off

, with cleaning products rec-

ommended by the manufacturer (never

use abrasive products).
Rinse thoroughly beforehand with a jet:
–  spots of tree resin and industrial

grime;

–   mud in the wheel arches and under-

neath the body which forms damp

patches;

–

bird droppings

, which cause a

chemical reaction with the paint that

rapidly discolours paintwork and

may even cause the paint to peel

off;

   wash the vehicle

immediately

 to

remove these marks since it is im-

possible to remove them by polish-

ing;

–   salt, particularly in the wheel arches

and underneath the body after driv-

ing in areas where the roads have

been gritted.

Remove any plant matter (resin, leaves,

etc.) from the vehicle regularly.

A well-maintained vehicle will last

longer.
It is therefore recommended to main-

tain the exterior of the vehicle regularly.
Your vehicle has been treated with very

effective anti-corrosion products. It is

nevertheless subject to various outside

influences.

Corrosive agents in the atmosphere

–  Atmospheric pollution (in built-up

and industrial areas);

–   saline atmospheres (near the sea,

particularly in hot weather);

–   seasonal and damp weather condi-

tions (e.g. road salt in winter, water

from road cleaners, etc.).

Minor impacts
Abrasive action

Dust and sand in the air, mud, road grit

thrown up by other vehicles, etc.
You should take a number of minor pre-

cautions in order to safeguard your ve-

hicle against such risks.

Respect local regulations about wash-

ing vehicles (e.g. do not wash your ve-

hicle on a public highway).
Observe the vehicle stopping distances

when driving on gravelled surfaces to

prevent paint damage.
Repair, or have repaired quickly, areas

where the paint has been damaged, to

prevent corrosion spreading.
Remember to visit the body shop pe-

riodically in order to maintain your an-

ti-corrosion warranty.
Refer to the maintenance document.
If mechanical components, hinges, etc.

have been cleaned, they must be pro-

tected again by spraying with products

approved by our Technical Department.

We have selected special products

to care for your vehicle and you can

obtain these from the manufactur-

er’s accessory outlets.

4.17

ENG_UD79892_4

Entretien de la carrosserie (peinture mate) (HJB - Renault)



BODYWORK MAINTENANCE

(2/3)

Degrease or clean using

high-pressure cleaning

equipment or by spray-

ing on products not ap-

proved by our Technical

Department:

–

mechanical components (e.g.:



engine compartment);

–  the wheels (e.g. braking system

components such as brake calli-

pers);

–   underbody;
–   parts with hinges (e.g.: inside the

doors);

–   painted plastic external fittings (e.g.:

bumpers).

Doing this could give rise to corrosion

or operational faults.

What you should not do

Wash the vehicle in bright sunlight or

freezing temperatures.
Do not scrape off mud or dirt without

pre-wetting.
Allow dirt to accumulate on the exterior.
Allow rust to form following minor im-

pacts.
Do not use solvents not approved by

our Technical Department to remove

stains as this could damage the paint-

work.
Do not drive in snow or muddy condi-

tions without washing the vehicle, par-

ticularly under the wheel arches and

body.

Vehicles with a matte paint

finish

This type of paint requires certain pre-

cautions.

You should do the following

Wash the vehicle by hand using plenty

of water, using a soft cloth or a gentle

sponge.

Do not do the following

Use wax-based products (polishing).
Rub too hard.
Wash the vehicle in a roller-type car

wash.
Attach stickers to the paintwork (risk of

leaving marks).

Wash the vehicle



using a high-pressure

cleaning device.

4.18

ENG_UD79892_4

Entretien de la carrosserie (peinture mate) (HJB - Renault)



Cleaning the headlights,

sensors and cameras

Use a soft cloth or cotton wool.
If this does not clean them properly,

moisten the cloth with soapy water,

then wipe clean with a soft damp cloth

or cotton wool.
Finally, carefully dry off with a soft dry

cloth.

Do not use cleaning products con-

taining alcohol or utensils (e.g.: a

scraper).

BODYWORK MAINTENANCE

(3/3)

Using a roller type car wash

Return the wiper stalk to the park posi-

tion

 1.101.

Check the mounting of external ac-

cessories, additional lights and rear

view mirrors, and ensure that the wiper

blades are secured with adhesive tape.
Remove the radio aerial mast if your

vehicle is fitted with this equipment.
Check that the fuel filler flap is closed

then lock the vehicle.
Remember to remove the tape and refit

the antenna after washing.

Cleaning stickers, decorative

films, etc.

You should do the following

Use a soft cloth or cotton wool.
Moisten it slightly with soapy water then

always wipe clean with a soft cloth or

cotton wool.
Finally, carefully dry off with a soft dry

cloth.

Do not do the following

Use alcohol-based cleaning products.
Use utensils (e.g.: scraper).
Rub too hard.

Wash the area using a

high-pressure clean-

ing device.

seat belts ...................................................

(current page)

maintenance:

interior trim ...........................................

(up to the end of the DU)

interior trim

maintenance ........................................

(up to the end of the DU)

cleaning:

inside the vehicle .................................

(up to the end of the DU)

4.19

ENG_UD64396_2

Entretien des garnitures intérieures (HJB - Renault)



Interior trim maintenance

INTERIOR TRIM MAINTENANCE

(1/2)

For further recommendations for

maintaining the interior, and/or for

any unsatisfactory results, please

see an authorised dealer.

A well-maintained vehicle will last

longer. It is therefore recommended to

maintain the interior of the vehicle reg-

ularly.
A stain should always be dealt with

swiftly.
Whatever type of stain is on the trim,

use

cold

(or warm)

soapy water with

natural soap

.

Detergents (washing-up liquid, pow-

dered products, alcohol-based prod-

ucts) should not be used.

Use a soft cloth.
Rinse and soak up the excess.

Multimedia screen

Maintenance of the screen may depend

on the type of multimedia equipment.

Please refer to the multimedia instruc-

tions for further information.

Glass instrument panel

(e.g. instrument panel, clock, exterior

temperature display etc.)
Use a soft cloth (or cotton wool).

If this does not clean them properly,

use a soft cloth (or cotton wool) slightly

moistened with soapy water and then

wipe clean with another soft damp cloth

or cotton wool.

Finally,

carefully

dry off with a soft dry

cloth.

Do not use products containing alco-

hol and/or spray fluids on the area.

Seat belts

These must be kept clean.

Use products selected by our Technical

Department (Approved outlets) or

warm, soapy water and a sponge and

wipe with a dry cloth.

Detergents or dyes must not be used

under any circumstances.

Textiles (seats, door trim, etc)

Vacuum-clean the textiles

regularly

.

Liquid stain

Use soapy water.
Dab lightly (never rub) with a soft cloth,

rinse and remove the excess.

Solid or pasty stain

Carefully remove the excess solid or

pasty material

immediately

with a

spatula (working from the edges to the

centre to avoid spreading the stain).

Clean as for a liquid stain.

Special instructions for sweets or

chewing gum

Put an ice cube on the stain to solidify

it, then proceed as for a solid stain.

4.20

ENG_UD64396_2

Entretien des garnitures intérieures (HJB - Renault)



You should not:

Position objects such as deodorants,

scents etc. near air vents as this could

damage your dashboard trim.

Use high-pressure

cleaning equipment or

sprays inside the pas-

senger compartment:

without careful use, this equipment

could impair the correct functioning

of the electrical or electronic compo-

nents in the vehicle, or have other

detrimental effects.

INTERIOR TRIM MAINTENANCE

(2/2)

Removal/replacing removable

equipment originally fitted in

the vehicle

If you need to remove equipment in

order to clean the passenger com-

partment (for example, mats), always

ensure that they are correctly refitted

and are the right way around (the driv-

er’s mat should be fitted on the driver’s

side, etc.) and fit them with the compo-

nents supplied with the equipment (for

example, the driver mat should always

be fixed using the pre-fitted mounting

components).
With the vehicle stationary, always

ensure that nothing will impede driving

(anything obstructing the pedals, heel

wedged by the mat etc.).

5.1

ENG_UD82513_11

Sommaire 5 (HJB - Renault)



Section 5: Practical Advice

Puncture, emergency spare wheel  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.2

Tyre inflation kit  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.4

Tools   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.7

Wheel trims - wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.9

Changing a wheel  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.10

Tyres (tyre and wheel safety, use in winter)   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.12

Headlights (changing bulbs)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.15

Rear lights and side lights (replacing bulbs)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.16

Interior lighting: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.19

Remote control key: battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.22

“Hands-free” card: battery  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.24

Battery: troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.26

Fitting a radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.29

Accessories  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.30

Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.31

Wiper blades: replacement  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.34

Towing  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.36

Operating faults  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.38

puncture.....................................................

(up to the end of the DU)

tyre inflation kit...........................................

(current page)

tyre pressure..............................................

(current page)

emergency spare wheel ............................

(up to the end of the DU)

5.2

ENG_UD64393_3

Crevaison, roue de secours (HJB - Renault)



Puncture, emergency spare wheel

In case of puncture

Depending on the vehicle, a tyre infla-

tion kit

A

 or a spare wheel

B

 is provided

(refer to the following pages).

Vehicle fitted with a tyre pressure

loss warning system

In the event of under-inflation (punc-
tures, under-inflation etc.), the



warning light appears on the instrument

panel.

 2.40.

PUNCTURE, EMERGENCY SPARE WHEEL

(1/2)

If the vehicle is parked on the hard shoulder, you must warn other road

users of your vehicle’s presence with a warning triangle or with other de-

vices as per the legislation applying to the country you are in.

If the emergency spare wheel has been stored for several years, have it

checked by your Dealer to ensure that it is safe to use.

Vehicle fitted with an emergency spare wheel that differs from the

other wheels:

–  Never fit more than one emergency spare wheel to the same vehicle.
–  Replace the emergency spare wheel as soon as possible with a wheel identi-

cal to the original one.

–  When this is fitted to the vehicle, which must only be a temporary measure, the

driving speed must not exceed the speed indicated on the label on the wheel.

–  Fitting an emergency spare wheel may alter the way the vehicle usually runs.

Avoid sudden acceleration or deceleration and reduce your speed when cor-

nering.

–  If you need to use snow chains, fit the emergency spare wheel to the rear axle

and check the tyre pressure.

A

tool kit ........................................................

(current page)

jack ............................................................

(current page)

5.3

ENG_UD64393_3

Crevaison, roue de secours (HJB - Renault)



PUNCTURE, EMERGENCY SPARE WHEEL

(2/2)

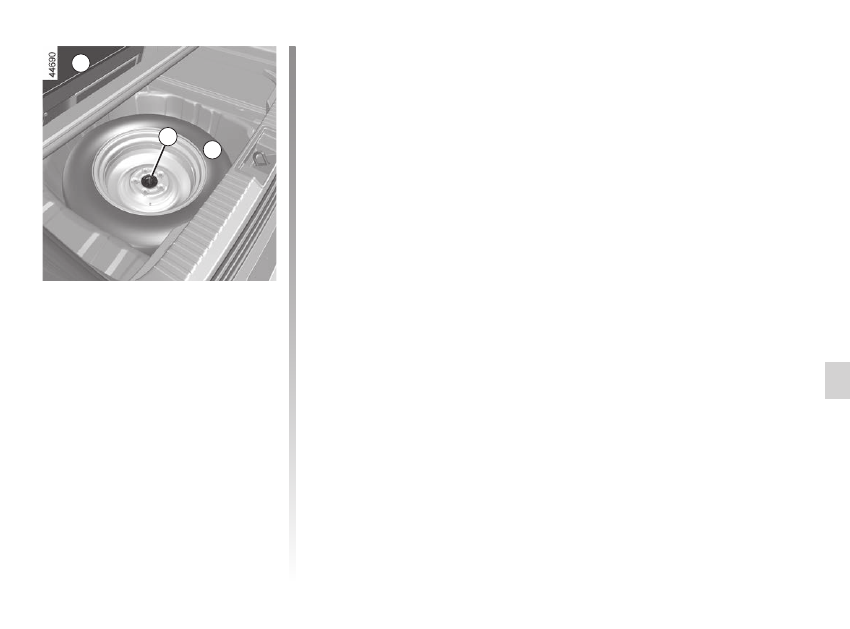

Emergency spare wheel

To get to it:
–  open the boot;
–  depending on the vehicle, lift up the

movable floor and the boot mat

1



 3.39;

–  unscrew the central mounting

2

 in

the centre of the emergency spare

wheel;

–  remove the spare wheel

B.

Depending on the vehicle, to store a

punctured wheel in the boot, move the

bench seat forwards

 3.35.

1

2

Note:

 in the absence of an emergency

spare wheel or tyre inflation kit, do not

load the bottom of the luggage com-

partment.

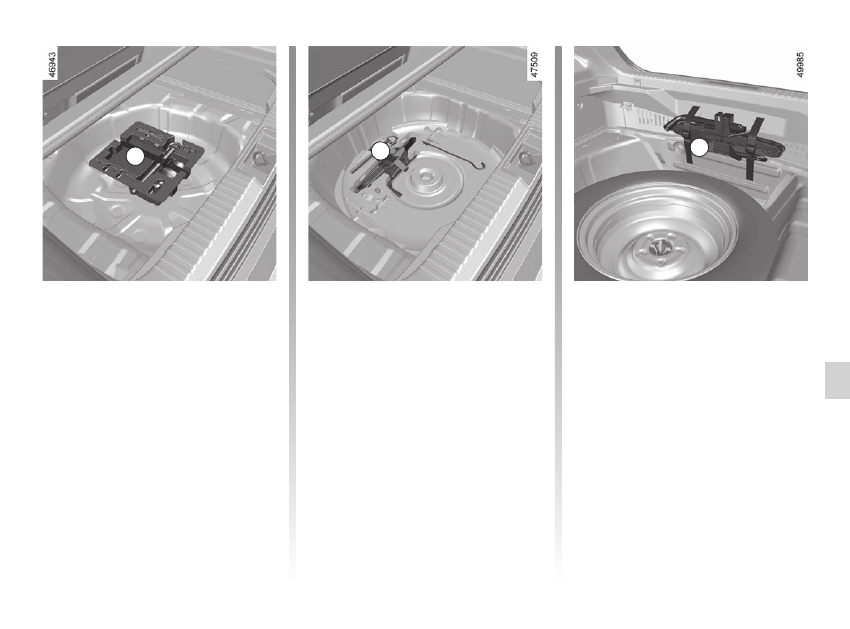

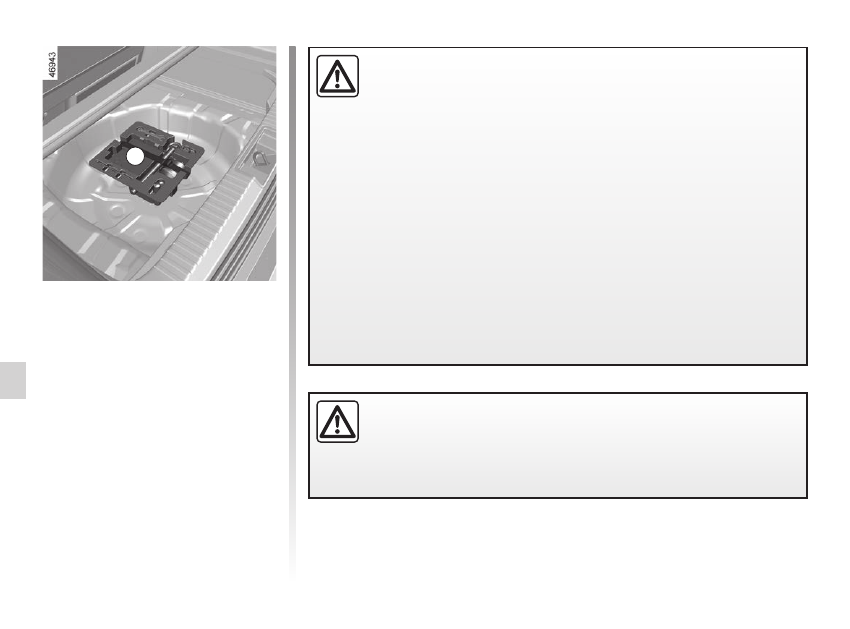

Depending on the vehicle, the tool

block is located under or above the

spare wheel, attached to the wall under

the luggage compartment carpet

B

tyre inflation kit...........................................

(up to the end of the DU)

puncture.....................................................

(up to the end of the DU)

tyre pressures ............................................

(up to the end of the DU)

5.4

ENG_UD56665_1

Kit de gonflage des pneumatiques (HJB - Renault)



Tyre inflation kit

TYRE PRESSURE KIT

(1/3)

The kit is only approved for

inflating the tyres of the ve-

hicle originally equipped

with the kit.

It must never be used to inflate

the tyres of another vehicle, or any

other inflatable object (rubber ring,

rubber boat, etc.).
Avoid spillage on skin when han-

dling the repair product bottle. If

droplets do leak out, rinse them off

with plenty of water.
Keep the repair kit away from chil-

dren.
Do not dispose of the empty bottle

in the countryside. Return it to your

approved dealer or to a recycling or-

ganisation.
The bottle has a limited service

life which is indicated on its label.

Check the expiry date.
Contact an approved dealer to re-

place the inflation tube and repair

product bottle.

A

B

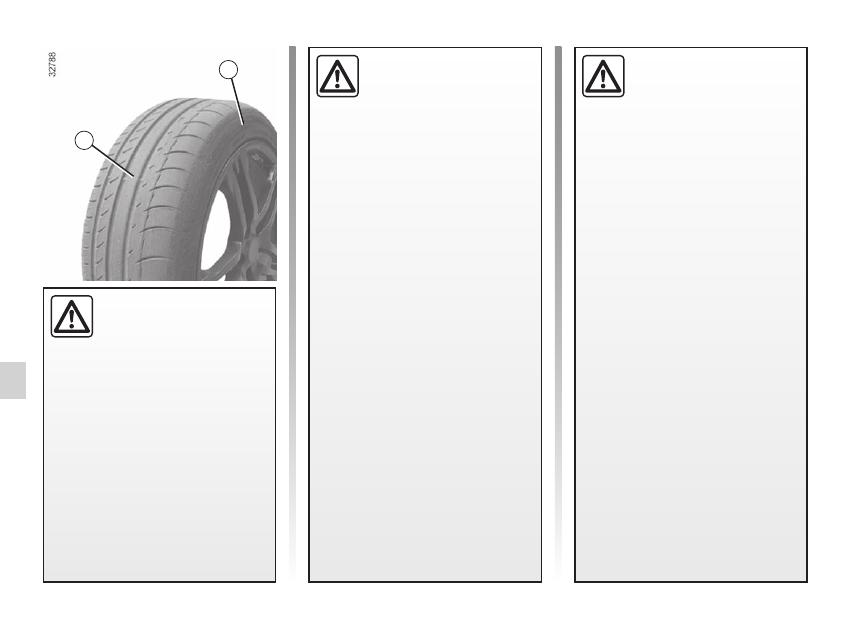

The kit repairs tyres when

tread

A

 has been dam-

aged by objects smaller

than 4 mm. It cannot repair

all types of puncture, such as cuts

larger than 4 mm, or cuts in tyre

sidewall

B

.

Ensure also that the wheel rim is in

good condition.
Do not pull out the foreign body

causing the puncture if it is still in

the tyre.

Do not attempt to use the

inflation kit if the tyre has

been damaged as a result

of driving with a puncture.

You should therefore carefully check

the condition of the tyre sidewalls

before any operation.
Driving with underinflated, flat or

punctured tyres can be dangerous

and may make the tyre impossible

to repair.

This repair is temporary.

A tyre which has been punctured

should always be inspected (and re-

paired, where possible) as soon as

possible by a specialist.
When taking a tyre which has been

repaired using this kit to be replaced,

you must inform the specialist.
When driving, vibration may be felt

due to the presence of the repair

product injected into the tyre.

tyre pressure loss warning.........................

(current page)

tyre pressure..............................................

(current page)

5.5

ENG_UD56665_1

Kit de gonflage des pneumatiques (HJB - Renault)



TYRE PRESSURE KIT

(2/3)

Depending on the vehicle, in the event

of a puncture, use the kit located in the

boot or underneath the luggage com-

partment carpet.

Vehicle fitted with a tyre pressure

loss warning system

In the event of under-inflation (punc-
tures, under-inflation etc.), the



warning light appears on the instrument

panel.

 2.40.

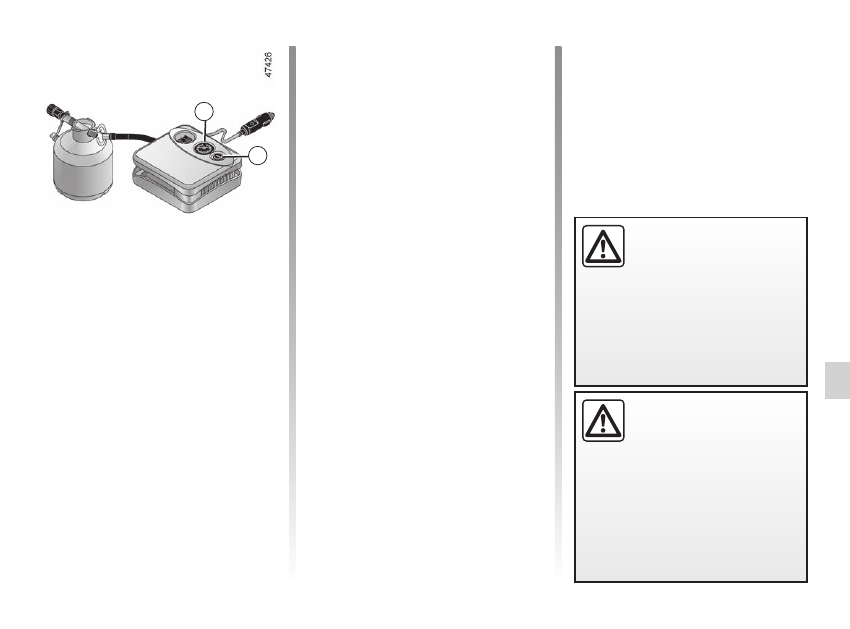

Engine running, handbrake applied:

– Disconnect any accessories previ-

ously connected to the vehicle’s ac-

cessories sockets;

–

refer to the information on the in-

flation kit compressor

 located in

the luggage compartment of the ve-

hicle and follow the instructions;

–  inflate the tyre to the recommended

pressure

 4.11 ;

–  after a maximum of

15

 minutes, stop

inflating and read the pressure (on

pressure gauge

2

).

Note:

 while the bottle is emptying

(approximately 30 seconds), the

pressure gauge

2

 will briefly indicate

a pressure of

6

 bar, then the pres-

sure drops;

–  Adjust the pressure: to increase it,

continue inflation with the kit. To

reduce it, press the button

1

.

2

Before using this kit, park

the vehicle at a sufficient

distance from traffic, switch

on the hazard warning

lights, apply the handbrake, ask all

passengers to leave the vehicle and

keep them away from traffic.

If the vehicle is parked on

the hard shoulder, you must

warn other road users of

your vehicle’s presence



with a warning triangle or with other

devices as per the legislation apply-

ing to the country you are in.

1

If a minimum pressure of 1.8 bar is

not reached after 15 minutes, repair

is not possible; do not drive the ve-

hicle but contact an approved dealer.

tyre pressure..............................................

(current page)

5.6

ENG_UD56665_1

Kit de gonflage des pneumatiques (HJB - Renault)



TYRE PRESSURE KIT

(3/3)

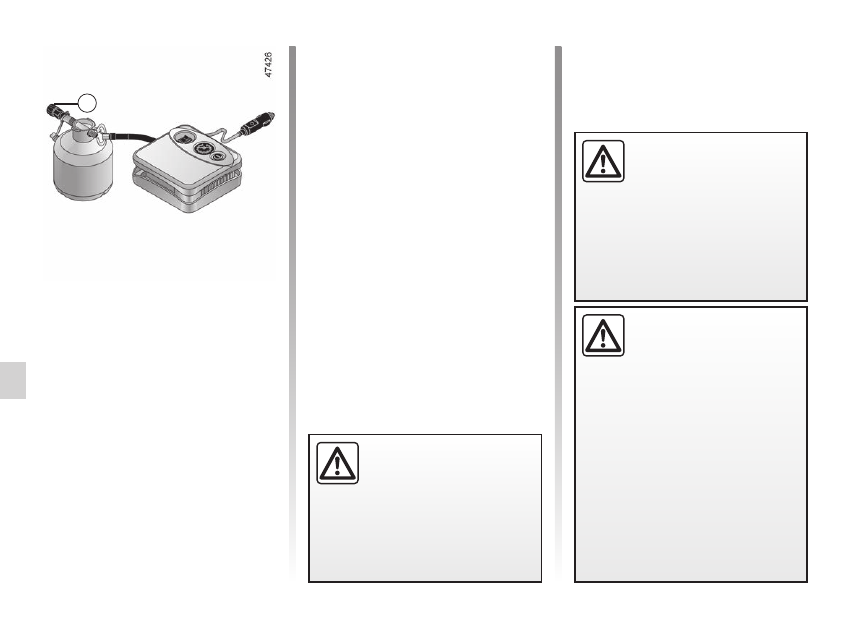

Once the tyre is correctly inflated,

remove the kit: unscrew the inflation

adapter slowly from the container

3

 to

prevent any product spatter and store

the container in plastic packaging to

prevent product leaks.

– Affix the driving recommendation

label (located under the container) to

the dashboard where the driver can

see it.

–  Put the kit away.

–  At the end of this initial inflation op-

eration, air will still escape from the

tyre. You must drive a short distance

in order to seal the hole.

– Start immediately and drive at a

speed between 12 to 37 mph (20 to

60 km/h) in order to distribute the

product evenly in the tyre; after driv-

ing a distance of 2 miles (3 km), stop

and check the pressure.

–  If the pressure is higher than 1.3 bar

but lower than the recommended

pressure (refer to the label affixed to

the edge of the driver’s door), adjust

it. Otherwise, contact an approved

dealer: the tyre cannot be repaired.

Precautions when using the

kit

The kit should not be operated for more

than 15 consecutive minutes.

The container must be replaced after

the first use even if liquid remains

inside.

Nothing should be placed

around the driver’s feet

as such objects may slide

under the pedals during

sudden braking manoeuvres and

obstruct their use.

3

Please be aware that a

poorly tightened or miss-

ing valve cap can make the

tyres less airtight and may

lead to pressure loss.

Always use valve caps identical to

those fitted originally and tighten

them fully.

Following repair with the kit,

do not travel further than

120 miles (200 km). In addi-

tion, reduce your speed and

under no circumstances exceed

48 mph (80 km/h). The sticker,

which you must affix in a prominent

position on the dashboard, reminds

you of this.

Depending on the country or local

legislation, a tyre repaired with the

inflation kit may need to be replaced.

towing hitch................................................

(up to the end of the DU)

tool kit ........................................................

(up to the end of the DU)

hubcap tool ................................................

(up to the end of the DU)

wheelbrace ................................................

(up to the end of the DU)

puncture.....................................................

(up to the end of the DU)

jack ............................................................

(up to the end of the DU)

wheelbrace ................................................

(up to the end of the DU)

tools ...........................................................

(up to the end of the DU)

5.7

ENG_UD64392_3

Outils (HJB - Renault)



The tools included in the tool kit

A



B



or

C

 depend on the vehicle.

After use, ensure the tools are correctly

stored.

TOOLS (1/2)

Tools

B

A

C

The tool kit

B

 is located in the tray

under the spare wheel

The tool kit

C

 is located on the storage

compartment wall.

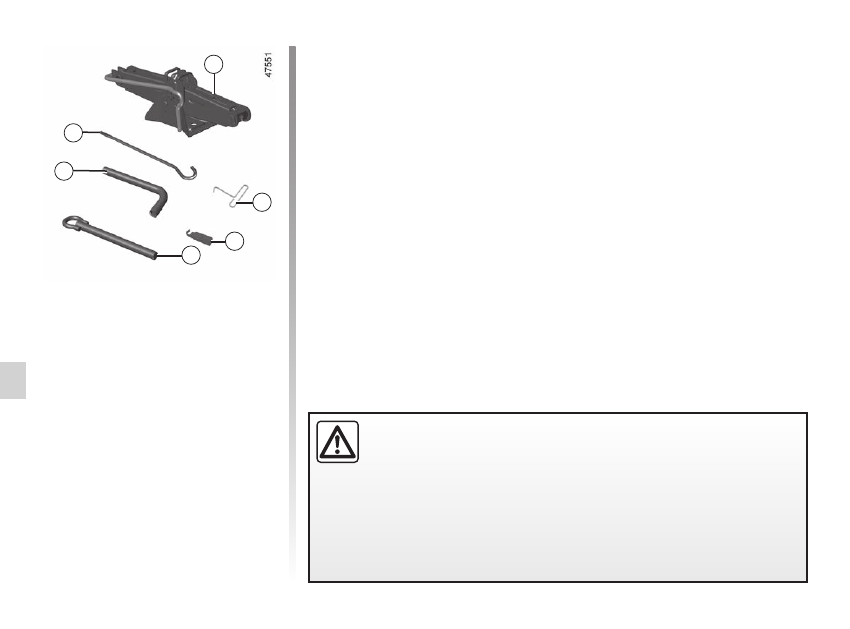

5.8

ENG_UD64392_3

Outils (HJB - Renault)



Hubcap tool 3

This tool is used to remove the wheel

trims.

Wheel bolt guide 4

To finish loosening or starting to tighten

the wheel bolts.

Tow eye 5

 5.36

Wheelbrace 6

Locks or unlocks the wheel bolts and

tow eye

5

.

Lever 1

This tightens or releases the tow eye

5

.

Jack 2

Fold it correctly before refitting it in its

housing (ensure that the wheelbrace is

correctly positioned).

2

1

3

5

4

Do not leave the tools unsecured inside the vehicle as they may come

loose under braking. After use, check that all the tools are correctly

clipped into the tool kit, then position it correctly in its housing: risk of

injury.

If bolts are supplied with the emergency spare wheel, you must use these bolts

only for the emergency spare wheel.
The jack is designed for wheel changing purposes only. Under no circumstances

should it be used for carrying out repairs underneath the vehicle or to gain access

to the underside of the vehicle.

TOOLS (2/2)

6















Content      ..     9      10      11      12     ..
