Renault Captur (2024 year). Manual in english - page 12







hubcap tool ................................................

(up to the end of the DU)

trims ...........................................................

(up to the end of the DU)

tools ...........................................................

(up to the end of the DU)

tool kit ........................................................

(up to the end of the DU)

5.9

ENG_UD56667_1

Enjoliveur - Roue (HJB - Renault)



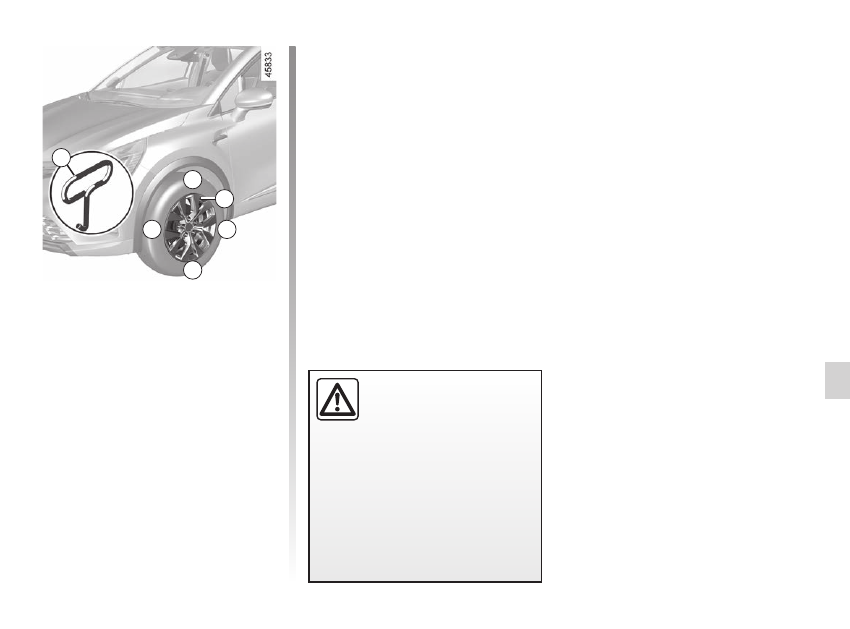

Remove the wheel trim using hubcap

tool

1

 (located in the tool kit) by en-

gaging the hook in the opening near

valve

2

.

To refit it, align it with valve

2

. Push the

retaining hooks in fully, starting with

side

A

 near the valve, followed by

B



and

C

, finishing at

D

 opposite the valve.

Wheel trims - wheel

WHEEL TRIMS - WHEEL

Do not leave the tools un-

secured inside the vehicle

as they may come loose

under braking. After use,

check that all the tools are correctly

clipped into the tool kit, then position

it correctly in its housing.

Risk of injury.

1

2

A

B

D

C

changing a wheel.......................................

(up to the end of the DU)

wheelbrace ................................................

(up to the end of the DU)

puncture.....................................................

(up to the end of the DU)

jack ............................................................

(up to the end of the DU)

lifting the vehicle

changing a wheel .................................

(up to the end of the DU)

5.10

ENG_UD64390_4

Changement de roue (HJB - Renault)



Start cranking the jack by hand, posi-

tioning the

4

 jack support plate in the

slightly indented groove underneath

the vehicle, located between the two

notches

5

 and in the direction of the

arrow

3

.

Continue to crank the jack so that the

baseplate is correctly positioned (it

should be underneath the vehicle and

aligned with the jack head).
Turn it a few times to lift the wheel off

the ground.

Changing a wheel

Switch on the hazard warn-

ing lights.
Keep the vehicle away from

traffic and on a level surface

where it will not slip.
Apply the parking brake and engage

a gear (first or reverse, or

P

 for auto-

matic transmissions).

Ask all the passengers to leave the

vehicle and keep them away from

traffic.

CHANGING A WHEEL

(1/2)

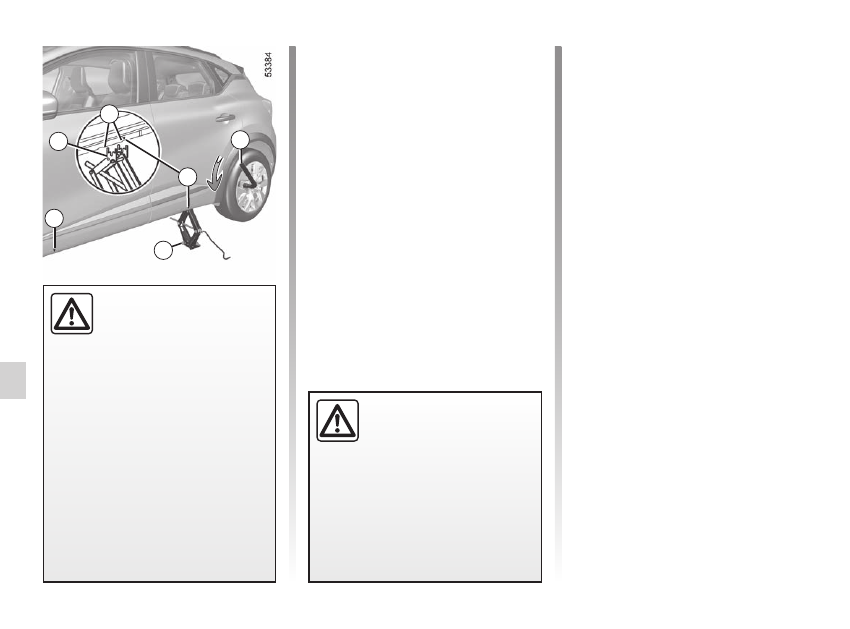

Vehicles equipped with a jack

and wheelbrace

If necessary, remove the wheel trim.
Use the wheelbrace

1

 to slacken off the

wheel bolts. Position it so as to be able

to push from above.
Place the jack

2

 horizontally; the jack

head

must

 be lined up with the sill clos-

est to the wheel concerned, as shown

by an arrow

3

.

If the vehicle is parked on

the hard shoulder, you must

warn other road users of

your vehicle’s presence



with a warning triangle or with other

devices as per the legislation apply-

ing to the country you are in.

1

2

3

5

4

3

tyre pressure loss warning.........................

(up to the end of the DU)

tyre pressures ............................................

(up to the end of the DU)

tyre pressure..............................................

(current page)

5.11

ENG_UD64390_4

Changement de roue (HJB - Renault)



If you have a puncture, re-

place the wheel as soon as

possible.
A tyre which has been punc-

tured should always be inspected

(and repaired, where possible) by a

specialist.

CHANGING A WHEEL

(2/2)

Undo the bolts and take off the wheel.
Fit the emergency spare wheel on the

central hub and turn it to locate the

mounting holes in the wheel and the

hub.
Tighten the bolts, checking that the

wheel is correctly positioned on its hub.
Lower the jack.
With the wheel on the ground, tighten

the bolts fully and have the tightness of

the bolts checked and the emergency

spare wheel pressure checked as soon

as possible.

Do not leave the tools un-

secured inside the vehicle

as they may come loose

under braking. After use,

check that all the tools are correctly

clipped into the tool kit, then posi-

tion it correctly in its housing: risk of

injury.
If bolts are supplied with the emer-

gency spare wheel, you must use

these bolts only for the emergency

spare wheel.
The jack is designed for wheel

changing purposes only. Under no

circumstances should it be used for

carrying out repairs underneath the

vehicle or to gain access to the un-

derside of the vehicle.

Vehicle fitted with a tyre pressure

loss warning system

In the event of under-inflation (punc-
tures, under-inflation etc.), the



warning light appears on the instrument

panel.

 2.40.

tyres ...........................................................

(up to the end of the DU)

wheels (safety) ..........................................

(up to the end of the DU)

5.12

ENG_UD56669_1

Pneumatiques (HJB - Renault)



Tyre and wheel safety

The tyres are the only contact between

the vehicle and the road, so it is essen-

tial to keep them in good condition.
You must make sure that your tyres

con- form to local road traffic regula-

tions.

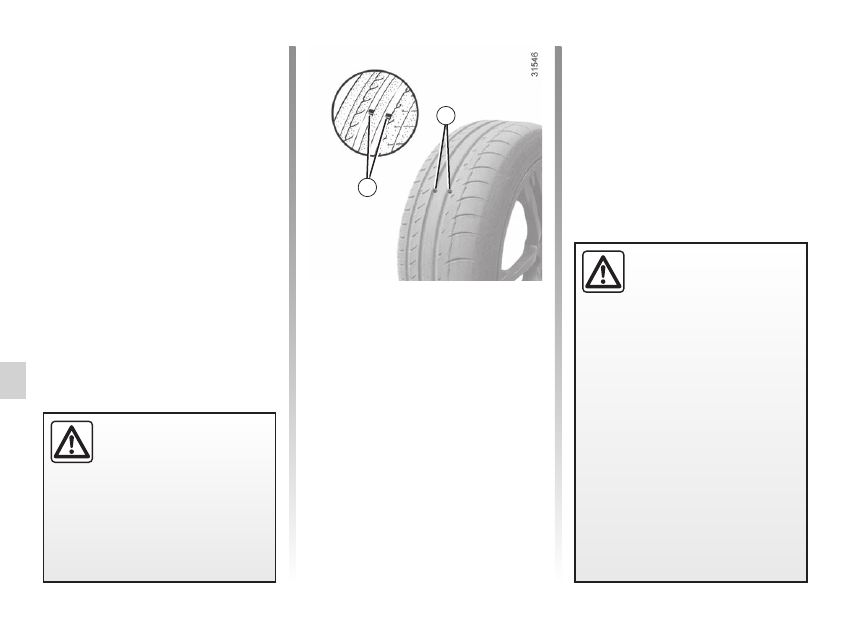

Maintaining the tyres

The tyres must be in good condition

and the tread form must have sufficient

depth; tyres approved by our Technical

Department have wear warning strips

1



which are

indicators moulded into

the tread at several points.

Tyres (tyre and wheel safety, use in winter)

When the tyre tread has been worn

to the level of the warning strips,

 they

become visible 2

: it is

then

 neces-

sary to replace your tyres because the

tread rubber is now only

1.6 mm deep

at most, resulting in poor road hold-

ing on wet roads.

An overloaded vehicle, long journeys

by motorway, particularly in very hot

weather, or continual driving on poorly

surfaced minor roads will lead to more

rapid tyre wear and affect safety.

TYRES

(1/3)

Incidents which occur when

driving, such as striking the

kerb, may damage the tyres

and wheel rims, and could

also lead to misalignment of the

front or rear axle geometry. In this

case, have the condition of these

checked by an approved dealer.

1

2

Incorrect tyre pressures



lead to abnormal tyre wear

and unusually hot running.

These are factors which

may seriously affect safety and lead

to:
–  poor road holding;
–  risk of bursting or tread separa-

tion.

The pressure depends on the load

and the speed of use. Adjust the

pressure according to the condi-

tions of use (refer to the label affixed

to the edge of the driver’s door).

Tyre pressures

Adhere to the tyre pressures (including

the emergency spare wheel). The tyre

pressures should be checked at least

once a month and additionally before

any long journey (refer to the label af-

fixed to the edge of the driver’s door).

tyre pressure..............................................

(current page)

tyre pressures ............................................

(current page)

5.13

ENG_UD56669_1

Pneumatiques (HJB - Renault)



Fitting new tyres

Vehicle fitted with a tyre pressure

loss warning system

In the event of under-inflation (punc-
tures, under-inflation etc.), the



warning light appears on the instrument

panel.

 2.40.

Emergency spare wheel

 5.2,

 5.10.

Changing wheels around

This practice is not recommended.

Pressures should be checked when the

tyres are cold; ignore higher pressures

which may be reached in hot weather

or following a fast journey.
If tyre pressures cannot be checked

when the tyres are

cold

, assume an in-

crease of

0.2

 to

0.3

 bar (or

3 PSI

).

Never deflate a hot tyre.

TYRES

(2/3)

Please be aware that a

poorly tightened or miss-

ing valve cap can make the

tyres less airtight and lead

to pressure loss.
Always use valve caps identical to

those fitted originally and tighten

them fully.

For your safety, please re-

spect the speed limit.
When they need to be re-

placed, only tyres of the

same make, size, type and profile

should be used on a single axle.

They must either have a load ca-

pacity and speed rating at least

equal to those of the original

tyres, or be recommended by an

authorised dealer.

Failure to heed these instructions

could endanger your safety and

affect your vehicle’s roadworthi-

ness.

Risk of loss of control of the ve-

hicle.

5.14

ENG_UD56669_1

Pneumatiques (HJB - Renault)



Use in winter

Chains
For safety reasons, fitting snow

chains to the rear axle is strictly for-

bidden.
Chains cannot be fitted

 to tyres which

are larger than those originally fitted to

the vehicle.

One-way tyres

An one-way tyre must only be fitted in

one direction. You must observe this di-

rection.
If an one-way tyre must be fitted in the

opposite to its direction of rotation fol-

lowing a puncture, drive with caution,

particularly on a wet road, because the

tyre specifications will not be adapted.

TYRES

(3/3)

Snow or Winter tyres

We would recommend that these be

fitted to all

four wheels

 to ensure that

your vehicle retains maximum adhe-

sion.

Warning

: These tyres sometimes have

a specific direction of rotation and a

maximum speed index which may be

lower than the maximum speed of your

vehicle.

Studded tyres

This type of equipment may only be

used for a limited period and as laid

down by local legislation. It is neces-

sary to observe the speed specified by

current legislation.
These tyres must, at a minimum, be

fitted to the two front wheels.

Chains may only be fitted

to tyres of the same size

as those originally fitted to

your vehicle

.

In all cases, we would recommend

that you contact an approved Dealer

who will be able to advise you on

the choice of equipment which is

most suitable for your vehicle.

18” wheels cannot be

fitted with chains.

If you wish to fit snow

chains, you must use

spe-

cial equipment

.

Consult an approved dealer

changing a bulb .........................................

(up to the end of the DU)

lights:

dipped beam headlights .......................

(up to the end of the DU)

lights:

direction indicators ...............................

(up to the end of the DU)

lights:

side lights .............................................

(up to the end of the DU)

lights:

main beam headlights ..........................

(current page)

bulbs

changing ..............................................

(up to the end of the DU)

lights

front ......................................................

(up to the end of the DU)

indicators ...................................................

(up to the end of the DU)

lights

changing bulbs .....................................

(up to the end of the DU)

5.15

ENG_UD56670_1

Projecteurs : remplacement des lampes (HJB - Renault)



Headlights: changing bulbs

HEADLIGHTS: changing bulbs

2

Your vehicle is fitted with lights with

LED, contact an Approved Dealer for

replacement.

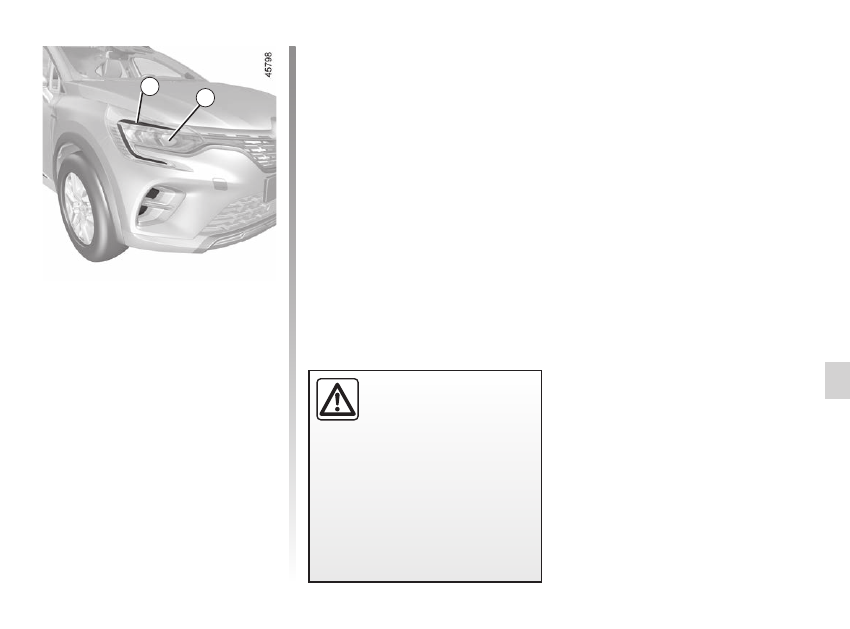

Direction indicators/dipped

beam headlights/LED main

beam headlights 1

Please see an authorised dealer.

LED daytime running lights/

side lights 2

Please see an authorised dealer.

Any operation on (or modi-

fication to) the electrical

system must be performed

by an approved dealer

since an incorrect connection might

damage the electrical equipment

(harness, components and in par-

ticular the alternator). In addition,

your Dealer has all the parts re-

quired for fitting these units.

1

bulbs

changing ..............................................

(up to the end of the DU)

changing a bulb .........................................

(up to the end of the DU)

indicators ...................................................

(up to the end of the DU)

lights:

direction indicators ...............................

(current page)

lights:

side lights .............................................

(current page)

lights:

brake lights ..........................................

(up to the end of the DU)

bulbs

changing ..............................................

(up to the end of the DU)

5.16

ENG_UD56671_1

Feux arrière et latéraux : remplacement des lampes (HJB - Renault)



Rear lights and side lights (replacing bulbs)

The bulbs are under pres-

sure and can break when

replaced.

Risk of injury.

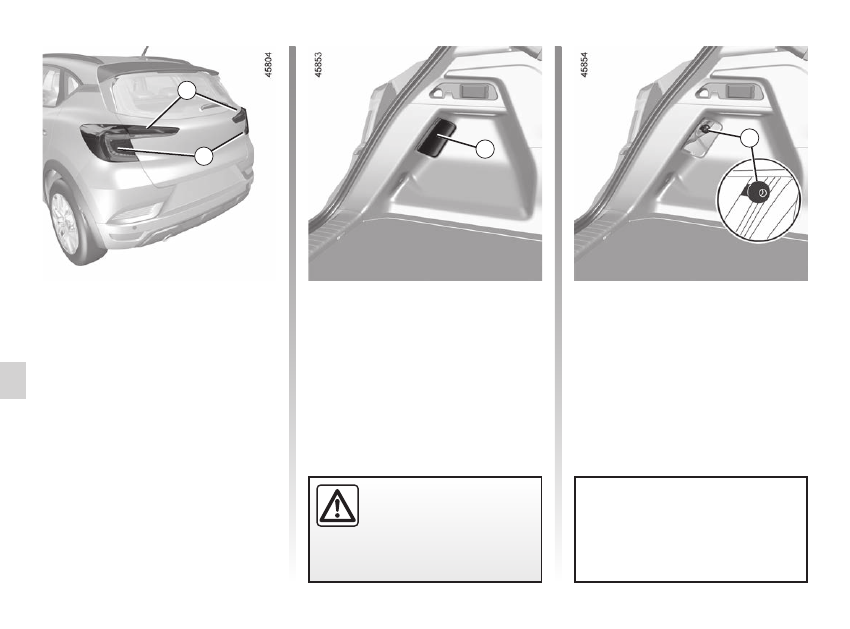

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs

(1/3)

To comply with current legislation, or

as a precaution, you can obtain an

emergency kit from your approved

dealer containing a set of spare

bulbs and fuses.

LED side light/brake light 1

Consult an approved dealer

–  release the light assembly from out-

side the vehicle by pulling towards

the rear;

– remove the

5

 bulb holder by un-

screwing it a quarter of a turn, then

replace the bulb.

Bulb type:



WY16W

.

4

2

1

3

Direction indicators 2

–  Open the boot;
–  remove the trim

3

;

–  unscrew the nut

4

;

lights:

fog lights ..............................................

(current page)

lights:

number plate lights ..............................

(current page)

lights:

reversing lights .....................................

(current page)

5.17

ENG_UD56671_1

Feux arrière et latéraux : remplacement des lampes (HJB - Renault)



REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs

(2/3)

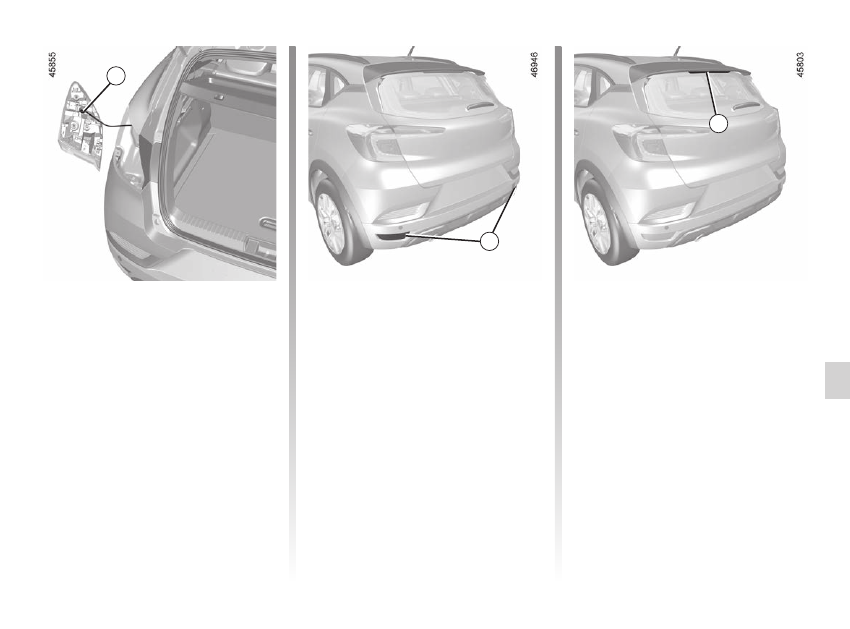

Fog lights and LED reversing

lights 6

Consult an approved dealer

6

7

High-level LED brake light 7

Consult an approved dealer.

Refitting

To refit, proceed in the reverse order,

taking care not to damage the wiring.

5

lights:

number plate lights ..............................

(current page)

indicator lights............................................

(current page)

5.18

ENG_UD56671_1

Feux arrière et latéraux : remplacement des lampes (HJB - Renault)



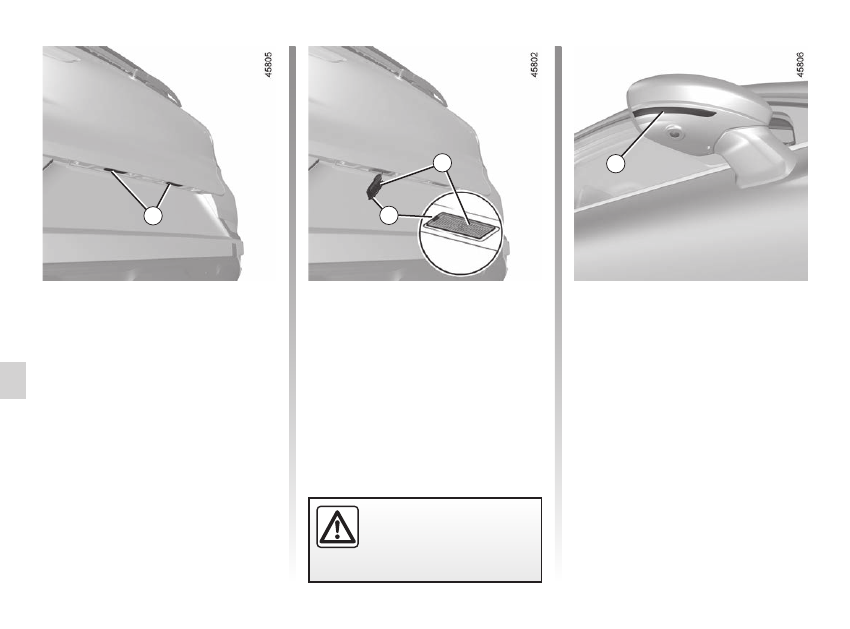

LED number plate lights 8

(depending on the vehicle)
Consult an approved Dealer.

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs

(3/3)

11

8

LED side repeaters 11

Consult an approved dealer.

Number plate lights 9

– Unclip the light by pressing the

tab

10

–  remove the light cover to gain access

to the bulb.

Bulb type:



W5W

.

10

9

The bulbs are under pres-

sure and may break when

replaced.

Risk of injury.

bulbs

changing ..............................................

(up to the end of the DU)

lighting:

interior ..................................................

(up to the end of the DU)

courtesy light .............................................

(current page)

map reading lights .....................................

(current page)

interior lighting:

changing bulbs .....................................

(up to the end of the DU)

5.19

ENG_UD61076_2

Eclairage intérieur : remplacement des lampes (HJB - Renault)



interior lighting: changing bulbs

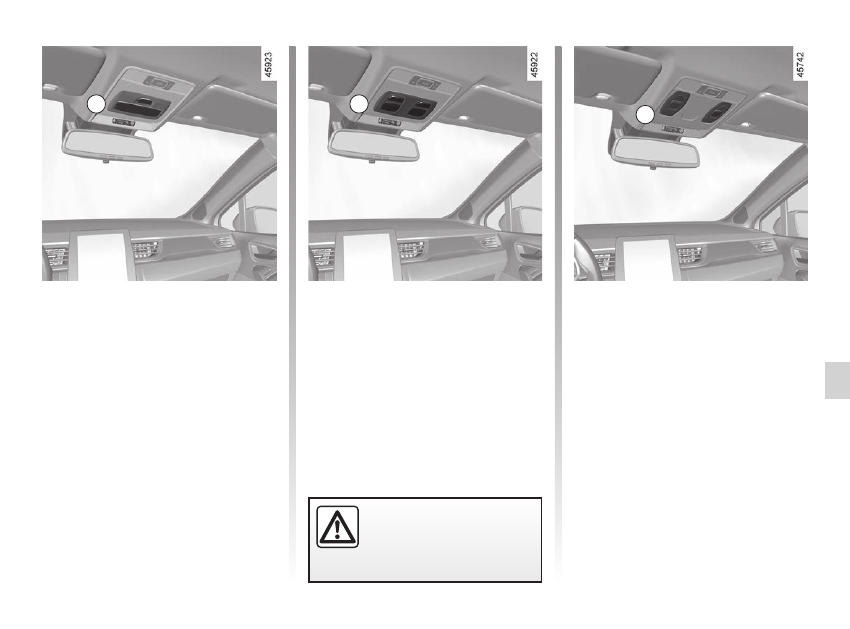

Courtesy light A

–   Unclip the lens (using a flat-blade

screwdriver or similar);

–   remove the bulb concerned.

Bulb type:



W5W

.

INTERIOR LIGHTING: changing bulbs

(1/3)

The bulbs are under pres-

sure and can break when

replaced.

Risk of injury.

LED reading lights C

Consult an authorised dealer.

Map reading light B

–   Unclip the cover (using a flat-blade

screwdriver or similar);

–   remove the bulb concerned.

Bulb type:



W5W

.

A

B

C

5.20

ENG_UD61076_2

Eclairage intérieur : remplacement des lampes (HJB - Renault)



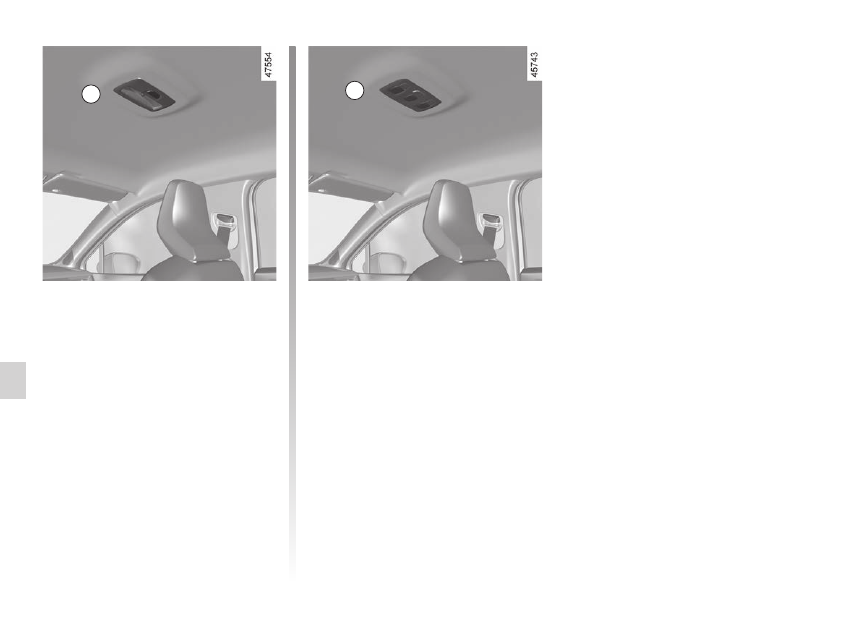

Courtesy light D

–   Unclip the lens (using a flat-blade

screwdriver or similar);

–   remove the bulb concerned.

Bulb type:



W5W

.

LED reading lights E

Consult an authorised dealer.

INTERIOR LIGHTING: changing bulbs

(2/3)

D

E

miroirs de courtoisie ..................................

(page courante)

courtesy mirrors .........................................

(current page)

lighting

glovebox ..............................................

(up to the end of the DU)

ambient lighting .........................................

(up to the end of the DU)

5.21

ENG_UD61076_2

Eclairage intérieur : remplacement des lampes (HJB - Renault)



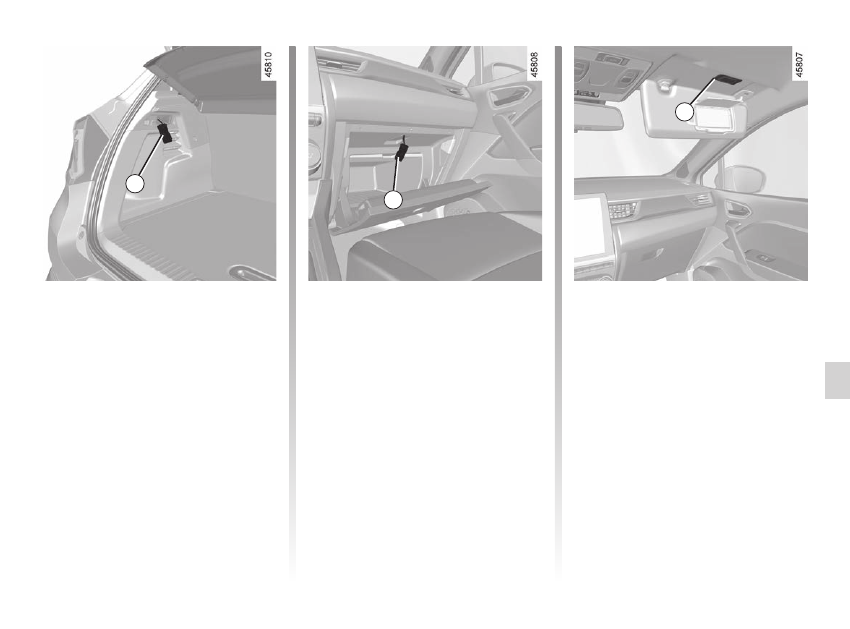

Courtesy mirror lights 3

Please consult an authorised dealer.

Ambient lighting

Please consult an authorised dealer.

INTERIOR LIGHTING: changing bulbs

(3/3)

3

Glovebox light

–   Unclip the light

2

 by pressing the tab

on its left side (using a flat-bladed

screwdriver or similar);

–   remove the bulb concerned.

Bulb type:



W5W.

2

1

Luggage compartment light

–   Unclip the light

1

 by pressing the tab

on its left side (using a flat-bladed

screwdriver or similar);

–   remove the bulb concerned.

Bulb type:



W5W.

radio frequency remote control/key

battery ..................................................

(up to the end of the DU)

replacement

remote control batteries .......................

(up to the end of the DU)

batteries .....................................................

(up to the end of the DU)

battery (remote control) .............................

(up to the end of the DU)

operating faults

remote control batteries .......................

(up to the end of the DU)

5.22

ENG_UD56673_1

Clé à télécommande : pile (HJB - Renault)



Remote control key: battery

REMOTE CONTROL KEY: BATTERY: battery

(1/2)

1

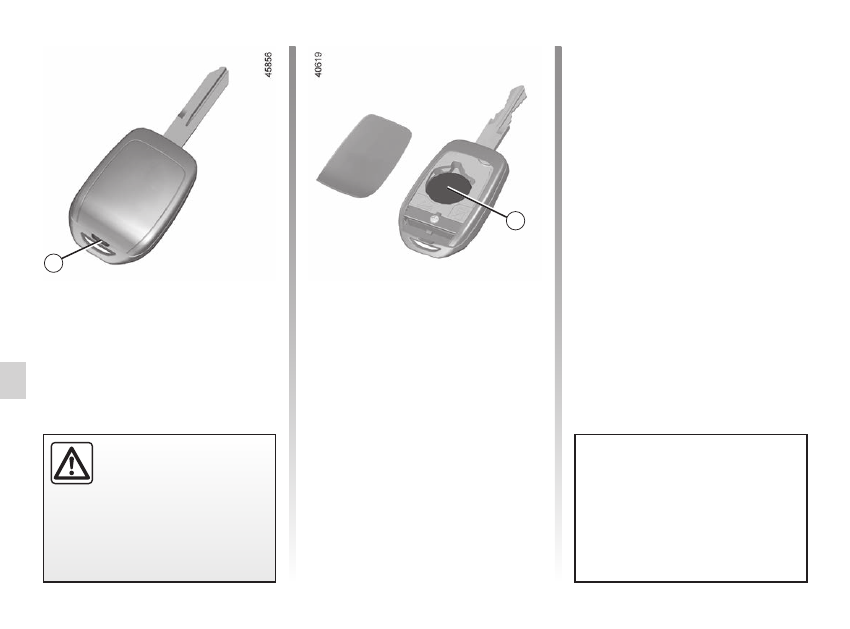

Replacing the battery

Open the case at slot

1

 using a flat-

blade screwdriver or similar, and re-

place the battery

2

, observing the type

and polarity shown on the back of the

cover.

2

Note:

It is not advisable to touch the

electronic circuit in the key cover when

replacing the battery.
When refitting, ensure that the cover is

correctly clipped on and the screw tight-

ened.

The batteries are available from ap-

proved Dealers, and their service

life approximately two years.
Check that there is no dye on the

battery: risk of an incorrect electri-

cal contact.

If they need to be replaced,

be sure to use the same

or equivalent type of bat-

tery (consult an Approved

Dealer).

5.23

ENG_UD56673_1

Clé à télécommande : pile (HJB - Renault)



Operating faults

If the battery is too weak to ensure cor-

rect operation, you will still be able to

start and lock/unlock the vehicle

 1.16.

REMOTE CONTROL KEY: BATTERY: battery

(2/2)

Do not throw away your used bat-

teries; give them to an organisation

responsible for collecting and recy-

cling batteries.

Precautions relating to

batteries:

–  keep (new or used) bat-

teries out of reach of chil-

dren;

–   do not swallow batteries;

Risk of chemical burns which

may lead to death

.

–  if ingested or inserted into any

part of the body, consult a doctor

as soon as possible.

When replacing:
–  make sure that the batter-

ies are correctly inserted.

Risk of explosion

.

–   if the flap does not close cor-

rectly, do not use and keep out of

reach of children.

operating faults

card battery ..........................................

(up to the end of the DU)

«hands-free» card: battery ........................

(up to the end of the DU)

card: battery...............................................

(up to the end of the DU)

batteries .....................................................

(up to the end of the DU)

5.24

ENG_UD64389_2

Carte : pile (HJB - Renault)



“Hands-free” card: battery

“HANDS-FREE” CARD: battery

(1/2)

A

1

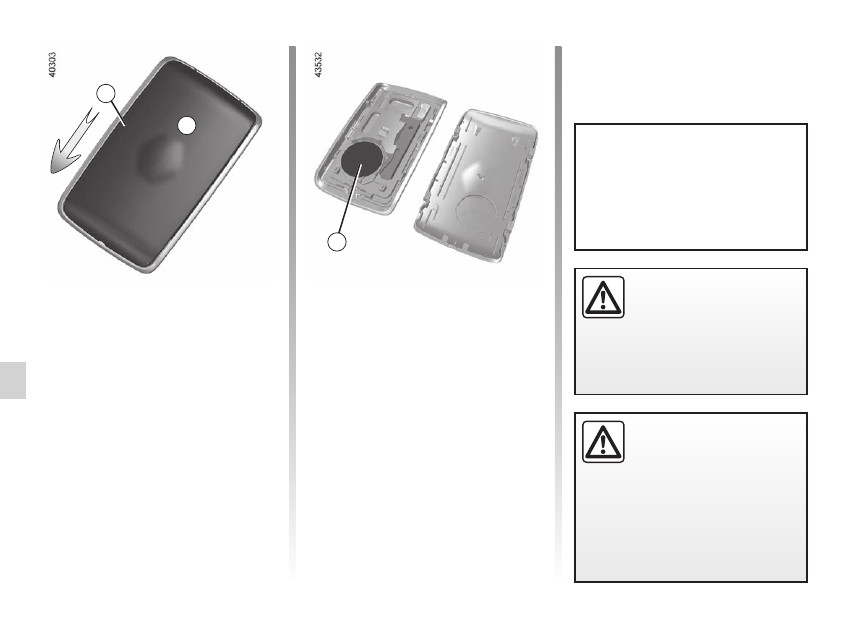

Replacing the battery

When the message “Keycard Battery

Low” appears on the instrument panel,

replace the battery in the card:

–   slide the rear casing

1

 downwards

while pressing on zone

A

;

–  remove the battery cover

2

;

–   remove the battery by pressing on

one side and lifting the other;

–  replace it according to the direc-

tion and template shown inside the

cover.

2

When refitting, proceed in the reverse

order, then press one of the buttons on

the card four times, close to the vehicle:

the next time the vehicle is started, the

message will disappear.
Check that the cover is clipped shut.

Note:

 Do not touch the electronic circuit

or contacts on the card when replacing

the battery.

The batteries are available from ap-

proved Dealers, and their service

life approximately two years. Check

that there is no dye on the battery:

risk of an incorrect electrical con-

tact.

If they need to be replaced,

be sure to use the same

or equivalent type of bat-

tery (consult an Approved

Dealer).

When replacing:
–  make sure that the batter-

ies are correctly inserted.

Risk of explosion

.

–  if the flap does not close cor-

rectly, do not use and keep out of

reach of children.

5.25

ENG_UD64389_2

Carte : pile (HJB - Renault)



Do not throw away your used bat-

teries; give them to an organisation

responsible for collecting and recy-

cling batteries.

Precautions relating to

batteries:

–  keep (new or used) bat-

teries out of reach of chil-

dren;

–   do not swallow batteries;

Risk of chemical burns which

may lead to death

.

– if ingested or inserted into any

part of the body, consult a doctor

as soon as possible.

“HANDS-FREE” CARD: battery

(2/2)

Operating faults

If the battery is too weak to ensure cor-

rect operation, you will still be able to

start and lock/unlock the vehicle

 1.16.

battery

breakdown recovery ............................

(up to the end of the DU)

battery........................................................

(up to the end of the DU)

5.26

ENG_UD77266_2

Batterie : dépannage (HJB - Renault)



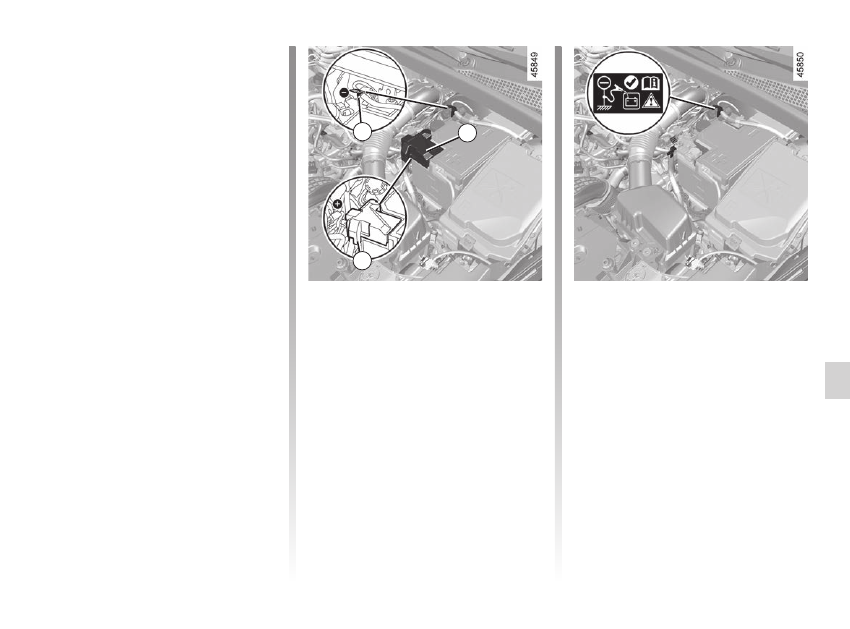

Battery: troubleshooting

BATTERY: troubleshooting

(1/3)

To avoid all risk of sparks:

–  Ensure that any power consumers

(courtesy lights, etc.) are switched

off before disconnecting or recon-

necting a battery;

– when charging, stop the charger

before connecting or disconnecting

the battery;

–  do not place metal objects on the

battery as this could create a short

circuit between the terminals;

– always wait at least five minutes

after the engine has been switched

off before disconnecting a battery;

–  make sure that you reconnect the

battery terminals after refitting.

Connecting a battery charger

The battery charger must be com-

patible with a battery with nominal

voltage of 12 volts.

Do not disconnect the battery when the

engine is running.

Follow the instruc-

tions given by the manufacturer of

the battery charger you are using.

Special procedures may be

required to charge some

batteries. Contact your ap-

proved dealer.

Avoid all risk of sparks which may

cause an immediate explosion, and

charge the battery in a well venti-

lated area.

Risk of serious injury.

Handle the battery with care

as it contains sulphuric acid,

which must not come into

contact with eyes or skin. If

it does, wash the affected area with

plenty of cold water. If necessary,

consult a doctor.
Keep naked flames, red hot objects

and sparks away from the battery

components as there is a

risk of

explosion

.

Please note when working close to

the engine that it may be hot. In ad-

dition, the engine cooling fan may
start at any moment. The



warning light in the engine compart-

ment reminds you of this.

Risk of injury.

Before carrying out any

action in the engine com-

partment, you must switch

off the ignition.

 2.4



 2.6.

5.27

ENG_UD77266_2

Batterie : dépannage (HJB - Renault)



BATTERY: troubleshooting

(2/3)

Starting the vehicle using the

battery from another vehicle

If you have to use the battery from an-

other vehicle to start, obtain suitable

jump leads (with a large cross section)

from an approved dealer or, if you al-

ready have jump leads, ensure that

they are in perfect condition.

The two batteries must have an iden-

tical nominal voltage: 12 volts.

 The

battery supplying the current should

have a capacity (amp-hours, Ah) which

is at least the same as that of the dis-

charged battery.
Ensure that there is no risk of contact

between the two vehicles (risk of short

circuiting when the positive terminals

are connected) and that the discharged

battery is properly connected. Switch

off your vehicle ignition.

3

2

1

Battery in engine compartment

The battery is not directly accessible.
Use the

terminal



1

 (

+

) and the

termi-

nal



2

 (

) in the engine compartment.

Raise the cover

3

 of the

terminal



1

 (

+

).

5.28

ENG_UD77266_2

Batterie : dépannage (HJB - Renault)



Check that there is no con-

tact between leads

A

 and

B



and that the positive lead

A



is not touching any metal

parts on the vehicle supplying the

current.

Risk of injury and/or damage to

the vehicle.

1

2

5

A

B

4

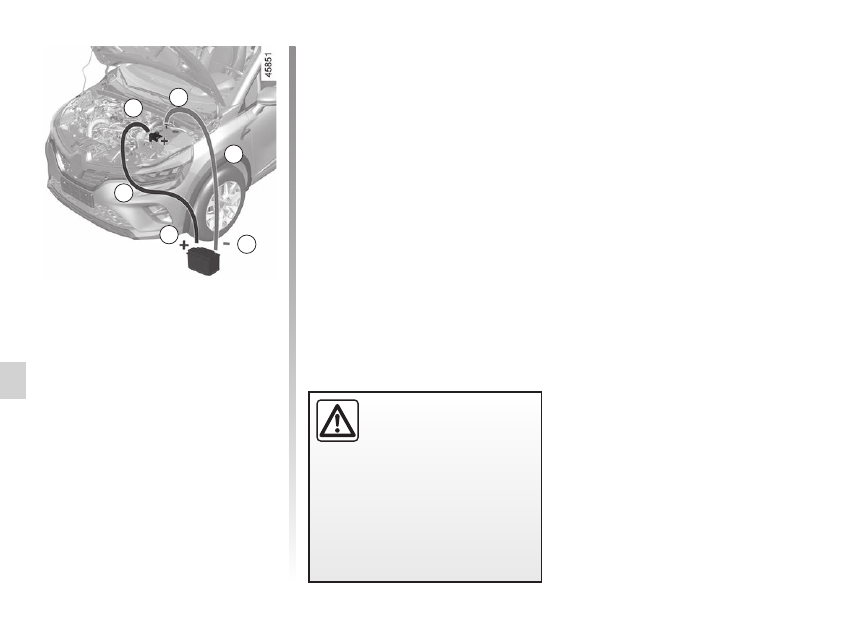

Attach the positive cable

A

 to the

ter-

minal



1

 (

+

) then to the

terminal



5

 (

+

) of

the battery supplying the current.
Attach the negative cable

B

 to the

ter-

minal



4

 (

) of the battery supplying the

current and then to the

terminal



2

 (

).

BATTERY: troubleshooting

(3/3)

Start the engine of the vehicle supply-

ing the current and run it at an interme-

diate engine speed.
If your vehicle’s engine does not start

immediately, switch off the ignition and

wait a few seconds before repeating

the operation.
With the engine running, disconnect

the

A

 and

B

 cables in the reverse order

(

2

 -

4

 -

5

 -

1

).

Reposition the cover

3

 of the termi-

nal

1

 (

+

).

speakers

location ................................................

(up to the end of the DU)

fitting a radio ..............................................

(up to the end of the DU)

fitting a radio ..............................................

(up to the end of the DU)

radio

fitting a radio ........................................

(up to the end of the DU)

equipment

multimedia ...........................................

(up to the end of the DU)

5.29

ENG_UD56676_1

Prééquipement radio (HJB - Renault)



Fitting a radio

FITTING A RADIO

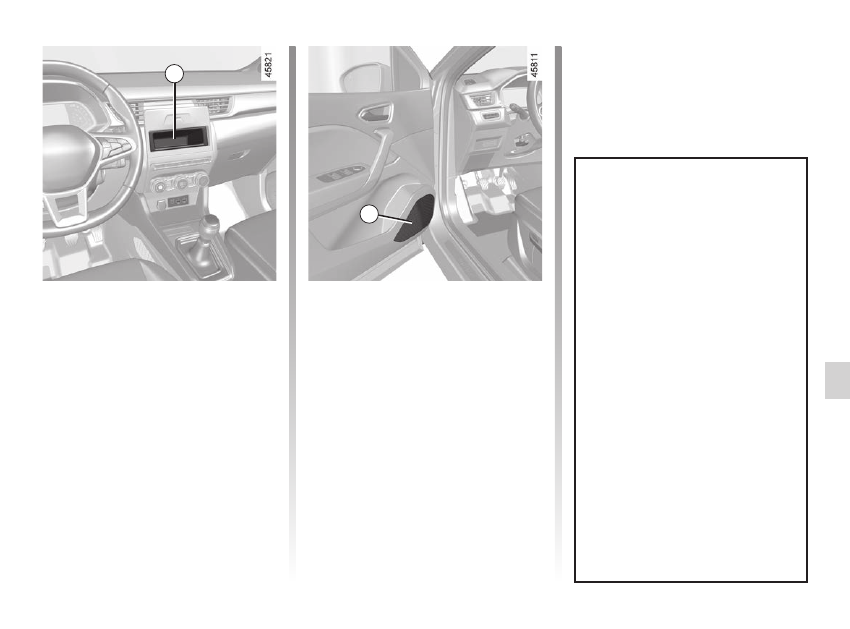

Radio location 1

Unclip the blanking cover. The connec-

tions: ( +  aerial) and ( –  supply and

speaker) are located behind it.

Front door speakers 2

To install any equipment, please con-

sult an authorised dealer.

–  In all cases, it is very important to

follow the manufacturer’s instruc-

tions carefully.

–  The specifications of the brack-

ets and wires (available from our

network) vary depending on the

equipment level of your vehicle

and the type of radio.

  Consult an approved Dealer to

find out the correct part number.

–  No work may be carried out on

the vehicle’s electrical or radio

circuits, except by approved

dealers: an incorrectly connected

system may result in damage

being caused to the electrical

equipment and/or the compo-

nents connected to it.

1

2

accessories................................................

(up to the end of the DU)

accessories - installation ...........................

(up to the end of the DU)

5.30

ENG_UD82508_4

Accessoires (HJB - Renault)



Accessories

INSTALLATION AND USE OF ACCESSORIES:

important recommendations

Electrical and electronic accessories

Before installing this type of accessory (particularly for transmitters/receivers: frequency bandwidth, power level, po-

sition of the aerial, etc.), make sure it is compatible with your vehicle. You can get advice from an authorised dealer.

Before connecting an accessory to a socket, please ensure that you do not exceed the maximum power authorised for

the socket

 3.17

 3.33.

Fire hazard.

Any work on the vehicle’s electrical and/or electronic circuit must only be carried out by a qualified professional. Any incorrect

connection and/or installation of electrical/electronic accessories not approved by the manufacturer may cause:

–  damage to the electrical and/or electronic equipment;

–  damage to the components connected to it;

–  the collection and use of vehicle data;

–  an invasion of privacy (modification, deletion or unwarranted access to personal data).

Risk of serious accidents. Risk of invasion of privacy.

If you have electrical equipment fitted in future, make sure that you are notified of the rating and position of the corresponding

fuse.

Using the diagnostic socket

The use of electronic accessories on the diagnostic socket may cause serious disturbance to the vehicle’s electronic systems

and/or cause invasion of privacy (modification, deletion or unwarranted access to personal data). For your safety we recom-

mend that you use only electronic accessories approved by the manufacturer, consult an Approved Dealer.

Serious accident

risk

Risk of invasion of privacy.

Fitting aftermarket accessories

If you wish to install accessories on the vehicle: please contact an authorised dealer. Also, to ensure the correct operation of

your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your

vehicle, which are the only accessories for which the manufacturer will provide a warranty.

If you are using an anti-theft device, only attach it to the brake pedal.

Obstructions to the driver

On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting reg-

ularly. Do not lay one mat on top of another.

There is a risk of wedging the pedals

operating faults ..........................................

(up to the end of the DU)

fuses ..........................................................

(up to the end of the DU)

faults

operating faults ....................................

(up to the end of the DU)

5.31

ENG_UD74941_4

Fusibles (HJB - Renault)



Fuses

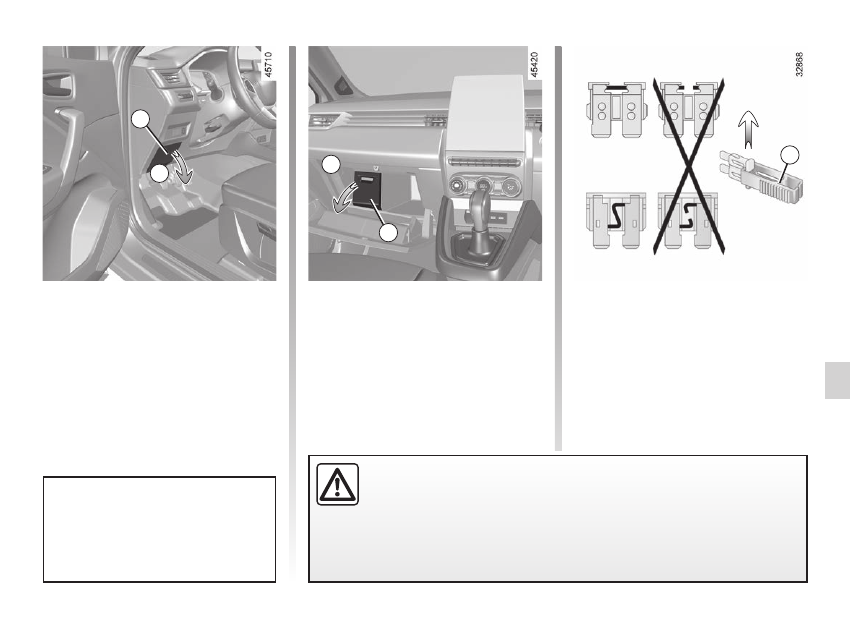

Fuse box

If any electrical component does not

work, check the condition of the fuses.

Passenger compartment fuses A

Unclip the access flap

1

.

FUSES

(1/3)

To comply with current legislation, or

as a precaution, you can obtain an

emergency kit from your approved

dealer containing a set of spare

bulbs and fuses.

Fuses located in the passenger

compartment behind a flap in the B

glovebox

Unclip the access flap

2

.

A

C

Check the fuse in question and

replace it,

 if necessary,

by a fuse of the

same rating.

If a fuse is fitted with too high a rating, it may cause the electrical circuit

to overheat (risk of fire) in the event of an item of equipment using an ex-

cessive amount of current.

1

2

Tweezers 3

Remove the fuse using the tweezers

3



on the back of the flap.

To remove the fuse from the tweezers,

slide the fuse to the side.
It is not advisable to use the free fuse

locations.

B

3

5.32

ENG_UD74941_4

Fusibles (HJB - Renault)



FUSES

(2/3)

Allocation of fuses

(the presence of certain fuse depends on the vehicle equipment level)

Symbol

Allocation

H

Windscreen washer

î

Multimedia accessories socket, multimedia

screen

Æ

Front and rear second row accessories socket

Ì

Horn

Ý

Towbar socket

Heated rear view mirrors

×

Brake lights, passenger compartment central unit

Passenger compartment centre unit, rear wiper,

rear fog light

D

Direction indicator lights, hazard warning lights,

high level brake lights

Use the fuse allocation label in the

storage compartment to identify the

fuses.
Certain fuses should only be re-

placed by a qualified professional.

These fuses are not listed on the

label.
Only change the fuses represented

on the label.

5.33

ENG_UD74941_4

Fusibles (HJB - Renault)



FUSES

(3/3)

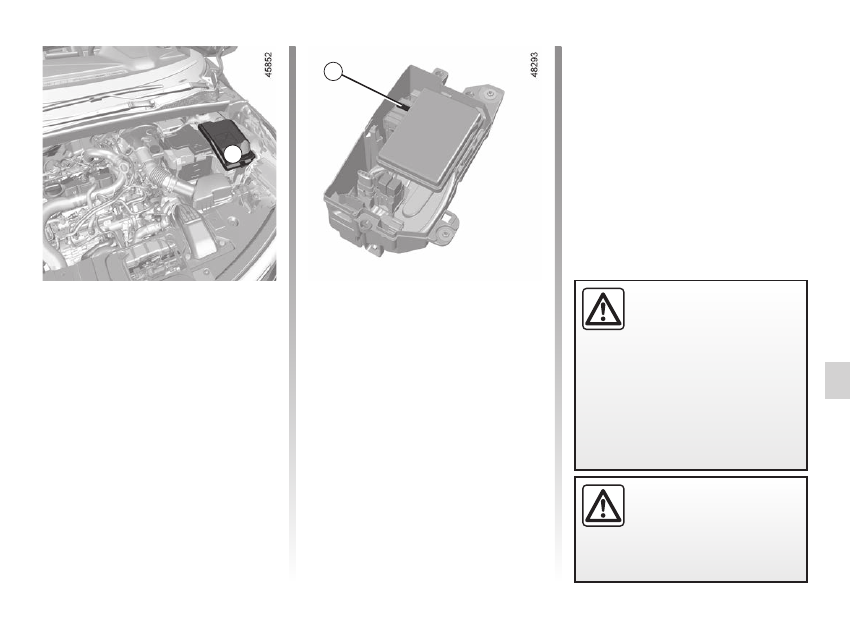

Fuses in engine compartment C

Some functions are protected by fuses

located in the engine compartment

(unit

C

).

However, because of their reduced

accessibility,

we advise you to have

your fuses replaced by an approved

Dealer

.

C

Before carrying out any

action in the engine com-

partment, you must switch

off the ignition.

 2.4 or

 2.6.

Please note when work-

ing close to the engine that

it may be hot. In addition,

the engine cooling fan may

start at any moment. The



warning light in the engine compart-

ment reminds you of this.

Risk of injury.

4

4

 fuse: LPG circuit shut-off.

screen wash/wipe

replacing blades ...................................

(up to the end of the DU)

windscreen washer/wiper ..........................

(up to the end of the DU)

wiper blades ..............................................

(current page)

5.34

ENG_UD61077_2

Balais d essuie-vitres (HJB - Renault)



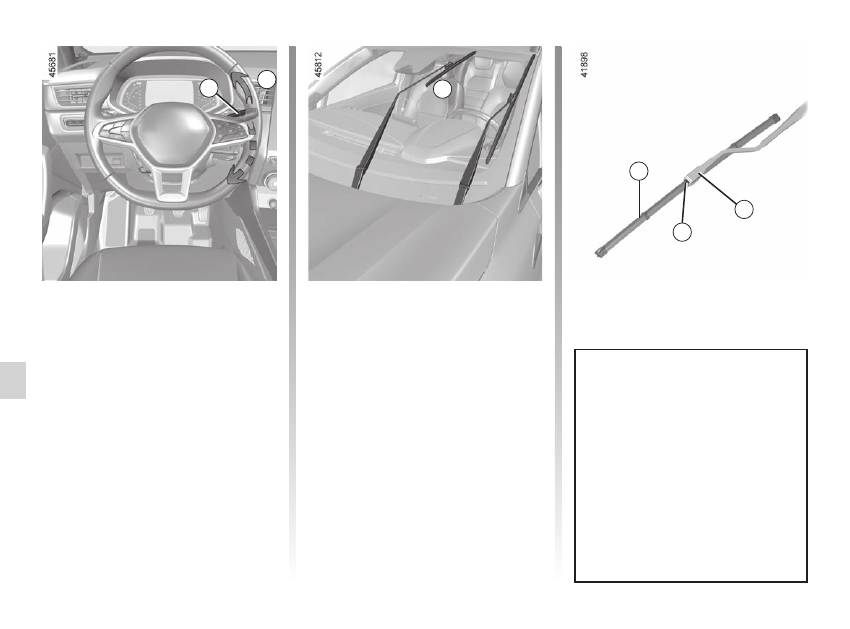

Wiper blades: replacement

WIPER BLADES: replacement

(1/2)

Replacing the windscreen

wiper blades 2

To replace the wipers, first put them in

the service position

B

.

Engine running or ignition on;

–  set the stalk

1

 to position

A

 twice in

succession (single sweep): the wiper

blades will stop in the service posi-

tion

B

 away from the bonnet;

–  lift the wiper arm

3

;

– lower the

4

 tab then remove the

blade

2

.

3

2

4

To refit

To refit the wiper blade

2

, insert it in its

housing in the arm

3

, then clip it until

you hear a click. Make sure that the

blade is correctly locked in position.
To return the blades to lowered posi-

tion, make sure that the blades are

folded down onto the windscreen then

set the

1

 stalk to position

A

 (single

sweep): the windscreen wiper blades

will fold into the bonnet when the igni-

tion is switched on.

1

A

B

Check the condition of the wiper

blades. You are responsible for their

service life:

–  clean the blades, windscreen and

rear screen regularly with soapy

water;

–  do not use them when the wind-

screen or rear screen are dry;

–  free them from the windscreen or

rear screen when they have not

been used for a long time.

5.35

ENG_UD61077_2

Balais d essuie-vitres (HJB - Renault)



WIPER BLADES: replacement

(2/2)

Check the condition of the wiper

blades.
–  clean the blades, windscreen and

rear screen regularly with soapy

water;

–  do not use them when the wind-

screen or rear screen are dry;

–  free them from the windscreen or

rear screen when they have not

been used for a long time.

C

To refit

To refit the wiper blade, proceed in re-

verse order to removal. Make sure that

the blade is correctly locked in position.

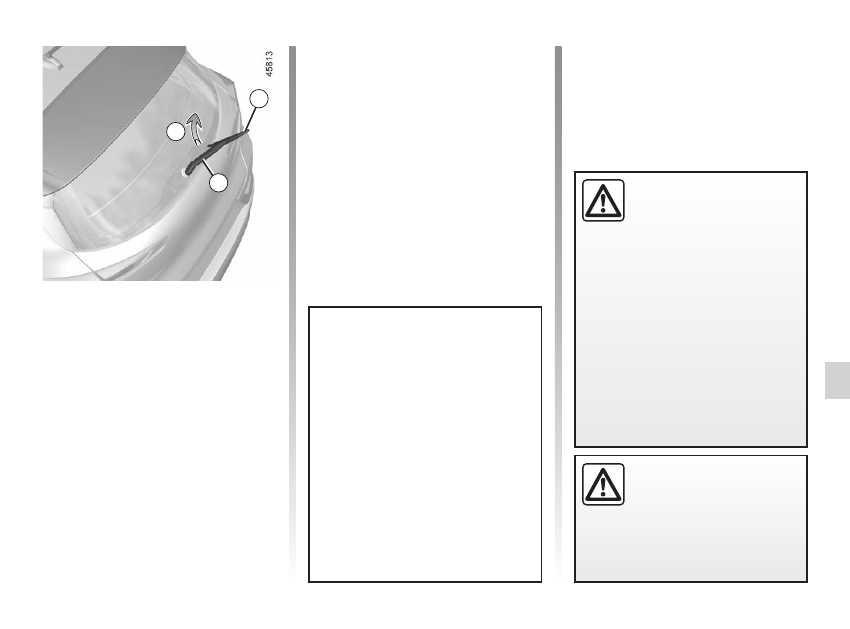

Rear screen wiper blade 5

Stalk in stop position (deactivated):

–  lift the wiper arm

6

;

–  turn the blade horizontally

5

 (move-

ment

C

) until it unclips;

–  remove the blade by pulling it.

6

Before changing the rear

wiper blade, make sure the

stalk is in the stop position

(deactivated).

Risk of injury.

5

– In frosty weather, make

sure that the wiper blades

are not stuck by ice (to

avoid the risk of the motor

overheating).

–   Check the condition of the wiper

blades. Replace the wiper blades

as soon as they begin to lose ef-

ficiency (approximately once a

year).

When changing the blade, when it

has been removed, do not let the

wiper arm fall against the window:

risk of breaking the window.

towing hitch................................................

(up to the end of the DU)

automatic gearbox

breakdown recovery ............................

(current page)

towing

breakdown ...........................................

(up to the end of the DU)

5.36

ENG_UD64391_3

Remorquage : dépannage (HJB - Renault)



Towing

TOWING: breakdown recovery

(1/2)

Before carrying out any towing, posi-

tion the gearbox in neutral position (po-

sition

N

 on vehicles equipped with an

automatic gearbox), unlock the steering

column then release the parking brake.

Steering column unlocking

Insert the key into the ignition, set to

“On” ON

2

 position or, depending on

the vehicle, with the card in the pas-

senger compartment, press the engine

start button for approximately

two sec-

onds

.

Reposition the lever to neutral (position

N

 for vehicles fitted with an automatic

gearbox).
The steering column unlocks, the ac-

cessory functions are powered: you

can use the vehicle’s lights (direction

indicators, brake lights, etc.). At night

the vehicle must have its lights on.
Depending on the vehicle, once you

have finished towing, press the engine

start button twice (risk of running down

the battery).

The speed specified by current legis-

lation for towing must always be ob-

served. If you are driving the towing

vehicle, do not exceed the permissible

towing weight for your vehicle.

 6.9.

Towing a vehicle with an

automatic transmission,

mechanical lever

Transport the vehicle on a trailer or tow

it with the front wheels off the ground.

In exceptional circumstances

, you

may tow it with all four wheels on the

ground, only in a forward gear, with the

gearbox in neutral position

N

, over a

maximum distance of 50 miles (80 km)

and not exceeding a speed of 16 mph

(25 km/h).

When setting off, if the lever is locked in

position

P

 even though you are press-

ing the brake pedal, the lever can be re-

leased manually in order to unlock the

drive wheels.

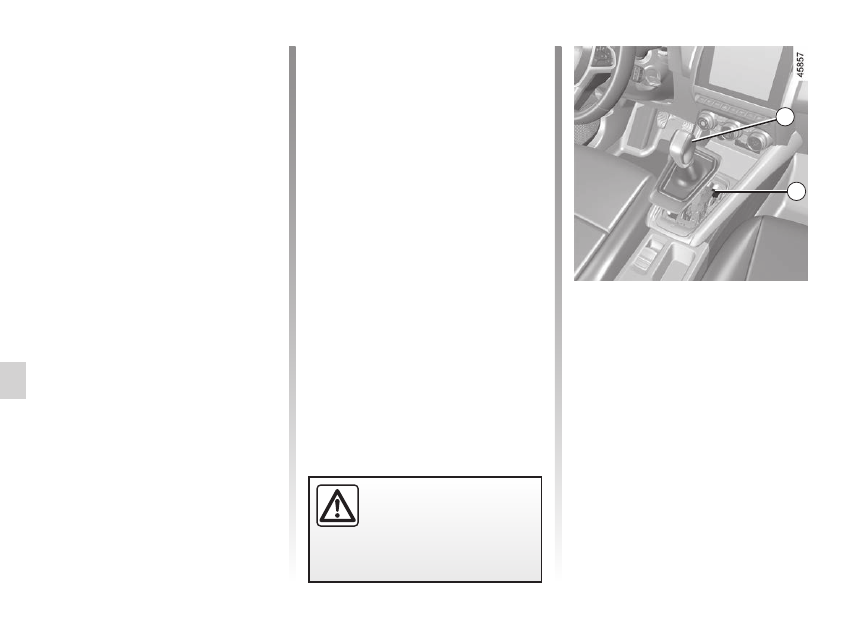

To do this, unclip the base of the gaiter

and press the

2

 button while simultane-

ously pressing the

1

 button on the lever

to unlock the lever.
Contact an authorised dealer as soon

as possible.

2

Leave the card in the vehi-

cle during towing.

Risk of the steering



column locking.

1

5.37

ENG_UD64391_3

Remorquage : dépannage (HJB - Renault)



TOWING: breakdown recovery

(2/2)

Only use the front



3



and rear



towing

points (never use the driveshafts or any

other part of the vehicle). These towing

points may only be used for pulling.

They must never be used for lifting the

vehicle directly or indirectly.

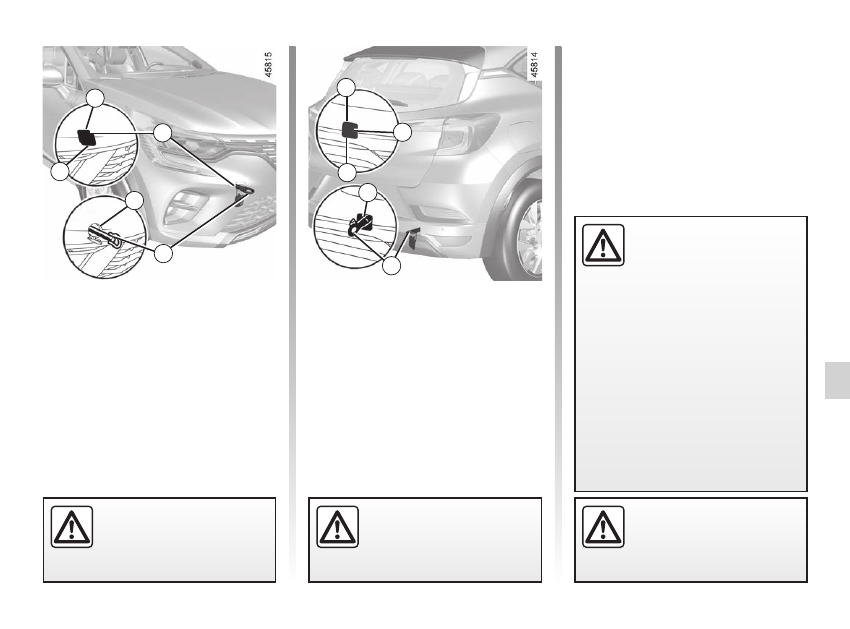

Access to towing points

Front towing point

Press zone

A

 and keep depressed

while pulling zone

B

 to open flap

4

.

Rear towing point

Press zone

C

 and keep depressed

while pulling zone

D

 to open flap

6

.

Do not leave the tools unse-

cured inside the vehicle as

they may come loose under

braking.

Tighten the towing hitch



5



fully:

 first

by hand until it stops, then finish by

locking it with the wheel brace or, de-

pending on the vehicle, the lever.
Only use the towing hitch

5

 and the

wheelbrace or lever provided with the

tools.

 5.7.

– Use a rigid towing bar.

If a rope or cable is used

(where the law allows this),

the vehicle being towed

must be able to brake.

–  A vehicle must not be towed if it is

not fit to be driven.

– Avoid accelerating or braking

suddenly when towing, as this

may result in damage being

caused to the vehicle.

–  In all cases, it is advisable not to

exceed

15.5 mph (25 km/h)

.

When the engine is

stopped, steering and brak-

ing assistance are not oper-

ational.

3

7

5

5

4

A

B

6

C

D

Ensure that the towing eye

is bolted correctly.

Risk of losing the towed

object.

operating faults ..........................................

(up to the end of the DU)

faults

operating faults ....................................

(up to the end of the DU)

5.38

ENG_UD73758_3

Anomalies de fonctionnement (HJB - Renault)



Operating faults

OPERATING FAULTS

(1/7)

Using the card

POSSIBLE CAUSES

WHAT TO DO

The card does not lock or unlock the

doors.

Card battery is flat.

Replace the battery. You will still be able to

lock/unlock and start your vehicle.

 1.16

and

 2.4 or

 2.6.

Use of appliances operating on the

same frequency as the card (mobile

phone, etc.).

Stop using the devices or use the key pro-

vided.

 1.16.

Vehicle located in an area with strong

electromagnetic radiation. Vehicle

battery discharged.

Use the key that is built into the card

 1.16.

The message “Place card on zone +

START” appears on the instrument

panel.

Place the card in the placement area

 2.6 then press the START button.

The vehicle is started.

With the engine running, the card’s locking/

unlocking device is blocked. Turn off the ig-

nition.

Desynchronisation of the card

Unlock the driver’s door by inserting the

key integrated in the card into the door lock

 1.16 then place the card in the placement

area

 2.6 and press the START button to

synchronise the card.

5.39

ENG_UD73758_3

Anomalies de fonctionnement (HJB - Renault)



The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact

an approved dealer as soon as possible.

Using the remote control

POSSIBLE CAUSES

ACTION REQUIRED

The remote control does not lock or

unlock the doors.

The remote control battery is flat.

Use the emergency key.

Use of appliances operating on the same

frequency as the remote control (mobile

phone, etc.).

Stop using the devices or use the key.

Vehicle located in a high electromagnetic

radiation zone.

Discharged battery.

Replace the battery. You will still be able to

lock/unlock and start your vehicle.

 1.16

and

 2.4 or

 2.6.

The vehicle is started.

With the engine running, the key’s locking/

unlocking device is blocked. Turn off the

ignition.

Desynchronisation of the remote control

Unlock the driver’s door by inserting the

key into the door lock

 1.16, then start the

engine to synchronise the remote control

 2.4 or

 2.6.

OPERATING FAULTS

(2/7)

5.40

ENG_UD73758_3

Anomalies de fonctionnement (HJB - Renault)



OPERATING FAULTS

(3/7)

The starter is activated

POSSIBLE CAUSES

ACTION REQUIRED

The instrument panel indicator lights are

weak or fail to light up and the starter

does not turn.

Battery terminals not tight, bat-

tery terminals disconnected or

oxidised.

Retighten or reconnect the terminals, or clean them if

they are oxidised.

Discharged battery or not op-

erational.

Connect another battery to the faulty battery

 5.26 or

replace the battery if necessary.

Do not push the vehicle if the steering column is

locked.

Faulty circuit.

Consult an approved dealer.

The engine will not start.

Starting conditions are not ful-

filled.

 2.4 or

 2.6.

The “hands-free” card does not

work.

Place the card in the recess provided for this purpose

on the centre console

 2.4 or

 2.6.

With the vehicle stationary, engine cold,

the engine’s idle speed is high.

Petrol version, this is not nec-

essarily a fault. This may be

caused by the increase in the

engine temperature.

The engine’s idle speed should decrease after about

one minute. Otherwise, this may be caused by an-

other fault. Call an approved Dealer.

The engine cannot be switched off.

Card not detected.

Place the card in the recess provided for this purpose

on the centre console.

Press and hold the start button.

Electronic fault.

Press the start button 3 times quickly or press and

hold.

The steering column remains locked.

Steering wheel locked.

Move the steering wheel while pressing the engine

start button (or, depending on the vehicle, operating

the ignition key)

 2.4.

Faulty electrical circuit.

Consult an approved dealer.

5.41

ENG_UD73758_3

Anomalies de fonctionnement (HJB - Renault)



OPERATING FAULTS

(4/7)

On the road

POSSIBLE CAUSES

WHAT TO DO

Vibrations.

Tyres not inflated to correct pres-

sures, incorrectly balanced or dam-

aged.

Check the tyre pressures: if this is not the

problem, have them checked by an ap-

proved Dealer.

White smoke from the exhaust.

In the diesel version, this is not neces-

sarily a fault. Smoke may be caused

by particle filter regeneration.

 2.18.

Petrol version, this is not necessarily

a fault. Depending on the climate con-

ditions (cold, humidity etc.), smoke

may be produced under hard vehicle

acceleration.

Reduce the engine speed and avoid

sudden acceleration to gradually make the

smoke disappear. Otherwise, this may be

caused by another fault. Consult an ap-

proved dealer.

Smoke under the bonnet.

Short-circuit or cooling system leak.

Stop, switch off the ignition, stand away

from the vehicle and contact an approved

dealer.

The oil pressure warning light comes

on:

while cornering or braking.

The level is too low.

Top up the engine oil

 4.5.

is slow to go out or remains lit up

under acceleration.

Loss of oil pressure.

Stop the vehicle and contact an approved

Dealer.

5.42

ENG_UD73758_3

Anomalies de fonctionnement (HJB - Renault)



OPERATING FAULTS

(5/7)

On the road

POSSIBLE CAUSES

WHAT TO DO

Steering becomes heavy.

Assistance overheating.

Drive carefully at reduced speed, be aware

of the level of force in the steering wheel

needed to turn the wheels.

Fault with the electric assistance

motor.
Fault in the assistance system

Consult an authorised dealer.

The engine is overheating. The

coolant temperature indicator is in

the warning zone and warning light

®

 comes on.

Engine cooling fan not working.

Stop the vehicle, switch off the engine and

contact an approved dealer.

Coolant leaks.

Check the coolant reservoir: it should con-

tain fluid. If there is no coolant, consult an

authorised dealer as soon as possible.

Coolant boiling in the coolant reser-

voir.

Mechanical fault: damaged cylinder

head gasket.

Stop the engine.

Contact an approved dealer.

Radiator:

 In the event of a significant lack of coolant, remember that you must never top up using cold coolant while

the engine is very hot. After any procedure on the vehicle which has involved even partial draining of the cooling

system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved

by our Technical Department may be used for this purpose.

5.43

ENG_UD73758_3

Anomalies de fonctionnement (HJB - Renault)



OPERATING FAULTS

(6/7)

Electrical equipment

POSSIBLE CAUSES

WHAT TO DO

The wipers do not work.

Wiper blades stuck.

Free the blades before using the wipers.

Faulty electrical circuit.

Consult an approved dealer.

Fuse damaged.

Replace the fuse or have it replaced

 5.31.

The wiper does not stop.

Faulty electrical controls.

Consult an approved dealer.

Direction indicators flashing more

quickly.

Blown rear bulb.

 5.16.

The direction indicators do not work.

Faulty electrical circuit or control.

Consult an approved dealer.

Fuse damaged.

Replace the fuse or have it replaced

 5.31.

The lights do not come on or go off.

Faulty electrical circuit or control.

Consult an approved dealer.

Fuse damaged.

Replace the fuse or have it replaced

 5.31.

5.44

ENG_UD73758_3

Anomalies de fonctionnement (HJB - Renault)



OPERATING FAULTS

(7/7)

Electrical equipment

POSSIBLE CAUSES

WHAT TO DO

Traces of condensation in the head-

lights or rear lights.

Traces of condensation may be a nat-

ural phenomenon caused by varia-

tions in temperature and humidity.
In this case, the traces will disappear

slowly once the lights are switched

on.

The front seat belt reminder light

comes on when the seat belts are

fastened.

An object is stuck between the floor

and the seat and is disrupting the op-

eration of the sensor.

Remove all objects from underneath the

front seats.

6.1

ENG_UD82514_11

Sommaire 6 (HJB - Renault)



Section 6: Technical Specifications

Vehicle identification plate  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6.2

Technical Information for the emergency services   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6.3

Engine identification   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6.4

Dimensions  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6.5

Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6.6

Weights  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6.9

Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9

Replacement parts and repairs  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6.10

Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6.11

Anticorrosion check  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6.17

vehicle identification plates ........................

(up to the end of the DU)

6.2

ENG_UD77264_2

Plaques d’identification véhicule (HJB - Renault)



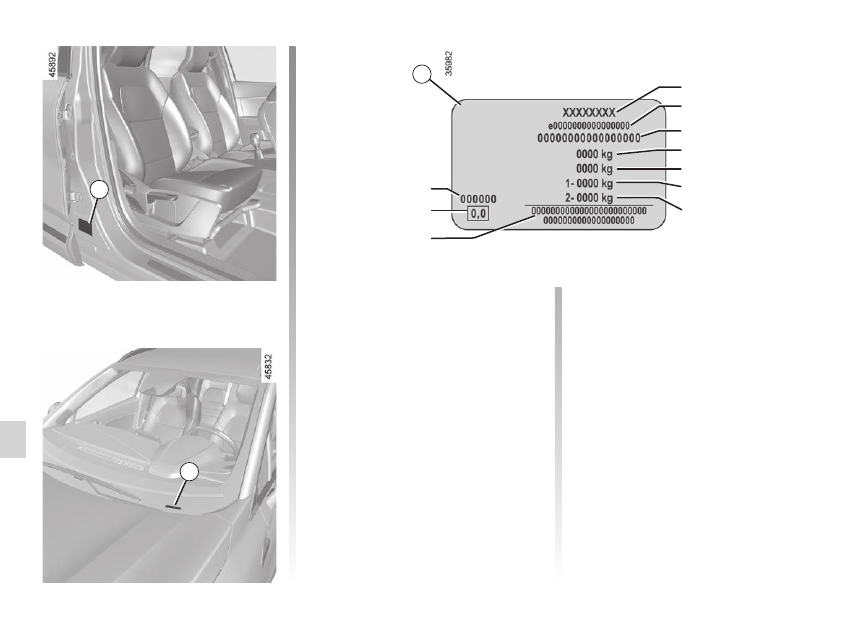

Vehicle identification plate

VEHICLE IDENTIFICATION PLATES

A

B

The information shown on the ve-

hicle identification plate should be

quoted on all correspondence or

orders.
The presence and location of the in-

formation depends on the vehicle.
Vehicle identification plate A



1

  Manufacturer name.



2

  EC design number or approval

number.



3

  Identification number.

Depending on the vehicle, this

information is also given on

marking



B.



4

 MMAC (Maximum permissible



all-up weight).



5

  MTR (Gross train weight: vehicle

fully loaded, with trailer).



6

 MMTA (Maximum Permissible



Weight) front axle.



7

  MMTA rear axle.



8

  Reserved for related or additional

entries.



9

  Diesel exhaust emissions.

Depending on the vehicle, this

information is not indicated on

the manufacturer’s plate but on

the engine smoke opacity label



 2.18

.



10

  Paint reference (colour code).

A

9

7

8

10

5

1

2
3

4

6

QR Code ...................................................

(up to the end of the DU)

6.3

ENG_UD73750_1

Informations techniques pour les secours (HJB - Renault)



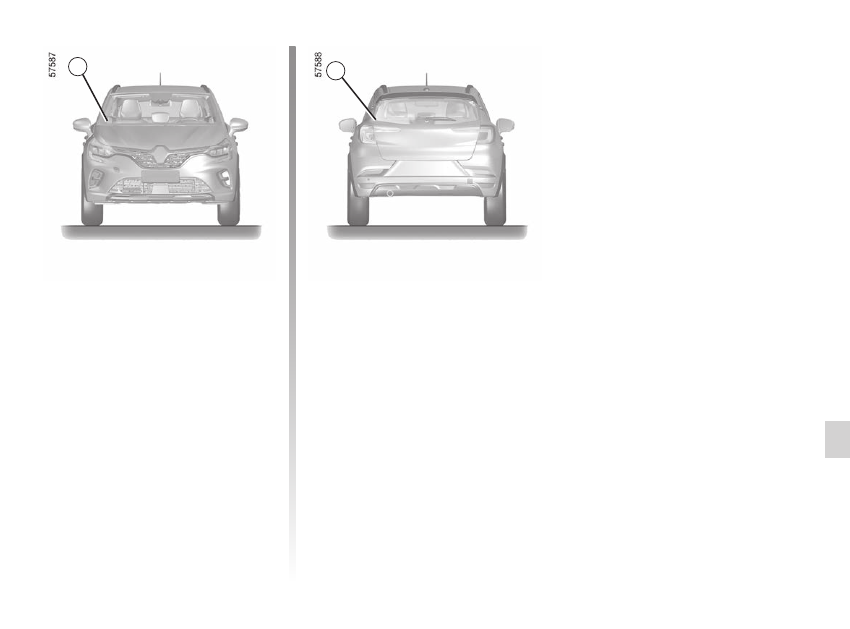

Technical Information for the emergency services

TECHNICAL INFORMATION FOR THE EMERGENCY SERVICES

The QR Code on the

A

 label allows

emergency workers using a tablet or

smartphone to immediately access the

technical information useful for working

on the vehicle in the event of an acci-

dent.
Ensure that the

A

 label is always visible

and present on the windscreen as well

as the rear screen.

Any modification or damage would

prevent access to the information.

A

A

engine specifications .................................

(up to the end of the DU)

engine identification ...................................

(current page)

6.4

ENG_UD71337_3

Plaques d’identification moteur (HJB - Renault)



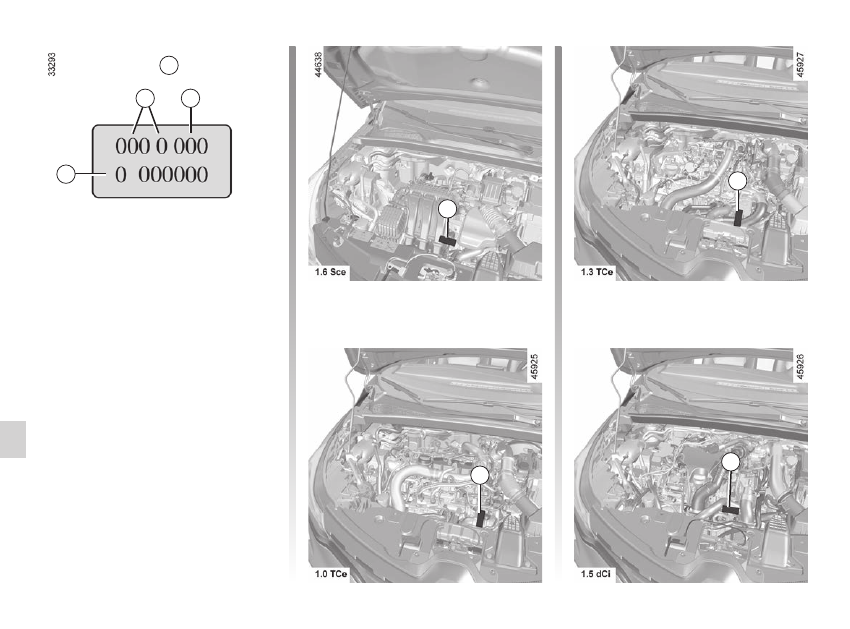

Engine identification

Please quote the engine identifica-

tion information in area



A



in all cor-

respondence or orders.

(Location varies depending on engine)



1

  Engine type.



2

  Engine suffix.



3

  Engine serial number.

ENGINE IDENTIFICATION

A

A

A

A

2

1

3

A

technical specifications ..............................

(up to the end of the DU)

dimensions ................................................

(up to the end of the DU)

6.5

ENG_UD56686_1

Dimensions (en mètres) (HJB - Renault)



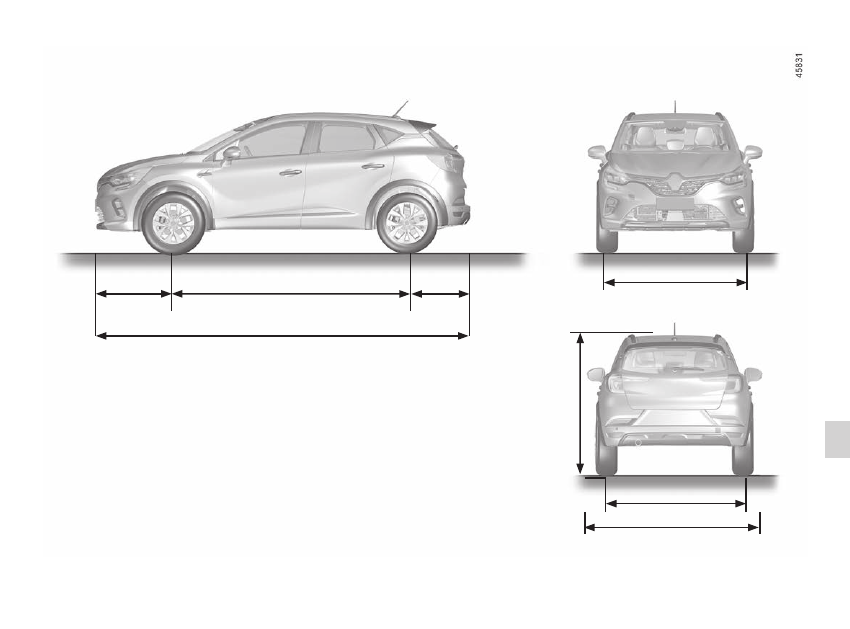

Dimensions

1,576* à 1,585*

1,554

0,876

2,639

0,712

4,227

DIMENSIONS (in metres)

1,541

2,003

* unladen

technical specifications ..............................

(up to the end of the DU)

engine

technical specifications ........................

(up to the end of the DU)

engine specifications .................................

(up to the end of the DU)

6.6

ENG_UD61234_2

Caractéristiques moteurs (HJB - Renault)



Engine specifications

ENGINE SPECIFICATIONS

(1/3)

Versions

1.6 SCe

1.0 TCe

1.3 TCe

1.5 dCi

Engine type

(see engine plate)

H4M

H4D Turbo

H5H Turbo

K9K Turbo

Cubic capacity

 (cc)

1598

999

1 330

1461

Type of fuel

Octane rating

Petrol
You

must

 use unleaded petrol with the octane

rating stated on the label inside the fuel filler

flap.

 1.108.

Diesel

The label located in the fuel filler flap indicates

the authorised fuels.

6.7

ENG_UD61234_2

Caractéristiques moteurs (HJB - Renault)



ENGINE SPECIFICATIONS

(2/3)

Versions

1.6 SCe

1.0 TCe

1.3 TCe

1.5 dCi

Engine type

(see engine plate)

H4M

H4D Turbo

H5H Turbo

K9K Turbo

Cubic capacity

 (cc)

1598

999

1 330

1461

Fuel types that meet

European standards and are

compatible with the engines

of vehicles sold in Europe



(in any other case, contact an

Approved Dealer).

Unleaded petrol compliant with

standard

EN 228

 contains up

to 5% ethanol in volume.

Diesel fuel compliant with stand-

ard

EN 590

 contains up to 7%

fatty acid methyl ester in volume.

Unleaded petrol compliant with

standard

EN 228

 contains up

to 10% ethanol in volume.

Diesel fuel compliant with stand-

ard

EN 16734

 contains up to 10%

fatty acid methyl ester in volume.

Diesel fuel compliant with stand-

ard

EN 15940

 contains up to 7%

acid methyl ester in volume.

6.8

ENG_UD61234_2

Caractéristiques moteurs (HJB - Renault)



ENGINE SPECIFICATIONS

(3/3)

Versions

1.6 SCe

1.0 TCe

1.3 TCe

1.5 dCi

Engine type

(see engine plate)

H4M

H4D Turbo

H5H Turbo

K9K Turbo

Cubic capacity

 (cc)

1598

999

1 330

1461

Spark plugs

Only use the spark plugs specified for your vehicle’s

engine.
The type should be marked on a label affixed inside

the engine compartment. If it is not then contact an

approved Dealer.
Fitting spark plugs other than those specified may

damage the engine.

technical specifications ..............................

(up to the end of the DU)

towing a caravan .......................................

(up to the end of the DU)

towing weights ...........................................

(up to the end of the DU)

weights ......................................................

(up to the end of the DU)

transporting objects

on the roof ............................................

(up to the end of the DU)

load permitted on the roof..........................

(up to the end of the DU)

6.9

ENG_UD56688_1

Masses (en kg) (HJB - Renault)



Weights

Towing weights

WEIGHTS (in kg)

The weights indicated for a basic vehicle without options: they vary depending on your vehicle’s equipment. Consult

your approved Dealer.

Maximum Authorised Mass (MMAC)

Maximum Permissible Weight (MMTA)

Gross Train Weight (MTR)

Weights indicated on the vehicle identification plate

 6.2

Braked Trailer Weight*

found by calculating:

MTR - MMAC

Unbraked Trailer Weight*

630 kg

Permissible nose weight*

75 kg

Maximum permissible load on roof

80 kg (including carrying device)

* Towing weight (towing a caravan, boat, etc.)

Towing is prohibited when the MTR - MMAC calculation is equal to zero, or when the MTR is equal to zero (or is not listed) on

the identification plate.

–  It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in

the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.

–  When towing, under no circumstances may

the total train weight (vehicle + trailer) be exceeded

. However the following is

permitted:

–  rear axle MMTA exceeded by no more than 15%,

–  maximum MMAC exceeded by no more than 10% or 100 kg (whichever is reached first).

  In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 km/h) and the tyre pressures must

be increased by 0.2 bar (3 PSI).

–  The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by

10% at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.

technical specifications ..............................

(up to the end of the DU)

replacement parts ......................................

(up to the end of the DU)

6.10

ENG_UD56689_1

Pièces de rechange et réparations (HJB - Renault)



Replacement parts and repairs

Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same

level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out

within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the

repair order.

REPLACEMENT PARTS AND REPAIRS















Content      ..     10      11      12
