Renault Zoe (2022 year). Manual in english - page 3





SEAT BELTS (2/5)
Depending on the vehicle, if the seat is
occupied and one of the seat belts is not
fastened or becomes unfastened while
the vehicle is moving at a speed over
approximately 12 mph (20 km/h), the
6
warning light flashes and a beep
sounds for approximately 120 seconds.
1
Note: an object placed on the passen-
ger seat base may, in some cases, ac-
tivate the warning light and an audible
3
warning.
4
5
5
Locking
Unlocking
Unwind the belt slowly and smoothly
Press button 4 and the seat belt will be
and ensure that buckle 3 locks into
rewound by the inertia reel. Guide the
catch 5 (check that it is locked by pull-
belt.
ing on buckle 3). If the belt jams, allow
Driver’s seat belt reminder
it to return slightly before attempting to
and, depending on the vehi-
unwind it again.
cle, front passenger seat belt re-
If your seat belt is completely jammed,
minder
pull slowly, but firmly, so that just over
This appears on the central display 6
3 cm unwinds. Allow it to return slightly
when the ignition is switched on and if
before attempting to unwind it again.
the driver’s or front passenger’s seat
If there is still a problem, contact an ap-
belt (when the passenger seat is occu-
proved dealer.
pied) is not fastened.
1.42
SEAT BELTS (3/5)
Understanding the graphic 7:
- indicator green: seatbelt fastened;
- indicator red: seatbelt unfastened.
If a rear seat belt is or becomes unfas-
tened while the vehicle speed is above
approximately 12 mph (20 km/h), the
8
ß
warning light 6 flashes on the
central display and the indicator for the
seat concerned appears in red on the 7
graphic, accompanied by a beep last-
7
ing approximately 30 seconds.
In all cases, ensure that all rear pas-
sengers are wearing seat belts and
that the number of seat belts shown as
Rear seat belt reminder
Adjusting the height of the
fastened matches the number of rear
(depending on the vehicle)
seats occupied.
front seat belts
The ß
warning light is displayed on
Note: an object placed on the passen-
Press the button 8 to adjust the seat
the central display 6 each time the igni-
ger seat base may, in some cases, ac-
belt height, so that the shoulder strap 1
tion is switched on.
tivate the warning light and an audible
is worn as shown previously. Press
It is accompanied by the 7 graphic
warning.
button 8 and raise or lower the seat
which informs the driver (during 60 sec-
belt. Make sure that the seat belt is
onds) of the fastening status of each of
locked in position correctly after you
the rear seat belts each time:
have adjusted it.
- the ignition is switched on;
- opening a door;
- a rear seat belt is fastened or unfas-
tened.
1.43
SEAT BELTS (4/5)
11
10
9
12
11
14
13
Rear side seat belts 9
Rear centre seat belt
Fasten sliding buckle 12 into the corre-
sponding red catch 14.
The belts are locked, unlocked and
Unwind belt 10 slowly from its housing,
adjusted in the same way as the front
then fasten buckle 11 into the corre-
belts.
sponding black catch 13.
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
1.44
SEAT BELTS (5/5)
The following information applies to the vehicle’s front and rear seat belts.
- No modification may be made to the component parts of the originally fitted restraint system: seat belts, seats and
their mountings. For special operations (e.g. fitting child seats), contact an authorised dealer.
- Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too
loosely may cause injury in the event of an accident.
-
Never wear the shoulder strap under your arm or behind your back.
Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around
them.
- The belt should never be twisted.
Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as
they show any signs of wear.
-
When the rear bench seat is being put back, make sure that the seat belts and buckles are correctly positioned so that they
can be used properly.
-
Make sure that the buckle is inserted into the appropriate catch.
Ensure that no objects are placed in the area around the seat belt catch as they could prevent it from being properly se-
cured.
-
Make sure the seat belt catch is properly positioned (it should not be hidden away, crushed or flattened by people or ob-
jects).
1.45
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/6)
They are comprised of:
- Have the entire restraint
- seat belt inertia reel pretension-
system checked following
ers;
an accident.
- chest-level load limiters;
- No operation whatso-
- airbags anti-submarining;
ever is permitted on any part
- airbags - Driver and passenger
of the system
(pretensioners,
front
airbags, computers, wiring) and
the system components must not
These systems are designed to act in-
be reused on any other vehicle,
dependently or together when the vehi-
even if identical.
cle is subjected to a frontal impact.
-
Only qualified personnel from our
Depending on the severity of the
Network may work on the airbags;
impact, the system can trigger:
otherwise the system may trigger
1
- seat belt locking;
accidentally and cause injury.
- the seat belt inertia reel pretensioner
Pretensioners
-
The electric trigger system may
(which engages to correct seat belt
only be tested by a specially
The pretensioners hold the seat belt
slack);
trained technician using special
against the body, holding the occupant
equipment.
- the front airbag.
more securely against the seat, thus in-
-
When the vehicle is scrapped,
creasing the seat belt’s efficiency.
contact an approved dealer for
With the ignition on, following a signif-
disposal of the pretensioner and
icant frontal impact and depending on
airbags gas generators.
the severity of the impact, the system
may trigger the seat belt inertia reel
pretensioner 1, which instantly retracts
the seat belt.
1.46
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (2/6)
Load limiter
Driver and passenger front
Above a certain severity of impact, this
Airbag
mechanism is used to limit the force of
Fitted to the driver and passenger side.
the belt against the body so that it is at
A
The presence of this equipment is indi-
an acceptable level.
cated by the word “airbag" on the steer-
ing wheel, dashboard (in area airbag A)
Airbaganti-submarining
and, depending on the vehicle, a label
on the lower section of the windscreen.
Located on each of the front seats, it
deploys in order to prevent the occu-
Each airbag system consists of:
pant from sliding under the seat belt.
-
an airbag and gas generator fitted on
the steering wheel for the driver and
in the dashboard for the passenger;
-
an electronic unit for system monitor-
ing which controls the gas generator
electrical trigger system;
-
remote sensors;
a single warning light å
on the
instrument panel.
The airbag system uses py-
rotechnic principles. This
explains why, when the
airbag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a banging noise. In a situ-
ation where an airbag is required, it
will inflate immediately and this may
cause some minor, superficial graz-
ing to the skin or other problems.
1.47
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/6)
Operating faults
å
This warning light will light up
on the instrument panel when the igni-
tion is switched on and then go out after
a few seconds.
If it does not light up when the ignition
is switched on, or comes on when the
engine is running, there is a fault in the
system.
Contact your approved Dealer as soon
as possible.
Your protection will be reduced until this
fault is rectified.
Operation
This system is only operational when
the ignition is switched on.
In a severe frontal impact, the airbags
inflate rapidly, cushioning the impact
of the driver's head and chest against
the steering wheel and of the front pas-
senger against the dashboard. The air
bags then deflate immediately so that
the passengers are not in any way hin-
dered from leaving the vehicle.
1.48
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/6)
The following conditions will trigger
In a frontal impact with another vehi-
In a side impact with another vehicle
the pretensioners or airbags.
cle of an equivalent or higher category,
of an equivalent or higher category, at
with an impact area equal to or greater
an impact speed equal to or greater
In a frontal impact against a rigid
than 40%, where the speed of both ve-
than 31 mph (50 km/h).
(non-deformable) surface at an impact
hicles is equal to or greater than 25
speed equal to or greater than 16 mph
mph (40 km/h).
(25 km/h).
1.49
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (5/6)
In the following examples, the pre-
In the following examples, the pre-
- side impact, affecting the front of the
tensioners or the airbags could op-
tensioners or airbags might not op-
vehicle;
erate:
erate:
- frontal impact, under the tail of a lorry;
- impacts to the underside of the vehi-
- rear impact, however severe;
- frontal impact against an obstacle
cle, e.g. from kerbs;
- the vehicle overturning;
with a sharp angle;
- potholes;
- ...
- a fall or a hard landing;
- stones;
- ...
1.50
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (6/6)
All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when it inflates.
Warnings concerning the driver’s airbag
- Do not modify the steering wheel or the steering wheel boss.
- Do not cover the steering wheel boss under any circumstances.
- Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.
- The steering wheel must not be removed (except by qualified personnel from our Network).
- Do not sit too close to the steering wheel: adopt a driving position whereby your arms are slightly folded ➥ 1.41. This will
allow sufficient space for the airbag to deploy correctly and be fully effective.
Warnings concerning the passenger airbag
- Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard on or near the airbag.
- Do not place anything between the dashboard and the passenger (pet, umbrella, walking stick, parcels, etc.).
- The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. In
general, parts of the body should be kept away from the dashboard (knees, hands, head, etc.).
- The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure
the protection of the passenger in the event of an impact.
A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE
RESTRAINT SYSTEMS IN ADDITION TO THE FRONT PASSENGER SEATBELT ARE DEACTIVATED ➥ 1.69.
Warnings concerning the anti-submarining airbag
Do not let a child under the age of 12 sit in this seat. When triggered, the anti-submarining airbag may project objects left on
the seat base with a great deal of force.
Risk of serious injury.
1.51
METHODS OF RESTRAINT IN ADDITION TO THE REAR SIDE SEAT BELTS
Force limiter
Above a certain severity of impact, this
mechanism is used to limit the force of
the belt against the body so that it is at
an acceptable level.
- Have the entire restraint
system checked following
an accident.
- No operation whatsoever
is permitted on any part of the
system (airbags, electronic units,
wiring) and the system compo-
nents must not be reused on any
other vehicle, even if identical.
- Only qualified personnel from our
Network may work on the airbags;
otherwise the system may trigger
accidentally and cause injury.
1.52

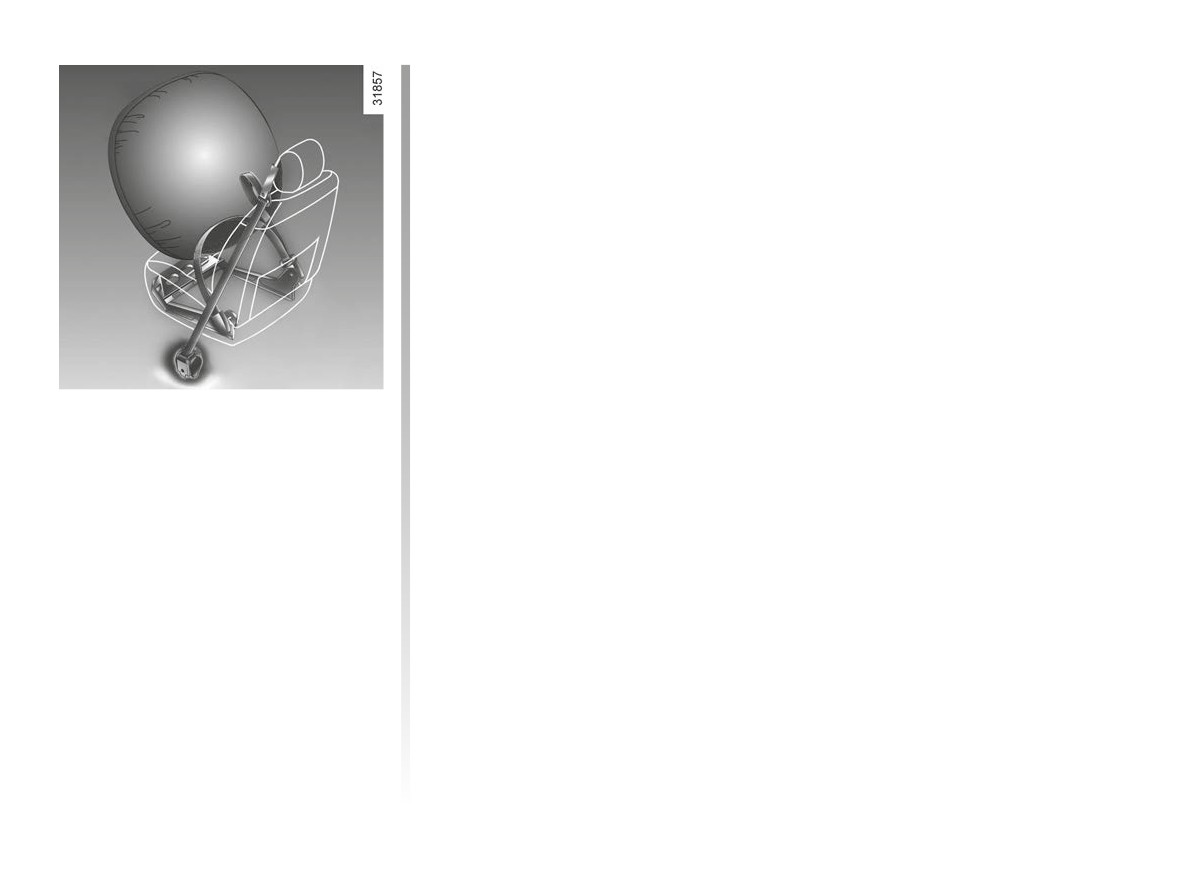

SIDE PROTECTION DEVICES
Side Airbags
This airbag is fitted to the front seats,
activated at the sides of the seats (door
side) to protect the occupants in the
event of a severe side impact.
Warning relating to the side airbag
- Fitting seat covers: seats equipped with an airbag require covers spe-
cifically designed for your vehicle. Contact an approved dealer to find
out if these covers are available. The use of any covers other than those
designed for your vehicle (including those designed for another vehicle) may
affect the operation of the airbags and reduce your protection.
- Do not place any accessories, objects or even pets between the seatback, the
door and the internal fittings. Do not cover the seatback with objects such as
clothes or accessories. This may prevent the airbag from operating correctly or
cause injury when the airbag is deployed.
- No work or modification whatsoever may be carried out on the seat or internal
fittings, except by qualified personnel from an approved dealer.
- The space between the seatback of the rear bench seat and the trim is the
area of airbag operation: no objects must be placed here.
Depending on the vehicle, a mark-
ing on the windscreen informs you
of the presence of additional means
of restraint (airbags, pretensioners,
etc.) in the passenger compartment.
1.53
ADDITIONAL METHODS OF RESTRAINT
All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when it inflates.
The airbag is designed to complement the action of the seat belt. Both the airbag and the seat belt are integral parts
of the same protection system. It is therefore essential to wear seat belts at all times. If seat belts are not worn, the oc-
cupants are exposed to the risk of serious injury in the event of an accident. It may also increase the risk of minor su-
perficial injuries occurring when the airbag is deployed, although such minor injuries are always possible with airbags.
If the vehicle should overturn or suffer a rear impact, however severe, the pretensioners and airbags are not always triggered.
Shocks to the underbody of the vehicle, from pavements, potholes, stones etc. can all trigger these systems.
- Work and modifications on the complete airbag system (airbags, pretensioners, ECU, wiring harness, etc.), are strictly pro-
hibited (except by qualified Network personnel).
- To ensure that the system is in good working order and to avoid accidental triggering of the system which may cause injury,
only qualified Network personnel may work on the airbag system.
- As a safety precaution, have the airbag system checked if your vehicle has been involved in an accident, or is stolen or
broken into.
- When selling or lending the vehicle, inform the user of these points and hand over this driver’s handbook with the vehicle.
- When scrapping your vehicle, contact your approved dealer for disposal of the gas generator(s).
1.54
CHILD SAFETY: General information (1/2)
Carrying children
Please ensure that you comply with the
legislation of your country.
Children, and adults, must be correctly
seated and strapped in for all journeys.
The children being carried in your vehi-
cle are your responsibility.
Driver’s responsibility
A child is not a miniature adult. Children
when parking or stopping
are at risk of specific injuries as their
the vehicle
muscles and bones have not yet fin-
ished growing. The seat belt alone
Never leave an animal,
would not provide suitable protection.
child or adult who is not self-suffi-
Use an approved child seat and ensure
cient alone on your vehicle, even for
you use it correctly.
a short time.
They may pose a risk to themselves
or to others by starting the engine,
A collision at 30 mph (50
activating equipment such as the
km/h) is the same as fall-
electric windows or by locking the
ing a distance of 10 metres.
doors.
Transporting a child without
Also, in hot and/or sunny weather,
a restraint is the equivalent of allow-
please remember that the tempera-
ing him or her to play on a fourth-
ture inside the passenger compart-
floor balcony without railings.
ment increases very quickly.
Never travel with a child held in your
arms. In the event of an accident,
RISK OF DEATH OR SERIOUS
you will not be able to keep hold of
INJURY.
the child, even if you yourself are
wearing a seat belt.
If your vehicle has been involved in
To prevent the doors being
a road accident, replace the child
opened, use the “Child lock”
seat and have the seat belts and
feature. ➥ 1.30.
ISOFIX anchorage points checked.
1.55
CHILD SAFETY: General information (2/2)
Using a child seat
Set a good example by always fas-
The level of protection offered by the
tening your seat belt and teaching
child seat depends on its ability to re-
your child:
strain your child and on its installation.
- to strap themselves in correctly;
Incorrect installation compromises the
- to always get in and out of the car
protection it offers the child in the event
at the kerb, away from busy traf-
of harsh braking or an impact.
fic.
Before purchasing a child seat, check
Do not use a second-hand child
that it complies with the regulations for
seat or one without an instruction
the country you are in and that it can
manual.
be fitted in your vehicle. Consult an ap-
proved dealer to find out which seats
Check that there are no objects in
are recommended for your vehicle.
the vicinity of the child seat which
could impede its operation.
Before fitting a child seat, read the
manual and respect its instructions. If
you experience any difficulties during
Never leave a child unat-
installation, contact the manufacturer
tended in the vehicle.
of the equipment. Keep the instructions
Check that your child is
with the seat.
always strapped in and that
the belt or safety harness used is
correctly set and adjusted. Avoid
wearing bulky clothing which could
cause the belts to slacken.
Never let your child put their head or
arms out of the window.
Check that the child is in the correct
position for the entire journey, espe-
cially if asleep.
1.56

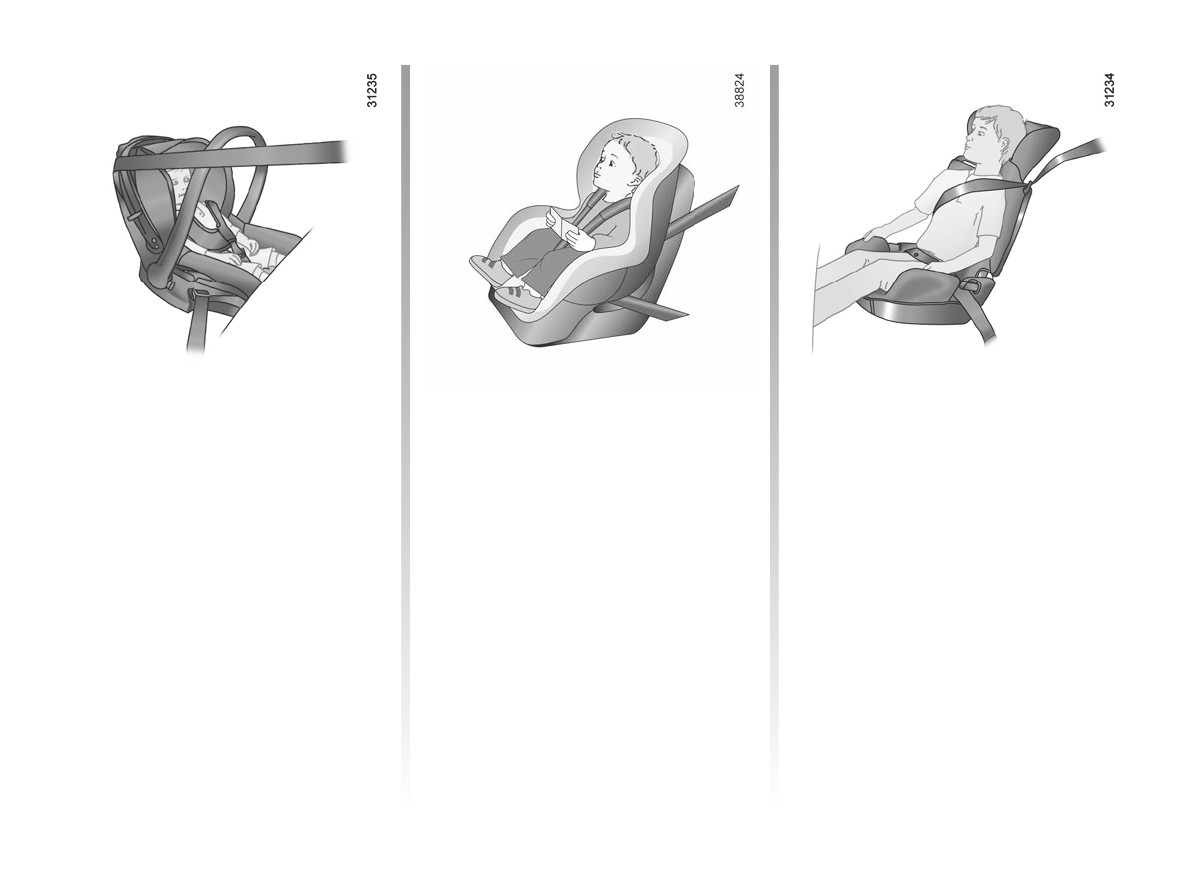

CHILD SAFETY: choosing a child seat
Rear-facing child seats
Forward-facing child seats
Booster cushions
A baby’s head is, proportionally, heavier
Up to 18 kg or 4 years, the child may
From 15 kg or 4 years, the child can
than that of an adult and its neck is very
travel on a forward-facing seat. Choose
travel using a booster seat, which will
fragile. Transport the child in this po-
your seat according the child’s size:
enable the seat belt to be adapted
sition for as long as possible (until the
their head and abdomen are the areas
to suit his/her size and shape. The
age of 2 at the very least). It supports
which must be most protected. A for-
booster seat cushion must be fitted with
both the head and the neck.
ward-facing child seat which is firmly
guides to position the seat belt on the
attached to the vehicle will reduce the
child’s thighs rather than the stomach.
Choose a bucket type seat for best side
risk of impact to the head. Ensure your
It is recommended that you use a seat-
protection and change it as soon as the
child travels in a forward-facing seat
back fitted with a belt strap guide which
child’s head is higher than the shell.
with a harness for as long as their size
can be adjusted in terms of height to
permits.
position the seat belt in the centre of the
shoulder. It must never rest on the neck
Choose a bucket type seat for optimum
or on the arm.
side protection.
Choose a bucket type seat for optimum
side protection.
1.57
CHILD SAFETY: choosing a child seat mounting (1/3)
There are two ways of attaching child
Attachment via the seat belt
seats: via the seat belt or using the
The seat belt must be adjusted to
ISOFIX system.
ensure that it is effective in the event of
harsh braking or an impact.
Ensure that the strap paths indicated
by the child seat manufacturer are re-
spected.
Always check that the seat belt is cor-
rectly fastened by pulling it up, then
pulling it out fully whilst pressing on the
child seat.
Check that the seat is correctly held by
moving it from side to side and back
to front: the seat should remain firmly
fixed.
Check that the child seat has not been
installed at an angle and that it is not
The seat belt must never
resting against a window.
be twisted or the tension
relieved. Never pass the
shoulder strap under the
arm or behind the back.
Check that the seat belt has not
been damaged by sharp edges.
If the seat belt does not operate nor-
mally, it will not protect the child.
Do not use the child seat
Consult an approved dealer. Do not
if it may unfasten the seat
use this seat until the seat belt has
belt restraining it: the base
been repaired.
of the seat must not rest on
the buckle and/or catch of the seat
belt.
1.58
CHILD SAFETY: choosing a child seat mounting (2/3)
Attachment using the ISOFIX
Attach the child seat with the ISOFIX
system
locks, if these are provided. The ISOFIX
system allows quick, easy, safe fitting.
Authorised ISOFIX child seats are ap-
1
proved in accordance with regulation
The ISOFIX system consists of 2 rings
ECE-R44 in one of the three following
and, in some cases, a third ring.
scenarios:
- universal ISOFIX 3-point forward-
facing seat;
- semi-universal ISOFIX 2-point seat;
- specific.
For the latter two, check that your child
seat can be installed by consulting the
list of compatible vehicles.
The two rings 1 are located between
No modifications may be
the seatback and the seat base and are
made to the component
parts of the restraint system
identified by the ü
marking.
(ISOFIX seat belts, seats
and their mountings) originally fitted.
Before using an ISOFIX
child seat that you pur-
chased for another vehicle,
check that its installation is
authorised. Consult the list of ve-
hicles which can be fitted with the
seat from the equipment manufac-
turer.
1.59
CHILD SAFETY: choosing a child seat mounting (3/3)
2
4
3
The third ring is used to attach the
Pull the belt so that the back of the child
upper strap on some child seats: you
seat comes into contact with the back
must attach hook 2 to ring 3 for a rear
of the vehicle seat.
seat and ring 4 for a front seat.
Check that the seatback
Note: it is essential to use the rings
of the forward-facing child
marked with the symbol
seat is in contact with the
seatback of the vehicle
seat. In this case, the child seat may
not always rest on the seat base of
the vehicle seat.
The ISOFIX anchorage points have been exclusively designed for child
seats with the ISOFIX system. Never fit a different type of child seat, seat
belt or other objects to these anchorage points.
Check that nothing is obstructing the anchorage points.
The child seat strap must
If your vehicle has been involved in a road accident, have the ISOFIX anchorage
be attached to the corre-
points checked and replace your child seat.
sponding ring.
1.60
CHILD SAFETY: fitting a child seat: general information (1/2)
Some seats are not suitable for fitting
In the front seat
child seats. The diagram on the follow-
The laws concerning children travel-
ing page shows you how to attach a
ling in the front passenger seat differ in
child seat.
every country. Consult the legislation in
The types of child seats indicated may
force and follow the indications on the
not be available. Before using a differ-
diagram on the following page.
ent child seat, check with the manufac-
Before fitting a child seat in this seat (if
turer that it can be fitted.
authorised):
- lower the seat belt as far as possible;
- move the seat as far back as possi-
ble;
- gently tilt the seatback away from
vertical (approximately 25°);
Fit the child seat in a rear
- on equipped vehicles, raise the seat
seat wherever possible.
base as far as possible.
Check that when installing
After installing the child seat, when this
the child seat in the vehicle
is possible, you can move the vehi-
it is not at risk of coming loose from
cle seat forward if necessary (so as to
its base.
leave enough space in the rear seats
for passengers or other child seats).
If you have to remove the headrest,
For a rear-facing child seat, do not let
check that it is correctly stored so
it touch the dashboard or move it to the
that it does not come loose under
furthest forward position.
harsh braking or impact.
RISK
OF
DEATH
OR
Do not change these settings after the
SERIOUS INJURY: before
Always attach the child seat to the
child seat is installed.
fitting a rear-facing child
vehicle even if it is not in use so that
seat in this seat, make sure
it does not come loose under harsh
that the airbag has been deacti-
braking or impact.
vated ➥ 1.69.
1.61
CHILD SAFETY: fitting a child seat: general information (2/2)
In the rear side seat
Rear centre seat
A carrycot can be installed across the
Check that the belt is suitable for se-
vehicle and will take up at least two
curing your child seat. Consult an ap-
seats. Position the child with his or her
proved dealer.
feet nearest the door.
Make sure the child seat or
Move the front seat as far forward as
the child’s feet do not pre-
possible to install a rear-facing child
vent the front seat from
seat, then move back the seat in front
locking correctly. ➥ 1.39.
as far as it will go, although without al-
lowing it to come into contact with the
child seat.
For the safety of the child in the for-
ward-facing seat, do not move the seat
in front back past the middle of the
A child seat with a floor sup-
runner, do not tilt the seatback too far
port must never be installed
(maximum of 25°) and raise the seat as
on the rear centre seat.
much as possible.
RISK OF DEATH OR
Always remove the headrest from the
SERIOUS INJURY.
rear seat on which the child seat is
positioned. ➥ 3.23. If necessary, posi-
tion the rear seat as far back as pos-
sible. This must be done before fitting
the child seat. Check that the child seat
is resting against the back of the rear
When fitting a child seat
seat.
(Group 2 or 3 booster seat),
check that the seat belts
operate
(wind) correctly
➥ 1.41. If necessary, adjust the posi-
tion of the vehicle seat.
1.62

















Content      ..     1      2      3      4      ..
