OPERATING FAULTS (6/7)
Electrical equipment
POSSIBLE CAUSES
WHAT TO DO
The wipers do not work.
Wiper blades stuck.
Free the blades before using the wipers.
Faulty electrical circuit.
Consult an approved dealer.
Fuse damaged.
Replace the fuse or have it replaced
➥ 5.29.
The wiper does not stop.
Faulty electrical controls.
Consult an approved dealer.
Direction indicators flashing more
Blown rear bulb.
➥ 5.15
quickly.
The direction indicators do not work.
Faulty electrical circuit or control.
Consult an approved dealer.
Fuse damaged.
Replace the fuse or have it replaced
➥ 5.29.
The lights do not come on or go off.
Faulty electrical circuit or control.
Consult an approved dealer.
Fuse damaged.
Replace the fuse or have it replaced
➥ 5.29.
5.42
OPERATING FAULTS (7/7)
Electrical equipment
POSSIBLE CAUSES
WHAT TO DO
Traces of condensation in the head-
Traces of condensation may be a nat-
lights or rear lights.
ural phenomenon caused by varia-
tions in temperature and humidity.
In this case, the traces will disappear
slowly once the lights are switched
on.
The front seat belt reminder light
An object is stuck between the floor
Remove all objects from underneath the
comes on when the seat belts are
and the seat and is disrupting the op-
front seats.
fastened.
eration of the sensor.
5.43
Section 6: Technical Specifications
Vehicle identification plate
6.2
Technical Information for the emergency services
6.3
Engine identification
6.4
Dimensions
6.5
Engine specifications
6.6
Weights
6.9
Towing weights
6.9
Replacement parts and repairs
6.10
Service sheets
6.11
Anticorrosion check
6.17
6.1

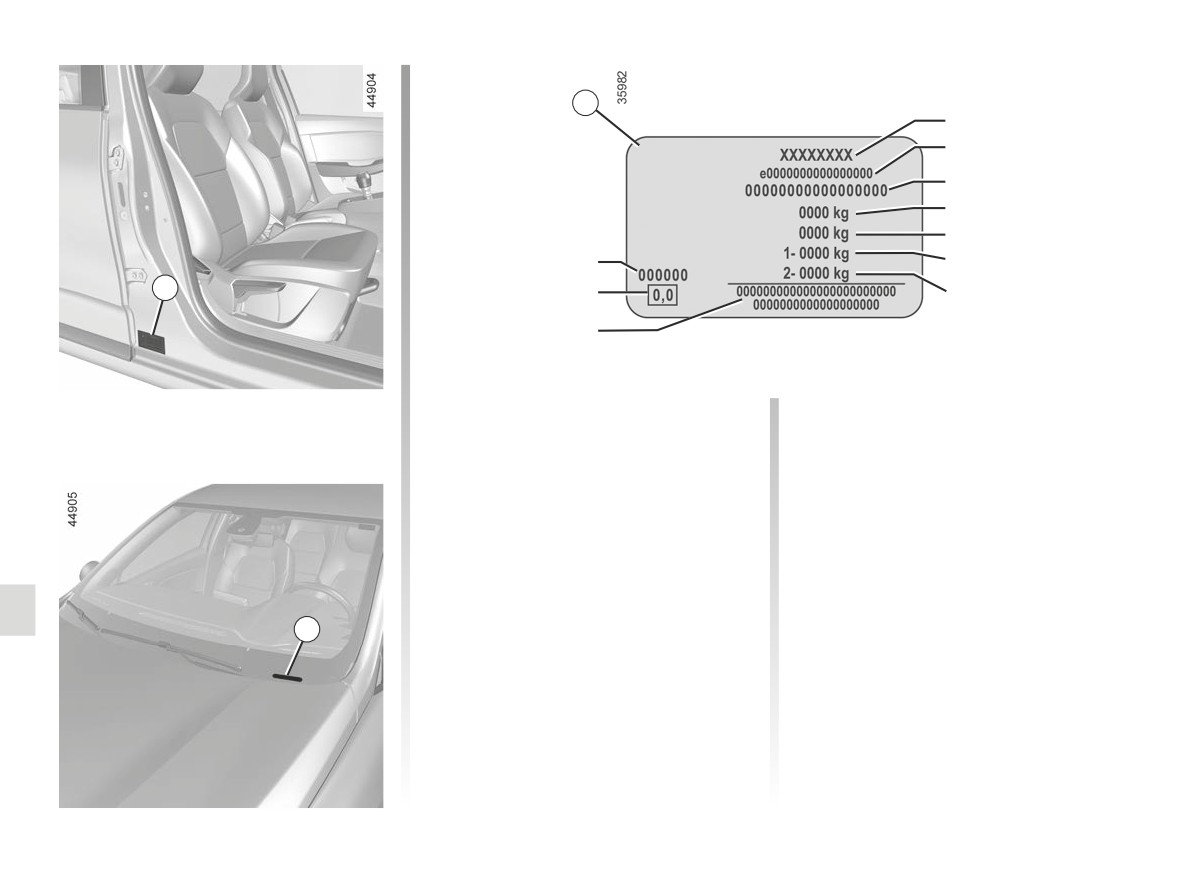

VEHICLE IDENTIFICATION PLATES
A
1
2
3
4
5
10
6
A
9
7
8
The information shown on the ve-
4
MAM
(Maximum Authorised
hicle identification plate should be
Mass).
quoted on all correspondence or
5
GTW (Gross train weight: vehicle
orders.
fully loaded, with trailer).
6
MPAW (Maximim Permissible
The presence and location of the in-
Weight) for front axle.
formation depends on the vehicle.
7
MPAW on rear axle.
8
Reserved for related or additional
Vehicle identification plate A
entries.
1
Manufacturer name.
9
Not used.
2
EC design number or approval
10
Paint reference (colour code).
number.
B
3
Identification number.
Depending on the vehicle, this
information is also given on
markingB.
6.2

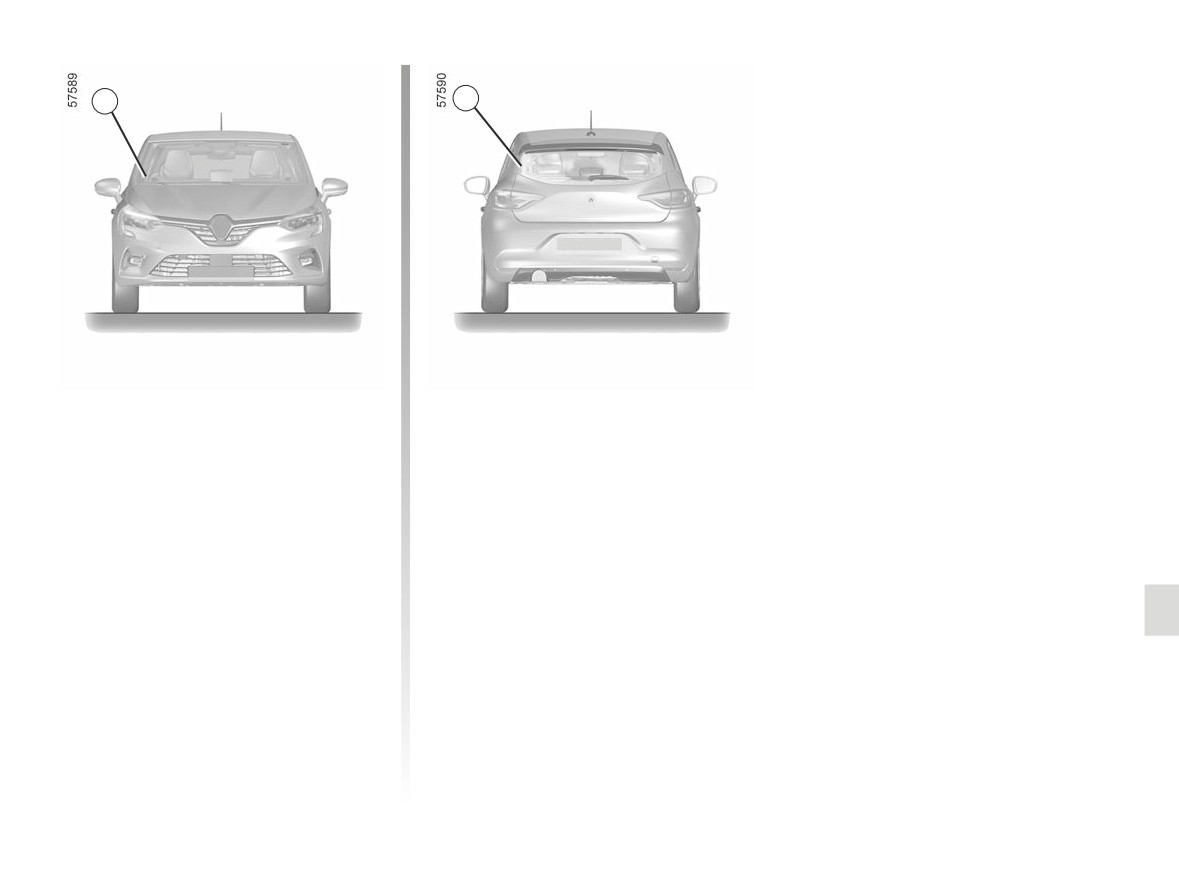

TECHNICAL INFORMATION FOR THE EMERGENCY SERVICES
A
A
The QR Code on the A label allows
emergency workers using a tablet or
smartphone to immediately access the
technical information useful for working
on the vehicle in the event of an acci-
dent.
Ensure that the A label is always visible
and present on the windscreen as well
as the rear screen.
Any modification or damage would
prevent access to the information.
6.3

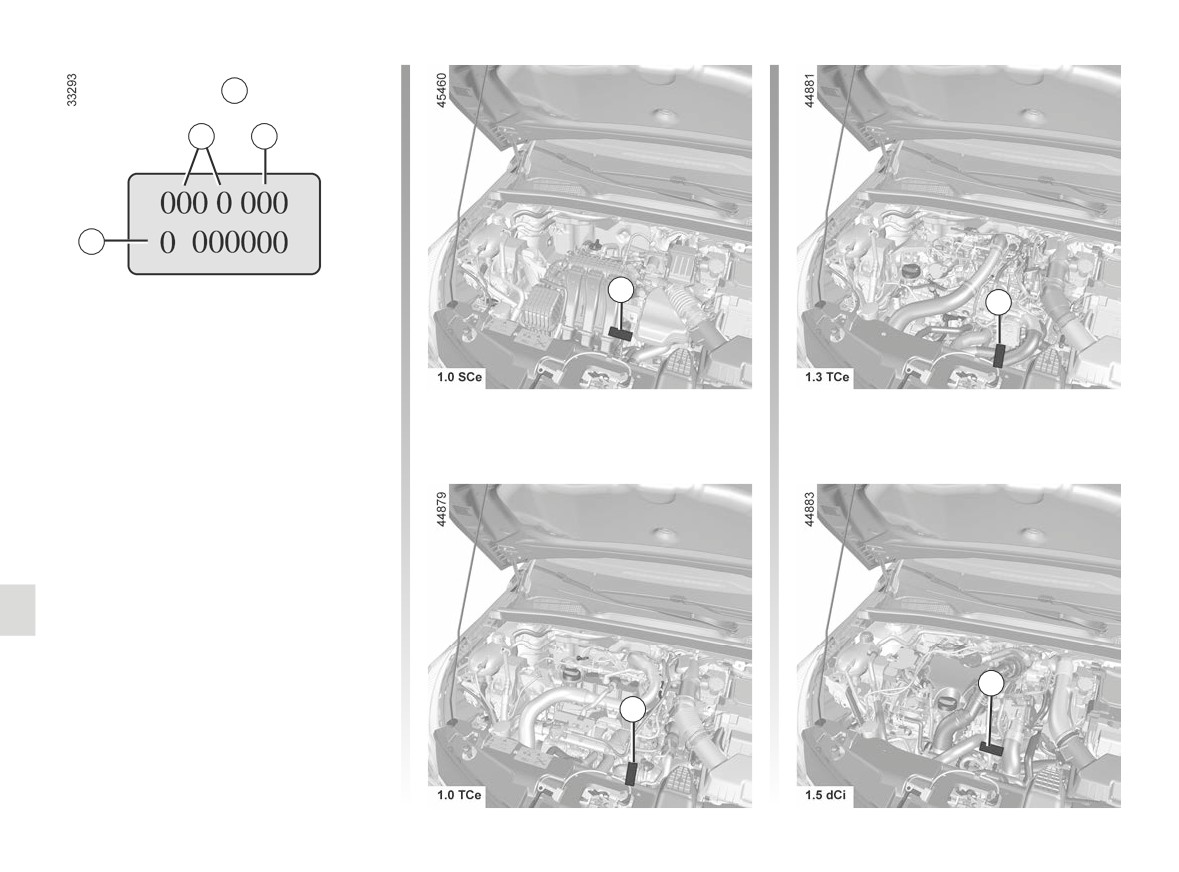

ENGINE IDENTIFICATION
A
1
2
3
A
A
Please quote the engine identifica-
tion information in area A in all cor-
respondence or orders.
(Location varies depending on engine)
1
Engine type.
2
Engine suffix.
3
Engine serial number.
A
A

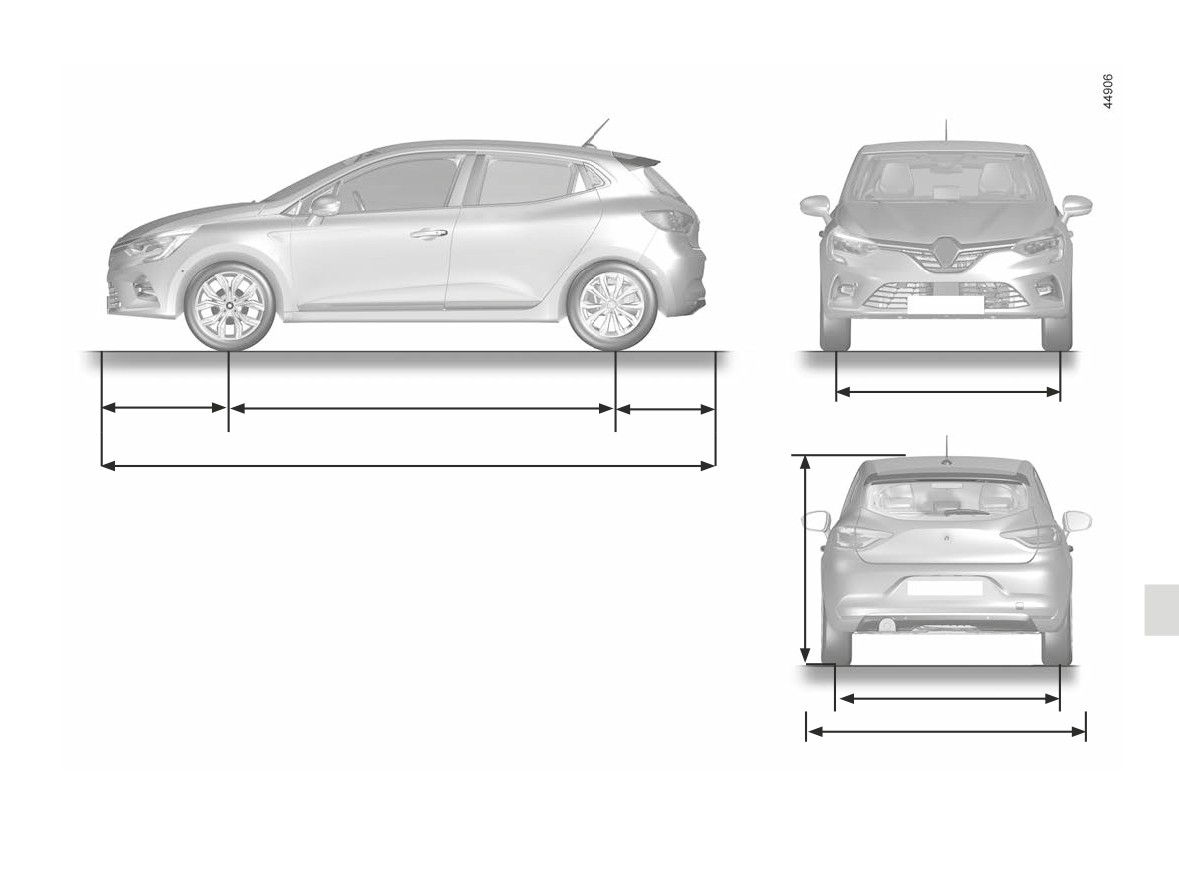

6.4
DIMENSIONS (in metres)
0,831
2,583
0,633
1 ,518
4,047
1,440*
1,506
1,988
* unladen
6.5
ENGINE SPECIFICATIONS (1/3)
Versions
1.0 SCe
1.0 TCe
1.3 TCe
1.5 dCi
Engine type
B4D
H4D Turbo
H5H Turbo
K9K Turbo
(see engine plate)
Cubic capacity (cc)
999
999
1 333
1461
Type of fuel
Petrol
Diesel
Octane rating
You must use unleaded petrol with the octane
The label located in the fuel filler flap indicates
rating stated on the label inside the fuel filler
the authorised fuels.
flap. ➥ 1.114.
6.6
ENGINE SPECIFICATIONS (2/3)
Versions
1.0 SCe
1.0 TCe
1.3 TCe
1.5 dCi
Engine type
B4D
H4D Turbo
H5H Turbo
K9K Turbo
(see engine plate)
Cubic capacity (cc)
999
999
1 333
1461
Fuel types that meet
European standards and are
compatible with the engines
Unleaded petrol compliant with
Diesel fuel compliant with stand-
of vehicles sold in Europe
standard EN 228 contains up
ard EN 590 contains up to 7%
(in any other case, contact an
to 5% ethanol in volume.
fatty acid methyl ester in volume.
Approved Dealer).
Unleaded petrol compliant with
Diesel fuel compliant with stand-
standard EN 228 contains up
ard EN 16734 contains up to 10%
to 10% ethanol in volume.
fatty acid methyl ester in volume.
Diesel fuel compliant with stand-
ard EN 15940 contains up to 7%
acid methyl ester in volume.
6.7
ENGINE SPECIFICATIONS (3/3)
Versions
1.0 SCe
1.0 TCe
1.3 TCe
1.5 dCi
Engine type
B4D
H4D Turbo
H5H Turbo
K9K Turbo
(see engine plate)
Cubic capacity (cc)
999
999
1 333
1461
Spark plugs
Only use the spark plugs specified for your vehicle’s
engine.
The type should be marked on a label affixed inside
the engine compartment. If it is not then contact an
approved Dealer.
Fitting spark plugs other than those specified may
-
damage the engine.
6.8
WEIGHTS (in kg)
The weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment. Consult
your approved Dealer.
Maximum Authorised Mass (MMAC)
Maximum permissible weight (MMTA)
Weights indicated on the vehicle identification plate ➥ 6.2
Gross Train Weight (MTR)
Braked Trailer Weight*
found by calculating: MTR - MMAC
Unbraked Trailer Weight*
550 kg
Permissible nose weight*
63 kg
Maximum permissible load on roof
80 kg (including carrying device)
* Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the MTR - MMAC calculation is equal to zero, or when the MTR is equal to zero (or is not listed) on
the identification plate.
- It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
- When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is
permitted:
- rear MMTA exceeded by no more than 15%;
- maximum MMAC exceeded by no more than 10% or 100 kg (whichever is reached first).
In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 km/h) and the tyre pressures must
be increased by 0.2 bar (3 PSI).
- The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.
6.9
