1.18

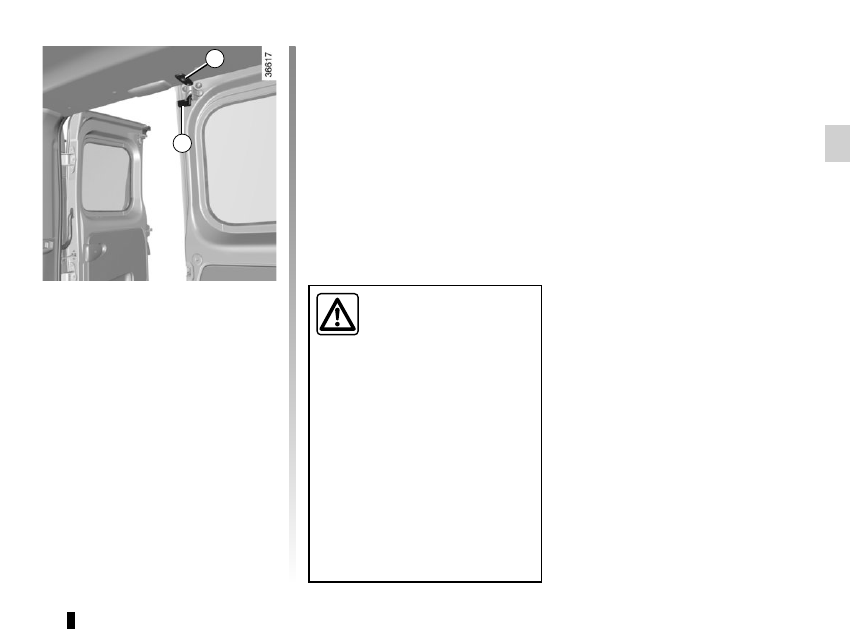

Pull the lever 3 to open the door.

If the vehicle is parked on

the hard shoulder with tail-

gate open, the rear lights

may be obscured. You

should make other road users aware

of your vehicle by using a warning

triangle or other equipment speci-

fied by the road traffic regulations of

the country you are driving in.

REAR HINGED DOORS

(1/4)

Opening the doors from the

outside

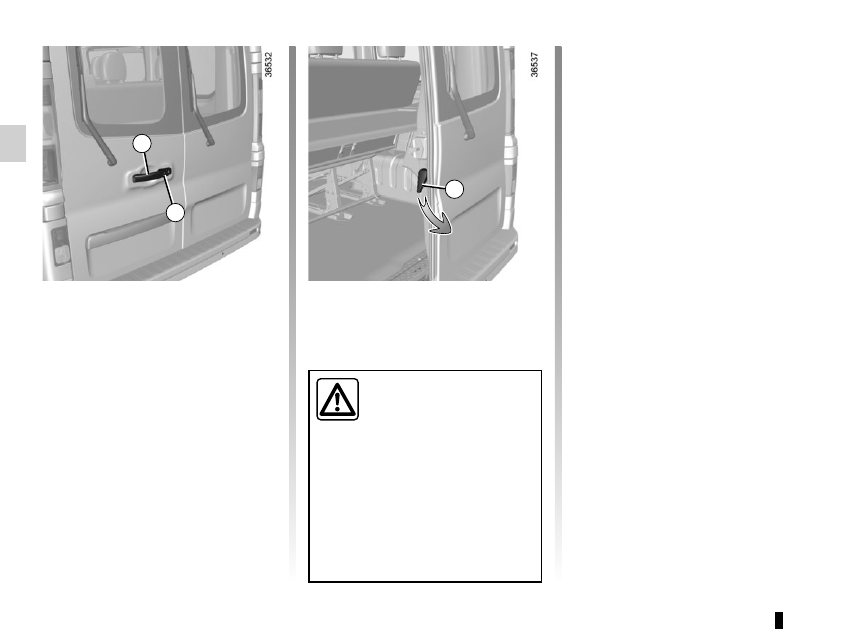

Vehicles with a remote control

Unlock the vehicle using the remote

control and pull handle 1.
 Vehicles with RENAULT card

With the card on your person, press

button 2 to unlock the vehicle and pull

handle 1.

1

3

2

1

1.19

REAR HINGED DOORS

(2/4)

4

5

Driving with the right-hand

door open

With the right-hand door open, close

the left-hand door.

On equipped vehicles, lock the left-

hand door by turning the lock 5 to put it

in its housing 4.

If driving with the right-

hand rear hinged door

open, always secure trans-

ported loads (please refer

to the section “Transporting objects”

in Section 3). The left-hand door,

which remains shut, should not be

used to hold transported loads in

place. Using the right rear hinged

door open while driving should only

be done in exceptional cases.
In any event, please refer to local

legislation. Risk of loads falling on

the road surface.

1.20

REAR HINGED DOORS

(3/4)

Opening the doors to the

maximum position

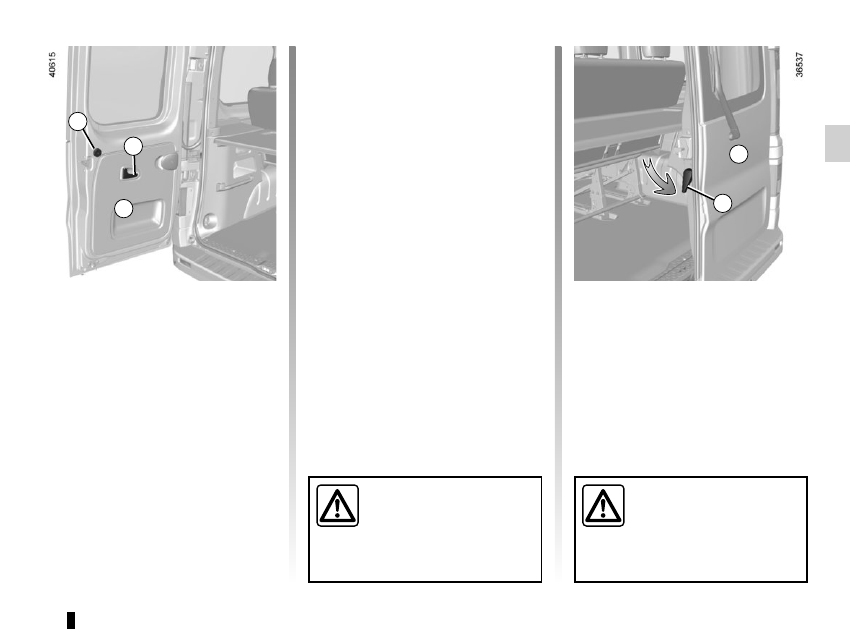

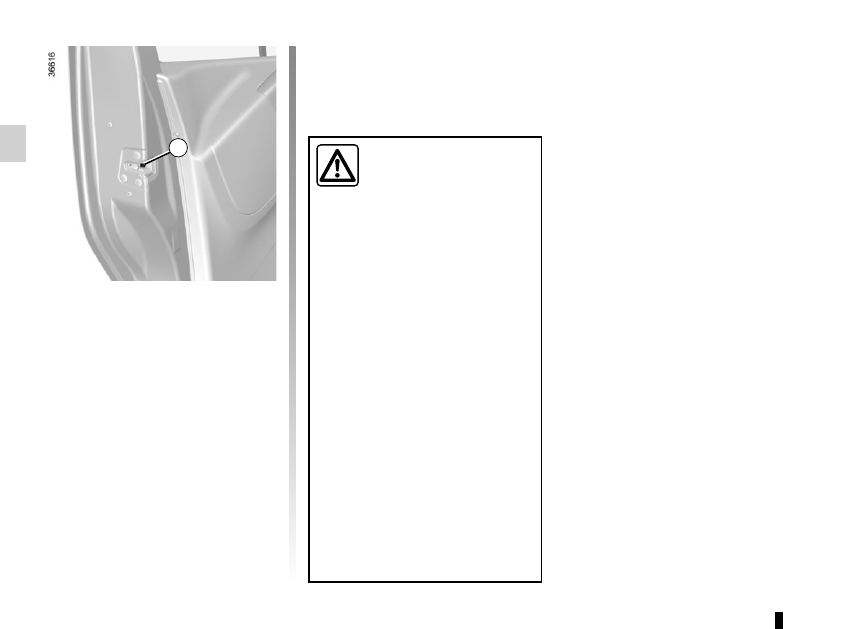

For each door, pull handle 6 to release

the door check strap 7. Open the door

as far as possible.

Closing from the outside

Partially close the right-hand door, then

slam it shut.
Then repeat this with the left-hand door.
Lock.

6

7

Do not leave the hinged

rear doors open in case of

strong winds. Risk of injury.

For your safety, check that

all the vehicle’s doors are

properly closed before

starting the engine.

1.21

Closing from the inside

Partially close door B, then slam it shut.
Then repeat this with door A.

REAR HINGED DOORS

(4/4)

To unlock the door A, refer to the infor-

mation on “Central door locking/unlock-

ing” in Section 1.

Manual locking/unlocking

from the inside

Turn the button 8 clockwise to lock the

door A.
Turn the button 8 anticlockwise to

unlock the door A.

9

3

For your safety, check that

all the vehicle’s doors are

properly closed before

starting the engine.

A

B

Do not leave the hinged

rear doors open in case of

strong winds. Risk of injury.

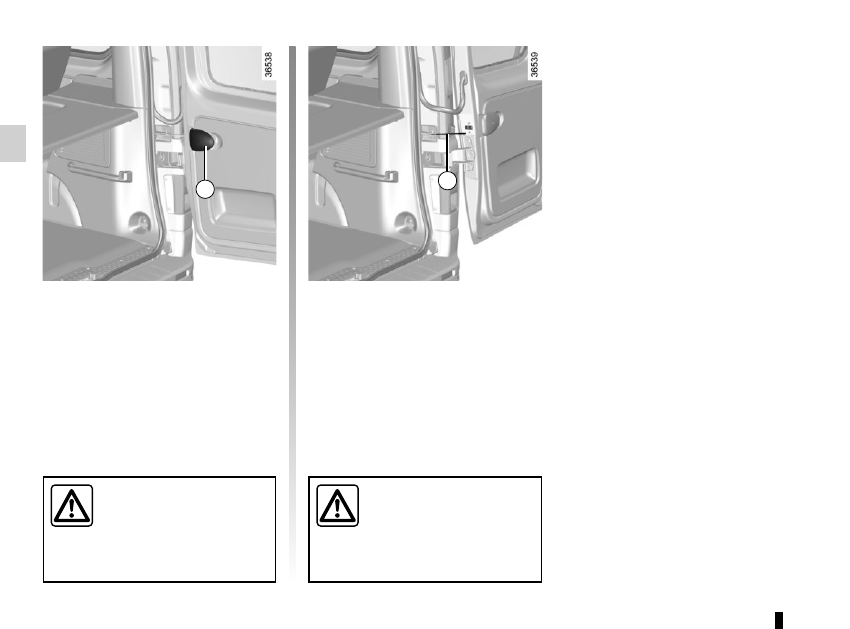

Opening from the inside

Pull the handle 9 and push the door A.
Pull the lever 3 and open the door B.

8

1.22

TAILGATE

To open

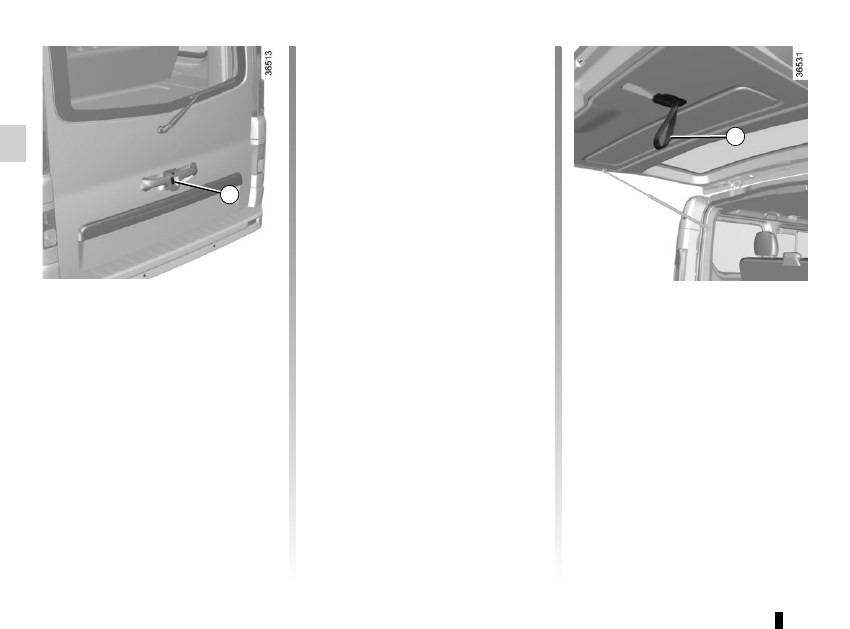

With the tailgate unlocked, press the

button 1 and lift the tailgate.

To close

Lower the tailgate, initially using the in-

terior handle 2 to assist you.
When the tailgate has been lowered to

shoulder height, release handle 2 and

finish closing the tailgate by pressing

down on the tailgate from the outside.

1

2

Vehicles with a remote

control

The tailgate is locked and unlocked by

pressing the remote control button.

Vehicles with RENAULT card

The tailgate is locked and unlocked:

–  by pressing the RENAULT card but-

tons;

–  in hands-free mode by locking/unloc-

king the front doors.

1.23

CENTRAL LOCKING, UNLOCKING OF OPENING ELEMENTS

(1/2)

Interior locking/unlocking

door control

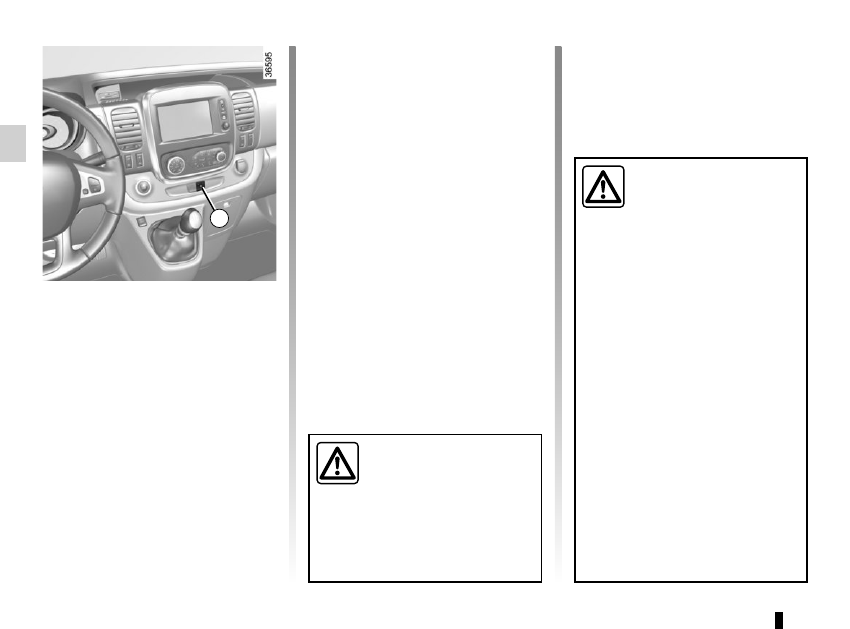

The switch 1 simultaneously controls all

the doors.
If a door is open or not properly closed,

the doors lock and then quickly unlock.
If you need to transport objects with the

boot open, the other opening elements

can still be locked: with the engine

stopped,  press switch 1 for more than

five seconds to lock the other opening

elements.

Never leave your vehicle

with the key or RENAULT

card inside.

Locking the opening

elements without the

RENAULT card or the key

For example, in the event of a dis-

charged battery or the RENAULT card

or key temporarily not working, etc.
With the engine off, the rear doors

closed and a front door open, press

switch 1 for more than five seconds.
Make sure you have your key or

RENAULT card with you before leaving

your vehicle.
When the door is closed, all the doors

and tailgate will be locked.
Unlocking from the outside can only be

done using the key or the RENAULT

card.

After locking/unlocking the vehicle

using the buttons on the RENAULT

card, "hands-free" locking and un-

locking is deactivated.
To reactivate the “hands-free” mode:

restart the vehicle.

1

1.24

CENTRAL LOCKING, UNLOCKING OF OPENING ELEMENTS

(2/2)

Locking the doors with the

tailgate open

To lock the vehicle with the boot open

(e.g. when transporting something in

the boot which prevents it from being

closed), or when the vehicle is located

in a zone of high electromagnetic radia-

tion, or if the card or key is faulty: with

the engine switched off, press and hold

switch 1 for more than five seconds.
NB: If you close the boot, it will lock.

Driver’s responsibility
If you decide to keep the

doors locked when you are

driving, remember that it

may be more difficult for those as-

sisting you to gain access to the

passenger compartment in the

event of an emergency.

Doors and tailgate status

indicator light

When the ignition is on, the indicator

light integrated in switch 1 informs you

of the status of the doors and tailgate:

–  indicator light on, the doors and tail-

gate are locked;

–  light off, the doors and tailgate are

unlocked.

When the ignition is off, the indicator

light remains lit and then goes out when

you lock the doors.

1

Driver’s responsibility

when parking or stopping

the vehicle
Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.
They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors, for example.
Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.
RISK OF DEATH OR SERIOUS

INJURY.

1.25

MANUAL DOOR LOCKING, UNLOCKING

(1/2)

Using the key

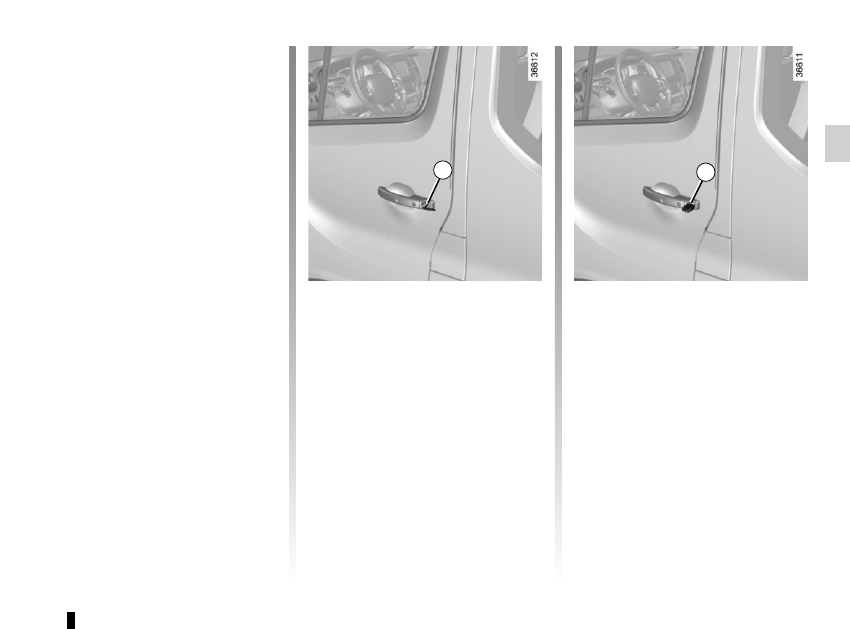

Insert the key into the lock 1 and lock or

unlock the front left-hand door and, de-

pending on the vehicle, the rear hinged

door.

Locking/unlocking from the

outside

This is done using the remote control or

the RENAULT card: refer to the informa-

tion on “Radio frequency remote con-

trol: general information” or “RENAULT

card: general information” in Section 1.
In some cases, the radio frequency

remote control or the RENAULT card

may not work:
– RENAULT card/radio frequency

remote control battery worn or run

flat.

–  if equipment operating on the same

frequency as the card (mobile

phones, etc.) is used;

–  vehicle located in a high electromag-

netic radiation zone.

1

It is then possible:
–  depending on the vehicle, use the

radio frequency remote control or the

emergency key integrated in the card

to unlock the front left-hand door, or

depending on the vehicle, the rear

hinged door;

–  to lock each of the doors manually;

– use the interior locking/unlocking

door control (please refer to the in-

formation on “Locking and unlocking

the opening elements” in Section 1).

1

1.26

MANUAL DOOR LOCKING, UNLOCKING

(2/2)

2

Locking the doors manually

Turn screw 2 with the door open (using

the end of the key) and close the door.

This means that the doors are then

locked from the outside.

The doors may then only be opened

from inside the vehicle or with the key

for the front doors.

Special feature on vehicles with a

tailgate
After manually locking the doors, the

tailgate remains unlocked.

Driver’s responsibility

when parking or stopping

the vehicle
Never leave an animal,

child or adult who is not self-suffi-

cient alone on your vehicle, even for

a short time.
They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors.
Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.
RISK OF DEATH OR SERIOUS

INJURY.

1.27

RENAULT ANTI-INTRUDER DEVICE (RAID)

Driver’s responsibility
If you decide to keep the

doors locked when you are

driving, remember that it

may be more difficult for those as-

sisting you to gain access to the

passenger compartment in the

event of an emergency.

You can decide whether you want to

activate this function.

To activate

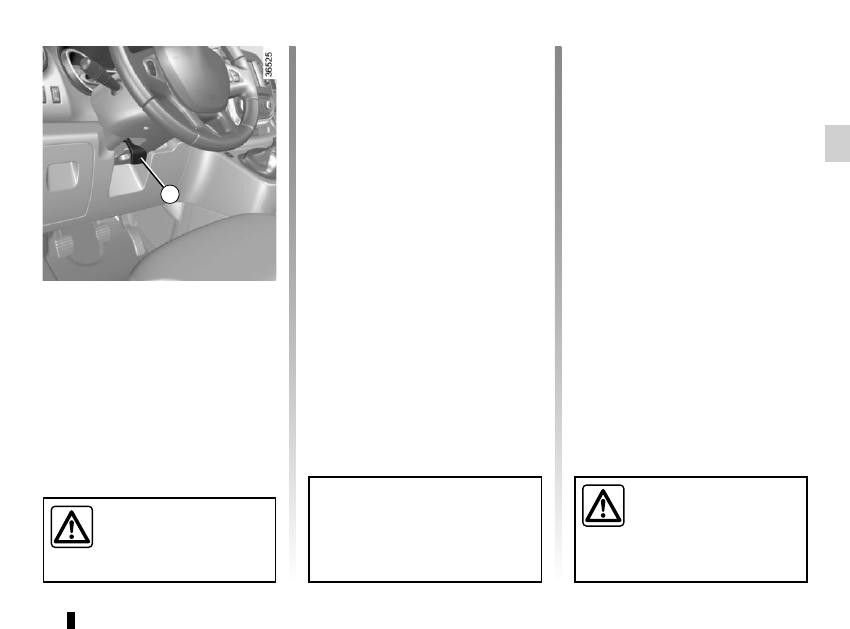

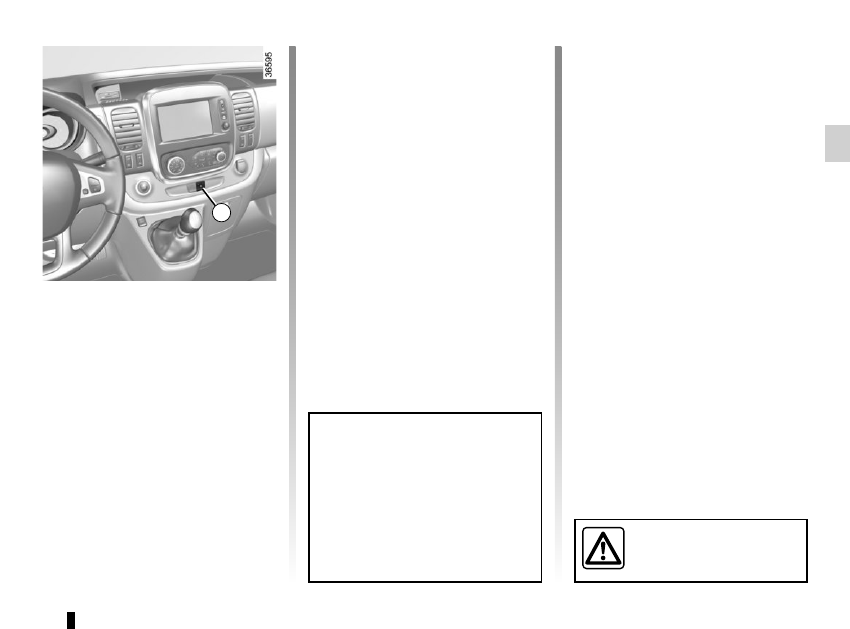

With the ignition on, press switch 1

for approximately 5 seconds until you

hear a beep.

To deactivate

With the ignition on, press and hold

switch 1 for approximately 5 seconds,

until you hear a beep.

Operating principle

After the vehicle is started, the system

automatically locks the doors once your

speed reaches approximately 4 mph

(7 km/h).
The door can be unlocked:
– by pressing the door unlocking

button 1.

–  by opening a front door (vehicle sta-

tionary).

NB: If a door is opened or closed, it will

automatically lock again when the vehi-

cle reaches a speed of 4 mph (7 km/h).

Operating faults

If you notice an operating fault (auto-

matic locking impossible), first check

that all doors are correctly locked. If

they are correctly locked and the fault

is still present, contact an approved

Dealer.
Also make sure that locking has not

been inadvertently deactivated.

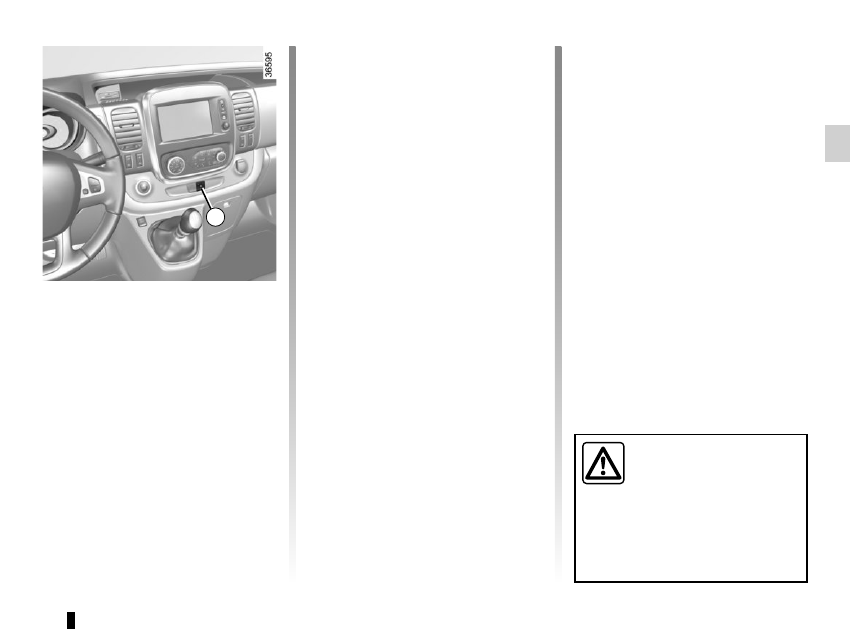

If it has, switch the ignition off and on

again and reactivate it.

1

1.28

FRONT HEADRESTS

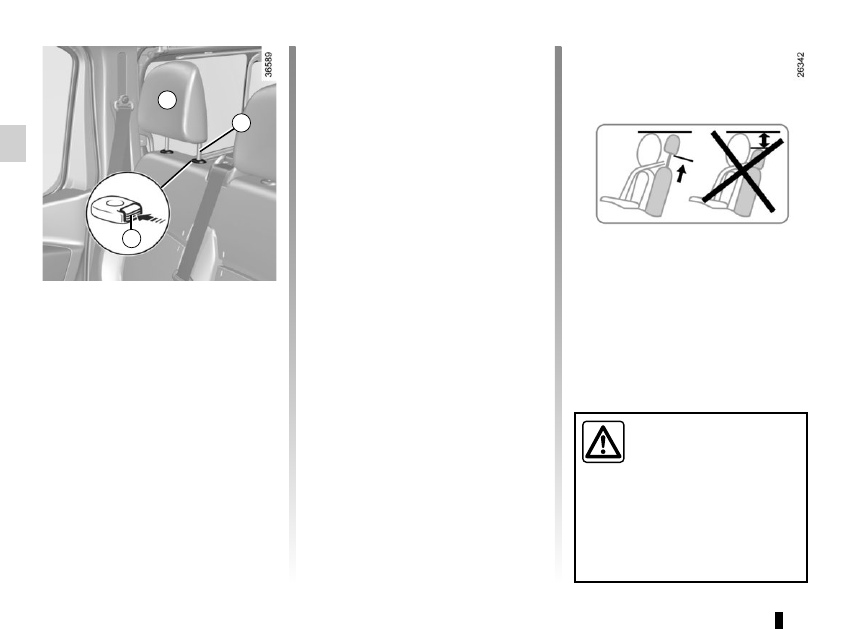

To raise the headrest

Pull the headrest upwards to the de-

sired height. Check that it is correctly

locked.

To lower the headrest

Press button 1 and guide the headrest

down to the desired height. Check that

it is correctly locked.

A

1

To raise the headrest

Raise the headrest to its highest po-

sition (tilt the seatback if necessary).

Press button 1 and lift the headrest to

release it.

To refit the headrest

Insert the headrest rods into the holes

(tilt the seatback if necessary). Lower

the headrest until it locks and press

button 1 to adjust to the desired height.

Check that each rod 2 on the seatback

is securely locked.

The headrest is important

for safety. Ensure that it is in

place and in the correct po-

sition: the top of the head-

rest should be as close as possible

to the top of the head and there must

be a minimal distance between the

head and the headrest A.

2

1.29

FRONT SEATS

(1/2)

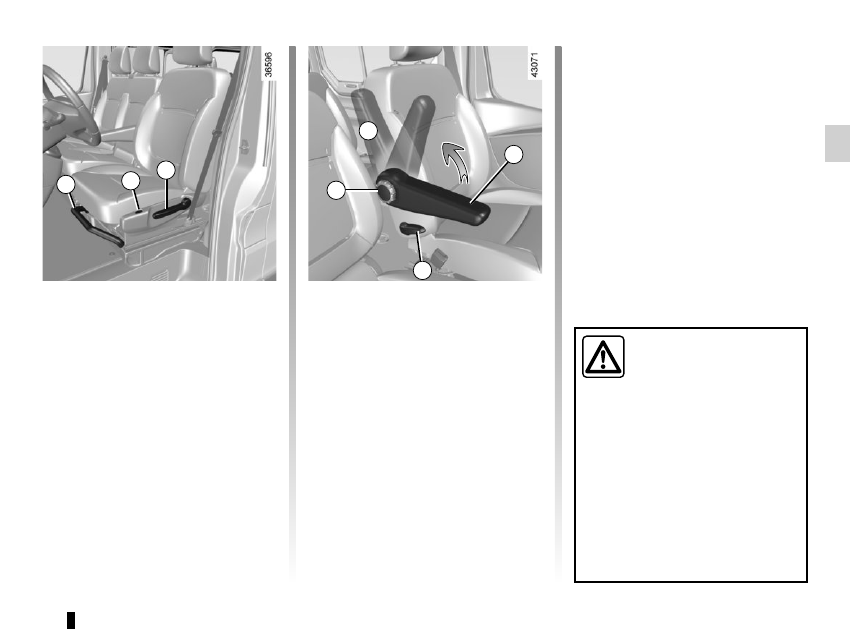

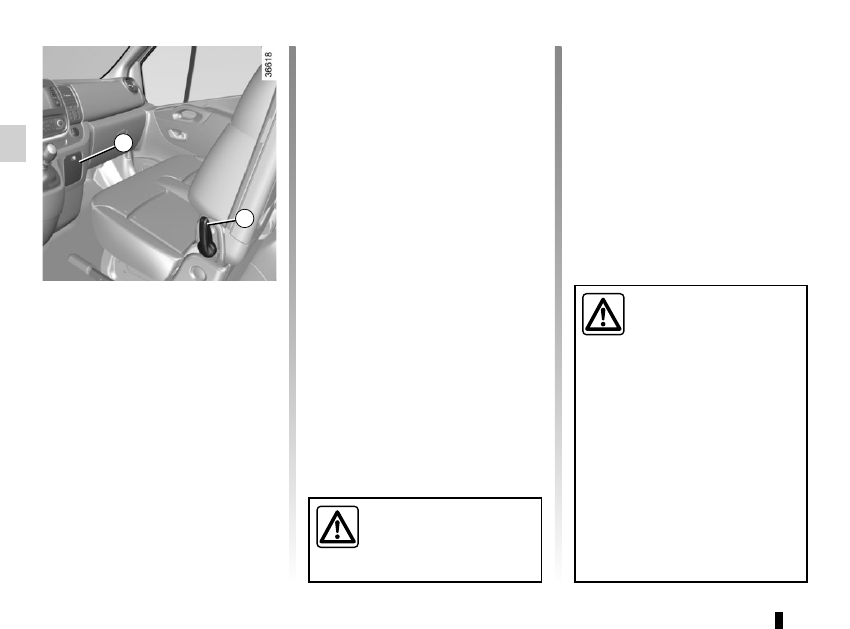

To tilt the seatback

Move lever 6.

Front armrests 5

Depending on the vehicle, the front

armrests 5 can be adjusted.

To adjust the armrest upwards

Lift armrest to the desired position.

To adjust the armrest downwards

Lift the armrest to the storage position

along the seat back, then lower it.

Seat adjustments

To move forwards or backwards
Lift handle 1 to release. Release the

handle once the seat is in the correct

position and ensure that the seat is

locked.

To adjust the height of the seat base
Lower or pull lever 3 as many times as

is necessary to raise or lower the seat

base.

Lumbar adjustment

Turn control knob 4 to increase or de-

crease support.

1

3

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

We would advise you not to recline

the seatbacks too far to ensure that

the effectiveness of the seat belts is

not reduced.
Nothing should be placed on the

floor (area in front of driver) as such

objects may slide under the pedal

during braking manoeuvres, thus

obstructing its use.

To store away the armrest

Lift the armrest to the storage posi-

tion A. Check that it is correctly locked.

Heated seats

With the ignition on, press switch 2

The integrated indicator comes on.
The system, which has a thermostat,

decides whether or not the heating is

needed.

2

4

6

5

A

1.30

FRONT SEATS

(2/2)

Central passenger seat table

formation

Make sure the cup holder 7 is closed.
Make sure that nothing prevents the

seat from moving.
–  hold the seatback by the top to guide

it downwards, and simultaneously

activate control 8 and fold the seat-

back forwards;

–  press on the back of the seatback to

lock it in place. Make sure you lock

the seatback properly.

8

To reposition the central passenger

seat
Make sure that nothing prevents the

seat from moving.
– Activate control 8 to unlock the seat-

back;

–  Lift the seat back;

– Make sure the seat is correctly

locked in position.

For your safety, attach any

transported objects when

the seat is in the table po-

sition.

When the front seat is in

table position, the front pas-

senger air bag must be dis-

abled (see information on

“Child safety: activating/deactivat-

ing the front passenger air bag” in

Section 1).
Risk of serious injury caused by

items resting on the seatback table

which may be dislodged when the

air bag is deployed.
The label (on the dashboard) and

the markings (on the windscreen)

remind you of these instructions.

7

1.31

Power Assisted Steering

Never drive with an inadequately

charged battery.

Variable power assisted

steering

The variable power assisted steering

system is equipped with an electronic

control system which alters the level of

assistance to suit the vehicle speed.
Steering is made easier during parking

manoeuvres (for added comfort) whilst

the force needed to steer increases

progressively as the speed rises (for

enhanced safety at high speeds).

Adjusting the steering wheel

height and depth

Pull lever 1 and place the steering

wheel in the required position; push the

lever beyond the point of resistance to

lock the steering wheel in place.
Make sure that the steering wheel is

correctly locked.

For safety reasons, only

adjust the steering wheel

when the vehicle is station-

ary.

STEERING WHEEL/POWER-ASSISTED STEERING

1

Never switch off the igni-

tion when travelling down-

hill, and avoid doing so in

normal driving (assistance

is not provided).

With the engine switched off, or if

there is a system fault, it is still pos-

sible to turn the steering wheel. The

force required will be greater.

1.32

Always wear your seat belt when trav-

elling in your vehicle. You must also

comply with the legislation of the par-

ticular country you are in.

SEAT BELTS

(1/5)

1

2

Incorrectly adjusted or

twisted seat belts may

cause injuries in the event

of an accident.

Use one seat belt per person,

whether child or adult.
Even pregnant women should wear

a seat belt. In this case, ensure that

the lap belt is not exerting too much

pressure on the abdomen, but do

not allow any slack.

Before starting, first adjust your driv-

ing position, then ask all occupants

to adjust their seat belts to ensure

optimum protection.

Adjusting your driving

position

–  Sit well back in your seat (having

first removed your coat or jacket).

This is essential to ensure your back

is positioned correctly;

–  adjust the distance between the

seat and the pedals. Your seat

should be as far back as possible

while still allowing you to depress

the clutch pedal fully. The seatback

should be adjusted so that your arms

are slightly bent when you hold the

steering wheel;

–  adjust the position of your head-

rest. For the maximum safety, your

head must be as close as possible to

the headrest;

–  adjust the height of the seat. This

adjustment allows you to select the

seat position which offers you the

best possible view;

  adjust the position of the steering

wheel.

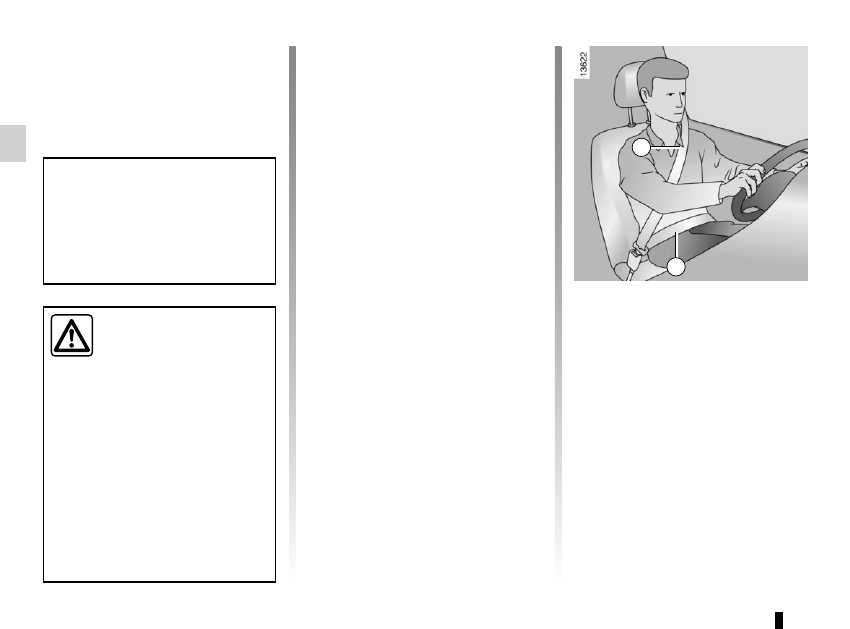

Adjusting the seat belts

Sit with your back firmly against the

seatback.
Shoulder strap 1 should be as close as

possible to the base of the neck but not

on it.
Lap belt 2 should be worn flat over the

thighs and against the pelvis.
The belt should be worn so that it is

as close as possible to your body, i.e.:

avoid wearing heavy clothing or keep-

ing bulky objects under the belts, etc.

Make sure that the rear bench seat

is locked in position correctly so that

the rear seat belts will operate effi-

ciently. Refer to the information on

the “Rear bench seat: functions” in

Section 3.

1.33

SEAT BELTS

(2/5)

ß

Front seat belt reminder

warning light

It lights up on the central display when

the engine is started and, if the driv-

er’s seat belt is not fastened, the light

flashes and a beep sounds for about

2 minutes when the vehicle reaches a

speed of about 9.92 mph (16 km/h).
Depending on the vehicle, this flashes if

the front passenger seat belt is not fas-

tened.

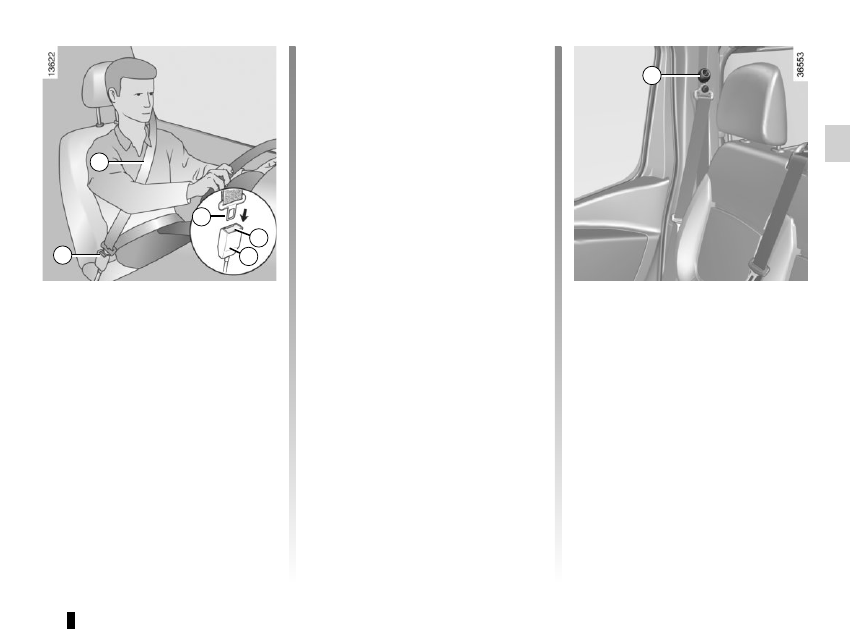

Adjusting the height of the

front seat belts

Move button 6 to select the position you

require so that chest strap 1 is worn as

described above.
Make sure that the seat belt is locked

in position correctly after you have ad-

justed it.

Unlocking

Press button 4 and the seat belt will be

rewound by the inertia reel. Guide the

belt.

6

Locking

Unwind the belt slowly and smoothly

and ensure that buckle 3 locks into

catch 5 (check that it is locked by pull-

ing on buckle 3).
If the belt jams, allow it to return slightly

before attempting to unwind it again.
If your seat belt is completely jammed,

pull slowly, but firmly, so that just over

3 cm unwinds. Allow it to return slightly

before attempting to unwind it again.
If there is still a problem, contact an ap-

proved dealer.

1

5

3

4

5















Content   ..   1  2  3   ..
