Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_5

OPERATING FAULTS

(2/5)

On the road

POSSIBLE CAUSES

WHAT TO DO

Vibrations.

Tyres not inflated to correct pres-

sures,  incorrectly  balanced  or

damaged.

Check the tyre pressures; if this is not the cause, have

their condition checked by an approved dealer.

Coolant boiling in the coolant

reservoir.

Mechanical  fault:  cylinder  head

gasket  damaged,  faulty  coolant

pump.

Stop the engine.

Contact an approved dealer.

Engine cooling fan not working.

Contact an approved dealer.

Smoke under the bonnet.

Short  circuit  or  cooling  system

leak.

Stop, switch off the ignition, stand away from the vehi-

cle and contact an approved Dealer.

The oil pressure warning light

comes on:

on a bend or under braking

The engine oil level is too low.

Top  up  the  engine  oil  (refer  to  the  information  on

“Engine oil level, topping up/refilling” in Section 4).

at idle speed

Low oil pressure.

Go to your nearest approved dealer.

The  oil  pressure  warning

light  takes  a  long  time  to

go out or remains lit during

acceleration.

Loss of oil pressure.

Stop the vehicle: contact an approved dealer.

5.36

ENG_UD19739_7

Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_5

OPERATING FAULTS

(3/5)

On the road

POSSIBLE CAUSES

WHAT TO DO

Abnormal white smoke from the ex-

haust

Mechanical fault: damaged cylinder

head gasket.
or

Stop the engine.

Contact an approved dealer.

This is not necessarily a fault.

Smoke may be caused by

regeneration of the particle filter.

Refer to the information on “Special

features of diesel versions” in Section 2.

The  power-assisted  steering  be-

comes heavy.

Belt broken.

Have the belt replaced.

No power-assisted steering oil

For maintenance operations on the power-

assisted  steering,  contact  an  approved

dealer.

Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while

the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling

system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved

by the Technical Department may be used for this purpose.

5.37

ENG_UD19739_7

Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_5

OPERATING FAULTS

(4/5)

On the road

POSSIBLE CAUSES

WHAT TO DO

Whistling

Roof aerial poorly positioned.

Position the aerial.

The engine overheats. The coolant

temperature  indicator  light  comes

on.

Engine cooling fan not working.

Stop the vehicle, switch off the engine and

contact an approved dealer.

Coolant leaks.

Stop the vehicle, switch off the engine and

check the coolant reservoir: it should con-

tain fluid. If there is no coolant, consult an

approved dealer as soon as possible.

The oil change warning light remains

lit after an oil change.

Warning not reset after oil change.

Reset  the  warning  after  changing  the  oil;

refer to the information on “Resetting the

warning after an oil change” in Section 4.

Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while

the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling

system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved

by the Technical Department may be used for this purpose.

5.38

ENG_UD19739_7

Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_5

OPERATING FAULTS

(5/5)

Electrical equipment

POSSIBLE CAUSES

WHAT TO DO

The wipers do not work.

Wiper blades stuck.

Free the blades before using the wipers.

Faulty electrical circuit.

Consult an approved dealer.

The wiper does not stop.

Faulty electrical controls.

Consult an approved dealer.

Direction  indicators  flashing  more

quickly.

Bulb blown.

Replace the bulb.

The direction indicators do not work.

Faulty electrical circuit.

Consult an approved dealer.

The headlights do not switch on or off.

Faulty electrical circuit or control.

Consult an approved dealer

Traces of condensation in the lights.

This is not a fault. Traces of condensa-

tion are a natural phenomenon caused

by variations in temperature.
These traces soon disappear when the

lights are switched on.

technical specifications .........................(up to the end of the DU)

vehicle identification .............................(up to the end of the DU)

paintwork

reference ..........................................................(current page)

vehicle identification plates ...................(up to the end of the DU)

6.2

ENG_UD22608_6

Plaques identification (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_6

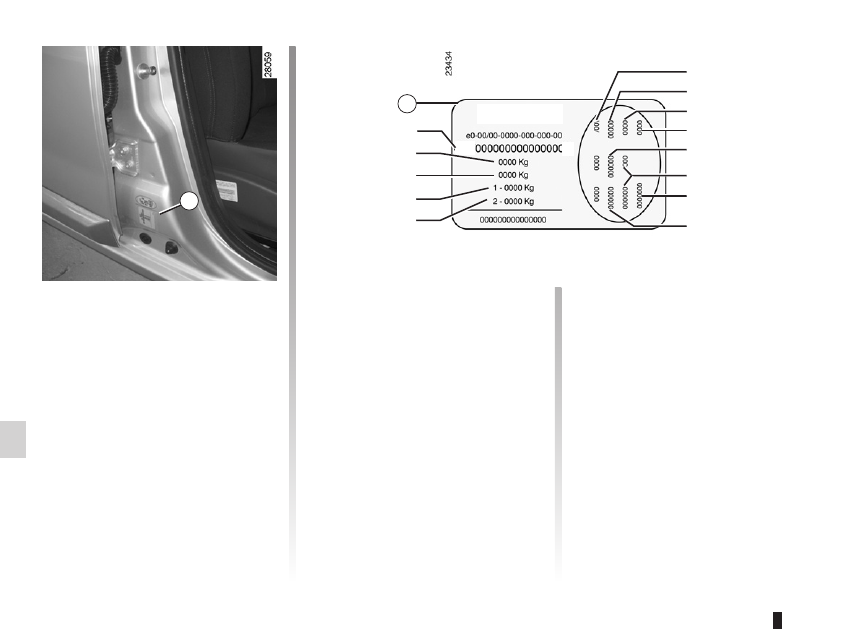

Vehicle identification plates

Quote the details given on identifica-

tion plate A on all letters or orders.
Vehicle identification plate
 A

  1   Vehicle type and chassis number.

  2   Maximum  permissible  all-up

weight.

  3   Total  train  weight  (vehicle  fully

loaded, with trailer).

  4   Maximum  permissible  weight  on

front axle.

  5  Maximum  permissible  weight  on

rear axle.

  6   Technical specifications of the ve-

hicle.

  7  Vehicle paint reference.

  8  Equipment level.

  9  Vehicle type.

 10  Trim code.

 11   Additional  equipment  specifica-

tion.

 12  Fabrication number.

 13  Interior trim code.

A

6

7

8

9

10
11

12
13

XXXXX

xx

x

1

2

3
4

5

A

VEHICLE IDENTIFICATION PLATES

6.3

ENG_UD22608_6

Plaques identification (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_6

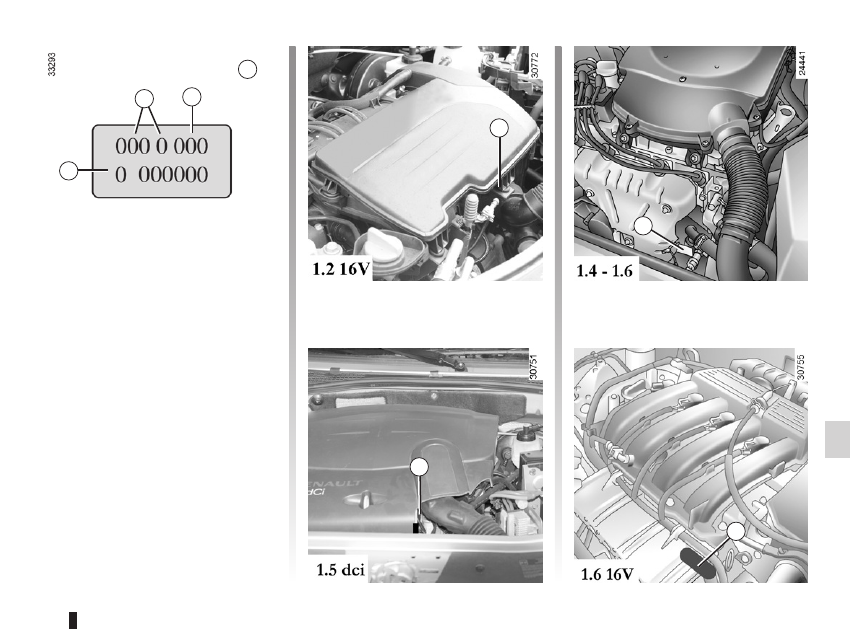

ENGINE IDENTIFICATION PLATES

The  information  shown  on  the  ve-

hicle  identification  plate  should  be

quoted  on  all  correspondence  or

orders.
B
  –   Engine plate or engine label

(Location varies depending on engine)

  1  Engine type

  2  Engine suffix

  3  Engine number

B

B

B

B

B

3

2

1

engine specifications ............................(up to the end of the DU)

technical specifications .........................(up to the end of the DU)

fuel

grade ...............................................(up to the end of the DU)

engine

technical specifications ...................(up to the end of the DU)

6.4

ENG_UD18029_4

Caractéristiques moteur (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_6

Engine specifications

ENGINE SPECIFICATIONS

Versions

1.2 16V

1.4

1.6

1.6 16V

1.5 dCi

Engine type

(see engine plate)

D4F

K7J

K7M

K4M

K9K Turbo

Cubic capacity (cc)

1,149

1,390

1,598

1,461

Type of fuel

Octane rating

It is

essential that you use unleaded petrol of the octane rating stated on

the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:

–  with an octane rating of 91 for a label with the ratings 95 or 98;

–  with an octane rating of 87 for a label showing 91, 95 or 98.

Diesel.

The label

located in the

fuel filler flap

indicates the

authorised fuels.

Spark plugs

Only use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label affixed inside the engine compart-

ment. If it is not, contact an approved dealer.
Fitting spark plugs which are not to specification may damage the engine.

technical specifications .........................(up to the end of the DU)

dimensions ...........................................(up to the end of the DU)

6.5

ENG_UD22590_5

Dimensions (en mètres) (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_6

Dimensions

1.470 - 1.483

1.480 - 1.494
1.746 - 1.753



0.781
0.785


2.589
2.588

0.650
0.651

4.020 - 4.024

(*) Unladen

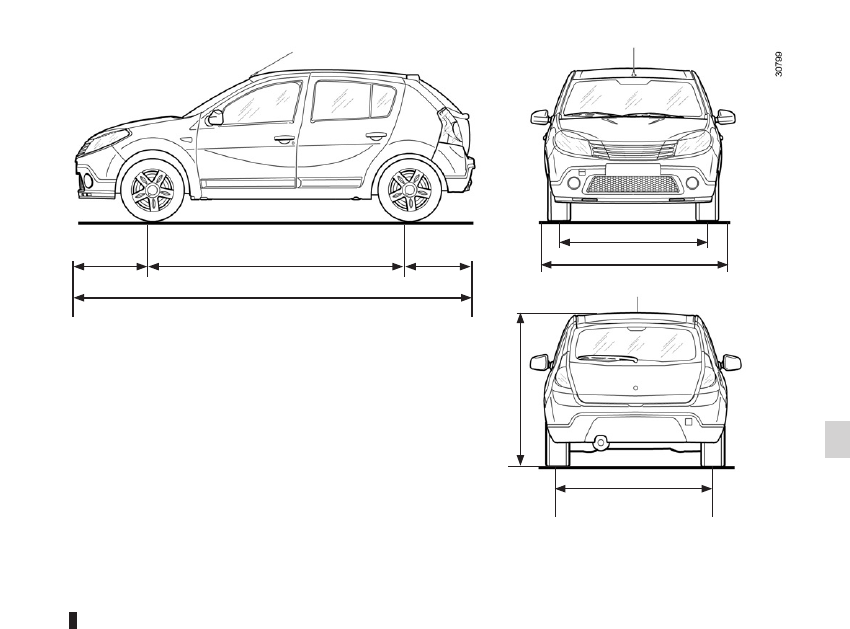

DIMENSIONS (in metres)

1.534(*)
1.546(*)

technical specifications .........................(up to the end of the DU)

weight ...................................................(up to the end of the DU)

towing ...................................................(up to the end of the DU)

towing a caravan ...................................................(current page)

towing weights .......................................................(current page)

weights ..................................................................(current page)

6.6

ENG_UD22397_6

Masses (en kg) (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_6

Weights/Towing weights

WEIGHTS (in kg)

The weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment.

Consult your approved Dealer.

Maximum permissible all-up weight (MMAC)

Maximum permissible all-up weight (MMTA)

Total train weight (MTR)

Weights are indicated on the vehicle identification plate (refer to

the information on “Vehicle identification plates” in Section 6)

Braked Trailer Weight*

obtained by calculating:

MTR - MMAC

Unbraked Trailer Weight*

525

Permissible nose weight*

60

Maximum permissible load on roof

80 kg (including carrying device)

* Towing weight (towing a caravan, boat, etc.)

Towing is prohibited when the calculation MTR (Total train weight) - MMAC (Maximum permissible all-up weight) is zero.
–  It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in

the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.

–  When towing, under no circumstances may

the total train weight (vehicle + trailer) be exceeded. However the following is

permitted:

–  the Maximum permissible weight at the rear may be exceeded by no more than 15%,

–  the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occurs first).

  In either case, the maximum speed of the towing assembly must not exceed 60 mph (100 km/h) and the tyre pressure must

be increased by 0.2 bar (3 PSI).

–  The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by

10% at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.

Weight transfer (except utility version)

If the Maximum Authorised Mass of the vehicle has not been reached, up to 300 kg can be transferred to the braked trailer,

within the limits of the Gross Train Weight.

6.8

ENG_UD21023_2

Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - X65 PH5

ENG_NU_817-9_B90_Dacia_6

Service sheets

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

 VIN: ..................................................................................

SERVICE SHEETS

(1/6)

6.9

ENG_UD21023_2

Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - X65 PH5

ENG_NU_817-9_B90_Dacia_6

SERVICE SHEETS

(2/6)

 VIN: ..................................................................................

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

6.10

ENG_UD21023_2

Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - X65 PH5

ENG_NU_817-9_B90_Dacia_6

SERVICE SHEETS

(3/6)

 VIN: ..................................................................................

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

6.11

ENG_UD21023_2

Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - X65 PH5

ENG_NU_817-9_B90_Dacia_6

SERVICE SHEETS

(4/6)

 VIN: ..................................................................................

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

6.12

ENG_UD21023_2

Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - X65 PH5

ENG_NU_817-9_B90_Dacia_6

SERVICE SHEETS

(5/6)

 VIN: ..................................................................................

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

6.13

ENG_UD21023_2

Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - X65 PH5

ENG_NU_817-9_B90_Dacia_6

 VIN: ..................................................................................

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □    Not OK* □

*See specific page

SERVICE SHEETS

(6/6)

anti-corrosion check .............................(up to the end of the DU)

6.14

ENG_UD21024_2

Contr  le anticorrosion (X35 - L35 - X44 - C44 - G44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X91 - X70 - X76 - X83 - X61 - X24 - TEST - X77 ph2 - X95 - L38 - L43 -

ENG_NU_817-9_B90_Dacia_6

Anti-corrosion check

ANTICORROSION CHECk

(1/5)

If the continuation of the warranty is subject to repair, it is indicated below.

VIN: ..........................................................

Corrosion repair operation to be carried

out:

Stamp

Date of repair:

Repair to be carried out:

Stamp

Date of repair:

Repair to be carried out:

Stamp

Date of repair:















Content   ..  8  9  10  11   ..
