Renault Sandero (2012 year). Instruction - part 9

changing a bulb ....................................(up to the end of the DU)

practical advice .....................................(up to the end of the DU)

lighting:

interior .............................................(up to the end of the DU)

bulbs

changing .........................................(up to the end of the DU)

5.19

ENG_UD17932_4

Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

Interior lights

INTERIOR LIGHTS: changing bulbs

(1/3)

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

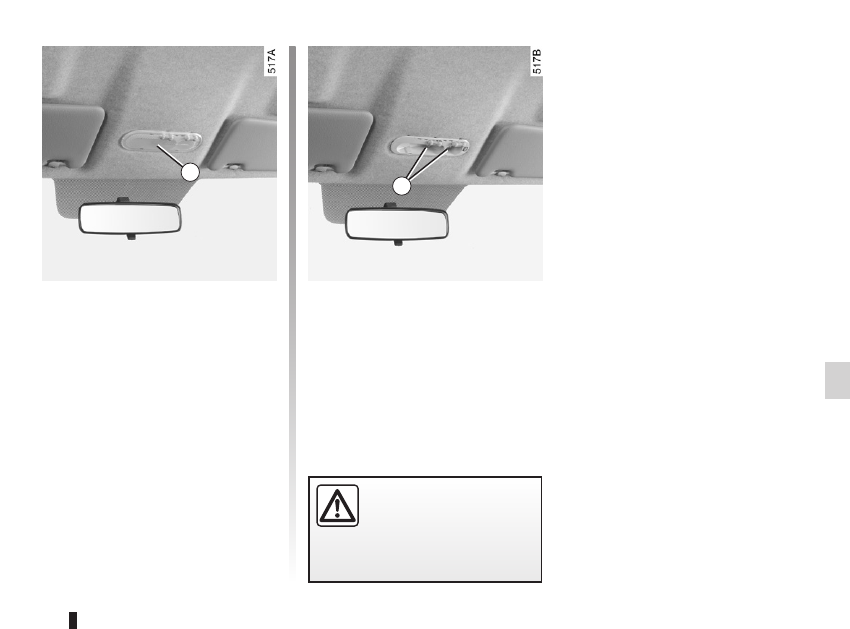

Courtesy light

Unclip lens 1 using a flat-blade screw-

driver or similar.
Remove the bulb concerned

Remove the bulb concerned.
Bulb type 2: W5W.

5.20

ENG_UD17932_4

Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

INTERIOR LIGHTS: changing bulbs

(2/3)

Press tab 4 to release lens 6 and

access bulb 5.
Bulb type: W5W.

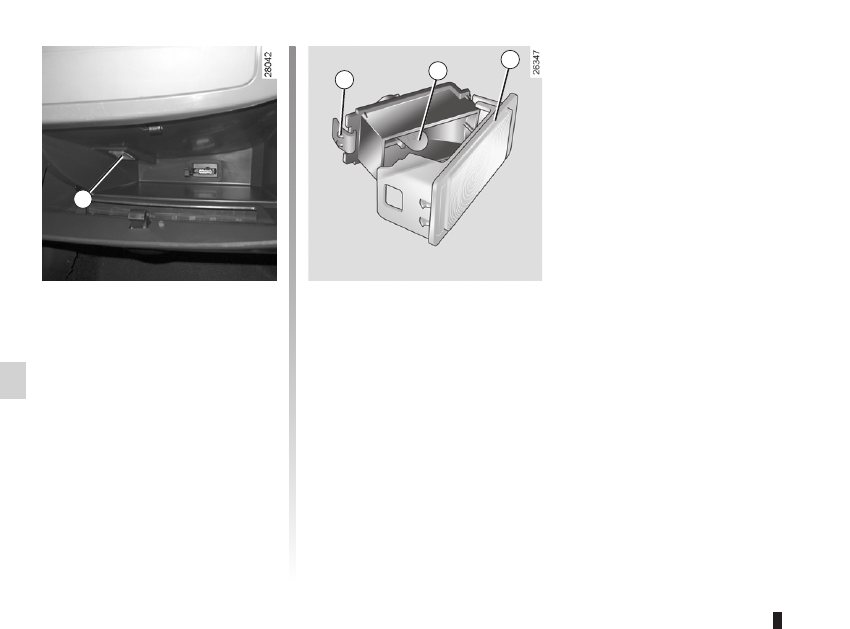

Glove box light

(depending on vehicle)
Unclip light 3 using a flat-blade screw-

driver or similar, by pressing on the tab

to move the light towards the inside of

the unit.
Disconnect the light.

5.21

ENG_UD17932_4

Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

INTERIOR LIGHTS: changing bulbs

(3/3)

Press tab 7 to release lens 9 and

access bulb 8.
Bulb type: W5W.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

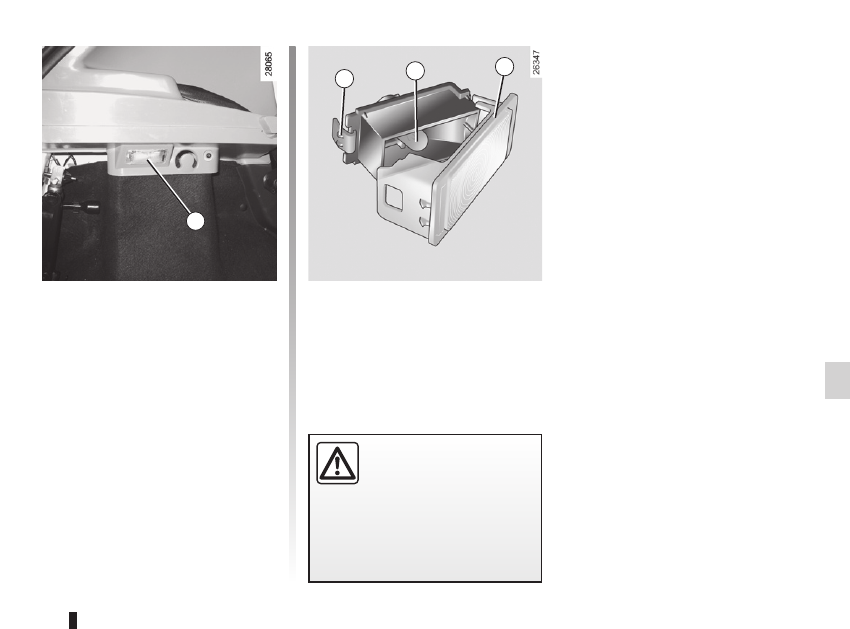

Luggage compartment light

Unclip light 6 using a flat-blade screw-

driver or similar, by pressing on the tab

to move the light towards the inside of

the luggage compartment.

fuses .....................................................(up to the end of the DU)

advice on antipollution ..........................(up to the end of the DU)

practical advice .....................................(up to the end of the DU)

5.22

ENG_UD22587_8

Fusibles (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

Fuses

FUSES

(1/3)

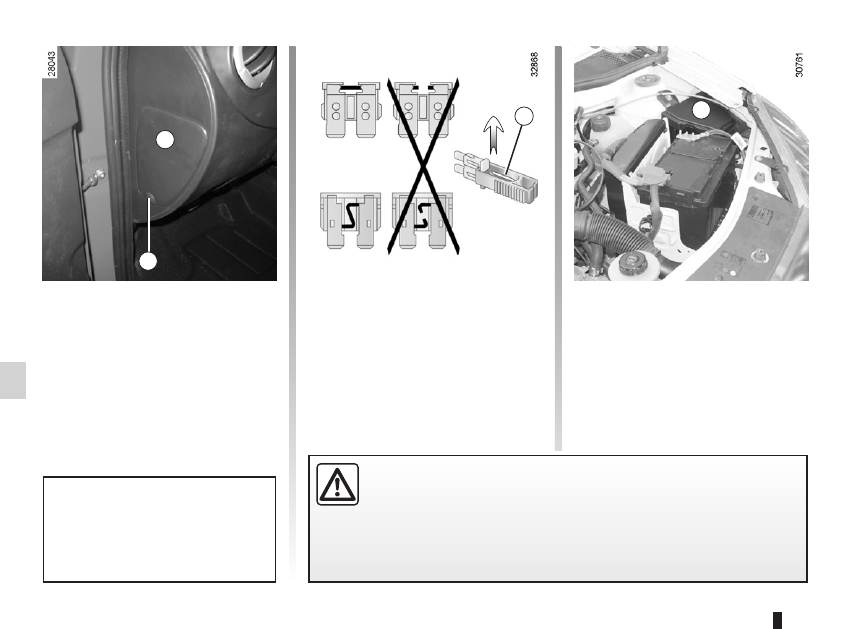

Passenger compartment fuses
If any electrical component does not

work, check the condition of the fuses.

Unclip flap A using notch 1 to help you.
Use the fuse allocation label on the

back of flap A to identify the fuses.

To comply with current legislation, or

as a precaution, you can obtain an

emergency kit from your approved

dealer containing a set of spare

bulbs and fuses.

Tweezers 2
Disconnect the fuse using tweezers 2,

on the back of flap A.

To remove the fuse from the tweezers,

slide the fuse to the side.

It is not advisable to use the free fuse

locations.

Check the fuse in question and

replace it, if necessary, with a fuse of

the same rating.
If a fuse is fitted where the rating is too high, it may cause the electrical

circuit to overheat (risk of fire) in the event of an item of equipment using

an excessive amount of current.

Fuses in engine compartment B

Some functions are protected by fuses

located in the engine compartment

(unit B).

However, because of their reduced

accessibility,

we advise you to have

your fuses replaced by an approved

Dealer.

5.23

ENG_UD22587_8

Fusibles (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

FUSES

(2/3)

Allocation of fuses

(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)

Symbol

Allocation

ABS

Radio

Brake lights

Air conditioning

Front fog lights

Instrument panel

Injection

Windscreen wiper

Symbol

Allocation

]

Central locking of doors

and tailgate

Rear screen de-icing

Not used

Horn

Main power supply

Heated seats

Heated door mirrors

Symbol

Allocation

ḽ

Electric front windows

Interior lighting

Electric door mirror

Heating

Not used

Air bag

Right-hand main beam

headlight

5.24

ENG_UD22587_8

Fusibles (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

FUSES

(3/3)

Allocation of fuses

(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)

Symbol

Allocation

Left-hand main beam

headlight

Left-hand dipped beam

headlight

Right-hand dipped

beam headlight

Right-hand side light

Left-hand side light

Rear fog light

Ḽ

Electric rear windows

Symbol

Allocation

Engine immobiliser

Reversing light

Power-assisted steering

Automatic gearbox



GAS fuel

battery

troubleshooting ...............................(up to the end of the DU)

practical advice .....................................(up to the end of the DU)

5.25

ENG_UD17938_1

Batterie : dépannage (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

Battery

BATTERY: troubleshooting

(1/2)

To avoid all risk of sparks:

– Ensure that any consumers (cour-

tesy lights, etc.) are switched off

before disconnecting or reconnect-

ing the battery;

– when charging, stop the charger

before connecting or disconnecting

the battery;

– to avoid creating a short circuit be-

tween the terminals, do not place

metal objects on the battery;

– always wait at least one minute after

the engine has been switched off

before disconnecting a battery;

– make sure that you reconnect the

battery terminals after refitting.

Handle the battery with care

as it contains sulphuric acid,

which must not come into

contact with eyes or skin. If

it does, wash the affected area with

plenty of cold water and consult a

doctor, if necessary.
Ensure that naked flames, red hot

objects and sparks do not come into

contact with the battery as there is a

risk of explosion.
The engine may be hot when car-

rying out operations in close prox-

imity. In addition, the engine cooling

fan can come on at any moment.
Risk of injury.

Connecting a battery charger

The battery charger must be com-

patible with a battery with nominal

voltage of 12 volts.
Do not disconnect the battery when the

engine is running.

Follow the instruc-

tions given by the manufacturer of

the battery charger you are using.
When many accessories are fitted to

the vehicle, have them connected to

the + after ignition feed.

Some batteries may have

specific conditions for re-

charging. Consult your ap-

proved dealer. Avoid the

risk of sparks, as this could cause

a sudden explosion, and always

charge the battery in a well-venti-

lated area.
Risk of serious injury.

5.26

ENG_UD17938_1

Batterie : dépannage (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

BATTERY: troubleshooting

(2/2)

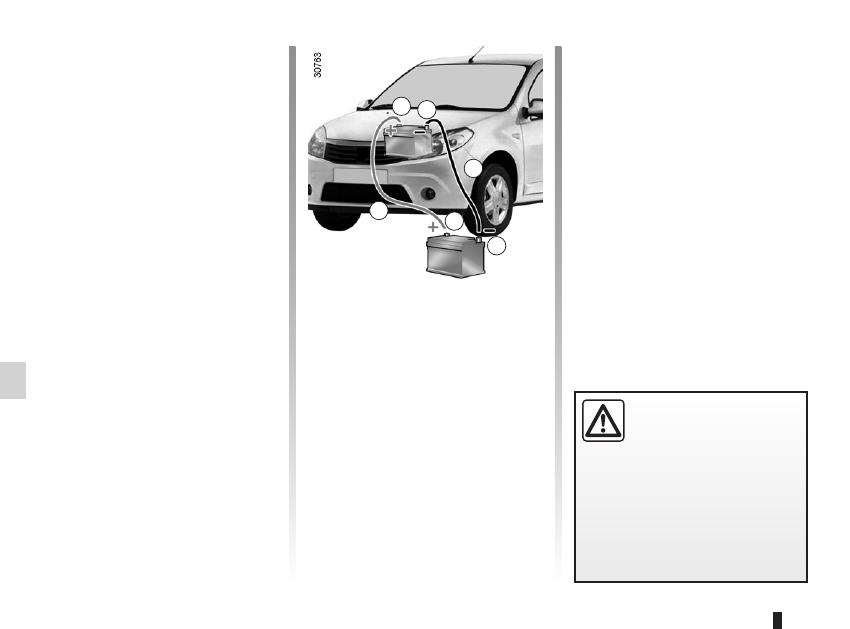

Connect the positive (+) lead A to (+)

terminal 1 of the discharged battery,

then to (+) terminal 2 of the battery sup-

plying the current.
Connect the negative (–) lead B to (–)

terminal 3 of the battery supplying the

current and then to (–) terminal 4 of the

discharged battery.
Start the engine as normal. As soon as

it is running, disconnect leads A and B

in the reverse order

(4-3-2-1)

Starting the vehicle using the

battery from another vehicle

If you have to use the battery from an-

other vehicle to start, obtain suitable

jump leads (with a large cross section)

from an approved dealer or, if you al-

ready have jump leads, ensure that

they are in perfect condition.
The two batteries must have an iden-

tical nominal voltage of 12 volts. The

battery supplying the current should

have a capacity (amp-hours, Ah) which

is at least the same as that of the dis-

charged battery.
Ensure that there is no risk of contact

between the two vehicles (risk of short

circuiting when the positive terminals

are connected) and that the discharged

battery is properly connected. Switch

off your vehicle ignition.
Start the engine of the vehicle supply-

ing the current and run it at an interme-

diate engine speed.

Check that there is no con-

tact between leads A and B

and that the positive lead A

is not touching any metal

parts on the vehicle supplying the

current.
Risk of serious injury and/or damage

to the vehicle.

1 4

keys

replacing the battery .......................(up to the end of the DU)

practical advice .....................................(up to the end of the DU)

battery (remote control) ........................(up to the end of the DU)

5.27

ENG_UD18258_8

Télécommande à radiofréquence : piles (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_5

Radio frequency remote control: battery

RADIO FREQUENCY REMOTE CONTROL: battery

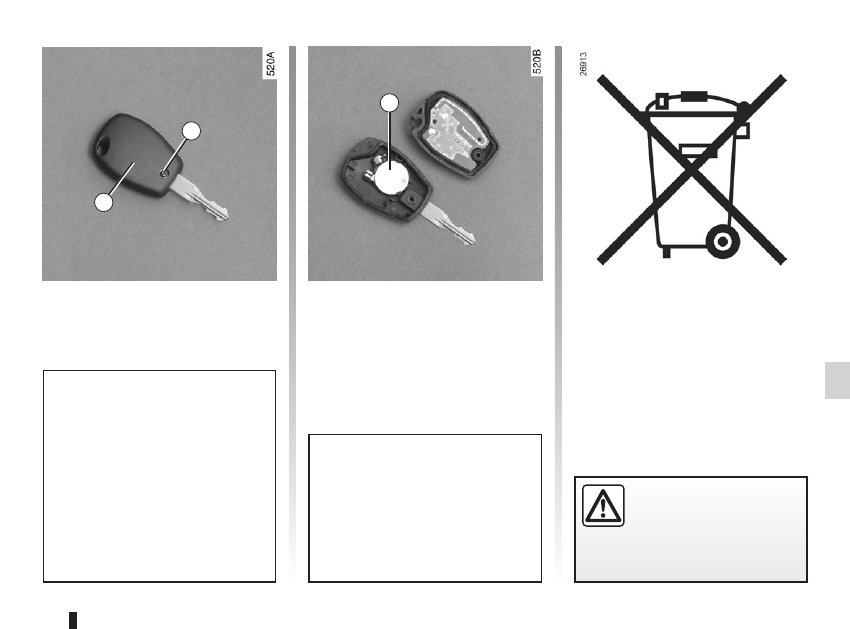

Replacing the battery

Unscrew screw 1 then unclip cover 2.

Replace battery 3 according to the di-

rection marked on the cover.
Note: It is not advisable to touch the

electronic circuit in the key cover when

replacing the battery.
Battery type: CR 2016.

Batteries can be obtained from an

approved Dealer. These batteries

have a service life of approximately

two years.
Check that there is no dye on the

battery: risk of an incorrect electri-

cal contact.

Do not throw away your

used batteries; give them to

an organisation responsible

for collecting and recycling

batteries.

When refitting, ensure that the cover

is correctly clipped on and the screw

tightened.

wiper blades .........................................(up to the end of the DU)

practical advice .....................................(up to the end of the DU)

wipers

blades .............................................(up to the end of the DU)

5.28

ENG_UD20464_6

Balais d’essuie-vitre (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

Wiper blades

WIPER BLADES

Check the condition of the wiper

blades. You are responsible for their

service life:
– clean the blades, windscreen and

rear screen regularly with soapy

water;

– do not use them when the wind-

screen or rear screen are dry;

– free them from the windscreen or

rear screen when they have not

been used for a long time.

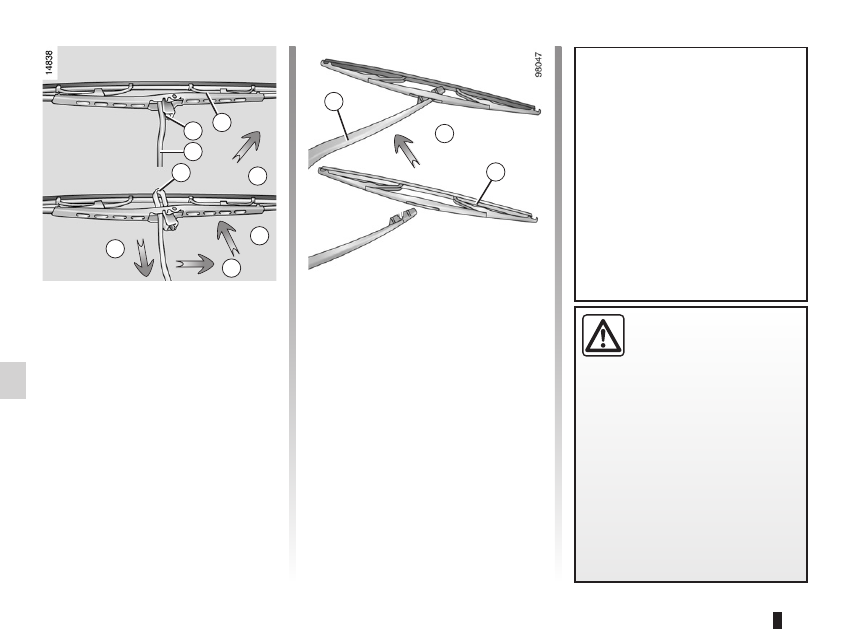

Replacing windscreen wiper

blades 1

– With the ignition off, lift wiper arm 3.
– Turn the blade horizontally (move-

ment A).

– Press tab 2 and slide the wiper blade

downwards (movement D) until

hook 4 on the wiper arm is released.

– Slide the blade (movement C) then

lift it (movement B) to release it.

Replacing the rear screen

wiper blade (hinged door)

– With the ignition off, lift wiper arm 5.

– Pivot blade 6 until some resistance

is met.

– Pull the blade to release it (move-

ment E).

Refitting a front or rear wiper

blade

To refit the wiper blade, proceed in re-

verse order to removal. Make sure that

the blade is correctly locked in position.

– In frosty weather, make

sure that the wiper blades

are not stuck by ice (to

avoid the risk of the motor

overheating).

– Check the condition of the wiper

blades.

Replace the wiper blades as soon

as they begin to lose efficiency

(approximately once a year).

Whilst changing the blade, take care

not to drop the arm onto the window

after it has been removed as this

may break the window.

towing hitch...........................................(up to the end of the DU)

practical advice .....................................(up to the end of the DU)

towing

breakdown ......................................(up to the end of the DU)

5.29

ENG_UD17944_4

Remorquage : dépannage (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

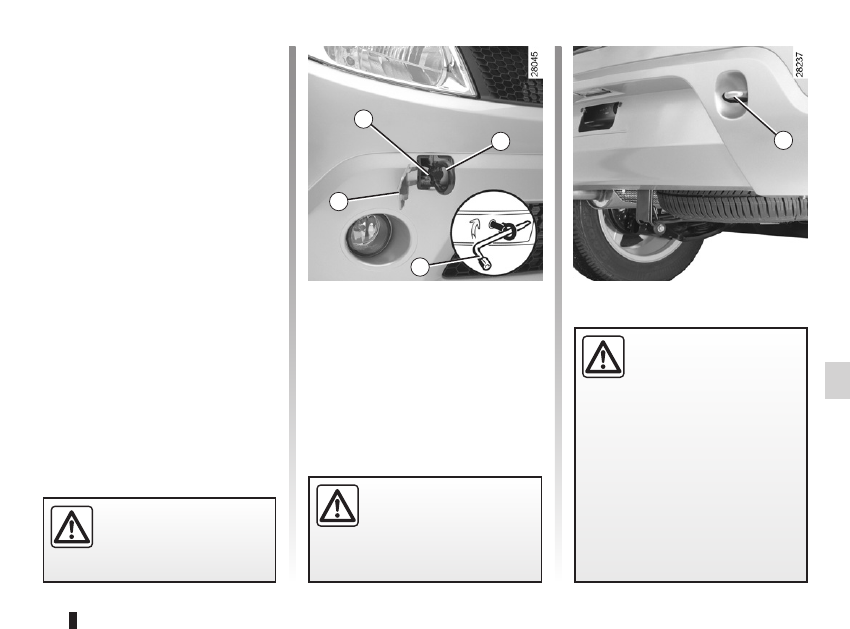

Rear towing point 4

Front towing point 3

Unclip cover A using a flat-blade screw-

driver or similar under the cover. Screw

in towing hitch 1 fully, at first by hand,

then tighten it using wheelbrace 2

stored in the luggage compartment.

Towing: breakdown

When the engine is

stopped, steering and brak-

ing assistance are not op-

erational.

Towing procedure

The steering wheel must be un-

locked and the ignition key must be

in position M (ignition on) to pro-

vide stop lights and hazard warning

lights on the towed vehicle. Always

switch on the lights when driving at

night. Remove any trailer.
It is also essential to observe the towing

regulations imposed by current legisla-

tion in each country, and not to exceed

the towable weight for your vehicle.

Consult an approved dealer.

Only use:

– at the front, towing hitch 1 (from

the luggage compartment)

and

towing point 3.

– At the rear, towing point 4.

These towing points may only be used

for pulling the vehicle, never for lifting it

either directly or indirectly.

Do not remove the key from

the ignition when the vehi-

cle is being towed.

– Use a rigid towing bar.

If a rope or cable is used

(where the law allows this),

the vehicle being towed

must be able to brake.

– A vehicle must not be towed if it is

not fit to be driven.

– Avoid accelerating or braking

suddenly when towing, as this

may result in damage being

caused to the vehicle.

– When towing a vehicle, it is ad-

visable not to exceed

15 mph

(25 km/h).

TOWING: breakdown

(1/2)

5.30

ENG_UD17944_4

Remorquage : dépannage (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

Towing a vehicle with an

automatic gearbox

With the engine switched off, the trans-

mission is no longer lubricated. It is

preferable to tow this type of vehicle on

a trailer or tow it with the front wheels

off the ground.
Under exceptional circumstances,

you may tow the vehicle with all four

wheels on the ground, only going for-

ward, with the gear lever in the

N posi-

tion, and for a distance not exceeding

30 miles (50 km).

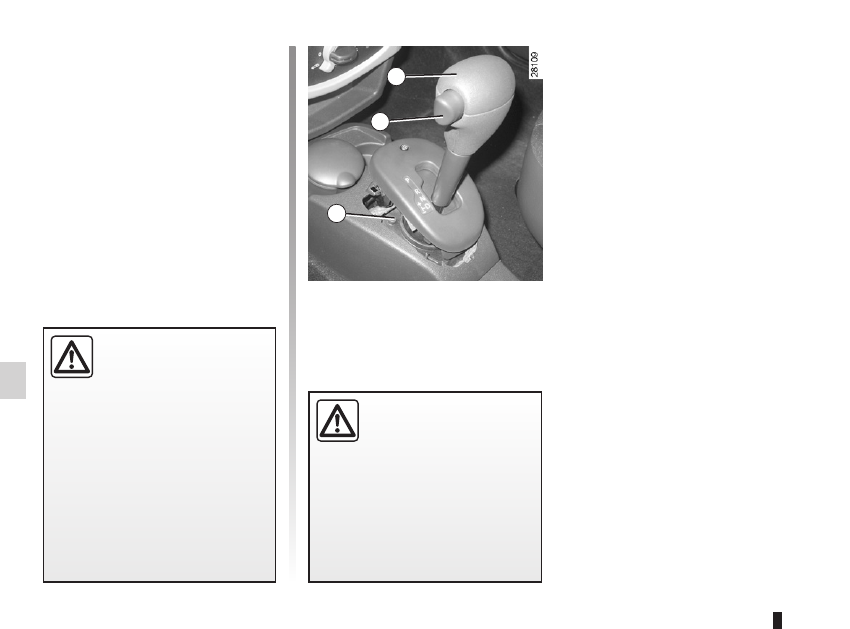

If the lever is stuck in

even though you are de-

pressing the brake pedal,

the lever can be released

manually.
To do this, unclip the cover at the

base of the lever.
Press simultaneously on the

button 5 on the gaiter and unlocking

button 6 located on the lever 7.

When storing the tools,

ensure they are securely re-

placed in the luggage com-

partment, in their original

position.
Do not leave the tools unsecured

inside the vehicle as they may come

loose under braking.

TOWING: breakdown

(2/2)

practical advice .....................................(up to the end of the DU)

towing

towing equipment ............................(up to the end of the DU)

5.31

ENG_UD18259_3

Remorquage : attelage (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

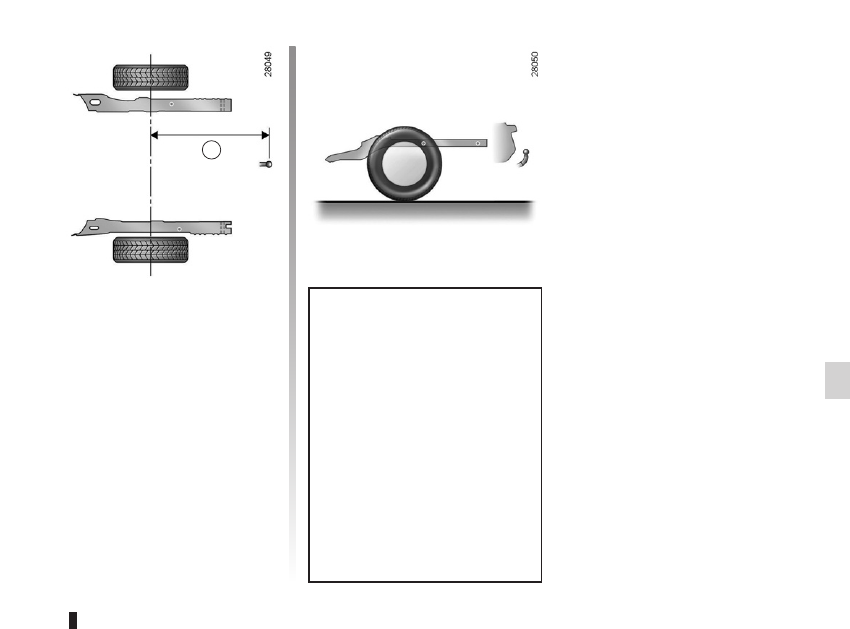

A = 701.2 mm.

Towing: equipment

TOWING equipment

Permissible nose weight, maxi-

mum permissible towing weight

braked and unbraked:
Refer to the information on “Weights”

in Section 6.
Refer to the manufacturer’s instruc-

tions for information on how to fit

and operate the towing equipment.
Please keep these instructions with

the rest of the vehicle documenta-

tion.

practical advice .....................................(up to the end of the DU)

speakers

location ...........................................(up to the end of the DU)

fitting a radio .........................................(up to the end of the DU)

radio

fitting a radio ...................................(up to the end of the DU)

5.32

ENG_UD20508_4

Prééquipement radio (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_5

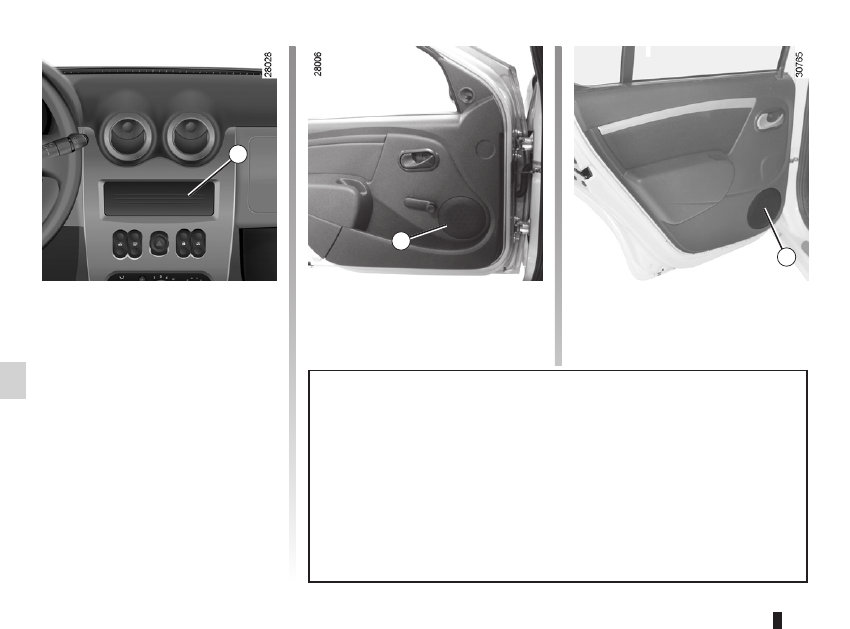

Fitting a radio

FITTING A RADIO

Radio location 1

If your vehicle is not fitted with an audio

system, one can be fitted and locations

have been provided for:
–  the radio 1;
–  front speakers 2;
–  rear speakers 3.
To install any equipment, please con-

sult an approved dealer.
Unclip and remove storage compart-

ment 1.

Location for front speaker 2

Unclip cover 2 using a flat-blade screw-

driver or similar.

Location for rear speaker 3

Unclip cover 3 using a flat-blade screw-

driver or similar.

– In all cases, it is very important to follow the manufacturer’s instructions care-

fully.

– The specifications of the brackets and wires (available from our network) vary

depending on the equipment level of your vehicle and the type of radio.

Consult an approved dealer to find out the correct part number.

– No work may be carried out on the vehicle’s electrical or radio circuits, except

by approved Dealers: an incorrectly connected system may result in damage

being caused to the electrical equipment and/or the components connected to

it.

accessories...........................................(up to the end of the DU)

practical advice .....................................(up to the end of the DU)

accessories - installation ......................(up to the end of the DU)

5.33

ENG_UD18260_7

Accessoires (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_5

Accessories

ACCESSORIES

Use of transmission/

receiving devices

(telephones, CB

equipment etc.).

Telephones and CB equipment with

integrated aerials may cause inter-

ference to the original electronic

systems fitted to the vehicle: it is ad-

visable only to use equipment with

an external aerial.
Furthermore, we remind you of

the need to comply with the legis-

lation in force concerning the use

of such equipment.

Electrical and electronic

accessories
– Connect accessories

with a maximum power of

120 Watts only.

Fire hazard.
– No work may be carried out on

the vehicle’s electrical or radio

circuits, except by approved

dealers: an incorrectly connected

system may result in damage

being caused to the electrical

equipment and/or the compo-

nents connected to it;

– if the vehicle is fitted with any

aftermarket electrical equip-

ment, make sure that the unit

is correctly protected by a fuse.

Establish the rating and position

of this fuse.

Before fitting an electrical or

electronic device (particu-

larly for transmitters/receiv-

ers: frequency bandwidth,

power level, position of the aerial

etc.), ensure that it is compatible

with your vehicle.
Contact an approved dealer for this

information.

Fitting after-market

accessories

If you wish to install acces-

sories on the vehicle: con-

sult an approved dealer.

Also, to ensure the correct opera-

tion of your vehicle, and to avoid

any risk to your safety, we recom-

mend that you use only specific ac-

cessories, designed for your vehi-

cle, which are the only accessories

for which the manufacturer will pro-

vide a warranty.

If you are using an anti-theft

device, only attach it to the

brake pedal.

operating faults .....................................(up to the end of the DU)

practical advice .....................................(up to the end of the DU)

faults

operating faults ...............................(up to the end of the DU)

5.34

ENG_UD19739_7

Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_5

Operating faults

OPERATING FAULTS

(1/5)

The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact

an approved dealer as soon as possible.

The starter is activated

POSSIBLE CAUSES

WHAT TO DO

Warning lights dim or fail to come on;

the starter does not run.

Battery terminals disconnected,

oxidised or incorrectly secured.

Retighten them, reconnect them or clean

them if they are oxidised.

Battery discharged or worn.

Connect another battery to the faulty bat-

tery. Refer to the information on “Battery:

troubleshooting” in Section 5 or replace the

battery if necessary.

Do not push the vehicle if the steering

column is locked.

The engine will not start.

Starting conditions are not fulfilled.

Refer to the information on “Starting/stop-

ping the engine in Section 2.

The steering column remains locked.

Steering wheel locked.

To unlock, gently move the key and the

steering wheel (refer to the information on

the “Ignition switch” in Section 2).

Content .. 7 8 9 10 ..
