Renault Kangoo VAN Z.E. (2012 year). Instruction - part 2





1.18

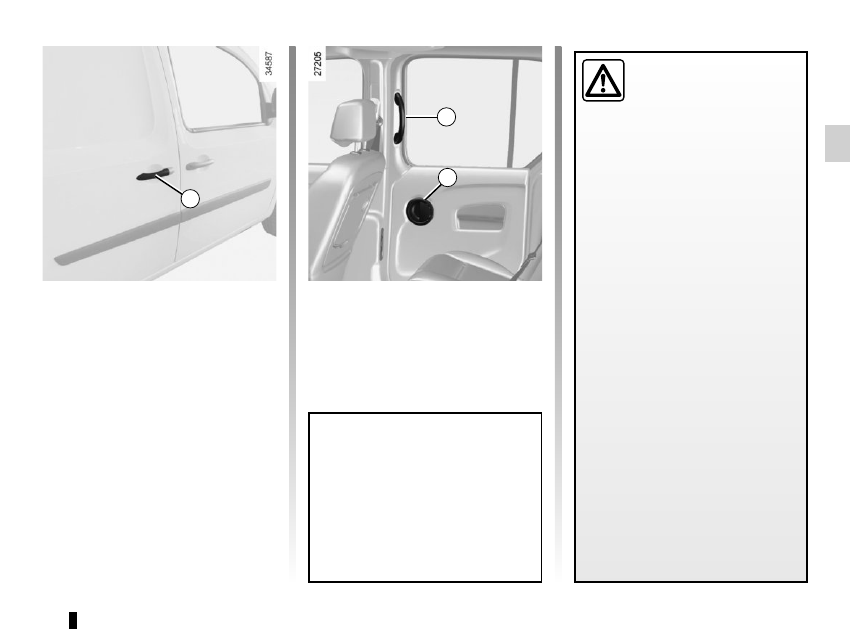

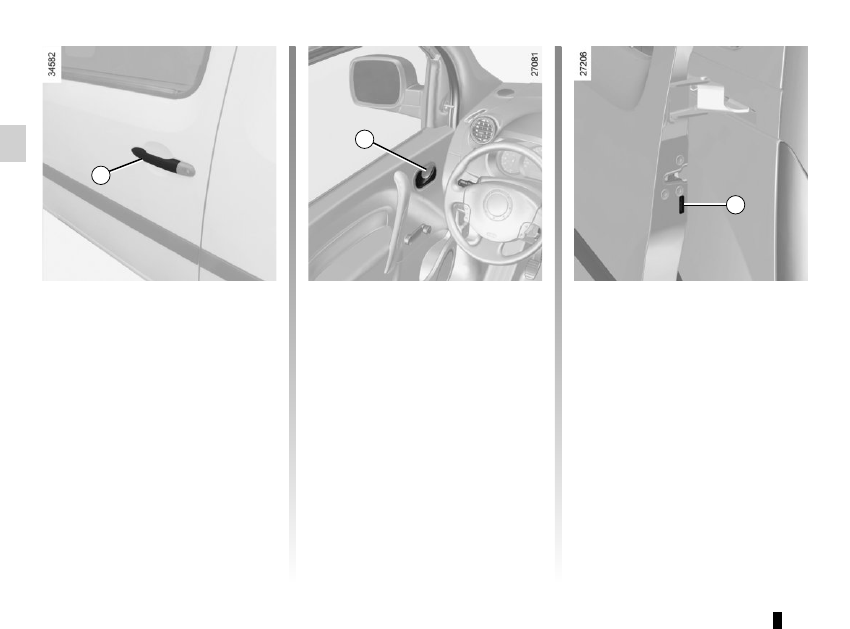

Opening from the outside

Unlock the door and pull handle 1. For

information on unlocking the doors,

refer to the information on the “Key,

radio frequency remote control: use” in

Section 1.

Opening from the inside

Pull handle 2.

DOORS

(1/5)

1

2

Child safety

(depending on vehicle)
At the rear, to prevent the side door

from being opened from the inside,

move lever 3 using the end of the ve-

hicle key.
From the inside, check that the door is

correctly locked.

3

Lights-on reminder buzzer

If you have left the lights on after switch-

ing off the ignition, a reminder buzzer

will sound when a door is opened (to

prevent discharge of the 12 volt battery,

etc.).

2

 This warning indicates that a door is

open or not properly closed.

1.19

DOORS

(2/5)

Closing from the inside
Pull handle 5 towards the front of the

vehicle until the door is completely

closed.

Sliding side door

Opening from the outside
Unlock the door and pull handle 4, then

slide the door towards the rear of the

vehicle until it locks in position. For

information on unlocking the doors,

refer to the information on the “Key,

radio frequency remote control: use” in

Section 1.

Opening from the inside
Pull handle 6 and use handle 5 to slide

the door towards the rear of the vehicle

until it locks in position.

Recommendations con-

cerning the sliding side

door
The following precautions

must be taken when opening and

closing the doors or any other open-

ing element:
–  Check that the door will not come

into contact with any person,

animal or object.

– Only use the handles on the

inside and outside of the door to

operate it.

– Take care when opening and

closing the door.

–  Take particular care when the ve-

hicle is parked on a slope: open

the door with care until it is fully

open and latches into its locking

position.

–  Before moving off, always ensure

that the sliding door is properly

closed.

–  Do not use the lower support as a

step.

4

5

6

As a safety measure, the sliding

side door located on the fuel filler

flap side locks when the flap is

opened. For more information, refer

to the information on the “Central

door locking/unlocking” in Section 1.

1.20

Opening the doors to the maximum

position
For each door, pull handle 8 to release

the door check strap. Open the door as

far as possible.

Closing manually from the outside
First close the small door and then

close the large door.
Position each door so that it is almost

closed and then slam shut.

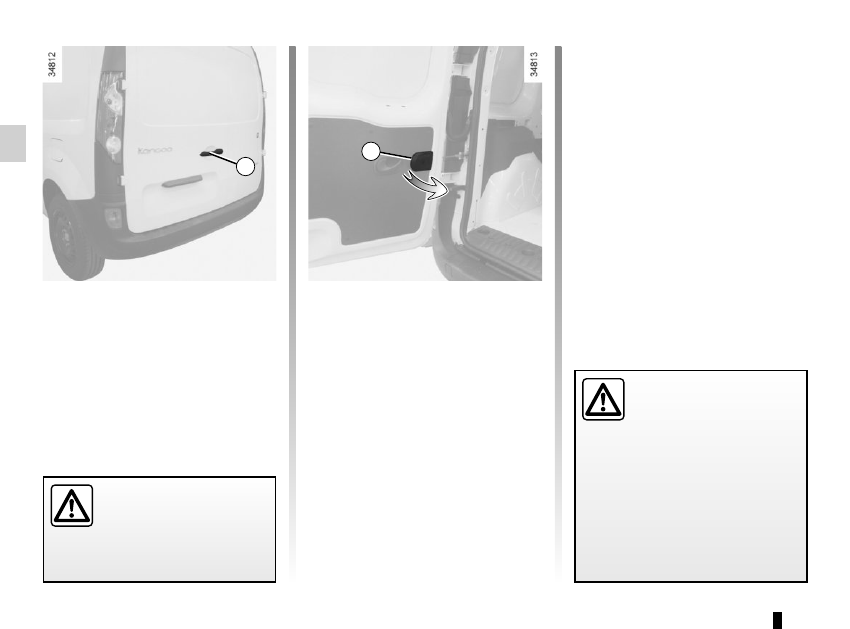

Rear hinged doors

Opening from the outside
Unlock the door and pull handle 7. For

information on unlocking the doors,

refer to the information on the “Key,

radio frequency remote control: use” in

Section 1.

DOORS

(3/5)

If the vehicle is parked on

the hard shoulder with tail-

gate open, the rear lights

may be obscured. You

should make other road-users

aware of your vehicle by using a

warning triangle or other equipment

specified by the road traffic regula-

tions of the country concerned.

Do not leave the hinged

rear doors open in case of

strong winds. Risk of injury.

7

8

1.21

Rear hinged doors

(continued)

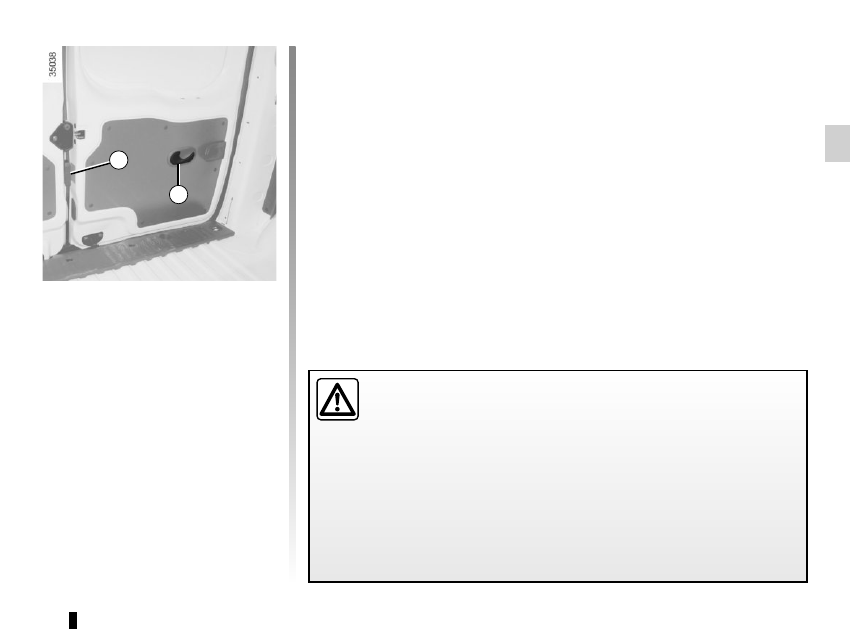

Opening from the inside

(depending on vehicle)
Pull handle 10 and open the door. Pull

lever 9 to open the small door.

Closing from the inside
First close the small door and then

close the large door.
Position each door so that it is almost

closed and then slam shut.

DOORS

(4/5)

10

9

Driver’s responsibility when parking or stopping the vehicle
Never leave an animal, child or adult who is not self-sufficient alone on

your vehicle, even for a short time.

They may pose a risk to themselves or to others by starting the engine, activating

equipment such as the electric windows or by locking the doors.
Also, in hot and/or sunny weather, please remember that the temperature inside

the passenger compartment increases very quickly.
RISK OF DEATH OR SERIOUS INJURY.

1.22

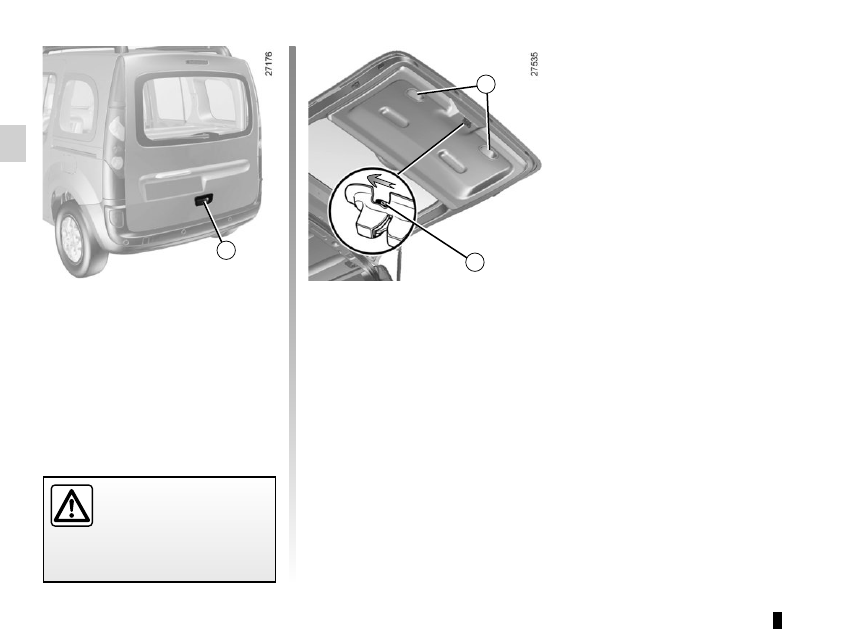

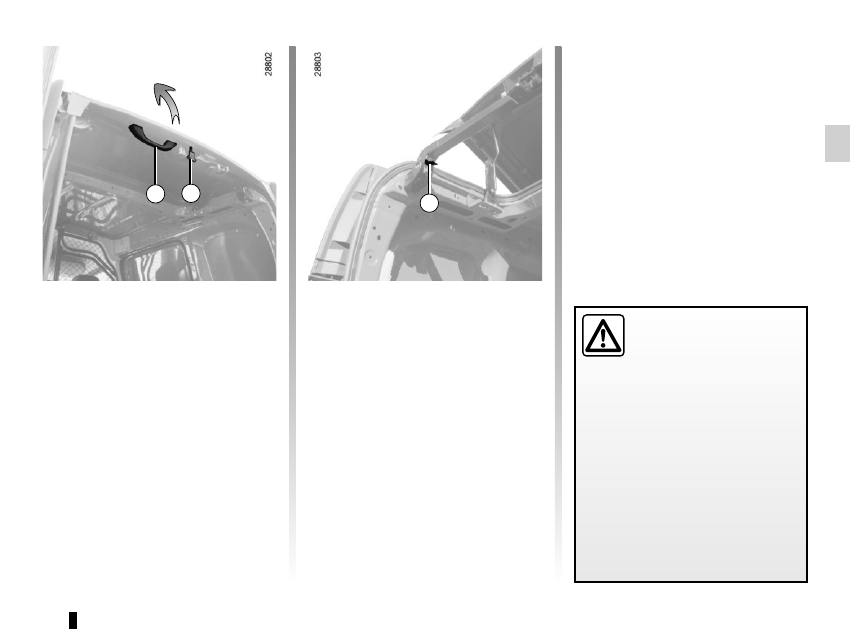

Closing

Lower the tailgate using interior han-

dles 12.
When the tailgate reaches shoulder

height, gently push it shut.

Opening manually from the inside

If it is not possible to unlock the tail-

gate, it can be unlocked manually from

the inside.
Insert a pencil or similar object into

cavity 13, slide the assembly as shown

in the diagram and push the tailgate to

open it.

Tailgate

Opening
Unlock the door and pull handle 11

For information on unlocking the doors,

refer to the information on the “Key,

radio frequency remote control: use” in

Section 1.

For your safety, check that

all the vehicle’s doors are

properly closed before

starting the engine.

11

13

12

DOORS

(5/5)

1.23

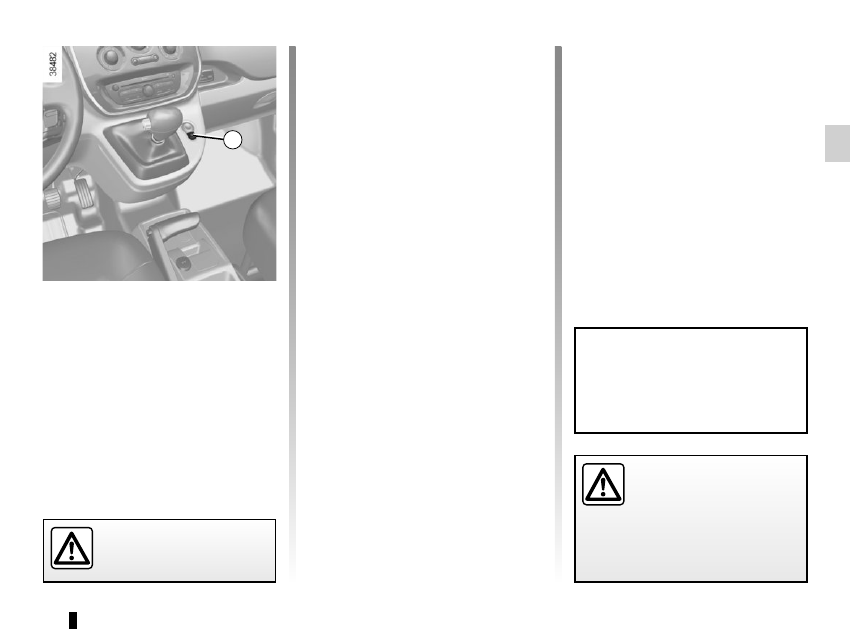

Locking the opening

elements without the remote

control

With the engine and ignition off, the

sliding side doors closed and a front

door open, press switch 1 for more than

five seconds.

Make sure you have your key with you

before you leave your vehicle.

When the door is closed, all the doors

and tailgate will be locked.

Unlocking from outside the vehicle will

only be possible with the key for the

driver’s door.

Doors and tailgate status

indicator light

With the ignition on, the warning light

integrated in switch 1 informs you of the

locking status of the opening elements:

–  indicator light on, the doors and tail-

gate are locked;

–  indicator light off, at least one door is

unlocked.

When you lock the doors, the indicator

light remains lit and then goes out.

Control for locking and

unlocking from the inside

This enables all the doors to be locked

simultaneously.

Lock or unlock the doors by pressing

switch 1.

If a door or the tailgate is open or not

closed properly, the doors and tailgate

lock/unlock quickly.

CENTRAL DOOR LOCKING/UNLOCKING

(1/2)

Never leave your vehicle

with the key inside the ve-

hicle.

If you decide to keep the

doors locked when you

are driving, remember that

it may be more difficult for

those assisting you to gain access

to the passenger compartment in

the event of an emergency.

1

Unlocking the opening elements by

pressing the switch 1 releases the

vehicle charging cord.

1.24

CENTRAL DOOR LOCKING/UNLOCKING

(2/2)

2

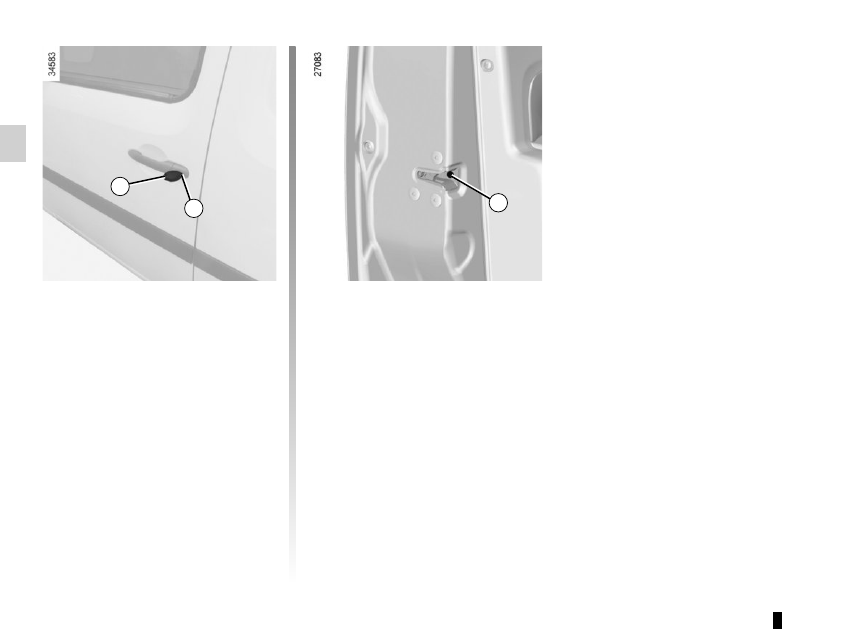

Manual control

Using the key

Lock or unlock the driver’s door by in-

serting the key 3 fully into lock 2, and

turning the key.

For more information on the remote

controls, refer to the information on the

“Key, radio frequency remote control:

use” in Section 1.

Locking the doors manually

Turn screw 4 with the door open (using

the end of the key) and close the door.

This means that the doors are then

locked from the outside.

The doors may then only be opened

from inside the vehicle or with the key

for the front doors.

Sliding side door (fuel filler cap

side)
To prevent the door striking the fuel

filler nozzle, a mechanical system locks

it when the fuel filler flap is open.
When the fuel tank has been filled, re-

place the cap in its housing and close

the flap. The door can now be used.

4

3

1.25

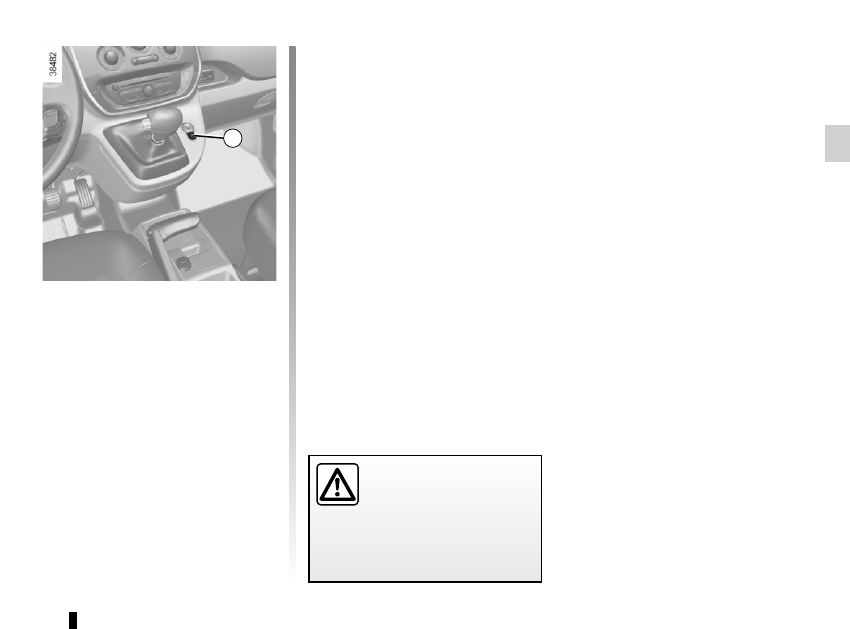

You must first decide if you want to

activate this function.

To activate

With the engine running, press and

hold button 1 for approximately 5 sec-

onds, until you hear a beep. The indica-

tor light built into the control comes on

when the doors are locked.

To deactivate

With the engine running, press and

hold button 1 for approximately 5 sec-

onds, until you hear a beep.

If you decide to keep the

doors locked when you

are driving, remember that

it may be more difficult for

those assisting you to gain access

to the passenger compartment in

the event of an emergency.

AUTOMATIC LOCKING WHEN DRIVING (RAID)

Operating principle

When the engine is started, the system

automatically locks the doors when the

vehicle reaches a speed of approxi-

mately 4 mph (7 km/h).

Operating faults

If you notice an operating fault (auto-

matic locking impossible), first check

that all doors are correctly locked. If

they are correctly locked and the fault

is still present, contact an approved

Dealer.
Also make sure that locking has not

been inadvertently deactivated.
If necessary, refer to the activation pro-

cedure.

1

1.26

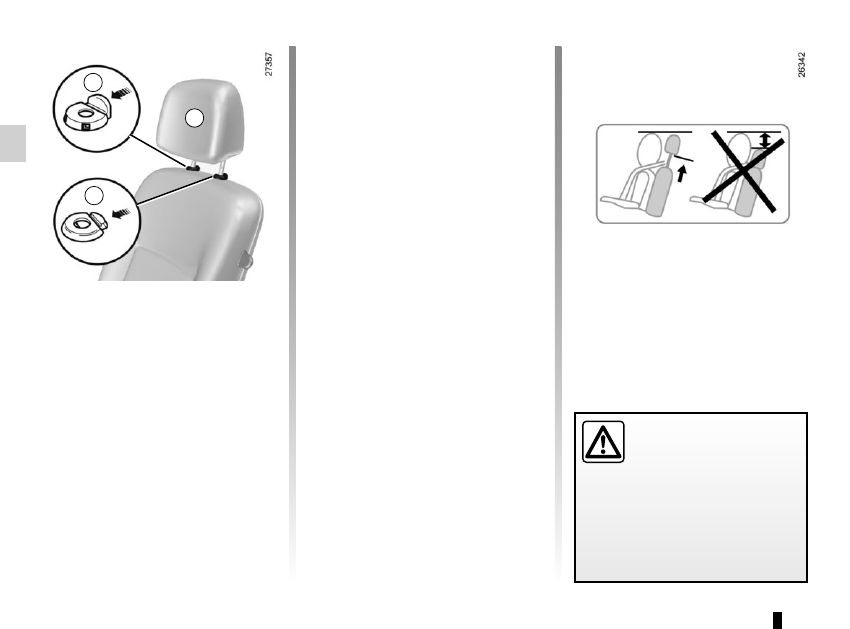

FRONT HEADRESTS

(1/3)

To refit the headrest
First, check that the headrest rods are

clean and correctly aligned.
Pull the tab 2 forwards.
Insert the headrest rods in the holes,

with the notches facing forwards (tilt the

seat backwards if necessary).
Guide the headrest down to the desired

height.

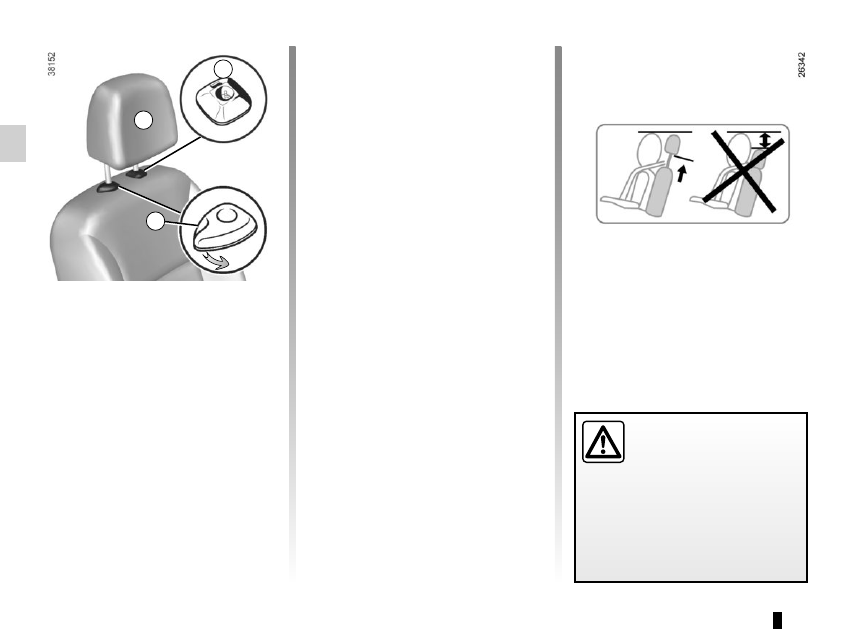

Headrest A

To raise the headrest
Pull it upwards to the required height.

To lower the headrest
Pull the tab 2 forwards, gently lift the

headrest to unlock it and guide it down

to the required height.

To remove the headrest
Raise it to its highest position. Press

button 1 and lift the headrest to release

it.

A

The headrest is an impor-

tant safety component:

ensure that it is in place

and in the correct position.

The distance between your head

and the headrest should be as small

as possible. The top of your head

should be in line with the top of the

headrest.

1

2

1.27

To remove the headrest
Raise it to its highest position. Press

button 4 and lift the headrest to release

it.

Note: when the headrest is removed,

take care not to change the positions

of the rods.

To refit the headrest
If the setting of the rods has been al-

tered, pull them fully upwards. Take

care to ensure they are clean and cor-

rectly aligned and, if there are any prob-

lems, check that the notches are facing

forwards.

Insert the headrest rods into the holes

(tilt the seatback backwards if neces-

sary).

Lower the headrest until it locks, press

button 3 and lower the headrest as far

as possible.

FRONT HEADRESTS

(2/3)

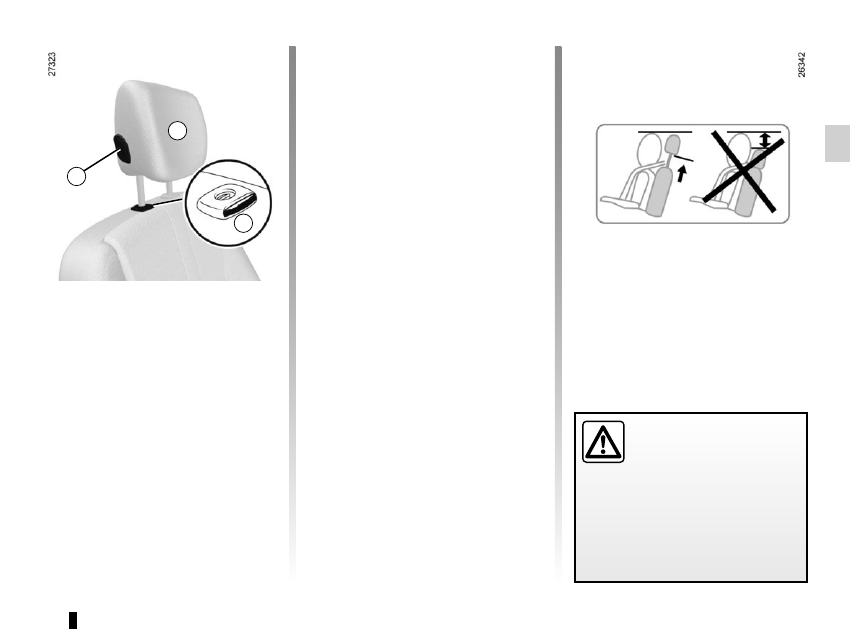

Headrest B

To raise the headrest
Pull it upwards to the required height.

To lower the headrest
Press button 3 and guide the headrest

down to the desired height.

The headrest is an impor-

tant safety component:

ensure that it is in place

and in the correct position.

The distance between your head

and the headrest should be as small

as possible. The top of your head

should be in line with the top of the

headrest.

3

B

4

1.28

FRONT HEADRESTS

(3/3)

Headrest C

To raise the headrest
Pull it upwards to the required height.

To lower the headrest
Press tab 5 and guide the headrest

down to the desired height.

To remove the headrest
Raise it to its highest position. Press

tabs 5 and 6 then lift the headrest to re-

lease it.
Note: when the headrest is removed,

take care not to change the positions

of the rods.

To refit the headrest
Press tab 5.
Insert the headrest rods in the holes

with the notches facing forward, and

guide the headrest down to the re-

quired height.

The headrest is an impor-

tant safety component:

ensure that it is in place

and in the correct position.

The distance between your head

and the headrest should be as small

as possible. The top of your head

should be in line with the top of the

headrest.

5

6

C

1.29

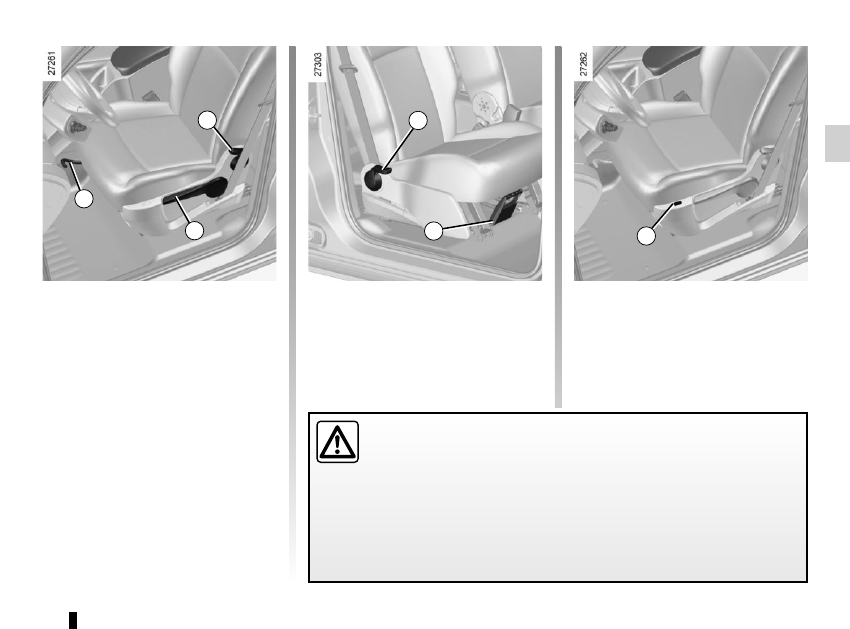

FRONT SEATS

(1/2)

1

2

5

3

4

2

ð

Heated seats

With the engine running, activate

switch 5; a warning light comes on.

To tilt the seatback

Depending on the seat, lower or lift

lever 2 and tilt the seatback until it

reaches the required position.

To move forwards or

backwards

Depending on the seat, lift bar 1 or

handle  4 to release it. Release the

handle at the desired position and

make sure that it is locked.

Adjusting the height of the

driver’s seat

Move lever 3 as many times as neces-

sary:
–  upwards to raise the seat,
–  downwards to lower the seat.

For safety reasons, carry out any adjustments when the vehicle is not

being driven.
We would advise you not to recline the seatbacks too far to ensure that

the effectiveness of the seat belts is not reduced.

Make sure that the seatbacks are correctly locked in place.
Nothing should be placed on the floor (area in front of driver) as such objects may

slide under the pedal during braking manoeuvres, thus obstructing its use.

1.30

FRONT SEATS

(2/2)

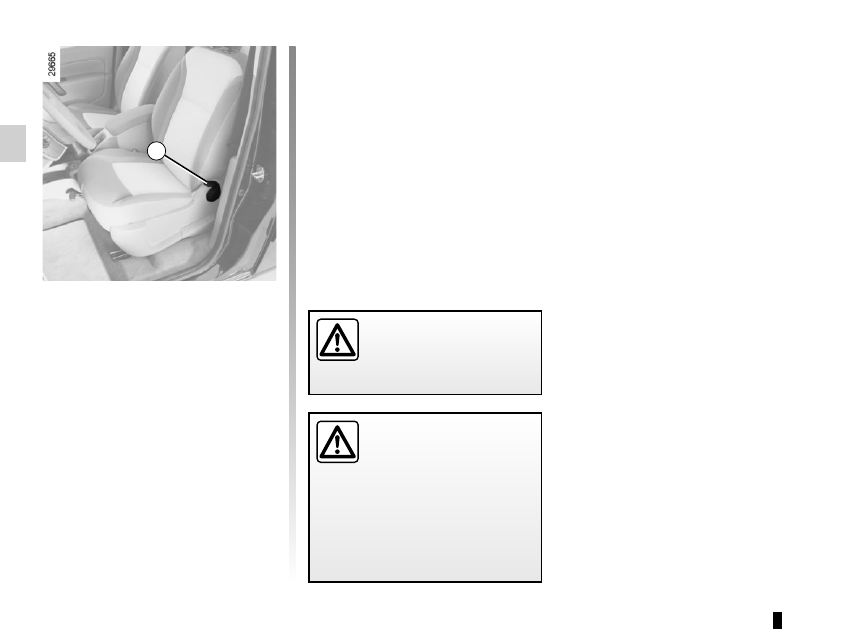

Front seats

Operating faults

(depending on vehicle)
If the sliding side door does not work,

lower handle 6, hold it while the seat-

back tilts and slide the seat forwards.
To place the seat into the comfort posi-

tion, slide it rearwards.

Adjust the seat and make sure that it is

correctly locked.

To avoid all risk of injury,

ensure that nobody is in

the proximity of the moving

parts. When moving the

seat, make sure that nothing inter-

feres with the moving parts and their

locking.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

6

1.31

ROOF FLAP

(1/2)

Driving with the roof flap

open may be unpleasant

for passengers because

exhaust gas may enter the

passenger compartment. This use

is solely for short distances, or for

transporting bulky objects with-

out having to open the rear doors. In

this case, close the other windows

and operate the ventilation system

at the half or fully open setting

as this will help to prevent exhaust

fumes from entering the passenger

compartment.

1

2

3

Transverse bar

When loading bulky objects, the trans-

verse bar may be moved:
–  Press the handle 3;
–  lift the bar all the way to the door

pillar;

–  lock the bar after loading.

To open:

–  Unlock the control 2, the roof flap lifts

automatically (make sure that noth-

ing prevents the flap from opening.

In this case, use the handle 1 to help

raise it);

–  when the roof flap is open, it must

be locked by pushing it towards the

front of the vehicle until the control 2

locks.

Important: It is prohibited to drive with

the roof flap open and unlocked.

Note: When driving with the roof flap

open, you may hear wind noise. To

reduce these, open one of the side win-

dows slightly.

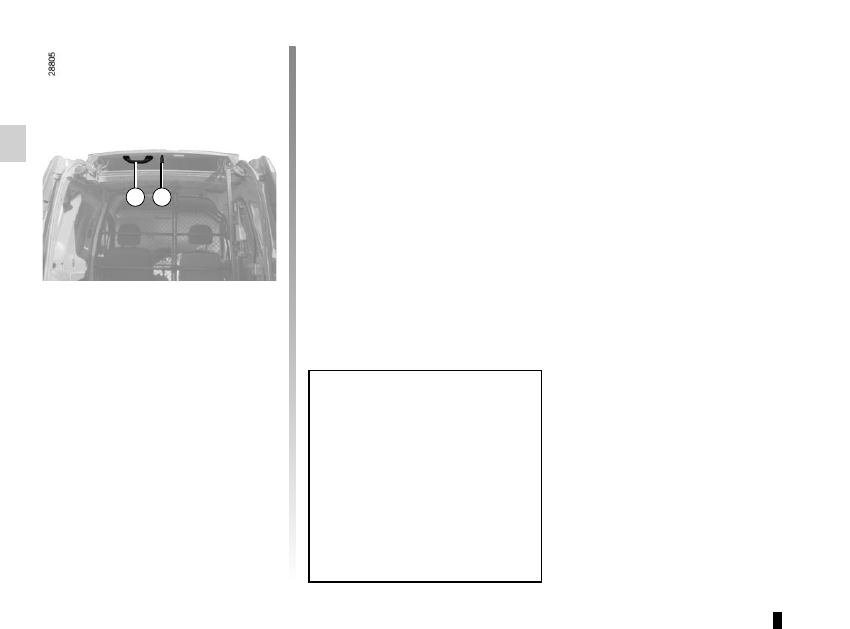

1.32

ROOF FLAP

(2/2)

Before starting, always reposition

the transverse bar and ensure it is

correctly locked.
The rear hinged doors can only be

closed with the bar locked.
Remember that the overall vehicle

dimensions may change when you

are transporting bulky objects.

1 2

To close:

–  Unlock the control 2, the roof flap au-

tomatically opens halfway;

–  pull the handle 1 and lock the roof

flap in the closed position.

1.33

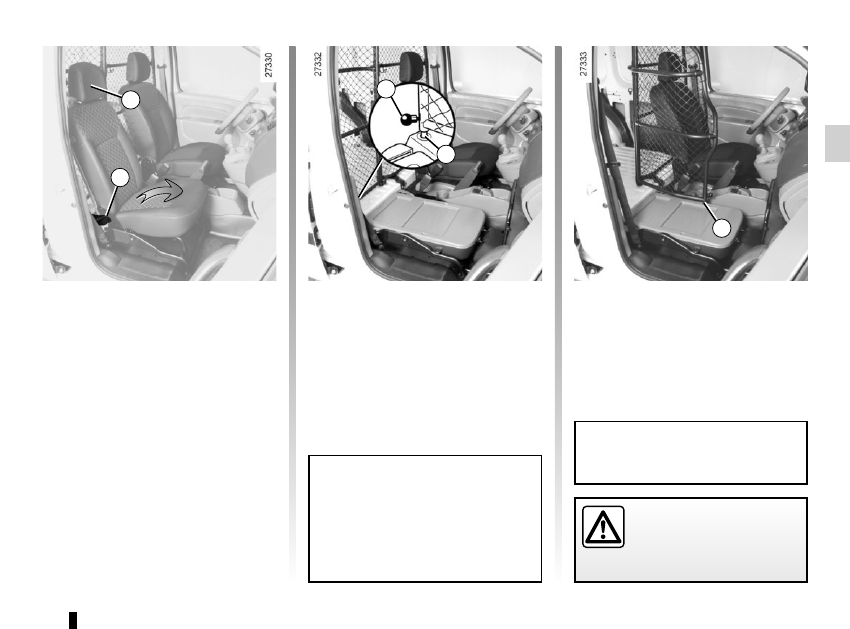

To rotate the partition

– Unlock the seat base by moving

handle 1 downwards;

–  lift the front passenger seat base

vertically (arrow);

– lower headrest 2 to its lowest setting;
– unlock the seatback by moving

handle 1 downwards again and po-

sition the seatback horizontally. To

make the manoeuvre easier, rotate

the headrest 2 ;

–  Pivot the moving section 90 degrees,

lock it at point 5 and lower catch 3.

Note: before refitting the swivelling

section in its original position, check

that locking point 4 is clean.

–  unlock the swivelling section by lift-

ing catch 3;

–  reposition the seat base, proceeding

in reverse order.

The swivelling section must

always be locked when the

vehicle is driven. Risk of

injury.

SWIVELLING PARTITION

When moving the swivelling parti-

tion, ensure the seat belt is not dam-

aged. Hold it aside when you rotate

the partition.

1

2

3

4

5

Maximum weight on the seat in

table position is 80 kg. The weight

must be evenly distributed.















Content   ..   1  2  3   ..
