35

WHEELS AND TYRES

Some speed markings

:







  Max. speed

Km/h

R

170

S

180

T

190

U

200

H

210

V

240

           ZR bigger than 240

 Structure types

:

Diagonal

No marking

Radial

R

Diagonally belted

B

RIMS - TIRES

V

EH ICLE

  R

IM

        T

IRES

  O

UTER

DIAMETER

 [mm]

A

IR



FILLING



PRESSURE

 [bars]



AT



CO LD

  F

RO NT

        R

EAR

D 1304

  5 J 14         175 R 14

1920+/- 25

       1,9

      4,2

D 1307

with 48 mm

      PR 8

  offset

 D1307 4 WD   5 J 14        175 R 14

1920+/- 25

       2,0

      4,5

 D 1305

with 48 mm

PR 8

 D1304 4 WD    offset

The nuts ( screws ) tightening moment of the wheels: 9 daNm.
The inflating pressure must be checked at cold
The temperature raising during driving, leads to a pressure increase from 0,2 to 0,3

bars.

In case temperature checking is done at warm, take into account this pressure increase

and never let air coming out.

35 - 3

CHARACTERISTICS

WHEELS AND TYRES

35

WHEELS BALANCING

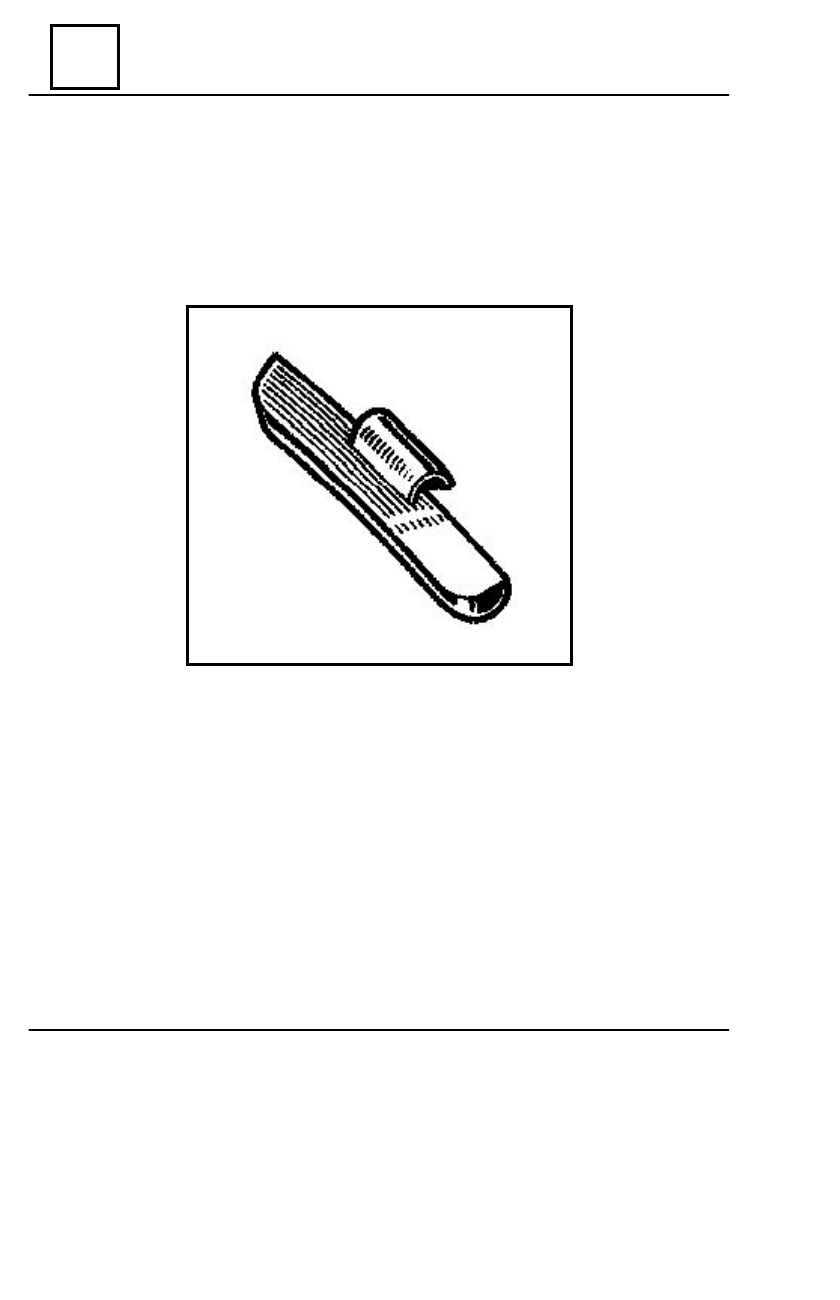

BALANCING WEIGHTS

 Use exclusively the weights delivered as spare parts :

- fixed by means of clamps on steel rims (clamps included in weights).

35 - 4

36

STEERING ASSEMBLY

CHARACTERISTICS, TIGHTENING COUPLERS

CHARACTERISTICS

The steering mechanism is rack-and-gear drive.
The multiplication ratio in the steering box is: 20:1.
The steering wheel number of rotations, corresponding to passing from one end to the

other of the rack: 3,5.

The central point of the steering gear is: c = 65 mm
The diameter of the turning circle between:

- pavement.........................11,2 m
- walls.... ...........................11,6 m

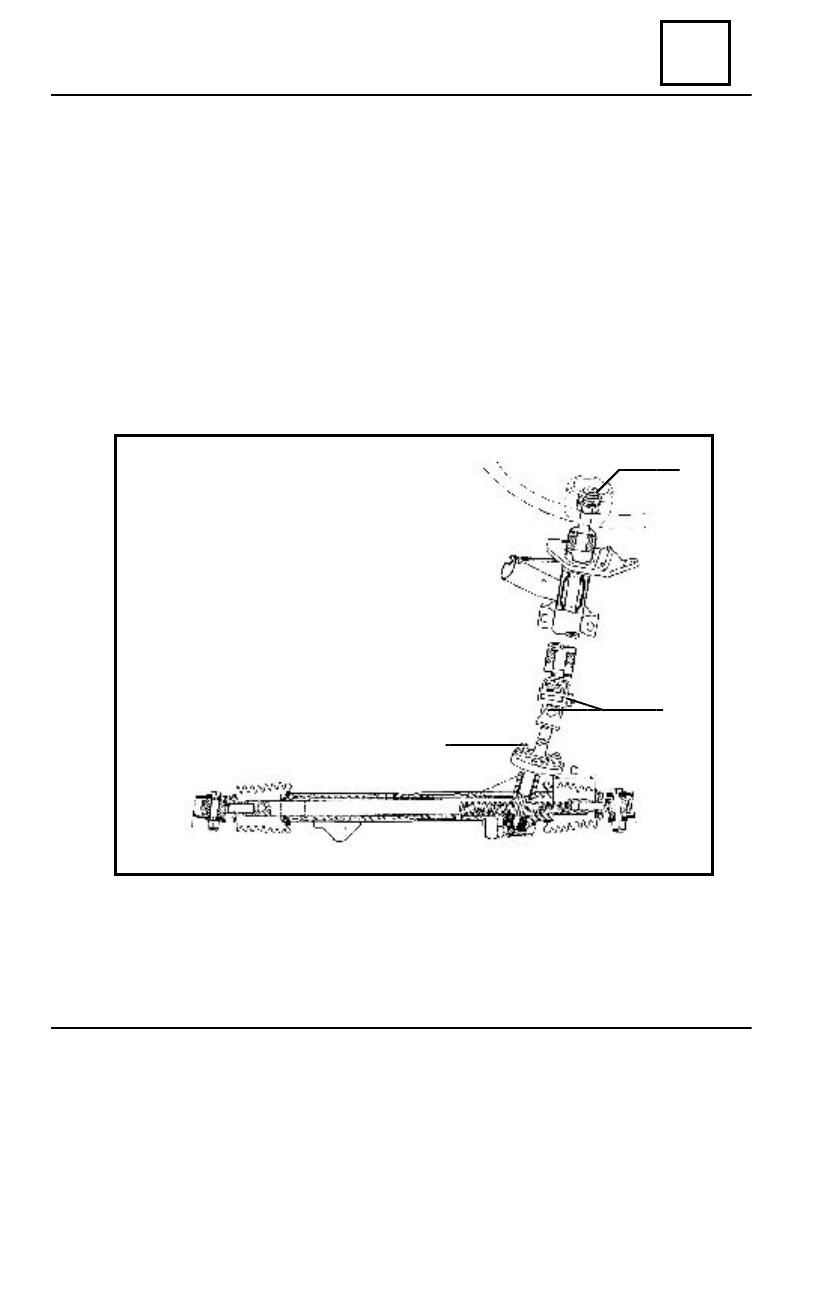

  LONGITUDINAL SECTION

36 - 1

1,3daNm

3,5daNm

4,5daNm

STEERING ASSEMBLY

36

36 - 2

CHARACTERISTICS, TIGHTENING COUPLERS

T

IGH TENING



MO MENTS

- Screws for the attachment of the box on the cross rod......................2,5 daNm
- Steering ball joint nut............................................................................4 daNm
- Elastic coupling nut.......................................................................... 1 ,3 daNm
- Steering auxiliary connecting rod shaft nut....................................... 3,5 daNm
- Steering wheel shaft nut..................................................................   4,5 daNm
- Steering cardan nut ........................................................................... 3,5 daNm
- Corp articulaπie pe cremalierã ..............................................................5 daNm

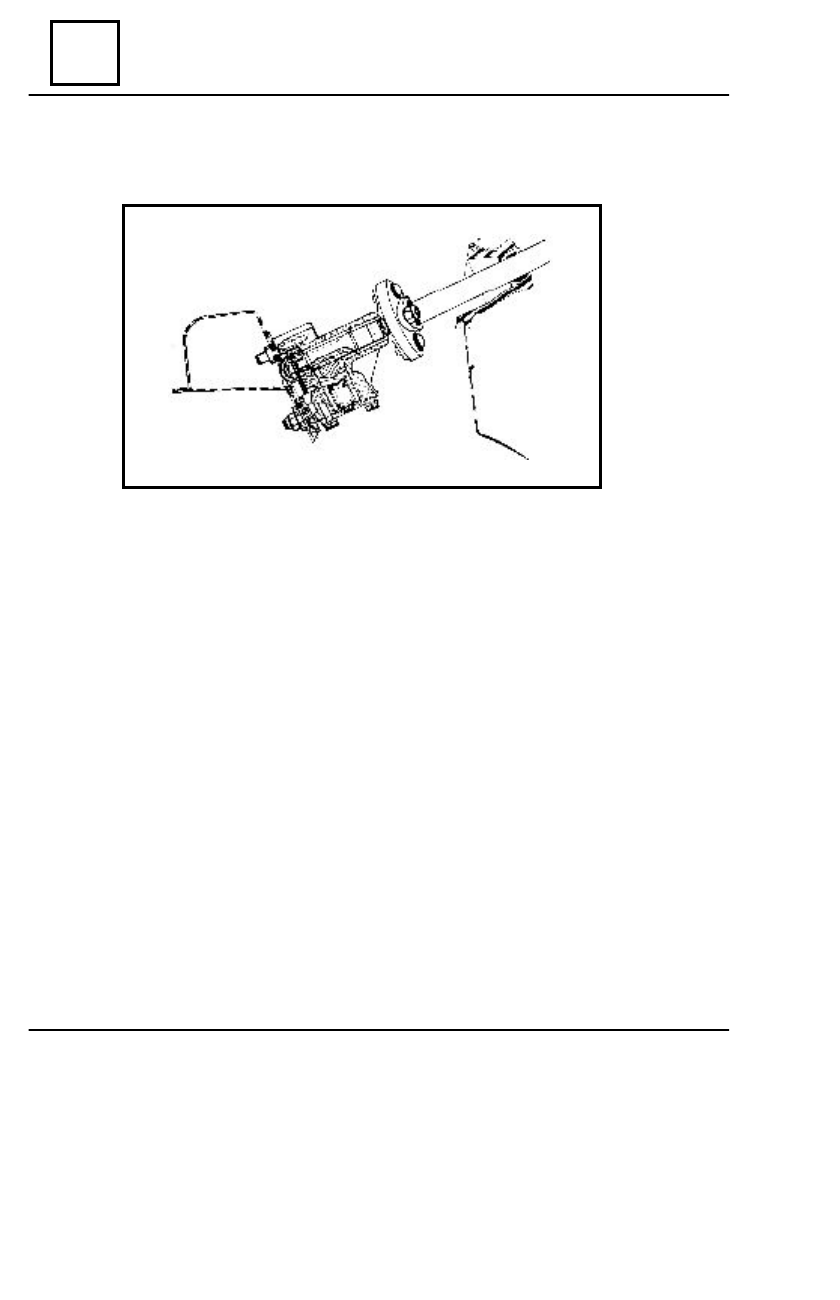

CROSS SECTION
