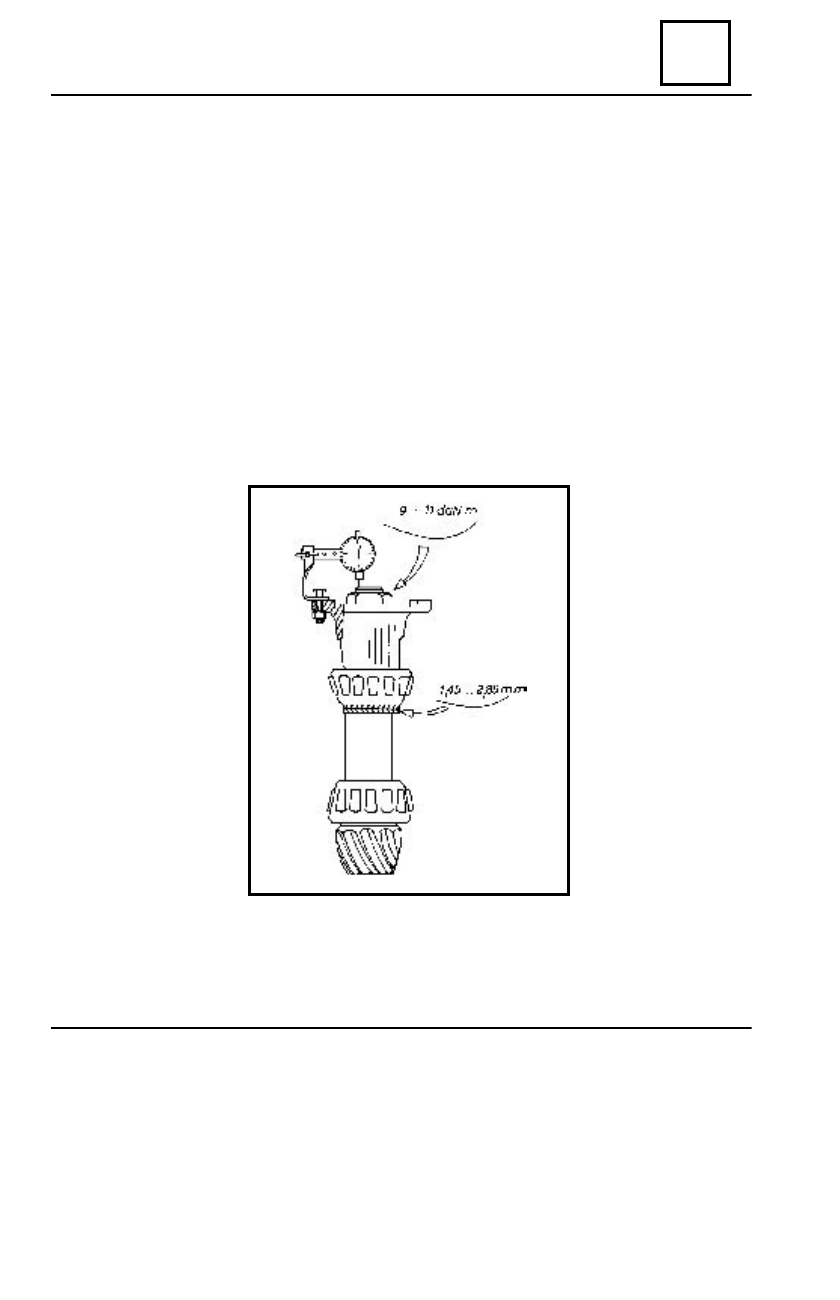

33 REAR BEARING ELEMENTS 33 - 31 Working procedure : Temporarily mount the inner ring with balls of the back bearing on the pinion, and introduce it in the casing , without mounting the adjustment washer. Tighten the flange nut at a moment of 3 – 4 daNm. 1. ADJUSTMENT OF THE CONICAL DISTANCE Now set the 18 mm spacer C in front of the differential drive pinion and the chuck M, in the half casings of the bearings. By means of the comparator dial , measure the difference between the real value (the mea- sured one) and the value A. Depending on the value of this difference, select the washer of the required thickness. CAST IRON REAR DRIVE AXLE DIFFERENTIAL |
