STARTING AND CHARGING

16

16 - 28

STARTER DOES NOT WORK

Check the battery voltage and
the terminals state.

Dead battery; charge the battery;check
the charging circuit.

Charged battery : clean and tighten
Terminals.

 Check if solenoid is supplied when
     switch on contact with the key.

Solenoid is not supplied.

           Check the ignition contact.

Ignition contact does not work:
replace the ignition contact.

Solenoid is supplied; dismount the
starter and check it;

Ignition contact working; the supplied
wire of the solenoid is interrupted or
disconnected.

STARTER

17

IGNITION AND  INJECTION

17 - 1

The following spark plugs are to be used for Dacia vehicles:
The inducing voltage of the spark plug is 4 – 8 KV. The maximum voltage difference between

the spark plugs, measured on the engine is 2 KV.

The distance between the  electrodes is set by  means of  thickness gauges at the preset values,

according to the spark plug type.

The spark plugs may be checked on the engine itself by means of a special tester for spark

plugs or by testing the inducing voltage.

Mount he spark plug on the tester; increase the pressure to 12-13 bars and observe the

spark aspect:

- the spark plug should be replaced as inadequate, in case the spark is reddish and dispersed

or in case there is an external discharge;

- the spark plug is adequate in case the spark is blue and is between the  electrodes.

Constructive components of  the spark  plug:

The following spark plugs are to be used for Dacia vehicles:

SPARK PLUGS

IGNITION AND  INJECTION

17

17 - 2

SPARK PLUGS

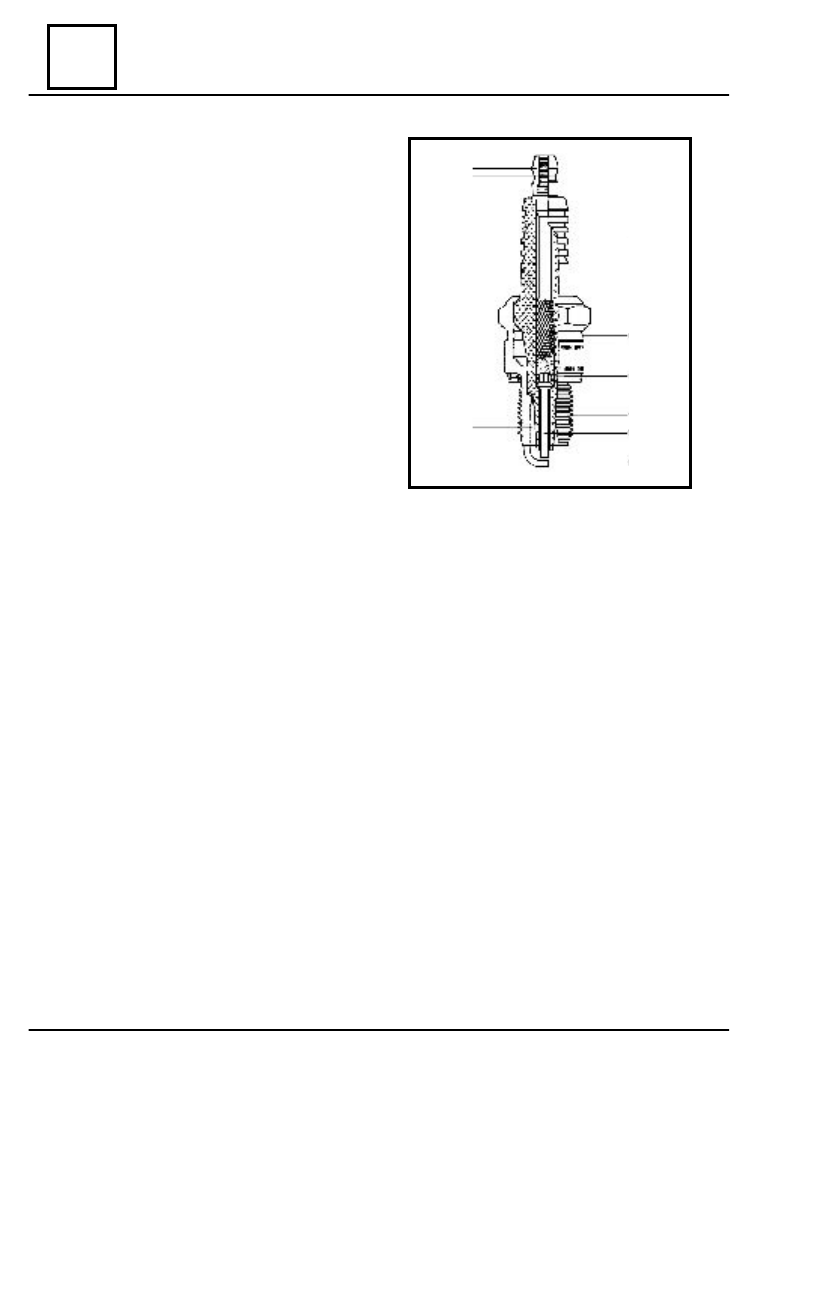

  1. Terminal nut
  2. Terminal thread
  3. Anti-power hazard protection step
  4. Insulator
  5. Conducting material
  6. Internal gasket
  7. Ventilation room
  8. Connection rod
  9. Insuring area
10. Sealing ring
11. Insulating bulb
12.  Central electrode
13.  Mass electrode

11

1

1

3

4

5

6

7

2

8

9

10

11

12

13

17

IGNITION AND  INJECTION

17 - 3

  MONO - MOTRONIC INJECTION SYSTEM ( MA 1.7 )

 OPERATION PRINCIPLE

The BOSCH MONO-MOTRONIC injection system is a (á, n) type, where:

á = angle indicating the position of the valve and reading the engine load.
n = engine rotation

These are the principle information for the electronic control unit (computer), used for

determining the basic injection time (t

i

); this basic time value is corrected depending upon

the variation of the parameters with lent evolution: T engine, T suction air, lambda value
(ë), battery voltage.

The electronic control unit does the ignition advance calculation and the ignition coil

control for the MONO-MOTRONIC injection system, taking into account the evolution
of the parameters: T engine, T air, n (engine rotation).

The system is available and does not require adjustments. It is a self-adapting type

system, which corrects itself the parameters during the engine running, taking as well into
account its wearing during the run.

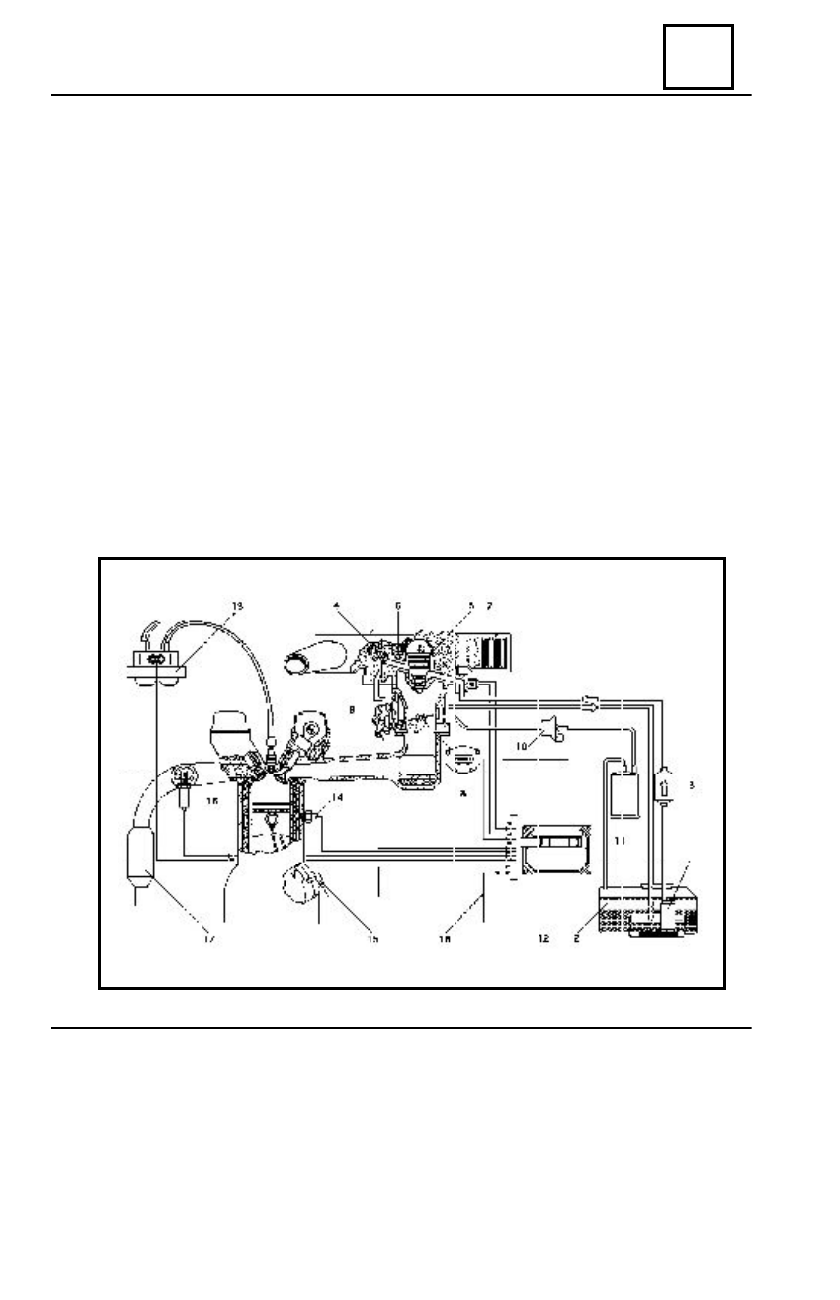

Fig. 1

 OPERATION PRINCIPLE
