Dacia Pick-Up 1304/1305/1307. Manual - part 4

DRAINING AND FILLING

05

05 - 1

ENGINE

Draining: plug

 (2)

Filling: plug

 (1)

Necessary  special tools -  wrench for draining plug : CV 514

DRAINING AND FILLING

05

05 - 2

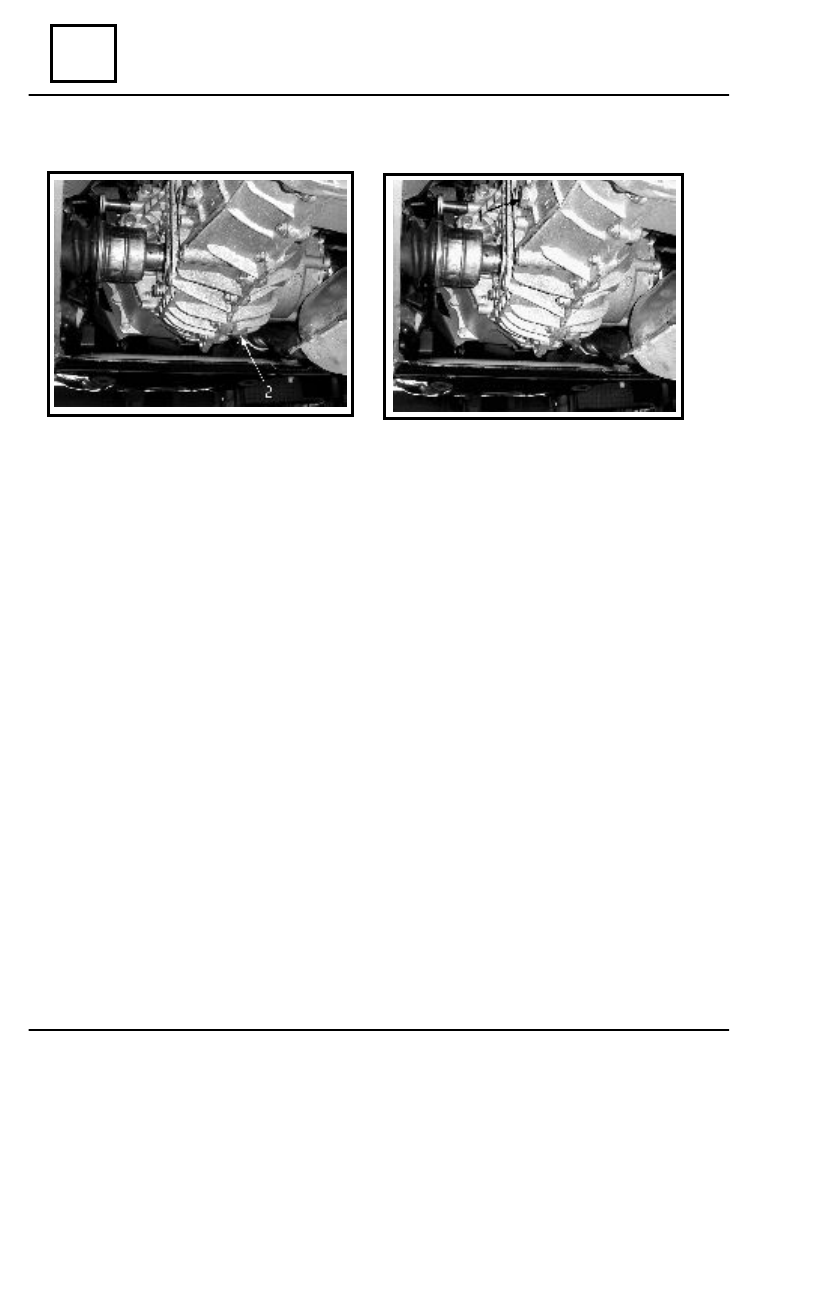

GEARBOX

Draining: plug

 (2)

Filling: plug

 (1)

DRAINING AND FILLING

05

05 - 3

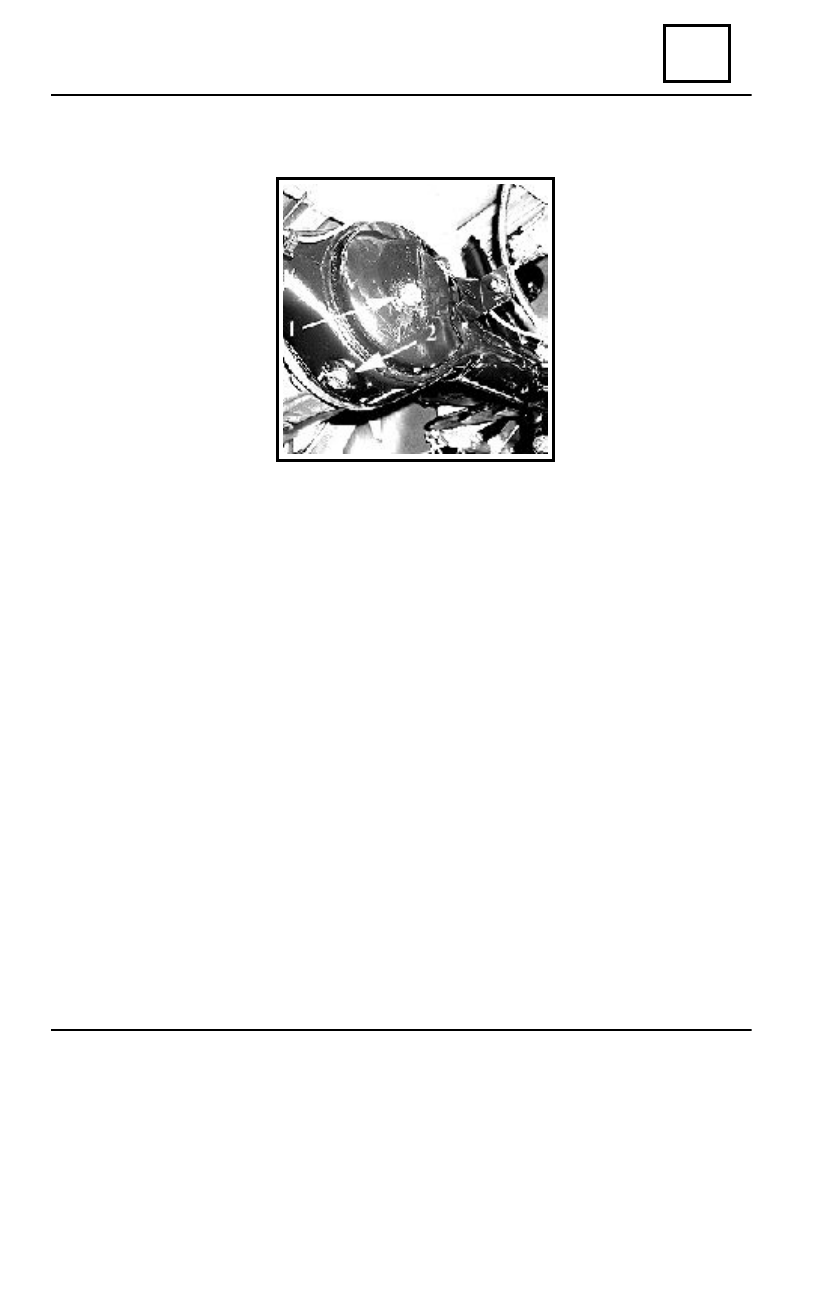

REAR  AXLE  DIFFERENTIAL

Draining: plug

(2)

Filling:

plug (1)

VALUES AND SETTINGS

07

07 - 1

DIMENSIONS

DACIA 1304 PICK - UP
DACIA 1305 PICK - UP

D

IMENSIONS

 ( mm )

W

EIGHT

 ( kg )

 Total length
 Total width
 Total height

Empty
Loaded

Axle base
Front wheel track width
Rear wheel track width
Ground clearance

Empty
Loaded

 Turn radius

Between footways

           Between walls

Load with trailer without own
brake

4674
1636

1550
1450
2675
1334
1320

   -

165

5600
5800

600
480

1080

760

1550
2250
1000

3225

2630
