Dacia Pick-Up 1304/1305/1307. Manual - part 2

SPECIFICATIONS

01

01 - 5

OVAL TYPE PLATE LABEL

Line 4

4.1 Tehnical definition code, driving post:

S2

: Left hand drive

4.2 Optional equipping code:

A

: Normal suspension

C

: Temperate climate

E

: Warm climate

F

: Normal heating

G

: Air conditioning

K

: Without pre-filter

M

: Mechanical steering system

R

: Without adjustable shock absorber

T

: Without plate corrector

V

: Without wheels ABS ( anti-blocking )

ATTENTION!

Do not unstuck or damage the label of the right side par t surface  of the

dashboard.This label represents the only way of vehicle identification, needed by the
after-sale services, for a period of 8 ( eight ) years from the purchasing date.

 UNITL THE DATE OF 26.06.2003

 VEHICLE IDENTIFICATION

SPECIFICATIONS

01

01 - 6

Fig.2.1

Vehicle identification

MANUFACTURER’S PLATE DISPOSAL TYPE SELF-ADHESIVE

STARTING WITH THE DATE OF 26.06.2003

SPECIFICATIONS

01

01 - 7

 APV IDENTIFICATION DATA

1.1Code type auto APV
1.2Manufacturing number

2.1 Equipping level code
2.2 Additional code for limited serial

definition

2.3 Additional code for special serial

definition

3.1 Carriage body color code
3.2 Seats upholstery code
3.3 Interior matching code.

4.1 Technical definition code
4.2 Optional equipping code.

A

C
D

F

B

H

G

I

J

E

MANUFACTURER’S IDENTIFICA-

TION DATA

A. Manufacturer’s name
B. Community reception number or

homologation

number.

C. Identification number.
D.  Total authorized weight of the

loaded vehicle.

E. Total authorized running weight
F. Total weight on front axle.
G. Total weight on rear axle.
H. Additional inscription.
I. Manufacturing date inscription
J. Consignment number.

The MANUFACTURER PLATE, self-adhesive type, has the bellow presented configura-

tion, with two distinctive areas, presenting :manufacturer’s identification data and APV type
identification data.

STARTING WITH THE DATE OF 26.06.2003

Vehicle identification

LIFTING

02

02 - 1

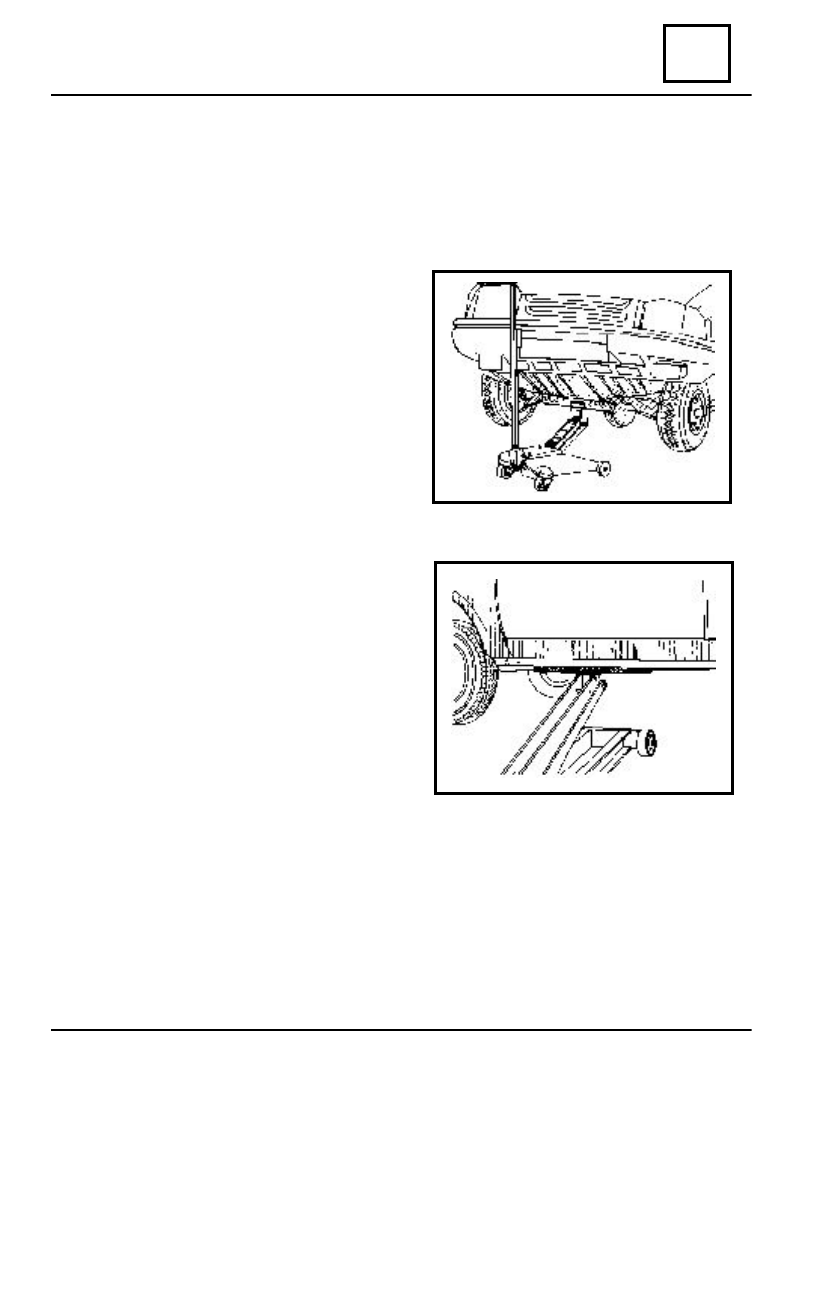

MOBILE JACK AND PROTECTION ROUTE

It absolutely forbidden the vehicle lifting using the front or rear suspension arms as

supporting points.

The mobile jack shall not be used to lift the car in order to perform certain operations

under the carriage body.

LIFTING THE FRONT PART OF THE

CAR

For lifting, the rolling jack and the

CHA 280 hold are used, in order to protect
the body and mechanical item of the car,
which are placed on longitudinal girders on
wheels axle.

LIFTING THE CAR FROM ONE SIDE

       For lifting the car from one side, the
rolling jack and the CHA 280 hold shall be
used which are placed on the threshold on the
front door.
      The edge of the threshold shall be correctly
positioned in the channel of the hold.
