Peugeot Boxer Benne (2012 year). Instruction - part 8

Bluetooth hands-free system

ECHNOLOGY

BOARD

Displaying the fi le information

Previous track

Confirm.

Pausing/resuming play

Next fi le

Changing the sound source

Select the file.

Start play.

This function is only available by voice
command.

Pressing:

- within 3 seconds following the start of

play enables you to play the previous
track.

- after 3 seconds enables you to listen to

the current track again.

"Previous".

Press to play the next file.

"Next".

"Stop" to interrupt playback. "Play"
to continue playback.

Press to select the audio source
(Radio, CD, Media player).

Pressing suspends or resumes
play.

"Track info".

The voice function "Play"  is only
available if playback has been
previously interrupted by the "Stop"
command.

Bluetooth hands-free system

VOICE COMMANDS

Portable audio device

Level 1

Actions

Player / Multimedia player / Media player

Activation of the MEDIA PLAYER menu.

Play / Play the track / Play the multimedia file

Activation of play.

Stop / Stop the track / Stop the multimedia file

Interruption of playing of the current file.

NEXT / Next track

Go to the next menu or file.

PREVIOUS / Previous track / Back

Go to the previous menu or file.

Shuffle on / Random play on

Activation of playing of the files in random order.

Shuffle off / Random play off

Deactivation of playing of the files in random order.

Track repeat on / Repeat on / Repeat

Activation of playing of the files in a loop.

Track repeat off / Repeat off

Deactivation of playing of the files in a loop.

Now playing / Track information / What is playing / What is this?

Display of the information for the file currently being played.

USB media settings / USB settings

Activation of the MEDIA PLAYER menu.

Activate automatic play

Activation of automatic play on connection of a portable device.

Deactivate automatic play

Deactivation of automatic play on connection of a portable device.

Shuffle / Any / Random

Activation of play of all tracks in random order

The key words which can be recognised by the system are organised into three levels (levels 1, 2 and 3).
When you say a level 1 command, the system makes the level 2 commands available; when you say a level 2 command, the
system makes the level 3 commands available.

Bluetooth hands-free system

ECHNOLOGY

BOARD

Level 1

Level 2

Level 3

Actions

Player / Multimedia
player / Media
player / Player

Activation of the MEDIA PLAYER menu.

Advanced USB options / Other options

Activation of playback options.

Folder / Explore
folders / Consult list
of folders

Activation of FOLDERS menu.

Artists / List of artists Activation of ARTISTS menu.

Genres / List of
genres

Activation of GENRES menu.

Album / List of
albums

Activation of ALBUMS menu.

Playlist / List of
tracks

Activation of PLAYLISTS menu.

DRIVING SAFELY

PARKING BRAKE

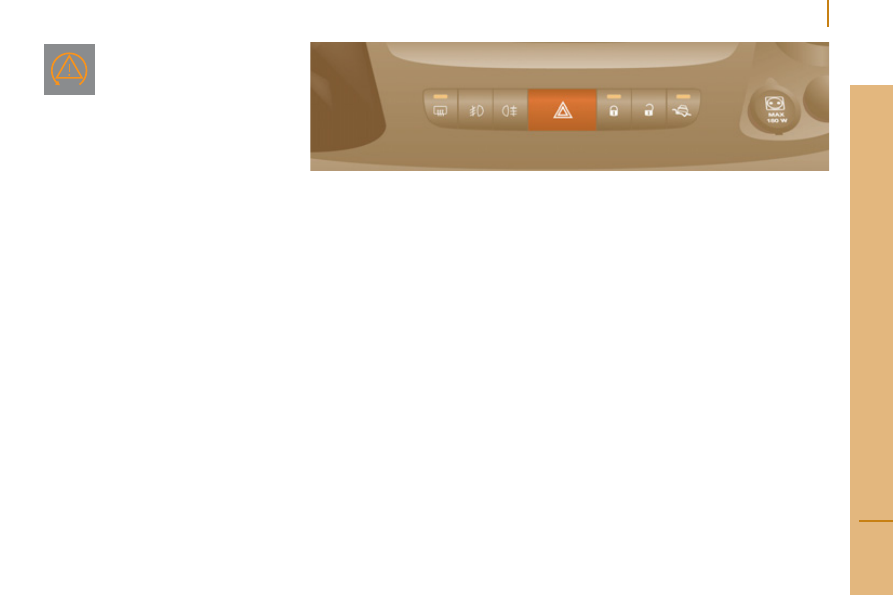

HAZARD WARNING LAMPS

Press this button, the direction indicators
flash.
They can operate with the ignition off.
The hazard warning lamps should only be
used in dangerous situations, when stopping
in an emergency or when driving in unusual
conditions.

Applying

Pull the parking brake lever up to immobilise
your vehicle.
Check that the parking brake is applied
firmly before leaving the vehicle.

Pull on the parking brake lever, only
with the vehicle stationary .

Releasing

Pull the lever and press the button to lower
the parking brake lever.

In the exceptional case of use of the
parking brake when the vehicle is

moving, apply the brake by pulling gently
to avoid locking the rear wheels (risk of
skidding).

If the parking brake is still on or has
not been released properly, this is
indicated by this warning lamp which
comes on on the instrument panel.
When parking on a slope, direct

your wheels towards the pavement and pull
the parking brake lever up.
There is no advantage in engaging a gear
after parking the vehicle, particularly if the
vehicle is loaded.

Driving safely

SAFETY

HORN

Press the centre of the steering wheel.

ANTI-LOCK BRAKING SYSTEM

(ABS - EBFD)

The ABS and EBFD (electronic brake force
distribution) systems improve the stability
and manoeuvrability of your vehicle on
braking, in particular on poor or slippery
surfaces.
The ABS prevents locking of the wheels, the
EBFD provides full control of the braking
pressure wheel by wheel.

EMERGENCY BRAKING ASSISTANCE

SYSTEM (EBA)

In an emergency, this system enables the
optimum braking pressure to be reached more
quickly, press the pedal fi rmly without releasing it.
It is triggered by the speed at which the brake
pedal is activated.
This alters the resistance of the brake pedal
under your foot.
To prolong the operation of the emergency
braking assistance system: keep your foot on
the brake pedal.

Good practice

The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock. It does not reduce the braking
distance.
On very slippery surfaces (ice, oil, etc...)
the ABS may increase the braking distance.
When braking in an emergency, do not
hesitate to press the brake pedal firmly,
without releasing the pressure, even on a
slippery surface, you will then be able to
continue to steer the vehicle to avoid an
obstacle.
Normal operation of the ABS may be felt by
slight vibration of the brake pedal.
When changing wheels (tyres and rims),
ensure that these are approved.

If this warning lamp comes on,
it indicates a malfunction of the
ABS which could result in a
loss of control of the vehicle on
braking.

If this warning lamp comes on,
together with the brake warning
lamp, it indicates a malfunction of
the electronic brake force distribution
which could result in a loss of control
of the vehicle on braking.

Stop immediately.
In both cases, contact a PEUGEOT dealer.

Driving safely

ANTI-SLIP REGULATION (ASR)

AND ELECTRONIC STABILITY

PROGRAMME (ESP)

These systems are linked and complement
the ABS.
The ASR system is very useful for
maintaining optimum drive and avoiding
losses of control of the vehicle on
acceleration.
The system optimises drive to prevent the
wheels skidding, by acting on the brakes of
the drive wheels and on the engine. It also
allows the directional stability of the vehicle
to be improved on acceleration.
Use the ESP to hold your course without
attempting to countersteer.

If there is a variation between the trajectory
followed by the vehicle and that required
by the driver, the ESP system automatically
acts on the engine and the brake of one
or more wheels, in order to put the vehicle
back on course.

In certain exceptional conditions (when
starting a vehicle stuck in mud or snow, or
on loose ground...), it could prove useful
to deactivate the ASR system to make the
wheels spin and regain grip.

Operation of the ASR and ESP

systems

The LED flashes when the ASR or ESP is
triggered.

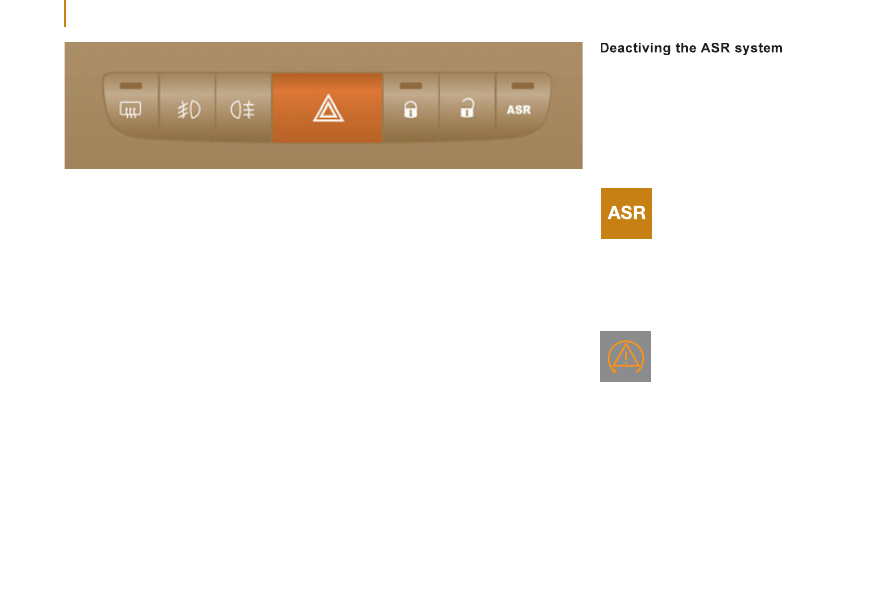

Press this button.

The LED on the button comes on: the
ASR system no longer acts on the engine
operation, but continues to act on the brakes.

Operating fault

When a malfunction of the ASR
system occurs, this warning lamp
comes on, accompanied by an
audible signal and confirmed by a
message on the screen.

Driving safely

SAFETY

When a malfunction of the ESP
system occurs, this warning lamp
comes on, accompanied by an
audible signal and confirmed by a
message on the screen.

Contact a PEUGEOT dealer to have the
system checked.

Good practice

The ASR/ESP systems offer increased
safety during normal driving, but should not
incite the driver to take risks or to drive at
high speed.
The operation of these systems is ensured
if the recommendations of the manufacturer
regarding the wheels (tyres and rims),
the braking components, the electronic
components and the fitting and repair
procedures within the PEUGEOT network
are observed.
After an impact, have these systems
checked by a PEUGEOT dealer.

Intelligent Traction Control

System to improve traction on slippery
surfaces (snow, black ice, mud...)
This system checks for situations of difficult
surface adhesion that could make it difficult
to move off or make progress.
In these situations, Intelligent Traction
Control takes over from the ASR system,
by transferring drive to the wheel with the
best grip on the ground to provide the best
traction and trajectory control.

  Activation
On starting the vehicle, the system is
deactivated.
Press the button, located on the dashboard,
to activate the system ; the warning lamp in
the button comes on.
The system is active up to about 18 mph
(30 km/h).
Once the speed exceed 18 mph (30 km/h,
the system is deactivated automatically, but
the warning lamp in the button comes on.
The system is reactivated automatically
as soon as the speed drops below 18 mph
(30 km/h).

Driving safely

  Deactivation
Press the button, located on the dashboard,
to deactivate the system ; the warning lamp
in the button goes off and the ASR  system is
active again.

Operating fault

This warning lamp comes on in
the instrument panel if there is a
fault with the system.

FIXED SPEED LIMITER

If your vehicle is fitted with this function,
the speed of your vehicle can be limited
to a fixed speed of approximately 55 mph
(90 km/h) or 60 mph (100 km/h). This
maximum speed cannot be changed.

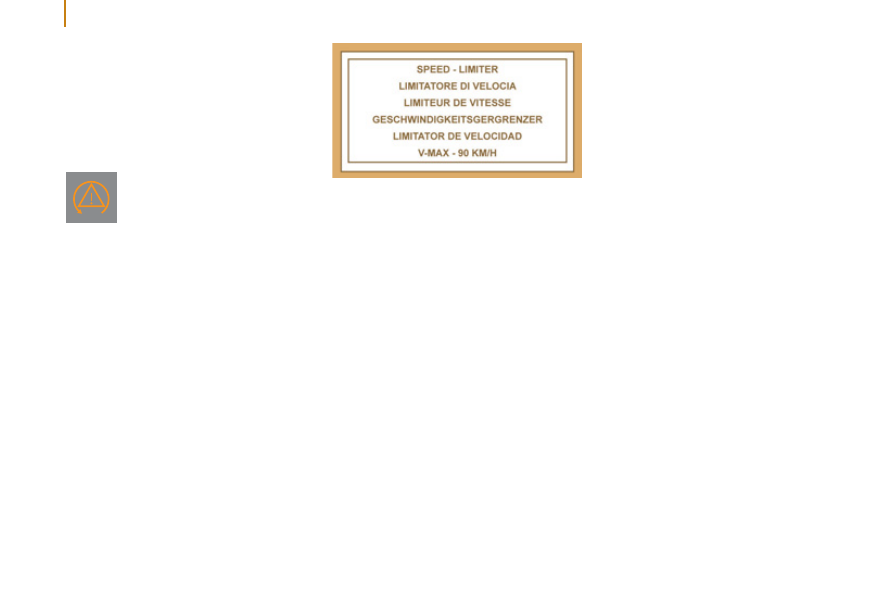

A label in the passenger compartment
indicates this maximum speed.
The fixed speed limiter is not a function
of the cruise control type. It cannot be
activated or deactivated by the driver while
driving.

Driving safely

SAFETY

Seat belts

SEAT BELTS

CAB SEAT BELTS

The front seats are fitted with pre-tensioners
and force limiters.
The bench rear seat is fitted with two seat
belts.
If you install a bench seat after handover, it
must be fitted with seat belts.

REAR SEAT BELTS

The seats/bench seats are fitted with three-
point seat belts and inertia reels.
The centre seat has a seat belt guide and
inertia reel, solid with the seat back.

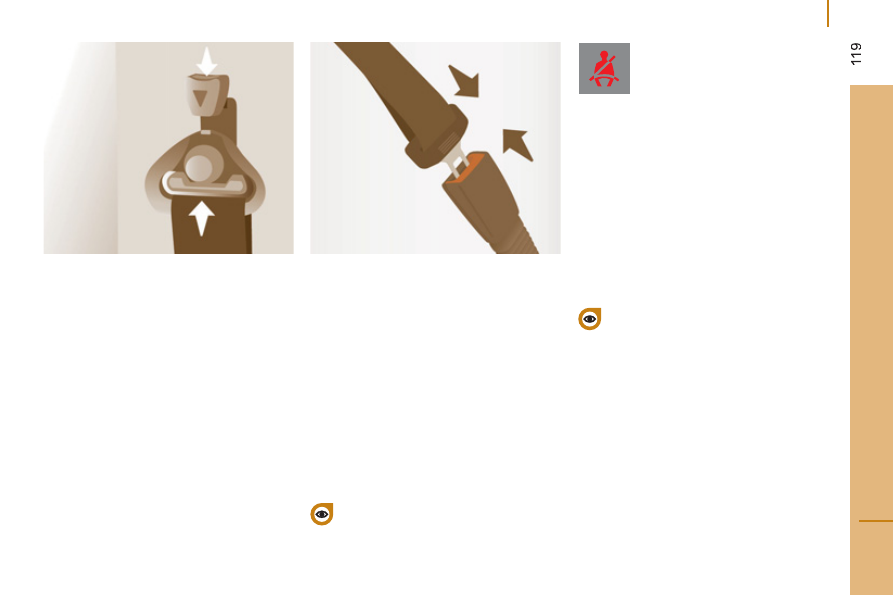

Height adjustment

Squeeze the control with the return and slide
the assembly on the driver's seat side and
on the side passenger seat side.
The height of the seat belt associated with
the centre seat cannot be adjusted.

Fastening

Pull the strap in front of you, with an even
movement, ensuring that it does not twist.
Secure the buckle in its housing.
Check that the seat belt is fastened securely
and that the automatic locking system is
operating correctly by pulling the strap
rapidly.

Unfastening

Press the "red" button on the buckle
housing, the seat belt rolls up automatically
but you are advised to guide it.

As a safety precaution, these
operations should not be carried out

while the vehicle is moving.

Driver's seat belt not

fastened warning lamp

When the vehicle is started, this
warning lamp comes on if the
driver has not fastened their seat
belt.

CREW CAB

Each rear seat is fitted with a three-point
inertia reel seat belt.
Use the seat belt to restrain one person only
per seat.

If the driver's seat belt is unfastened,
START mode of Stop & Start will not be

invoked. Engine restarting is only possible
with the ignition key.

Seat belts

The force limiter reduces the pressure of the
seat belt against the body of the occupants.
The pretensioning seat belts are active when
the ignition is switched on.
The inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.
You can unfasten the seat belt by pressing
the red button on the buckle. Guide the seat
belt after unfastening.

Good practice

The driver must ensure that passengers use
the seat belts correctly and that they are all
strapped in securely before moving off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
The seat belts are fitted with an inertia reel
which automatically adjusts the length of the
strap to your size.
Do not use accessories (clothes pegs, clips,
safety pins, etc.) which permit a clearance
with the seat belt straps.
Ensure that the seat belt has reeled in
correctly after use.
After folding or moving a seat or a rear
bench seat, ensure that the seat belt has
reeled in correctly and that the buckle is
ready to accommodate the tongue.
Depending on the nature and seriousness
of any impact, the pretensioning device may
be triggered before and independently of
inflation of the airbags. It instantly tightens
the seat belts against the body of the
occupants.
Triggering of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.

The airbag warning lamp comes
on if the pretensioners are
triggered. Consult a PEUGEOT
dealer.

In order to be effective, a seat belt must:
-

restrain one person only,

must not be twisted, check by pulling in
front of you with an even movement,

be tightened as close to the body as
possible.

The upper part of the seat belt should be
positioned in the hollow of the shoulder.
The lap part should be placed as low as
possible on the pelvis.
Do not invert the seat belt buckles as they
will not fulfil their role completely.

If the seats are fitted with armrests, the lap
part of the seat belt should always pass
under the armrest.
Check that the seat belt is fastened correctly
by pulling the strap firmly.

Recommendations for children:
-

use a suitable child seat if the passen-
ger is less than 12 years old or shorter
than one metre fifty,

never allow a child to travel on your lap,
even with the seat belt fastened.

For more information on child seats,
refer to the "Child safety" section of
chapter 5.

Your PEUGEOT dealer can ensure that
all work or any checks, from testing to
maintenance on your seat belt equipment
meets current regulations.
Have the seat belts checked regularly
(even after a minor impact) by a PEUGEOT
dealer: they must not show any signs of
wear, cutting or fraying and they must not be
converted or modified.

Clean the seat belt straps with soapy
water or a textile cleaning product, sold
by PEUGEOT dealers.

SAFETY

Improved safety and security

IMPROVED SAFETY AND SECURITY

IMPACT RESISTANCE

Your vehicle has been designed to limit
the forces on the passenger compartment
as much as possible in the event of a
collision, the engine compartment adopts
a progressive deformation structure and
the front doors have been reinforced to
contribute to the rigidity of the whole.

ANTI-THEFT PROTECTION

Your vehicle, in the van version, comprises
two zones with separate locking: the cab
and the load space.
Depending on the way in which it is used,
this function provides increased protection
both for your personal belongings and for
your merchandise.

Details of these functions are given in
part 2.

An exterior protection alarm with anti-tilt
detection is available (as standard or as an
option) in certain countries.

122

Airbags

AIRBAGS

The airbags have been designed to optimise
the safety of the occupants in the event of
a serious collision; they work in conjunction
with the force limiting seat belts.
In the event of a serious collision, electronic
detectors record and analyse any abrupt
deceleration of the vehicle:
-

in the event of a serious collision, the
airbags are deployed instantly and
contribute towards better protection of
occupants of the vehicle; immediately
after the impact, the airbags rapidly
deflate so as to not hinder visibility or
the possible exit by the occupants,

in the event of a less serious impact,
an impact to the rear and in certain
conditions of rollover, the airbags are

not deployed ; the seat belts alone
contribute towards providing protection
in these situations.

Airbags only operate when the ignition is
switched on.

Front airbags

These are fitted in the centre of the steering
wheel for the driver and in the dashboard
for the front passenger. They are deployed
simultaneously, except in cases where the
passenger airbag has been deactivated.

Deployment of the airbags is
accompanied by a slight discharge

of smoke and a noise, resulting from the
activation of the pyrotechnic charge included
in the system.
This smoke is not harmful but may be an
irritant to sensitive persons.
The noise of the detonation may result in a
slight loss of hearing for a short time.

Front airbag fault

If this warning lamp comes on,
contact a PEUGEOT dealer to
have the system checked.

SAFETY

Airbags

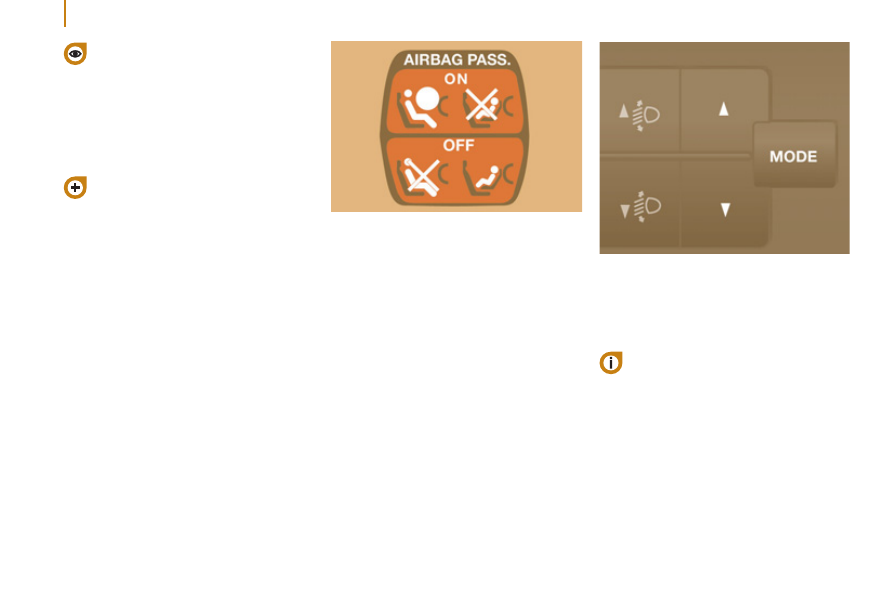

Deactivating the passenger airbag

Refer to the "MODE" section of
chapter 4, then on the "Passenger

airbag" menu, select OFF .

When OFF  is selected, the passenger airbag
will not be triggered in the event of an impact.
As soon as the child seat is removed, select
ON  to re-activate the airbag and thus ensure
the safety of your passenger in the event of
an impact.

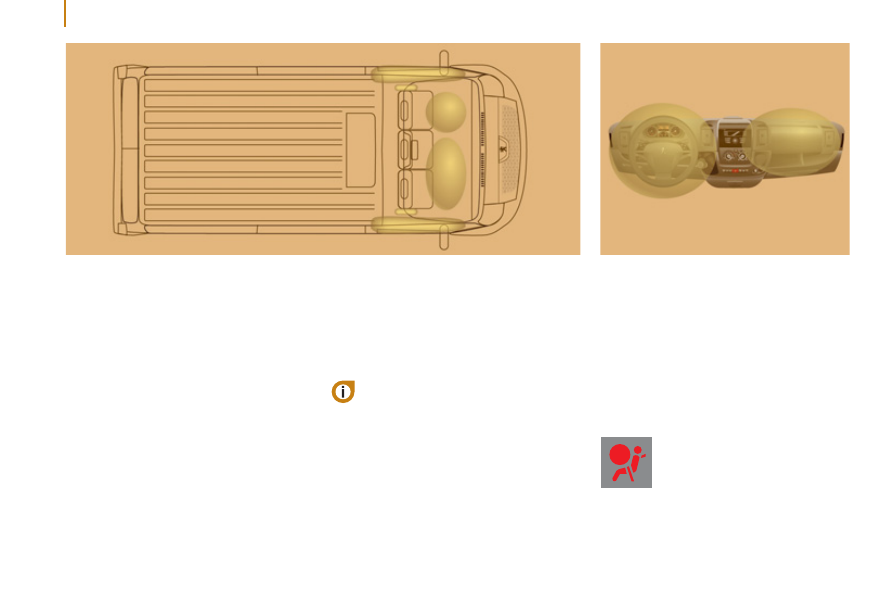

Lateral airbags and curtain airbags

If your vehicle is fitted with lateral airbags,
these are fitted to the front seat backs on
the door side.
The curtain airbags are fitted to the door
pillars and the upper part of the passenger
compartment, in the roof over the front cab
seats.
They inflate between the occupant and the
glass.
They are deployed independently of each
other depending on which side the collision
occurs.

The airbag warning lamp on the
instrument panel remains on while
the passenger airbag is deactivated.

To ensure the safety of your child, it is
essential to deactivate the passenger airbag
when you install a rear-facing child seat on
the front passenger seat. Otherwise, the
child would risk being killed or seriously
injured if the airbag were to inflate.
If your vehicle is not fitted with this
equipment: do not install a rear-facing child
seat.

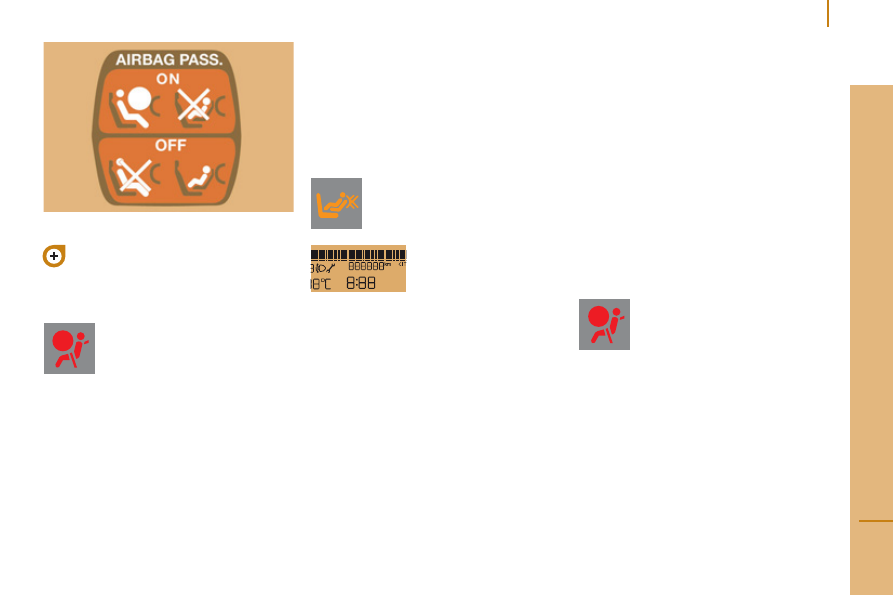

Deactivation check

This is confirmed by lighting of
this warning lamp each time the
engine is started.

If your vehicle is fitted
with this screen, the
check is accompanied by
a message.

Operating check

Confirmed by this indicator lamp.

124

Airbags

Good practice

If your vehicle is fitted with front, lateral
and curtain airbags, in order for these to
be fully effective, observe the following
safety rules:

Wear a correctly adjusted seat belt.
Sit in a normal upright position.
Do not leave anything between the
occupants and the airbags (child, animal,
object...).
This could hamper the operation of the
airbags or injure the occupants.
All work on the airbag systems is strictly
prohibited unless it is carried out by qualified
personnel of the PEUGEOT network.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.

Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Passengers must not place their feet on the
dashboard.
Smoke as little as possible; deployment of
the airbags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.

Lateral airbags

Only put approved covers on the front seats.
Consult a PEUGEOT dealer.
Do not fix or attach anything to the front seat
backs. This could cause injury to the chest
or arms when the lateral airbag is deployed.
Do not sit with the upper part of the body
any nearer to the door than necessary.

Curtain airbags

Do not fix or attach anything to the pillars or
the roof. This could cause injury to the head
when the curtain airbag is deployed.
Do not remove the bolts from the grab
handles installed on the roof, they play a
part in securing the curtain airbags.

SAFETY

Child safety

GENERAL POINTS RELATING TO

CHILD SEATS

Although one of PEUGEOT's main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please follow these
precautions:
-

all children under the age of 12 or less
than one metre fifty tall must travel in
approved child seats suited to their
weight, on seats fitted with a seat belt or
ISOFIX mountings.

statistically, the safest seats in your
vehicle for carrying children are the rear
seats,

a child weighing less than 9 kg must
travel in the "rearwards-facing" position
both in the front and in the rear,

the passenger must not travel with a
child on their lap.

"Rearwards-facing"
Recommended on the rear seats
up to the age of 2.
When a "rearwards-facing" child

seat is installed on the front passenger seat,
it is essential that the passenger airbag is
deactivated. Otherwise, the child would risk
being seriously injured or killed if the airbag
were to inflate.

"Forwards-facing"
Recommended on the rear seats
over the age of 2.
When a "forwards-facing" child

seat is installed on the front passenger seat,
leave the passenger airbag activated.

Child safety

Refer to chapter 5, "Airbags" section.

The child seats function and the
passenger airbag deactivation function

are common to the entire PEUGEOT range.
If the passenger airbag is not deactivated,
the installation of a "rearwards-facing" child
seat in the front is strictly prohibited.

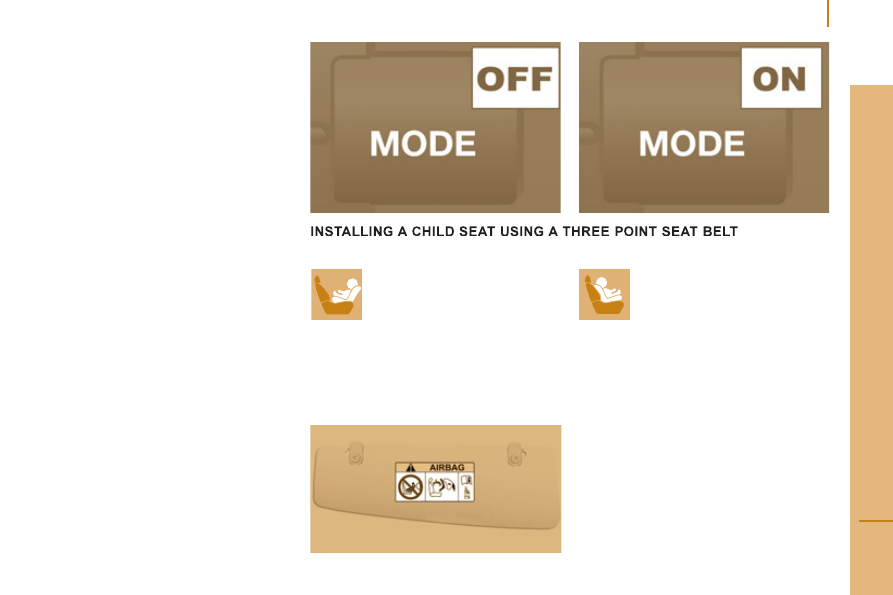

If your vehicle is fitted with this function, the
passenger airbag must be deactivated using
the trip computer MODE button.

The rules for carrying children are
specific to each country. Consult the

current legislation in your country.
Please consult the list of seats approved
in your country. The Isofix mountings, the
rear seats, the passenger airbag and the
deactivation of this airbag depend on the
version sold.

Passenger airbag OFF

Content .. 6 7 8 9 ..
