Peugeot 301 (2017 year). Instruction

175

In the event of a breakdown

Disconnecting the battery

In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Before disconnecting the battery:
F

Close all openings (doors, boot, windows).

Switch off all electricity consuming devices

(audio system, wipers, lighting, etc.).

Switch off the ignition and wait for four

minutes.

After accessing the battery, you only have to
disconnect the (+) terminal.

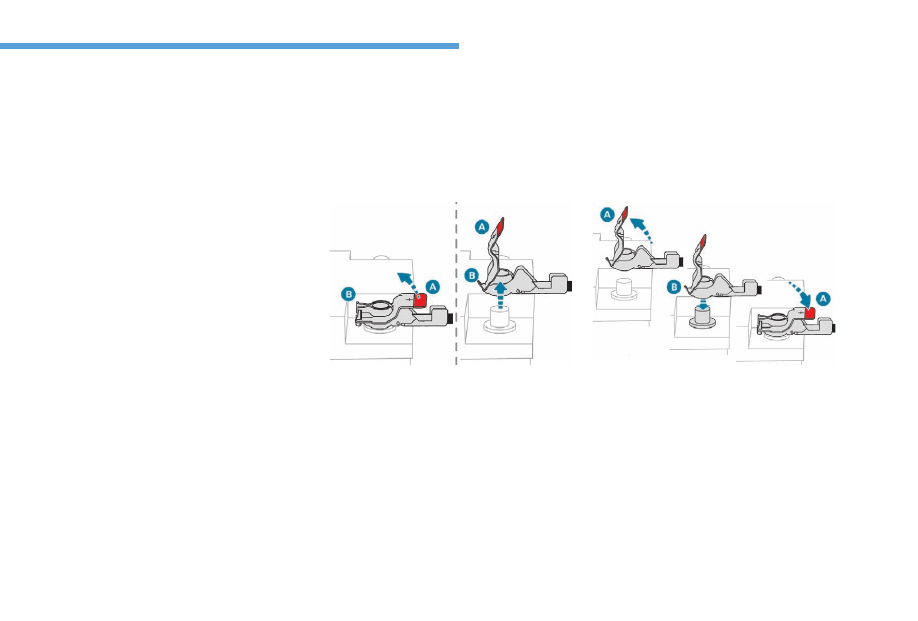

Rapid lock lug

Disconnecting the (+) terminal

Raise palette

A as much as possible to

unlock clamp

Remove clamp

B by raising it.

Reconnecting the (+) terminal

Raise palette

A as much as possible.

Replace clamp

B open on the (+) terminal

Press clamp

B up to the stop.

Lower palette

A to lock clamp B.

176

In the event of a breakdown

After reconnecting the

battery

After reconnecting the battery, turn on the
ignition and wait 1 minute before starting
the engine, in order to enable the electronic
systems to initialise.
If minor problems nevertheless persist
following this operation, contact a PEUGEOT
dealer or a qualified workshop.
Referring to the corresponding section, you
must reset certain systems yourself, such as:
-  The key with remote control.
-  The date and time.
-  The preset radio stations.

On the journey following the initial engine
start-up, the Stop & Start may not be
operational.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of the
battery (up to about 8 hours).

177

In the event of a breakdown

Towing the vehicle

Procedure for having your vehicle towed.

Access to the tools

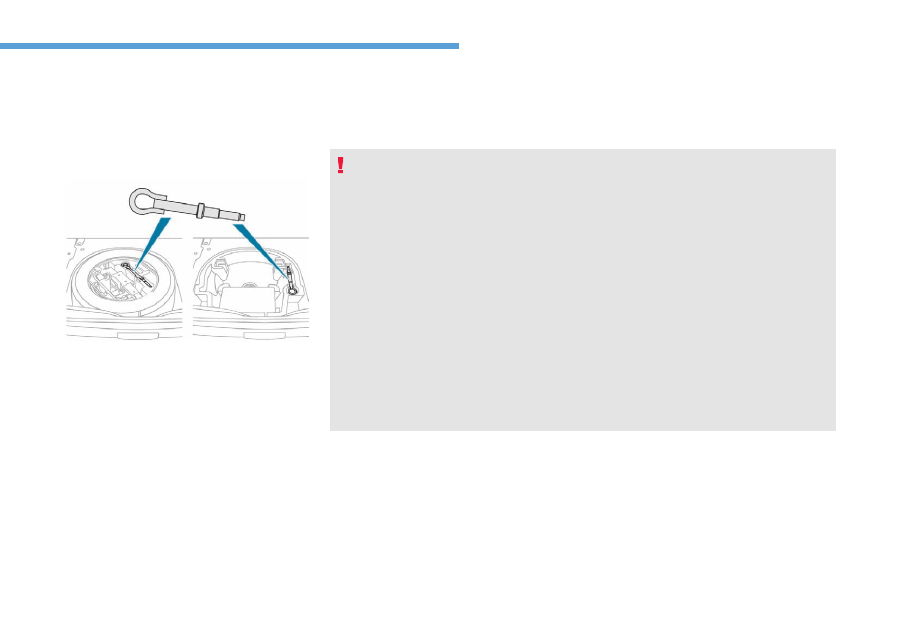

The towing eye is installed in the boot under
the floor.

To gain access to it:
F

Open the boot.

Lift the floor and remove it.

Remove the towing eye from the holder.

General recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When the vehicle is towed with its engine
off, there is no more braking and steering
assistance.

In the following cases, you must always call
on a professional recovery service :
- vehicle broken down on a motorway or

fast road,

- four-wheel drive vehicle,
- when it is not possible to put the gearbox

into neutral, unlock the steering, or
release the parking brake,

- towing with only two wheels on the

ground,

- where there is no approved towing arm

available...

178

In the event of a breakdown

Towing your vehicle

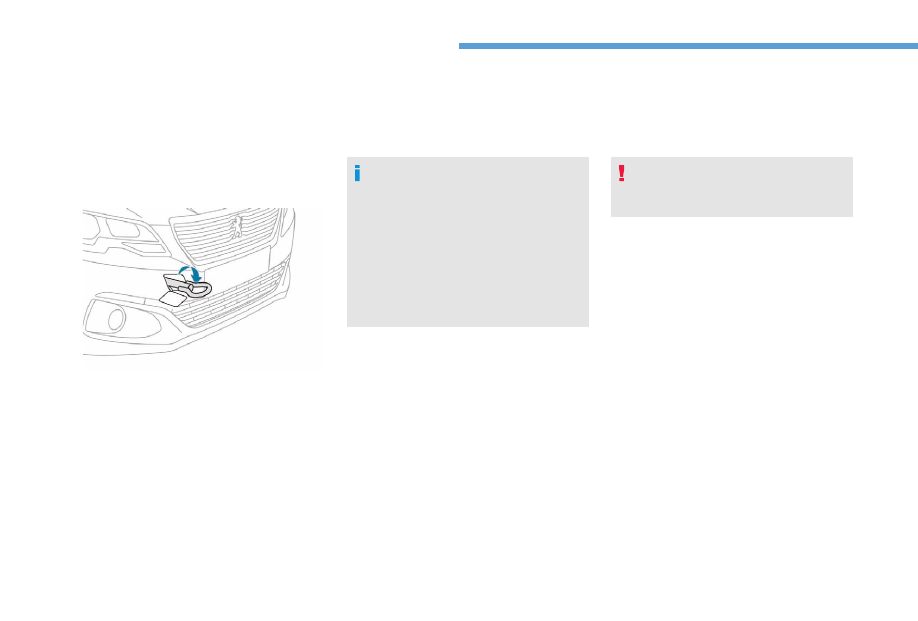

On the front bumper, unclip the cover by

pressing on its left side.

Screw the towing eye completely.

Install the towing bar.

With a manual transmission: move the
gear lever into neutral.
With an automatic or electronic gearbox,
place the gear selector into position

Failure to observe this instruction could
result in damage to certain components
(braking, transmission...) and the absence
of braking assistance the next time the
engine is started.

Unlock the steering by turning the ignition

key one notch and release the parking
brake.

Switch on the hazard warning lamp on both

vehicles.

Set off gently, drive slowly and for a short

distance.

Towing another vehicle

This towing is strictly prohibited (risk of
damaging your vehicle).

179

Technical data

Engines and

specifications

The engine specifications (displacement, max.
power, max. speed, energy, CO

emissions,

etc.) associated with your vehicle are
mentioned in the registration certificate, and in
the commercial documents.
These characteristics correspond to the values
type-approved on a test bed, under conditions
defined in European legislation (Directive
1999/99/EC).
For more information, contact a PEUGEOT
dealer or a qualified workshop.

Weights and towed

loads

The weights and towed loads relating to your
vehicle are stated in the registration certificate,
and in the sales documentation.
These values are also shown on the
manufacturer's nameplate or label.
For more information, contact a PEUGEOT
dealer or a qualified workshop.
The mass in working order is equal to the
weight when empty + driver (75 kg).
The GTW values and the towable loads listed
are valid for a maximum altitude of 1,000
additional metres.
The weight of the braked trailer can be
increased, within the GTW limit, if the GVW
of the towing vehicle is reduced by an equal
amount.
The recommended nose weight corresponds
to the weight permitted on the tow-bar
(dismantlable with or without a tool).

GVW: gross vehicle weight, the maximum

authorised vehicle weight.

GTW: Gross train weight

High ambient temperatures may result
in a reduction in the performance of the
vehicle to protect the engine. When the
ambient temperature is above 37°C, limit
the weight towed.

Towing with a towing vehicle which is only
slightly laden may negatively affect its
handling.
Towing a trailer increases the braking
distance.
The speed of a towing vehicle must not
exceed 60 mph (100 km/h) (comply with
the legislation in force in your country).

When the ambient temperature is high,
leaving the engine running for 1 to 2 minutes
after stopping the vehicle to allow it to cool is
recommended.

180

Technical data

Petrol

Engines

PureTech 82

PureTech 82 S&S

VTi 115

Gearboxes

Manual 5-speed

(BVM5)

Electronic (5-speed)

(ETG5)

Manual 5-speed

(BVM5)

Automatic 6-speed

(EAT6)

Code

EB2 F MA

EC5 F

Version variant types: DD...

HMZ6

HMZ6/PS

NFP0
NFP6

NFPT

Capacity (cm

)

1,199

1,587

Max power: EU standard (kW)*

Fuel

Unleaded 91 RON to

98 RON

Unleaded 91 RON to

98 RON

Unleaded 91 RON to 98 RON

Braked trailer (within the GTW limit)
on a 10% or 12% gradient

450

500

750

Unbraked trailer

450

580

Recommended towing bar weight

* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).

181

Technical data

Diesel

Engine

HDi 92

BlueHDi 100

Gearboxes

Manual 5-speed

(BVM5)

Manual 5-speed

(BVM5)

Code

DV6 DM (euro 4)

DV6 D

DV6 FD

Version variant types: DD...

9HJC

9HP0

BHY6

Capacity (cm

)

1,560

Max power: EU standard (kW)*

Fuel

Diesel

Braked trailer (within the GTW limit)
on a 10% or 12% gradient

750

Unbraked trailer

580

Recommended towing bar weight

* The maximum power corresponds to the value type approved on a engine bench, under conditions defined by European legislation

(Directive 1999/99/EC).

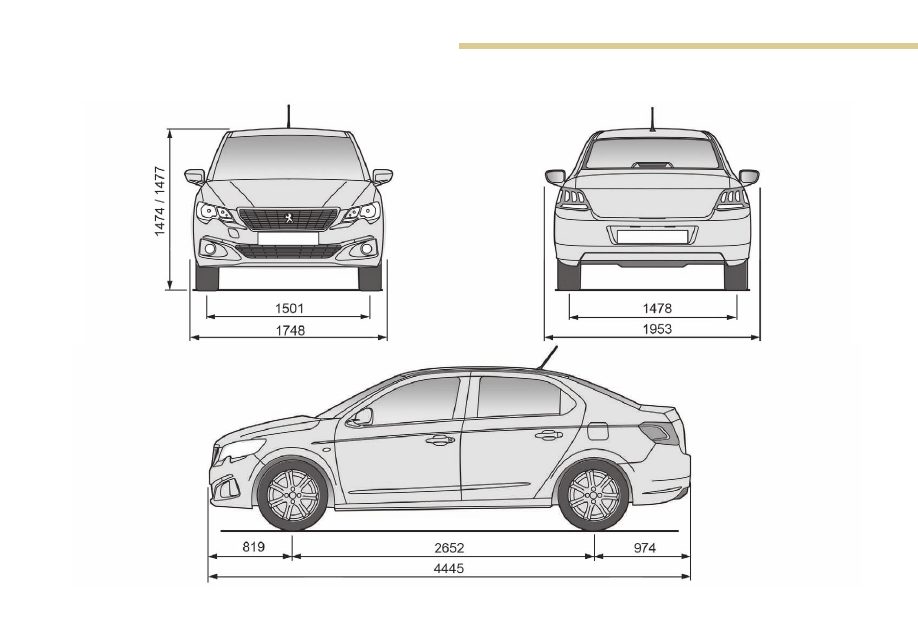

183

Technical data

Identification markings

The vehicle may be originally equipped
with tyres with higher load and speed
indices than those indicated on the label,
without affecting inflation pressure.

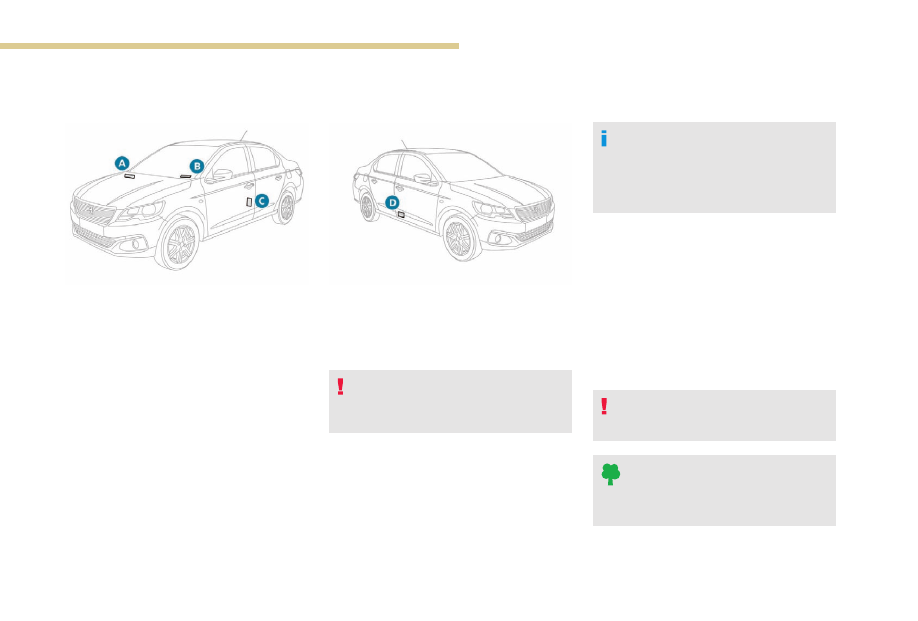

Various visible markings for the identification of your vehicle.

A Vehicle Identification Number (VIN)

under the bonnet.

This number is engraved on the bodywork

near the passenger compartment filter.

B Vehicle identification number on the

dashboard.

The number is recorded on a label, visible

through the windscreen.

C Tyre/paint label.

This label is affixed to the centre pillar on

the driver’s side.

It bears the following information:

- The tyre pressures, for unladen and

laden conditions.

- The tyre sizes.

- The spare tyre inflation pressure.

- The paint colour code.

Low tyre pressure introduces the risk of a
burst tyre.

Manufacturer's label.

The number is indicated on a self-
destroying label affixed to the lower part
of the right hand centre pillar.

Checking tyre pressures

The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30 mph (50 km/h), the tyres will be
warm. In this case 0.3 bar (30 kPa) should be
added to the pressures given on the label.

Never reduce the pressure of a warm tyre.

Low tyre pressures increase fuel
consumption.

184

BACK

VOL+

AUDIO and TELEMATICS

Audio system /

Bluetooth

Your audio system is coded in such a way that
it will only operate in your vehicle.

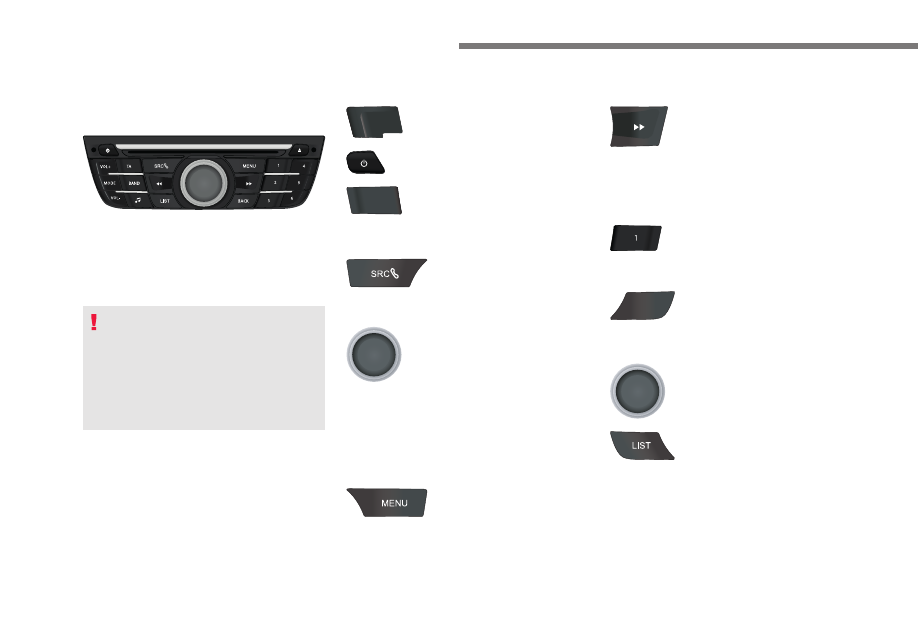

First steps

Adjusting the volume.

On / Off

TA (Traffic Announcements)
on/off.
Long press: access to type
of information.

Select the source:
Radio, CD, AUX, USB,
Streaming.
Accept an incoming call.

Manual step by step search
up / down for radio stations.
Select previous / next MP3
track.
Select previous/next folder /
genre / artist / playlist of the
USB device.
Scroll in a list.

Access to the main menu.

Automatic search for a lower/
higher radio frequency.
Select previous / next CD,
USB, streaming track.
Scroll in a list.

Select preset radio station.
Long press: preset a radio
station.

Abandon the current
operation.
Go up one level (menu or
folder).

Confirm or display contextual
menu.

Display the list of stations
received, the CD/MP3 tracks
or folders.
Long press: manage the
classification of MP3/WMA
files / update the list of
stations received.

As a safety measure, the driver must
only carry out operations which require
sustained attention when the vehicle is
stationary.
To avoid discharging the battery, the audio
system may switch off after a few minutes
if the engine is not running.

185

AUDIO and TELEMATICS

Adjust audio settings: sound
ambience, treble, bass,
loudness, distribution, left/
right balance, front/rear
balance, automatic volume.

Select the screen display
mode, between:
Full screen: Audio (or
telephone if call in progress) /
In a window: Audio (or
telephone if call in progress) -
Time or Trip computer.
Long press: black screen
(DARK).

Select AM / FM wavebands.

Steering mounted controls

Radio: automatic search for lower
frequency.
CD /MP3 / USB: selection of the
previous track.
CD / USB: press and hold: fast back.
Skip in the list.

Change the audio source.
Confirm a selection.
Call/end call on the telephone.
Press for more than 2 seconds:
access telephone main menu.
Radio: automatic search for a higher
frequency.
CD / MP3 / USB: select the next
track.
CD / USB: press and hold: fast
forward.
Skip in the list.
Increase volume.

Decrease volume.

Mute on: cut the sound by
simultaneously pressing the volume
up and down buttons.

Radio: select the previous / next
preset radio station.
USB: select the genre / artist /
folder from the list depending on
classification.
Select the previous / next item in a
menu.

186

AUDIO and TELEMATICS

Main menu

Screen C

Multimedia": Media settings, Radio

settings.

Telephone": Call, Directory

management, Telephone
management, Hang up.

Trip computer": Warning log.

Bluetooth connection":

Connections management, Search
for a device.

Personalisation-configuration":

Define the vehicle parameters,
Choice of language, Display
configuration, Choice of units, Date
and time adjustment.

Audio

Radio

Selecting a station

The external environment (hills, buildings,
tunnels, basement car parks, ...) may
block reception, including in RDS mode.
This is a normal effect of the way in
which radio waves are transmitted and
does not indicate any failure of the audio
equipment.

Press the

SRC/TEL button

repeatedly to select the
radio.
Press

BAND to select a

waveband.

Press

LIST to display the

list of stations received, in
alphabetical order.

Select the desired radio
station by turning the thumb
wheel then confirm by
pressing.

A press changes to the next
or previous letter (e.g. A, B,
D, F, G, J, K, ...).

A long press on

LIST builds

or updates the list of stations;
audio reception is cut
momentarily.

187

AUDIO and TELEMATICS

RDS

RDS, if displayed, makes it possible

to continue listening to the same radio

station using the alternative frequencies

function. However, in certain conditions,

coverage of an RDS station may not be

assured throughout the entire country

as radio stations do not cover 100% of

the territory. This explains the loss of

reception of the station during a journey.

With the radio displayed on the
screen, press the thumb wheel to
display the contextual menu.

Select "

RDS" and confirm to save.

RDS" is displayed in the screen.

Play TA messages

The TA (Traffic Announcement) function
gives priority to TA alert messages.
To operate, this function needs good
reception of a radio station that carries
this type of message. When a traffic
report is transmitted, the current audio
source (Radio, CD, USB, ...) is interrupted
automatically to play the TA message.
Normal play of the media previously
playing is resumed at the end of the
message.

Press

TA to activate or deactivate

the reception of traffic messages.

Display TEXT INFOS

Text info is information transmitted by
the radio station related to the current
programme or song.

Screen C

With the radio displayed on the
screen, press OK to display the
contextual menu.

Turn the thumb wheel to select
"

RADIO TEXT'', press to save.

188

AUDIO and TELEMATICS

CD audio

Playing a CD

CD, USB

Information and advice

The audio system will only play files

with extension ".mp3" or ".wma" and

a compression rate that is constant or

variable between 32 Kbps and

320 Kbps.

File names should have less than
20 characters, avoiding special
characters (e.g.: “ ? ; ù) so as to avoid
any reading or display problems.

Playlists accepted are types .m3u and .pls.
The number of files is limited to 5,000 in
500 directories on a maximum of 8 levels.

On a single disc, the CD player can
read up to 255 MP3 files spread
over 8 directory levels. However, it is
recommended that this be kept to 2 levels
so as to limit the time taken to access and
play the CD.
The folder structure is not observed during
playback.

Insert 12 cm diameter circular compact
discs only.
Some anti-pirating systems, on original
discs or CDs copied using a personal
recorder, may cause faults which are no
reflection on the quality of the original
player.
Without pressing the

EJECT button,

insert a CD in the player, play begins
automatically.

To play a disc which has
already been inserted, press
the

SRC/TEL button several

times and select "

CD".

Press one of the buttons to
select a track on the CD.

Press

LIST to display the list

of tracks on the CD.

Press and hold one of these
buttons for fast forward or
fast back.

189

AUDIO and TELEMATICS

In order to be able to play a burned
CDR or CDRW, select standards
ISO 9660 level 1, 2 or Joliet if possible
when burning the CD.
If the disc is burned in another format, it
may not be played correctly.
It is recommended that the same
burning standard is always used on an
individual disc, with the lowest speed
possible (4x maximum) for the best
acoustic quality.
In the particular case of a multi-
session CD, the Joliet standard is
recommended.

Do not connect a hard disk or USB device
other than audio players to the USB
port. This may cause damage to your
installation.

Playing a compilation

Insert an MP3

compilation in the CD

player or connect a

memory stick to the

USB port, directly or via

an extension lead.

The system creates playlists (temporary
memory) , which can take from a few
seconds to several minutes.
The playlists are updated every time the
ignition is switched off or a USB memory
stick is connected.
Play starts automatically after a certain
amount of time depending on the capacity
of the USB memory stick.
Use only USB memory sticks formatted
FAT 32 (File Allocation Table).

At a first connection, the
order suggested is by folder.
When connecting again, the
order previously chosen is
retained.

To play a disc or memory
stick which has already been
inserted, press the

SRC/TEL

button repeatedly and select
"

CD" or "USB".

Press one of the buttons to
select the next or previous
track.

Rotate the thumb wheel to
select the next or previous
folder in the order chosen.

190

BACK

AUDIO and TELEMATICS

Press and hold one of these
buttons for fast forward or
fast back.

Press

LIST to display the

structure of the folders in the
compilation.
Select a line in the list.

Select a track or a folder.

Up a level in the menu.

Skip a track.

USB memory stick - File

sorting

Make a long press on

LIST

or press

MENU, select

Multimedia", then "Media

settings" and finally "Choice

of track listing" to display the

different types of sorting.

Peugeot 301 (2017 year). Instruction - part 12
