159

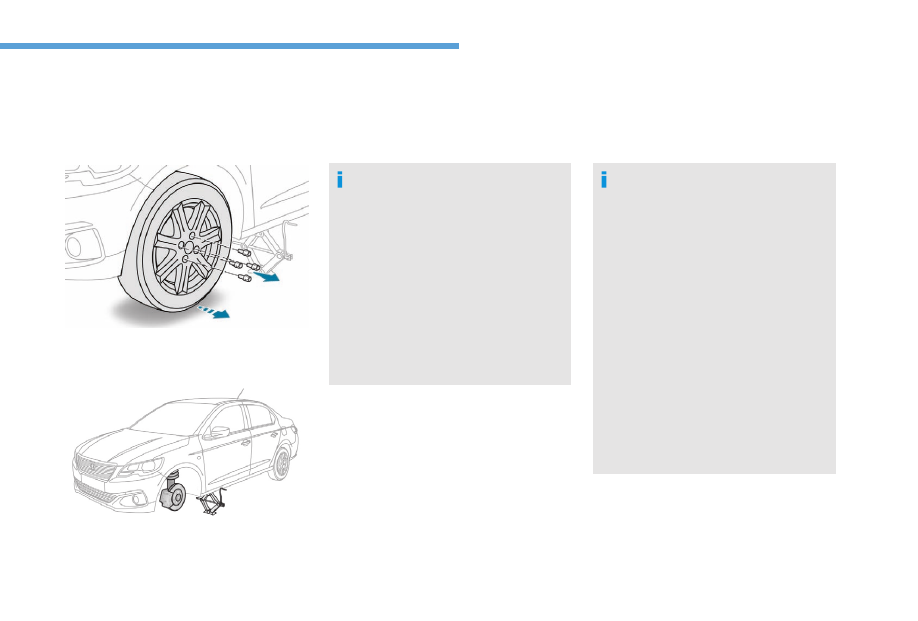

In the event of a breakdown

Remove the bolts and store them in a clean

place.

Remove the wheel.

Stowing the damaged wheel

The damaged wheel can be stowed under
the floor, in the housing for the standard
spare wheel.
To stow an alloy wheel, first remove the
hub cap from the middle of the wheel so
that the fastening device (nut and bolt) can
be put in place.
In the case of a "space-saver" type spare
wheel, the damaged wheel cannot be
stowed under the floor. It must be stowed
in the boot; use a cover to protect the
inside of the boot.

Fitting a wheel

Fastening the spare wheel

If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it is
normal to notice that the washers do not
come into contact with the spare wheel.
The wheel is secured by the conical
contact of each bolt.

After changing a wheel

Do not exceed 50 mph (80 km/h) when
using a "space-saver" type spare wheel.
Have the tightening of the bolts and the
pressure of the spare wheel checked by a

PEUGEOT dealer or a qualified workshop
without delay.
Have the punctured wheel repaired and
reinstall it on the vehicle as soon as
possible.

160

In the event of a breakdown

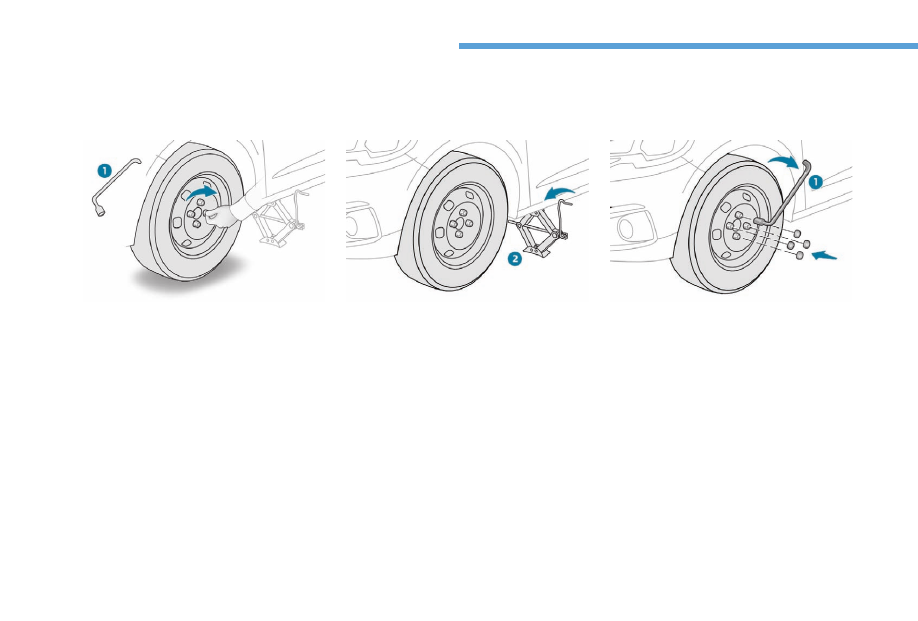

List of operations

Put the wheel in place on the hub.

Screw in the bolts by hand to the stop.

Pre-tighten the bolts using the wheel

wrench

1 only.

Lower the vehicle again fully.

Fold the jack

2 and detach it.

Tighten the bolts using the wheel wrench

only.

Refit the wheel bolt covers (alloy wheels).

Stow the tools in their box.

161

In the event of a breakdown

Changing a bulb

The headlamps have polycarbonate
lenses with a protective coating:
F

do not clean them using a dry or

abrasive cloth, nor with a detergent

or solvent product,

use a sponge and soapy water or a

pH neutral product,

when using a high pressure washer

on persistent marks, do not keep the
lance directed towards the lamps or
their edges for too long, so as not to
damage their protective coating and
seals.

Changing a bulb should only be done after
the headlamp has been switched off for
several minutes (risk of serious burns).
F

Do not touch the bulb directly with

your fingers, use a lint-free cloth.

It is essential only to use anti-ultraviolet
(UV) type bulbs, so as not to damage the
headlamp.
Always replace a failed bulb with a new
bulb with the same type and specification.

In some climate conditions (low
temperature, humidity), the presence
of mist on the internal surface of the
headlamp and rear lamp glass is normal;
this disappears a few minutes after the
lights are switched on.

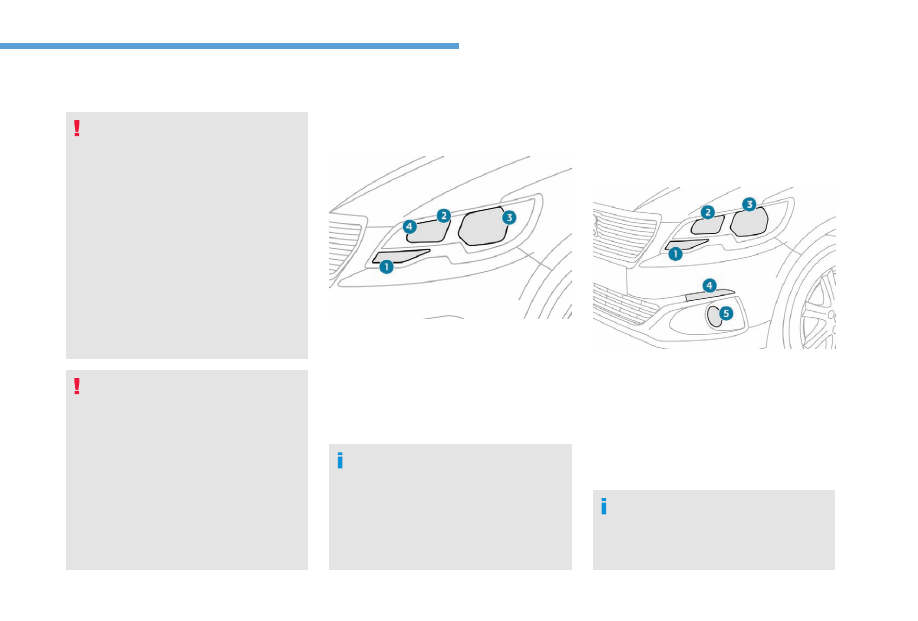

Front lamps

Halogen headlamps

1 Direction indicators (PY21W).
2 Main beam headlamps (H1).
3 Dipped beam headlamps (H7LL).
4 Side lamps (W5W).

Halogen lamps with daytime

running lamps and fog lamps

1 Direction indicators (PY21W).
2 Main beam headlamps (H1).
3 Dipped beam headlamps (H7LL).
4 Daytime running lamps / Sidelamps

(LEDs).

5 Fog lamps (H11).

Light-emitting diodes (LEDs)

For the replacement of this type of lamp,
go to a PEUGEOT dealer or a qualified
workshop.

162

In the event of a breakdown

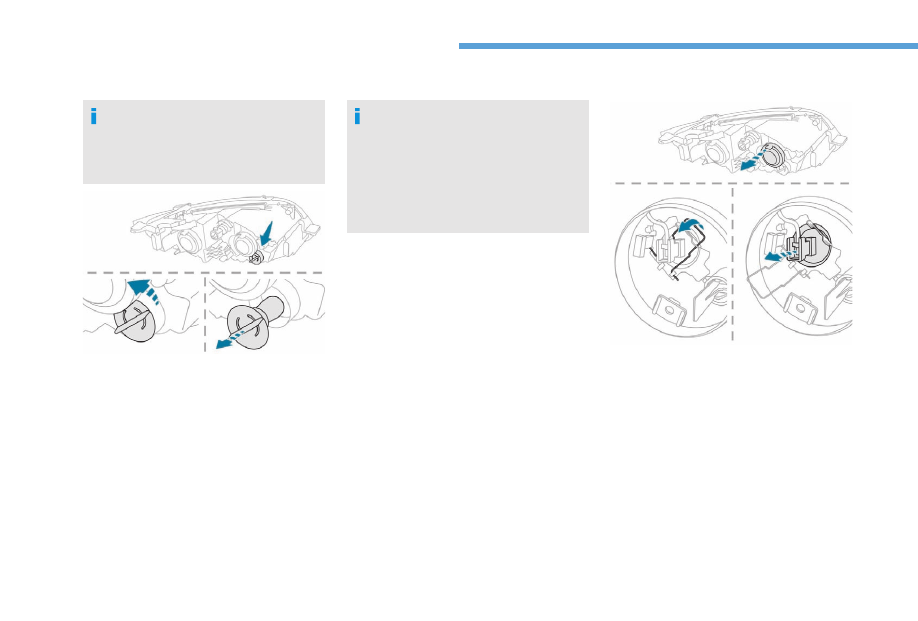

Direction indicators

Quicker flashing of the direction indicator
lamp (left or right) indicates that one of
the bulbs on the corresponding side has
failed.

Amber colour bulbs such as direction
indicators must be replaced by bulbs with
identical colour and specifications.
When refitting, close the protective cover
very carefully to guarantee the seal of the
lamp.

Turn the connector a quarter turn anti-

clockwise.

Pull the bulb connector.

Remove the bulb and replace it.

For reassembly, carry out these operations in
reverse order.

Main beam headlamps

Remove the protective cover by pulling on

the tab.

Unclip the module support unit.

Remove the bulb connector.

Remove the bulb and replace it.

To reassemble it, reposition the unit in the
housing and clip it back.
Make sure to replace the protective cover with
the tab facing upward.

163

In the event of a breakdown

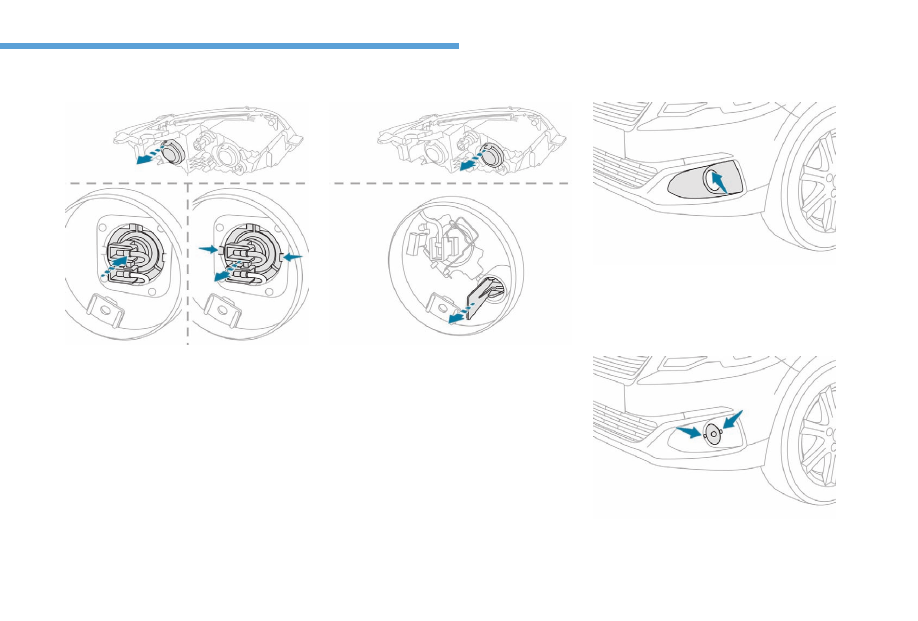

Dipped beam headlamps

Remove the protective cover by pulling the

tab.

Push the entire module relative to the

support to unclip one of the two tabs.

Once the first tab is unclipped, release the

second tab.

Remove the bulb connector.

Remove the bulb and replace it.

To reassemble it, position the unit in the
housing and push until the two tabs "clip".

Make sure to replace the protective cover with
the tab facing upward.

Sidelamps

Remove the protective cover by pulling on

the tab.

Remove the bulb connector.

Remove the bulb and replace it.

For reassembly, carry out these operations in
reverse order.

Make sure to replace the protective cover with
the tab facing upward.

Foglamps

Insert a flat screwdriver between the lamp

and the housing.

Pull and lever to unclip the housing.

Remove the two fastening screws of the

module.

Remove the module from its housing.

164

In the event of a breakdown

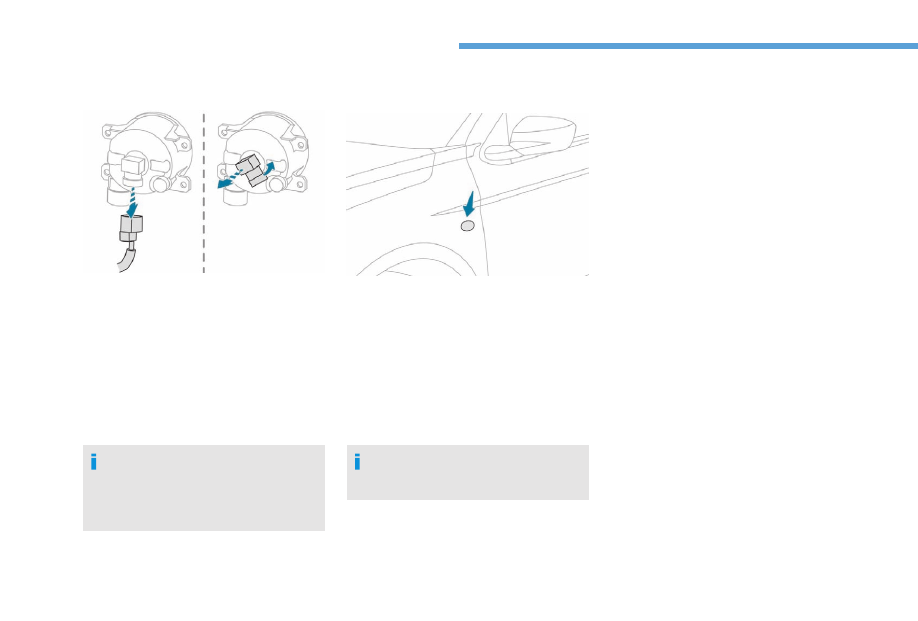

Press the locking clip and disconnected the

connector.

Turn the bulb holder a quarter turn anti-

clockwise.

Remove the bulb holder.

Remove the bulb and replace it.

For reassembly, carry out these operations in
reverse order.

If you experience any difficulty in replacing
bulbs, contact your PEUGEOT dealer or a
qualified workshop.

Direction indicator side repeaters

Insert a screwdriver towards the centre of

the flasher between the flasher and the
base on the body.

Lever with the screwdriver to extract the

repeater and pull it out.

Disconnect the wiring from the repeater.

Replace the module.

For reassembly, carry out these operations in
reverse order.

Contact a PEUGEOT dealer or a qualified
workshop to obtain the module.

165

In the event of a breakdown

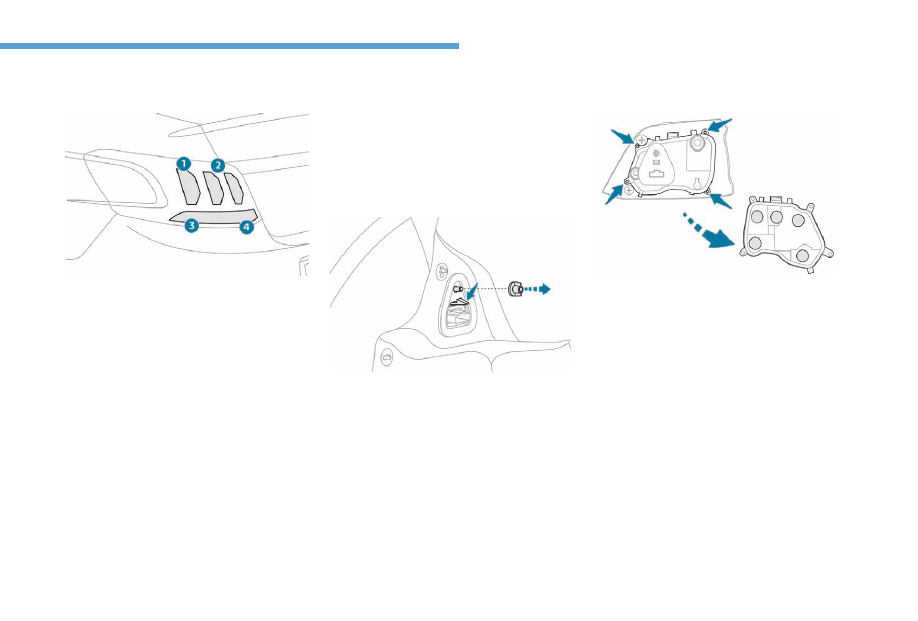

Rear lamps

1 Brake / Sidelamps (P21/4W).
2 Position lamps (P21/4W).
3 Direction indicators (PY21W).
4 Reversing lamp (P21W).

Fog lamp (PR21W).

These bulbs are changed from inside the boot:
F

Open the boot.

Remove the access grille from the

corresponding side trim panel.

Disconnect the lamp connector.

Loosen and remove the nut.

From the outside, cautiously remove the

lamp unit straight from its housing.

Remove the four screws and lift off the bulb

holder.

Turn the failed bulb a quarter of a turn and

replace it.

For reassembly, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.

Tighten sufficiently to ensure sealing, but
without damaging the lamp.

166

In the event of a breakdown

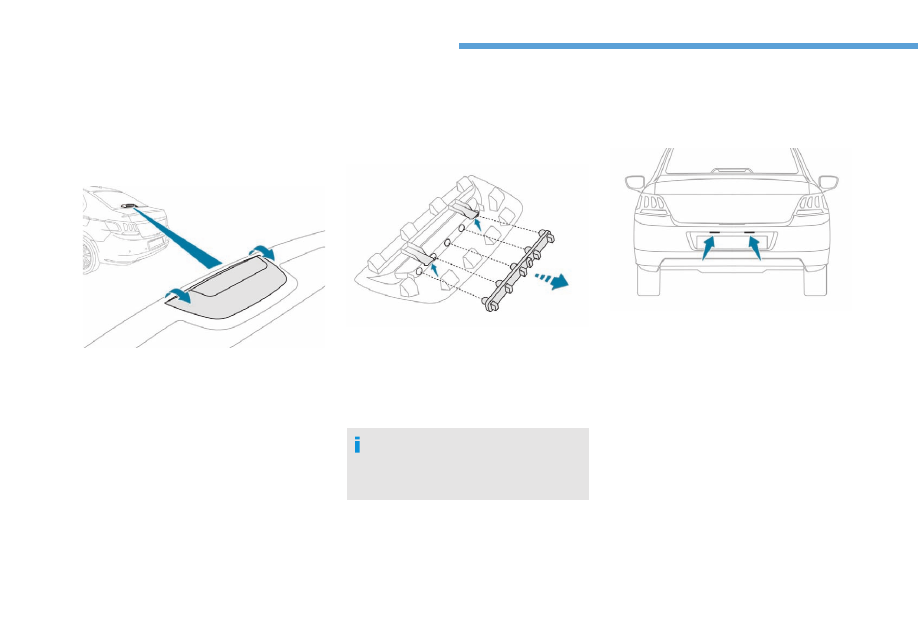

Third brake lamp

You must access the box located on the rear
shelf from the rear seats:

Pull the housing cover towards you and up

to disengage it.

Disconnect the lamp connector.

Unclip the bulb holder by lifting the two lugs

and remove it.

Replace the faulty bulb.

For reassembly, carry out these operations in
reverse order.

Check that the housing cover is positioned
correctly on its support before clipping it
on.

Licence plate lamps

(W5W)

Insert a thin screwdriver into one of the

exterior holes of the transparent lens.

Push it outwards to unclip it and remove it.

Remove the defective bulb and replace it.

For reassembly, carry out these operations in
reverse order.

(W5W)

167

In the event of a breakdown

Changing a fuse

Access to the tools

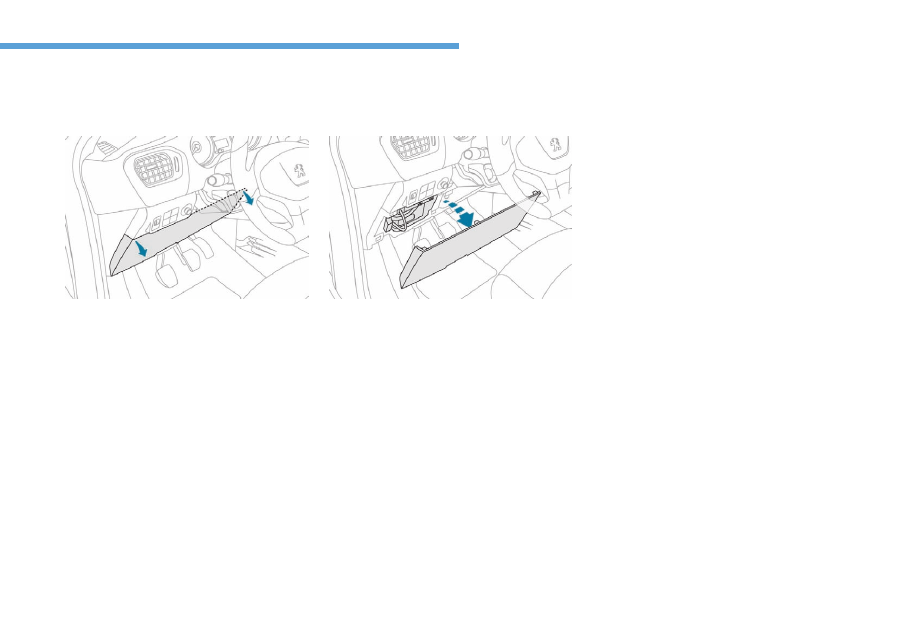

The extraction pliers are fitted to the back of
the dashboard fusebox cover.

Unclip the cover by pulling at the top right,

then left.

Disengage the cover fully and turn it over.

Pull out the pliers.

168

In the event of a breakdown

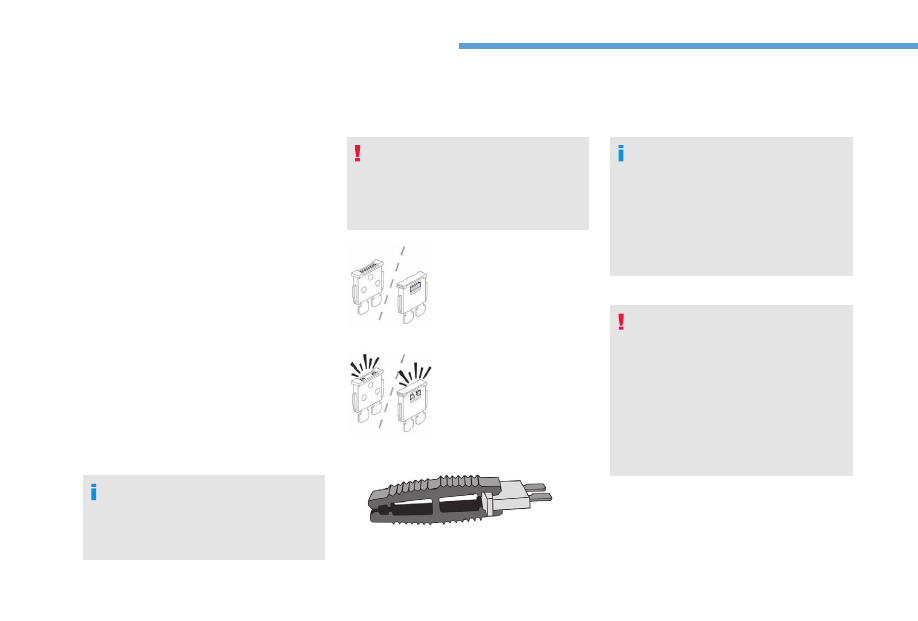

Changing a fuse

The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact a

PEUGEOT dealer or a qualified workshop.

If the fuse fails again soon after
replacement, have the vehicle's electrical
system checked by a PEUGEOT dealer or
a qualified workshop.

Good

Failed

Pliers

Before changing a fuse:

The cause of the failure must be identified

and rectified.

All devices consuming electricity must be

switched off.

The vehicle must be immobilised with the

ignition off.

Identify the defective fuse using the

existing allocation tables and diagrams
given in the following pages.

To replace a fuse, you must:
F

Use the special pliers to extract the fuse

from its housing and check the condition of
its filament.

Always replace the failed fuse with a fuse

of the same rating (same colour); using a
different rating could cause faults (risk of
fire).

Installing electrical accessories

Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your vehicle,
contact a PEUGEOT dealer or a qualified
workshop.

PEUGEOT will not accept responsibility for
the cost incurred in repairing your vehicle
or for rectifying malfunctions resulting
from the installation of accessories
not supplied and not recommended by

PEUGEOT and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.

169

In the event of a breakdown

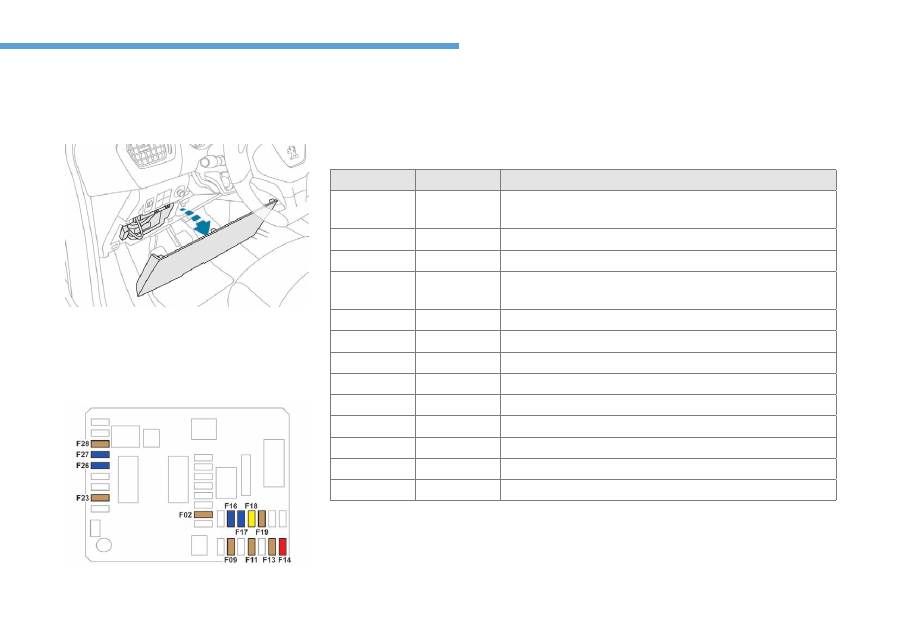

Fuses in the dashboard

The fusebox is placed in the lower dashboard
(left-hand side).

Access to the fuses

Unclip the cover by pulling at the top right,

then left.

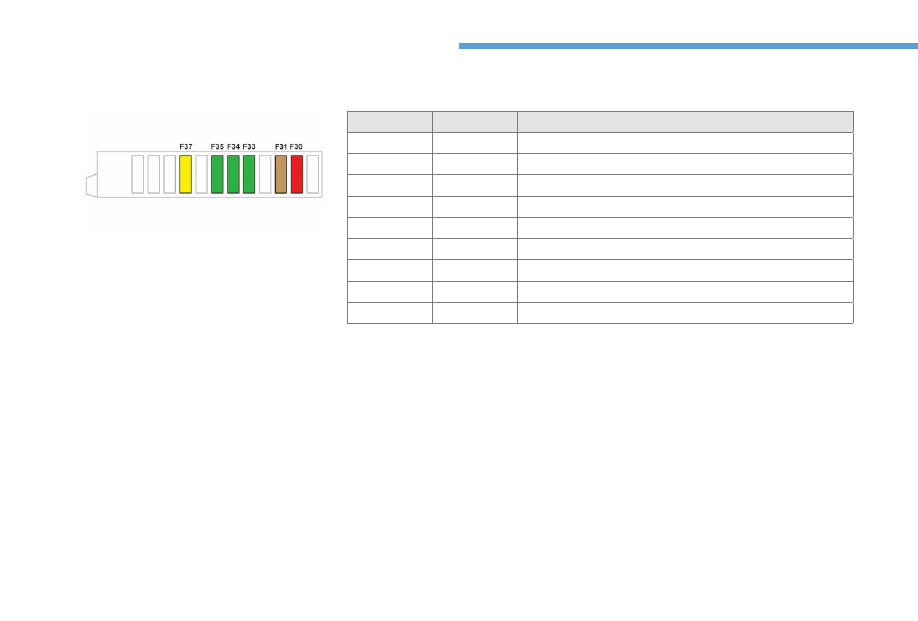

Fuse no.

Rating

Functions

F02

5 A

Headlamp height adjuster, diagnostic socket, air conditioning
panel.

F09

5 A

Alarm, alarm (after-market).

F11

5 A

Additional heating.

F13

5 A

Parking sensors, parking sensors (after-market).

F14

10 A

Air conditioning panel.

F16

15 A

Cigar lighter, 12V socket.

F17

15 A

Audio system, radio (after-market).

F18

20 A

Audio system / Bluetooth, radio (after-market).

F19

5 A

Monochrome screen C.

F23

5 A

Courtesy lamps, map reading lamps.

F26

15 A

Horn.

F27

15 A

Screenwash pump.

F28

5 A

Anti-theft.

170

In the event of a breakdown

Fuse no.

Rating

Functions

F29

Not used.

F30

10 A

Heated door mirrors.

F31

25 A

Heated rear window.

F32

Not used.

F33

30 A

Front electric windows.

F34

30 A

Rear electric windows.

F35

30 A

Front heated seats.

F36

Not used.

F37

20 A

Trailer interface box.

171

In the event of a breakdown

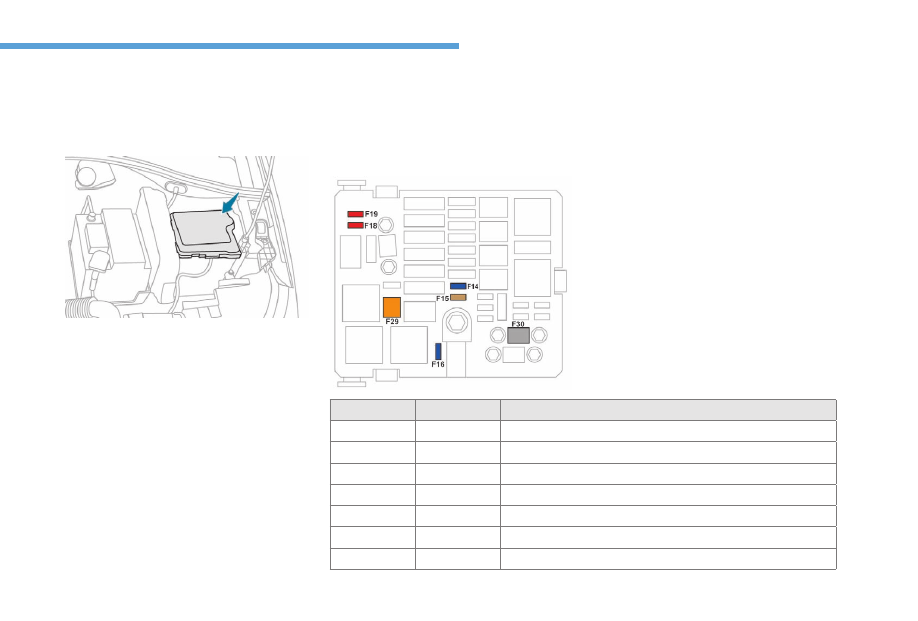

Fuse in the engine

compartment

The fusebox is placed in the engine
compartment near the battery (left-hand side).

Access to the fuses

Unclip the cover

Change the fuse.

When you have finished, close the cover

very carefully to ensure correct sealing of
the fusebox.

Fuse no.

Rating

Functions

F14

15 A

Heated lower windscreen.

F15

5 A

Air conditioning compressor.

F16

15 A

Front fog lamps.

F18

10 A

Right-hand main beam headlamp.

F19

10 A

Left-hand main beam headlamp.

F29

40 A

Front wiper motor.

F30

80 A

Pre-heater plugs (Diesel).

172

In the event of a breakdown

12 V battery

Procedure for starting the engine using another battery or charging a discharged battery.

General points

Lead-acid starter batteries

Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.

Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources of
sparks, so as to avoid the risk of explosion
or fire.
Wash your hands afterwards.

Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out
only by a PEUGEOT dealer or a qualified
workshop.

If you have an electronic or automatic
gearbox, never try to start the engine by
pushing the vehicle.

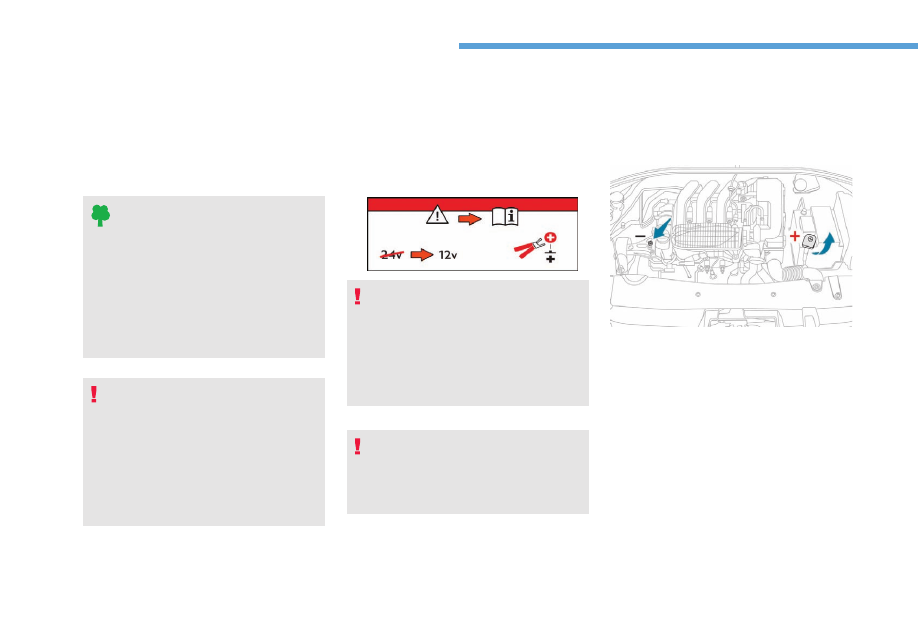

Access to the battery

The battery is located under the bonnet.

To gain access to it:
F

Open the bonnet using the interior release

lever, then the exterior safety catch.

Secure the bonnet stay.

Remove the plastic cover on the (+)

terminal.

The battery (-) terminal is not accessible. A
remote earth point is located on the engine.

173

In the event of a breakdown

Starting using another

battery

When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.

Never try to start the engine by connecting
a battery charger.
Never use a 24 V or higher battery
booster.
Check beforehand that the slave battery
has a nominal voltage of 12 V and a
minimum capacity equal to that of the
discharged battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
Ensure that the jump lead cables do not
pass close to moving parts of the engine
(cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running.

Raise the plastic cover on the (+) terminal,

if your vehicle has one.

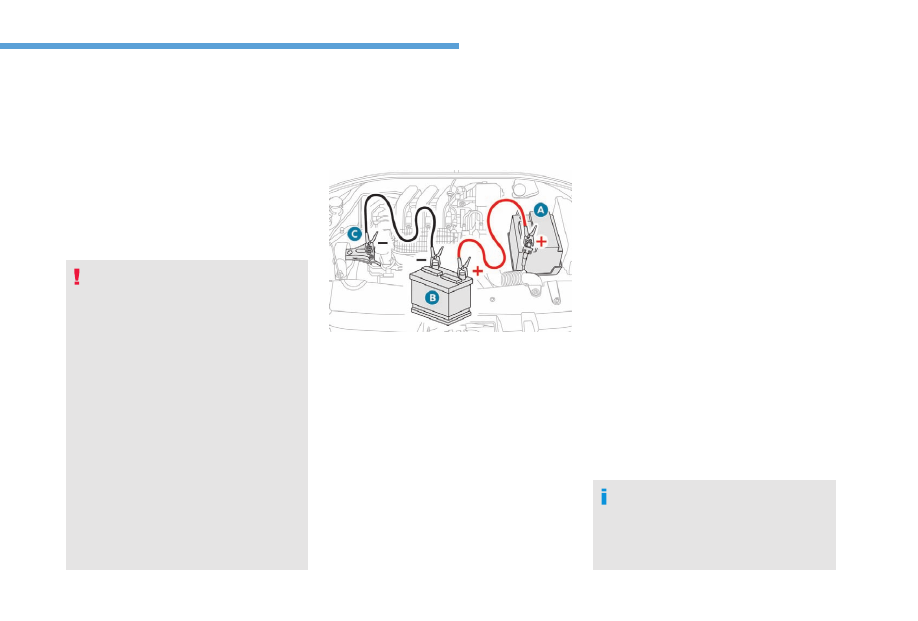

Connect the red cable to the positive

terminal (+) of the flat battery

A (at the

metal elbow) then to the positive terminal
(+) of the slave battery

B or the booster.

Connect one end of the green or black

cable to the negative terminal (-) of the
slave battery

B or the booster (or earth

point on the other vehicle).

Connect the other end of the green or black

cable to the earth point

C on the broken

down vehicle.

Start the engine of the vehicle with the

good battery and leave it running for a few
minutes.

Operate the starter on the broken down

vehicle and let the engine run.

If the engine does not start straight away,
switch off the ignition and wait a few moments
before trying again.

Wait until the engine returns to idle then

disconnect the jump lead cables in the
reverse order.

Refit the plastic cover to the (+) terminal, if

your vehicle has one.

Allow the engine to run for at least

30 minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.

Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.

174

In the event of a breakdown

Charging the battery using

a battery charger

For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:
- If you use your vehicle essentially for short

journeys.

- If the vehicle is to be taken off the road for

several weeks.

Contact a PEUGEOT dealer or a qualified
workshop.

If you envisage charging your vehicle's
battery yourself, use only a charger
compatible with lead-based batteries of a
nominal voltage of 12 V.

Follow the instructions for use provided by
the charger manufacturer.
Never reverse polarities.

It is not necessary to disconnect the
battery.

Switch off the ignition.

Switch off all electricity consuming devices

(audio system, lighting, wipers, etc.).

Switch off the charger

B before connecting

the cables to the battery, so as to avoid any
dangerous sparks.

Ensure that the charger cables are in good

condition.

Raise the plastic cover, if your vehicle has

one, on the (+) terminal.

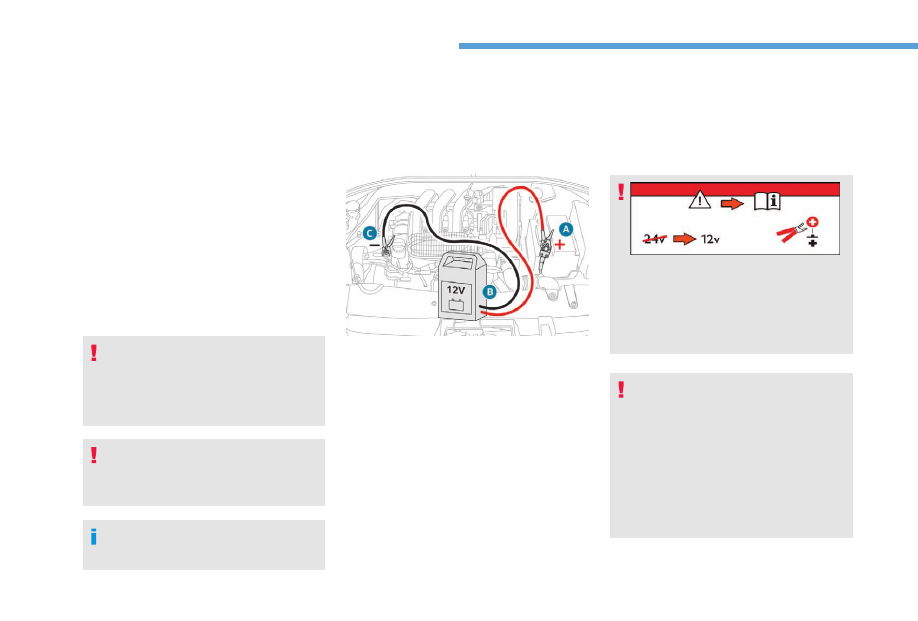

Connect the charger

B cables as follows:

- The positive (+) red cable to the (+)

terminal of the battery

- The negative (-) black cable to the earth

point

C on the vehicle.

At the end of the charging operation, switch

off the charger

B before disconnecting the

cables from the battery

If this label is present, it is essential to
use only a 12 V charger to avoid causing
irreversible damage to the electrical
components related to the Stop & Start
system.

Never try any charge a frozen battery -
Risk of explosion!
If the battery has frozen, have it checked
by a PEUGEOT dealer or by a qualified
workshop who will check that the internal
components have not been damaged and
that the container has not cracked, which
would mean a risk of toxic and corrosive
acid leaking.

Content .. 9 10 11 12 ..
