emerging from the highest bleed screw in the
cooling system and all bleed screws are
securely tightened. Keep the “header tank”
full during this procedure.
24 Once all the bleed screws are securely
tightened, remove the “header tank” and refit
the expansion tank cap.
25 Start the engine, and run it at 1500 rpm.
Maintain this engine speed until the radiator
cooling fan has cut in and out three times.
26 Allow the engine to run at idle speed for a
few minutes.
27 Stop the engine, and wait for at least ten
minutes.
28 Place a large wad of rag around the
expansion tank cap, and around your hand,
then carefully remove the expansion tank cap.
Turn the cap anti-clockwise until it reaches
the first stop. Wait until any pressure
remaining in the system is released, then push
the cap down, turn it anti-clockwise to the
second stop, and lift it off.

29 Check the coolant level, and if necessary
top-up the expansion tank to just above the
“MAXI” level mark (see “Weekly checks”).
30 Refit the expansion tank cap.

Antifreeze mixture

31 The antifreeze should always be renewed
at the specified intervals. This is necessary
not only to maintain the antifreeze properties,
but also to prevent corrosion which would
otherwise occur as the corrosion inhibitors
become progressively less effective.
32 Always use an ethylene-glycol based
antifreeze which is suitable for use in mixed-
metal cooling systems. The quantity of
antifreeze and levels of protection are
indicated in the Specifications.
33 Before adding antifreeze, the cooling
system should be completely drained,
preferably flushed, and all hoses checked for
condition and security.
34 After filling with antifreeze, a label should
be attached to the expansion tank, stating the
type and concentration of antifreeze used,
and the date installed. Any subsequent
topping-up should be made with the same
type and concentration of antifreeze.
35 Do not use engine antifreeze in the
windscreen/tailgate washer system, as it will
cause damage to the vehicle paintwork. A
screenwash additive should be added to the
washer system in the quantities stated on the
bottle.

21 Air filter renewal

2

Note: On models from 1994, the maker’s
specified interval for this procedure is
36 000 miles (60 000 km).

TU models

1 Slacken the retaining clips (where fitted),
and disconnect the vacuum hose and
breather hose from the front of the air cleaner
housing-to-carburettor/throttle body duct
(see illustration). Where the crimped-type
Peugeot hose clips are fitted, cut the clips and
discard them; use standard worm-drive hose
clips on refitting.
2 Slacken the retaining clip securing the duct
to the carburettor/throttle body. Release the
retaining clips securing the lid to the top of the
air cleaner housing. Lift the duct and air
cleaner lid assembly away, and position it
clear of the air cleaner housing (see
illustrations).
3 Lift the air cleaner element out of the
housing (see illustration).
4 Fit the new element into the housing, and
secure it in position with the retaining clips.
5 Refit the sealing ring to the top of the filter

(where fitted), and refit the air cleaner-to-
carburettor/throttle body duct. Ensure that the
duct and its sealing rings are correctly seated,
and securely tighten the retaining clips.
6 Reconnect the vacuum and breather hoses
to the duct, and secure them in position with
the retaining clips (where fitted).

XU models
(except XU10J4 16-valve)
with side-mounted air cleaner

7 Disconnect the air duct from the filter
housing cover to the carburettor/airflow meter
at the filter housing end (see illustration).
8 Release the clips and lift off the air cleaner
top cover (see illustration).
9 Withdraw the filter element from the air
cleaner body (see illustration).
10 Fit the new element in position in the air
cleaner body making sure that it is the right
way round.

24 000 Mile / 2 Year Service

1•19

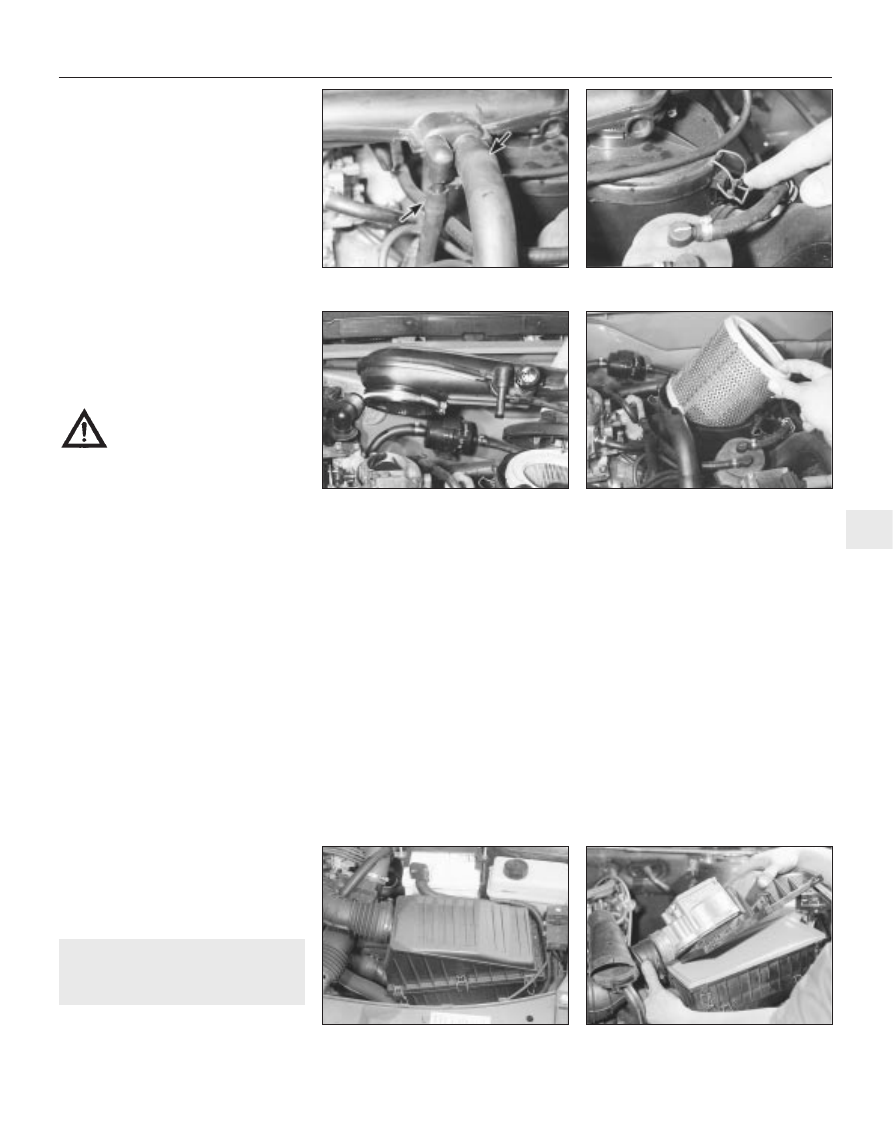

21.2b  . . . and remove the duct, positioning

it clear of the air cleaner housing

21.8  Lifting off the top cover

21.7  Air filter housing cover located in the
left-hand front of the engine compartment

21.3  Removing the air cleaner element

on TU models

21.2a  . . . then release the air cleaner lid

retaining clips, and the duct clip . . .

21.1  On TU models disconnect the hoses

from the front of the duct . . .

1

Warning: Take precautions
against scalding, as the cooling
system will be hot.

11 Refit the top cover and attach the clips.
12 Reconnect the air duct.

XU models
(except XU10J4 16-valve)
with top-mounted air cleaner

13 Slacken the retaining clip, and disconnect
the inlet duct from the front of the cylinder
head cover (see illustration).
14 Slacken and remove the two retaining
screws situated at the front of the cylinder
head cover, then release the two air filter
cover retaining clips. Remove the filter cover
from the cylinder head cover, and withdraw
the filter element (see illustrations).
15 Fit the new element in position in the
cylinder head cover. Refit the filter cover, and
secure it with its retaining screws and clips.
16 Reconnect the inlet duct to the cylinder
head cover, and tighten its retaining clip.

XU10J4 16-valve models

17 Disconnect the air duct and remove the
cover from the end of the air cleaner body.
18 Withdraw the air filter element noting
which way round it is fitted.
19 Fit the new element in the body, ensuring
that it is fitted the correct way round.
20 Refit the cover and air duct.

22 Ignition system check

3

Note: On models from 1994, the maker’s
specified interval for this procedure is
18 000 miles (30 000 km).

1 The ignition system components should be
checked for damage or deterioration as
described under the relevant sub-heading.

Ignition systems
incorporating a distributor

General component check

2 The spark plug (HT) leads should be
checked whenever new spark plugs are
installed in the engine.
3 Ensure that the leads are numbered before
removing them, to avoid confusion when
refitting. Pull the leads from the plugs by
gripping the end fitting, not the lead,
otherwise the lead connection may be
fractured.
4 Check inside the end fitting for signs of
corrosion, which will look like a white crusty
powder. Push the end fitting back onto the
spark plug, ensuring that it is a tight fit on the
plug. If not, remove the lead again, and use
pliers to carefully crimp the metal connector
inside the end fitting until it fits securely on the
end of the spark plug.
5 Using a clean rag, wipe the entire length of
the lead to remove any built-up dirt and

grease. Once the lead is clean, check for
burns, cracks and other damage. Do not bend
the lead excessively, or pull the lead
lengthways - the conductor inside might
break.
6 Disconnect the other end of the lead from
the distributor cap. Again, pull only on the end
fitting. Check for corrosion and a tight fit in the
same manner as the spark plug end. If an
ohmmeter is available, check the resistance of
the lead by connecting the meter between the
spark plug end of the lead and the segment
inside the distributor cap. Refit the lead
securely on completion.
7 Check the remaining leads one at a time, in
the same way.
8 If new spark plug (HT) leads are required,
purchase a set for your specific car and
engine.
9 Remove the distributor cap by unscrewing
its retaining screws. Wipe it clean, and
carefully inspect it inside and out for signs of
cracks, carbon tracks (tracking) and worn,
burned or loose contacts; check that the
cap’s carbon brush is unworn, free to move
against spring pressure, and making good
contact with the rotor arm. Also inspect the
cap seal for signs of wear or damage, and

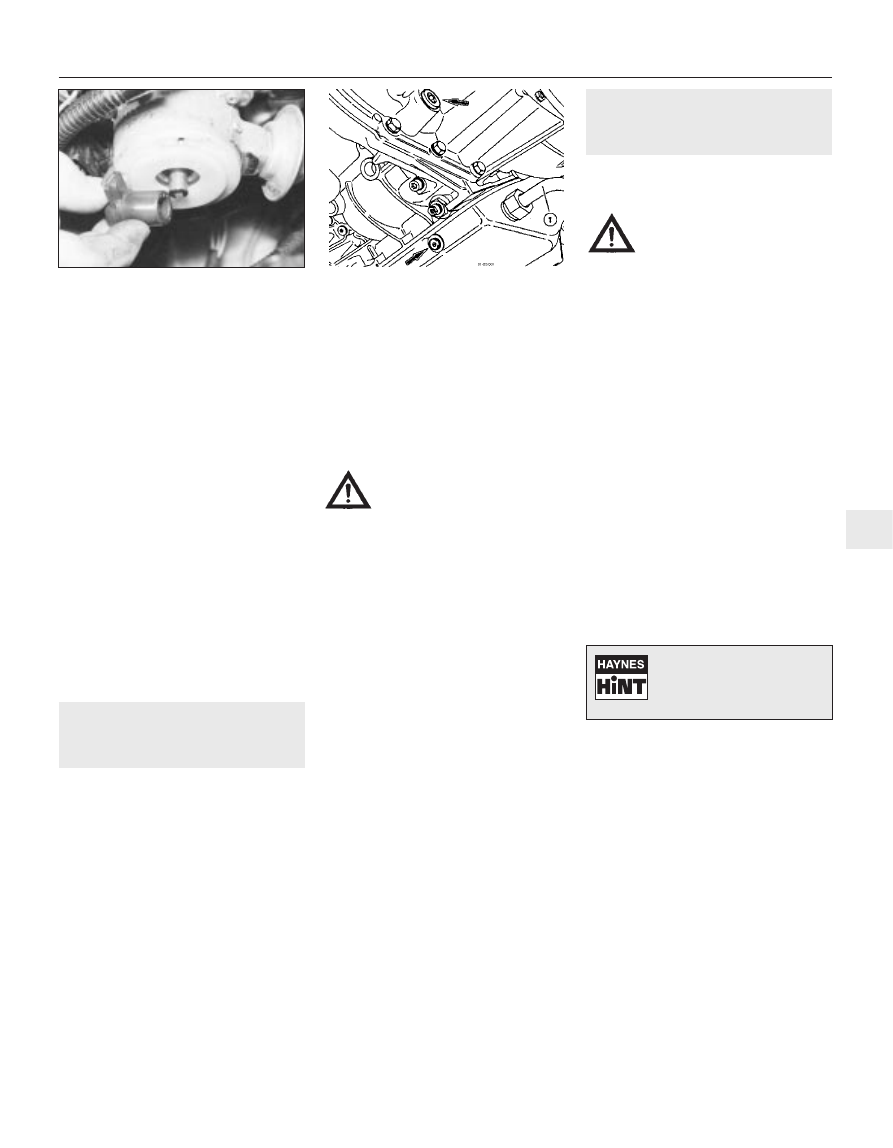

renew if necessary. Remove the rotor arm
from the distributor shaft and inspect it (see
illustration). It is common practice to renew
the cap and rotor arm whenever new spark
plug (HT) leads are fitted. When fitting a new
cap, remove the leads from the old cap one at
a time, and fit them to the new cap in the
exact same location - do not simultaneously
remove all the leads from the old cap, or firing
order confusion may occur. On refitting,

1•20

24 000 Mile / 2 Year Service

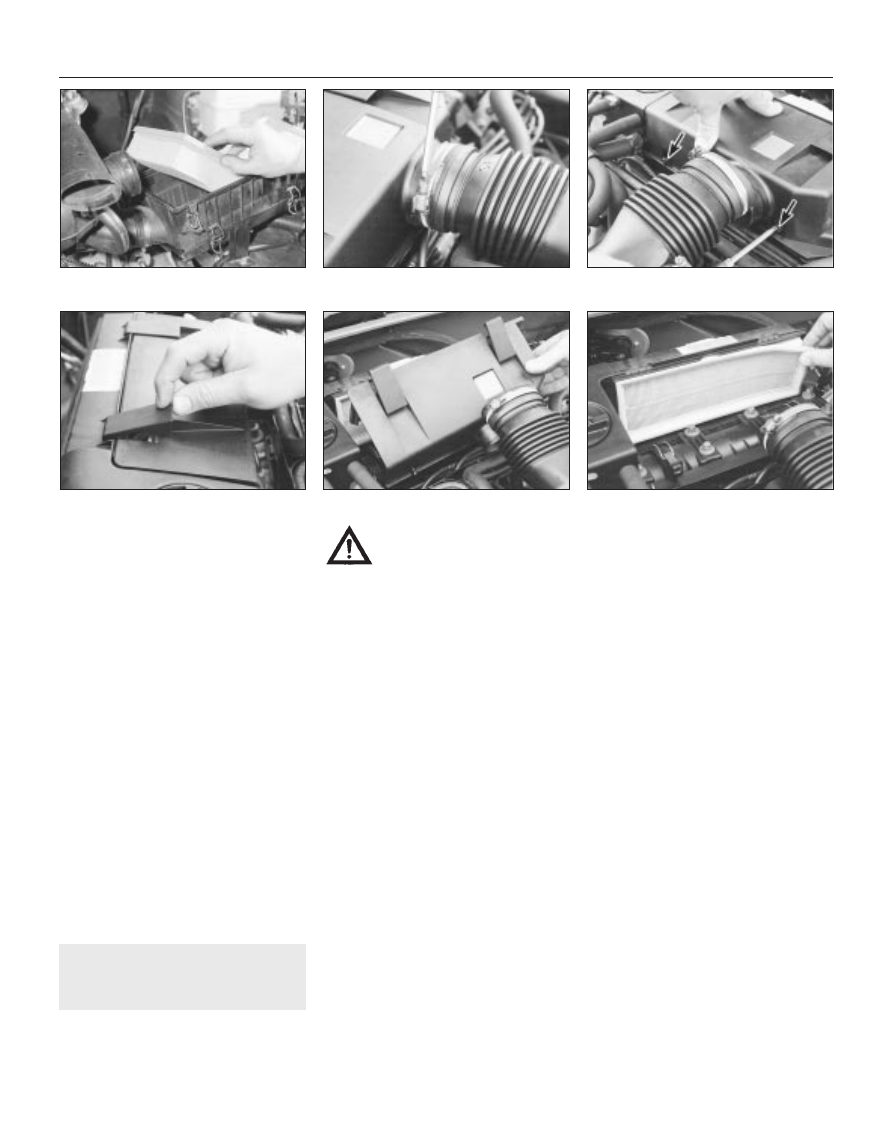

21.9  Removing the air filter element

21.14a  . . . then slacken the retaining

screws (arrowed) . . .

21.14d  . . . and withdraw the filter element

21.14c  Lift off the filter cover . . .

21.14b  . . . and release the retaining clips

21.13  Disconnect the intake duct from the

front of the cylinder head cover . . .

Warning: Voltages produced by
an electronic ignition system
are considerably higher than
those produced by conventional

ignition systems. Extreme care must be
taken if working on the system with the
ignition switched on. Persons with
surgically-implanted cardiac pacemaker
devices should keep well clear of the
ignition circuits, components and test
equipment.

ensure that the arm is securely pressed onto
the shaft, and tighten the cap retaining screws
securely.
10 Even with the ignition system in first class
condition, some engines may still occasionally
experience poor starting, attributable to damp
ignition components. To disperse moisture, a
water-dispersant aerosol can be very
effective.

Ignition timing check and adjustment

11 Check the ignition timing as described in
Chapter 5B.

Static (distributorless)
ignition systems

General component check

12 On all except 1998 cc 16-valve models,
check the condition of the HT leads as
described above. On 1998 cc 16-valve
models, there are no HT leads, so the only
relevant check is that all the primary (LT)
circuit wiring connectors are clean and free of
corrosion.

Ignition timing check and adjustment

13 Refer to Chapter 5B.

23 Automatic transmission fluid

renewal

2

Note: On models from 1994, the maker’s
specified interval for this procedure is
18 000 miles (30 000 km).
1 Take the vehicle on a short run, to warm the
transmission up to normal operating
temperature.
2 Park the car on level ground, then switch off
the ignition and apply the handbrake firmly.
For improved access, jack up the front of the
car and support it securely on axle stands
(see “Jacking and Vehicle Support”). Note

that, when refilling and checking the fluid
level, the car must be lowered to the ground,
and level, to ensure accuracy.
3 Remove the dipstick, then position a
suitable container under the transmission. The
transmission has two drain plugs: one on the
sump, and another on the bottom of the
differential housing (see illustration).
4 Unscrew both drain plugs, and allow the
fluid to drain completely into the container.

5 When the fluid has finished draining, clean
the drain plug threads and those of the
transmission casing. Fit a new sealing washer
to each drain plug, and refit the plugs to the
transmission, tightening each securely. If the
car was raised for the draining operation, now
lower it to the ground. Make sure that the car
is level (front-to-rear and side-to-side).
6 Refilling the transmission is an awkward
operation, adding the specified type of fluid to
the transmission a little at a time via the
dipstick tube. Use a funnel with a fine mesh
gauze, to avoid spillage, and to ensure that no
foreign matter enters the transmission. Allow
plenty of time for the fluid level to settle
properly.
7 Once the level is up to the MAX mark on the
dipstick, refit the dipstick. Start the engine,
and allow it to idle for a few minutes. Switch
the engine off, then recheck the level,
topping-up if necessary. Take the car on a
short run to fully distribute the new fluid
around the transmission, then recheck the
fluid level as described in “Weekly checks”.

24 Brake fluid renewal

2

Note: On models from 1994, the maker’s
specified interval for this procedure is every
2 years, regardless of mileage.

1 The procedure is similar to that for the
bleeding of the hydraulic system as described
in Chapter 9, except that the brake fluid
reservoir should be emptied by siphoning,
using a clean poultry baster or similar before
starting, and allowance should be made for
the old fluid to be expelled when bleeding a
section of the circuit.
2 Working as described in Chapter 9, open
the first bleed screw in the sequence, and
pump the brake pedal gently until nearly all
the old fluid has been emptied from the
master cylinder reservoir. Top-up to the
“MAX” level with new fluid, and continue
pumping until only the new fluid remains in the
reservoir, and new fluid can be seen emerging
from the bleed screw. Tighten the screw, and
top the reservoir level up to the “MAX” level
line.

3 Work through all the remaining bleed
screws in the sequence until new fluid can be
seen at all of them. Be careful to keep the
master cylinder reservoir topped-up to above
the “MIN” level at all times, or air may enter
the system and greatly increase the length of
the task.
4 When the operation is complete, check that
all bleed screws are securely tightened, and
that their dust caps are refitted. Wash off all
traces of spilt fluid, and recheck the master
cylinder reservoir fluid level.
5 Check the operation of the brakes before
taking the car on the road.

24 000 Mile / 2 Year Service

1•21

23.3  Automatic transmission fluid drain

plugs (arrowed). Transmission is refilled

via the dipstick tube (1)

22.9  The rotor arm is a push fit on the

distributor shaft

1

Warning: If the fluid is hot, take
precautions against scalding.
Clean the drain plugs, being
especially careful to wipe any

metallic particles off the magnetic insert.
Discard the original sealing washers;
these should be renewed whenever they
are disturbed.

Warning: Brake hydraulic fluid
can harm your eyes and
damage painted surfaces, so
use extreme caution when

handling and pouring it. Do not use fluid
that has been standing open for some
time, as it absorbs moisture from the air.
Excess moisture content can cause a
dangerous loss of braking effectiveness.

Old hydraulic fluid is
invariably much darker in
colour than the new, making
it easy to distinguish the two.

25 Timing belt renewal

4

Note: On models from 1994, the maker’s
specified interval for this procedure is
72 000 miles (120 000 km).

Refer to the relevant Part of Chapter 2.

26 Manual transmission

oil level check

2

Note: On models from 1994, the maker’s
specified interval for this procedure is
36 000 miles (60 000 km).
Note: A suitable square-section wrench may
be required to undo the transmission
filler/level plug on some models. These
wrenches can be obtained from most motor
factors or your Peugeot dealer.
Haynes Hint: It may be possible to use the
square end fitting on a ratchet handle (as
found in a typical socket set) to undo the
plug.
1 Park the car on a level surface. The oil level
must be checked before the car is driven, or
at least 5 minutes after the engine has been
switched off. If the oil level is checked
immediately after driving the car, some of the
oil will remain distributed around the
transmission components, resulting in an
inaccurate level reading.
2 Turn the steering wheel on full left-hand
lock, then where applicable remove the cover
for access to the left-hand side of the
transmission.
3 Wipe clean the area around the filler/level
plug, which is on the left-hand end of the
transmission. Unscrew the plug and clean it;
discard the sealing washer (see illustration).
4 The oil level should reach the lower edge of
the filler/level hole. A certain amount of oil will
have gathered behind the filler/level plug, and
will trickle out when it is removed; this does
not necessarily indicate that the level is

correct. To ensure that a true level is
established, wait until the initial trickle has
stopped, then add oil as necessary until a
trickle of new oil can be seen emerging (see
illustration). The level will be correct when
the flow ceases; use only good-quality oil of
the specified type.
5 Filling the transmission with oil is an
extremely awkward operation; above all, allow
plenty of time for the oil level to settle properly
before checking it. If a large amount had to be
added to the transmission, and a large
amount flows out on checking the level, refit
the filler/level plug and take the vehicle on a
short journey so that the new oil is distributed
fully around the transmission components,
then recheck the level when it has settled
again.
6 If the transmission has been overfilled so
that oil flows out as soon as the filler/level
plug is removed, first check that the car is
completely level (front-to-rear and side-to-
side), and allow any surplus oil to drain off into
a suitable container.
7 When the level is correct, fit a new sealing
washer to the filler/level plug. Refit the plug,
tightening it to the specified torque wrench
setting. Wash off any spilt oil then where
applicable refit the access cover.

27 Rear brake shoe check -

models with rear drum brakes

2

Note: On models from 1994, the maker’s
specified interval for this procedure is
36 000 miles (60 000 km).

Remove the rear brake drums, and check

the brake shoes for signs of wear or
contamination. At the same time, also inspect
the wheel cylinders for signs of leakage, and
the brake drum for signs of wear. Refer to the
relevant Sections of Chapter 9 for further
information.

28 Pollen filter renewal

1

Note: On models from 1994, the maker’s
specified interval for this procedure is
9000 miles (15 000 km) or 12 months.
1 On later models, a pollen filter is fitted.
2 Open the bonnet.
3 Release the securing clips, and withdraw
the plastic cover from the heater air inlet in the
passenger’s side of the scuttle at the rear of
the engine compartment.
4 Unclip the pollen filter from the heater air
inlet duct (see illustration).
5 Refitting is a reversal of removal.

29 Emissions control

systems check

2

Note: On models from 1994, the maker’s
specified interval for this procedure is
18 000 miles (30 000 km).
1 Details of the emission control system
components are given in Chapter 4D.
2 Checking consists simply of a visual check
for obvious signs of damaged or leaking
hoses and joints.
3 Detailed checking and testing of the
evaporative and/or exhaust emission systems
(as applicable) should be entrusted to a
Peugeot dealer.

30 Road test

1

Note: On models from 1994, the maker’s
specified interval for this procedure is
18 000 miles (30 000 km).

Instruments
and electrical equipment

1 Check the operation of all instruments and
electrical equipment.

36 000 Mile / 3 Year Service

1•22

36 000 Mile / 3 Year Service

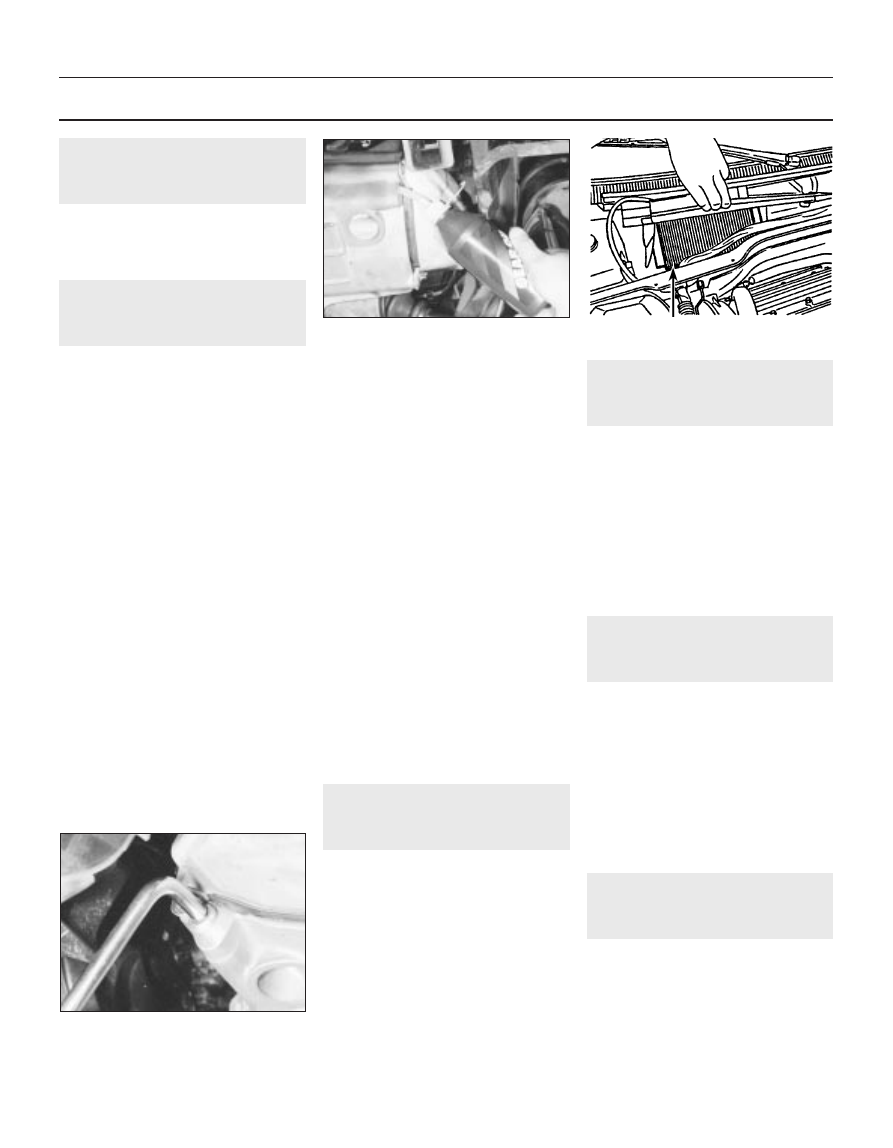

28.4  Removing the pollen filter from the

heater air intake duct

26.4  Toping-up the transmission oil level

26.3  Using a square-section  wrench to

unscrew the transmission filler/level plug

(MA transmission shown)
